USER GUIDE
PWDBT
Bluetooth Mobile Speaker
Welcome!
Thank you for purchasing a Powerwerks Bluetooth Mobile Speaker. Please read through this
guide to help you understand all the features of this new product. We wish you many years of
enjoyment with your Powerwerks wireless speaker.
Enjoy Wireless Sound for your Bluetooth Device
Power/Charge Indicator
This light is GREEN when power is on.
This light will turn RED when the unit is plugged in and battery is charging.
When the battery falls below 20% full capacity, Red LED will ash to indicate low power. The unit
will shut down after about 5 minutes of low power indication. After connecting the AC adaptor
to the speaker, the battery begins charging and red LED will stay lit. The red LED will be o after
fully charged.
Please Note: When the unit is powered ON and the battery is charging, this light will be YELLOW.
Power Button
Push this button to turn the Power On and O.
Volume (-) and Volume (+)
The unit is set to a default volume level the rst time it is powered on.
Press Volume - and Volume + to adjust the music volume.
When the volume reaches the minimum or maximum level, the green LED will ash when
pressing the volume buttons. If the battery runs out of power, the default volume will be
restored.
Bluetooth Indicator
When no devices are connected to the unit, the Bluetooth Indicator will ash quickly and is
waiting to pair. After paired successfully, the indicator will ash slowly with a beep. At this time
you can play music through the speaker.
If the Bluetooth connection is lost, the unit will go into Reconnect Mode to try to restore the
previous connection. At this time, the light uses a quick, double-ash to indicate Reconnect
Mode. After the connection is restored, the light will ash with a beep. At this time, you can
resume playing music using the Bluetooth connection.
Bluetooth Button
Pairing to the Bluetooth speaker is controlled by your Bluetooth device.
When playing music via Bluetooth connection, pushing the Bluetooth button can mute the
sound and pause the music player. Push again to restart play.
Holding this button for 2 seconds or more disconnects from a Bluetooth device.

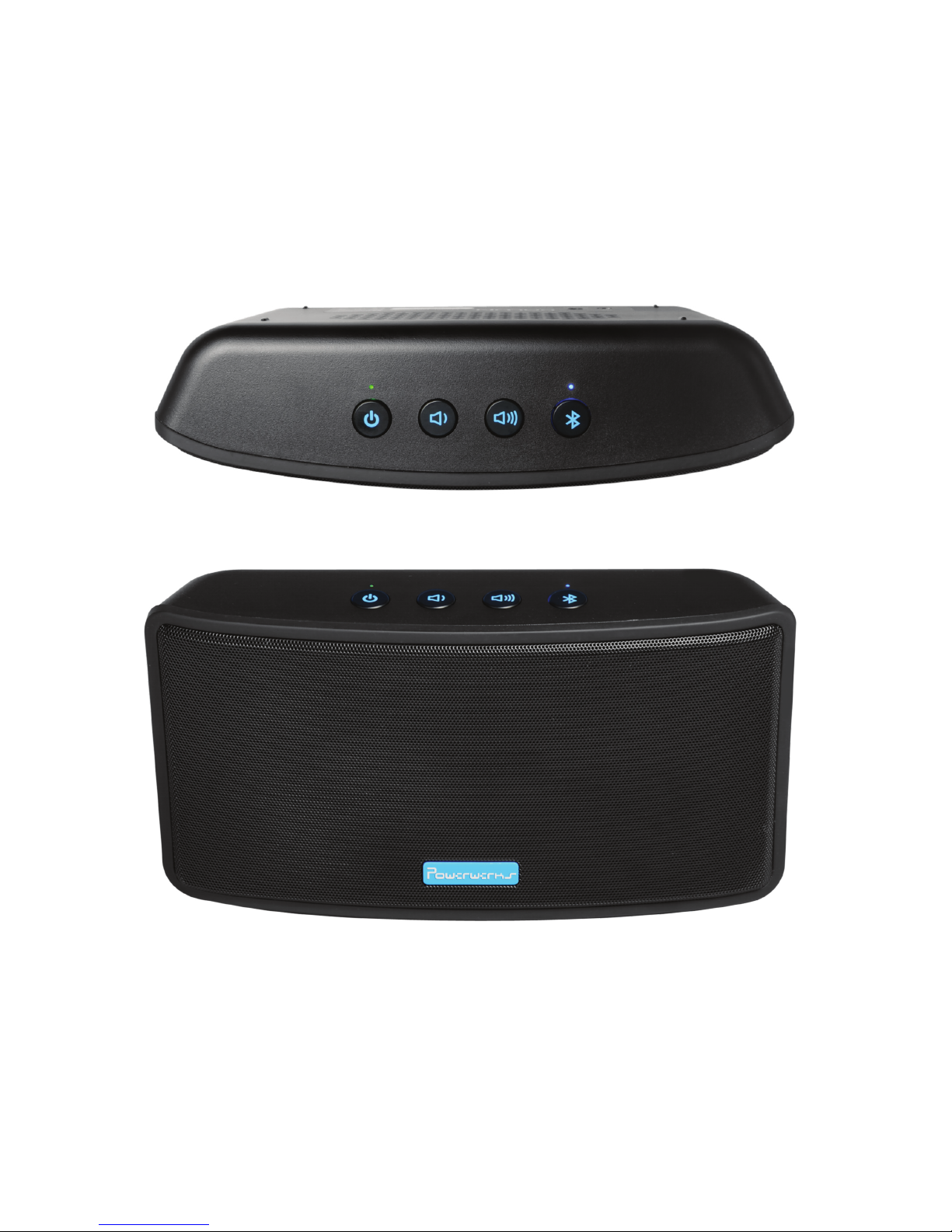

FUNCTIONS
Power
Button
Power/Charge
Indicator
Bluetooth
Indicator
Bluetooth
Button
Volume
(-)
Volume
(+)
PAIRING TO A BLUETOOTH DEVICE
1) Power on this unit, and make sure the bluetooth indicator is in quick- ash mode
2) Make sure your Bluetooth device has the Bluetooth function enabled and nd
the device ID ”Powerwerks” and pair it. The speaker will beep after successfully
connecting.
3) To disconnect from a Bluetooth Device, hold the Bluetooth button for more than
2 seconds. The speaker will return to “waiting to pair” status. You may then pair new
device with the unit.
Please Note: The paired history on your bluetooth device needs to be removed manually
before then it can be paired again. This is because the pairing code has been changed after
breaking the existing connection.
If the Bluetooth connection is lost for more than 15 minutes, the Bluetooth will be
shutdown and the unit will power o after 2 minutes.
Reconnecting to a Bluetooth Device
Reconnect Mode means the bluetooth device can connect again with this unit if its
Bluetooth function is on and has been paired with this unit before.
After turning on the unit, rst you can hear the initial Bluetooth sound, then another
beep. This indicates the Bluetooth connection between the device and the unit has
been reconnected.
During Bluetooth play, if the device has been moved far from the unit and the
connection is lost, the unit will work in Long Distance Reconnect Mode. If the device
moves back during the 15 minutes, the connection will be restored.
If Bluetooth connection is lost for more than 15 minutes, the bluetooth will be
shutdown and the unit will power o unit after 2 minutes.
If the Bluetooth device switches o the Bluetooth function the connection will be
lost. The connection can not be established automatically, it needs to be restored
manually.
Aux In
3.5mm stereo input jack for audio devices.
Plugging into this jack disables Bluetooth audio.
15V Adapter Jack
Use only the included 15V adapter for charging and powering the unit.
When power/charge indicator blinking, it means the battery power is lower than 20%,
and it needs to be charged.
Charging time typically takes 2 to 2 ½ hours. The red LED will be o after fully charged.
Tips for Lithium Battery Life
•It is not recommended to regularly play the speaker with the AC adapter connected.
•The standby time is about 20 days after battery is full charged. If the indicator does
not turn on, use the AC adaptor to recharge battery.
•Please do not use this unit when the temperature is higher than 40 Degree
Centigrade.
Specications
AC Adaptor
Input: 100-240Vac 50/60Hz 0.5A
Output: 15Vdc 1.0A
Maximum Power: 2x10W
Bluetooth Distance: ≥20M (visible distance)
Dimension: 23.6cm(L)x 12cm(H) x 6.3cm(D)
Weight: 770g
Aux
In
15V Adapter
Jack
