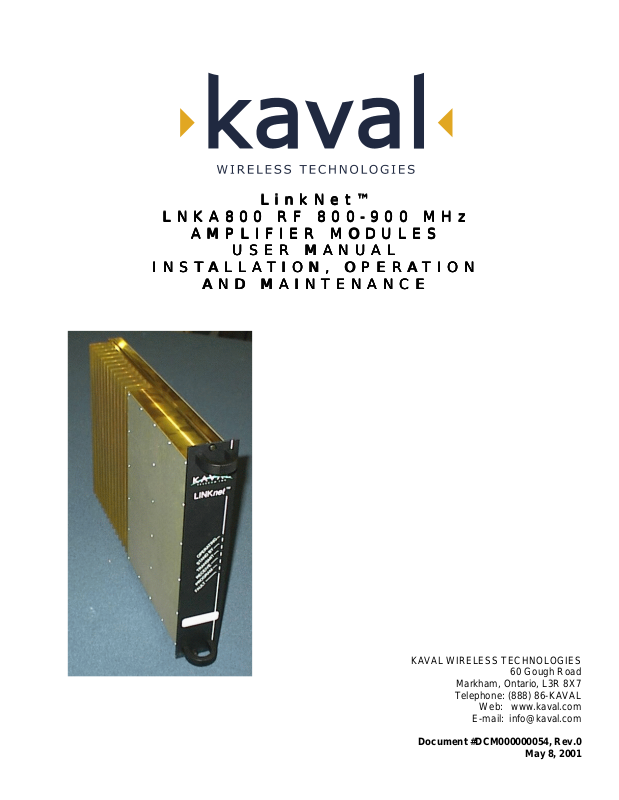

LinkNet™
LinkNet™
LinkNet™LinkNet™
LNKA800 RF 800
LNKA800 RF 800----900 MHz
LNKA800 RF 800LNKA800 RF 800
AMPLIFIER MODULES
AMPLIFIER MODULES
AMPLIFIER MODULESAMPLIFIER MODULES
USER MANUAL
USER MANUAL
USER MANUALUSER MANUAL
INSTALLATION, OPERATION
INSTALLATION, OPERATION
INSTALLATION, OPERATIONINSTALLATION, OPERATION
AND MAINTENANCE
AND MAINTENANCE
AND MAINTENANCEAND MAINTENANCE
900 MHz
900 MHz900 MHz
KAVAL WIRELESS TECHNOLOGIES
60 Gough Road
Markham, Ontario, L3R 8X7
Telephone: (888) 86-KAVAL
Web: www.kaval.com
E-mail: info@kaval.com
Document #DCM000000054, Rev.0
May 8, 2001
DCM000000054
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
PPPP
RRRR
OOOO
PPPP
RRRR
IIII
EEEE
TTTT
AAAA
RRRR
YYYY
SSSS
TTTT
AAAA
TTTT
EEEE
MMMM
EEEE
NNNN
PPPP
RRRR
OOOO
PPPP
RRRR
IIII
EEEE
TTTT
AAAA
RRRR
YYYY
SSSS
TTTT
AAAA
TTTT
EEEE
MMMM
EEEE
© 2000 KAVAL WIRELESS TECHNOLOGIES All rights reserved.
No part of this publication, or any software included with it may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or
otherwise, without the prior written permission of the copyright holder.
This document contains proprietary information of KAVAL WIRELESS TECHNOLOGIES The contents are
confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of
the owner or licensee of this document, without the prior written consent of KAVAL WIRELESS
TECHNOLOGIES, is strictly prohibited.
KAVAL WIRELESS TECHNOLOGIES provides this document as is, without any warranty of any kind either
expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a
particular purpose. KAVAL WIRELESS TECHNOLOGIES may make changes or improvements in the
equipment, software, or specifications described in this document at any time and without notice. These
changes will be incorporated in new releases of this document.
This document may contain technical inaccuracies or typographical errors. KAVAL WIRELESS
TECHNOLOGIES waives responsibility for any labour, materials, or costs incurred by any person or party as
a result of using this document. KAVAL WIRELESS TECHNOLOGIES, and any of its affiliates shall not be
liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or
loss of profits or date) even if they were foreseeable and KAVAL WIRELESS TECHNOLOGIES has been
informed of their potential occurrence, arising out of or in connection with this document or its use.
NNNN
TTTT
TTTT
TTTT
RRRR
AAAA
DDDD
EEEE
MMMM
AAAA
RRRR
KKKK
NNNN
OOOO
TTTT
IIII
CCCC
EEEE
TTTT
RRRR
AAAA
DDDD
EEEE
MMMM
AAAA
RRRR
KKKK
NNNN
OOOO
TTTT
IIII
CCCC
This manual makes reference to trademarks that are the property of other companies. References are used
only to refer to the products or services of the trademark owners.
LinkNet™ is a trademark of KAVAL WIRELESS TECHNOLOGIES
EEEE
Printed: 2001-05-0 8 16 :1 8:1 6
Revision Date: 5/8/01:
ii
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
TABLE OF
TABLE OF
TABLE OF TABLE OF
CONTENTS
CONTENTS
CONTENTSCONTENTS
1.
LNKA800 MODULES................................4
O
VERVIEW
Theory Of Operation ......................................... 4
M
ODELS
B
LOCK DIAGRAM
LNKA800 RF Module........................................5
M
ODULE SPECIFICATIONS
O
PERATION
Software Set-up ................................................7
Configuration.....................................................7
..............................................................4
.................................................................4
.....................................................5
.......................................6
............................................................7
DCM000000054
De-Rating Chart................................................8
Power On Self Test (POST)..............................9
Normal Operation............................................10
LINKNET AMPLIFIER MODULE Modul e .......11
A
NTENNA INSTALLATION
........................................12
Printed: 2001-05-0 8 16 :1 8:1 6
Revision Date: 5/8/01:
iii
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
1. LNKA800 MODULES
DCM000000054
Overview
Models
Theory Of Operation
A LINKNET AMPLIFIER MODULE is a Broad-Band Digitally Controlled Class-A
Amplifier. The most common LINKNET AMPLIFIER MODULE applications are the
extension of above ground signals into buildings, tunnels, vehicles or the extension
of radio coverage patterns into outdoor shaded areas such as deep valleys.
From an applications standpoint, an LINKNET AMPLIFIER MODULE is very similar
to a regular two-way radio repeater. On Frequency Radio Repeaters can be
combined using regular two-way radio multicoupling or duplexing equipment and
have input and output signal characteristics to those of regular transmitters and
receivers. The one special consideration in LINKNET AMPLIFIER MODULE
systems is that of input to output antenna isolation. This must be carefully
engineered for each installation.
These Modules are designed for indoor use only and are intended for mounting in a
standard EIA 19 inch rack. Modular design of LINKNET AMPLIFIER MODULE
circuitry allows for easy servicing, stocking of spares, adaptability and upgrade
ability.
LNKA800 MODULE FAMILY
MODEL TYPE FREQUENCY
LNKA800-A Broadband Amplifier 806-824 MHz
LNKA800-B Broadband Amplifier 851-869 MHz
LNKA800-C Broadband Amplifier 824-849 MHz
LNKA800-D Broadband Amplifier 869-894 MHz
LNKA800-E Broadband Amplifier 896-902 MHz
LNKA800-F Broadband Amplifier 928-941 MHz
Printed: 01.05.08,16:18
Revision Date:5/8/01 4
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
DCM000000054
Block diagram
RF Output
806-941 MHz
Blind-Mate
to SMA RF
Connector
UMC Controller Board without TCXO
Power &
Control to
Backplane
LNKA800 RF Module
Amplifier Board
Linear Power Amplifier
Gain
Control
Power
Circuits
Communication
Interfaces
MicroController
with lines to
all Boards
Dielectric Filter
Digital Gain Control
AGC Gain Control Loop
Dielectric Filter
Printed: 01.05.08,16:18
RF Input
806-941 MHz
Blind-Mate
to SMA RF
Connector
Revision Date:5/8/01 5
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
DCM000000054
Module Specifications
Frequency Bands See Model Chart
Modulation & Channel Spacing Broadband Amplifiers
RF Output Power Capability
1dB Compression Point = +37 dBm Typical
IP3 Intermodulation = +47 dBm Typical
AGC Control Adjustment Range +15 to +30 dBm or Disabled
Gain Adjustment Range +34 to +84 dB
Noise Figure <8 dB, 5 dB Typical
Maximum RF Input < +10 dBm without Damage
Transmit Duty Cycle Continuous
Transmit Spurious -13 dBm max
Receive Conducted Spurious -57 dBm Max
Group Delay <5 uS
RF Connectors
SMA (50Ω) Connectors on back of Card-Cage
Module Power Supply Requirements 40 Watts Maximum
Edge Connector & 2 Blind-Mate RF Connectors to
Card-Cage, DB-15 Connector on back of Card-
Connections
Cage provides per-Module Fault Relay,
Interconnect to other Modules, & RS-232
Connection
Front Panel Indicators Operating, Stand by, Fault, Program Mode
RF Modules may be configured either via the
Configuration Options
optional Controller Module, or via a PC and an
RS-232 Connection via the Card-Cage.
o
Operating Temperature Range
-10 to +50
C; Consult Kaval for installation specific
forced-air cooling requirements
Operating Humidity Range 10 to 90% RH, Non-Condensing
Size & Weight
9.11” High, 2.00” Wide, 14.00” Deep,
10 lbs, 4.5 kg Max
Printed: 01.05.08,16:18
Revision Date:5/8/01 6
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
Operation
Software Set-up
The LNKA800 module is shipped with the following factory set options:
OPTION RANGE OF VALUES DEFAULT VALUE
Frequency See Model Chart Order Specific
DCM000000054
Gain
AGC +15 to +30 dBm or Disabled +30 dBm
Module Enabled On / Off On
+34 to +84 dB +34 dB
Default values may be changed when an order is placed. Check your order
confirmation (shipped with modules) for customized values.
In line with the versatility of the LinkNet
TM
Platform, it is possible to re-configure the
LNKA800 module in the field. For further information on the modification software
and the PC adapter, contact KAVAL WIRELESS TECHNOLOGIES by E-mail:
info@kaval.com
Configuration
In line with the versatility of the LinkNet
TM
Platform, it is possible to re-configure the
LNKA800 module in the field, either with a Personal Computer (PC) or via the
optional Control Module. To use a PC it is necess ary to have a Kaval
CAB000000057 Control Cable to connect between the appropriate Module's DB15
connector on the back of the Card-Cage and the standard DB9 RS232 Connector on
the PC. On the PC a terminal emulation program such as HyperTerminal is used to
communicate to the LinkNet Module. The settings are 9600 baud, 8 bits, no parity,
and 1 stop bit. Commands are one or two words followed by pressing Return.
Commands may be given in upper or lower-case. Available commands are...
ACCESS USER: Required as a simple password to gain access to customer
settable parameters and diagnosti cs; This w ill time-out after 10
minutes, and may have to be re-typed.
HELP or ?: Displays a list of Available Commands.
LIST: Displays Current Settings and Status Faults, Etc.
VER: Display the current Version of Software.
ENABLE 1 or 0: Enables or Disables the Module.
GAIN ###: Displays or Sets the Module Gain (in tenths of a dB).
AGCTHRESH ###: Displays or Sets the AGC Level (in tenths of a dBm).
AGCEN 1 or 0: Enables or Disables AGC.
Printed: 01.05.08,16:18
Please consult Kaval Wireless Technologies for further support.
Revision Date:5/8/01 7
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
De-Rating Chart
To maintain the FCC Spurious Emissions limit of -13 dBm maximum, for multiple
carriers it is necessary to de-rate their power level. For FM carriers, they need to be
de-rated as shown...
Number of Carriers Pow er per Carrier
1 +37 dBm
2 +26 dBm
3 +24 dBm
4 +22 dBm
5 +20 dBm
6 +19 dBm
7 +18 dBm
8 +17 dBm
DCM000000054
9 +16 dBm
10 +15 dBm
15 +13 dBm
20 +11 dBm
25 +10 dBm
30 +9 dBm
For complex CDMA, TDMA, GSM, etc. carriers, typically de-rate by a further 3 to 5
dB. Consult Kaval for more information.
Printed: 01.05.08,16:18
Revision Date:5/8/01 8
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
DCM000000054
Each system module automatically performs a self-diagnostics when inserted into
the system Card-cage. These tests determine that the unit is a) correctly installed in
the Card-cage and b) not damaged in transit.
Power On Self Test (POST)
•
All six of the LED’s on the front panel will flash 3 times
•
If the LED’s do NOT flash three times, then remove the module, check the power
source, and re-insert the module, (See Installation Instructions).
•
If the card is “OK” the LED’s will continue normally. (See Normal Operation)
•
If there is a fault, then the Red Fault LED will remain on. If this occurs, contact
your KAVAL WIRELESS TECHNOLOGIES Service Representative, (See
Warranty / RMA Procedures).
The Power On Self Test is Not an RF test, it only verifies that there is power to
the unit and that the logical circuitry is functioning.
Printed: 01.05.08,16:18
Revision Date:5/8/01 9
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
Normal Operation
The LNKA800 Module has six LED’s on the faceplate:
1. OPERATING - Operating normally.
2. STANDBY – Under the control of the Control Module, the LNKC1900
Module has the ability to act as a duplex transmitter, sitting perpetually in
Stand by Mode waiting for the primary transmitter to fail. This LED should
be constant Amber. If a Fault should occur with the primary module, the
“Stand by” unit will immediately become the primary unit, at which time the
Stand by LED will be turned off and the LED’s will show an operating
Module.
3. TRANSMIT – No function on these Modules.
4. RECEIVE – No function on these Modules.
5. PROGRAM – This LED will be constant Amber when the unit is being reprogrammed by the Controller Module. This will signify that the unit is
powered on but unavailable for use.
DCM000000054
6. FAULT – Red LED, If the internal diagnostics for the module detect a
problem, then this LED will remain on
Printed: 01.05.08,16:18
Revision Date:5/8/01 10
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
LINKNET AMPLIFIER MODULE Module
DCM000000054
Printed: 01.05.08,16:18
Revision Date:5/8/01 11
LinkNet™ LNKA800 RF MODULES ! USER MANUAL
DCM000000054
Antenna Installation
•
All Antenna Installation to be performed by Qualified Technical Personnel only.
•
Antenna Installation Instructions and locations below are for the purpose of
satisfying FCC RF Exposure Compliance requirements.
•
Note that if multiple LinkNet™ Modules are used, the Instructions below
apply to the composite power output of all Modules when transmitting
simultaneously.
•
The Roof Top Antenna or Antennae for linking to the Donor Site( s) is/are
directional (high gain) Antennae, fixed-mounted physically on the side or top of a
building, or on a tower. The Antenna Gain must be no more than 10 dB. If
multiple LinkNet™ Modules are used with output combiners into any one
Antenna, and/or multiple Antennae are used on one Roof Top, then the
sum of composite powers into all Roof Top Antennae must not exceed 100
Watts maximum. Please consult Kaval Wireless for assistance as required. The
Roof Top Antennae location should be such that only Qualified Technical
Personnel can access it, and that under normal operating conditions no other
person can touch the Antenna, or approach within 10 meters of the Antenna.
•
The In-Building Antenna connection is via a coaxial cable distribution system
with Signal Taps at various points connected to the fixed-mounted Indoor
Antennae. This is shown in the figure in the Introduction. The Indoor Antennae
are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL
WIRELESS TECHNOLOGIES 12, 16, or 20 dB Cable Taps. As such the
maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below
the maximum signal level of the LinkNet™ (+40 dBm); +28 dBm, or 0.63 Watts
EIRP. If multiple LinkNet™ Modules are used with output combiners, then
the composite power output of all Modules transmitting simultaneously
must meet this maximum EIRP requirement. Please consult Kaval Wireless
for assistance as required. These Antennae are to be installed such that no
person can touch the Antenna, or approach with in 0.2 Meter s.
Printed: 01.05.08,16:18
ANTENNA INSTALLATION
WARNING
ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED
TECHNICAL PERSONNEL ONLY.
ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE
PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE
REQUIREMENTS, AND ARE NOT OPTIONAL.
ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON
CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS.
ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO
PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2
METERS.
Revision Date:5/8/01 12
Loading...
