Powerwave Technologies AR3100A User Manual
ALLGON SYSTEM AB
REV A

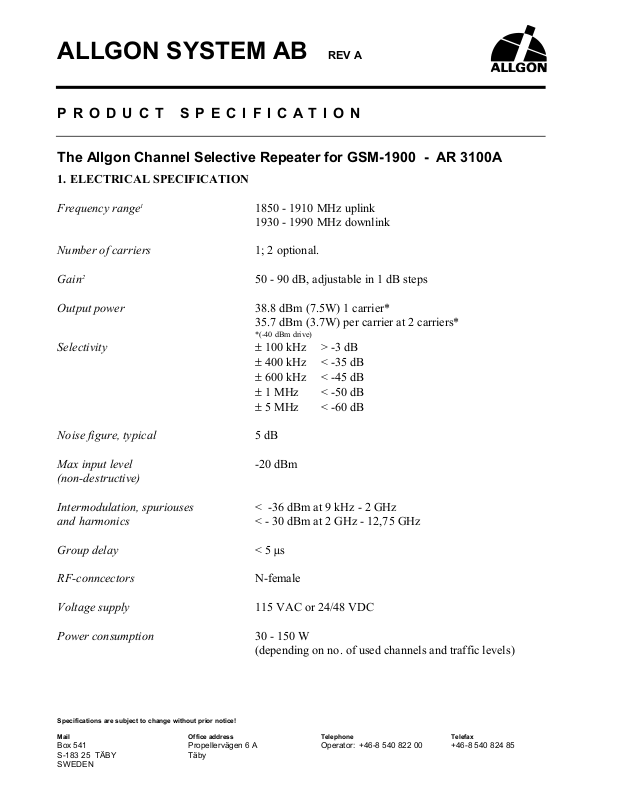

PRODUCT SPECIFICATION
The Allgon Channel Selective Repeater for GSM-1900 - AR 3100A
1. ELECTRICAL SPECIFICATION
Frequency range
1
1850 - 1910 MHz uplink
1930 - 1990 MHz downlink
Number of carriers 1; 2 optional.
2
Gain
50 - 90 dB, adjustable in 1 dB steps
Output power 38.8 dBm (7.5W) 1 carrier*
35.7 dBm (3.7W) per carrier at 2 carriers*
*(-40 dBm drive)
Selectivity ± 100 kHz > -3 dB
± 400 kHz < -35 dB
± 600 kHz < -45 dB
± 1 MHz < -50 dB
± 5 MHz < -60 dB
Noise figure, typical 5 dB
Max input level -20 dBm
(non-destructive)
Intermodulation, spuriouses < -36 dBm at 9 kHz - 2 GHz
and harmonics < - 30 dBm at 2 GHz - 12,75 GHz
Group delay < 5
µs
RF-conncectors N-female
Voltage supply 115 VAC or 24/48 VDC
Power consumption 30 - 150 W
(depending on no. of used channels and traffic levels)
Specifications are subject to change without prior notice!
Mail Office address Telephone Telefax
Box 541 Propellervägen 6 A Operator: +46-8 540 822 00 +46-8 540 824 85
S-183 25 TÄBY Täby
SWEDEN
ALLGON SYSTEM AB
2. ALARM AND MONITOR FUNCTIONS
REV A
Alarms
3
Power supply failure Unlocked PLL
DC voltages Poor antenna isolation
External alarms CU-board failure
Monitor functions
3
High temperature Gain
Output power DC testpoints
Externally visible indicators Operation - yellow LED
Alarm - red LED
+ 2 relay contacts for connection of external alarm eq.
Local control Via PC with OMT program
Remote control Via modem and fixed line to PC or
via built-in MS (optional)
3. MECHANICAL SPECIFICATION
Dimensions (WxHxD)
Dimensions (WxHxD), optional
Weight
Weight, optional
440 x 530 x 174 mm
440 x 530 x 240mm
21 kg
25 kg
17.3 x 20.9 x 6.9 inches
17.3 x 20.9 x 9.4 inches
46 lbs.
55 lbs.
Lock type ABLOY
MTBF per 2 channels 50000 hours
4. ENVIRONMENTAL SPECIFICATION
Temperature range, operation
- 25°C to + 55°C - 13°F to + 131°F
Casing class IP 55 (Water- and dustproof, high pressure)
5. SPECIAL FEATURES
• Stability Supervision • Software Download
• Radio Signal Strength Indicator • Temperature Supervision
• No of active timeslots • Compability with The Allgon
Advanced Repeater - OMC
1
The full PCS band is divided into subbands since duplex filter covers 40 Mhz (easily exchangeable in the field).
2
Applicable performance parameters are measured at 85 dB gain
3
Examples of alarms and monitor functions
Specifications are subject to change without prior notice!
