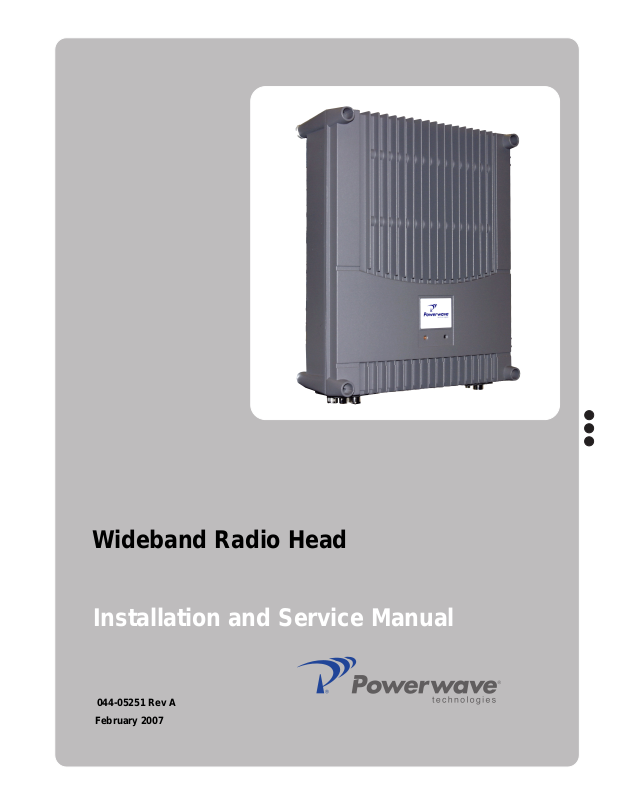

Powerwave Technologies 5JS0090 Users manual

Wideband Radio Head

Installation and Service Manual

044-05251 Rev A

February 2007

Powerwave Technologies and the Powerwave logo are registered trademarks. Powerwave T echnologies Inc. reserves the right to make changes to the documentation and equipment, includ-

ing but not limited to component substitution and circuitry changes. Changes that impact this document may subsequently be incorporated in a later revision of this document.

This Powerwave product is designed to operate within the Normal Operating (typical operating) ranges or conditions specified in this document. Operation of this equipment beyond the specified ranges in this document may cause (1) spurious emissions that violate regulatory requirements; (2) the equipment to be automatically removed from service when maximum thresholds are exceeded; or (3) the equipment to not perform in accordance with its specifications. It is the Operator's responsibility to ensure this equipment is properly installed and operated within Powerwave operating specifications to obtain proper performance from the equipment and to comply with regulatory requirements.

The rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Input power is rated at 115/230VAC, 50/ 60Hz, and should be protected with a 20 A breaker. Power strips should, at a minimum, conform to this requirement to prevent equipment damage and possible overload.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Changes or modifications not expressly approved by Powerwave Technologies, Inc. for compliance could void the user’s authority to operate this equipment. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canadian Requirement

All Powerwave apparatus introduced on the Canadian market meet all requirements of the Canadian Interference-Causing Equipment Regulations. The -20dB bandwidth is 80MHz.

Powerwave Technologies Inc., 1801 East St. Andrew Place, CA 92705 Santa Ana, USA. Phone +1 714 466 1000 – Fax +1 714 466 5800 – Internet www.powerwave.com

Wideband Radio Head Revision Record

Revision Record

Revision Lette r Date of Change Reason for Change

3A August 2005 Original VD203 66

A December 2006 Document number changed to 044-05251 and manual updated

044-05251 Rev A i

This Page Intentionally Left Blank

ii 044-05251 Rev A

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Chapter 1 - Product Description

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Scope of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Warning Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Human Exposure of RF Radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Installation and Maintenance of Antenna Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Radiation Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Radiation Safety Distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

Electrostatic Discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Chassis Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Sub Unit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Wideband Amplifier PCBA (WBA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Power Amplifier PCBA (PA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Multi-Carrier Power Amplifier PCBA (MCPA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Booster Amplifier PCBA (BA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Distribution PCBA (DIA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Control Unit PCBA (CU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Low Noise Amplifier (LNA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Duplex Filter (DPX). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Fiber Optic Unit (FOU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Fiber Optic Node (FON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Power Supply Unit (PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Remote Control Unit (RCU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Alarm Interface PCBA (ALI) and Remote Control Interface PCBA (RCI). . . . . . . . . . . . . . . . . . .1-9

Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

WRH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10

Fiber Optic Distribution Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11

Multi-Operator Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11

Chapter 2 - Controls, Indicators and Connectors

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Front Cover Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Cabinet Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

PCBA Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

CU PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

FON PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

PCBA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

BA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

DIA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

DPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

LNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

FOU – Fiber Optic Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

FON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

044-05251 Rev A i

Wideband Radio Head Wideband Radio Head

PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9

Software and Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

Chapter 3 - Installation

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

WRH Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Main Power and Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Fiber Optic and RF Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

WRH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Optional Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

External Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Door Open Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

Fiber Link Interface (FLI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

Wire Link Interface (WLI) Network (IP to R2R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

Main Power Breakdown Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9

21-60 Volt DC PSU Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10

Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11

Initial Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11

Chapter 4 - Maintenance

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Clearing Alarm Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Field Replaceable Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

FON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

PSU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

Return For Service Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

Obtaining an RMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

Repackaging for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

Remote Control Unit (RCU). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

RCU for Radio Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

RCU for Telephone Line Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

Repeater-to-Repeater Link (R2R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

Chapter 5 - Specifications

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Appendix A - Block Diagrams

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Standard WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

ii 044-05251 Rev A

Wideband Radio Head List of Figures

List of Figures

1-1 Safety Distance to Active Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

1-2 Powerwave Wideband Radio Head (WRH). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

1-3 Standard WRH Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

1-4 Standard WRH with Booster Option Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

1-5 WRH-V Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

1-6 Star Configuration Using One BMU and Four FORs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

1-7 Daisy-chain Configuration Using One RMU and Four FORs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

1-8 Multi-operator System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10

2-1 External Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

2-2 Cabinet Internal Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

2-3 DIA PCBA Connectors and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

2-4 CU PCBA Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

2-5 Low Noise Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

2-6 Fiber Optic Unit (FOU). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

2-7 3-port FON LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

2-8 4-port FON LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

2-9 Power Supply Unit (PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

3-1 Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

3-2 Mounting Bracket Installation on Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

3-3 Attaching the Bracket to a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

3-4 Attaching the Bracket to a Mast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

3-5 Attaching the WRH to the Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

3-6 RF-to-RF WRH Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

3-7 External Alarm Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

3-8 IP and R2R Network Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

3-9 Main Power Breakdown Relay Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

3-10Replacing the PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9

3-11Connecting a PC for Local Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10

4-1 RCU in the WRH Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

4-2 R2R Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12

List of Tables

2-1 WBA PCBA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

2-2 BA PCBA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

2-3 DIA PCBA Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

2-4 CU PCBA LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

2-5 Low Noise Amplifier Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

2-6 DPX Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

2-7 FOU/DPX Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

2-8 FON LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

2-9 FON Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9

2-10PSU Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

2-11Hardware/Software Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14

3-1 Cable Connection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

3-2 Main Power Breakdown Relay Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

3-3 PSU Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9

044-05251 Rev A iii

Wideband Radio Head Wideband Radio Head

3-4 Initial Startup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10

4-1 Recommended Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

4-2 Alarm Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

4-3 FON Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

4-4 PSU Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

4-5 WRH Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

5-1 AR Standard WRH Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

iv 044-05251 Rev A

Wideband Radio Head Abbreviations

Abbreviations

The following list of abbreviations are used throughout this manual, the software, and the repeater: AGC Automatic Gain Control ALI Alarm Interface AMPS Advanced Mobile Phone Service BA Booster Amplifier BeO Beryllium Oxide BMU Base Station Master Unit BS Base Station, BS antenna = towards the base station BSA Band Selective Amplifier BSel Band Selective BTS Base Transceiver Station CDMA Code Division Multiple Access CHE Channel Amplifier for GSM and EDGE CMB Combiner CSA Channel Selective Amplifier CSel Channel Selective CU Control Unit CW Continuous Wave DAMPS Digital Advanced Mobile Phone Service DC Directional Coupler DCS Digital Communication System (same as PCN) DIA Distribution Interface DL Downlink signal direction (from base station via repeater to mobile station) DPX Duplex filter EDGE Enhanced Data rates for GSM Evolution EEPROM Electrical Erasable Programmable Read Only Memory EGSM Extended Global System for Mobile communication ESD Electrostatic Discharge ETACS Extended Total Access Communication System ETSI European Telecommunications Standard Institute FLI Fiber Link Int erface FON Fiber Optic Node FOR Fiber Optic Repeater FOU Fiber Optic Unit GSM Global System for Mobile communication HW Hardware ICNIRP International Commission on Non-Ionizing Radiation Protection LED Light Emi tting Diod e LNA Low Noise Amplifier MS Mobile Station, MS antenna = towards the mobile station MSC Mobile Switching Center NEMA National Electrical Manufacturers Association

044-05251 Rev A v

Wideband Radio Head Wideband Radio Head

NiCd Nickel Cadmium NMT Nordic Mobile Telephone system NOC Network Operations Center OCM Optical Converter Module OMS Operation and Maintenance System PCN Personal Communication Network (same as DCS) PCS Personal Communication System POI Point of Interconnect PSM Power Supply Module PTFE Polytetrafluoro Ethylene (Teflon) R2R Repeater-to-Repeater RCI Remote Control Interface RCU Remote Control Unit RCM RF Converter Module RF Radio Frequency RIA Repeater-to-Repeater Adapter RMU Remote Master Unit RSSI Received Signal Strength Indication RTC Real Time Clock SW Software TACS Total Access Communication System TDMA Time Division Multiple Access UL Uplink signal direction (from mobile station via repeater to base station) UPS Uninterruptible Power Supply WHO World Health Organization WLI Wire Link Interface WRH Wideband Radio Head

vi 044-05251 Rev A

Introduction

This manual contains information and procedures for installation, operation, and maintenance of the Wideband Radio Head (WRH). The manual is organized into chapters as follows.

Chapter 1 - Product Description Chapter 2 - Controls and Indicators Chapter 3 - Installation Chapter 4 - Maintenance Chapter 5 - Specifications

Scope of Manual

This manual is intended for use by service technicians familiar with similar types of equipment. It contains service information required for the equipment described and is current as of the printing date. Changes which occur after the printing date may be incorporated by a complete manual revision or alternatively as additions.

Chapter 1

Product Description

Safety

It is necessary that any personnel involved in installation, operation or service of units included in a Powerwave Distributed Antenna System (DAS) understand and follow the below points.

• Powerwave WRHs are designed to receive and amplify signals from one or more base stations and retransmit the signals to one or more mobile stations. And, also to act the other way round, that is to receive signals from one or more mobile stations, amplify and retransmit the signals to the base stations. Powerwave WRH systems must be used exclusively for this purpose and nothing else.

• Units supplied from the mains must be connected to grounded outlets and in conformity with the local prescriptions.

• Power supply units supplied from the mains contain dangerous voltage that can cause electric shock. Disconnect the mains prior to any work in such a unit. Local regulations are to be followed when servicing such units. Authorized service personnel only are allowed to service units while the mains is connected.

• The WRH cover must be secured in opened position, for instance by tying it up. Otherwise, the cover can be closed by the wind and cause your fingers getting pinched or your head being hit.

• When working on a WRH on high ground, for instance on a mast or pole, be careful not to drop parts or the entire WRH. Falling parts can cause serious personal injury.

• All RF transmitting units, including WRHs, will generate radio signals and thereby give rise to electromagnetic fields that may be hazardous to the health of any person who is extensively exposed close to an antenna.

• Beryllium oxide (BeO) may be contained in power devices, for instance in dummy loads in directional couplers (DCC), in combiner units (CMB), and in attenuators on the FON board. Beryllium oxide is poisonous if present as dust or smoke that can be inhaled. Do not file, grind, machine, or treat these parts with acid.

• Coaxial cables used in many Po werwave sys tems have the insulation made of PTFE, polytetrafluoro ethylene, that gives off small amounts of hydrogen fluoride when heated. Hydrogen fluoride is poisonous. Do not use heating tools when stripping off

044-05251 Rev A 1-1

Wideband Radio Head Safety

coaxial cable insulation. No particular measures are to be taken in case of fire because the emitted concentration of hydrogen fluoride is very low.

• A lithium battery is permanently mounted on CU units, and in FON and OCM units. Due to the risk of explosion, this battery must only be removed from the board by an Powerwave authorized service technician.

• NiCd batteries are mounted on the FON unit. These batteries contain environmental poisonous substances. If replaced, the old batteries should be taken care of as stated in the local prescriptions.

• The FON unit contains a class IIIb laser transmitter that emits 2 – 4mW invisible laser radiation during operation. Avoid direct exposure from unconnected laser transmitter or fiber cord as follows:

– Do not power up the FON unit if a fiber cable is not attached to the fiber output UL

port, neither if a fiber cable is attached to the port but unattached in the other end.

– Never look in the end of a fiber cable. The 1310nm and 1550nm laser light is not

visible, so no signal identification can be made anyway. Use always an instrument, such as a power meter to detect signaling.

– Never use any kind of magnifying devices that can focus the laser light to an

unaided eye.

Warning Signs

The following warning signs must be observed and be kept clean and readable. Beryllium oxide

Beryllium

oxide

hazard

This warning sign is applied on boards and units which contain beryllium oxide parts. This warning sign is applied at the bottom, inside the cabinet, below the power supply unit.

BERYLLIUM OXIDE

see instruction boo

Human Exposure of RF Radiation

Safe distances must be kept when working around antennas. The following paragraphs describe the cautions to be aware of during the installation and maintenance of antenna systems and how to calculate safety distances needed for RF radiation at different antenna power and frequencies.

Antennas

To be able to receive and transmit signals, a WRH is connected to a donor antenna directed towards the base station and a service antenna directed towards the coverage area. A fiber optic cable from the base station might, however, be substituted for the donor antenna.

Installation and Maintenance of Antenna Systems

Installation and maintenance of all antenna systems must be performed with respect to the radiation exposure limits for public areas. The antenna radiation level is affected by WRH output power, antenna gain, and transmission devices such as cables, connectors, splitters and feeders. Also have in mind the system minimum coupling loss, typically between 25dB and 35dB, is determined by a standard with the purpose to protect base stations from noise and other performance dropping effects.

Radiation Exposure

The World Health Organization (WHO) and International Commission on Non-Ionising Radiation Protection (ICNIRP) have determined recommendations for radiation exposure. ICNIRP recommends not to exceed the following radiation power for public exposure:

(Toxic)

used in equipment

1-2 044-05251 Rev A

Safety Wideband Radio Head

FrequencyRadiation power

900MHz 4.5W/m² 1800MHz 9.0W/m² 2100MHz 10.0W/m² For antennas larger than 20cm the maximum radiation power can be calculated by using the

following formula:

------------------- -

4 π r

××

whereS = Radiation power in W/m² P = Output power in W r = Distance between antenna and human in meter To tackle the worst case successfully, the calculation does not consider system power

reducing actions, such as power control and DTX. Figure 1-1 shows the safety distance to an antenna due to the RF radiation. The distance depends on antenna output power and frequency, which is illustrated with the two graphs. One graph applies to 4.5W/m and the other to 9.0W/m

(1800MHz) or 10.0W/m2 (2100MHz). The safety distance range is 0

(900MHz)

to 1.4 meters which covers an antenna power range of 10dBm to 50dBm (0.01W to 100W).

Radiation Safety Distances

This section illustrates the safety distances to the antennas for some typical WRH configurations.

Outdoor GSM 900MHz

WRH output power +33dBm Feeder loss –5dB Antenna gain +17dBi Equivalent Isotropic Radiate d Power (EIRP) +45dBm

The safety distance can be read to 0.75 meter in Figure 1-1 as the maximum radiation power is 4.5W/m

for 900MHz.

Indoor GSM 900MHz

WRH output power +22dBm Feeder loss –5dB Antenna gain +1dBi EIRP +18dBm

The safety distance can be read to 0.035 meter for 4.5W/m

(900MHz).

Outdoor UMTS Standard High Power

WRH output power +38dBm Feeder loss –5dB Antenna gain +17dBi EIRP +50dBm

The safety distance can be read to 0.9 meter for 10W/m

(2100MHz).

044-05251 Rev A 1-3

Wideband Radio Head Safety

9W/m2 (1800MHz)

10W/m2 (2100MHz)

4.5W/m2 (900MHz)

Antenna output power in dBm

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

Safety distance to antenna in meter

Figure 1-1 Safety distance to active antenna.

Indoor UMTS

WRH output power +24dBm Feeder loss –5dB Antenna gain +3dBi EIRP +22dBm

1.0

1.1 1.2 1.3 1.4

100

31.

10.

3.2

1.0

0.3

0.1

0.0

Antenna output power in W

The safety distance can be read to 0.035 meter for 10W/m

Electrost at ic Discharge (ESD)

ESD can severly damage essential parts of teh equipment if not handled carefully. Parts on printed circuit board assemblies (PCBA) as well as other parts in the equipment are sensitive to ESD. Never touch the PCBA or uninsulated conductor surfaces unless absolutely necessary.

If you must handle the PCBAs or uninsulated conductor surfaces, use ESD protective equipment or first touch the chassis with your hand. Never let your clothes touch PCBAs or uninsulated conductor surfaces and always store PCBAs in ESD-safe bags.

(2100MHz).

1-4 044-05251 Rev A

Overview Wideband Radio Head

Overview

WRH

Figure 1-2 Powerwave Wideband Radio Head (WRH)

Powerwave WRHs work as bi-directional on-frequency amplifiers used to fill out uncovered areas in wireless mobile systems such as base station fringe areas, tunnels, convention centers, airports and business buildings. It receives, amplifies and transmits signals to/from a base transceiver station (BTS) to/from mobile stations (MS) with both directions being served simultaneously. Connections to the WRH are made with N-type or 7/16" male connectors.

WRHs are microprocessor controlled with alarm and operational status LEDs visible on the front cover. Cooling is provided through convection heat dissapation.

Operational parameters, such as gain, channel number and power levels are set using a PC running Powerwave OM-Online software which can communicate with the WRHs either locally or remotely via modem. Remote operation can be performed via PSTN or a GSM net. The Operation and Maintenance System (OMS) provides for Network Operations Center (NOC) configuration and alarm monitoring.

WRHs can be configured in many combinations depending on the wireless system, single or double system operation, and output power. The following paragraphs provide a description of the different models of WRH’s available.

The Standard WRH is used for analog or digital systems such as GSM, TACS, ETACS, AMPS, DAMPS, CDMA and WCDMA. It can be equipped with two bands in the cabinet and two bands in a high cover. It has a fiber optic donor port and an RF port for a service antenna (or RF cable) and is designed to be connected to a BTS via a BMU or OCM.

A booster option is available for the standard WRH to provide greater output power. This unit is equipped with a 6dB Booster Amplifier (BA) in the downlink path. The BA reduces the number of bands with one band per BA used in the cabinet and an additional one band if a high cover is used. The BA is located in the cabinet and is supplied from the existing PSU. For two bands, a high cover is used.

044-05251 Rev A 1-5

Wideband Radio Head Overview

WRH-V

The WRH-V is designed to provide a higher output power level and comes equipped with a MCPA in the downlink path. The MCPA reduces the number of bands to one band per MCPA used in the cabinet and an additional one band if a high cover is used. The MCPA is located in the cabinet and is supplied from the existing PSU. For two bands, a high cover is used.

Chassis Design

The WRH is housed in a cast aluminium waterproof chassis, class NEMA4 / IP65 approved for outdoor use but is also suited for indoor installations. The chassis consists of a cabinet and a cover attached with hinges. The cabinet contains the WRH circuitry. The cover comes as either a low or high version. The high cover can be used as an empty cover or be equipped as a part of the WRH or an independent WRH unit. A WRH with a high cover that is equipped as two independent units can, for example, be equipped for channel selective operation in the cabinet and band selective operation in the cover.

Indside the WRH, a number of amplifier PCBAs are individually shielded and located under a metal cover that can be opened outward. These PCBAs are of different types depending on the supported system. Functionally, all WRHs are built up with a number of sub units. These are listed and described in the following sections.

Sub Unit Overview

A number of amplifier PCBAs are individually shielded and located under a metal cover inside the WRH. This cover can be opened outward for acess. These amplifier PCBAs are of different types depending on the supported system. All of the WRHs are built up with a number of sub units which are described in the following sections.

Wideband Amplifier PCBA (WBA)

WRHs can handle multiple carriers over a wide band. Each band requires one WBA for the uplink and dowlink, and one PA for the downlink. The cabinet can be equipped with up to two WBAs and two PAs supporting two bands. Positions 1 and 3 are assigned for a WBA.

Power Amplifier PCBA (PA)

The PA is used to amplify the output signal from the WBA in the dowlonk direction and reside in positions 2 and 4.

Multi-Carrier Power Amplifier PCBA (MCPA)

Installed in the WRH-V only, the MCPA is used to amplify the output signal from the WBA. Each MCPA can handle one band in the downlink direction. It requires an extra heat sink element on the outside of the cabinet or high cover to dissipate the heat generated. The MCPA occupies positions 3 and 4 in the cabinet and 7 and 8 in a high cover.

Booster Amplifier PCBA (BA)

A WRH can be modified with a BA on the DL path to increase the output power by 6dB (typically) depending on system configuration. This BA can operate with a maximum of 2 channels and occupies position 3 in the cabinet and position 7 in a high cover. It also requires an extra heat sink element on the outside of the cabinet or high cover. Some configurations use the existing PSU while others require a second PSU.

Distribution PCBA (DIA)

The DIA is the core distribution PCBA on which all other PCBAs and units connect to in the cabinet with the exception of the PA. A shielded metal frame on the DIA provides the mounting location for the CU, ALI and RCIs, if used.

1-6 044-05251 Rev A

Overview Wideband Radio Head

P11 P12 P13 V1P14 P22P29P34 V2P36

XOB XOA P26

P28 P23 V6B

P27

M >

15 16

2 1

UP-LINK

1 X U A

P11

6 3

1 X0A

P34

X0B

P28 DOOR

P26

P23

LNA

MODEM

P27

W6B 10

P32

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

c b

P33

ALARM

c b a

P12 P13

1P232

c b a

b a

16P3

P14

LED P22

P25

15216

P25

P29

P31 PC

P21 PSU

P35

P24

LNA

DOWN-LINK

6V6

GND

Control Unit PCBA (CU)

The CU is the core microprocesor controller in the WRH and is connected to P2 on the DIA. It contains a microprocessor, main memory, flash memory for the CU software, EEPROM memory for parameters, memory for the event log and statistics, a REFO reference oscillator, ports for local and remote communication, battery powered real-time clock, and MAC identity circuit. The CU supervises and controls operational parameters such as gain control and channel handling, alarms, event log, password and logon. The CU is also a control interface for OM-Online and OMS. Software for the CU can be downloaded from OM-Online, either locally or remotely, or from OMS. It is located in the lower right part of the shielded DIA frame.

P32

P4 P5 P6 P2 P3 P31 P21 P35 P33

Figure 1-3 DIA PCBA

Figure 1-4 CU PCBA

Low Noise Amplifier (LNA)

LNAs are used as uplink low noise branch amplifiers and are located at the top of the cabinet and the high cover, if equipped. LNA/UL is located to the left and LNA/DL to the right. All coaxial conn ectors are SMA-type.

OUT

LNA UL

IN ATT +7V OUT2 OUT1

LOW

LNA DL

OUT LOW

IN+7V ATTOUT 1 OUT 2

Figure 1-5 LNAs

044-05251 Rev A 1-7

Wideband Radio Head Overview

Signals from the DPX output are fed to the LNA input connector IN. OUT1 and OUT2 outputs feed the WBAs of the same signal direction. The signal level in these connectors are +20dB referenced to the antenna input. Another output, OUT LOW, is an expansion output for an additional LNA if the WRH is equipped in the cover part of the chassis. The gain to this connector is +2dB. The +7V input is used for +7V supply from the DIA PCBA and ATT is a control signal for a controllable attenuator in the LNA.

Duplex Filter (DPX)

DPXs are located on the metal cover sheet in the upper part of the cabinet. Service and donor DPXs are identical.

Fiber Optic Unit (FOU)

The FOU is a metal plate mounted on top of the cover plate in the upper part of the WRH. The FON and fiber optic connectors are mounted on the FOU. It can also be configured with combiners, splitters, and WDMs to obtain a desired combination of several branches with double or single fiber.

Fiber Optic Node (FON)

The FON is the main part of the FOU. It is a bi-directional electrical/optical signal converter and a node in a fiber network. In addition, the FON has all the functionality included in the CU PCBA and contains battery backup. It has also functionality for:

• Electrical and optical signal supervision

• Internal and external alarm handling

• RS232 interface for local PC control via an O&M software (OM-Online)

• Remote control via an O&M software (OM-Online or OMS)

• Interfaces for RCU, WLI, and FLI

• Battery backup with charger There are two versions of the FON; a 3-port and 4-port version. The FON has coaxial ports and

two optical ports for the downlink and uplink RF signal. The 4-port version has an additional coaxial port on the left side.

Power Supply Unit (PSU)

A PSU is located in the lower center of the cabinet and, if configured, in the lower center of the high cover.

Remote Control Unit (RCU)

The RCU is an optional communication unit for remote control of WRHs via PSTN or RF modems. RCU types and details are described in Chapter 4.

Figure 1-6 Fiber Optic Unit (FOU)

1-8 044-05251 Rev A

Overview Wideband Radio Head

Alarm Interface PCBA (ALI) and Remote Control Interface PCBA (RCI)

The ALI handles alarms and alarm communication. It is replace with an RCI if an RCU is used and provides an interface between the CU and an RCU for remote communication via modem. The RCI also handles alarms and alarm communication. Either unit is located in the lower left part of the shielded DIA frame.

Sub Unit Locations

WRH

WBA

DL/UL

FON

CUALI/RCI

LNA - DL

PA DL

5678

WBA

DL/UL

DPX

PA DL

WBA

DL/UL

FON

FOU

PSU

(RCU)

PA DL

LNA - UL

1234

WBA

DL/UL

DPX

FOU

PSU

(RCU)

Figure 1-7 Standard WRH Sub Unit Locations

For single wideband operation the cabinet is equipped with a WBA in position 1 for both DL and UL paths and an associated PA in position 2 for DL signal amplification. For dual band operation another set of PCBAs can be used in positions 3 and 4. The WRH has a FON for uplink transmission via fiber optics. A high cover can be equipped as well providing up to four bands. PCBA positions are illustrated in the Figure 1-3 and a block diagram is located in Appendix A.

The booster option boosts the ouput DL signal from the PA. The BA is located at position 3 in the cabinet. A booster can only be equipped for one band in the cabinet and an additional band in a high cover. PCBA positions are illustrated in the Figure 1-4 and a block diagram is located in Appendix A.

044-05251 Rev A 1-9

Wideband Radio Head Overview

WRH-V

FON

CUALI/RCI

BA DL

LNA - DL

5678

WBA

DL/UL

DPX

PA DL

BA DL

FON

FOU

CUALI/RCI

PSU

(RCU)

LNA - UL

1234

WBA

DL/UL

DPX

PA DL

FOU

PSU

(RCU)

Figure 1-8 Standard WRH with Booster Option Sub Unit Locations

The WRH-V has a configuration similar to the standard WRH with the exception of a the MCP A that boosts the ouput DL signal from the PA. The MCPA is located at positions 3 and 4 in the cabinet. The MCPA requires an additional heat sink and is attached to the MCPA PCBA. A WRH-V can only be equipped for one band in the cabinet and an additional band in a high cover. PCBA positions are illustrated in the Figure 1-5 and a block diagram is located in Appendix A.

LNA - UL

1234

WBA

DL/UL

DPX

PA DL

FOU

PSU

(RCU)

LNA - DL

5678

MCPA

FON FON

CUA LI/RCI

WBA

DL/UL

DPX

PA DL

FOU

CUALI/RCI

PSU

(RCU)

MCPA

Figure 1-9 WRH-V Sub Unit Locations

1-10 044-052 51 Rev A

Overview Wideband Radio Head

Fiber Optic Distribution Networks

Fiber optic networks are setup identically to data networks. WRHs are connected is a star configuration as illustrated in Figure 1-6. In this example, a Base Station Master Unit (BMU) is fed by a BTS via an RF cable. An Optical Converter Module (OCM) could also be used depending on the system configuration. The BMU or OCM contain three FONs and provide continuity to the FONs in the four WRHs. By using Wave Division Multiplexers (WDMs) and Optical Splitters (OSPs) in the WRHs, the distribution net can be built up with a combination of star and daisy-chain connections using double or single fiber.

BMU WRH

BTS

WRH

Multi-Operator Configurations

Multi-operator systems require the use of Point of Interconnects (POIs), RF Combining Modules (RCMs) and OCMs as illustrated in Figure 1-7. In this simple example, two operators have two sectors each. Each sector is connected to a POI and then to a RCM. The RCM is interconnected with an OCM via coaxial cables. The combined DL and UL signals are converted to optical signals in the OCM and then distributed to the ARs. Additional information is provided in the Fiber Optic Equipment Operation and Maintenance Manual.

Operator 1

Sector 1

Sector 2

Operator 2

Sector 1

Figure 1-10 Fiber Optic Star Configuration

OCM

POI

RCM

POI

RCM

POI

Sector 2

POI

Figure 1-11 Multi-operator System

044-05251 Rev A 1-11

Wideband Radio Head Overview

This Page Intentionally Left Blank

1-12 044-052 51 Rev A

Introduction

This chapter contains descriptions of the WRH controls, indicators and connectors.

Front Cover Indicators

Chapter 2

Controls, Indicators and Connectors

Two LEDs are located on the front cover to provide easy identification of a fault in the system. The amber operation LED lights up approximately 15 seconds after the main power is switched on. When the LED is steady, the WRH is ready for operation. The red alarm LED indicates a system error alarm s when flash ing and a critic al ala rm when stea dy.

Cabinet Indicators

Amber

ALI

RCI

Figure 2-1 External Indicators

P34

P33

ALARM

FAULT

c b a

OPER

P12 P13

16P4

POWER SUPPLY UNIT

WLI / R2R

POWER

ALARM

1P232 c b a

DATA

BOOT

10V

DPX

TEST

-30 dB

-20 dB

ANT

POWER

P11

6 3

X0A

X0B

- S

P28 DOOR

15 16

15 P26 2

P23 LNA UP-LINK

P32 MODEM

P27

W6B10

1 X U A

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

b a

FAULT

OPER

16P3

Red

P14

LED P22

S >

15216

P25

P29

P24

LNA

DOWN-LINK

6V6 P31 PC

7 P21 PSU

P35

458

DPX

TEST

GND

-30 dB

-20 dB

ANT

Figure 2-2 Cabinet Internal Indicators

Figure 2-2 illustrates the LED indicators located on the ALI, or RCI, and CU PCBAs as well as the 115/220V main power switch (‘S’) in the cabinet. These indicators are described in further detail in the following sections.

044-05251 Rev A 2-1

Wideband Radio Head PCBA Indicators

PCBA Indicators

This following paragraphs describe the LED indicators on the main PCBAs inside the WRH.

CU PCBA

Figure 2-3 illustrates the ocation of the LEDs on the CU and Table 2-1 describes their indications.

WLI DATA POWER BOOT FAULT OPER

Figure 2-3 CU PCBA Indicators

Table 2-1 CU PCBA LED Indicators

LED Description

WLI Wire Line Interface. A flashing green LED indicates the unit is receiving

data over the subcarrier. A steady green LED indicates: the unit is currently not receiving any data, is currently not a control station or there is no other node in the network.

DATA Blue LED indicating data transmission in the W-net.

POWER Yellow LED indicating present power and remains steady after power is

switched on.

BOOT Steady red LED when the CU boots (10 – 15 seconds after main power is

switched on), then flashing red (5 – 10 seconds), then off if no error is detected. If an error is detected LED will stay on.

FAULT Flashing red LED for 15 – 20 seconds after main power is switched on.

Flashes for less serious alarms (Error) and is on solid for fatal alarms (Critical).

OPER Steady green LED indicates WRH is ready for operation.

WARNING: A lithium battery is permanently mounted on the CU PCBA. Due to risk of explosion, this battery must not be removed. In ca se of battery malfunction, replace the CU PCB.

2-2 044-05251 Rev A

PCBA Indicators Wideband Radio Head

FON PCBA

The FON is illustrated in Figure 2-4 and the LED indicators are described in Table 2-2.

FLI

P102

P103

Beryllium

oxide

hazard

P101

OPER

FAULT

P106

P104

POWER

BOOT

WLI/R2R

P105P109P115

P113

DATA

BATT

P108P116P111

P114

P130

CHARGE

Figure 2-4 FON LED Indicators

Table 2-2 FON LED Indications

LED Description

FLI or

F2F

Green LED. Fiber Line Interface (FLI). Flashing LED indicates the unit is receiving data over the sub carrier. A steady LED indicates the unit has detected an FLI sub-carrier, but is not carrying any data.

OPER Green LED. Lights up for approximately 15 seconds after the mains is

switched on. When steady, it indicates the unit is ready for operation.

FAULT Red LED. Flashes for 15 – 20 seconds after the mains is switched on. Will

flash for less serious alarms and be steady for fatal alarms.

POWER Yellow LED. Indicates power is present

BOOT Red LED. Steady LED when the control unit boots up (10 – 15 seconds

after the mains is switched on). Next enters a flashing state for 5 – 10 seconds. If no error is detected, the LED is off. If an error occurs, the LED remains on.

WLI Green LED. Wire Line Interface. Flashing LED indicates unit is receiving

data over the subcarrier. A steady LED indicates one of the following: The unit is not currently receiving any data, the unit is not currently a control station or there is no other node in the network.

DATA Blue LED. Indicates data transmis si on in the W-net

BATT Green LED. Steady LED indicates battery pack is currently used as power

source

CHARGE Yellow LED. Steady LED indicates battery charging

P110

P112

044-05251 Rev A 2-3

Wideband Radio Head PCBA Connectors

PCBA Connectors

This following Tables list the connections on the main PCBAs inside the WRH. Table 2-3 describes the connections for the WRH-V configured for PCS with diversity and non-diversity and Table 2-4 for Cellular with diversity and non-diversity.

Table 2-3 WRH-V PCS Connections

From To Cable Type Non-Diversity

800-15790-001

ANT M Duplexer M 1/4 super flex Used Used

ANT D Duplexer D RG223 Not Used Used DuplexerM MCPA Out .141 conform Used Used DuplexerM LNA In RG223 Us ed Used

DuplexerD LNA In RG223 Not Used Used

M LNA Out WBA P2101 RG316 Used Used D LNA Out WBA P3101 RG316 Not Used Used

MCPA IN WBA P1401 .086 conform Used Used WBA P2401 M FON P101 RG316 Used Used WBA P3401 D FON P101 RG316 Not Used Used WBA P1101 M FON P102 RG316 Used Used

Table 2-4 WRH-V Cellular Connections

From To Cable Type Non-Diversity

800-16568-001

ANT M Duplexer M 1/4 super flex Used Used

ANT D Duplexer D RG223 Not Used Used DuplexerM MCPA Out .141 conform Used Used DuplexerM LNA In RG223 Used Used

Diversity

800-15790-002

Diversity

800-16568-002

DuplexerD LNA In RG223 Not Used Used M LNA Out WBA P2101 RG316 Used Used

D LNA Out WBA P3101 RG316 Not Used Used

MCPA IN WBA P1401 .086 conform Used Used WBA P2401 M FON P101 RG316 Not Used Not Used WBA P3401 D FON P101 RG316 Not Used Not Used

WBA P1101 M FON P102 RG316 Not Used Not Used

DX DL LO (M) WBA P1101 RG316 Used Used DX UL1 LO (M) WBA P2401 RG316 Used Used DX UL2 LO (D) WBA P3401 RG316 Not Used Used

DX DL HI (M) Cable 327 RG316 Used Used

DX UL1 HI (M) Cable 325 RG316 Used Used

DX UL2 HI (D) Cable 326 RG316 Not Used Used

DX DL C M FON P102 RG223 Used Used

DX UL1 C (M) M FON P101 RG223 Used Used

2-4 044-05251 Rev A

PCBA Connectors Wideband Radio Head

DX UL2 C (D) M FON P101 RG223 Not Used Used

BA PCBA

Table 2-5 lists the connections for the BA PCBA.

Table 2-5 BA PCBA Connections

Port Connected to

P3 P5 on the PA/DL PCBA P4 HI on the service DPX

DIA PCBA

Figure 2-5 illustrates and Table 2-6 lists the connections on the DIA PCBA.

P11 P12 P13 V1P14 P22P29P34 V2P36

XOB XOA P26

P28 P23 V6B

P27

M >

15 16

2 1

UP-LINK

1 X U A

P11

6 3

P34

X0A

X0B

P28 DOOR

P26

P23

LNA

MODEM

P27

W6B 10

P32

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

c b

P33

ALARM

c b a

P5 c b a

P12 P13

16P4

1P232

c b a

b a

16P3

P14

LED P22

P25

P29

P31 PC

P21 PSU

P35

P24

LNA

DOWN-LINK

6V6

GND

P32

P4 P5 P6 P2 P3 P31 P21 P35 P33

Figure 2-5 DIA PCBA Connectors and Testpoints

Table 2-6 DIA PCBA Connections

Port Connected to

P2 CU PCBA

P3, 5, 6 Not Used

P4 ALI or RCI PCBA

P11 - 14 Channel PCBA positions 1 through 4

P21 PSU, connector 1 P22 LED PCBA in cover P23 LNA/UL P24 LNA/DL P25 Expansion output port to cover circuitry. Only in cabinets. P26 Expansion input port to cover circuitry. Used in equipped high covers. P27 AUX1 P28 Door switch P29 Power to FON P31 PC RS-232 P32 Modem RS-232 P33 External Alarm

044-05251 Rev A 2-5

Wideband Radio Head PCBA Connectors

P34 WLI for IP or R2R network P35 PSU, connector 2 P36 WLI for IP or R2R network

DPX

DPXs are located on the metal cover sheet in the upper part of the cabinet. Service and donor filters are identical.

Table 2-7 DPX Connections

Service DPX Port Connected to

ANT Service antenna (or DPX on the service (MS) DC

HI P5 on the PA/DL

LO IN on the LNA/UL. P2101 on the WBA PCBA

Donor DPX Port Connected to

ANT ANT on the FOU/DPX filter.

HI IN on the LNA/DL

LO P5 on the PA/UL

LNA

LNAs are located at the top of the cabinet and the high cover, if equipped. LNA/UL is located to the left and LNA/DL to the right. All coaxial connectors are SMA-type.

OUT

LNA UL

IN ATT +7V OUT2 OUT1

LOW

LNA DL

OUT LOW

IN+7V ATTOUT 1 OUT 2

Figure 2-6 Low Noise Amplifiers

Signals from the DPX output are fed to the LNA input connector IN. OUT1 and OUT2 outputs feed the CHE, CSA, BSA, or WBAs of the same signal direction. The signal level in these connectors are +20dB referenced to the antenna input. Another output, OUT LOW, is an expansion output for an additional LNA if the WRH is equipped in the cover part of the chassis. The gain to this connector is +2dB. The +7V input is used for +7V supply from the DIA PCBA and ATT is a control signal for a controllable attenuator in the LNA.

Table 2-8 LNA Connections

LNA/UL Port Connected to

OUT LOW IN on the LNA/UL in the cover, if equipped

IN LO on the service DPX duplex filter.

ATT +7V P23 on the DIA PCBA.

OUT1 P101 on the CHE3/UL, CSA/UL, or BSA/UL PCBA. P2101 on the

WBA PCBA.

OUT2 P101 on the CHE4/UL channel PCBA.

LNA/DL Port Connected to

OUT LOW IN on the LNA/DL in the cover, if equipped

IN HI on the donor DPX duplex filter.

ATT +7V P24 on the DIA PCBA.

2-6 044-05251 Rev A

PCBA Connectors Wideband Radio Head

OUT1 P101 on the CHE2/DL, CSA/DL, or BSA/DL PCBA. P2102 on the

WBA PCBA.

OUT2 P101 on the CHE1/DL channel PCBA.

Not used outputs do not need to be terminated.

WARNING: Some LNA power transistors may contain beryllium oxide (BeO) that is poisonous. Refer to the Safety section in Chapter 1

FOU – Fiber Optic Unit

The FOU is a metal plate on which a FON PCBA, a DPX and fiber optic connectors are assembled. It is mounted on top of the cover plate in the upper part of the WRH. The RF connections for the FOU are defined in the Table 2-7.

FON

Figure 2-7 Fiber Optic Unit (FOU)

Table 2-9 Fiber Optic Unit (FOU) Connections

on the donor side

Port Connected to

ANT BS -20dB on the donor (BS) DC

HI P101 on the FON

LO P102 on the FON

on the service side

Port Connected to

ANT Service antenna

HI P5 on the PA/DL or P4 on the BA

LO IN on the LNA/UL or P2101 on the WBA

Table 2-9 defines the FON port numbers, connector types, and port usage.

044-05251 Rev A 2-7

Wideband Radio Head PCBA Connectors

FLI

P102

P103

Beryllium

oxide

hazard

P101

OPER

FAULT

P106

P104

POWER

BOOT

WLI/R2R

P105P109P115

P113

DATA

BATT

P114

CHARGE

P130

P108P116P111

P112

Figure 2-8 FON Connector Locations

Table 2-10 FON Connectors

Port Description

P101 SMA, electrical RF input port (to the optical TX port) P107 SMA, electrical RF input port (15dB below the P101 port) P102 SMA, electrical RF output port (from the optical RX port) P103 SMA, electrical RF output port (15dB below the P102 port)

RX DIN/APC, optical input port (to the P102 and P103 RF ports)

TX DIN/APC, optical output port (from the P101 RF port) P104 Used only for development and debugging P105 4-pin male, door LED indicators. Used for the yellow and red LED indica-

tors located on the front cabinet door

P106 9-pin D-sub female, RS-232 used for local PC communication

P108/116 6-pin male, parallel connected power ports for the FON

P109 7-pin male, used for external alarm sensors P110 W-link jumper, used to terminate units in a W-link. It has to be set in the

parking state for all units except for the first and last units in a W-link. The Parking state (P) has the jumper between the center and bottom pins. The opposite state (T) terminates the W-link.

P111/112 5-pin male, WLI ports used for interconnecting nodes in WLI-nets (IP or

R2R networks). They are identical and connected in parallel. One of the connectors are intended to be used from the previous node and the other connector to the next node in the network. Either can be used for the first

and the last unit in the net chain. P113 2-pin male, used for the on-PCBA backup batteries. P114 Backup power output jumper, sets the backup power output state. The

OFF state has jumper between the center and left pins. This jumper has

to be in the OFF state when used in an OCM. Otherwise, it shall be in the

ON state. P115 3-pin male, future port - intended for future use

P110

2-8 044-05251 Rev A

PCBA Connectors Wideband Radio Head

P130 34-pin, 2-line male, RCU port used for connecting an RCU. The connec-

tor contains both the modem connection and RCU power supply.

PSU

The PSU is located in the bottom middle of the cabinet or in an equipped high cover. The PSU has all the voltages required for the WRH. It has capacity for the radio circuitry, fiber optics, modem, etc., and also supplies the BA if used. Multi-band WRH-Vs always require a second PSU. There are two PSU types with different input voltages:

1. 115/230V 50/60Hz, 300W input max.

2. 21- 60V DC, 300W input max.

The DIA provides most of the internal connection between the sub units and external ports. Connectors involved in the installation are also located on the DIA. Table 2-13 describes these connections.

P34 P36 P28

P32

P33

P27

M >

- S

15 16

P26 2 1

P23

LNA UP-LINK

DPX

TEST

P27

-30 dB

1 X U A

-20 dB

ANT

P11

6 3 P

P34

X0A

X0B

P28 DOOR

P32

P33

MODEM

ALARM

W6B 10

ALLGON INNOVAT ION SWEDEN M105 R6

PARKING FOR W5

c b a

P4 c b a

P12 P13

1P232 c b a

POWER SUPPLY UNIT

P14

LED P22

S >

16P3

15216

P25

P29

P24

LNA

DOWN-LINK

6V6

P31 PC

P21

GND

PSU

P35

DPX

TEST

-30 dB

-20 dB

ANT

Figure 2-9 PSU Location

Table 2-11 PSU Connectors

Port Description P27 Auxiliary Port (8-pin male) - Used to power the old RCU. It is located on the DIA

to the left in the cabinet. Pins 2 and 3 must always be interconnected to provide the CU and ALI/RCI PCBs with voltage supply. If there is no cable connected, pins 2 and 3 must be interconnected with a jumper.

P31 RS-232 PC Port (9-pin D-sub female) - Used for local PC communication. It is

located on the DIA to the right in the cabinet.

P32 RS-232 Modem port (9-pin D-sub male) - V.24 interface used for the old RCU.

It is located on the DIA to the left in the cabinet.

044-05251 Rev A 2-9

Wideband Radio Head Software and Hardware Compatibility

P33 Alarm Port (15-pin D-sub female) - Used for external alarm sensors and alarm

equipment. It is located on the DIA to the left in the cabinet. The port has four alarm inputs, EAL1 – EAL4, and two alarm outputs.

The four alarm inputs are low-level inputs with common ground (AIC). Use insulated switch or relay to initiate alarms (open switches in normal operating mode, closed switches cause alarm). The alarm swi tch connection can be toggled between active open and active closed. This is further described in the OM-Online User Manual and the Advanced WRH OMS User Manual.

The alarm input voltage ratings, related to ground (AIC), are: Vinmax= 5.5V, Vinmin= –0.5V

The four alarm inputs are connected to the following pins: Pin 14 AI1 External alarm input 1 - EAL1 Pin 15 AI2 External alarm input 2 - EAL2 Pin 7 AI3 External alarm input 3 - EAL3 Pin 8 AI4 External alarm input 4 - EAL4 Pin 6 AIC Ground. See also the P28 door switch port below.

Two alarm outputs are 1 pole closing and 1 pole opening relay outputs insulated from each other. Maximum ratings, related to ground or any other alarm terminal, are 50V AC / 60V DC. The alarm outputs are defined as follows: Pin 9 and 1 AO1 and AO8 Closed when operating, otherwise open. Pin 10 and 2 AO6 and AO7 Open when operating, otherwise closed. Pin 11 and 3 AO2 and AO5 Closed at alarm state, otherwise open. Pin 12 and 4 AO3 and AO4 Open at alarm state, otherwise closed.

P28 Door switch port - Normally, alarm input AI4 is used for WRH door opening

alarm EAL4 which is arranged using an optional door switch. Signal AI4 and AIC are thus available also in the P28 connector, to which the door switch is connected. It is located on the DIA to the left in the cabinet. The EAL4 door switch alarm is activated 10 – 30 seconds after the cover has been opened.

P34 WLI Port (8-pin RJ45 female) - Used for the WLI network (R2R). It is located on

the DIA to the left in the cabinet.

P36 WLI Port (5-pin male) - Used for the WLI network (IP or R2R). It is located on

the DIA to the left in the cabinet. Connecting P111 or P112 on a FON to this port, an FLI network is interconnected to a WLI network (IP or R2R) making all the included WRHs in both the networks accessible.

Software and Hardware Compatibility

There are different versions of CU PCBA software which can be combined with PCBAs of various revisions. These have unique part numbers and revision information. Below, you will find a table of software currently available in combination with CU PCBA revisions.

Table 2-12 Hardware / Software Compatibility

CU PCBA

part #

K103/3

(500-13817-001)

2-10 044-052 51 Rev A

CU Software

part #

SA102 06/x SA102 07/x SA102 08/x

Comments

More memory. MAC ID is added on the PCBA. R2R functionality integrated.

Software and Hardware Compatibility Wideband Radio Head

This information is accurate as of 01/31/2007. As new versions of hardware and software are released without prior notice. Contact your Powerwave sales representative if in doubt about the latest revision status.

For detailed information, refer to the release notes for the CU software to be downloaded (normally found in the readme.txt file provided with the program files).

044-05251 Rev A 2-11

Wideband Radio Head Software and Hardware Compatibility

2-12 044-052 51 Rev A

Introduction

This chapter contains unpacking, inspection and installation instructions for installing and powering up the WRH.

Site Survey

Powerwave recommends that a site survey be performed prior to equipment ordering or installation. Performing a detailed site survey reduces or eliminates installation and turn-up delays. Pay particular attention to power plant capacity, cooling needs, floor space, and RF/ DC cabling/breaker requirements. Cabinet dimensions, clearance dimensions, and weights are listed in Chapter 5.

Unpacking and Inspection

This equipment has been operated, tested, and calibrated at the factory. Carefully open containers to remove equipment. Retain all packing material that can be reassembled in the event unit must be returned to the factory. Perform the following steps:

• Visually inspect equipment for damage that may have occurred during shipment. If possible, in the presence of the delivery person.

• Check for evidence of water damage, bent or warped chassis, loose screws or nuts, or extraneous packing material in conne ct or s.

If equipment is damaged, file a claim with the carrier once the extent of any damage is assessed.

If equipment must be returned to factory, please contact factory for a Return Material Authorization (RMA). See Chapter 4.

Chapter 3

Installation

WRH Location

The WRH is designed with a weather proof outdoor cabinet that can be mounted without any kind of shelter from rain, snow or hail. The same unit can be installed indoors. A preferable site for the WRH is a location free of obstructions, easily accessable and allows for proper airflow and ventilation.

If a WRH is installed outdoor and can be exposed to direct sunshine, it is essential that air can circulate around the WRH with no obstacle. The operating temperature must not exceed 131°F (55°C). A shelter can be used to shade the WRH from direct sunshine.

Never open a WRH when rain, snow, hail, high humidity or high winds are present unless some kind of temporary shelter can be erected. Limitations for very bad weather are found in the next section.

Mounting

The WRH is easy to mount using the provided mounting bracket, which has 9/16” (14mm) holes for 3/8” (10mm) or 1/2” (12mm) fixing screws. Clamps with C-C measures of 3.5” (90mm), 5.3” (135mm), 5.7” (144mm), 8.1” (205mm), 9.8” (250mm), and 11.8” (300mm) can be used as well. The vertical C-C measure for these are 16.2” (411mm). There is a 9/16” (14mm) single hole in the middle of the mounting bracket, marked ‘A’ in the figure, which is intended for a locking screw to lock the bracket into place.

044-05251 Rev A 3-1

Mounting Wideba nd Radi o Head

411

Ø14

90 135 144 205 250 300

Figure 3-1 Mounting bracket

Normally, the WRH is mounted on a wall, pole, or mast. Figure 3-2 illustrates the installation of the mounting bracket on a wall using four fixing screws and a locking screw.

Figure 3-2 Mounting bracket installation on wall

3-2 044-05251 Rev A

Wideband Radio Head Mounting

Figure 3-3 illustrates the installation of the mounting bracket on a pole using two 5.7” (144mm) U-shaped clamps and a locking screw.

Figure 3-3 Attaching the bracket to a pole

Figure 3-4 illustrates a mast installation using two 11.8” (300mm) bar-shaped clamps and no locking screw.

Figure 3-4 Attaching the bracket to a mast

044-05251 Rev A 3-3

Connections Wideband Radio Head

After installing the mounting bracket, hang the WRH on the upper supports, as illustrated in Figure 3-5. Tighten the upper and lower mounting screws to secure it into place. Locking cylinders, used to prevent unauthorized removal of the repeater, can be inserted and locked with a key after the lower screws have been tightened. Make sure the donor antenna, directed towards the BTS antenna, and the service antenna, directed towards the area to be covered by the WRH, are mounted and installed properly.

Connections

This section describes general examples of how to connect the input and output ports on the WRH.

Main Power and Grounding

Local regulations need to be followed for the main power connection. WRHs are approved in accordance with EN and UL/cUL regulations. This is, however, only valid if a classified power cord is used. For the WRH to meet these regulations you must select one of the following classified and approved cord types:

• EN – H 05 W5 - F HMR

• UL – AWM Style 2587

• CSA– AWM 1 A/B 11 A/B For outdoor use, the power cord should meet at least IP65 encapsulation requirements. Do

not turn the main power on until you are ready to commission the WRH

WARNING: For WRHs supplied from the main power source, the main outlet must be grounded.

Figure 3-5 Attaching the WRH to the bracket

3-4 044-05251 Rev A

Wideband Radio Head Connections

Fiber Optic and RF Connections

Fiber optic and RF cable connections should be verfied both internally and externally before powering up the equipment. This section illustrates the general internal connections of the WRH and WRH-V. V erify these connections with the as-built drawings and documents for you specific system cofiguration. Table 3-1 lists the steps for external connections to the WRH.

Table 3-1 Cable Connection Procedure

Step Action

1 Connect the service ante nna coaxial cable to the lef t in the cabinet using an N-type male

connector 2 Connect the fiber optic cable from the BMU to the fiber optic cable demark on the FOU 3 Connect station ground 4 Mount the main power plug to the main power cord and connect it to the PSU

WRH

Figure 3-6 illustrates the WRH cables and connections.

Figure 3-6 WRH Cable Connections

044-05251 Rev A 3-5

Optional Connections Wideband Radio Head

WRH-V

Figure 3-7 illustrates the WRH-V cables and connections.

Optional Connections

Alarms

Alarm signals from external sensors are received by an ALI or RCI which forwards them to the CU. The RCI is used if the WRH has an RCU, otherwise the ALI is used. The software on the CU can activate acoustic or visual alarms or direct the alarm to the P33 alarm port for forwarding via an RCU to an OM-Online or OMS workstation. Alarms can also be handled by the FON. Alarms can be configured from an OM-Online or OMS workstation.

External Alarm

Burglary, fire or other external alarms can be handled by the WRH. External alarm sensors and alarm signals are connected to the P33 alarm port located to the left in the cabinet, as illustraated in Figure 3-8. The P33 alarm port is described in Chapter 2. The cable for this installation is taken through a strain relief bushing at the bottom of the WRH cabinet.

Figure 3-7 WRH-V Cable Connections

3-6 044-05251 Rev A

Wideband Radio Head Optional Connections

P28 P33

Door Open Alarm

A door open alarm can be configured and installed in the WRH. This is arranged with a door switch connected to P28, as illustrated in Figure 3-8.

M >

- S

15 16

P26 2 1

UP-LINK

DPX

TEST

-30 dB

1 X U A

-20 dB

ANT

P11

3 P

1 X0A

P34

X0B 89 3

P28 DOOR

P23 LNA

c b

P32

P33

MODEM

ALARM

P27

W6B 10

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

c b a

P5 c b a

P12 P13

1P232 c b a

b a

POWER SUPPLY UNIT

Figure 3-8 External alarm connection

P14

LED P22

S >

16P3

15216

P25

P29

P24

LNA

DOWN-LINK

6V6

P31

DPX

TEST

P21

GND

PSU

-30 dB

-20 dB

P35

ANT

Fiber Link Interface (FLI)

The FLI feature makes it possible to interconnect WRHs. By using an RF distribution fiber network, no wire or other communication device is required.

Wire Link Interface (WLI) Network (IP to R2R)

Two types of WLI networks are available for the WRH: Internet Protocol (IP) and a Repeaterto-Repeater Link (R2R).

The network cables are connected to the P34 or P36 WLI ports on the DIA PCBA as illustrated in Figure 3-9. The cables can either be interconnected at the P1 terminal on the connector PCBA located to the right in the cabinet or to both P34 and P36.

Any cable type can be used for indoor installations. For outdoor installations, the Li 2YC11Y, 2x2xAWG24/222, non-halogen, Metrofunkkabel-Union cable type is recommended. Use strain relief bushings or connectors at the bottom of the WRH. If the link cable between two WRHs is longer than 25 meters, an RS-485 WRH is required as illustrated Figure 3-10.

044-05251 Rev A 3-7

Optional Connections Wideband Radio Head

P36 P34

P11

6 3

1 X0A

MODEM

W6B 10

P32

PARKING FOR W5

P34

X0B

P28 DOOR

ALARM

ALLGON INNOVATION SWEDEN M105 R6

P33

c b a

P5 c b a

c b a

P12 P13

16P4

1P232

c b a

M >

- S

15 16

P26 2 1

P23

LNA

UP-LINK

DPX

TEST

P27

-30 dB

1 X U A

-20 dB

ANT

POWER SUPPLY UNIT

Figure 3-9 IP and R2R network connection

P14

LED P22

S >

16P3

P25

P29

P24

LNA

DOWN-LINK

6V6

P31

P21

GND

PSU

P35

P3 P2

>25m

Figure 3-10 RS485 Cable Repeater

3-8 044-05251 Rev A

Wideband Radio Head Optional Connections

Main Power Breakdown Relay

T o be able to distinguish PSU faults from power failure, a main power breakdown relay can be used. This relay is not included in the WRH. It has to be mounted outside the WRH cabinet. The relay intended for this purpose must fulfil the following specifications:

Closing time: Max. 30 milliseconds Insulation coil/contact: Min. 4KV

A main power connected relay must also be in compliance with valid local regulations.

Table 3-2 Main Power Breakdown Relay Connection

Step Action

1 Connect a currentless closed relay contact to pin AI1 and AIC on the P33 alarm connec-

tor, see Figure 3-11. Alarm is initiated by short circuiting pin AI1 and AIC in the P33 port. 2 Connect the relay coil. It must be supplied from the same fuse as the WRH 3 After commissioning, select Mains Breakdown in the alarm configuration window in OM-

Online or OMS. Refer to the OM-Online User Manual

P33

1 X0A

MODEM

W6B 10

P11

6 3 P

P32

PARKING FOR W5

P34

X0B

P28 DOOR

ALARM

ALLGON INNOVATION SWEDEN M105 R6

P33

c b a

P5 c b a

c b a

POWER SUPPLY UNIT

P12 P13

1P232

c b a

b a

P14

LED P22

S >

16P3

P29

P24

DOWN-LINK P31 PC

P21 PSU

P35

M >

- S

15 16

P26 2 1

P23

LNA

UP-LINK

DPX

TEST

P27

-30 dB

1 X U A

-20 dB

ANT

P33:AICP33:AI1

Figure 3-11 Main power breakdown relay connection

P25 2 1

LNA

6V6

GND

044-05251 Rev A 3-9

Optional Connections Wideband Radio Head

21-60 Volt DC PSU Installation

The 115/220 VAC PSU can be replaced with a 21 to 60 VDC DC PSU as described below.

W6B 10

P11

6 3 P

1 X0A

89 3

MODEM

P28 DOOR

P32

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

P34

X0B

P33

ALARM

1 c b

c b a

P12 P13

1P232

c b a

M >

- S

15 16

P26 2 1

P23 LNA

UP-LINK

DPX

P27

TEST

-30 dB

1 X U A

-20 dB

ANT

POWER SUPPL Y UNIT

PSU

Figure 3-12 PSU Connections

Table 3-3 PSU Replacement Procedure

Step Action

1 Disconnect main power 2 Remove the main power plug from the PSU ('1' in Figure 3-12)

P14

LED P22

S >

16P3

15216

P25

P29

P24

LNA

DOWN-LINK

6V6

P31 PC

DPX

P21

TEST

GND

PSU

-30 dB

-20 dB

P35

ANT

3 Disconnect the power cable bundle connectors (2) on the PSU 4 Loosen the four fixing screws (3) using a 5mm Allen key and remove the PSU 6 Examine the removed PSU and identify the supply voltage for the WRH (13.5V or 27V) 7 Set the new PSU to the corr ect supply voltage by moving the jumper as ill us trate d on the

PSU. This must be done before the PSU is mounted in the WRH 8 Mount the PSU with the four fixing screws (3) 9 Connect the PSU to the DIA PC BA (2) wi th a cab le mark ed VE00 7 98 /1. Th is ca ble mu st

be used even if one connector will be left over at the DIA PCBA (previous versions of the

DIA had only one connector )

10 Connect the DC power cable. The supplied cable should have a radiation limiter. The +

pole should be co nnected to o ne of the lef t termina ls in the PSU co nnector w ith the brown

part of the DC cable. The – pole shoud be connected to one of the right terminals in the

PSU connector with the blue part of the DC cable

11 Apply power and verify the yellow LED on the PSU lights

3-10 044-052 51 Rev A

Wideband Radio Head Commissioning

Commissioning

Before proceeding, carefully read the Safety section and check all connections made during the installation. To fulfill the IP65 weather protective requirements, ensure cable strain relief bushings are properly tightened. Also, ensure gaskets at cable inlets and on the cabinet are properly fitted and not damaged.

A WRH can be configured locally with OM-Online by connecting a standard serial cable from the COM port on the PC to the P31 PC port (RS-232) located to the right in the cabinet (see Figure 3-14). The P31 PC port is described in Chapter 2. OM-Online is described in the OMOnline User Manual.

P31

P6 c b a

P5 c b a

1 c b

POWER SUPPLY UNIT

P12 P13

16P4

P11

6 3

1 X0A

P34

X0B

- S

P28 DOOR

15 16

P26

P23 LNA

UP-LINK

DPX

P32

P33

MODEM

TEST

ALARM

P27

W6B 10

-30 dB

1 X U A

ALLGON INNOVATION

-20 dB

SWEDEN M105 R6

PARKING FOR W5

ANT

1P232 c b a

1 b a

P14

LED P22

S >

16P3

15216

P25

P29

P24

LNA

DOWN-LINK

6V6

P31 PC

P21

GND

PSU

P35

Figure 3-13 Connecting a PC for Local Access

Initial Startup

Table 3-4 Initial Statup Procedure

Step Action

1 Turn the main powe r on 2 Check the Yellow LED on the power supply unit. It must be a steady on 3 Check the four CU PCBA LEDs. Refer to the CU PCBA section in Chapter 2 for the cor-

rect power up indications

4 Check the three ALI PCBA LEDs or the corresponding LEDs on the RCI PCBA. Refer to

the ALI or RCI PCBA section in Chapter 2 for the correct pow er up indica tions. The LEDs follow the alarm relays.

044-05251 Rev A 3-11

Commissioning Wideband Radio Head

This Page Intentionally Left Blank

3-12 044-052 51 Rev A

Introduction

This chapter contains periodic maintenance and performance test procedures for the WRH.

Periodic Maintenance

Periodic maintenance requirements are listed in Table 4-1, as well as the intervals at which the tasks should be performed.

Task Interval Action

Chapter 4

Maintenance

Table 4-1 Recommeded Periodic Maintenance

Inspection of cables and connectors

Clean equipment Clean as required depending on operating environment.

Troubleshooting

The sections that follow contain a list of problems that could occur and a few suggested actions that can correct the problem. If the suggested corrective action does not eliminate the problem, please contact your Powerwave field representative or help line for further instruction.

Clearing Alarm Faults

Table 4-2 contains a list of those alarms which can be generated in the WRH. Critical, Error and Warning alarms can be sent automatically from a WRH to OM-Online and/or OMS, stored and then viewed. These can be viewed in the Alarm window.

ID Alarm

Text

1 Power PSU Critical PSU1 in the cabinet does not work properly. A sum

12 months Inspect power, RF and Fiber cables for signs of damage or

wear (frayed insulation, cracks, pun ctu r es, et c.) Chec k con nections to be sure they are tight.

Optional Perform cable sweeps.

Table 4-2 Alarm Troubleshooting

Alarm Unit

Alarm Description

signal from the PSU1 indicates that at least one voltage output has dropped. If no main s breakdow n relay is used, then the alarm will also be sent at mains breakdown.

Ceasing PSU1 in th e cabine t work s prop erly ag ain. Cea sing i s

sent if the PSU1 works at start-up, and there is a corresponding critical PSU1 alarm logged in the Events log. The WRH will rest art when the power is back and this alarm will be sent .

044-05251 Rev A 4-1

Troubleshooting Wideband Radio Head

PSU Critical PSU2 in the cover does not work properly. A sum sig-

nal from the PSU2 indicates that at least one voltage output has dropped. If no mains breakdown relay is used, then the alarm will also be sent at mains breakdown.

Ceasing PSU2 in the cover works properly again. Ceasing is

sent if the PSU2 works at start-up, and there is a corresponding critical PSU2 alarm logged in the Events Log. The WRH will restart when the power is back and this alarm will be sent.

FON Error The FON 10 Volt charger voltage is below limit. Sug-

gested remedy: Replace the FON

Ceasing The cause of the alarm has ceased.

2 WRH

restart

3Mains

breakdown

4Alarm

reset

CU None Power on start, or user ordered reboot. Logged to

indicate a normal power up, or a restart ordered by the operator.

Warning Software error restart, 1st – 7th time. Restart 1st to

7th time during a 14 day period. The counter is reset every 14th day, counted from power up.

Error Software error restart 8th – 10th time. Restart 8th to

10th time during the 14 day period. At the 11th time, the SW bank will be blocked and not used anymore until a user ordered reset is performed, or power is switched off/on.

External Critical The mains power is gone. Used with an external relay

indicating mains breakdown. The external relay should be connected to External Alarm 1 and the WRH configured to indicate this alarm. If no relay is used, a mains breakdown will be reported as a PSU fault.

Ceasing The mains power is back. Sent if there is a corre-

sponding critical mains breakdown alarm logged in the Events Log. The WR H will rest art when the power is back.

CU None Alarm reset by the user. All alarms are reset. The

cause of the alarm will be re-evaluated and reported, if still active.

5 Local bus

error

6 Main bkd

w backup

7 Err in AD-

converter

8 New unit

detected

WBA #, PA#, MCPA#

External Error Used to indicate tha t the mains i s no longer av ailable.

Error Error when communicating on the bus. The CU has

no contact with the WBA, PA or MCPA PCBA, which is taken out of service.

WRH is powered by external battery backup unit.

Suggested remedy: Check the mains power. Ceasing The cause of the alarm has ceased. Warning The analog-to-digital converter on the CU PCBA does

not give reliable values. None Compared to the last power on, the CU has recog-

nized at least one additional hardware unit.

4-2 044-05251 Rev A

Wideband Radio Head Troubleshooting

9 Inst. unit

lost

10 EEPROM

error

11 Log mem-

ory fault

12 High temp CU Warning The CU PCBA temperature is higher than 90°C.

13 REFO

error

14 Ext refo

error

15 CU bat-

tery fault

CU Error EEP read or write fail. Data cannot be written or read

CU Warning CU RAM battery fault. The battery for the RAM on the

Error Compared to the last power on, the CU lacks at least

one hardware unit.

from the EEPROM on the CU PCBA. User parameters are stored in the EEPROM.

Error Log memory fault. Indicates that the log memory on

the CU PCBA is faulty. The WRH will not work. Not available in all CU software versions.

Ceasing The CU PCBA temperature has fallen below 90°C. Error Significant REF O drift or error detected by CU.

Warning Suggested remedy: Check the reference source and

the cables.

CU PCBA has a voltage ou tsi de the n ormal 2 .7 to 3.5 Volt. An ala r m ma y be initi ate d at st art-up if the WRH has been stored out of power for a long time. Suggested remedy: Ensure jumper P3 on the CU PCBA is mounted to charge the battery.

Ceasing The cause of the alarm has ceased.

16 SW load

error

17 Log

cleared

18 RTC

restarted

19 RTC error Error RTC does not operate. The CU has detected an error

20 Door open

alarm

CU Error Software load error. An error has occurred during a

software load process. The flash memory does not contain a proper s oftware. Su ggested re medy: C heck the CU software using the OM-Online SW Manager. Do NOT restart the WRH.

CU None Log memory has been cleared. T he che ck sum in the

Events Log memory is faulty. The log is cleared. Can be caused of a bad RAM battery backup or low voltage to the RAM.

CU None The time is changed by the operator (logged to keep

track of changes made to the RTC).

Warning Time reset to 1994-01-01. The RTC was unable to

keep track of the time and did a reset. Suggested remedy: Ensure jumper P3 on the CU PCBA is mounted to charge the battery.

in the RTC operation which makes the time unreliable. Suggested remedy: Replace the CU PCBA.

External Config The door has been open 30 seconds without dis-

abling the alarm.

Ceasing The door has been closed 30 seconds, or the alarm is

disabled.

21 External

alarm 1

External Conf ig Extern al alarm input EA1 active more than 1 second.

Ceasing External alarm input EA1 no longer active.

044-05251 Rev A 4-3

Troubleshooting Wideband Radio Head

22 External

alarm 2

23 External

alarm 3

24 External

alarm 4

30 No

modem found

33 No con-

nection

34 Login

failed

External Config External alarm input E A2 active mor e than 1 second.

Ceasing External alarm input EA2 no longer active.

External Config External alarm input E A3 active mor e than 1 second.

Ceasing External alarm input EA3 no longer active.

External Config External alarm input E A4 active mor e than 1 second.

Ceasing External alarm input EA4 no longer active.

Remote ctrl

None No modem found, that is no answer is returned on a

poll string to the modem.

None No connection at callback. The WRH has tried to call

as many times as st at ed in t he ala rm ca ll se ttings . No

connection was est ab lis he d. Warning No connection at alarm call. The WRH has tried to

call as many times as stated in the alarm call settings.

No connection was established. This alarm does not

generate a new attempt to report alarm by alarm call. None Invalid WRH password.

35 Remote

connection

36 Modem

init failed

37 Remote

timeout

38 PIN code

failed

39 No phone

detected

40 Battery

fault

Remote ctrl

RCU, FON charger

None Modem connection to OM-Onlin e opened. Not l ogged

on CU2. Login Registry gives the same function and

more information about CU2. None Initiation string to modem not OK. The in itiatio n string

sent to the modem is not OK. The string may contain

commands not recognized by the modem. An alarm

might be sent anyway. Suggested remedy: Check the

modem using the OM-Online or OMS modem debug-

ger. Warning The time limit of 20 minutes is exceeded without

extending the timer. The modem connection is termi-

nated by the WRH. Warning The PIN code sent to MS is incorrect. To unlock the

MS/SIM card, the PUK code will probably be needed. Ceasing The cause of the alarm has ceased. Warning When using a PC-card together with the MS, the

alarm indicates contact with the PC-card, but MS is

not present or turned of f . Note: A Nok ia MS do es not

power-up after power failure. Suggested remedy:

Ensure the cellular phone is connected. Ceasing The cause of the alarm has ceased. Error The backup battery on the RCU or the FON PCBA

does not work properly. Suggested remedy: Check

cables or replace battery.

4-4 044-05251 Rev A

Wideband Radio Head Troubleshooting

Ceasing The cause of the alarm has ceased.

41 RF block-

ing

42 Antenna

isolation

44 Low sta-

bility margin

48 Battery

backup fault

Channel #, UL/DL

WBA #, Channel #, UL/DL

Channel #, UL/DL

External Error If a battery backup un it alarm i s connected to external

Error Constant carrier, PA off. Uplink carrier has been con-

stantly above 27dBm more than 10 seconds.

Ceasing The cause of the alarm has not been detected for 10

seconds.

Warning Low antenna isolation. The antenna isolation is lower

than the gain set. Gain is reduced by 10dB – 13dB below the oscillation point. Suggested remedy: Decrease gain or increase antenna isolation.

Error Low antenna isolation at lowest gain. The gain has

been reduced as m uc h a s p os si ble bu t th e os c ill ati on still remains. The amplifier is turned off. Suggested remedy: Decrease ga in o r inc rea se antenna isolation.

Ceasing Normal operation again, that is no oscillation can be

detected 13dB above the gain set.

Warning MRX has detected that an tenna i solat ion is below t he

gain set. The gain is reduce d 10– 13dB below oscillation point. Suggested remedy: Decrease the gain or increase the antenna isolation.

Ceasing The cause of the alarm has ceased.

alarm 2, then the operator can configure the WRH to display this alarm when the battery back up uni t indi cates alarm.

50 Fiberopti-

cal error

55 R2R

Queue full

56 R2R Node

lost

57 R2R HW

Error

Ceasing The cause of the alarm has ceased.

FOT fiber optics

CU None R2R transmit queue is full, messages are lost. Sug-

CU None An R2R node is lost. Suggested remedy: Check if

RIA Error R2R HW failure because the CU cannot read the

BSC R2R

FON R2R FO

Configurable

Ceasing The cause of the alarm has ceased.

Warning An R2R node is lost. Suggested remedy: Check if

Error R2R HW failure because the CU cannot read the

If a fiber unit alarm is connected to external alarm 3, then the operator can configure the WRH to display this alarm when the fiber optical unit indicates alarm.

gested remedy: Check configuration and cables.

node is still connected and operating.

MAC-ID of the RIA PCBA or any other HW error in the R2R logic. Suggested remedy: Replace the RIA PCBA.

MAC-ID or any other HW error in the R2R logic. Suggested remedy: Replace the WRH.

MAC-ID or any other HW error in the R2Rlogic. Suggested remedy: Replace the FON PCBA.

044-05251 Rev A 4-5

Troubleshooting Wideband Radio Head

60 Low traf-

fic activity

61 No BCCH

detected

65 Gain

reduction

66 Over-

power alarm

RSSI Statistics

Channel #, UL/DL

Warning No signal strength on the chan nel was abov e the limit

set longer than the time set in the configuration, indi-

cating possible problems with service antenna. The

area that the WRH is servicing may be covered by

another stronger WRH or BTS. Suggested remedy:

Ensure that the antenn as and the cellular phone wo rk

in the area to be covered, and that WRH supported

channels are used. Ceasing The cause of the alarm has ceased. Warning Signal strength on the BCCH channel was below the

limit set longer than the time set in the configuration,

indicating possible malfunction in the BTS or donor

antennas. Suggested remedy: Ensure that the WRH

is configured to the BCCH channel and that the signal

from the BTS has enough strength. Ceasing The cause of the alarm has ceased. Warning The gain is reduced below the limit. The gain is

reduced because the output power has been above

the MPC limit more than the preset limit allows . Ceasing The cause of the alarm has ceased. Warning Input power too high, output power above maximum

limit.

70 Bad table

alarm

71 Table not

found

72 Table

database error

80 Antenna

SWR alarm

90 FON

power alarm

91 FON

TxStable alarm

Ceasing The cause of the alarm has ceased.

CU Error Requested tab le con t ai ns incorrect information (SW

error).

CU Error Requested table not found in the da tabase (SW or

calibration error).

CU Error Table database not found (calibration error).

Donor antenna service antenna

FON RF Error A DC voltage on a FON PCBA is out of range. Sug-

FON RF Error Laser transmitter control loop voltage out of range.

Error Too low antenna return loss , caus ed eit her by cable s,

connectors, or antenna problems.

Suggested remedy: Check antenna and cables.

Ceasing The cause of the alarm has ceased.

gested remedy: Replace the FON PCBA.

Ceasing The cause of the alarm has ceased.

Suggested remedy: Replace the FON PCBA.

Ceasing The cause of the alarm has ceased.

4-6 044-05251 Rev A

Wideband Radio Head Troubleshooting

92 FON

RxLevel alarm

93 FON SPI

alarm

97 No GPS

signal

98 No GPS

device

FON Warning Received optical level is below any of the two limits

(one for Warning and one for Error). Suggested remedy: Check optical cables.

Error Received optical level is below any of the two limits

(one for Warning and one for Error). Suggested remedy: Check optical cables.

Ceasing The cause of the alarm has ceased.

FON F2F

GPS Warning The GPS device cannot find any satellites. If active

GPS Error The GPS device cannot be detected although an

Error The SPI bus connection to the RF modem does not

work properly. Suggested remedy: Replace the FON PCBA.

antenna is used, then the power supply for it can be faulty or wrongly configured. Suggested remedy: Check the GPS antenna and cables. If an active antenna is used, then th e jumper switc h should be set accordingly.

Ceasing The cause of the alarm has ceased.

adapter PCBA is mounted. Suggested remedy: Check the GPS PCBA.

Ceasing The cause of the alarm has ceased.

99 GPS

Antenna power

100 Startup

error

101 Synthe-

sizer fault

102 Volt Reg.

fault

103 PA fault CHA # Error Low power amplifier gain. The PA PCBA has too low

104 Param R/

W error

105 High tem-

perature

GPS Error The power supply to the GPS antenna is faulty or

there is a power supply to a passive antenna. Suggested remedy: Check the GPS antenn a and cables. If an active antenna is used, then the jumper switch should be set accordingly.

Ceasing The cause of the alarm has ceased.

CHA # Error A hardware error is detected on the PCBA at power-

ing up.

CHA # Error Unlocked synthesizer. The frequency synthesizer is

unlocked and the transmission can take place on an unknown frequency.

CHA # Error DC voltage missing. A DC voltage to an analog part

of the PCBA is missing.

output power for the RSSI an d gain set. Not av ailab le in all CU software versions.

CHA # Error EEPROM read or write failure on the PCBA.

CHA # Warning The CHA PCBA temperature is higher than 85°C.

Error The CHA PCBA temperature is higher than 95°C. Ceasing The CHA PCBA temperature has fallen below 70°C.

044-05251 Rev A 4-7

Troubleshooting Wideband Radio Head

110 SW

incompatibility

120 Startup

error

121 Synthe-

sizer fault

122 Volt Reg

fault

123 PA fault BSA # Error Low power amplifier gain.

124 Param R/

W fault

125 High tem-

perature

MRX Error The MRX and CU software is not compatible.

Suggested remedy: Chec k the s of tw a re v ersio ns an d

replace the incompatible one.

BSA # Error A hardware error is detected on the BSA PCBA at

powering up.

BSA # Error Unlocked synthesizer.

The frequency synthesizer is unlocked and the trans-

mission can take place on an unknown frequency.

BSA # Error A DC voltage to an analog part of the PCBA is miss-

ing.

The PA PCBA has too low output power for the RSSI

and gain set. Not available in all CU software ver-

sions.

BSA # Error EEPROM read or write failure on the BSA PCBA.

BSA #

Warning The BSA PCBA temperature is higher than 85°C.

Error The BSA PCBA temperature is higher than 95°C and

the power is turned off. Ceasing The temperature has fallen to below 70°C and the

power is turned on again.

Remarks:

126 High PSU

voltage

127 Unsup-

ported PA- type

128 BA HW

alarm

129 PA Under-

voltage alarm

245 Not In

Allowed Area

BSA # Critical The PA supply voltage is too high.

Suggested remedy: Ensure that correct PSU is used.

BSA # Error The ID of the mounted PA PCBA is not expected by

the BSA PCBA. Suggested remedy: Ensure that cor-

rect PA PCBA is used.

BA # Error A HW error on the BA PCBA has been detected.

Ceasing The BA PCBA is working properly after failure.

PA/BA # Error PA voltage level below alarm limit. Suggested rem-

edy: Check the PSU.

Ceasing The cause of the alarm has ceased.

BSC, UL/DL

CU None WRH is moved from the operating area and the RF

Error PA voltage level below alarm limit. Suggested rem-

edy: Check the PSU. Ceasing The cause of the alarm has ceased.

HW is switched on or off.

The Door open alarm requires an optional door switch described in the P33 Alarm Port section in Chapter 5. The Main power breakdown alarm requires a relay not included in the WRH (see Main Power Breakdown Relay in Chapter 3).

4-8 044-05251 Rev A

Wideband Radio Head Field Replaceable Units

Field Replaceable Units

The following units can be replaced in the field on-site by a qualified technician with experience maintaining RF equipment:

• FON

• PSU

• WRH

FON

To replace a FON PC BA, proceed as desribed in the Table 4-3.

Table 4-3 FON Replacement Procedure

Step Action

1 Open WRH door and secure 2 Locate power connector on FON and remove connector from PCBA 3 Verify all cables on FON are labeled before disconnecting, then disconnect all cables 4 Remove screws securing FON PCBA to FOU and remove PCBA 5 Replace FON PCBA in reverse order and apply power 6 Connect PC to OM Online port, login to FON and verify configuration and IP address.

NOTE: Make sure ‘Fiberoptical’ classmark in the FON Status window is checked, otherwise FON will not be operational.

PSU

7 Close WRH door and secure

To replace a PSU, proceed as desribed in the Table 4-4.

Table 4-4 PSU Replacement Procedure

Step Action

1 Open WRH door and secure 2 Disconnect main power plug from PSU 3 Disconnect power cable bundle from PSU 4 Loosen screws securing PSU using a 5mm Allen key and remove.

NOTE: screws are designed to not be removed completely from PSU. 5 Replace PSU in reverse order and apply power 6 Close WRH door and secure

044-05251 Rev A 4-9

Return For Service Procedu re s Wideband Radio Head

WRH

To replace a WRH, proceed as desribed in the Table 4-5.

Table 4-5 WRH Replacement Procedure

Step Action

1 Open WRH door and secure 2 Disconnect main power plug from PSU 3 V erif y a ll ca bles connected to WRH are labeled before di sc onn ec tin g, then disconnect all

cables

4 Remove mounting screws from bottom legs of WRH and loosen mounting screws in top

legs

5 Close and secure door

WARNING: A fully loaded WRH can weigh 96lbs. Lifting of the WRH should be done by

two people. Do not attempt to carry the WRH up a ladder. 6 Lift the WRH off the mount hinges 7 Replace WRH in reverse order 8 Connect PC to OM Onli ne port and verify configuration. For Fiber Optic installations, ver-

ify IP addres s. 9 Close WRH door and secure

Return For Service Procedures

When returning products to Powerwave, the following procedures will ensure optimum response.

Obtaining an RMA

A Return Material Authorization (RMA) number must be obtained prior to returning equipment to the factory for service. Pease contact our Repair Department at 1-714-466-1000 to obtain this number, or FAX your request to 1-714-466-5800. Failure to obtain this RMA number may result in delays in receiving repair service.

Repackaging for Shipment

To ensure safe shipment of the unit, it is recommended that the original package designed for shipping the unit be reused. If it is not available, contact Powerwave’s Customer Service Department for packing materials.

Remote Control Unit (RCU)

The RCU provides remote control of Powerwave WRHs. It contains an integrated mobile phone, modem and power supply backup. The RCU is installed in the bottom front of the cabinet, on top of the PSU as illustrated in Figure 4-1.

The RCU is connected to P130 on either an RCI or FON. A jumper is required between pins 1 and 2 on the RCI if the P130 cable connector is disconnected. If a main power failure occurs, the unit has a battery with enough capacity for sending a number of alarms.

4-10 044-052 51 Rev A

Wideband Radio Head Repeater-to-Repeater Link (R2R)

P11

6 3

1 X0A

M >

- S

15 16

P26

2 1

P23 LNA

UP-LINK

DPX

MODEM

P27

TEST

W6B 10

-30 dB

1 X U A

-20 dB

ANT

RCU for Radio Communication

The RCU antenna for a radio modem is connected to the BS antenna via the uplink DC, provided the RCU and the WRH operate in the same cell system. Otherwise, the modem must have a separate antenna. Data is transferred between the WRH and the RCU via the P130 modem port on the RCI or FON. The RCU is also powered via the same port and has a battery with enough capacity to send a number of alarms if a main power failure occurs.

P28 DOOR

P32

ALLGON INNOVATION SWEDEN M105 R6

PARKING FOR W5

P34

X0B

P33

ALARM

c b a

P5 c b a

c b a

P12 P13

1P232

c b a

POWER SUPPLY UNIT

RCU

Figure 4-1 RCU in the WRH cabinet

b a

16P3

P14

LED P22

S >

15216

P25

P29

P24

LNA

DOWN-LINK

6V6

P31

DPX

P21

TEST

GND

PSU

-30 dB

P35

-20 dB

ANT

RCU for Telephone Line Communication

The land line version uses a telephone line connected to a terminal block on the RCU. A free strain relief bushing at the bottom of the WRH is used for the external telephone line cable.

Repeater-to-Repeater Link (R2R)

This section briefly describes the R2R network. Node configuration for the R2R network is described in the OM-Online User’s Manual. The R2R network is a Powerwave specific network that can handle up to 13 nodes, one or several of which being a gateway for communication with OM-Online or OMS via modem.

Sliding Window (SLW) is a Powerwave specific protocol developed for the R2R network. The SLW protocol and the IP protocol do not support each other and they cannot be mixed in any node.

044-05251 Rev A 4-11

Repeater-to-Repeat er Link (R2R ) Wideband Radio Head

PSTNPSTN

Figure 4-2 R2R network

4-12 044-052 51 Rev A

Introduction

This chapter provides specifications for the different WRH product line.

Table 5-1 WRH Specifications

Generic

Dimensions (W x H x D in inches) 17.5 x 21 x 7 (low cover)

17.5 x 21 x 11 (high cover)

Weight Empty low cover Cabinet with a low cover Cabinet with a high cover Equipped cabinet or high cover w/extra heat sink element

Temperature range -13 to +131°F (-25 to + 55°C)

13 lbs (6.0 kg) 50 lbs (22.5 kg) 96lbs (44.0 kg) 41 lbs (18.5 kg)

Chapter 5

Specifications

Casing class NEMA4/IP65 Fiber-Optic Link Budget 10dBo Amplifiers in 1 cabinet Standard = 2 (WBA / PA combination)

High Power = 1(WBA / MCPA combination) Receiver input port return loss 14dB Power supply voltage (default) 115 VAC Power consumption 160 W (stand ard WRH)

210 W typical, 250 W max (WRH-V)

Fiber Optics

Bandwidth @ 3dB 800 – 2200 Mz Power Consumption, total <5 W Wavelength TX: DFB 1310 or 1550 nm

RX: 1250 – 1600 nm Transmitter

Max continuous RF input Optical output power, two levels RF attenuation settable by SW in 1dB steps

Reciever

Max optic power input RF attenuation settable by SW in 1dB steps Alarm threshold level, settable warning Alarm threshold level, settable error

+36dBm

+3 or 0dBm

0-20dB

+5dBm

0-20dB

0-40dBm

044-05251 Rev A 5-1

Introduction Wideband Radio Head

Standard WRH (SMR / iDEN 800 / 900 MHz)

Frequency band UL 806-824 MHz; 896-901 MHz Frequency band DL 851-869 MHz; 935-940 MHz Max absolute delay <300 ns Filter bandwidth (remotely adjustable) 0.5-16.9 MHz, remote adjustable Gain adjustment range (in 1 dB steps) 30dB Gain (max variation –25 to +55 °C) <2dB Maximum input power (non-destructive) +13dBm Return Loss 14dB AGC for UL and DL Input IP3 UL (max gain) -25dBm Output power @ -13dBm IMD RMS for 8 ch +27dBm/ch

Noise figure including fiber optic node 4dB

Standard WRH (900 / 1800 / 2100 MHz)

Frequency band UL 890-915 MHz; 1710-1785 Mhz; 1920-1980 MHz Frequency band DL 935-960 MHz; 1805-1880 MHz; 2110-2170 MHz Absolute group delay 5 µs Gain adjustment range (in 1 dB steps) 30dB Gain (max variation –25 to +55 °C) <2dB Output Power per carrier

GSM900 DCS1800 WCDMA

Noise figure UL at max gain 4dB

WRH-V

≥30dB

for 16 ch +25dBm/ch

Carriers / dBm 8 / 18dBm 16 / 16dBm 8 / 21dBm 16 / 19dBm 4 / 30dBm 8 / 27dBm 16 / 25dBm

Frequency band UL 1850-1910 MHz Frequency band DL 1930-1990 MHz Max absolute delay <300 ns Filter bandwidth (remotely adjustable) 0.5-16.9 MHz, remote adjustable Gain adjustment range (in 1 dB steps) 30dB

Gain

Uplink Downlink Variation

35 to 60dB typical 45 to 70dB typical 3dB versus temperature and frequency incuding fiber link

5-2 044-05251 Rev A

Wideband Radio Head Introduction

Instantaneous bandwidth 60 MHz Maximum input power (non-destructive) +13dBm Return Loss 14dB TX band IMD < -60dBc (1930-1990 MHz) Full power 8 EDGE carriers TX spurious in RX band < -111dBm / 200kHz Full power 8 EDGE carriers Output power +43dBm Noise figure excluding fiber optic link 4dB

044-05251 Rev A 5-3

Introduction Wideband Radio Head

This Page Intentionally Left Blank

5-4 044-05251 Rev A

Introduction

This appendix describes the main signals paths for the WRH.

Standard WRH

Appendix A

Block Diagrams

BMU

OCM

FLI

PSU

FOU FON

P130

RCU

P102RX P101

PA - DL

P4 P5

WBA

LNA

P1101 P1401

P2401 P2101

P130

RCI

P31

P4P3

DPX

ANT

P33

WLI P34/ P36

LNA

LNA - UL

OUT1 IN

ALI / RCI

Figure A-1 Standard WRH Block Diagram

Figure A-1 illustrates a single band WRH block diagram. The TX signal from the BTS is converted to an optical signal at a FON within a BMU or OCM and fed to the WRH via a fiber optic cable. The FON in the WRH converts the fiber optic signal back to RF . It also supervises the signaling and reports errors via the RCU connected to the CU. The RF signal enters the WBA at P1101. Amplification occurres in the LNA and the additional amplifier stages followed by controllable attenuators. The signal exits the WBA on P1401 and enters the PA at P4 where it is amplified and fed to the DPX.

If a BA is installed, the signal goes through it before being fed to the DPX, boosting the output DL signal from the PA by typically 6dB. The amplified output signal passes the DPX before it is fed to the service antenna.

The uplink signal path is located on the same WBA but has no PA or BA stage. An optional LNA can be used.

044-05251 Rev A A-1

WRH-V Wideband Radio Head

WRH-V

BMU OCM

FLI

PSU

FOU FON

P130

RCU

P102RX P101

PA - DL

P4 P5

WBA

LNA

P1101 P1401

P2401 P2101

P130

RCI

P31

MCPA

LNA

P4P3

LNA - UL

OUT1 IN

ALI / RCI

P33

DPX

HI LO

ANT

WLI P34/ P36

Figure A-2 WRH-V Block Diagram

Figure A-2 illustrates a block diagram the WRH-V. The WRH-V is always fed by a BTS via either a BMU or an OCM. The TX signal from the BTS is converted to an optical signal in a BMU or OCM and fed to the WRH-V via a fiber optic cable. The optical signal is received by the FON and converted to an RF signal. The FON supervises the signaling and reports errors via the RCU connected to the CU.

The RF signal enters the WBA at P1101, is amplified in a LNA and is then further amplified in amplifier stages followed by controllable attenuators. The signal exits the WBA on P1401 and enters the PA at P4 where it is amplified and fed to the DPX. The signal then goes through an MCPA before being fed to the DPX. The amplified output signal passes the DPX before it is fed to the service antenna.

The uplink signal path is located on the same WBA but has no PA or MCPA stage. An optional LNA can be used.

A-2 044-05251 Rev A

c. 1 S

T F w

A S S T Fax: +46 8 540 823 40

2 1 W T Fax: +852 2575 4860

©Copyright March 2005, Powerwave Technologies, Inc. All Rights reserved. Powerwave, Powerwave Technologies, The Power in Wireless and the Powerwave logo are registered trademarks of Powerwave Technologies, Inc.

Powerwave Installation and Service Manual

orporate Headquarters

owerwave Technologies, In

801 East St. Andrew Place
