ALR Compact Repeater

VD203 67/EN - English Future on Demand.

ALLGON Systems AB ALR Compact Repeater

User’s Manual

ALR Compact Repeater

Low Power Band Selective Repeater

–

English

VD203 67/EN - User’s Manual Rev. 1A 2000-07 i

ALLGON Systems AB ALR Compact Repeater

This document describes installation, commissioning and the design of the Allgon ALR Compact Repeater.

Communication between the Allgon ALR Compact Repeater and an operator is carried out either by using Allgon OMT32 (Operation and Maintenance Terminal), or Allgon OMS (Operation and Maintenance System). OMT32 is described in the AR Repeaters and OMT32, User’s Manual. OMS is described in the Advanced Repeater OMS, User’s Manual.

Hardware and software mentioned in this document are subjected to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document and the performance and design of the product. Specifications, dimensions and other statements mentioned in this document are subject to change without notice.

In this document, the ’<>’ brackets are used to indicate function keys contrary to a series of key strokes ’<Del>’ = the Del(ete) key, ’Del’ = D, e, l.

Allgon and its suppliers shall not be liable for any damages related to the software or hardware, or for any other damages whatsoever caused of the use of or inability to use any Allgon product. This is applicable even if Allgon has been advised of the damage risk. Under any circumstances, Allgon’s entire liability

Teflon is a registered trademark of Du Pont. Other trademarks mentioned in this document are trademarks or registered trademarks of their respective

shall be limited to replace such defective software or hardware which was originally purchased from Allgon.

owners.

This document is produced by El, Tele & Maskin Ingenjörsfirma AB, Huddinge, Sweden.

Printed in Sweden.

Allgon Systems AB, SE-187 80 Täby, Sweden

Phone: +46 8 540 822 00 – Fax: +46 8 540 834 80 – Internet: www.allgon.com

This document or parts of it may not be reproduced without the written permission of Allgon Systems AB.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 ii

ALLGON Systems AB ALR Compact Repeater

ontents

bbreviations ............................................................................................................... v

. Safety ....................................................................................................................... 1-1

Static Electricity .................................................................................................. 1-2

. Introduction ............................................................................................................. 2-1

Repeater Type .................................................................................................... 2-2

Using Repeaters ................................................................................................. 2-3

Shaded Area ................................................................................................. 2-4

Sports Arena ................................................................................................... 2-5

. Installation ................................................................................................................ 3-1

Siting the Repeater ............................................................................................ 3-1

Sunshine ......................................................................................................... 3-1

Shelter ............................................................................................................. 3-1

Outdoor Installation and Service Limitations .............................................. 3-1

Dimensions and Weight .................................................................................... 3-2

Mounting ............................................................................................................. 3-3

Connection ........................................................................................................ 3-6

Connection Ports and Station Ground ............................................................ 3-9

Station Ground .............................................................................................. 3-9

P112 PC Port .................................................................................................. 3-10

P113 Parking Device ..................................................................................... 3-10

P118 Repeater to Repeater Link Port .......................................................... 3-10

P119 Alarm Port ............................................................................................. 3-11

P120 Door Switch .......................................................................................... 3-12

P124 Repeater to Repeater Link Port .......................................................... 3-12

P130 RCC Port ............................................................................................... 3-12

Mains Breakdown Relay .................................................................................... 3-13

. Commissioning ........................................................................................................ 4-1

Starting the Repeater ........................................................................................ 4-2

Indicators ....................................................................................................... 4-3

Repeater Configuration .................................................................................... 4-4

. Functional Description and Design ....................................................................... 5-1

Repeater Design ................................................................................................ 5-2

The Main Repeater Units .............................................................................. 5-3

Block Diagram .................................................................................................... 5-4

Downlink Signal Path ..................................................................................... 5-4

Uplink Signal Path .......................................................................................... 5-4

Band Selective Compact Repeater Block Diagram ................................. 5-5

RCC ................................................................................................................ 5-6

R2R ................................................................................................................. 5-6

Alarm .............................................................................................................. 5-7

Repeater Setup ............................................................................................. 5-7

VD203 67/EN - User’s Manual Rev. 1A 2000-07 iii

ALLGON Systems AB ALR Compact Repeater

Board and Unit Descriptions ............................................................................. 5-8

DCC - Directional Coupler for Compact ................................................... 5-8

DPX - Duplex Filter ......................................................................................... 5-8

BSC Band Selective Compact Board ......................................................... 5-9

LNA - Low Noise Amplifier ............................................................................. 5-12

PA - Power Amplifier ...................................................................................... 5-13

Repeater Software and Hardware Compatibility ....................................... 5-14

Cabling ............................................................................................................... 5-15

Compact Repeater With RCC Unit ............................................................. 5-15

Compact Repeater Without RCC Unit ........................................................ 5-16

R2R, Repeater To Repeater Link ....................................................................... 5-17

Installation ...................................................................................................... 5-17

Configuration ................................................................................................. 5-17

. Optionals .................................................................................................................. 6-1

RCC, Remote Communication Control Unit ................................................... 6-2

RCC For Radio Communication ................................................................. 6-3

RCC For Telephone Line Communication ................................................. 6-3

OMT32, Operation and Maintenance Terminal .............................................. 6-4

OMS, Operation and Maintenance System .................................................... 6-4

Battery Backup ................................................................................................... 6-4

Fiber Optic Unit .................................................................................................. 6-4

. Repeater Alarms ..................................................................................................... 7-1

Alarm Reference List ......................................................................................... 7-2

ndex .............................................................................................................................. I-1

uestionnaire .............................................................................................................. Q-1

VD203 67/EN - User’s Manual Rev. 1A 2000-07 iv

ALLGON Systems AB ALR Compact Repeater

igures

Figure 2-1. Allgon ALR Compact Repeater .............................................................. 2-1

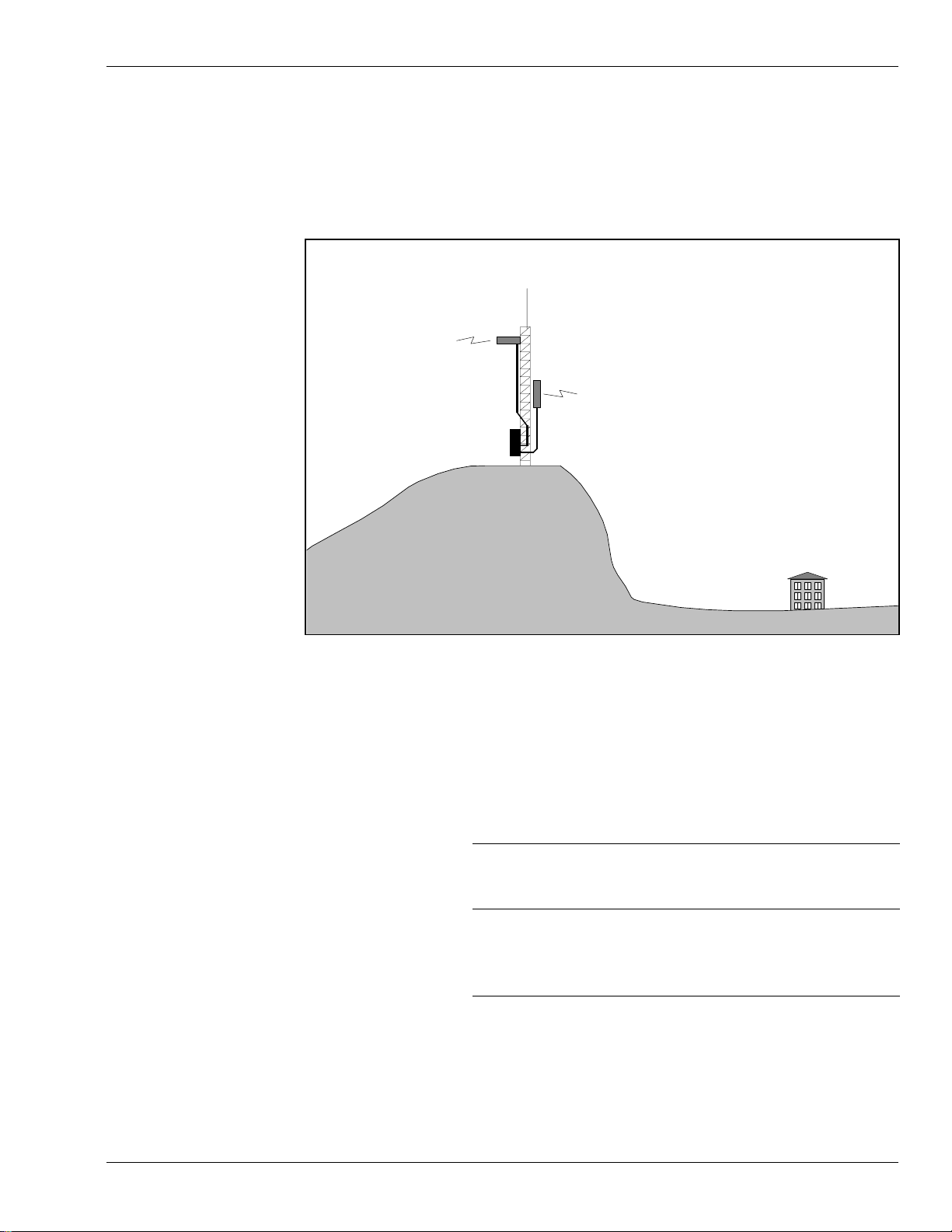

Figure 2-2. Repeater coverage of shaded area ..................................................... 2-4

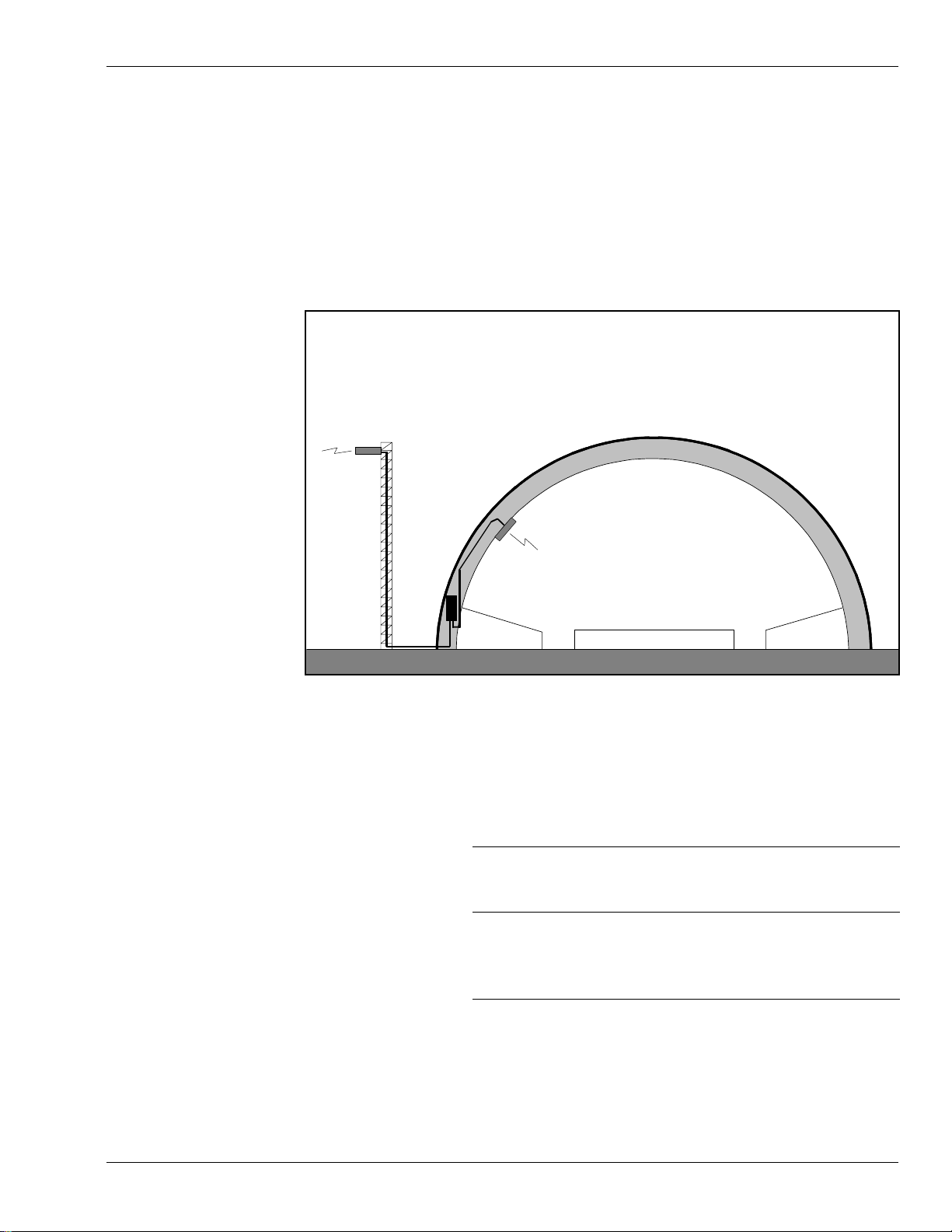

Figure 2-3. Repeater in sports arena ........................................................................ 2-5

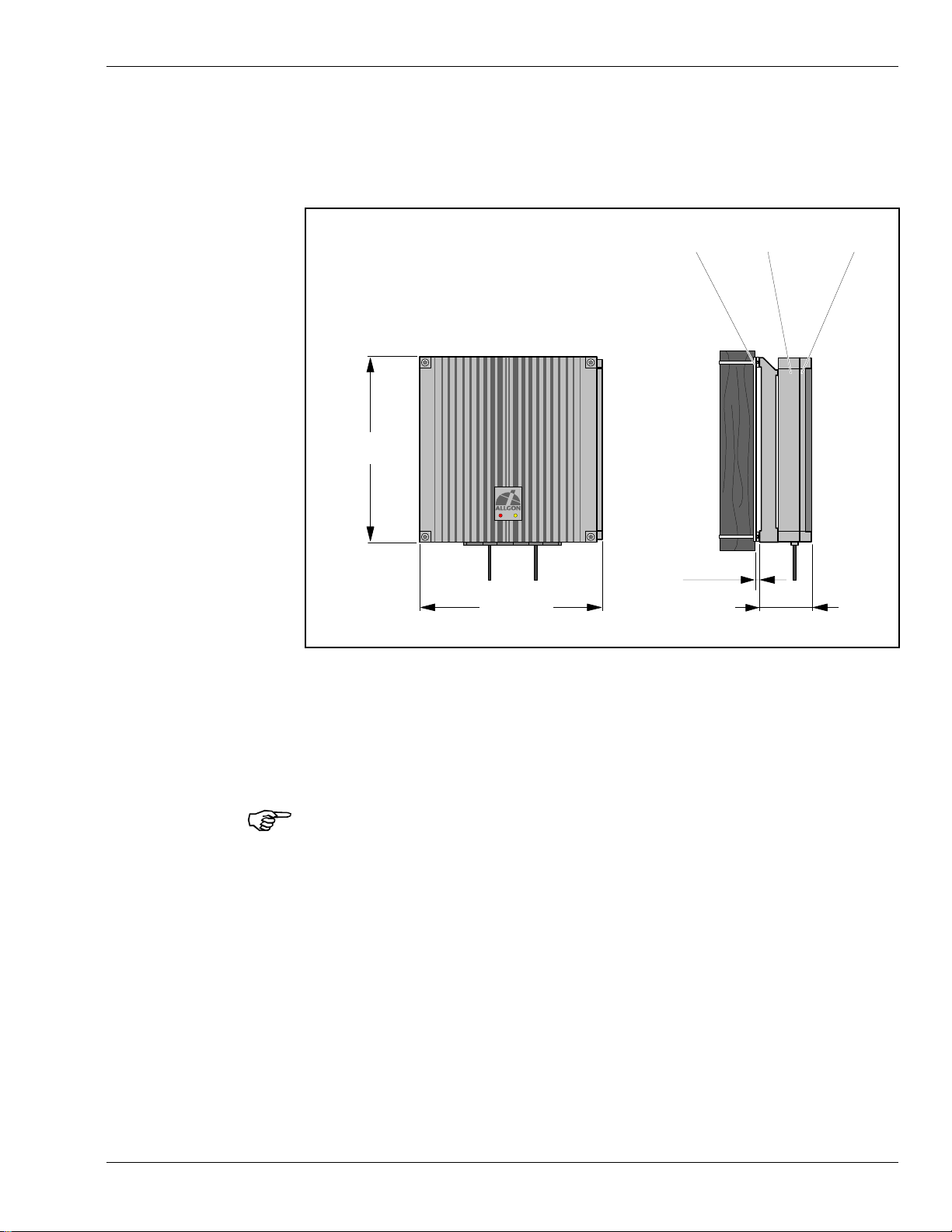

Figure 3-1. Repeater dimensions ............................................................................... 3-2

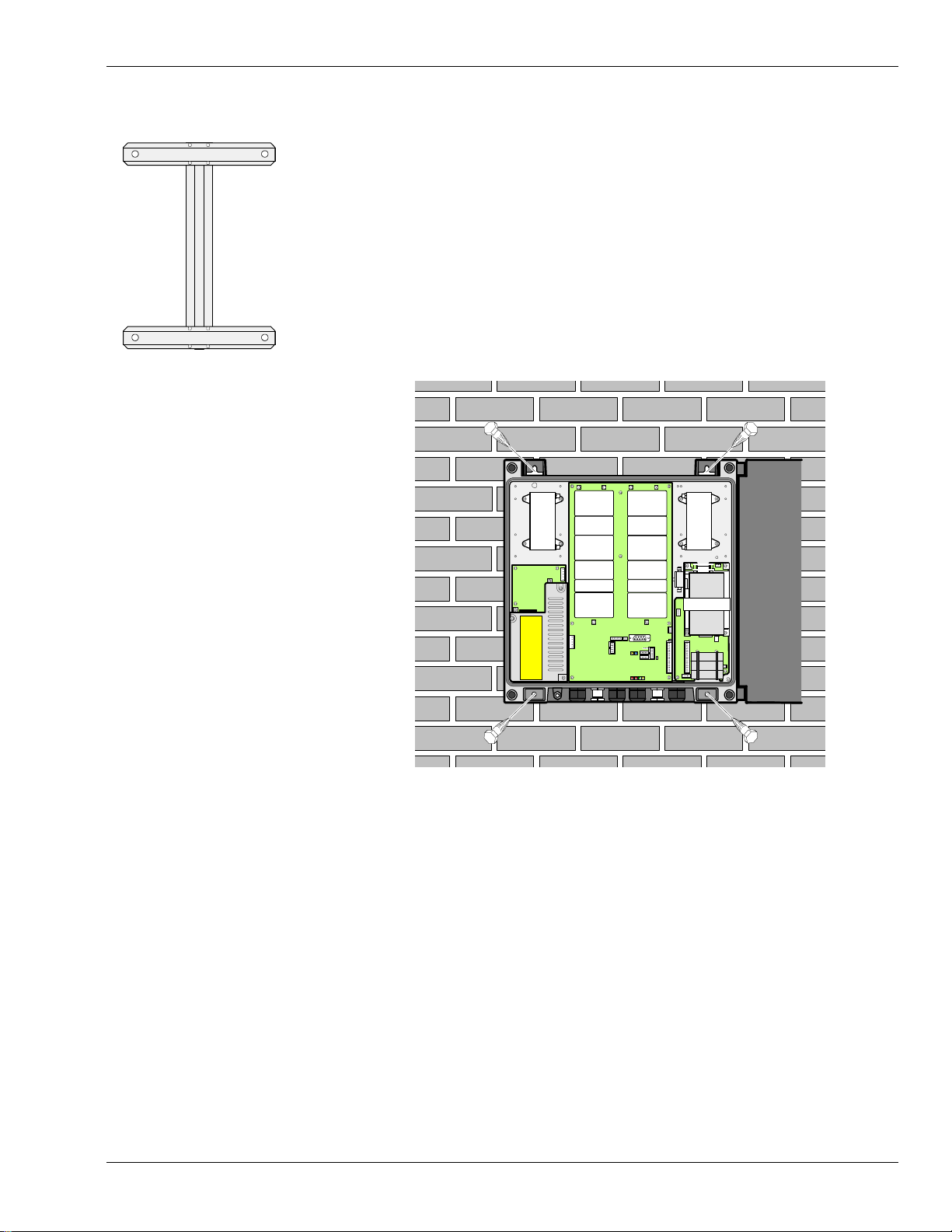

Figure 3-2. Attaching the repeater to a wall ........................................................... 3-3

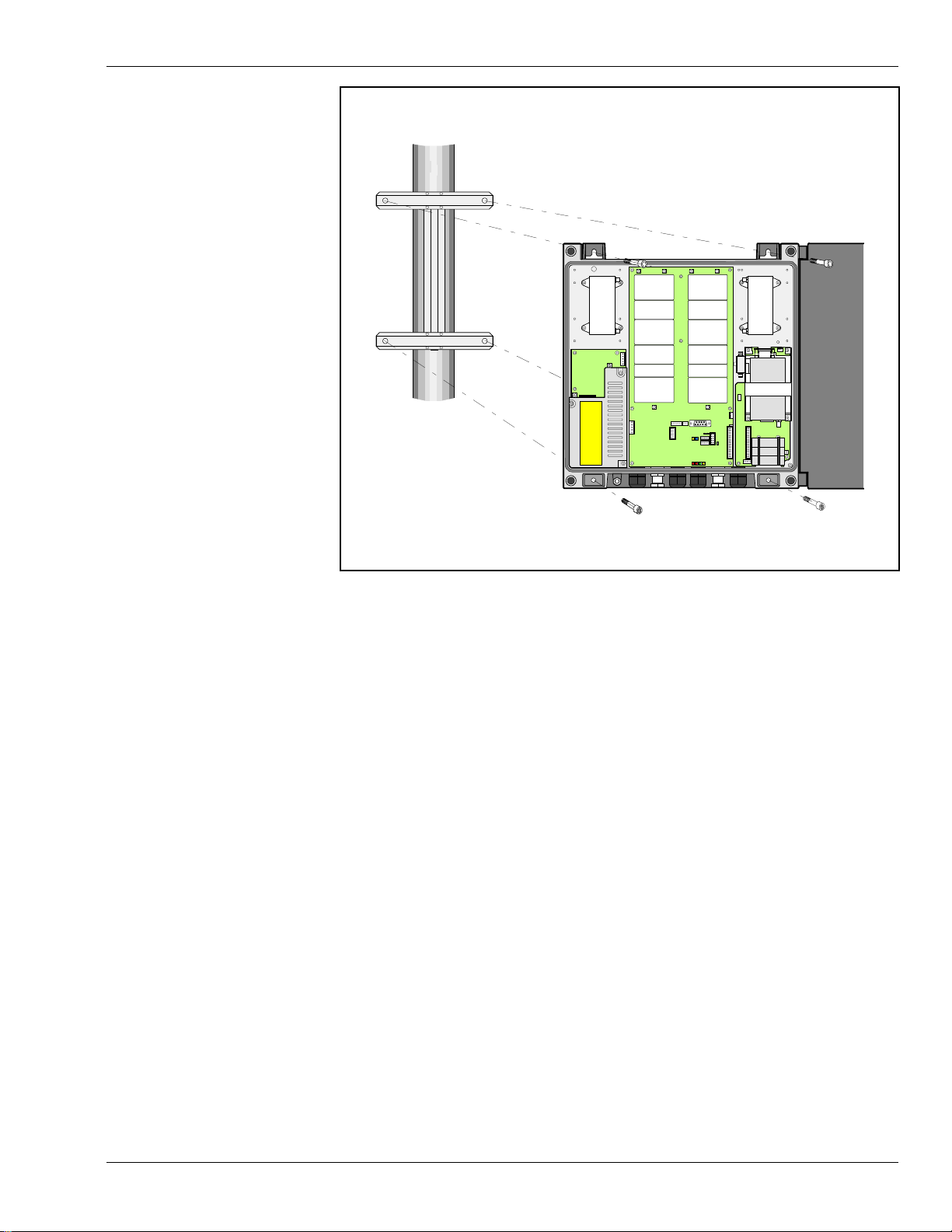

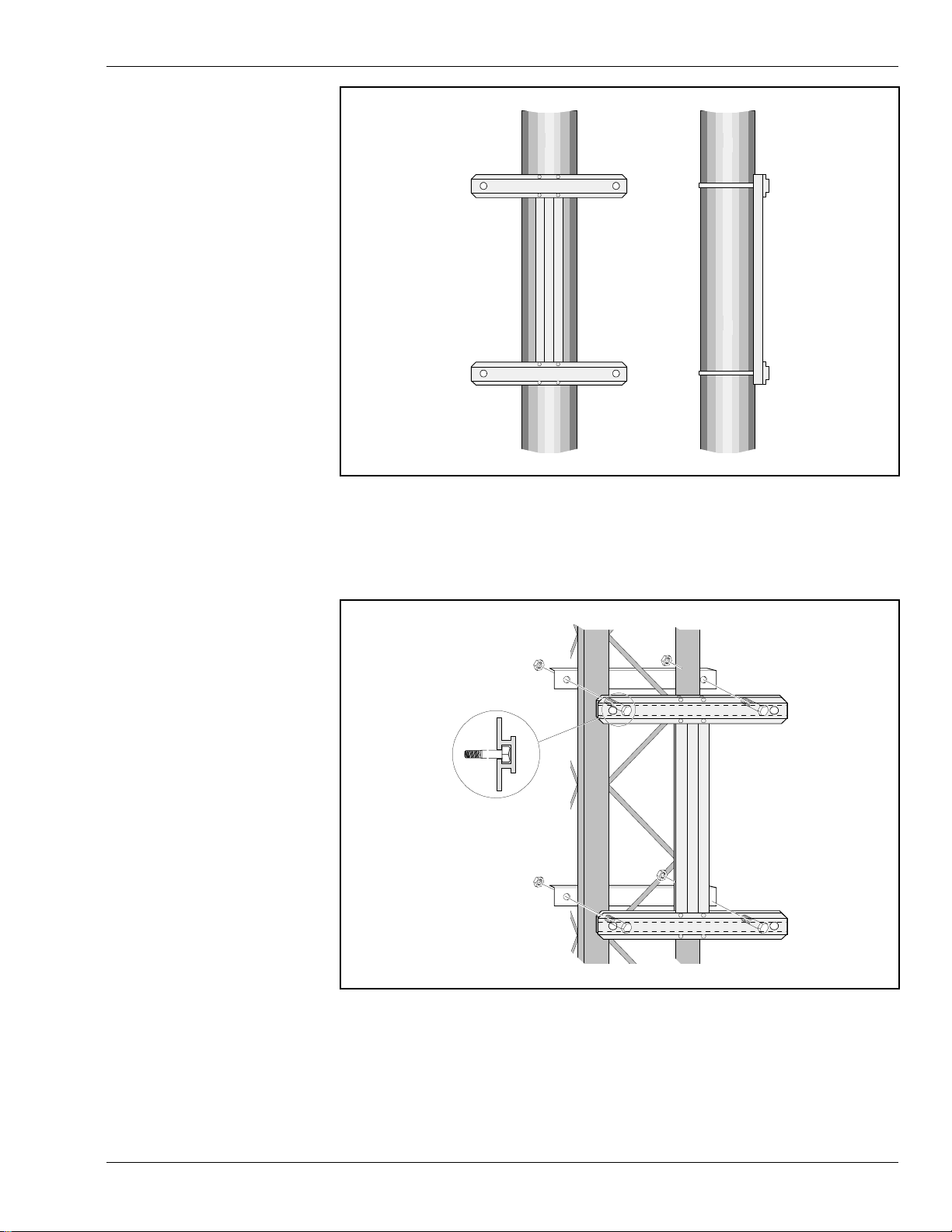

Figure 3-3. Attaching the bracket to a pole ............................................................ 3-4

Figure 3-4. Attaching the bracket to a mast ........................................................... 3-4

Figure 3-5. Attaching the repeater to the bracket .................................................. 3-5

Figure 3-6. MS and BS antenna connections ........................................................... 3-6

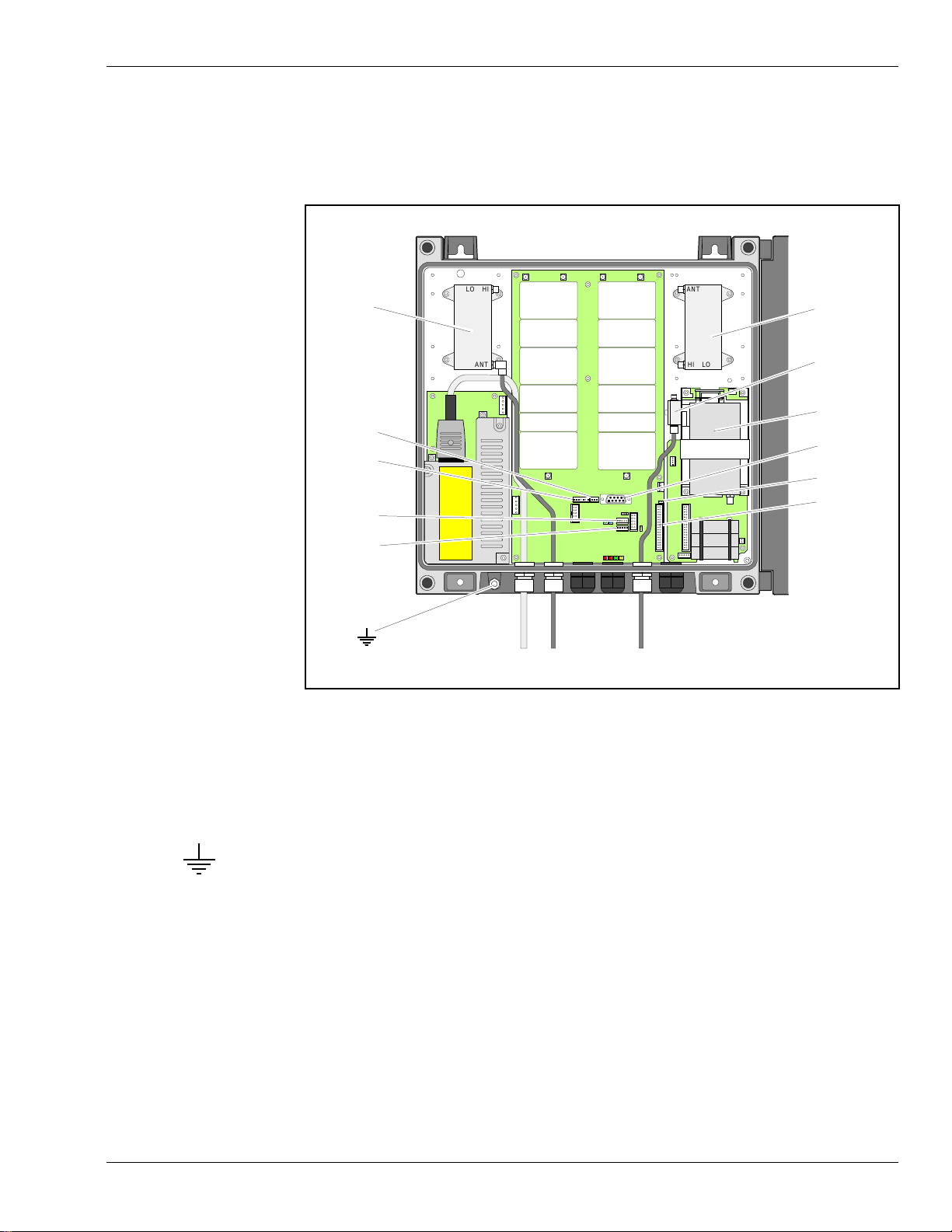

Figure 3-7. Connection ports and station ground ................................................... 3-9

Figure 3-8. Mains breakdown relay connection ...................................................... 3-13

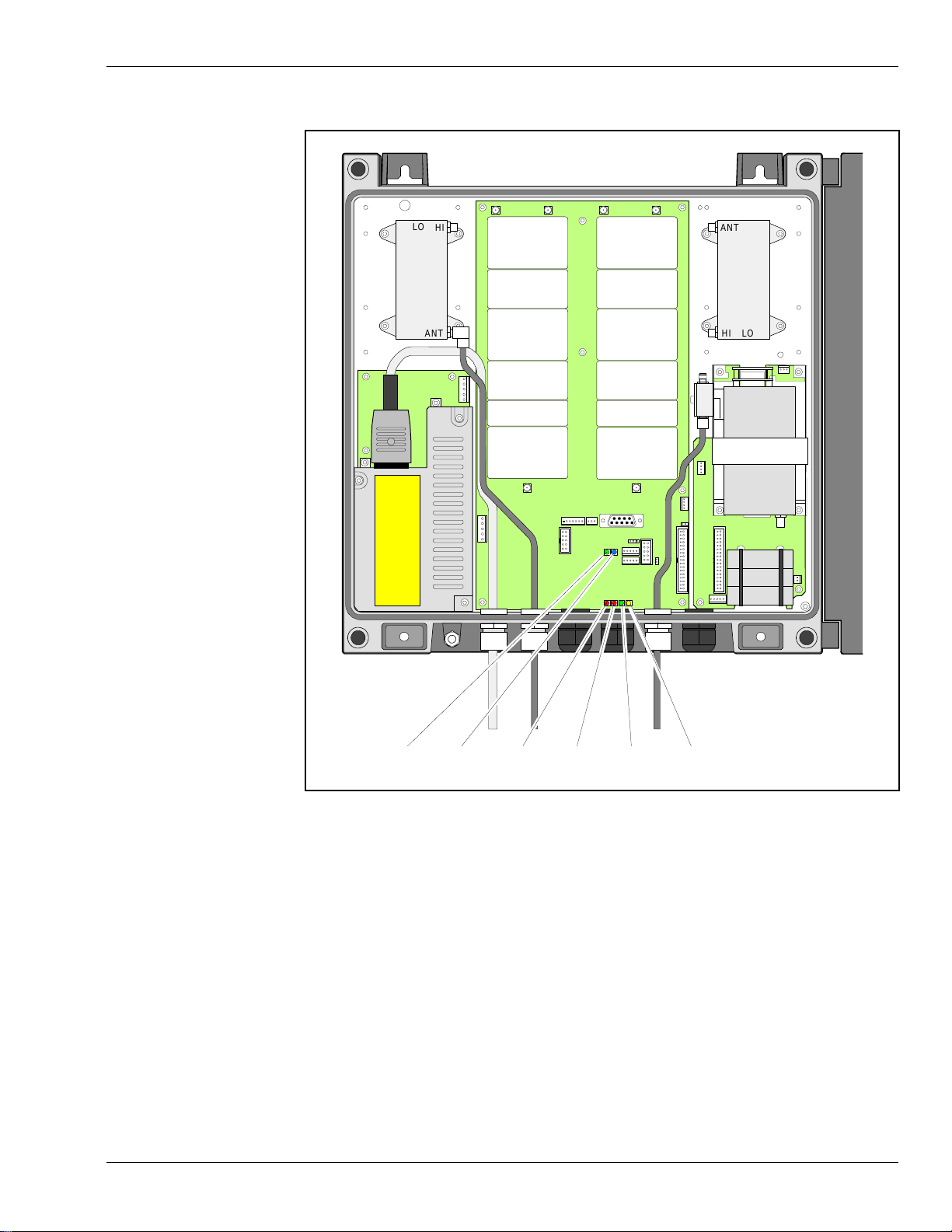

Figure 4-1. Indicators in the cabinet ......................................................................... 4-3

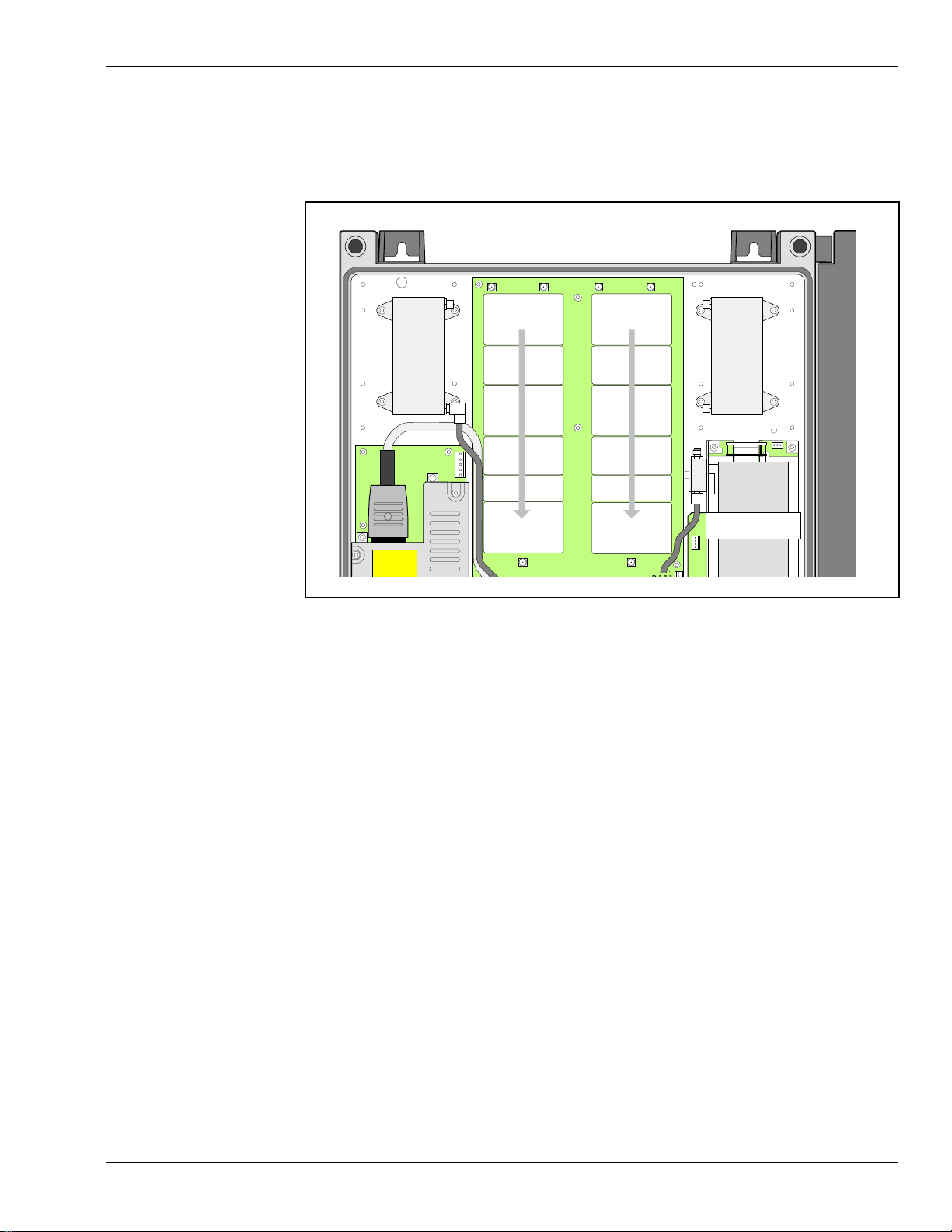

Figure 5-1. The main repeater units .......................................................................... 5-3

Figure 5-2. Block diagram .......................................................................................... 5-5

Figure 5-3. BSC, Band Selective Compact board ................................................... 5-9

Figure 5-4. LNA, Low Noise Amplifiers ....................................................................... 5-12

Figure 5-5. PA, Power Amplifiers ................................................................................. 5-13

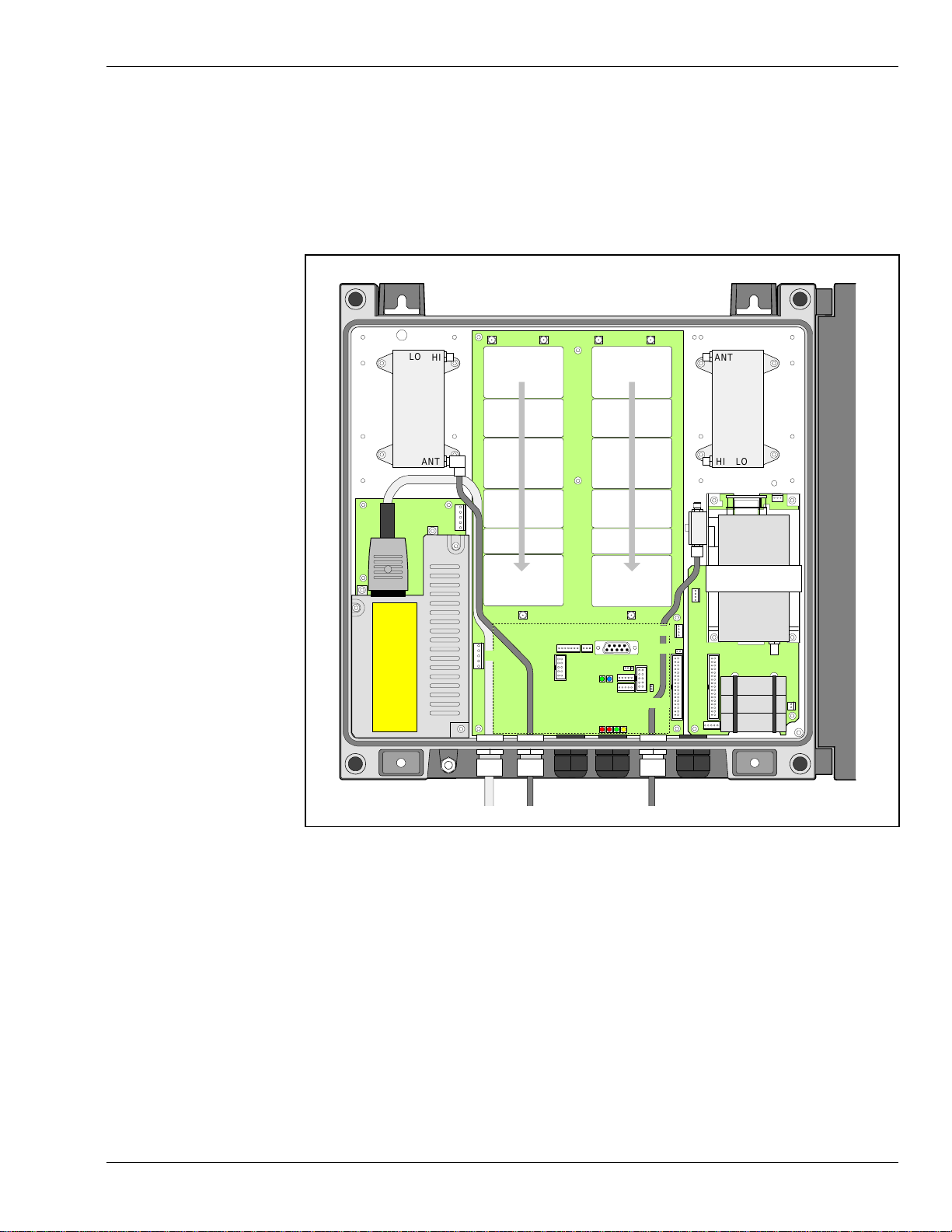

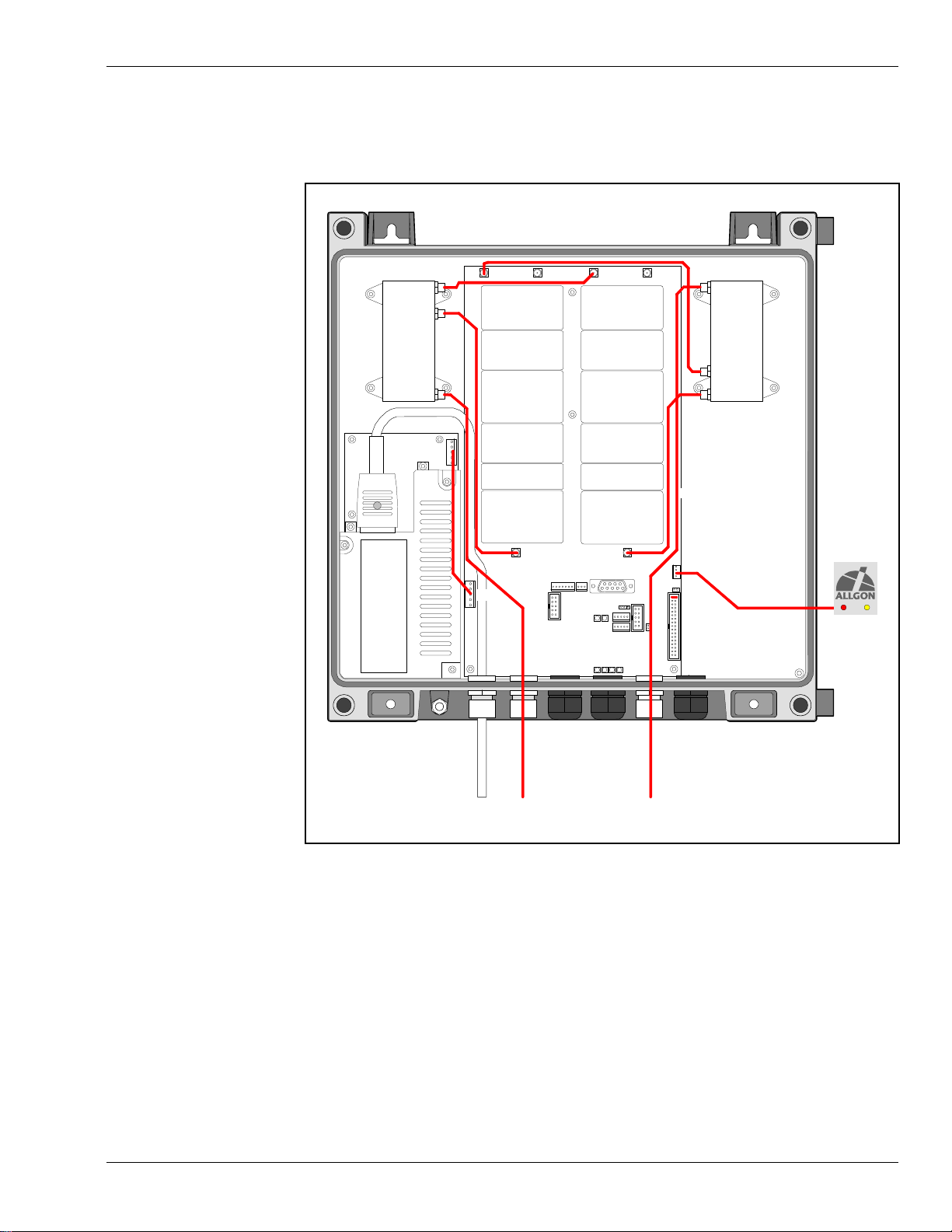

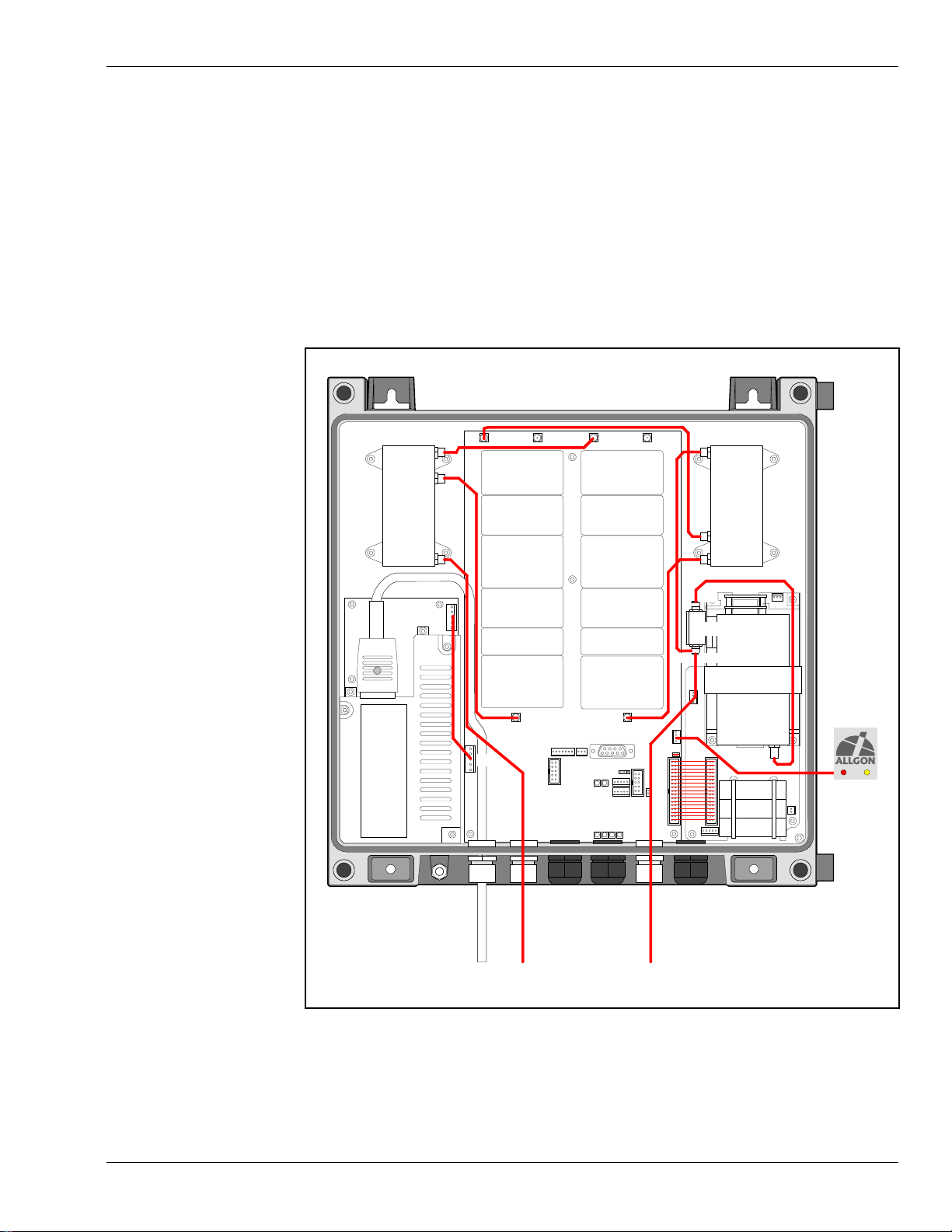

Figure 5-6. Cabling with RCC unit ............................................................................. 5-15

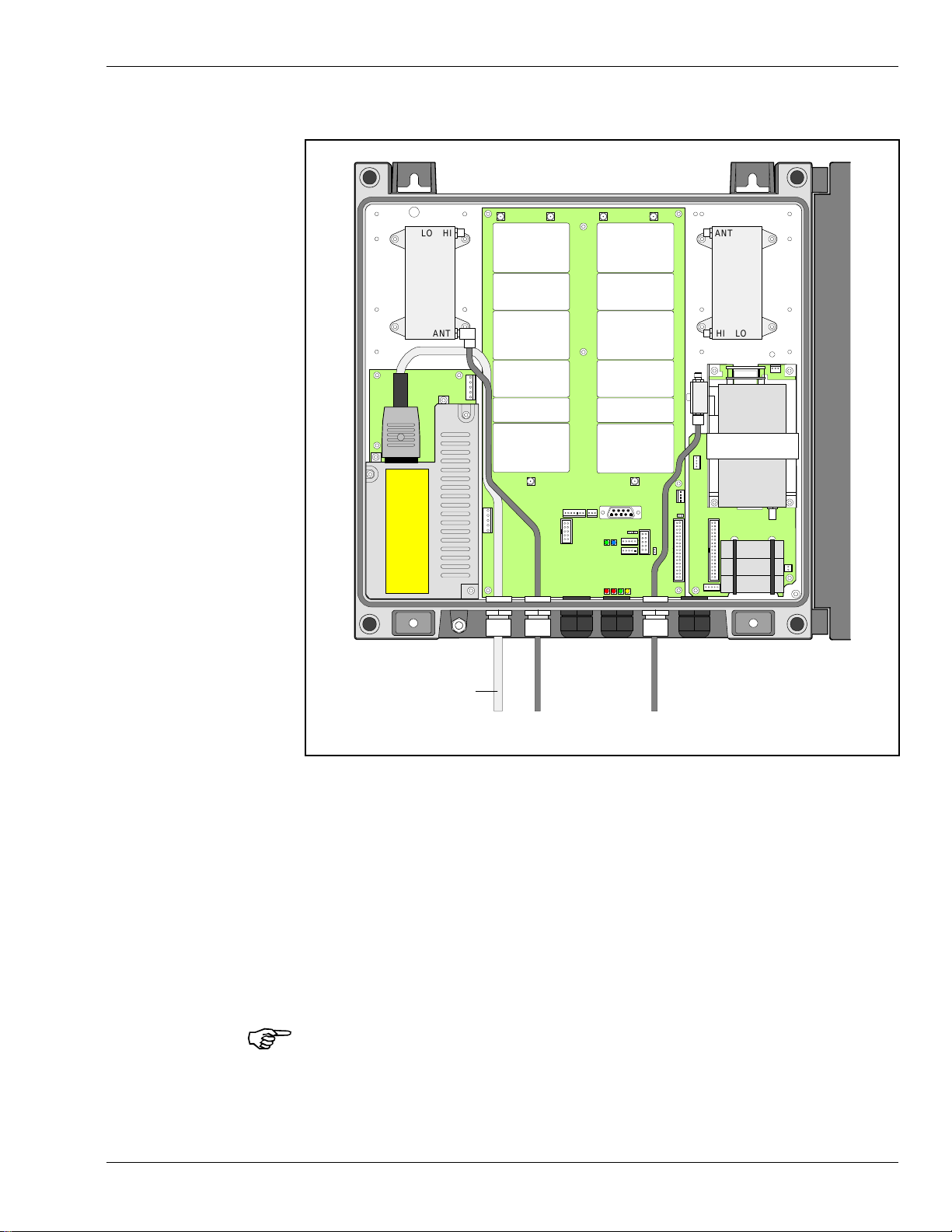

Figure 5-7. Cabling without RCC unit ....................................................................... 5-16

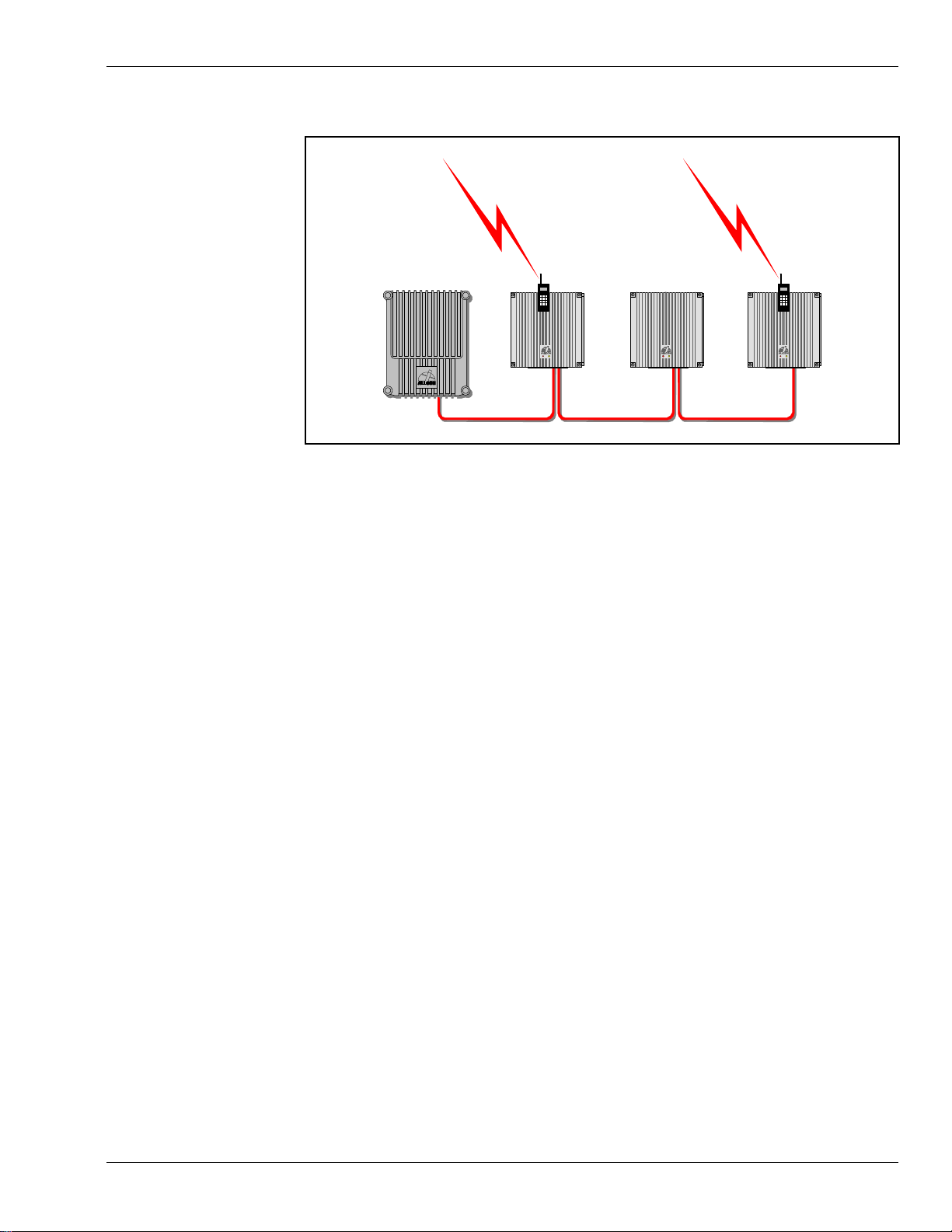

Figure 5-8. Repeater to Repeater Link ...................................................................... 5-17

Figure 6-1. The RCC unit ............................................................................................ 6-2

VD203 67/EN - User’s Manual Rev. 1A 2000-07 v

ALLGON Systems AB ALR Compact Repeater

bbreviations

Abbreviations used in this manual, in the software, and in the repeater:

AGC Automatic Gain Control AMPS Advanced Mobile Phone Service BCCH Broadcast Control Channel (GSM broadcast channel time slot) BS Base Station, BS antenna = towards the base station BSC Band Selective Compact repeater board for adjustable bandwidth CDMA Code Division Multiple Access CW Continuous Wave DCC Directional Coupler, Compact DAMPS Digital Advanced Mobile Phone Service DCS Digital Communication System (same as PCN) DL Downlink signal direction (from base station via repeater to mobile station) DPX Duplex filter EEPROM Electrical Erasable Programmable Read Only Memory EGSM Extended Global System for Mobile communication ETACS Extended Total Access Communication System ETSI European Telecommunications Standard Institute GSM Global System for Mobile communication HW Hardware LED Light Emitting Diode MS Mobile Station, MS antenna = towards the mobile station MSC Mobile Switching Center NMT Nordic Mobile Telephone system OMS Operation and Maintenance System OMS/PC Desktop or notebook with installed OMS software OMT32 Operation and Maintenance Terminal OMT32/PC Desktop or notebook with installed OMT32 software PCN Personal Communication Network (same as DCS) PCS Personal Communication System PSM Power Supply Module PTFE Polytetrafluoro Ethylene (Teflon) RCC Remote Control unit for Compact repeater RF Radio Frequency RSSI Received Signal Strength Indication RTC Real Time Clock SW Software TACS Total Access Communication System TDMA Time Division Multiple Access UL Uplink signal direction (from mobile station via repeater to base station) UPS Uninterruptible Power Supply

VD203 67/EN - User’s Manual Rev. 1A 2000-07 vi

ALLGON Systems AB ALR Compact Repeater Safety

. Safety

Any personnel involved in installation, operation or service of Allgon

repeaters must understand and obey the following:

• Allgon repeaters are designed to receive and amplify signals from one or

more base stations and retransmit the signals to one or more mobile stations. Also, the repeaters are designed to receive signals from one or more mobile stations, amplify and retransmit to the base stations. The repeaters must be used exclusively for these purposes and nothing else.

• Repeaters supplied from the mains must be connected to grounded

outlets and in conformity with any local regulations.

• The power supply unit contains dangerous voltage that can cause

electric shock. Disconnect the mains prior to any work in the repeater. Any local regulations are to be followed when servicing repeaters.

Authorized service personnel only are allowed to service repeaters while the mains is connected.

BERYLLIUM OXIDE

HYDROGEN FLUORIDE

• The repeater cover must be secured in opened position, e.g. by tying it

up, at outdoor repeater work. Otherwise, the cover can be closed by the wind and cause your fingers getting pinched or your head being hit.

• When working on a repeater on high ground, e.g. on a mast or pole, be

careful not to drop parts or the entire repeater. Falling parts can cause serious personal injury.

• Any repeater, including this repeater, will generate radio signals and

thereby give rise to electromagnetic fields that may be hazardous to the health of any person who is extensively exposed to the signals at the immediate proximity of the repeater and the repeater antennas.

• Repeaters equipped with an optional remote communication control

unit (RCC) have a dummy load in the directional coupler (DCC) that contains beryllium oxide (BeO). Beryllium oxide is poisonous if present as dust or smoke which can be inhaled. Do not file, grind, machine, or treat this part with acid.

• The coaxial cable insulation is made of PTFE, polytetrafluoro ethylene,

that gives off small amounts of hydrogen fluoride when heated. Hydrogen fluoride is poisonous. Do not use heating tools when stripping off coaxial cable insulation.

No particular measures are to be taken in case of fire because the emitted concentration of hydrogen fluoride is very low.

• A lithium battery is permanently mounted on the repeater board. Due

to the risk of explosion, this battery must only be removed from the board by an Allgon authorized service technician.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 1 - 1

ALLGON Systems AB ALR Compact Repeater Safety

Static Electric ity

Static electricity means no risk of personal injury but it can severely

damage essential parts of the repeater, if not handled carefully.

Parts on the printed circuit board as well as other parts in the repeater are sensitive to electrostatic discharge.

Never touch the printed circuit board or uninsulated conductor surfaces unless absolutely necessary.

If you must handle the printed circuit board or uninsulated conductor surfaces, use ESD protective equipment, or first touch the repeater chassis with your hand and then do not move your feet on the floor.

Never let your clothes touch printed circuit boards or uninsulated conductor surfaces.

Always store printed circuit boards in ESD-safe bags.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 1 - 2

ALLGON Systems AB ALR Compact Repeater Introduction

. Introduction

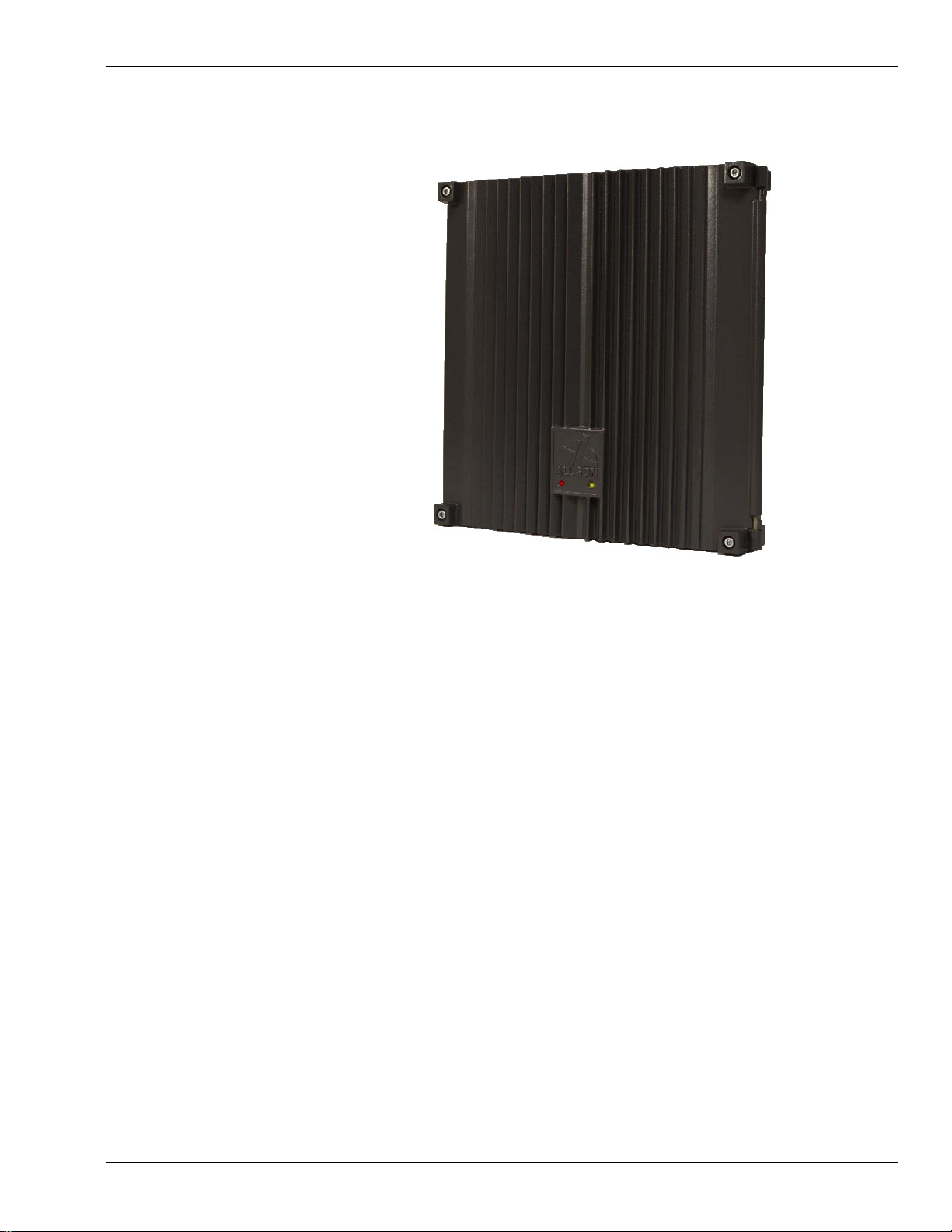

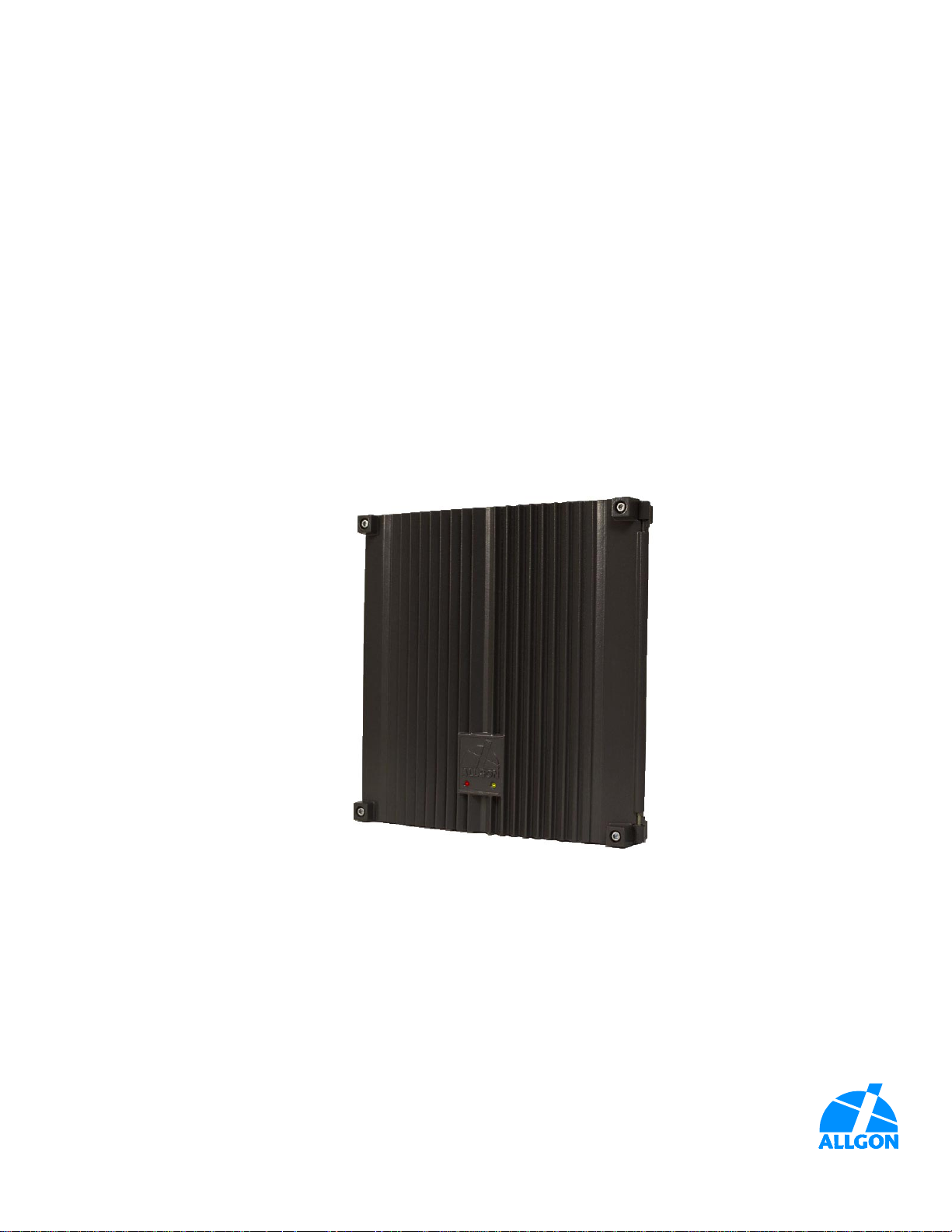

Figure 2-1. Allgon ALR Compact Repeater

Allgon repeaters are used to fill out uncovered areas in cellular mobile systems, such as base station fringe areas, road tunnels, business and industrial buildings, etc.

A repeater receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously.

To be able to receive and transmit signals in both directions, the repeater is connected to a donor antenna directed towards the base station and to a service antenna directed towards the area to be covered.

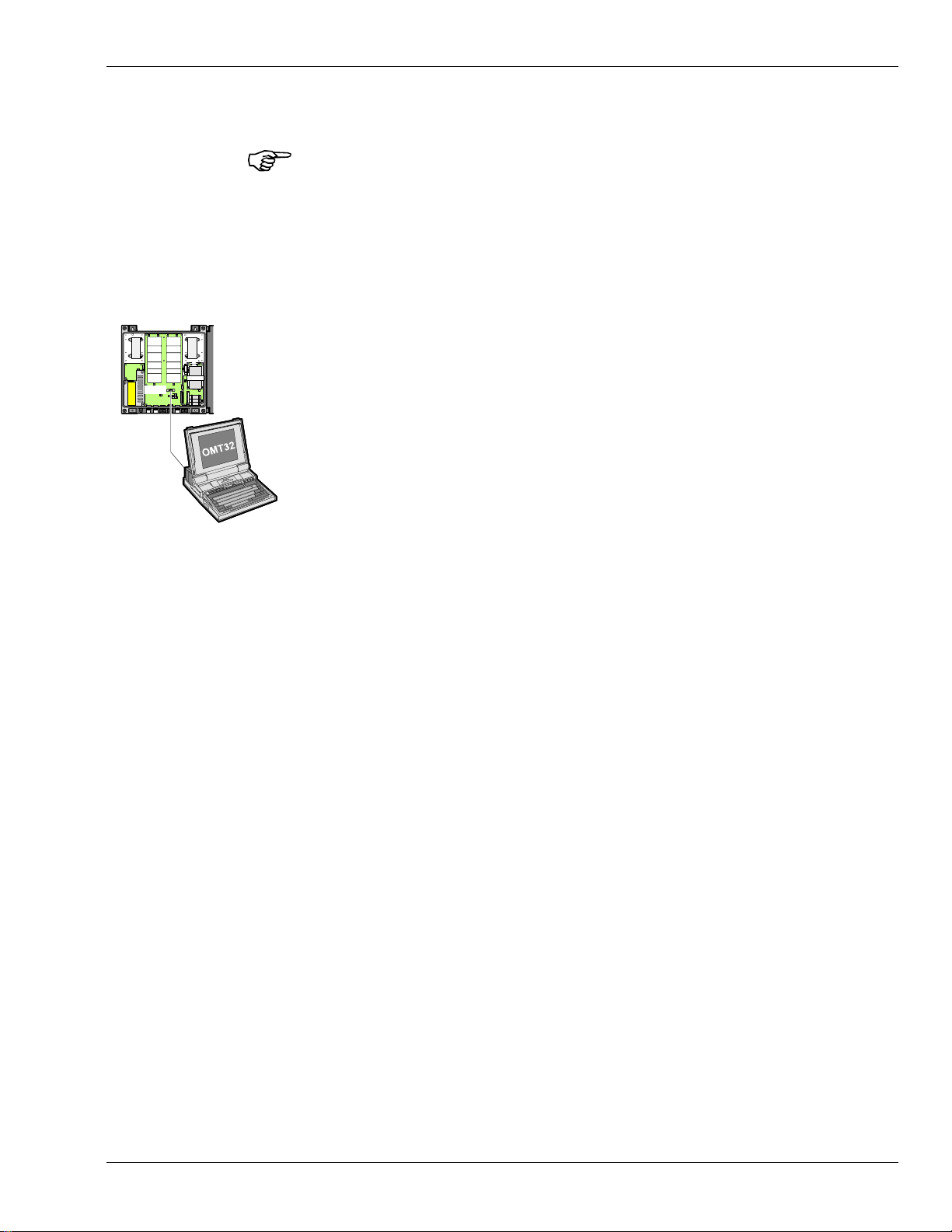

Control of the repeaters is performed using a desktop or notebook loaded with the Allgon OMT32, Operation and Maintenance Terminal, which can communicate with the repeaters, either locally or remotely via modem. Remote operation can be performed either via a traditional telephone line or via a mobile phone that can be installed inside the repeater.

To be able to control many Allgon AR repeaters in common, there is an Allgon OMS, Operation and Maintenance System.

The compact repeater is described in this manual. OMT32 is described in the AR Repeaters and OMT32, User’s Manual. OMS is described in the

Advanced Repeater OMS, User’s Manual.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 2 - 1

ALLGON Systems AB ALR Compact Repeater Introduction

Repeater Type

The following repeater type is currently available:

• Band selective repeater with adjustable bandwidth

Band selective repeater with adjustable bandwidth

The band selective compact repeater has filters that can be set to various bandwidths. This repeater type is used for analog or digital systems, such as NMT, GSM, TACS/ETACS, AMPS, DAMPS and CDMA.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 2 - 2

ALLGON Systems AB ALR Compact Repeater Introduction

Using Repeaters

In areas where the radio signal propagation is poor repeaters can be used to fill out those areas which are not covered by the base station.

The following scenarios are examples on this:

– Sports arenas – Fair halls – Large shopping centres – Road and railway tunnels – Indoors in buildings with metal or concrete walls

Other examples where repeaters can be used to increase the coverage are:

– Shaded areas – Fringe coverage areas

In areas where the traffic intensity is low, it is not cost efficient to install a base station. An Allgon repeater, which can be installed with a minimum of investments, is a much better solution. You save installation costs as well as operational costs.

Examples of using repeaters

Two examples are described in the following sections. An outdoor example in a shaded valley and an indoor example in a sports arena.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 2 - 3

ALLGON Systems AB ALR Compact Repeater Introduction

Shaded Area

A valley is shaded by hills. There is a base station 5 kilometers away, but

the lowest signal strength in the valley is less than –100dBm. A mast used for other purposes is available for a repeater installation. The mast height is 42 meter and it is located on a hill. The scenario is illustrated in Figure 2-2.

Donor antenna

Service antenna

Figure 2-2. Repeater coverage of shaded area

The donor antenna of the repeater was mounted at the top of the mast and the service antenna was mounted at the half mast. The antenna isolation was measured to over 100dB. The repeater was set to 70dB gain.

Measured levels: Received signal level – 60.0 dBm

Donor antenna gain 15.0 dBi Cable loss

–

5.0 dB

Repeater input level – 50.0 dBm

Adjusted repeater gain 70.0 dB Repeater output level 20.0 dBm

Cable loss – 5.0 dB Service antenna gain 8.0 dBi Radiated output level 23.0 dBm

The measured result in the valley was better than –90dBm.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 2 - 4

ALLGON Systems AB ALR Compact Repeater Introduction

Sports Arena

A 2000 spectators sports arena with metallic roof had an indoor signal

strength too low to provide a fair service in most parts of the arena. The nearest base station was 8 kilometers away and it was equipped with one carrier only.

A donor antenna directed towards the base station was mounted on a mast outside the building and a repeater was installed inside the building with the service antenna on the arch vault. The scenario is illustrated in Figure 2-3.

Donor antenna

Service antenna

Figure 2-3. Repeater in sports arena

The antenna isolation was measured to over 85dB.

Measured levels: Received signal level – 80.0 dBm

Donor antenna gain 15.0 dBi Cable loss

–

5.0 dB

Repeater input level – 70.0 dBm

Adjusted repeater gain 70.0 dB Repeater output level 0.0 dBm

Cable loss – 2.0 dB Service antenna gain 7.0 dBi Radiated output level 5.0 dBm

The signal strength was fair for service in the entire arena.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 2 - 5

ALLGON Systems AB ALR Compact Repeater Installation

. Installation

Before installation, read carefully Chapter 1, Safety.

Siting the Repeater

Allgon repeaters are designed for outdoor usage. However, humidity and

temperature changes may have affect on the reliability. A preferable site for the repeater is thus indoor, in a tempered and ventilated room.

Sunshine

If a repeater is placed outdoor and can be exposed to direct sunshine, it is

essential that the air can circulate around the repeater with no obstacle.

The operating temperature must not exceed +55°C. A shelter can be used to shade the repeater from direct sunshine.

Shelter

Allgon repeaters are designed with a weather proof outdoor case that can

be mounted without any kind of shelter from rain, snow or hail.

If a repeater is to be opened on the site when raining, snowing, or hailing there must be some kind of permanent or temporary shelter. This is applicable to gentle rainfall, snowfall or hail. Limitations for very bad weather is found in the next section.

Outdoor Installation and Service Limitations

Sited outdoors, the repeater must not be opened for installation or

service at bad weather, such as:

– Intense rainfall, snowfall or hail – Storm or high wind – Extremely low or high temperature – High humidity of the air

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 1

(

)

ALLGON Systems AB ALR Compact Repeater Installation

Dimensions and Weight

The dimensions of the repeater, including the mounting bracket, is shown

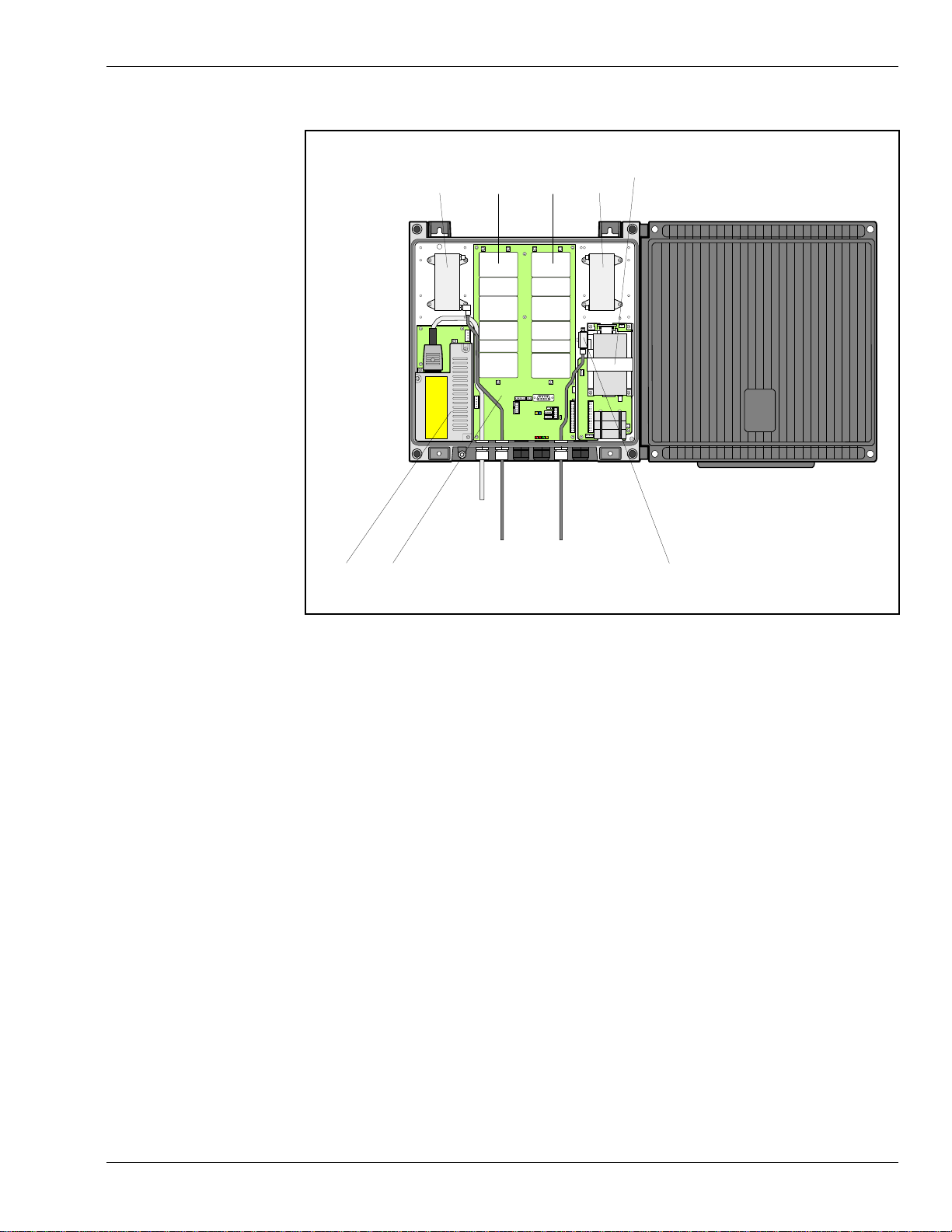

in Figure 3-1. The repeater chassis consists of two main parts, a cabinet in which the circuitry is housed, and a cover.

385

(15.2")

Mounting br acket

(0.6")

385 (15.2")

Figure 3-1. Repeater dimensions

Cabinet

110

4.3"

Cover

Approximately repeater weight

Repeater with cover ................................................................... 10Kg (22 lbs)

It is not recommended to remove the cover from the cabinet at the site.

However, if the cover, for some reason, has to be removed from the cabinet, then disconnect the interconnection cables, close the cover, remove the hinge shafts, and remove the cover.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 2

ALLGON Systems AB ALR Compact Repeater Installation

Mounting

The ALR repeater is easy to mount, either by anchoring the repeater in the fixing holes, or by using the EA101 57/1 Pole Mounting Bracket kit,

containing a mounting bracket, clamps for 40mm – 110mm round pole, and fixing screws for fastening the repeater to the mounting bracket.

The mounting bracket is shown in the figure. The holes are threaded (M6) and correspond to the mounting holes in the repeater.

1. Mount the repeater.

Normally, the repeater is mounted on a wall, pole, or mast. These mounting cases are shown below.

ANT

HI LO

Figure 3-2. Attaching the repeater to a wall

Figure 3-2 shows how to mount the repeater to a wall using four fixing screws. You can use screws for maximum 13mm (1/2") hexagon socket wrench, e.g. 6mm (1/4") bults.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 3

ALLGON Systems AB ALR Compact Repeater Installation

Figure 3-3. Attaching the bracket to a pole

Figure 3-3 shows a bracket attachment to a pole using the mounting bracket and the clamps provided with the bracket.

Figure 3-4. Attaching the bracket to a mast

Figure 3-4 shows a bracket attachment to a mast using two angle irons and four M6 (1/4") screws. The screw heads can be slided into the bracket profile as shown in the figure.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 4

ALLGON Systems AB ALR Compact Repeater Installation

ANT

HI LO

Figure 3-5. Attaching the repeater to the bracket

If the mounting bracket is used, then mount the repeater on the bracket using the four fixing screws provided with the mounting bracket kit (see Figure 3-5).

2. Mount the donor antenna directed towards the base station antenna.

3. Mount the service antenna directed towards the area to be covered by

the repeater.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 5

ALLGON Systems AB ALR Compact Repeater Installation

Connection

ANT

Mains

HI LO

Figure 3-6. MS and BS antenna connections

1. Connect the service antenna (MS) and donor antenna (BS) coaxial

cables (see Figure 3-6). N type female connectors are used in the repeater.

The donor antenna (BS) is connected to the right in the cabinet.

The service antenna (MS) is connected to the left in cabinet.

2. Connect the mains to the repeater Power Supply Module, PSM, in

the PSM connector.

The Compact repeater is approved in accordance with EN and UL/cUL regulations. This is, however, only valid if a classified power cord is used.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 6

ALLGON Systems AB ALR Compact Repeater Installation

To get the repeater to meet these regulations, select one of the following classified and approved cord types:

EN - H 05 W5 - F HMR

UL - AWM Style 2587 CSA - AWM 1 A/B 11 A/B

For outdoor use the power cord should meet at least IP65 encapsulation requirements.

The repeater PSM must be grounded. Make sure the ground cable part is connected to ground in the PSM connector.

Ground is marked with the following symbol:

ANT

HI LO

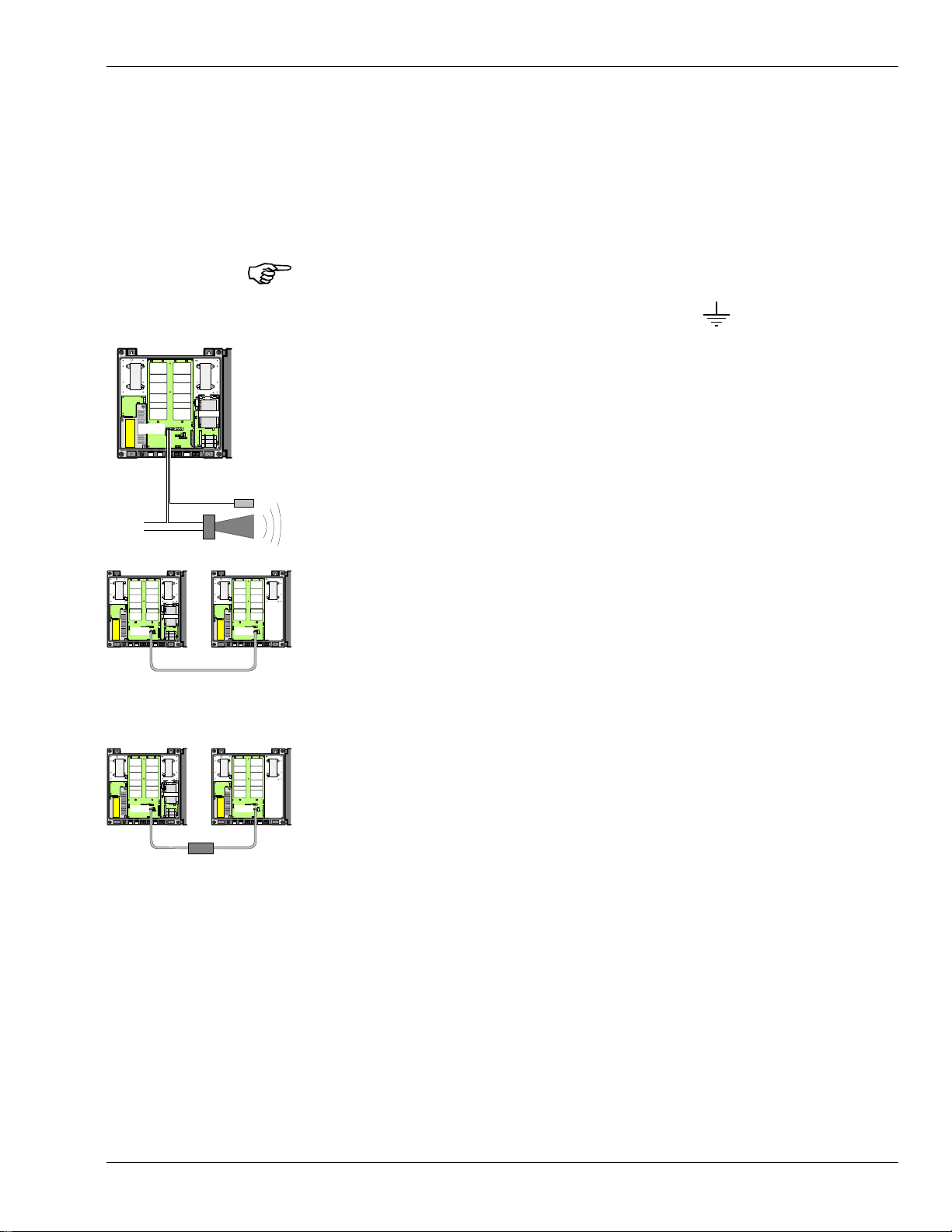

3. Connect external alarm sensors (burglary, fire, etc.) and other

external alarm equipment (optical or acoustic signal, etc.), if any. Cables for this installation is taken through a free strain relief bushing at the bottom of the repeater, in the same way as the mains

P119

cable and the antenna cables.

External alarm sensors

External alarm is connected to the P119 alarm port located in the center of the cabinet (see Figure 3-7 on page 3-9). Use a 7 pole female connector.

The P119 port is described on page 3-11.

ANT

HI LO

ANT

HI LO

ANT

4. Connect the Repeater to Repeater Link cable, if this feature is to be

used. The R2R net cable is connected to the P118 or P124 Repeater to Repeater Link ports to the right in the repeater. Connection and

P118

termination is described on page 3-10.

Any cable type can be used for indoor installation.

The following cable type is recommended for outdoor installation: Li 2YC11Y, 2x2xAWG24/222, non-halogen, Metrofunkkabel-Union.

ANT

HI LO

ANT

HI LO

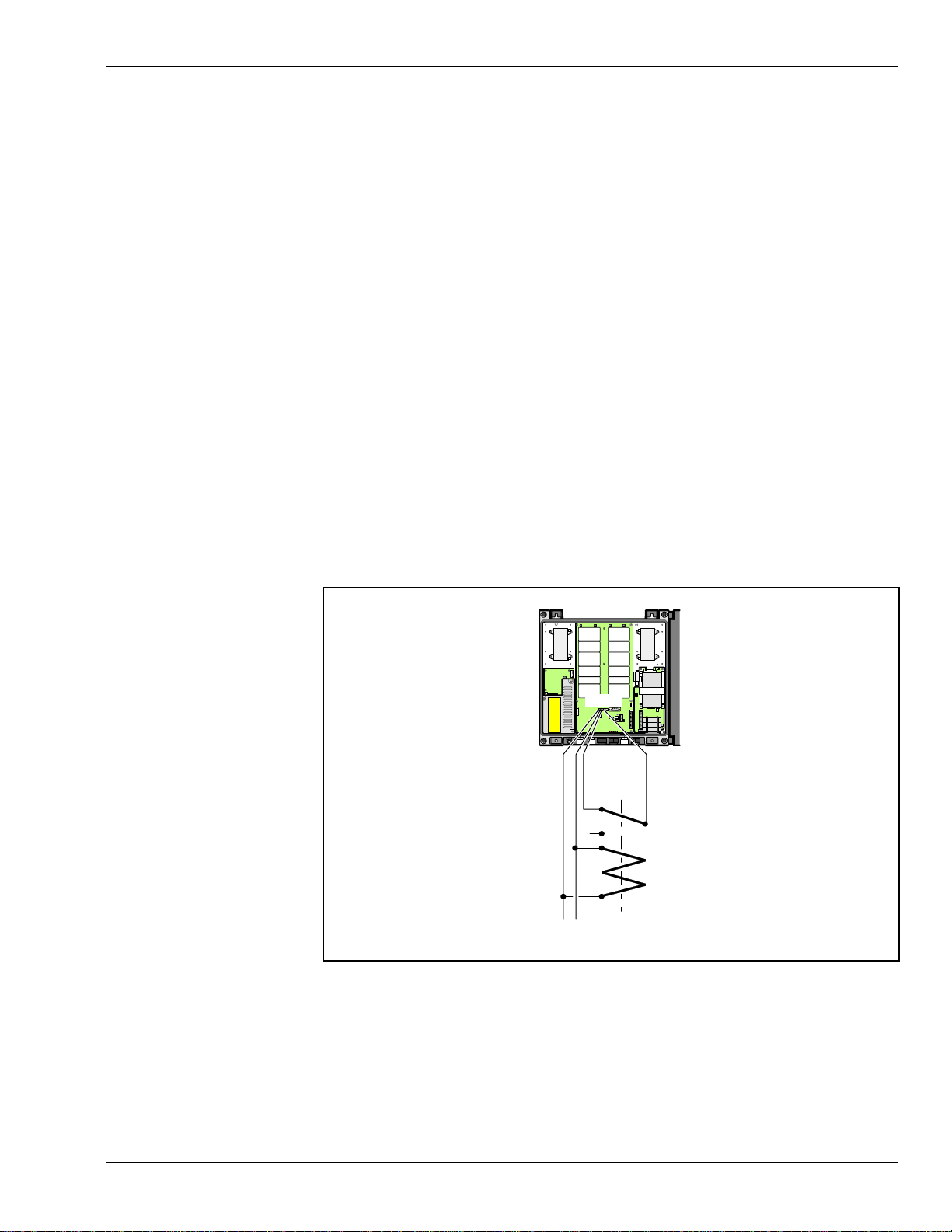

If the link cable between two repeaters in an R2R net is longer than 25 meters, then an RS-485 repeater is required, see the figure.

P118

>25m

P118

Free strain relief bushings at the bottom of the repeaters are used for the external net cables.

The P118 and P124 Repeater to Repeater Link ports are described on

page 3-10 and page 3-12.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 7

ALLGON Systems AB ALR Compact Repeater Installation

Not used RCC unit: 5. This step is applicable only if the repeater has an RCC unit which is

not used (or has been removed).

If the P130 cable connector has been removed, then pin 1 and 2 of the P130 port must be interconnected with a jumper. Do not interconnect any other position than between pin 1 and 2 of the P130 port.

The jumper is found in the P113 parking device if not used in the P130 port.

The P130 port is described on page 3-12 and the P113 parking device is described on page 3-10.

ANT

HI LO

6. Set up a PC with OMT32 to the repeater by connecting a standard

RS-232 serial cable between a COM port on the PC and the P112 PC port located to the right in the repeater cabinet (see Figure 3-7 on

P112

page 3-9).

Port P112 is described on page 3-10.

Now, you can commission the repeater as described in Chapter 4.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 8

ALLGON Systems AB ALR Compact Repeater Installation

Connection Ports and Station Ground

Connectors involved in the installation are described below.

Station ground is also detailed below.

DPX MS

P120

P119

P118

P124

ANT

MS BS

ANT

HI LO

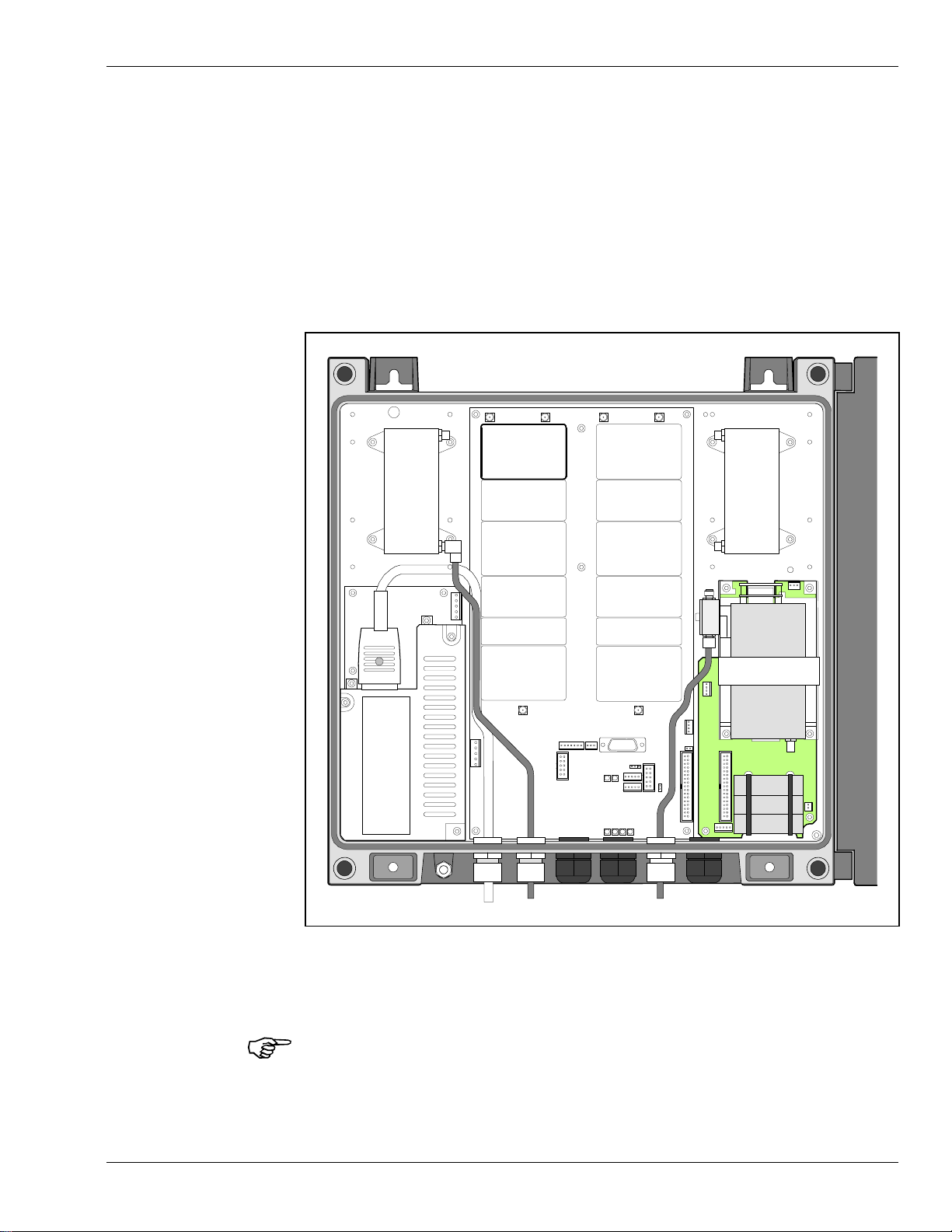

Figure 3-7. Connection ports and station ground

DPX BS

DCC

RCC

P112

P113 P130

Station Ground

There is a ground screw (M6) on the repeater that is intended for station ground (see Figure 3-7). This screw must be used only for station grounding.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 9

ALLGON Systems AB ALR Compact Repeater Installation

P112 PC Port

PC port P112 is a RS-232 port used for local PC communication.

(see Figure 3-7).

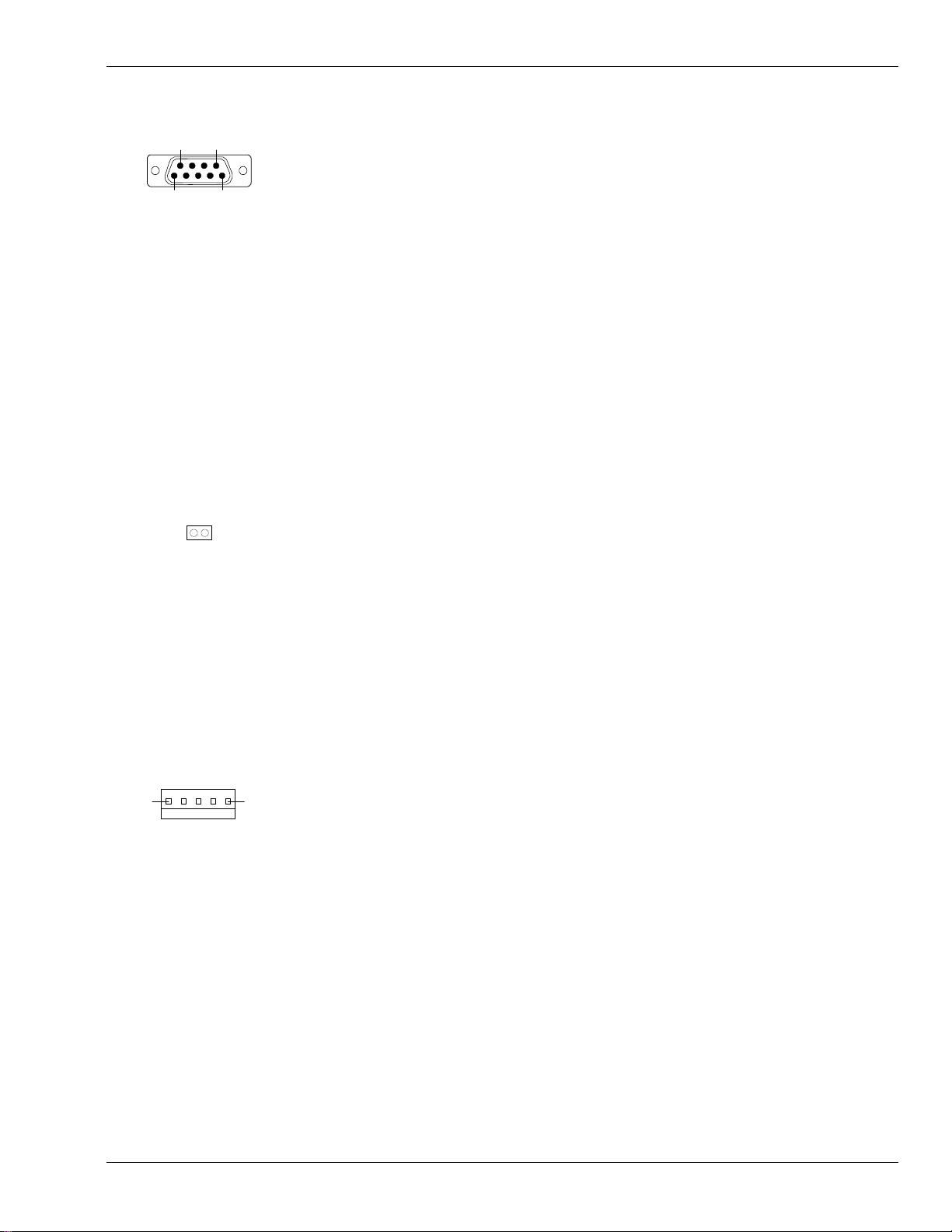

Connector pinning

P112 is a 9 pole D-sub female connector located to the right in the cabinet

Pin 1 Not used Pin 2 Data from repeater to OMT32 Pin 3 Data from OMT32 to repeater Pin 4 DTR from OMT32 to repeater Pin 5 GND Pin 6 DSR from repeater to OMT32 Pin 7 RTS from OMT32 to repeater Pin 8 CTS from repeater to OMT32 Pin 9 Not used

P113 Parking Device

P113 is a parking device for a jumper used for the P130 port. The jumper is used to interconnect pin 1 and pin 2 of the P130 port when there is no RCC remote communication control unit connected to the repeater.

When an RCC unit is connected to the repeater, then the jumper can be placed in P113.

P113 is an unconnected 2 pole male connector located to the right in the cabinet, adjacent to the P130 connector (see Figure 3-7).

P118 Repeater to Repeater Link Port

P118 is used for the Repeater to Repeater Link feature (R2R net).

P118 is a 5 pole male connector located to the right in the cabinet, adjacent to the P124 connector (see Figure 3-7).

The P118 and P124 ports are identical an connected in series. One of the connectors are intended to be used from the previous repeater in the net chain, and the other connetor to the next repeater in the net chain. Either of P118 or P124 can be used for the first and the last repeater in the net chain.

Use straight connection between P118 and P124 connectors.

No termination is required for the outermost repeaters in an R2R net.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 10

ALLGON Systems AB ALR Compact Repeater Installation

P119 Alarm Port

Alarm port P119 is used for external alarm sensors and alarm equipment.

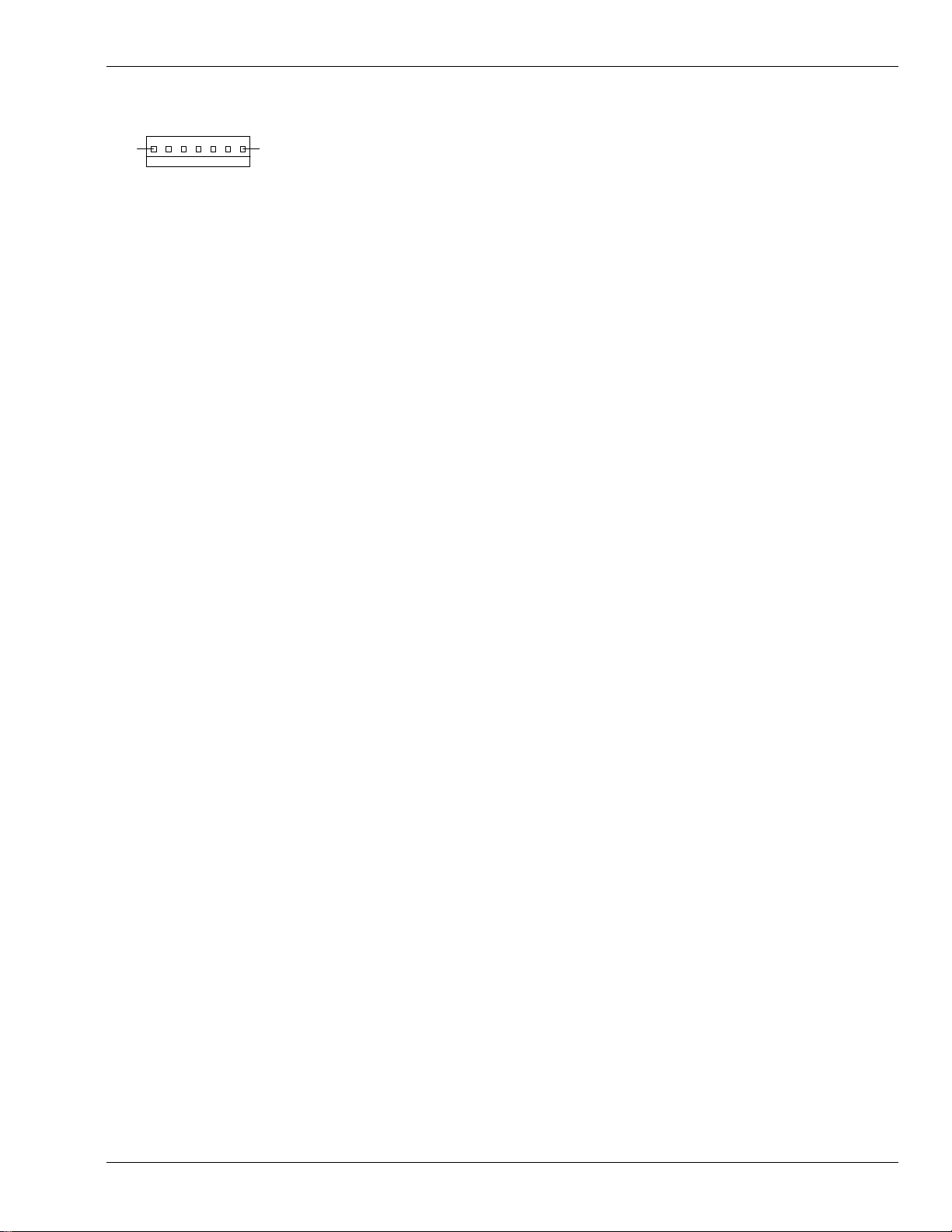

P119 is a 7 pole male connector located in the center of the cabinet (see

Figure 3-7).

The port has four alarm inputs, EAL1 - EAL4.

The four alarm inputs

The inputs are low-level inputs with common ground (AIC).

Use insulated switch or relay to initiate alarms (open switches in normal operating mode, closed switches cause alarm).

The alarm switch connection can be toggled between being active open or active closed. This is further described in the AR Repeaters and OMT32, User’s Manual.

The alarm input voltage ratings, related to ground, are:

max min

= 5.5V = –0.5V

Vin Vin

Connector pinning

Pin 1 AIC Ground Pin 2 AIC Ground Pin 3 AI1 External alarm input 1 – EAL1 Pin 4 AI2 External alarm input 2 – EAL2 Pin 5 AI3 External alarm input 3 – EAL3 Pin 6 AI4 External alarm input 4 – EAL4 Pin 7 Not used

EAL4 can also be configured as door alarm with settable alarm level.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 11

ALLGON Systems AB ALR Compact Repeater Installation

P120 Door Switch

P120 is used for repeater door alarm. An internal door switch is

connected to this port to activate door alarms.

P120 is a 3-pole male connector located in the center of the cabinet, adjacent to the P119 alarm connector (see Figure 3-7).

The alarm level for this input is always Warning w ceasing.

This alarm input is separated from the alarm inputs in the P119 alarm connector. The EAL4 in the P119 alarm port (pin 6) can also be configured as door alarm input with settable alarm level.

The door switch alarm is activated 30 seconds after the door switch has been activated.

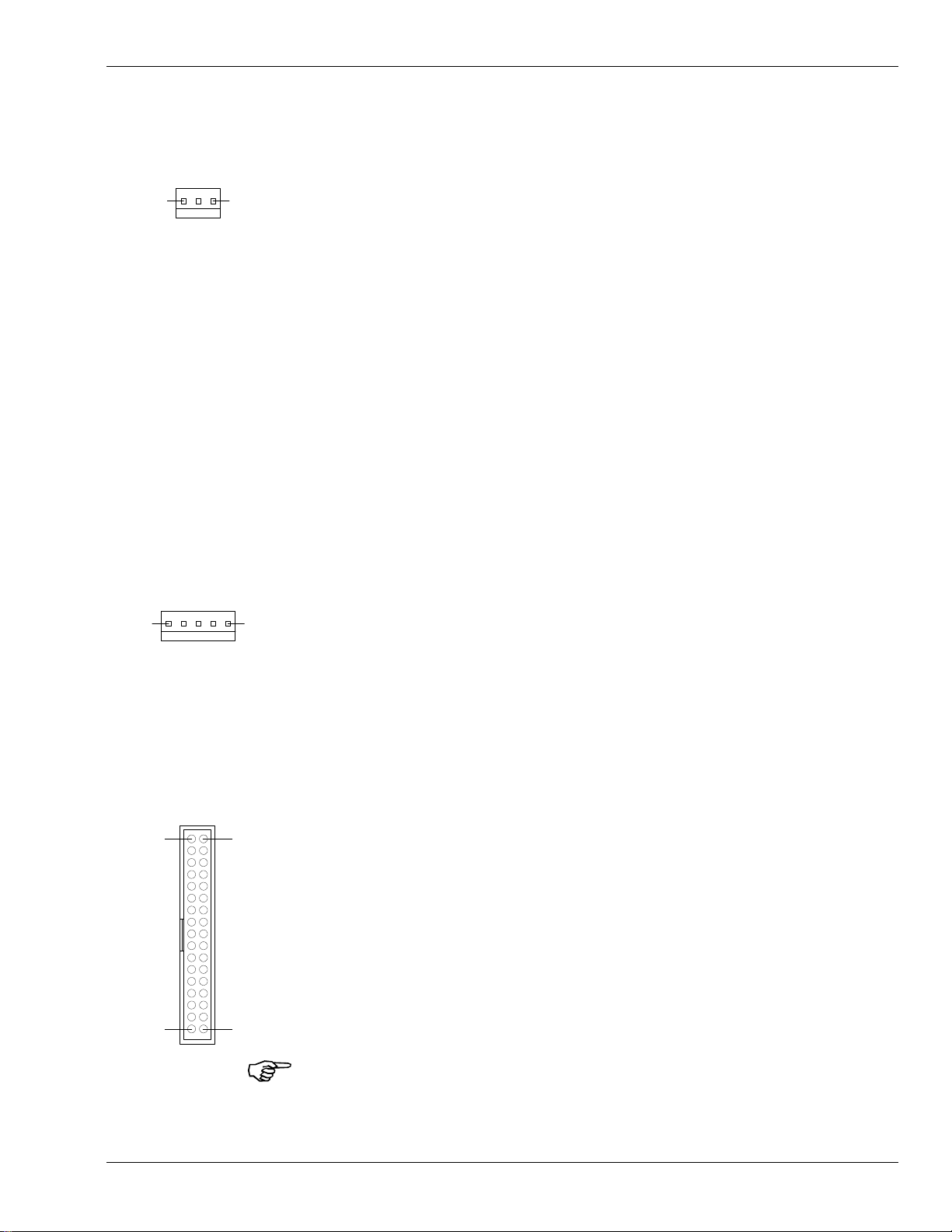

Connector pinning

Pin 1 Ground Pin 2 Alarm input Pin 3 Power (5V, 10mA for the door alarm circuitry)

P124 Repeater to Repeater Link Port

P124 is used for the Repeater to Repeater Link feature (R2R net).

P130 RCC Port

33 34

P124 is a 5 pole male connector located to the right in the cabinet, adjacent to the P118 connector (see Figure 3-7).

The usage of P118 and P124 is described on page 3-10.

The P130 RCC port is used for connecting an RCC mobile phone/modem remote control unit.

P130 is a 34 pole 2 line male connector located to the right in the cabinet (see Figure 3-7).

The P130 connector contains modem/telephone line connection, RCC power supply, etc.

If there is no RCC remote communication control unit connected to the P130 port, then pin 1 and pin 2 must be interconnected with a jumper (see P113 on page 3-10).

Pin 1 and 2 of the P130 port MUST ALWAYS be interconnected to provide voltage supply to a part of the repeater circuitry.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 12

ALLGON Systems AB ALR Compact Repeater Installation

Mains Breakdown Relay

To be able to distinguish PSM faults from power failure, a mains

breakdown relay must be used on the repeater mains supply.

The mains breakdown relay is not included in the repeater. So, it has to be mounted outside the repeater chassis. The relay intended for this purpose must fulfil the following specifications:

Relay specifications

Closing time: max. 30 milliseconds Insulation coil/contact: min. 4KV Mains connected relay must be in compliance with valid local regulations.

Connection

• Connect a normally closed relay contact to pin AI1 and AIC on the

P119 alarm connector (closed contact at no current). Alarm is initiated by short circuiting the AI1 and AIC inputs as shown in Figure 3-8. The P119 alarm connector is detailed on page 3-11.

• Connect the relay coil. It must be supplied from the same fuse as the

repeater.

ANT

P119

P119: AI1

Figure 3-8. Mains breakdown relay connection

ANT

HI LO

P119: AIC

• After commissioning, set the mains breakdown feature as described in

the AR Repeaters and OMT32, User’s Manual.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 3 - 13

ALLGON Systems AB ALR Compact Repeater Commissioning

. Commissioning

Read carefully Chapter 1 Safety before commissioning the repeater.

Check all connections made during the installation. Also, ensure that both the mains plugs for repeaters equipped with two power supply units are connected to outlets supplied from the same fuse.

To fulfill the IP65 weather protective requirements, ensure that the cable strain relief bushings are properly tightened. Also, ensure that the gaskets at the cable inlets and on the cabinet are properly fitted and not damaged.

When the installation is checked, commission the repeater as described below.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 4 - 1

ALLGON Systems AB ALR Compact Repeater Commissioning

Starting the Repeater

1. Connect the repeater to the mains.

2. Check the four LEDs downmost in the repeater (see Figure 4-1).

A correct power-up is indicated as follows:

BOOT

Red LED that is lit with a steady light when the system boots, i.e. for 10 - 15 seconds after the mains is switched on. Then, it flashes for the next 5 - 10 seconds. After that, if no error is detected, the LED is off.

FAULT

Red LED that flashes 15 - 20 seconds after the mains is switched on. Then, it flashes for less serious alarms (ERROR) and is lit with a steady light for fatal alarms (CRITICAL).

OPER

Green LED that lights up approx. 20 seconds after the mains is switched on. It shows, with a steady light, that the repeater is ready for operation.

PWR

Yellow LED which is lit with a steady light after the mains is switched on. Indicates present power.

External indicators on the repeater front

Yellow

Operation LED which lights up approx. 20 seconds after the mains is switched on. At steady light the repeater is ready for operation.

Red

Alarm LED which indicates ERROR alarms with flashing light and CRITICAL alarms with steady light.

When the indicators show operational mode, the repeater can be configured for operation by using an OMT32/PC. This is further detailed in the AR Repeaters and OMT32, User’s Manual.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 4 - 2

BOOT

ALLGON Systems AB ALR Compact Repeater Commissioning

Indicators

ANT

HI LO

FAULT OPERR2R DATA

PWR

Figure 4-1. Indicators in the cabinet

Figure 4-1 shows the repeater indicators . There are also two external indicators on the repeater front cover.

Repeater to Repeater Link

indicators

The two upper indicators, R2R and DATA, indicates the following R2R status:

R2R

Green LED that indicates, with a flashing light, that the repeater currently is a R2R Control Station. A steady light indicates that the repeater is not currently a Control Station, or there is no more repeater in the net. Only one repeater in an R2R net can show a flashing green LED at the same time.

DATA

Blue LED that indicates data transmission in the net.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 4 - 3

ALLGON Systems AB ALR Compact Repeater Commissioning

Repeater Configuration

The repeater is now ready to be configured in accordance with the site conditions and system performance requirements. Pay especial attention to the antenna isolation described in the AR Repeaters and OMT32, User’s Manual.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 4 - 4

ALLGON Systems AB ALR Compact Repeater Functional Description

. Functional Description and Design

Allgon repeaters work as bi-directional on-frequency amplifiers.

A repeater receives, amplifies, and retransmits signals downlink and uplink simultaneously, i.e. from the base station via the repeater to the mobile stations and from the mobile stations via the repeater to the base station.

The repeater is connected to a BS antenna, directed towards the base station, and to a MS antenna directed towards the area to be covered. These antennas are connected to the repeater with N type male connectors.

To prevent instability due to poor antenna isolation, a built-in antenna isolation supervision feature reduces the gain level automatically when poor antenna isolation is detected.

The Allgon repeaters are controlled by powerful microprocessors.

Alarm and operational LEDs are visible on the repeater front.

The repeater works with convection cooling without fan.

Operational parameters such as gain, power levels, etc. are set using a desktop or notebook and the Allgon OMT32, which communicate, locally or remotely via modem, with the repeater. Remote operation is performed using a telephone line or a built-in mobile phone equipped with a data interface.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 1

ALLGON Systems AB ALR Compact Repeater Functional Description

Repeater Design

The repeater is housed in a cast aluminium chassis that is waterproof,

class NEMA4/IP65, for outdoor use. The chassis has a design suited for outdoor use as well as indoor use.

The chassis consists of a cabinet and a cover joined with hinges. The cabinet contains the repeater circuitry.

The cover has two external LEDs for operation and alarm indication.

Both the uplink and downlink circuitry is built up on a single BSC board inside the repeater. The various amplifiers and RF modules are individually shielded by metal covers.

The BSC band selective compact repeater board

The band selective compact repeater board can handle one wide band

repeater channel, uplink and downlink. The band width is adjustable.

Other units

In addition to the BSC repeater board, the repeater contains:

• DPX Duplex filter, located on the upper part of the repeater.

• DCC Directional Coupler for Compact, located on the RCC unit in

repeaters with an RCC unit that works in the same cell system as the repeater.

• RCC unit (optional), see Chapter 6, Optionals. This is located to the

right in the cabinet.

• PSM Power Supply Module, located to the left in the cabinet.

• The repeater is equipped with an R2R, Repeater to Repeater Link

feature that can be used to communicate with several repeaters.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 2

ALLGON Systems AB ALR Compact Repeater Functional Description

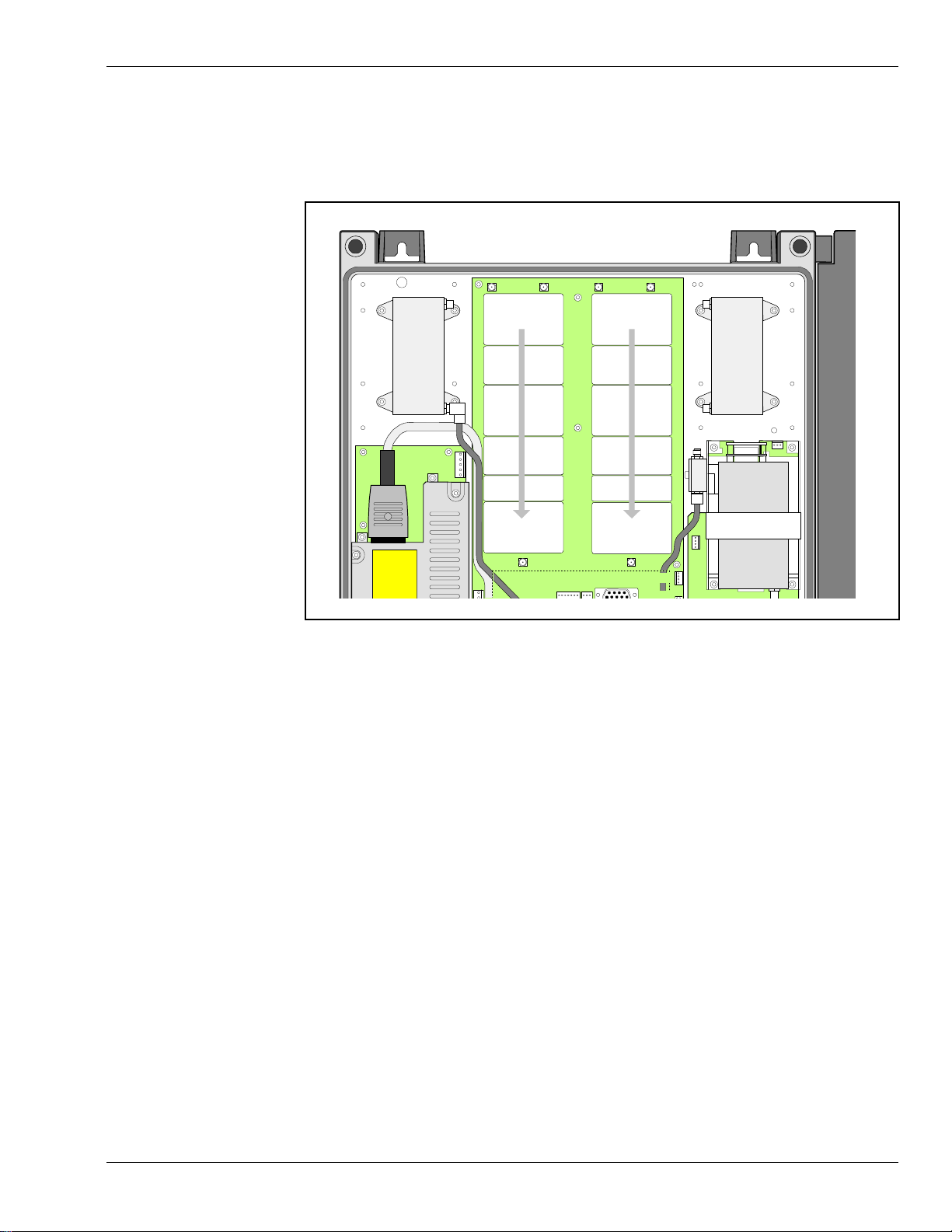

The Main Repeater Units

PSM

BSC

Downlink

DPX

circuitry

LO HI

ANT

Mobile station

antenna

Uplink

circuitry

BS Base station antenna

DPX

ANT

HI LO

RCC

DCC

Figure 5-1. The main repeater units

A cabinet (the left part in Figure 5-1) for the band selective Compact

repeater is equipped with a BSC board including the downlink and uplink circuitry. The described cabinet is equipped for bi-directional band selective operation and RCC remote control.

There are BSC boards with adjustable bandwidth for 800MHz – 900MHz and 1800MHz – 1900MHz band selective systems.

Main units: BSC Band Selective Compact board, adjustable bandwidth

DCC Directional Coupler for Compact RCC antenna DPX Duplex filter PSM Power Supply Module RCC Repeater Communication Control unit

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 3

ALLGON Systems AB ALR Compact Repeater Functional Description

Block Diagram

A band selective compact repeater block diagram is found on page 5-5.

The signal path and some of the most important features are described after the block diagram.

Downlink Signal Path

The downlink signal path (HI), i.e. from the base station through the

repeater to the mobile station, is described after the block diagram.

Uplink Signal Path

The uplink signal path (LO), i.e. from the mobile station through the

repeater to the base station, is identical to the downlink path the other way round. Only some levels and component values differ.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 4

ALLGON Systems AB ALR Compact Repeater Functional Description

Band Selective Compact Repeater Block Diagram

BAND SELECTIVE COMPACT REPEATER

antenna

Base station

MSC

Telephone line

Modem

ANT

DCC

DPX

RCC

Modem

Battery

PSM

ANT

P130

LNA

P126 P128

DPX

P121

P130

BSC - DL

BSC - UL

BSC - control circuitry

P112 P119

MS antenna

ANT

P118

P124

External alarm sensors

LNA

P122

DPX

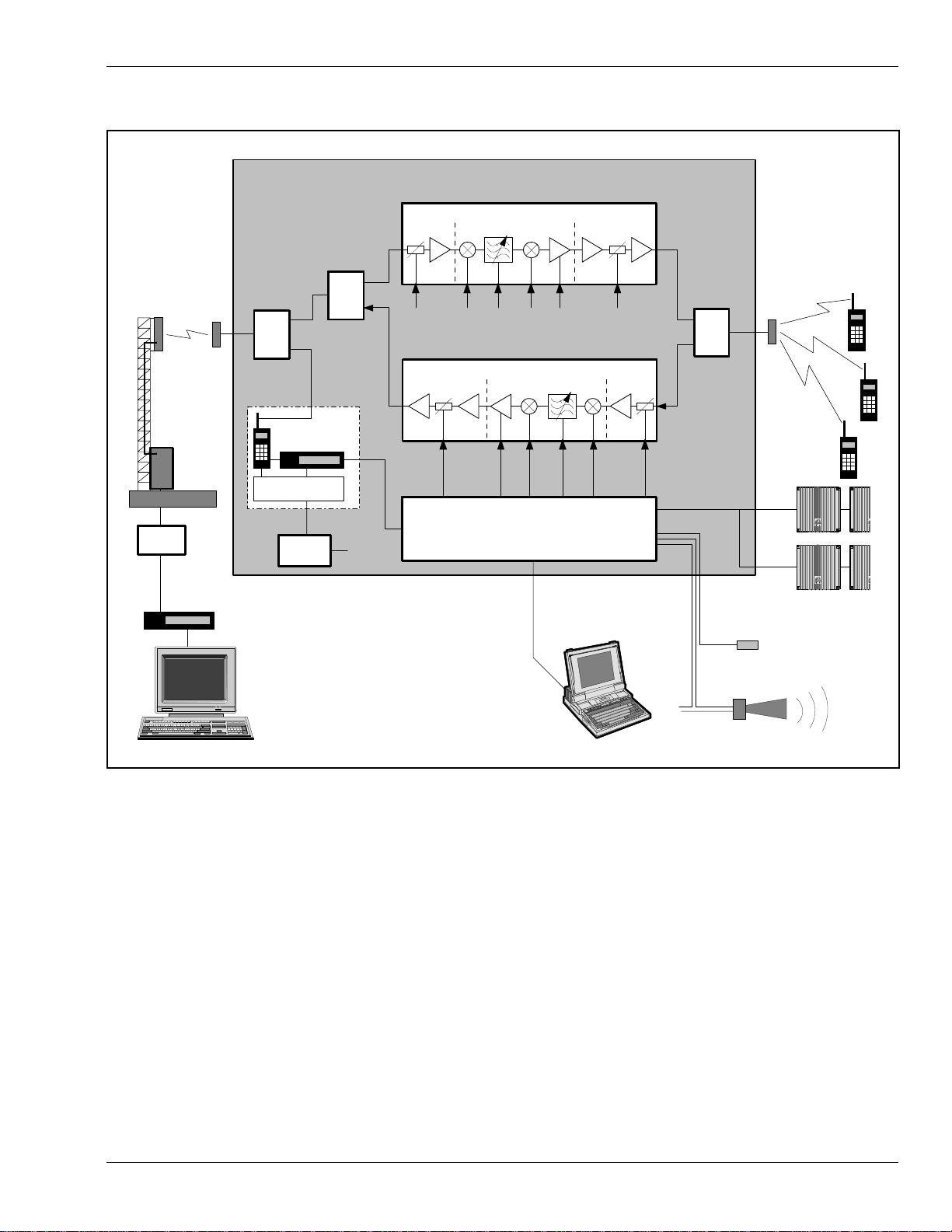

Figure 5-2. Block diagram

Figure 5-2 shows a block diagram of the band selective compact repeater.

This diagram is applicable to repeaters for e.g. NMT, GSM, TACS/ETACS, AMPS/DAMPS and CDMA systems.

Downlink signal path

The signal from the base station is received via the repeater BS antenna and is forwarded through a directional coupler (DCC) to the ANT input of a duplex filter (DPX). The signal from the HI output of the duplex filter is, via the P126 port, fed to the BSC board. On the BSC board, the signal is amplified in a low noise amplifier (LNA) and is then entered the band selective amplifier circuitry.

The first mixer stage in the BSC amplifier, which is controlled by a synthesizer, converts the received frequency down to the IF frequency. The signal is then filtered by SAW bandpass filters and, not shown in the

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 5

ALLGON Systems AB ALR Compact Repeater Functional Description

figure, amplified before it is fed to the second mixer stage for conversion back to the original frequency.

The SAW filter combination is adjustable and can be software changed from within OMT32 (or OMS) to cover various band widths.

The following power amplifier (PA) is controlled by the BSC control

circuitry. The amplifier gain will be reduced to avoid instability due to poor antenna isolation.

A detector in the PA stage measures continuously the output level. The

signal from this detector is used by the automatic gain control, AGC, to supervise and, if necessary, reduce the output power to keep it under a maximum level. The AGC gain control affects several of the amplification stages.

The output signal from the BSC board is taken from the P128 port and it

is fed to the HI port of a duplex filter (DPX). The output signal from the ANT port of the duplex filter is fed to the repeater MS antenna.

RCC

R2R

The optional RCC Remote Communication Control unit, if used, is located inside the repeater, see Figure 5-1 on page 5-3.

Communication with the base station is performed by means of a built-in mobile feature that has the antenna connected to the BS directional coupler (DCC). Data is transferred between the repeater and the built-in RCC unit via the P130 port.

The RCC unit is powered via the P130 port and the unit has a battery with capacity to send a number of alarms if a mains power failure occurs.

The Repeater to Repeater Link feature makes it possible to communicate with a number of repeaters via one RCC unit in one of the repeaters in an R2R net. Several RCC units can also be used in the same net.

The repeaters in the R2R net are connected to the P118 port and to the P124 port.

The R2R feature is further described on page 5-17.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 6

ALLGON Systems AB ALR Compact Repeater Functional Description

Alarm

Alarm signals from external sensors are received via the P119 alarm port.

The software on the BSC board is able to activate acoustic or visual alarm or direct the alarm to the P130 PCC port to be forwarded, via the RCC unit (or modem and telephone line) to OMT32 (or OMS) located in an operation and maintenance central.

Alarms can be configured from OMT32 (or from OMS).

Repeater Setup

The repeater parameters can be set locally by means of a desktop or

notebook loaded with the OMT32 software (or the OMS software). The PC or notebook is connected to the repeater via the P112 PC port.

The repeater parameters can also be set remotely by means of an RCC

Remote Communication Control unit (or via a telephone line and a modem) connected to the repeater via the P130 PCC port.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 7

ALLGON Systems AB ALR Compact Repeater Functional Description

Board and Unit Descriptions

Cabling between boards and units is found on page 5-15 (with RCC unit) and page 5-16 (without RCC unit).

DCC - Directional Coupler for Compact

There is one BS directional coupler in a repeater equipped with an RCC

Remote Communication Control unit.

This unit connects the RCC radio modem antenna to the base station antenna.

Connection

To the right in the cabinet DCC/BS

Port Connected to

ANT BS antenna. DPX ANT on the DPX/BS duplex filter. RCC RCC radio modem antenna.

DPX - Duplex Filter

The DPX duplex filters on the BS and MS sides are identical.

Connection

To the left in the cabinet DPX/MS

Port Connected to

ANT MS antenna port. HI P128 on the BSC board (downlink PA power amplifier). LO P122 on the BSC board (uplink LNA low noise amplifier).

To the right in the cabinet DPX/BS

Port Connected to

ANT DPX on the DCC/BS directional coupler (BS antenna signal). HI P126 on the BSC board (downlink LNA low noise amplifier). LO P121 on the BSC board (uplink PA power amplifier).

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 8

ALLGON Systems AB ALR Compact Repeater Functional Description

BSC Band Selective Compact Board

The compact band selective repeater is built up mainly on a single BSC

board that contains all the amplification circuitry for uplink and downlink and the control circuitry. This board contains also all the ports for alarm, local control, remot control, etc.

Figure 5-3 shows the BSC board in the compact repeater.

P126 P127 P122 P123

LNA/DL

LNA/UL

ANT

DPX

ANT

PA/DL

P115

PA/UL

P128 P121

P131

P112

P118

P119 P120

P124

P118

P111 P113

P130

DPX

HI LO

Figure 5-3. BSC, Band Selective Compact board

The left upper part of the BSC board contains the downlink circuitry. The downlink signal path starts from port P126, is fed to the LNA, Low Noise Amplifier, then it passes a number of amplifiers, and is finally fed to the PA, Power Amplifier before it is fed, via port P128, to the DPX/MS HI port to be forwarded to the MS antenna.

The right upper part of the BSC board contains the corresponding circuitry for the uplink signal path, from port P122, via port P121, DPX/BS HI port and to the BS antenna.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 9

ALLGON Systems AB ALR Compact Repeater Functional Description

BSC control circuitry

The BSC control circuitry is the central part of the repeater, located in

the lower part of the BSC board (inside the dotted line in Figure 5-3).

The BSC control circuitry contains a microprocessor, main memory, flash memory for the BSC software, EEPROM memory for parameters, memory for the event log and statistics, a REFO reference oscillator, ports for local and remote communication, battery powered real-time clock, etc.

The BSC control circuitry supervises and controls operational parameters such as gain control, etc. The BSC control circuitry takes also care of alarms and the event log, password, logon, and many other tasks.

The BSC control circuitry is also an interface when communicating with an OMT32 or OMS, locally or remotely.

The BSC software can be downloaded from OMT32 or OMS either locally or remotely.

The real-time clock in the BSC control circuitry is used for alarm and for the event log.

BSC software

The BSC board can be run with the SA102 04 software. The board can

store two software versions, located in segment 1 and segment 2 of the flash memory as Application 1 and Application 2. The repeater will boot on that software which is set as Primary (a description of the Primary application is found in the AR Repeaters and OMT32, User’s Manual.

The compatibility between the BSC board and software is detailed in the next section.

Caution

A lithium battery is permanently mounted on the BSC board. Due to the risk of explosion, this battery must only be removed from the board by an authorized service technician.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 10

ALLGON Systems AB ALR Compact Repeater Functional Description

Connection and connector types

The BSC board is also a distribution board with most of the repeater

ports. The connector types are chosen to prevent unintentional mixing up.

Port Connected to Connector type

P111 LED board in the cover. 4 pole 1 line male. P112 PC (serial RS-232). 9 pole D-sub female. P113 Not connected (jumper parking device). 2 pole 1 line male. P115 PSM - Power Supply Module 5 pole 1 line male. P118 R2R connection to P118 or P124 in the

next compact repeater, or to the R2R connector board in a standard AR repeater.

P119 External alarm sensors and alarm

equipment. P120 Door switch (internal alarm). 3 pole 1 line male. P121 HI on DPX/BS duplex filter (uplink output

signal). P122 LO on DPX/MS duplex filter (uplink input

signal). P123 P122 on another BSC board (currently not

used expansion output). P124 R2R connection to P118 or P124 in the

next compact repeater, or to the R2R

connector board in a standard AR repeater. P126 LO on DPX/BS duplex filter (downlink

input signal). P127 P126 on another BSC board (currently not

used expansion output). P128 HI on DPX/MS duplex filter (downlink

output signal).

P130

RCC Remote Communication Control unit,

or modem for traditional telephone line.

Pin 1 and 2 of the P130 connector must be interconnected with a jumper

if the connector is not used.

5 pole 1 line male.

7 pole 1 line male.

Coaxial

5 pole 1 line male.

Coaxial

34 pole 2 line male.

Testpoints

There are no testpoints intended for field maintenance or calibration.

Availalbe testpoints on the board are used for factory calibration only.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 11

ALLGON Systems AB ALR Compact Repeater Functional Description

LNA - Low Noise Amplifier

Two LNA, Low Noise Amplifiers, are located uppermost on the BSC board

in shielded covers. LNA/DL (downlink) is located to the left and LNA/UL (uplink) to the right.

P126 P127 P122 P123

LNA/DL

LNA/UL

ANT

DPX

ANT

PA/DL

P128 P121

PA/UL

DPX

HI LO

Figure 5-4. LNA, Low Noise Amplifiers

Received signals from the duplex filters are fed to the LNA input connectors P122 (uplink) and P126 (downlink). The output signals from the LNA amplifiers are fed to the next amplifier stages for uplink and downlink on the BSC board.

The P123 and P127 ports are expansion outputs for additional BSC boards (not used in the currently available single band repeaters).

Connection

The P122, P123, P126 and P127 ports are connected as shown on

page 5-11.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 12

ALLGON Systems AB ALR Compact Repeater Functional Description

PA - Power Amplifier

Two PA, Power Amplifier, are located in the middle of the BSC board in

shielded covers. PA/DL (downlink) is located to the left and PA/UL (uplink) to the right.

P126 P127 P122 P123

LNA/DL

LNA/UL

ANT

DPX

ANT

PA/DL

P128 P121

P119 P120

PA/UL

P112

P111

DPX

HI LO

Figure 5-5. PA, Power Amplifiers

The final power amplification for the downlink signal is performed in the PA/DL stage. Then the signal is fed via the P128 port to the HI port of the DPX/MS duplex filter and from this filter to the MS antenna.

The uplink final power amplification is performed in the same way and is fed to the BS antenna via the P121 port and the HI port of the DPX/BS duplex filter.

Connection

The P121 and P128 ports are connected as shown on page 5-11.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 13

ALLGON Systems AB ALR Compact Repeater Functional Description

Repeater Software and Hardware Compatibility

There may be different versions of the repeater software, which can be

combined with boards of various revisions. These have unique part numbers and revision information. Below, you will find a table of repeater software currently available in combination with BSC boards.

BSC Software

Part #

Software

Revision

Compatible

with BSC board

Comments

SA102 04 R1A K304/x 1800MHz – 1900MHz

K308/x 800MHz – 900MHz

x = digit indicating frequency and bandwidth

This information is updated 2000-06-20. As new versions of hardware and software are released without prior noticing, contact your Allgon sales representative if in doubt about the latest revision status.

For detailed information, refer to the release notes for the repeater software to be downloaded (normally found in the readme.txt file, which is supplied with the program files).

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 14

ALLGON Systems AB ALR Compact Repeater Functional Description

Cabling

On the following pages, you will find cabling information for:

• Compact repeater with RCC unit, this page.

• Compact repeater without RCC unit, page 5-16.

Compact Repeater With RCC Unit

Figure 5-6 shows the compact repeater main cabling with an RCC Remote

Communication Control unit.

P126 P127 P122 P123

ANT

DPC

HI LO

DPC

ANT

LNA/ULLNA/DL

PSM

RCC

DCC/BS

ANTDPX

PA/ULPA/DL

P121P128

P115

MS BS

P111

Figure 5-6. Cabling with RCC unit

RCC

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 15

ALLGON Systems AB ALR Compact Repeater Functional Description

Compact Repeater Without RCC Unit

Figure 5-7 shows the compact repeater main cabling without an RCC

Remote Communication Control unit.

P126 P127 P122 P123

ANT

DPC

HI LO

RCC

DCC/BS

ANTDPX

RCC

DPC

ANT

LNA/ULLNA/DL

PA/ULPA/DL

PSM

P121P128

P115

P111

MS BS

Figure 5-7. Cabling without RCC unit

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 16

ALLGON Systems AB ALR Compact Repeater Functional Description

R2R, Repeater To Repeater Link

Figure 5-8. Repeater to Repeater Link

Installation

Configuration

The Allgon Repeater to Repeater Link can be used in order to establish a repeater network with up to 13 repeaters, one or several of which can contain a phone line for communication with an OMT32 or an OMS.

All Allgon standard Compact repeaters include this feature.

All Allgon repeaters can be mixed in R2R nets (see Figure 5-8). For standard AR repeaters, the R2R Repeater to Repeater Link feature is optional and require certain hardware and repeater software versions.

All required R2R, Repeater to Repeater Link, circuitry is included in the compact repeater. Only interconnecting cables are required to set up an R2R net.

At least one RCC unit (or telephone line with modem) is required for the remote communication.

Configuration is described in AR Repeaters and OMT32, User’s Manual.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 5 - 17

ALLGON Systems AB ALR Compact Repeater Optionals

. Optionals

This chapter describes the following optional accessories available for the Allgon repeaters:

• RCC, Remote Control Unit for band selective systems, page 6-2.

• OMT32, Operation and Maintenance Terminal, page 6-4.

• OMS, Operation and Maintenance System, page 6-4.

• Battery Backup, page 6-4.

• Fiber Optic Interface, page 6-4.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 6 - 1

ALLGON Systems AB ALR Compact Repeater Optionals

RCC, Remote Communication Control Unit

As the mobile phone technology is developing very fast, this RCC may be

modified after issuing this manual. New types may also have been added. For the latest details, please contact your local Allgon representative.

For remote control of Allgon Compact repeaters in band selective systems an RCC Remote Communication Control unit is available. This unit contains an integrated mobile phone, modem and power supply backup.

The RCC unit for the Compact repeater is mounted to the right inside the repeater cabinet, see Figure 6-1.

ANT

HI LO

RCC

Figure 6-1. The RCC unit

The RCC is connected to the P130 port on the BSC board.

Do not forget to put a jumper between pin 1 and 2 of the P130 connector on the BSC board if the P130 cable connector is removed.

A jumper should be located in the P113 parking device (a 2-pole connector used for this purpose).

VD203 67/EN - User’s Manual Rev. 1A 2000-07 6 - 2

ALLGON Systems AB ALR Compact Repeater Optionals

RCC For Radio Communication

The RCC antenna for the radio modem is connected to the BS antenna

via an uplink directional coupler, DCC, located at the RCC unit to the right in the cabinet, provided that the RCC and the repeater operate in the same cell system.

RCC For Telephone Line Communication

In this unit, the telephone line will be connected to a terminal block on the RCC unit. A free strain relief bushing at the bottom of the repeater is used for the external telephone line cable.

RCC with a telephone line modem is not available when this manual is released. Please, contact Allgon for further information about this optional feature.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 6 - 3

ALLGON Systems AB ALR Compact Repeater Optionals

OMT32, Operation and Maintenance Terminal

The OMT32, Operation and Maintenance Terminal is an Allgon software

package for configuration and controlling a repeater by using a computer with Windows 95/98 or NT 4.

The OMT32 can be used either locally, i.e. connected to the repeater, or remotely via an RCC unit or a traditional telephone line and modem.

All repeater parameters and settings can be configured by menas of the OMT32.

OMS, Operation and Maintenance System

The OMS, Operation and Maintenance System is an Allgon software

package for controlling a large repeater fleet by using computers with Windows NT in networks with a common database.

The OMS is capable of operating a large number of repeaters. Multiple modems can be used for several incoming and outgoing parallel activities, such as polling, radio parameter configuration, software downloading, etc.

Battery Backup

Battery backup can be arranged by completing the repeater with an 25Ah

Fiber Optic Unit

A FOU, Fiber Optic Unit that includes transmitter, receiver, alarm board

or 50Ah Allgon BBU, Battery BackUp unit. The Allgon BBU has an exterior similar to the repeater which means that it can preferably be mounted adjacent to the repeater.

and power supply is available for the Allgon Compact repeater. The fiber optic interface can be adapted for separate uplink and downlink fiber as well as for bi-directional one-fiber distribution.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 6 - 4

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

. Repeater Alarms

This chapter contains a list of those alarms which are initiated in the repeater and generated by the repeater control circuitry.

Critical, Error and Warning alarms can be sent automatically from a repeater to an OMT32 and OMS and then be stored. These alarms can then be viewed.

The alarm handling and facilities are described in the following manuals:

• AR Repeaters and OMT32, User’s Manual

• Advanced Repeater OMS, User’s Manual

The table starting on the following page contains those alarms that can be generated by a Compact repeater.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 7 - 1

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

Alarm Reference List

The following table contains the internal repeater alarms which can occur

and be shown in the OMT32 and OMS alarm window (additional alarms may have been added to the system after issuing this manual).

ID Ala rm Text OMS

Power supply

Repeater restart

Mains breakdow n

Ceasing

No PSM

No BSC

No External

Alarm Unit Alarm Level Description

Critical

Ceasing

None

Warning

Error

Critical

Ceasing

PSM in the cabinet does not work properly. A sum signal fro m PSM indicate s that at least on e voltage

output has droppe d. If no mains break down relay is used, then the alarm wi ll als o be sen t at mains breakd own.

PSM in the c abinet w orks p roperly again. Ceasing is sent if the PSM works at start-up, and there is a

corresponding critical PSM alarm logged in the repeater will restart when the power is back and this alarm will be sent.

Power on start, or user ordere d reboot, Logged to indicate a normal power up, or a restart ordered by

operator. Software error restart, 1st – 7th time,

Restart 1st to 7th time during a 14 day period. The counter is reset every 14th day, counted from power up.

SW error restart 8th –10th time, Restart 8th to 10th time during the 14 day period. At the 11

time, the SW bank will be blocked an d not used anymo re until a user ordered r eset is perfor med, or power is sw itched off/on .

The mains power is gone. Used with external relay indicating mains breakdown. The

external relay should be connected to External Alarm 1 and the repeater confi gured to indica te this alarm . If no relay is us ed, a mains breakdo wn will be repor ted as a PSU fault.

The mains power is back,

Events list

. The

Sent if ther e is a c orrespon ding cr itical m ains br eakdown a larm logged in th e power is bac k.

Alarm reset

Mains bkd w backup

Err in AD-converter

New unit detected

Inst. unit l ost

EEPROM error

VD203 67/EN - User’s Manual Rev. 1A 2000-07 7 - 2

No BSC

No External

No BSC No BSC No BSC No BSC

None

Error

Ceasing Warning

None Error Error

Alarm reset by th e user. All alarms are r eset. The alarm criteria wil l be re-evalua ted and

reported, if still active. Used to indicate that the mains is no longer available. Repeater

is powered by external battery backup unit. Suggested remedy: Check the mains power.

The alarm criter ia has ceased . The analog-to- digital conv erter on the BSC board does not gi ve

reliable values. Compared to last powe r on, the BSC bo ard has recogniz ed at

least one ad ditional hardwar e unit. Compared to last powe r on, the BSC bo ard lac ks at le ast one

hardware unit . EEP read or write fail.

Data cannot be written or read from the EEPROM on the BSC board. User parameters are stored in the EEPROM.

Events list

. The repea ter will restart w hen the

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

ID Ala rm Text OMS

Log memory fault

High temperature

REFO error

CU battery fault

SW load error

Log cleared

Ceasing

No BSC

Yes BSC

No BSC

Alarm Unit Alarm Level Description

Error

Warning Ceasing Error Warning

Ceasing Error

None

Log memory faul t. Indicates that the log memory on the BSC board is faulty. The

repeater wi ll not wo rk. Not availabl e in all BSC so ftware versions.

The BSC board temperature is higher than 90°C. The BSC tem perature has fal len belo w 90°C. Low level f rom REFO is dete cted. BSC RAM battery fault.

The battery for the RAM on t he BSC board has a vol tage outside the nor mal 2.7 to 3.5 Vo lt. An alarm may be initiate d at start-up if the rep eater has bee n stored out of powe r for a long time.

Suggested remedy: Ensure the jumper on the BSC board is mounted to charge the battery.

The alarm criter ia has ceased . Software load error.

An error has occurred during a software load process. The flash memory does not contain a proper software.

Suggested remedy: Check the BSC software using the OMT32 software manager. Do NOT restart the repeater.

Log memory has been cleared.

RTC restarted

RTC error

Door open alarm

External alarm 1

External alarm 2

External alarm 3

External alarm 4

No modem found

The check sum in the cleared. Can be caused by a bad RAM battery backup or low voltage to t he RAM.

No BSC

No Externa l Configurable The door has been open mor e than 30 second s without

No Externa l Configurable Exter nal alarm inpu t EA1 active mor e than 1 second .

No Externa l Configurable Exter nal alarm inpu t EA2 active mor e than 1 second .

No Externa l Configurable Exter nal alarm inpu t EA3 active mor e than 1 second .

No Externa l Configurable Exter nal alarm inpu t EA4 active mor e than 1 second .

No Remote ctrl

None Warning

Error

Ceasing Warning Ceasing

Ceasing

Ceasing None

The time is change d by the operator (logged to keep track of changes made to the RTC ).

Time reset to 1994-0 1-01. The RTC was unable to keep track of the time did a reset. Suggested remedy: Ensure the jumper on the BSC board is

mounted to charge the battery. RTC does not operate.

The BSC has detected an error in RTC operation which makes the time unr eliable.

Suggested remedy: Replace the BSC board. disabling the al arm. EAL4 alar m.

The door has been c losed more than 30 seconds, or the alarm is disabled.

The door has been ope n more than 30 se conds without disabling the al arm. P120 conne ctor alarm .

The door has been c losed more than 30 seconds, or the alarm is disabled.

External alarm input EA1 no longer active.

External alarm input EA2 no longer active.

External alarm input EA3 no longer active.

External alarm input EA4 no longer active. No modem found, i.e . no answer is re turned on a poll st ring to

the modem.

Events list

memory is faulty . The log is

VD203 67/EN - User’s Manual Rev. 1A 2000-07 7 - 3

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

ID Ala rm Text OMS

No carrier

No answer

No connection

Remote

Ceasing

No Remote ct rl Not logged or not us ed. No Remote ct rl Not logged or not us ed. No Remote ctrl

No BSC No Remote ctrl

connection

Modem init fai led

Remote timeout

PIN code failed

No phone

No Remote ctrl

No Remote ctrl No Remote ctrl

No Remote ctrl

detected

Alarm Unit Alarm Level Description

None

Warning

None None

None

Warning Warning

Ceasing The al arm criteri a has ceased.

Warning

No connection at callback. The repeater has tried to call as many times as stated in the

alarm call cri teria. No conn ection was esta blished. No connection at alarm call.

The repeater has tried to call as many times as stated in the alarm call cri teria. No conn ection was esta blished. Thi s alarm does not gen erate a n ew atte mpt to tr ansfer al arm by alarm c all.

Invalid repeater password. Modem connecti on to OMT32 opened.

Not logged on BSC2. more information about BSC2.

Initiation s tring to modem no t OK. The initiation string sent to mod em is not Ok. The str ing may

contain comm ands not r ecognized by the modem. An alarm might be sent anywa y.

Suggested remedy: Check the modem using the OMT32 or OMS modem debugger .

The time lim it of 20 minutes is exce eded wi thout ex tending th e timer. The modem connection is terminated by the repeater.

The PIN code sent to MS is incorrec t. To unlock the MS /SIM card, the PUK code wi ll prob ably be needed.

When using a PC-card together with the MS, the alarm indicates cont act with the PC- card, but MS is no t present or turned off.

gives same function and

RF blocking

Antenna isolation

Battery backup fault

Fiber optical error

Note: A Nokia MS does not power-up after power failure. Suggested remedy: Ensure the cellular phone is connected.

Ceasing

No BSC UL/DL

Error

Ceasing

No BSC UL/DL

Warning

Error

Ceasing

No External

Error

Ceasing

No External Configurable If a fiber unit alarm is connected to external alarm 3, then the

The alarm criter ia has ceased . Constant carrier, PA off.

Uplink carrier has been constantly above 27dBm for more than 10 seconds.

The criteria for th e alarm h as not b een dete cted for 10 sec onds. Low antenna isolation.

The antenna isol ation is lower than the gain set . Gain is

reduced by 10 – 13d B below the osci llation point. Suggested reme dy: Decrease gain or incre ase antenna is olation.

Low antenna isolation at lowest gain. The gain has been reduced as much as possible but the

oscillation still r emains. The amp lifier is turned off. Suggested reme dy: Decrease gain or incre ase antenna is olation.

Normal oper ation ag ain, i.e. no oscil lation c an be de tected 1 3dB above the gain set .

If a battery backup u nit alar m is co nnected to extern al alar m 2, then the ope rator ca n configur e the re peater to displ ay this alarm when t he batte ry backup unit in dicates alarm.

The alarm criter ia has ceased . operator can configure the repeater to display this alarm when

the fiber optic al unit indicate s alarm.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 7 - 4

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

ID Ala rm Text OMS

R2R queue full

R2R node lost

R2R HW error

Bad table found

Table not found

Table database

Ceasing

No BSC

No BSC No BSC

No BSC

err

121

Synthesizer fault

122

Volt Reg fault

123

PA fault

125

High temperature

126

High PSU

Yes BSC UL/DL

Yes BSC UL/DL Yes BSC UL/DL

No BSC UL/DL

Yes BSC UL/DL

voltage

Alarm Unit Alarm Level Description

None

Error

Error Error

Warning Error

Ceasing Critical

The R2R transmi tting queue is full and messages are lost. Suggested re medy: C heck the R2R con figuratio n and ca bles.

An R2R node is lost . Suggested reme dy: Check if th e node is still op erating and

connected. R2R hardware fault.

Suggested remedy: Replace the repeater. A requested table co ntains i nformat ion erro r (softw are err or). A requested table w as not f ound in the databa se (sof tware or

calibration error). The database tab le is not foun d (calibrati on error) .

Unlocked synthesi zer. The frequency synthesizer is unlocked and the transmission can

take place on unknown frequency. A DC voltage to an anal og part of the boar d is missing. Low power amplifier gain.

The PA has too low output power f or the RSSI an d gain s et. Not available in all BSC software versions.

The BSC board temperature is higher than 85°C. The BSC board temperature is higher than 95°C and the power

is turned o ff. The temperatur e has fallen to be low 70°C and the po wer is

turned on again. The PA supply vo ltage is too high.

Suggested remedy: Ensure that correct PSM is used.

Remarks The Mains breakdown alarm (3) requires a relay not included in the repeater.

The Door open alarm (20) requires an optional door switch. The Battery backup fault alarm (48) requires an optional battery backup unit. The Fiber optical error alarm (50) requires an optional fiber optical interface.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 7 - 5

ALLGON Systems AB ALR Compact Repeater Index

ndex

Abbreviations ............................................................................................................... vi

AGC, Automatic Gain Control .................................................................................. 5-6

Alarm .......................................................................................................................... 5-7

Alarm reference list ................................................................................................... 7-2

AMPS .......................................................................................................................... 2-2

AMPS/DAMPS ........................................................................................................... 5-5

Battery backup ........................................................................................................... 6-4

BBU ............................................................................................................................. 6-4

Block diagram ............................................................................................................ 5-5

BOOT, red LED ......................................................................................................... 4-2

BSC control circuitry ..................................................................... 5-6, 5-9 - 5-10, 5-14

BSC software version ..................................................................................... 5-10, 5-14

BSC, Band Selective Compact board ................... 5-2 - 5-3, 5-5, 5-8 - 5-9, 5-11 - 5-12

Cabling

with RCC ............................................................................................................. 5-15

without RCC ....................................................................................................... 5-16

CDMA .................................................................................................................. 2-2, 5-5

CMB, Combiner unit ................................................................................................. 5-3

Commissioning ........................................................................................................... 4-1

Connection .................................................................................................................. 3-6

donor antenna ....................................................................................................... 3-6

external alarm ....................................................................................................... 3-7

mains ..................................................................................................................... 3-6

power cord ............................................................................................................. 3-6

RCC ........................................................................................................................ 3-8

Repeater to Repeater Link .................................................................................. 3-7

service antenna ..................................................................................................... 3-6

Connection ports ........................................................................................................ 3-9

DAMPS ....................................................................................................................... 2-2

DATA, blue LED ........................................................................................................ 4-3

DCC, Directional Coupler Compact ......................................................................... 5-2

DCC, Directional Coupler for Compact ............................................. 1-1, 5-5, 5-8, 6-3

Dimensions ................................................................................................................. 3-2

See Downlink

Donor antenna .................................................................................. 2-4 - 2-5, 3-5 - 3-6

Door switch ............................................................................................................... 3-12

Downlink .......................................................................................... 5-4 - 5-5, 5-9, 5-12

DPX, Duplex filter ....................................... 5-2 - 5-3, 5-5 - 5-6, 5-8 - 5-9, 5-12 - 5-13

EAL1 ......................................................................................................................... 3-11

EAL2 ......................................................................................................................... 3-11

EAL3 ......................................................................................................................... 3-11

EAL4 .............................................................................................................. 3-11 - 3-12

ESD ............................................................................................................................. 1-2

VD203 67/EN - User’s Manual Rev. 1A 2000-07 I - 1

ALLGON Systems AB ALR Compact Repeater Index

External alarm ........................................................................................................... 3-7

External alarm input ............................................................................................... 3-11

FAULT, red LED ....................................................................................................... 4-2

Fiber Optic Unit ........................................................................................................ 6-4

Functional description ............................................................................................... 5-1

GSM ..................................................................................................................... 2-2, 5-5

Hail .............................................................................................................................. 3-1

Indicators

in the cabinet ........................................................................................................ 4-3

on the repeater front ............................................................................................ 4-2

Introduction ................................................................................................................ 2-1

LNA, Low Noise Amplifier .............................................................. 5-5, 5-8 - 5-9, 5-12

Mains breakdown relay ........................................................................................... 3-13

Mounting ........................................................................................................... 3-3 - 3-5

Mounting bracket ............................................................................................. 3-3 - 3-5

NMT ..................................................................................................................... 2-2, 5-5

OMS, Operation and Maintenance System ...................................................... 2-1, 6-4

OMT32, Operation and Maintenance Terminal .............................................. 2-1, 6-4

OPER, green LED ..................................................................................................... 4-2

Outdoor installation .................................................................................................. 3-1

PA, Power Amplifier ........................................................................ 5-6, 5-8 - 5-9, 5-13

Ports

AI ......................................................................................................................... 3-13

ANT ....................................................................................................................... 5-8

DPX ........................................................................................................................ 5-8

HI .................................................................................................................. 5-8, 5-13

LO ................................................................................................................. 5-8, 5-12

OUT1 ..................................................................................................................... 5-8

P111 ..................................................................................................................... 5-11

P112 PC ....................................................................................... 3-8, 3-10, 5-7, 5-11

P113 Parking device .......................................................................... 3-10, 5-11, 6-2

P115 PSM ............................................................................................................ 5-11

P118 Repeater to Repeater Link .............................................................. 3-10, 5-11

P119 Alarm ...................................................................... 3-7, 3-11 - 3-13, 5-7, 5-11

P120 Door switch ...................................................................................... 3-12, 5-11

P121 .................................................................................................... 5-8, 5-11, 5-13

VD203 67/EN - User’s Manual Rev. 1A 2000-07 I - 2

ALLGON Systems AB ALR Compact Repeater Index

P122 ................................................................................................... 5-8, 5-11 - 5-12

P123 .......................................................................................................... 5-11 - 5-12

P124 Repeater to Repeater Link .............................................................. 3-12, 5-11

P126 ................................................................................................... 5-8, 5-11 - 5-12

P127 .......................................................................................................... 5-11 - 5-12

P128 .................................................................................................... 5-8, 5-11, 5-13

P130 PCC .............................................................................................................. 5-7

P130 RCC .................................................................................... 3-12, 5-7, 5-11, 6-2

RCC ........................................................................................................................ 5-8

Power cord ......................................................................................................... 3-6 - 3-7

PSM, Power Supply Module ............................................................................ 5-2 - 5-3

PWR, yellow LED ...................................................................................................... 4-2

R2R, green LED ......................................................................................................... 4-3

R2R, Repeater to Repeater Link .......................................... 3-10, 3-12, 4-3, 5-2, 5-17

Rain ............................................................................................................................. 3-1

RCC, Remote Communication Control .................................................................... 1-1

RCC, Remote Communication Control unit ..................................................... 5-2, 6-2

Repeater design .......................................................................................................... 5-2

Repeater setup ........................................................................................................... 5-7

Repeater to Repeater Link

See R2R, Repeater to Repeater Link

Repeater type ............................................................................................................. 2-2

Band selective repeater, adjustable band width ................................................ 2-2

Safety .......................................................................................................................... 1-1

beryllium oxide ..................................................................................................... 1-1

electric shock ......................................................................................................... 1-1

lithium battery ...................................................................................................... 1-1

polytetrafluoro ethylene ....................................................................................... 1-1

PTFE ..................................................................................................................... 1-1

Service antenna ................................................................................. 2-4 - 2-5, 3-5 - 3-6

Service limitations ..................................................................................................... 3-1

Shelter ......................................................................................................................... 3-1

Siting the repeater ..................................................................................................... 3-1

Snow ............................................................................................................................ 3-1

Software and hardware compatibility .................................................................... 5-14

Static electricity ......................................................................................................... 1-2

Station ground ........................................................................................................... 3-9

Sunshine ..................................................................................................................... 3-1

TACS/ETACS ...................................................................................................... 2-2, 5-5

Testpoints ................................................................................................................. 5-11

See Uplink

Uplink ........................................................................................................ 5-4, 5-9, 5-12

Weight ......................................................................................................................... 3-2

VD203 67/EN - User’s Manual Rev. 1A 2000-07 I - 3

ALLGON Systems AB ALR Compact Repeater Questionnaire

uestionnaire

The aim of this manual is to guide you when installing and operating the

Allgon repeaters, and to answer questions that may turn up. To ensure that we provide appropriate information for these purposes, we would appreciate your views and suggestions on how to improve the manual in this direction. Please, fill out the following questionnaire and send it to us.

Have you read entire sections or do you use the manual to look up specific information when needed?

q Read entire sections q Look up specific information

1 2

Comments:

Do you think the information is easy to find and understand?

q Yes q No

Comments:

Do you find any function of the Allgon repeater hard to understand, a function which should be subjected to more detailed description?

q Yes q No

If yes, which one:

Do you have any suggestions on how we can improve this manual?

Title (Mr/Ms/Other): Initial:

Surname: Job title:

Company: Address:

City: Country: Phone:

Thanks for your kind help. It’s very valuable to us.

VD203 67/EN - User’s Manual Rev. 1A 2000-07 Q - 1

ALLGON Systems AB ALR Compact Repeater Questionnaire

POSTAGE

STAMP

Allgon Systems AB Customer Support Centre

SE-187 80 Täby Sweden

If you prefer to send by mail, fold here and tape .

No envelope requ ired.

If you prefer to send by fax, use this number:

+46 8 540 834 80

VD203 67/EN - User’s Manual Rev. 1A 2000-07 Q - 2

Powerwave Technologies 5JS0081 Users manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ALLGON Systems AB ALR Compact Repeater Safety

Static Electric ity

ALLGON Systems AB ALR Compact Repeater Introduction

Repeater Type

Using Repeaters

Shaded Area

Sports Arena

ALLGON Systems AB ALR Compact Repeater Installation

Siting the Repeater

Sunshine

Shelter

Outdoor Installation and Service Limitations

Dimensions and Weight

Mounting

Connection

Connection Ports and Station Ground

Station Ground

P112 PC Port

P113 Parking Device

P118 Repeater to Repeater Link Port

P119 Alarm Port

P120 Door Switch

P124 Repeater to Repeater Link Port

P130 RCC Port

Mains Breakdown Relay

ALLGON Systems AB ALR Compact Repeater Commissioning

Starting the Repeater

Indicators

Repeater Configuration

Repeater Design

The Main Repeater Units

Block Diagram

Downlink Signal Path

Uplink Signal Path

Band Selective Compact Repeater Block Diagram

Alarm

Repeater Setup

Board and Unit Descriptions

DCC - Directional Coupler for Compact

DPX - Duplex Filter

BSC Band Selective Compact Board

LNA - Low Noise Amplifier

PA - Power Amplifier

Repeater Software and Hardware Compatibility

Cabling

Compact Repeater With RCC Unit

Compact Repeater Without RCC Unit

R2R, Repeater To Repeater Link

Installation

Configuration

ALLGON Systems AB ALR Compact Repeater Optionals

RCC, Remote Communication Control Unit

RCC For Radio Communication

RCC For Telephone Line Communication

OMT32, Operation and Maintenance Terminal

OMS, Operation and Maintenance System

Battery Backup

Fiber Optic Unit

ALLGON Systems AB ALR Compact Repeater Repeater Alarms

Alarm Reference List

ALLGON Systems AB ALR Compact Repeater Index

ALLGON Systems AB ALR Compact Repeater Questionnaire
