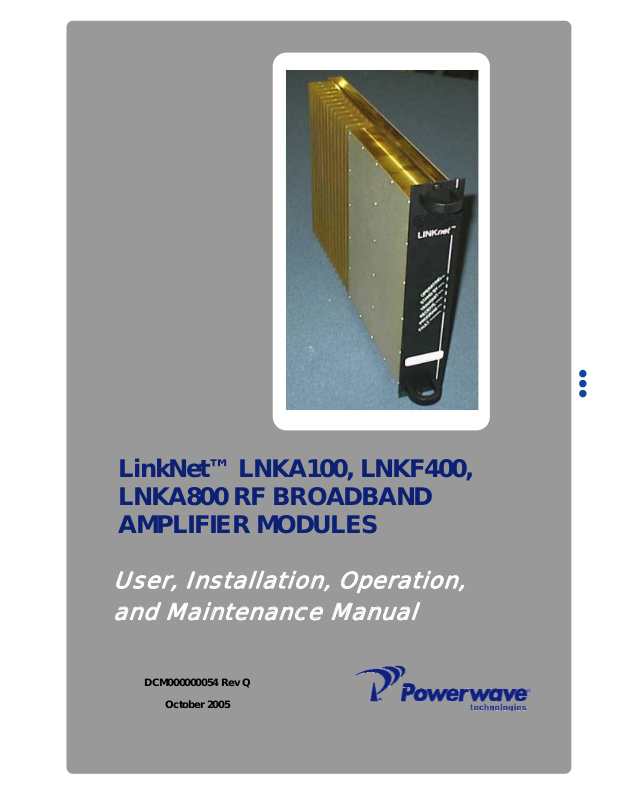

User, Installation, Operation, and Maintenance Manual
DCM000000054 Rev Q
October 2005
© 2005 Powerwave Technologies Incorporated. All rights reserved. Powerwave Technologies, and the Powerwave logo are registered trademarks. This Powerwave product is intended only for installation in a RESTRICTED
ACCESS LOCATION and is designed to operate within the Normal Operating (typical operating) ranges or conditions specified in this document. Operation of this equipment beyond the specified ranges in this document may cause:
1. Spurious emissions that violate regulatory requirements.
2. The equipment to be automatically removed from service when maximum thresholds are exceeded.
3. The equipment to not perform in accordance with its specifications. It is the Operator's responsibility to ensure this equipment is properly installed and
operated within Powerwave operating specifications to obtain proper performance from the equipment and to comply with regulatory requirements.
Warnings, Cautions, and Notes
Warnings, Cautions, and Notes
Warnings, cautions, and notes are found throughout this manual where applicab le. The associated icons are used to quickly identify a potential condition that could result in the consequences described below if precautions are not taken. Notes clarify and provide additional information to assist the user.
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical and RF circuitry and be familiar with standard practices for preventing accidents.
Caution This caution symbol means reader be careful. In this situation, the user
might do something that could result in equipment damage or loss of data.
Note This note symbol means reader take note. Notes contain helpful
suggestions or references to material not covered in the document. Procedures are not contained in notes.
DCM000000054 Rev Q i
Revision Record
Revision Record
Revision Letter Date of Change Reason for Change
Q October 2005 Added 700 MHz models, misc. corrections
P July 2005 Converted Kaval Rev 14 to Powerwave Format
ii DCM000000054 Rev Q
TABLE OF CONTENTS
Chapter 1 Theory of Operation
1 Introduction....................................................................................................................1-1
1.1 OVERVIEW.........................................................................................................................1-1
1.2 MODELS ............................................................................................................................1-1
1.3 BLOCK DIAGRAM................................................................................................................1-2
1.4 MODULE SPECIFICATIONS...................................................................................................1-3
Chapter 2 - Operation
2 Introduction....................................................................................................................2-1
2.1 SOFTWARE SET-UP............................................................................................................2-1
2.2 CONFIGURATION ................................................................................................................2-1
2.3 DERATING CHART ..............................................................................................................2-2
2.4 POWER ON SELF TEST (POST)..........................................................................................2-2
2.5 FAULT INDICATIONS............................................................................................................2-3
2.6 NORMAL OPERATION..........................................................................................................2-3
Chapter 3 - Antenna Installation
3 Introduction....................................................................................................................3-1
3.1 ANTENNA INSTALLATION .....................................................................................................3-1
3.2 FCC INFORMATION TO USERS ............................................................................................3-2
Chapter 4 - Return for Service
4 Introduction....................................................................................................................4-1
4.1 RETURN FOR SERVICE PROCEDURE ................................................................................... 4-1
4.1.1 Obtaining An RMA........................................................................................................... 4-1
4.1.2 Repackaging For Shipment............................................................................................. 4-1
4.2 PARTS AND ACCESSORIES..................................................................................................4-1
DCM000000054 Rev Q iii
Table of Figures
TABLE OF FIGURES
Figure 1 Block Diagram LNKA RF Module...................................................................................1-2
Figure 2 LNKA Faceplate............................................................................................................. 2-3
TABLE OF TABLES
Table 1 LNKA Module Family....................................................................................................... 1-1
Table 2 LNKA Module Specifications...........................................................................................1-3
Table 3 LNKA Factory Set Options.............................................................................................. 2-1
iv DCM000000054 Rev Q
Chapter 1
Theory of Operation
1 Introduction
This manual contains information and procedures for installation, operation, maintenance, and troubleshooting of the LNKA Modules. The manual is organized into the following chapters:
Chapter 1 Theory of Operation Chapter 3 Antenna Installation Chapter 2 Operation Chapter 4 Return for Service

1.1 Overview

A LinkNet Amplifier Module is a Broad-Band Digitally Controlled Class-A Amplifier. The most common LinkNet Amplifier Module applications are t he extension of above g round signal s into buildings, tun nels, vehicles or the extension of radio coverage pattern s into outdoor shad ed areas such as deep valley s.
From an applications standpoint, a LinkNet Amplifier M odule is very sim ilar to a regula r two-way radio repeater. LinkNet Amplifier Modules can be combined using re gular two-way radio multi coupling or duplexing equipment and have input and output sig nal characteristic s to those of regular t ransmitters and receivers. The one special consideration in LinkNet Amplifier Module system s is that of input to output antenna isolation. This must be carefully engi neered for each install ation.
LinkNet Amplifier Modules are designed fo r indoor use only and are intended for mo unting in a standard EIA 19 inch rack. The Modular design of LinkNet Amplifier Module circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability.

1.2 Models

Table 1 LNKA Module Family
LNKA MODULE FAMILY
MODEL TYPE FREQUENCY
LNKA100-A Broadband Amplifier LNKA100-B Broadband Amplifier 150-174 MHz
LNKA400-A Broadband Amplifier 403-430 MHz LNKA400-B Broadband Amplifier 450-512 MHz LNKA700-A Broadband Amplifier 762-776 MHz LNKA700-B Broadband Amplifier 792-806 MHz LNKA800-A Broadband Amplifier 806-824 MHz LNKA800-B Broadband Amplifier 851-869 MHz LNKA800-C Broadband Amplifier 824-849 MHz LNKA800-D Broadband Amplifier 869-894 MHz
LNKA800-E Broadband Amplifier
LNKA800-F Broadband Amplifier LNKA800-G Broadband Amplifier
LNKA900-A Broadband Amplifier LNKA900-B Broadband Amplifier
136-155 MHz (FCC)
138-155 MHz(Industry Canada)
896-902 MHz Capable
896-901 FCC Approved
928-941 MHz Capable
929-930 / 935-940 FCC Approved
935-941 MHz 890-915 MHz Future Release 935-960 MHz Future Release
DCM000000054 Rev Q 1-1
Block Diagram

1.3 Block Diagram

LNKA RF Module:
RF Output
SMA RF Connector
Power & Control to Backplane
RF Input
Amplifier Board
Linear Power Amplifier
Gain Control
UMC Controller Board without TCXO
Power Circuits
Communication Interfaces
Micro­Controller with lines to
all Boards
Filter
Digital Gain Control
AGC Gain Control Loop
Filter
SMA RF
Connector
Figure 1 Block Diagram LNKA RF Module
1-2 DCM000000054 Rev Q
Module Specifications

1.4 Module Specifications

Table 2 LNKA Module Specifications
Frequency Bands See Model Chart
Modulation & Channel Spacing Broadband Amplifiers
RF Output Power Capability
AGC Control Adjustment Range +15 to +30 dBm or Disabled
AGC Attack Time (10%-90%) AGC Decay Time (90%-10%)
RF Gain Adjustment Range
Gain Variation over Passband 2 dB Maximum
Max RF Input, no damage +10 dBm with Min Gain & Max RF Out
Noise Figure <8 dB, 5 dB Typical
Maximum RF Input
Transmit Duty Cycle Continuous
Transmit Spurious -13 dBm max
Receive Conducted Spurious -57 dBm Max
Group Delay
Input Return Loss >14 dB
RF Connectors
Module Power Supply Requirements 40 Watts Maximum
Connections
Front Panel Indicators Operating, Stand by, Fault, Program Mode Configuration Options
Operating Temperature Range
Operating Humidity Range 10 to 90% RH, Non-Condensing
Size & Weight
FCC Identifiers
Industry Canada Certifications
1dB Compression Point = +37 dBm Typical
IP3 Intermodulation = +47 dBm
0.5 - 5 mS Typical
50 - 200 mS Typical
+34 to +84 dB
in 1 dB Steps
Output Level from De-rating Chart minus the
Gain. As an example, for 1 FM Carrier (+33
dBm) at minimum Gain (+34 dB)
the Maximum RF Input is -1 dBm.
< 200 nS
(< 100 nS Variation across Passband)
SMA (50) Connectors
Edge Connector & 2 SMA RF Connectors,
DB-15 Connector on back of Card-Cage
provides per-Module Fault Relay,
Interconnect to other Modules, & RS-232
Connection
RF Modules may be configured either via the
optional Controller Module, or via a PC and
an RS-232 Connection via the Card-Cage.
-10 to +50
DCM000000008 for cooling requirements
9.11” High, 2.00” Wide, 14.00” Deep,
FCC: H6M-LNKA100 VHF H6M-LNKA400 UHF H6M-LNKA800 800-900MHz E675JS0080 700-900 MHz (pending) IC: 1541A-LNKA100 VHF 1541A-LNKA400 UHF 1541311246A 800-900MHz 2868C-5JS0080 700-900 MHz (pending)
o
C; consult Manual
10 lbs, 4.5 kg Max

Also consult the main LinkNet™ Manual DCM000000008.

DCM000000054 Rev Q 1-3
(This page intentionally left blank)
1-4 DCM000000054 Rev Q

Chapter 2

Operation

2 Introduction

This chapter contains information for the standard operation of the LNKA Modules.

2.1 Software Set-Up

The LNKA modules is shipped with the following factory set options:
Table 3 LNKA Factory Set Options
OPTION RANGE OF VALUES DEFAULT VALUE
Frequency See Model Chart Order Specific
Gain AGC +15 to +30 dBm or Disabled +30 dBm
Module Enabled On / Off On
Default values may be changed when an order is placed. Check your orde r confirmation (shipped with modules) for customized values.

2.2 Configuration

In line with the versatility of the LinkNetTM Platform, it is possible to reconfigure the LNKA module in the field, either with a Personal Computer (PC) or via the optional Control Module. To use a PC it is necessary to have a Powerwave CAB000000057 control cable to connect between the appropriate module's DB15 connector on the back of the card-cage and the standard DB9 RS232 connector on the PC. On the PC a terminal emulation program such as HyperTerminal is used to communicate to the LinkNet Module. The settings are 9600 baud, 8 bits, no parity, and 1 stop bit. Commands are one or two words followed by pressing Return. Command s may be given in upper or lower-case. Available commands are:
+34 to +84 dB +34 dB
ACCESS USER: Required as a simple password to gain access to customer settable
parameters and diagnostics. This will time-out after 10 minutes, and may have to be re-typed.
HELP or ?: Displays a list of available commands. LIST: Displays current settings and status faults, etc. VER: Display the current version of software. ENABLE 1 or 0: Enables or disables the module. GAIN ###: Displays or sets the module gain (in tenths of a dB). AGCTHRESH ###: Displays or sets the AGC level (in tenths of a dBm). AGCEN 1 or 0: Enables or disables AGC.
Please consult Powerwave Technologies Inc. for further support.
DCM000000054 Rev Q 2-1
Derating Chart

2.3 Derating Chart

To maintain the FCC Spurious Emissions limit of -13 dBm maximum, for multiple carriers it is necessary to derate their power level. For FM carriers, they need to be derated as shown:
Table 4 Power Derating Chart
Number of Carriers Power per Carrier
1 +33 dBm 2 +26 dBm 3 +24 dBm 4 +22 dBm 5 +20 dBm 6 +19 dBm 7 +18 dBm 8 +17 dBm
9 +16 dBm 10 +15 dBm 15 +13 dBm 20 +11 dBm 25 +10 dBm 30 +9 dBm
NOTE: The rated mean output power for Industry Canada RSS131 is +29 dBm.
For complex CDMA, TDMA, GSM, etc. carriers, typically de-rate by a further 3 to 5 dB. Consult Powerwave Technologies for more information.

2.4 Power On Self Test (POST)

Each module automatically performs a self-diagno stics when inserte d into the syste m card-cage. These tests determine that the unit is correctly installed in the card-cage an d not damaged in t ransit.
All six of the LED’s on the front panel will flash 3 times.
If the LED’s do NOT flash three times, then remove the module, check the power source, and re-insert the module, (See Installation Instructions).
If the card is “OK” the LED’s will continue normally (See Normal Operation).
If there is a fault, then the Red Fault LED will remain on. If this occurs, contact Powerwave Technologies Inc. (Refer to Chapter 4 Return for Service).
Note! The Power On Self Test is Not an RF test, it only verifies that there is power to the unit and
that the logical circuitry is functioning.
2-2 DCM000000054 Rev Q
Fault Indications

2.5 Fault Indications

Each module continuously performs internal diagnostics. If a problem is detected it will activate its Red Fault LED and Fault Relay. Faults detected include:
Over Temperature
Misc. Internal Faults
Detailed faults are detected by the optional gateway module. Details may also be determined via the module's control port connector and an RS232 connected Terminal Emulator using the LIST command.

2.6 Normal Operation

The LNKA Module has six LED’s on the face plate:
OPERATING - LED will flash GREEN when RF Data is present and unit is
operating normally.
STANDBY – Under the control of the Gateway Module.
TRANSMIT – No function on these modules.
RECEIVE – No function on these modules.
PROGRAM – Constant Amber when the unit is being re-programmed by the
controller module. This will signify that the unit is powere d on but unavaila ble for
use.
FAULT – Constant Red if the internal diagnostics for the module detect s a
problem.
Figure 2 LNKA Faceplate
DCM000000054 Rev Q 2-3

(This page intentionally left blank)

2-4 DCM000000054 Rev Q

Chapter 3

Antenna Installation

3 Introduction

This chapter contains antenna installation and warning information for the LNKA Module s.

3.1 Antenna Installation

All antenna installation to be performed by qualified technical personnel only.
Antenna installation instructions and locations below are for the purpose of satisfying
FCC RF Exposure Compliance requirements.
Note! If multiple LinkNet™ Modules are used, the Instructions below apply to the
composite power output of all Modules when transmitting simultaneously.
The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are directional (high
gain) Antennae, fixed-mounted physically on the side or top of a building, or on a tower. The Antenna Gain must be no more than 20 dBi.
Note! If multiple LinkNet™ Modules are used with output combiners into any one
Antenna, and/or multiple Antennae are used on one Roof Top, then the sum of composite powers into all Roof Top Antennae must not exceed 20 Watts maximum.
The Roof Top Antennae location should be such that only qualified technical person nel
can access it, and that under normal operating conditions no other person can touch the antenna, or approach within 10 meters of the antenna.
For the Cellular Uplink Band (824-849 MHz) the Roof Top Antenna or Antennae for
linking to the Donor Site(s) has the added restriction that the Effective Radiated Power (ERP) must not exceed 7 Watts (+38 dBm). Thus, if the AGC is set (as per the Carrier Derating Chart) to +28 dBm as an example, the maximum allowed antenna gain must be no more than 10 dBi.
The In-Building Antenna connection is via a coaxial cable distribution system with signal
taps at various points connected to the fixed-mounted Indoor Antennae. The Indoor Antennae are simple 1/4 wavelength (0 dB Gain) types. They are used with Powerwave Technologies’ 12, 16, or 20 dB cable taps. As such the maximum EIRP will be at the first tapped antenna, which will be 12 dB below the maximum signal level of the LinkNet™ (+40 dBm); +28 dBm, or 0.63 Watts EIRP. These antennae are to be installed such that no person can touch the antenna, or approach within 0.2 Meters.
Note! If multiple LinkNet™ Modules are used with output combiners, then the composite
power output of all Modules transmitting simultaneously must meet this maximum EIRP requirement.
Please consult Powerwave Technologies Inc. for assistance as required.
DCM000000054 Rev Q 3-1
FCC Information to Users
ANTENNA INSTALLATION
CAUTION
ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED TECHNICAL PERSONNEL ONLY.
ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL.
ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS.
ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2 METERS.

3.2 FCC Information to Users

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY POWERWAVE TECHNOLOGIES INC. COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
CAUTION
3-2 DCM000000054 Rev Q
Chapter 4

Return for Service

4 Introduction

This chapter contains return for servi ce and part s and accesso ries information fo r the LNKA Modul es.

4.1 Return For Service Procedure

When returning products to Powerwave Technologies Inc., the following procedures will ensure optimum response.

4.1.1 Obtaining An RMA

A Return Material Authorization (RMA) number must be obtained prio r to returning eq uipment to the factor for service. Please contact our Repair Department at +1 (714) 466-1000 to obtain this number, or FAX your request to +1 (714) 466-5816 or number may result in delays in receiving repair service.

4.1.2 Repackaging For Shipment

To ensure safe shipment of the amplifier, it is recomme nded that the or iginal package de signed for shipping the amplifier be reused. If it is not availabl e, contact Powerwav e Technologies Inc. Cu stomer Service Department for packing materials.
mailto:RMA@PWAV.COM. Failure to obtain this RMA

4.2 Parts and Accessories

Parts and Accessories for the LNKA Modules may be pu rchased by co ntacting Powerwave Technologies Inc. at 1-888-PWR-WAVE. When ordering a replacement part, please provide model number, serial number and software versio n number.
DCM000000054 Rev Q 4-1
Loading...
