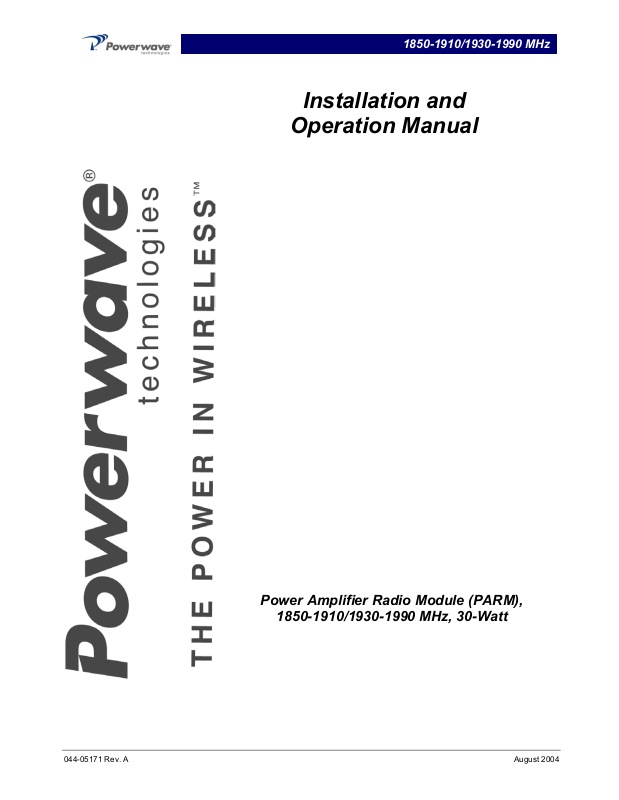

1850-1910/1930-1990 MHz
Installation and
Operation Manual
Power Amplifier Radio Module (PARM),
1850-1910/1930-1990 MHz, 30-Watt
044-05171 Rev. A August 2004
Installation & Service Manual
r
© 2004 Powerwave Technologies Incorporated. All rights reserved.
Powerwave Technologies, and the Powerwave logo are registered trademarks.
Powerwave Technologies, Inc. reserves the right to make changes to the documentation and
equipment, including but not limited to component substitution and circuitry changes.
Changes that impact this manual may subsequently be incorporated in a later revision of this
manual.
This Powerwave product is designed to operate within the Normal Operating (typical
operating) ranges or conditions specified in this document. Operation of this equipment
beyond the specified ranges in this document may cause (1) spurious emissions that
violate regulatory requirements; (2) the equipment to be automatically removed from service
when maximum thresholds are exceeded; or (3) the equipment to not perform in accordance
with its specifications. It is the Operator's responsibility to ensure this equipment is properly
installed and operated within Powerwave operating specifications to obtain prope
performance from the
equipment and to comply with regulatory requirements.
August 2004
Powerwave Technologies, Inc. Tel: (714) 466-1000
1801 E. St. Andrew Place (888) 797-9283
Santa Ana, CA 92705 Fax: (714) 466-5800
Web Site: www.powerwave.com
Copyright Powerwave Technologies, Inc., August 2004. All rights reserved
044-05171 Rev. A ii April 2004
Installation & Service Manual
Chapter 1 General Description
1-1 Introduction
This manual contains general information, installation procedures, and specifications for the operation and use of the Power Amplifier Radio Module (PARM). The manual is organized as follows:
Chapter 1
Chapter 2 Installation and Operation
1-2 General Description
The PARM is designed as an integrated subassembly unit mounted in a Radio Module (RM)
closed metal housing fitted with a heat sink and connected by RF coaxial and DC connectors.
The PARM use a common DC/DC converter for operating power. Up to three PARM can be
mounted in one RM.
The PARM’s basic function is amplifying two 60 MHz band modulated RF input signals (18501910 MHz and 1930-1990 MHz) from the TX driver subassembly, up to the level of the whole
transmitter, as defined in GSM 05.05, class 1 (20 watts minimum and 40 watts maximum). The
main characteristics of the PARM are:
General Description with Specifications
• GMSK compliant
• 8-PSK compliant
The PARM is rated for an average output power of 30 watts with an EDGE signal and 30 watts
with a GMSK signal. The electrical specifications are also designed to be in compliance with the
requirements of GSM 05.05.
1-3 Specifications
Specifications for the PARM are listed and described in table 1-1.
Table 1-1 PARM Operating Specifications
Frequency Range 1850 - 1910 MHz (60 MHz Bandwidth)
1930 - 1990 MHz (60 MHz Bandwidth)
Total Typical / Maximum Input Power -15.7 - +4.8 / +5.8 dBm
Average Output Power 30 Watts (44.8 dBm)
RF Gain 39 - 48 dB
Duty Cycle Continuous
DC Operating Voltage
DC Operating Voltage Range 25 to 29.5 VDC
Operating Temperature -5 ºC to +60 ºC
Storage Temperature -40 ºC to +85 ºC
Operating Humidity 5 % to 95 % Relative Humidity (noncondensing)
Storage Humidity 0 % to 100 % Relative Humidity (noncondensing)
Alarms See Chapter 2
RF Input Connector MCX female, gold plated body and core
RF Output Connector QN-type female
DC Input Connector Samtec FHP-04-01-T-S, 8-pin
Power Consumption 94.5 Watts
Dimensions 3.75” High, .75” Wide, 6.75” Deep
27 ±2% VDC (26.46 to 27.54 VDC)
Copyright Powerwave Technologies, Inc., August 2003. All rights reserved
044-05171 Rev. A 1-1 August 2003
Installation & Service Manual
Chapter 2 Installation and Operation
2-1 Introduction
This section contains operating instructions for the Power Amplifier Radio Module (PARM).
2-2 Installation
The PARM module is designed to be directly installed into the radio module.
2-2.1 Alarms Interface Connector
Pin Number Signal Comment
1 PA_VER_RADO From PARM TO LRM
2 PA_VER_RAD1 From PARM TO LRM
3 PA_VER_RAD2 From PARM TO LRM
4 PA_VER_RAD3 From PARM TO LRM
5 PA_VER_RAD4 From PARM TO LRM
6 GND
7 GND
8 PA_ID_LDMOS0 From PARM TO LRM
9 PA_VG_LDMOS0 From LRM TO PARM
10 GND
11 GND
12 PA_ID_DRIVER From PARM TO LRM
13 PA_ALA_TPTR_OUT From PARM TO LRM
14 GND
15 GND
16 PA_OFF From LRM TO PARM
17 PA_VG_LDMOS1 From LRM TO PARM
18 GND
19 PA_ID_LDMOS1 From PARM TO LRM
20 PA_P_OUT From PARM TO LRM
2-2.2 Alarm Descriptions
• High Temperature – A temperature monitor located inside the PARM indicates the
alarm status if the temperature exceeds the defined threshold.
• High Current - This alarm indicates when a high current is pending that could dam-
age the PARM if the system continues to operate.
Copyright Powerwave Technologies, Inc., August 2004. All rights reserved
044-05171 Rev. A 2-1 August 2004
