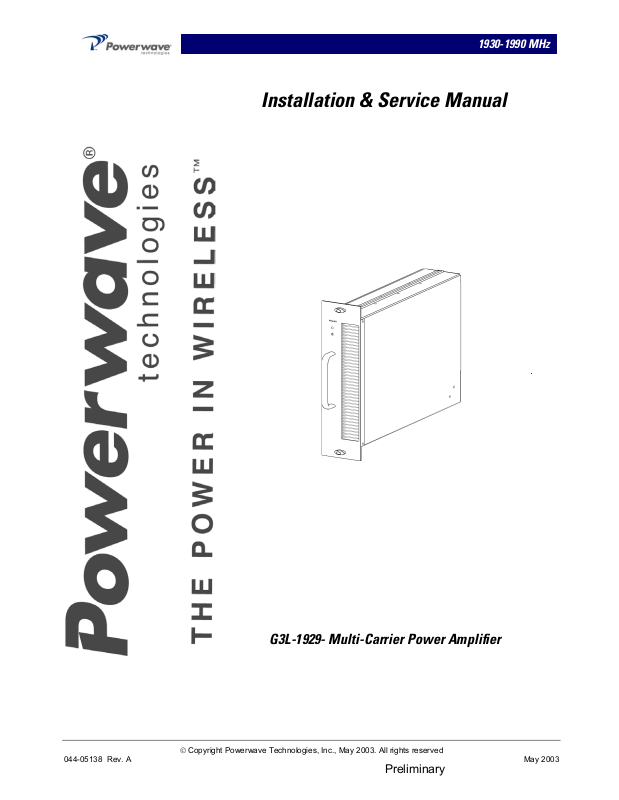

Powerwave Technologies 5JS0068 Users manual

1930-1990 MHz

Installation & Service Manual

G3L-1929- Multi-Carrier Power Amplifier

044-05138 Rev. A May 2003

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

Preliminary

G3L-1929- Installation & Service Manual

© 2003 Powerwave Technologies Incorporated. All rights reserved.

Powerwave Technologies, and the Powerwave logo are registered trademarks

Powerwave Technologies, Inc. reserves the right to make changes to the documentation and
equipment, including but not limited to component substitution and circuitry changes. Changes
that impact this manual may subsequently be incorporated in a later revision of this manual.

May 2003

Powerwave Technologies, Inc. Tel: [phone]
1801 E. St. Andrew Place [phone]
Santa Ana, CA 92705 Fax: [phone]
Web Site: www.powerwave.com

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

044-05138 Rev. A ii May 2003

G3L-1929- Installation and Service Manual

Section 1. General Description

1-1 Introduction

This manual contains information and procedures for the installation and operation of Powerwave
Technologies, Inc.’s G3L-1929-120 Multi-Carrier Power Amplifier (MCPA). This manual is organ­ized into the following sections:

Section 1 General Description
Section 2 Installation
Section 3 Operating Instructions
Section 4 Principles of Operation
Section 5 Maintenance
Section 6 Troubleshooting

1-2 General Description

The G3L-1929-120 Power Amplifier shown in figures 1-1 through 1-6, operates in the 60 MHz fre­quency band from 1930 MHz to 1990 MHz with channel spacing of 12.5 kHz. The amplifier provides
a typical gain of 60 dB to produce a typical output of 60 Watts (47.8 dBm). The G3L-1929-120 am­plifier generates approximately 2300 BTUs of heat at full power. The amplifiers are modular in
design, and ideally suited for use in GSM base stations.

1-3 Ordering Information

Table 1-1 lists major system component numbers and descriptions for use in ordering booster
amplifiers or components.

Table 1-1 Major System Components

Component

Number

G3L-1929-120 120-Watt Amplifier, +27 VDC

Description

1-4 Functional and Physical Specifications

Electrical, mechanical, and environmental specifications for the G3L-1929-75 amplifier are listed
in tables 1-2, 1-3, and 1-4 respectively.

1-5 Equipment Changes

Powerwave Technologies, Inc. reserves the right to make minor changes to the equipment, in­cluding but not limited to component substitution and circuitry changes. Changes that impact this
manual may be incorporated in a later revision of the manual.

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

044-05138 Rev. A 1-1 May 2003

G3L-1929- Installation and Service Manual

Table 1-2 G3L-1929-75 Amplifier Electrical Specifications

Frequency Range 1930 - 1990 MHz

Channel Spacing 12.5 KHz

Output Power: +50.8 dBm (120 Watts)

Input Power -10.0 dBm max.

RF Gain

RF Gain Flatness over the
operating frequency range

Gain Flatness:

Normal Operating Voltage

Current Consumption:

+60 dB ±1.0 dB @ +27Vdc, 25° C

±0.1 dB over any 1.25 MHz (over the frequency range).

±0.5 dB (1930 MHz – 1990 MHz)

+27 Vdc ±1V Nominal (±5%) 1Vpp ripple (100-120 Hz) max.

27.5 Amps @ 27 Vdc, 25 °C, Prf = 60 Watts average
32 Amps @ 27 Vdc, 25 °C, Prf = 75 Watts maximum

Abnormal Operating Voltage +21 Vdc to below +26 Vdc. Above +28 Vdc to +29 Vdc.

RF Gain variation by Temp &
Voltage

Gain Variation Over Dynamic
Range

Intermodulation Distortion

In-Band Spurious

Input/Output VSWR.

1dB; 0 to 50°C

+

±0.5 dB max./20 dB for 0 to -20 dB rated power output

-65 dBc min. (Main signal power to Spurious @ (12.5 kHz)

-55 dBc min @ +23 to +24 Vdc

1.5: 1 max @ 65° C

Load Stability Infinite VSWR. all phases

Output Isolation 20 dB min.

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

044-05138 Rev. A 1-2 May 2003

G3L-1929-75 Installation and Service Manual

Table 1-3 G3L-1929-120 Amplifier Mechanical Specifications

Physical Dimension of
MCPA (inches)

Front panel: 13.98 W x 3.90 H x 0.118 D
Body: 11.61 W x 3.75 H x 17.56 D

Weight Approximately 28.6 pounds (13 killograms)

Connector Type

MCPA Front Panel
Switch

21WA4 Connector
Description

D-sub, Hybrid, Plug-in Type RF connector: PKZ 26-0020 series
straight plug type (Phoenix Co.) refers to attached drawing.

On/Off Switch and +27 Vdc Power Indicator

Pin Outs

A1 RF Input (Coaxial Contact)

A2 +27 Vdc (Power Contact)

A3 Ground (Power Contact)

A4 RF Output (Coaxial Contact)

1 TX H 10 +27 V

2 TX L 11 COM SV

3 GND 12 AMP AO

4 RX H 13 AMP A1

5 RX L 14 AMP A2

6 GND 15 AMP A3

7 HERE LPA 16 NC

8 FF LPA 17 NC

9 RESERVED

Front Panel LED Display: LED type: SMD

RUN Green (When MCPA is enabled)

ALM Red (When any alarm occurred, LED is on)

DC Green (When DC Power is ON, LED is on)

Table 1-4 G3L-1929-120 Amplifier Environmental Specifications

Operating Temperature

Storage Temperature

-10 to + 60° C

-40 to + 85° C

Relative Humidity 5 to 95% RH (non-condensing)

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

044-05138 Rev. A 1-3 May 2003

G3L-1929- Installation and Service Manual

Figure 1-1 Model G3L-1929-120 Amplifier Front Isometric View

Figure 1-2 Model G3L-1929-120 Amplifier Rear Isometric View

 Copyright Powerwave Technologies, Inc., May 2003. All rights reserved

044-05138 Rev. A 1-4 May 2003

G3L-1929- Installation and Service Manual

Figure 1-3 Model G3L-1929-120 Amplifier Top View

Power
ON/OFF
Switch

LED
Indicator

Figure 1-4 Model G3L-1929-120 Amplifier Front Panel
