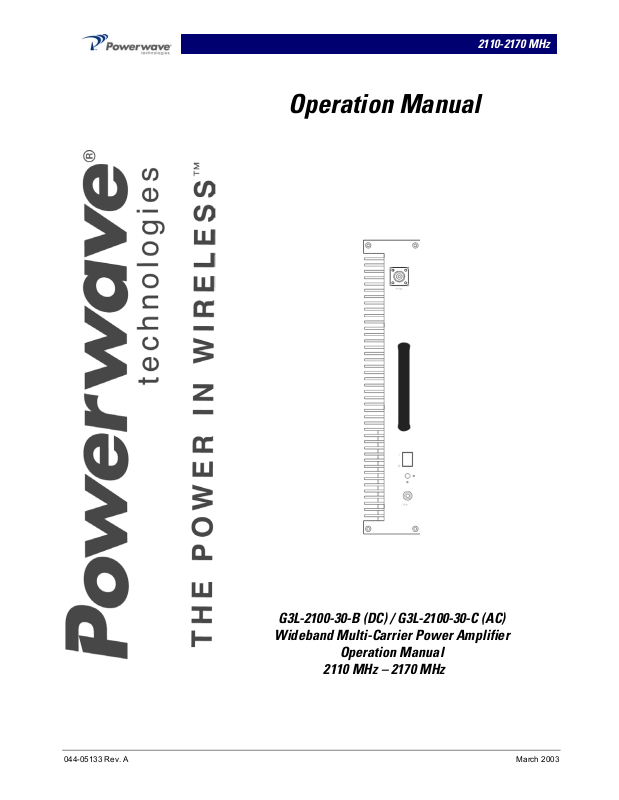

Powerwave Technologies 5JS0066 User Manual

2110-2170 MHz

Operation Manual

G3L-2100-30-B (DC) / G3L-2100-30-C (AC)

Wideband Multi-Carrier Power Amplifier

Operation Manual

2110 MHz – 2170 MHz

044-05133 Rev. A March 2003

G3L-2100-30-B/G3L-2100-30-C Operation Manual

© 2003 Powerwave Technologies Incorporated. All rights reserved.

Powerwave Technologies, and the Powerwave logo are registered trademarks

Powerwave Technologies, Inc. reserves the right to make changes to the documentation and
equipment, including but not limited to component substitution and circuitry changes. Changes
that impact this manual may subsequently be incorporated in a later revision of this manual.

March 2003

Powerwave Technologies, Inc. Tel: [phone]
1801 E. St. Andrew Place [phone]
Santa Ana, CA 92705 Fax: [phone]
Web Site: www.powerwave.com

 Copyright Powerwave Technologies, Inc., March 2003. All rights reserved

044-05133 Rev. A ii March 2003

G3L-2100-30-B/G3L-2100-30-C Operation Manual

p

p

App

p

Section 1 General Description

1-1 Introduction

This manual contains information and procedures for the operation of the model G3L-2100-30-B
and G3L-2100-30-C Wideband (WCDMA) Multi-Carrier Power Amplifier (MCPA). The manual is
organized into the following sections and appendix.

Section 1 General Descri
Section 2 O

endix A S

eration

ecifications

tion

1-2 General Description

The amplifiers are wideband, linear, feed-forward power amplifiers (WPAs) that operate in the 60
MHz frequency bandwidth from 2110 to 2170 MHz with an instantaneous bandwidth of 20 MHz.
The amplifier provides linear amplification for single or multi-carrier WCDMA signals. The amplifi­ers communicate with the base station via a TLCI control interface bus; passing alarm and meas­urement information to the base station and receiving control information from the base station.

1-3 Hardware Interface

There are three groups of interface connections located on the amplifier chassis. These are RF,
power, and control interface (TLCI bus) as described in the paragraphs that follow.

1-3.1 RF

The RF interface is located on the power amplifier front panel consists of the RF-In (TX-In) and
RF-Out (TX-Out) connectors as shown in Figure 1-1.

1-3.2 Power Supply

Power supply voltages (-48 VDC or 230 VAC) from the base station subrack are connected to the
amplifier via connector X3, pins A – D located on the power amplifier rear panel as shown in fig­ure 1-1. Table 1-1 lists the voltages and descriptions for each pin.

Table 1-1 Primary Power Connections

Signal Group X3 Connector

Pin

DC

AC

 Copyright Powerwave Technologies, Inc., March 2003. All rights reserved

044-05133 Rev. A 1-1 March 2003

D -48VDC DC Minus (isolated from amplifier

E +48VDC DC Plus (isolated from amplifier chas-

A L AC Phase (isolated from amplifier

B N AC Zero (isolated from amplifier chas-

C PE AC Protective Ground (connected to

Signal Name Description

chassis)

sis)

chassis)

sis)

chassis)
