Uninterruptible Power Supply System

CONTENT:

1. Safety and EMC Instructions .............................................................. 1

1.1 Installation ....................................................................................... 1

1.2 Operation ......................................................................................... 2

1.3 Maintenance, Servicing and Faults ................................................. 2

1.4 Transport ......................................................................................... 3

1.5 Storage ............................................................................................ 3

1.6 Standards ........................................................................................ 4

2. Description of Commonly Used Symbols ......................................... 5

3. Introduction .......................................................................................... 6

3.1 Feature ............................................................................................ 6

3.2 Electrical Specifications ................................................................... 7

3.3 Operating Environment ................................................................... 8

3.4 Typical Backup Time (Typical Values at 25°C In Minutes) .............. 9

3.5 Dimensions and Weights ................................................................. 9

4. Installation .......................................................................................... 11

4.1 Moving to The Installation Site ...................................................... 11

4.2 Unpacking and Inspection ............................................................. 11

4.3 Input and Output Power Wires and Protective Earth Ground

Installation............................................................................................ 12

4.4 Operating Procedure for Connecting With The External Battery .. 16

4.5 EPO Connection ............................................................................ 17

5. Operation ............................................................................................ 18

5.1 Display Panel................................................................................. 18

5.2 Operating Mode ............................................................................. 21

5.3 Turning On and Turning Off UPS .................................................. 27

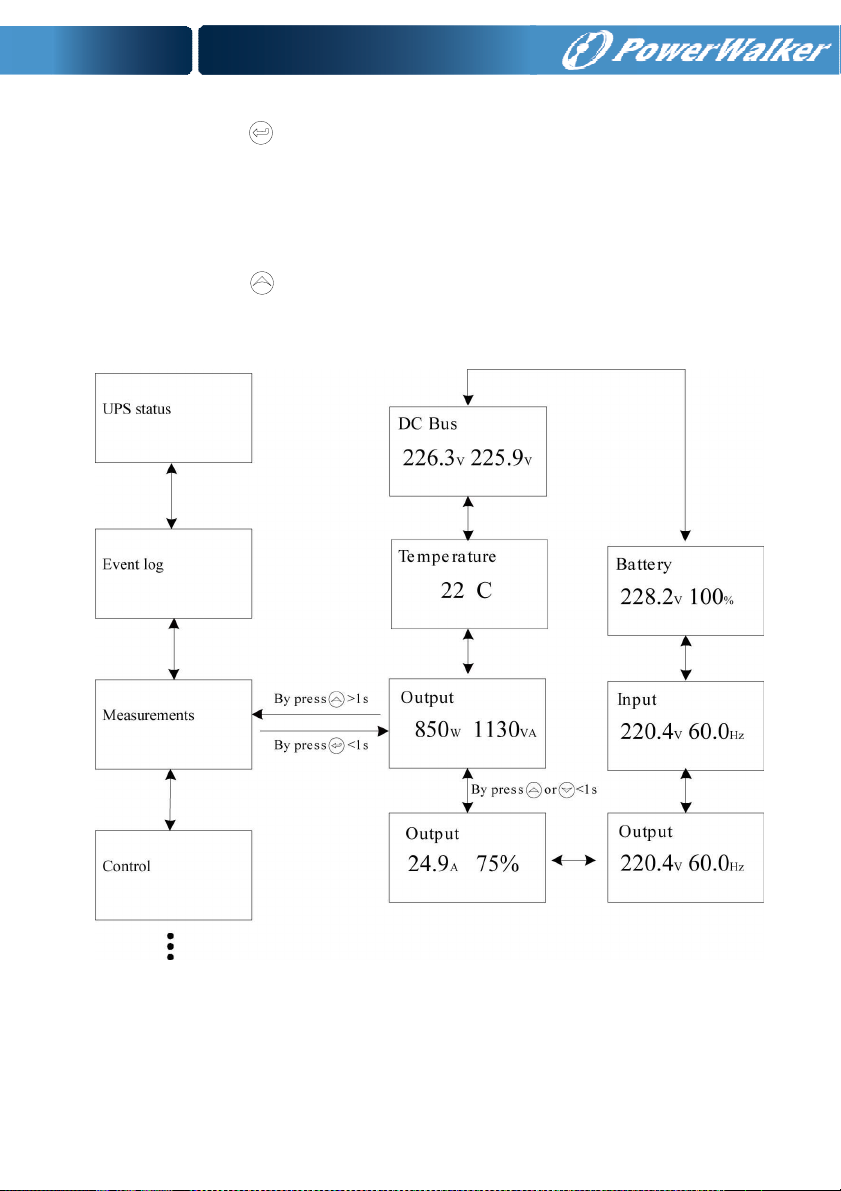

5.4 LCD Operation .............................................................................. 28

6. Special Function................................................................................. 40

6.1 HE Function ................................................................................... 40

6.2 Converter Function ........................................................................ 41

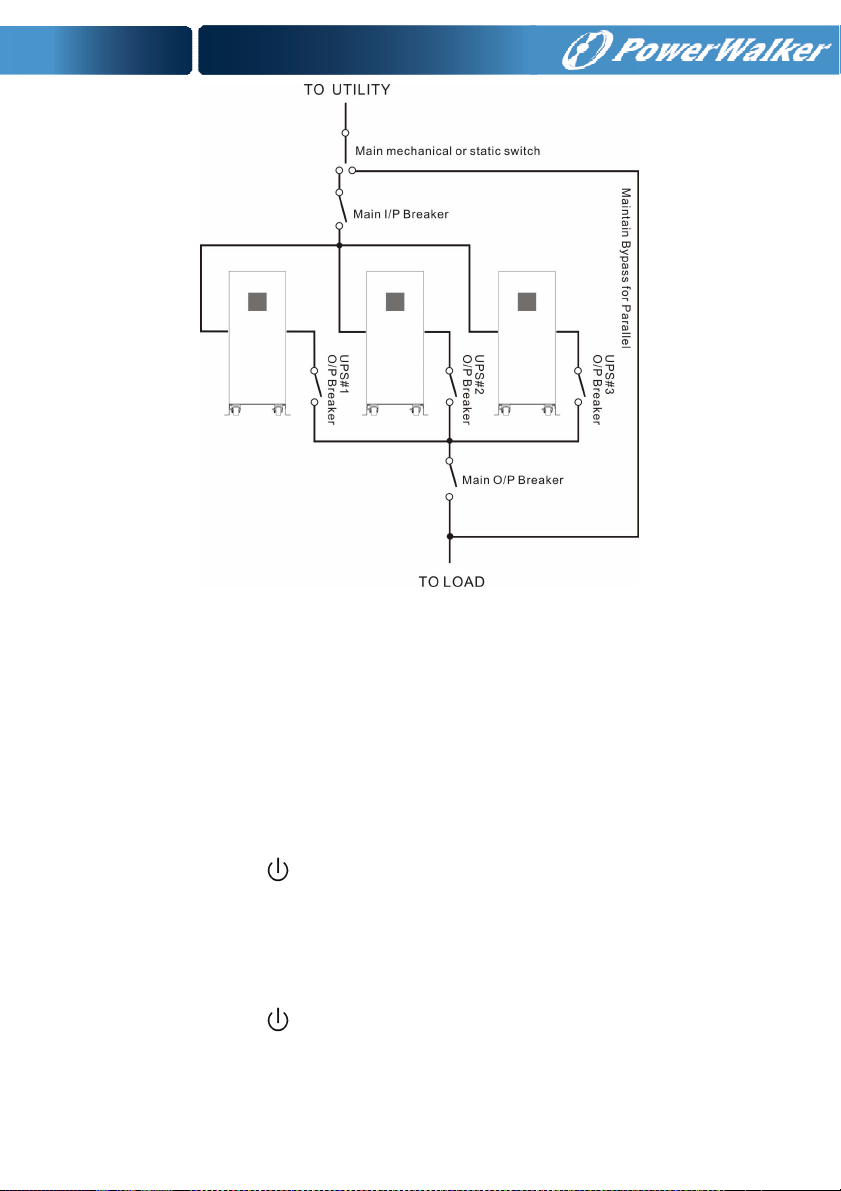

6.3 Parallel Function ............................................................................ 41

7. Trouble Shooting ............................................................................... 47

7.1 Trouble Shooting According to Warning Indication ....................... 47

7.2 Trouble Shooting According To Fault Indication ............................ 49

7.3 Trouble Shooting In Else Cases .................................................... 50

8. Battery Maintenance .......................................................................... 51

9. Communication Port .......................................................................... 52

9.1 USB Interface ................................................................................ 52

9.2 Dry contact Interface ..................................................................... 52

9.3 RS-232 Interface (optional) ........................................................... 52

9.4 Intelligent slot................................................................................. 53

10. Software installation ....................... Fehler! Textmarke nicht definiert.

1. Safety and EMC Instructions

Please read carefully the following user manual and the safety instructions before installing the unit or using the unit!

1.1 Installation

 This is permanently connected equipment, and it must be

installed by qualified maintenance personnel.

 Condensation may occur if the UPS is moved directly from a

cold to a warm environment. The UPS must be absolutely dry before being installed. Please allow an acclimatization time of at least two hours.

 Do not install the UPS near water or in damp environment.  Do not install the UPS where it would be exposed to direct

sunlight or near heat.

 Do not connect appliances or items of equipment which would

overload the UPS (e.g. laser printers, etc) to the UPS output.

 Place cables in such a way that no one can step on or trip over

them.

 Connect UPS with the earth reliably before connecting to the

building wiring terminal, and external battery source must also be earthed.

 An integral single emergency switching device which prevents

further supply to the load by the UPS in any mode of operation should be provided in the building wiring installation.

 An appropriate disconnect device as short-circuit backup

protection should be provided in the building wiring installation.

 The equipment is powered by two sources: the mains source,

the internal battery or the external battery source.

 With the installation of the equipment, the sum of the leakage

current of the UPS and the connected load does not exceed 5% of rated value of input current.

 Do not block ventilation openings in the UPS’s housing. Ensure

allow at least 50cm of space on front and rear of the UPS.

1.2 Operation

 Do not disconnect the mains cable on the UPS or the building

wiring terminals during operation since this would remove the protective earth from the UPS and all connected loads.

 The UPS output terminal block may still be electrically lived

even if the UPS is not connected to the building wiring terminal, for there is internal current source (batteries).

 In order to fully disconnect the UPS, first turn the input breaker

in the “OFF” position, then disconnect the mains lead.

 Indiscriminate operation of switches may cause output loss or

damage to equipment. Refer to instruction before conducting any control.

 While the UPSs work as a parallel system, the external parallel

cable should be reinforced insulation.

 Ensure that no liquid or other foreign objects can enter the UPS.

1.3 Maintenance, Servicing and Faults

 Do not remove the enclosure since the UPS operates with

hazardous voltages. It is to be serviced only by qualified maintenance personnel.

 Caution - risk of electric shock. Even after the unit is

disconnected from the mains power supply (building wiring terminal), components inside the UPS are still connected to the battery which are potentially dangerous.

 Before carrying out any kind of service and/or maintenance,

isolate UPS and disconnect the batteries. Verify that no current is present and no hazardous voltage exists in the capacitor or BUS capacitor.

 Batteries must be replaced only by qualified personnel.  Batteries have a high short-circuit current and pose a risk of

shock. Take all precautionary measures specified below and any other necessary measures when working with batteries:

－ remove all jewellery, wristwatches, rings and other metal

objects

－ use only tools with insulated grips and handles.

 When changing batteries, replace with the same quantity and

the same type of batteries.

 Do not attempt to dispose of batteries by burning them. It could

cause explosion.

 The UPS may be connected to external battery module (EBM).

Proper disposal of batteries is required. Refer to your local codes for disposal requirements.

 Do not open or destroy batteries. Effluent electrolyte can cause

injury to the skin and eyes. It may be toxic.

 Replace the fuse only by a fuse of the same type and of the

same spec in order to avoid fire hazards.

1.4 Transport



 Please transport the UPS only in the original packaging to



protect against shock and impact.

1.5 Storage

 The UPS must be stockpiled in the room where it is ventilated

and dry.

1.6 Standards

* Safety

IEC/EN 62040-1

* EMI

Conducted Emission..........................:IEC/EN 62040-2 Category C3

Radiated Emission.............................:IEC/EN 62040-2 Category C3

* EMS

ESD...................................................:IEC/EN 61000-4-2 Level 3

RS.....................................................:IEC/EN 61000-4-3 Level 3

EFT....................................................:IEC/EN 61000-4-4 Level 4

SURGE..............................................:IEC/EN 61000-4-5 Level 4

CS………………………….…………...:IEC/EN 61000-4-6 Level 3 MS……………………………………..: IEC/EN 61000-4-8 Level 3

Voltage Dips……………………….....: IEC/EN 61000-4-11

Low Frequency Signals.....................:IEC/EN 61000-2-2

Warning: This is a product for commercial and industrial application in the second environment-installation restrictions or additional measures may be needed to prevent disturbances.

2. Description of Commonly Used Symbols

Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning:

3. Introduction

This On-Line series is an uninterruptible power supply incorporating double-converter technology. It provides perfect protection specifically for computer equipments, communication servers, and data centers.

The double-converter principle eliminates all mains power disturbances. A rectifier converts the alternating current from the mains power to direct current. On the basis of this DC voltage, the inverter generates an AC sinusoidal voltage, which constantly supplies the loads. In the event of power failure, the maintenance-free batteries power the inverter.

This manual covers the UPS listed as follows. Please confirm whether it is the model you intend to purchase by performing a visual inspection of the Model No. on the rear panel of the UPS.

Model No. Type Model No. Type

PowerWalker

VFI 6000T LCD

PowerWalker

VFI 10000T LCD

Standard

PowerWalker VFI

6000T LCD L Extended

PowerWalker VFI

10000T LCD L

backup time

“S” Model: Extended backup time

3.1 Feature

This series UPS is a new generation of UPS, which provides the outstanding reliability, and most cost-performance ratio in the industrial. Following benefit the product has:

 True online double-conversion technology with high power

density, frequency independence, and generator compatibility.

 Output power factor is 0.9, perfect output sine waveform,

suitable almost all critical equipment.

 High input power factor ≥0.99, overall high efficiency ≥0.92,

save power and wiring expense for user. Low input current distortion, avoid power pollution.

 Outstanding adaptability to the worst mains input condition.

Extra wide input voltage, frequency range and waveform, avoid excessive dissipating limited battery energy.

 Internal charger could be up to 4Amps to decrease recharging

time of battery. Optional external large charging current charger which is up to 12Amps could be supplied.

 N+X parallel redundancy to increase the reliability and flexibility.

Number of parallel operating UPS is up to 4.

 HE mode with high efficiency ≥0.96, save power expense for

user.

 Input or output ISO transformer compatibility.  Start-able without battery.

3.2 Electrical specifications

INPUT

Model No.

Phase Single

PowerWalker

VFI 6000T LCD (L)

PowerWalker

VFI 10000T LCD (L)

Voltage 176~276VAC

Frequency (45~55)/(54~66) Hz

Current(A)* 25.8 43.0

THDI < 5% @ full load

Power Factor

*Rated current while input rated voltage is 230VAC

≥

0.99 @ full load

OUTPUT

Model No.

Power rating 6kVA/5.4kW 10kVA/9kW

Voltage

Frequency

PowerWalker

VFI 6000T LCD (L)

208*/220/230/240×（1 士 1%）VAC

50/60×（1±0.05）Hz (Battery mode)

PowerWalker

VFI 10000T LCD (L)

of external

Wave form sinusoidal

Load type PF 0.5~1, lagging

THDV

In Line mode**:

Overload

In Battery mode:

*The load capacity would be derated to 90% automatically when the output

voltage is adjusted to 208VAC.

**The overload capacity would be derated automatically in Line mode while the

circumstance temperature is larger than 35 degree.

< 2% @ full linear load

<5% @ full non linear load

10 min 105~125% 1 min 125~150%

10 s >150%

100 ms >170%

2 min 105~125% 30 s 125~150%

100 ms >150%

BATTERIES

Model No.

Internal BAT

number and type

Current

BAT pack

PowerWalker

VFI 6000T LCD

20×12V 7Ah 20×12V 9Ah

32Amax 50Amax

PowerWalker

VFI 10000T LCD

3.3 Operating Environment

Operating Temperature 0 oC to 45 oC

Operating humidity < 95%

Altitude < 1000m*

Storage temperature -15 oC to 50 oC

*The load capacity should be derated 1% every 100m heightened on the basis of 1000m.

3.4 Typical Backup Time (Typical values at 25°C in minutes)

Model No. 100 % Load

PowerWalker

VFI 6000T LCD

PowerWalker

VFI 10000T LCD

5 4

3.5 Dimensions and Weights

Model No.

PowerWalker

VFI 6000T LCD

PowerWalker

VFI 6000T LCD L

PowerWalker

VFI 10000T LCD

PowerWalker

VFI 10000T LCD L

Dimensions W×H×D

(mm)

260 x 708 x 550 80

260 x 708 x 550 25.5

260 x 708 x 550 84

260 x 708 x 550 29.5

Net Weight

(kg)

RS 232(optional)

Maintenance Switch

USB Port

Dry contact

Fan

Input Breaker

Terminal Block

PowerWalker VFI 6000T LCD (L)

Fig. 3-1 Back View of

PowerWalker VFI 6000T LCD (L)/ PowerWalker VFI

PowerWalker VFI 10000T LCD (L)

10000T LCD (L)

EPO Port

Intelligent Slot

Parallel Port

electricians in accordance with applicable safety regulations!

amperage of your incoming feeder

4. Installation

The system may be installed and wired only by qualified

When installing the electrical wiring, please note the nominal

4.1 Moving to The Installation Site

The series UPS has wheels making it easy to move the UPS to the installation site after it has been unpacked. However, if the receiving area is far from the installation site, it is recommended to move the UPS by using a pallet jack or a truck before unpacking the UPS.

4.2 Unpacking and Inspection

1. At the installation site, the utmost care shall be taken when removing the packaging in order to avoid damaging the equipment. Cut the plastic poly-straps around the shipping container and remove the corrugated carton and the PS foam on the top of the UPS. With one or two people on each side of the UPS, lift the UPS out of the pallet.

Warning: the plastic poly-straps around the shipping container are under tension. While cutting, don’t face to them, they will spring back and may cause eye injury.

The shipping materials are recyclable. After unpacking, save them for later use or dispose of them appropriately.

2. Check all packaging materials to ensure that no items are missing. The shipping package contains:

● A UPS

● A user manual

● A USB cable

●

● A parallel port cover plate

● EPO connector

3. Inspect the appearance of the UPS to see if there is any damage

A RS232 cable (optional）

●Terminal splices 12pcs (using for the wire connection on input terminal)

during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any damage or lacking of some parts.

4.3 Input and Output Power Wires and Protective Earth Ground Installation

4.3.1 Notes for installation

1) The UPS must be installed in a location with good ventilation, far away from water, inflammable gas and corrosive agents.

2) Ensure the air vents on the front and rear of the UPS are not blocked. Allow at least 0.5m of space on each side.

3) Condensation to water drops may occur if the UPS is unpacked in a very low temperature environment. In this case it is necessary to wait until the UPS is fully dried inside out before proceeding installation and use. Otherwise there are hazards of electric shock.

installation

4.3.2 Installation

For safety, please cut off the mains power switch before

Use cable cross section and protective device specification

Model

Protective earthing conductor Min cross section

Input L, N, G Min conductor cross section

Input breaker 40A/250VAC 63A/250VAC Output L,N, Min conductor cross section

External Battery Cabinet Positive Pole(+), Negative pole(-), Neutral Pole Min conductor cross section External Battery Cabinet Fuse in Positive Pole(+), Negative pole(-), Neutral Pole External Battery Cabinet Breaker in Positive Pole(+), Negative pole(-), Neutral Pole

Torque for fixing above terminals

PowerWalker VFI

6000T LCD (L)

6mm2(8AWG) 10 mm2(6AWG)

30A/240VDC 60A/240VDC

32A/240VDC 50A/240VDC

3.95~4.97Nm (35~44 1b in)

PowerWalker VFI

10000T LCD (L)

1) It is suggested to install an external isolating device against current backfeed between Mains input and UPS (see Fig.4-6). After the device is installed, it must add a warning label with the following wording or the equivalent on the external AC contactor: RISK OF VOLTAGE BACKFEED. Isolate the UPS before operating on this circuit, then check for hazardous voltage between all terminals.

Fig.4-6 Typical external isolating device installation

2) No matter the UPS is connected to the mains power or not, the output of the UPS may be electrically live. The parts inside the unit may still have hazardous voltage after turning off the UPS. To make the UPS have no output, power off the UPS, and then cut off the mains power supply, wait the UPS shut down completely.

3) Open the terminal block cover located on the rear panel of UPS, please refer to the appearance diagram.

4) For PowerWalker VFI 6000T LCD UPS, it is recommended to select the UL1015 8AWG/6mm2 or other insulated wire which complies with AWG Standard for the UPS input and output wirings.

5) For PowerWalker VFI 10000T LCD UPS, it is recommended to select the UL1015 6AWG/10mm2 or other insulated wire which complies with AWG Standard for the UPS input and output wirings.

6) Ensure the capacity of mains power supply. Do not use the wall receptacle as the input power source for the UPS, as its rated current is less than the UPS’s maximum input current. Otherwise the receptacle may be burned and destroyed.

7) The protective earth ground wire should be installed first according to the following diagram. It is better to use green wire or green wire with yellow ribbon wire.

8) Connect other input and output wires to the corresponding input and output terminals according to the following diagram.

9) It is requested to use the accessorial terminal splices which can be compacted on the wires tightly, to ensure the connection between the wires and the terminal block is reliable.

Fig. 4-7 Input and output Terminal Block wiring diagram

Notes: 1) If the UPS is used in single mode, JP1 and JP2 must be connected. If the UPS is used in parallel mode, the Jumper between JP1 and JP2 must be removed.

2) Battery+/- connection is only for “S” model.

10) Install an output breaker between the output terminal of UPS and the load, and the breaker should with leakage current protective function if necessary.

11) Turn off all the loads first before connecting the load with the UPS, then perform the connection and finally turn on the loads one by one.

12) After completing the installation, check all the wires is connected correctly and tightly.

13) Suggest charging the batteries for 8 hours before use. After installation, turn on the mains power switch and turn the input breaker in the “ON” position, the UPS will charge the batteries automatically. It can also use the UPS immediately without charging the batteries, but the backup time may be less than the standard value.

14) If it is necessary to connect the inductance load such as a monitor or a laser printer to the UPS, the start-up power should be used for calculating the capacity of the UPS, as its start-up power consumption is too big to make the UPS which capacity is small fail easily.

4.4 Operating Procedure For Connecting with The External Battery (Only for “S” model)

1. The nominal DC voltage of external battery pack is 240VDC. Each battery pack consists of 20 pieces of 12V maintenance free batteries in series. To achieve longer backup time, it is possible to connect multi-battery packs, but the principle of “same voltage, same type” should be strictly followed.

2. For PowerWalker VFI 6000T LCD, select the UL1015 8AWG/6mm2 respectively or other insulated wire which complies with AWG Standard for the UPS battery wirings.

3. For PowerWalker VFI 10000T LCD, select the UL1015 6AWG/10mm2 respectively or other insulated wire which complies with AWG Standard for the UPS battery wirings.

4. The external battery pack must be independent for each UPS. It is forbidden that two UPSs use same external battery pack.

5. The procedure of installing battery pack should be complied with strictly. Otherwise it may encounter the hazardous of electric shock.

1) Ensure the UPS is not powered on and the mains input breaker is set in the “OFF” position.

2) A DC breaker must be installed between the external battery pack and the UPS. The capacity of breaker must be not less than the data specified in the general specification.

3) Set the external battery pack breaker in “OFF” position and connect the 20 pieces of batteries in series.

4) Connect the external battery pack to the battery terminals. Check the polarity of connection is correct.

5) Set the breaker of the battery pack in the “ON” position.

6) Set the mains input breaker in the “ON” position, the UPS would power on and start to charge the battery pack.

4.5 EPO Connection

4.5.1 Introduction

Emergency power off function which the UPS supplies is, when the emergency occurs, such as the failure of load, the UPS can cut off the output at once by operating the EPO port manually.

4.5.2 The connection

Normally the EPO connector is opened without any connection on the rear panel. Once the connector is closed with a wire, the UPS would stop the output and enter EPO status.

Enable the EPO status Disable the EPO status

Fig. 4-8 Default EPO status

To recover to normal status, first EPO connector should be opened, and enter LCD menu (illustrated in the chapter of 5.4.5) to clear EPO status, then UPS would stop alarm and recover to Bypass model. And UPS needs be turned on by manual operation.

The polarity of connector could be inversed by setting in LCD menu in the chapter of 5.4.7. Contact your local distributor for further information before modifying the settings.

5. Operation

5.1 Display Panel

The UPS has a four-button dot matrix LCD with dual color backlight. Standard back-light is used to light up the display with white text and a blue background. When the UPS has a critical alarm, the backlight changes the text to dark amber and the background to amber. Besides the LCD, the UPS has four colorized LEDs to provide more convenient information.

Fig. 5-1 Control Panel

Table 5-1 Control Button Functions

The Button Function Illustration

Power on

Turn on

Turn off

When the unit is no power and has connected with battery, press this button for >100ms&<1s to power on

When the unit is powered on and is in Bypass mode, press this button for >1s to turn on

When the unit has been turned on, press this button for >3s to turn off

Enter main menu

Exit main menu

Scroll up

Scroll down

Enter next menu tree

Select one menu option

Confirm the present setting

Table 5-2 LED definition

When displaying default UPS status summary screen, press this button for >1s to enter the main menu tree

Press this button for >1s to exit the present menu to default system status display menu without executing a command or changing a setting

Press this button for >100ms&<1s to scroll up the menu option

Press this button for >100ms&<1s to scroll down the menu option

Press this button for >100ms&<1s to select the present menu option, or enter next menu, but do not change any setting

Press this button for >1s to confirm the edited options and change the setting

UPS state Normal LED

(Green)

Bypass mode with no output Bypass mode with output Turning on

Line mode Battery mode HE mode Battery test mode Fault mode Warning mode



   

●

● ●

●

   

↑ ↑ ↑

Battery LED (Yellow)

Bypass LED (Yellow)

●

↑

Fault LED (Red)

↑ ↑

↑ ↑ ↑

●



Note：：：：

●: Lightened constantly

: #1-#4 Lightened circularly

: Flashing

↑: Depended on the fault/warning status or other status Table 5-3 Alarm definition

UPS condition Buzzer status

Fault active Continuous Warning active Beep every second

Battery output Bypass output Beep every 2 minutes

Overload Beep twice every second

Beep every 4 seconds, if battery low, buzzer Beep every second

The UPS provides useful information about UPS itself, load status, events, measurements, identification, and settings through the front panel display. During powering on, the LCD would display the Welcome logo for several seconds and then enter to the default page which shows the UPS status summary. The display automatically returns to the default UPS status summary screen when no button has been pressed for 15 minutes. On the UPS status summary screen it provides the following information:

 Status summary, including mode and load  Alarm status, if any are present

Notes: alarm including fault and warning information

 Battery and charger status, including battery voltage, charge

level and charger status

 Running information including parallel UPS and running time

Battery informationUPS operating status

Input

220 V

60 Hz

273.0 V

100%

Output

220 V

60 Hz

UPS output information

5400 W

Utility input information

Fig. 5-2 The default LCD display

The more detailed operation of LCD is illustrated in the chapter of 5.4.

5.2 Operating Mode

The different graphic symbol could be displayed corresponding to current operating mode or status.

5.2.1 Line mode

Load information

The example of LCD display in Line mode is shown in the following diagram.

Fig. 5-3 Line mode

5.2.2 Battery mode

The example of LCD display in battery mode is shown in the following diagram.

Fig. 5-4 Battery mode

When the UPS is running in battery mode, the buzzer beeps once every 4 seconds.

5.2.3 Bypass with output

The LCD display in bypass mode with output is shown in the following diagram. The UPS does not have the backup function when it is in bypass mode. The power used by the load is supplied from the mains power via internal filter. The UPS will beep once every 2 minutes in bypass mode.

Fig. 5-5 Bypass mode with output

5.2.4 Bypass without output

The LCD display in bypass mode without output is shown in the following diagram.

Fig. 5-6 Bypass mode without output

5.2.5 HE mode (High Efficiency mode)

It is also called economy mode.

After the UPS is turned on, the power used by the load is supplied from the mains power via internal filter while the mains power is in normal range, so the high efficiency could be gained in the HE mode. Once the mains power is loss or abnormal, the UPS would transfer to Line mode or Battery mode and the load is supplied continuously.

Fig. 5-7 HE mode

1) The function could be enabled through the LCD setting or the software (Winpower, etc.).

2) It is attention that the transfer time of UPS output from HE mode to battery mode is about 10ms. But it is still too long for some sensitive load.

5.2.6 Converter mode

In converter mode, the UPS would free run with fixed output frequency (50Hz or 60Hz). Once the mains power is loss or abnormal, the UPS would transfer to battery mode and the load is supplied continuously.

Fig. 5-8 Converter mode

1) The function could be enabled through the LCD setting or the software (Winpower, etc.).

2) The load should be derated to 60% in converter mode.

5.2.7 Warning

When the warning occurs, it illustrates that there are some abnormal problems during the operation of UPS. Normally the problems are not fatal and the UPS continues working, but they should be paid attention to, or the UPS may fail.

The detailed warning table is shown in chapter of 7.

Fig. 5-9 Warning

5.2.8 Fault

When the fault occurs, it illustrates that some fatal problems happened, the UPS would directly cut off the output or transfer to bypass, and keep alarming. The backlight of LCD would also turn to red. The detailed fault table is shown in chapter of 7.

Fig. 5-10 Fault

5.2.9 Other status

When the UPS is overload, the alarm will beep twice every second. Some unnecessary loads should be get rid of one by one to decrease the loads connected to the UPS less than 90% of its nominal power capacity.

Fig. 5-11 Overload

While doing the battery test, LEDs would be lighted circularly, and the symbol of battery test would be shown on the display.

Fig. 5-12 Battery test

And if the battery status detected is “battery disconnected”, the symbol of battery failure would be shown and UPS would alarm.

Fig. 5-13 Battery fails

5.3 Turning On and Turning Off UPS

Attention: The UPS could only be turning on while connecting with the

mains at the first time. Attention: Please switch off the connected loads first before turning

on the UPS, and switch on the loads one by one after the UPS is turned on. Switch off all of the connected loads before turning off the UPS.

5.3.1 Turning on UPS with mains

1) Check all the connection is correct. Check the breaker of external battery pack is in “ON” position.

2) Set input breaker in “ON” position. At this time the fan begins to rotate, LCD will show “WELCOME”. Then LCD will show the default UPS status summary screen after UPS finishing self-test.

3) By pressing button continuously for more than 1 second, the buzzer will beep for 1s, UPS starts to turn on.

4) A few seconds later, the UPS turns into Line mode. If the mains power is abnormal, the UPS will transfer to Battery mode without output interruption of the UPS.

5.3.2 Turning on UPS without mains

1) Check all the connection is correct. Check the breaker of external battery pack is in “ON” position.

2) By pressing button continuously for more than 100ms, the UPS would be powered on. At this time the fan begins to rotate, LCD will show “WELCOME”. Then LCD will show the default UPS status summary screen after UPS finishing self-test.

3) By pressing button continuously for more than 1s, the buzzer will beep for 1s, UPS starts to turn on.

4) A few seconds later, the UPS turns into Battery mode. If the mains power comes back, the UPS will transfer to Line mode without output interruption of the UPS.

5.3.3 Turning off UPS with mains

1) To turn off the inverter of UPS by pressing button continuously for more than 3s and the buzzer will beep for 3s. The UPS will turn into Bypass mode at once.

2) When completing the above action, UPS output voltage is still present. In order to cut off the UPS output, simply cut off the mains power supply. A few seconds later, LCD display shuts down and no output voltage is available from the UPS output terminal.

5.3.4 Turning off UPS without mains

1) To power off the UPS by pressing button continuously for more than 3s, and the buzzer will beep 3s. The UPS will cut off the output at once.

2) A few seconds later, LCD shuts down and no voltage is available from the UPS output.

5.4 LCD Operation

Except the default UPS status summary screen, the user could get more useful information about UPS current status, detailed various measurements, old events which ever occurred, UPS own identification, and could change the settings to fit the user own requirements, optimize the function of UPS.

5.4.1 The main menu

In the default UPS status summary screen, when pressing or

<1s, the detailed information about alarm, the parallel system, battery would be shown. In the default UPS status summary screen, when pressing >1s, the display would enter main menu tree. The main menu tree includes six branches: UPS status menu, event log menu, measurement menu, control menu, identification menu, setting menu.

WELCOME

UPS status

Event log

Alarm # 41

Measurements

Control

Battery Volt: 220V Battery charging Charger level:100%

Status:

Increase mode

Para Num: 2 Runningtime:

0001:03: 01: 00

Identification

Settings

Fig. 5-14 Main menu tree

5.4.2 The UPS status menu

By pressing on the menu of “UPS status”, the display would enter the next UPS status menu tree.

The content of UPS status menu tree is same as the default UPS status summary menu.

By pressing >1s, the display would return the last main menu tree.

Fig. 5-15 UPS status menu tree

5.4.3 The event log menu

By pressing on the menu of “Event log”, the display would enter the next event menu tree. All the old event, alarm and fault have been recorded here. The information includes the illustration, the event code, and the operating time of UPS when the event happened. By press or

<1s, all the event could be displayed one by one. The max number of record is 50, when the number is larger than 50, the oldest one would be changed to the newest information. By pressing >1s, the display would return the last main menu tree.

Fig. 5-16 Event menu tree

5.4.4 The measurement menu

By pressing on the menu of “Measurement”, the display would enter the next measurement menu tree. A lot of detailed useful information could be checked here, Ex. the output voltage and frequency, the output current, the load capacity, the input voltage and frequency, etc. By pressing >1s, the display would return the last main menu tree.

Fig. 5-17 Measurement menu tree

5.4.5 The control menu

By pressing on the menu of “Control”, the display would enter the next control menu tree.

1) Single UPS turn off: is one command to turn off one UPS which is operated currently in a parallel system, and other UPSs continue working to supply the load in the parallel system.

2) Single UPS battery test: is one command to control one UPS which is operated currently in a parallel system to do the battery test singly, and other UPSs do not do the battery test.

3) Parallel UPS battery test: is one command to control all UPS in a parallel system to do the battery test at the same time.

4) Clear EPO status: once EPO status is enabled, the UPS output would be cut off. To recover to normal status, first EPO connector should be opened, and enter this menu to clear EPO status, then UPS would stop alarm and recover to Bypass model. And UPS needs be turned on by manual operation.

5) Reset fault status: when fault occurs, UPS would keep in Fault mode and alarm. To recover to normal status, enter this menu to reset error status, then UPS would stop alarm and recover to Bypass mode. And the reason of fault should be checked and deleted before UPS is turned on again by manual operation.

6) Restore factory settings: all the settings would be recover to default factory settings. It could only be done in Bypass mode.

Fig. 5-18 Control menu tree

Example: clear EPO status

Clear EPO status

By press <1s

Status:EPO active Clear:no

By press or <1s

Status:EPO active Clear:yes

By press >1s

Status:EPO inactive Clear:no

Note: First make sure the EPO signal is inactive or the LCD will show

below information and the EPO active status couldn’t be cleared.

Fig. 5-19 clear EPO status

5.4.6 The identification menu

By press on the menu of “Identification”, the display would enter the next identification menu tree. The identification information includes UPS serial number, firmware serial number, model type, would be shown here. By press >1s, the display would return the last main menu tree.

Fig. 5-20 Identification menu tree

5.4.7 The setting menu

Please contact your local distributor for further information before using the settings. Some settings would change the specification, and some settings would enable or disable some functions. The unsuitable option set by user may result in potential failures or protecting function loss, even directly damage the load, battery or UPS. The most of settings could only be done while UPS is in Bypass mode.

Fig. 5-21 Setting menu tree

By press on the menu of “Identification”, the display would enter the next setting menu tree if “User password” is disabled. If “User password” is enabled, the user should enter the password by press

, , and

, then enter the next setting menu tree.

Table 5-4

Submenu item Optional Values Default value

User password enabled/disabled disabled Audio alarm enabled/disabled enabled Rated output voltage 208/220/230/240V 230V Output frequency autosensing/50/60Hz autosensing Power strategy** normal/high efficiency/ converter normal DC start enabled/disabled enabled Site wiring fault alarm enabled/disabled enabled

Ambient temperature warning Automatic battery tests period

Auto Restart enabled/disabled enabled Automatic overload restart enabled/disabled enabled AutoBypass enabled/disabled enabled Short circuit clearance enabled/disabled disabled Bypass voltage low limit 110~215V 176V Bypass voltage high limit 245~276V 264V Bypass frequency low limit 1%~10% 10% Bypass frequency high limit 1%~10% 10% HE voltage low limit 1%~10% 5% HE voltage high limit 1%~10% 5% HE frequency low limit 1%~10% 5% HE frequency high limit 1%~10% 5% Battery quantity*** 19/20/21 20

Set running time LCD contrast -5~+5 0

enabled/disabled enabled 0-31days 7days

Day:hour:minute:second 0000:0000:00~9999:23:59:59

Running time

*Password is USER when enabled. **Read the chapter of 6.1 and 6.2, before using high efficiency or converter function. ***Ensure the real battery quantity is same as the setting, or the batteries would be

damaged

permanently.

Example: set rated output voltage value

Fig. 5-22 Set rated output voltage value

6. Special Function

The series UPS has some special functions, which could satisfy some special application of user. And the functions have own features, please contact your local distributor for further information before using the function.

6.1 HE Function

6.1.1 Brief introduction of HE function

If HE function is set to enable, after the UPS is turned on, the power used by the load is directly supplied from the mains power via internal filter while the utility power is in normal range, so the high efficiency could be gained in HE mode. It is also called economy mode. Once the mains power is loss or abnormal, the UPS would transfer to Line mode or Battery mode and the load is supplied continuously. The great virtue is overall high efficiency ≥ 0.96 of UPS, to save power for user. But the disadvantage is 1) the load can not be protected as well as in Line mode, for the load is directly supplied from the mains; 2) the transfer time of UPS output from HE mode to Battery mode is about 10ms. So the function is not suitable to some sensitive loads, and the region where the mains power is unstable.

6.1.2 Set the function

The function could be enabled through the LCD setting in Bypass mode. Enter the power strategy setting menu by following chapter of 5.4.7.

6.2 Converter Function

6.2.1 Brief introduction of Converter function

In converter mode, the UPS would free run with fixed output frequency (50Hz or 60Hz). Once the mains power is loss or abnormal, the UPS would transfer to Battery mode and the load is

supplied continuously. The great virtue is the output frequency is fixed, which is required by some very sensitive loads. But the disadvantage is the load capacity of UPS should be derated to 60% in converter mode.

6.2.2 Set the function

The function could be enabled through the LCD setting in Bypass mode. Enter the power strategy setting menu by following chapter of 5.4.7.

6.3 Parallel Function

6.3.1 Brief introduction of the redundancy

N+X is currently the most reliable power supply structure. N represents the minimum UPS number that the total load needs, X represents the redundant UPS number, i.e. the fault UPS number that the system can handle simultaneously. When the X is larger, the reliability of the power system is higher. For occasions where reliability is highly depended on, N+X is the optimal mode.

As long as the UPS is equipped with parallel cables, up to 4 UPSs can be connected in parallel to realize output power sharing and power redundancy.

6.3.2 Parallel installation and operation

How to install a new parallel UPS system:

1) Before installing a new parallel UPS system, user need to

prepare the input and output wires, the output breaker, and the parallel cable.

2) Users need to use a standard 25-pin communication cable,

which should have 25 cores, corresponding stitches and shield, as the UPS parallel cable. The length of the parallel cable is appropriate to be less than 3m.

3) Remove the cover plate of the parallel port on the UPS,

connect each UPS one by one with the parallel cable, and re-screw the Parallel port cover which is supplied in the accessories.

4) Strictly follow the chapter of 4, the wiring requirement of single

UPS to perform the wiring of each UPS.

5) Connect the output wires of each UPS to an output breaker

panel.

6) Disconnect the Jumper on JP1 and JP2 of the terminal block

first, and connect each output breaker to a main output breaker and then to the loads.

7) Each UPS need an independent battery pack.

8) Please refer to the wiring diagram in the following diagram.

9) The distance between the UPSs in parallel and the breaker

panel is required to be less than 20 meters. The difference between the wires of input and output of the UPSs is required to be less than 20%.

IP_G IP_N IP_L B+ B- B_G J1 J2 OP_N OP_L OP_G

UPS#1

O/P Breaker

BAT Ground

BAT PACK #1

(For “ S” model)

IP_G IP_N IP_L B+ B- B_G J1 J2 OP_N OP_L OP_G

UPS#2

O/P Breaker

Main

I/P Breaker

I/P Ground

BAT PACK #2

(For “ S” model)

BAT Ground

Main

O/P Breaker

O/P Ground

TO UTILITY

TO LOAD

Fig. 6-1 Input and output Terminal Block wiring diagram

Fig. 6-2 Parallel System Installation Diagram

10) Do not switch on the output breaker of each UPS, switch on the

input breaker of the each UPS, the UPS should work in bypass with output, observe their display to check if there are any warning or fault information, measure the output voltage of each UPS separately to check if the voltage difference between them is less than 1V. If the difference is more than 1V, check the wiring.

11) Press the button of one UPS, each UPS would start to turn

on, all the UPSs would transfer to the INV mode together. Measure the output voltage of each UPS separately to check if the voltage difference between them is less than 0.5V. If the difference is more than 0.5V, the UPSs need to be regulated.

12) Press the

off and transfer to the Bypass mode, switch on the output breaker of each UPS to parallel all the output of UPSs together.

button of one UPS, each UPS would start to turn

13) Press the button of one UPS, each UPS would start to turn

on, after turning on, the UPSs should work parallel in the Line mode.

How to join a new UPS to a parallel system:

1) First the parallel system must be installed one main

maintenance mechanical switch or static switch.

2) Regulate the output voltage of the new UPS separately: check

if the output voltage difference between the new UPS and the parallel system is less than 0.5V.

3) Ensure the bypass of the parallel system is normal and the

bypass setting is “enable”, remove the cover plate of maintenance switch on the rear panel of each UPS, the UPS system would transfer to bypass automatically, set the own maintenance switch of each UPS from “UPS” to “BPS”.

4) Set the main maintenance switch or static switch from “UPS” to

“BPS”, switch off the main output breaker and the main input breaker, the UPSs would shut down.

5) Ensure the UPSs shut down totally, add the new UPS and

reinstall the new UPS parallel system by following step 1) to 9) of last chapter - “install a new parallel UPS system”.

6) Switch on the main input breaker and the main output breaker,

and set the main maintenance switch or static switch from “BPS” to “UPS”, then set the UPS own maintenance switch from “BPS” to “UPS” and screw the maintenance cover plate back again. Press the button of one UPS, each UPS would start to turn on, after turning on, the UPSs should work parallel in the Line mode.

How to remove a single UPS from a parallel system:

1) First the parallel system must be installed one main

maintenance mechanical switch or static switch.

2) Ensure the bypass is normal and the bypass setting is “enable”,

remove the cover plate of maintenance switch on the rear panel of each UPS, the UPS system would transfer to bypass

automatically, set the own maintenance switch of each UPS from “UPS” to “BPS”.

3) Set the main maintenance switch or static switch from “UPS” to

“BPS”, switch off the main output breaker and the main input breaker, and the UPSs would shut down.

4) Ensure the UPSs shut down totally, remove the wanted UPS

and reinstall the new UPS parallel system by following step 1) to 9) of last chapter - “install a new parallel UPS system”.

5) If the removed UPS or the remained UPS will be used in a

stand-alone mode, then JP1 and JP2 on the terminal block should be connected with a short connection wire.

6) Switch on the main input breaker and the main output breaker,

7. Trouble Shooting

If the UPS system does not operate correctly, first check the operating information on the LCD display. Please attempt to solve the problem using the table below. If the problem still persists, consult your dealer.

7.1 Trouble Shooting According To Warning Indication

Problem Displayed Possible cause Remedy

Read EEPROM Error UPS internal fault Consult dealer. Epo Active

On Maintain Bypass Maintain bypass

IP softstart failed UPS internal fault Consult dealer Site Wiring Fault Phase and neutral

Battery Disconnect Battery pack is not

Battery low Battery voltage is low When audible alarm sounding

Output Overload Overload Check the loads and remove

Fan Failure Fan abnormal Check if the fan is running

Charger Fail The charge fails Consult dealer. Battery Over Voltage Battery voltage is

EPO connector is closed

switch is open

conductor at input of UPS system are reversed

connected correctly

higher than normal value

Check the EPO connector status

Check the maintain bypass switch status

Reverse mains power wiring.

Do the battery test to confirm. Check the battery bank is connected to the UPS. Check the battery breaker is turn on.

every second, battery is almost empty.

some non-critical loads. Check if some loads are failed.

normally.

Check if the battery quantity is right.

Over Charge Battery is over

charged

Model Pin Error UPS internal fault Consult dealer. Ambient Over Temperature

Heatsink Over Temperature Ambient NTC abnormal UPS internal fault Consult dealer. Para Cable Male Loss The parallel cable is

Para Cable Female Loss Para Bat Differ The battery packs of

Para Line Differ The mains input of

Para Work Mode Differ There are different

Para Rate Power Differ There are different

ECO In Para HE function is

IP Fuse Open Input fuse break Check the input fuse status

The ambient temperature is too high Inside temperature of UPS is too high

disconnected The parallel cable is disconnected

some UPSs are disconnected

some UPSs is disconnected

power strategy setting in parallel system

UPSs in parallel system

enabled in parallel system

The UPS will turn off the charger until the battery voltage is normal

Check the environment ventilation.

Check the ventilation of UPS and the ambient temperature.

Check the parallel cable.

Check if all the battery pack is connected.

Check the building wiring and input cable. Check if the input breaker is closed. Ensure the UPSs are connected to same input source. The UPSs with different power strategy setting (Ex. one Line mode and one Converter mode) are forbidden to parallel. The UPSs with different capacity (Ex. one 6KVA and one 10KVA) are forbidden to parallel. HE function is forbidden in parallel system.

7.2 Trouble Shooting According To Fault Indication

Problem Displayed Possible cause Remedy

Inv Overload Fault Overload

Byp Overload Fault Overload

Output Short Circuit Output short circuit

Heatsink Over Temperature Fault

Bus Over Voltage UPS internal fault Consult dealer. Bus Under Voltage UPS internal fault Consult dealer. Bus Unbalance UPS internal fault Consult dealer. Bus short UPS internal fault Consult dealer. Bus Softstart Fail UPS internal fault Consult dealer. Inv Over Voltage UPS internal fault Consult dealer. Inv Under Voltage UPS internal fault Consult dealer. Inv Softstart Fail UPS internal fault Consult dealer. Negative Power Fault

Cable male and female Loss fault Fan lock fault Fan blocked or

Back Feed Output voltage is

Inside temperature of UPS is too high

The load is pure inductive and capacitive

The parallel cable is disconnected

disconnected over time returned to input

Check the loads and remove some non-critical loads. Check if some loads are failed.

Remove all the loads. Turn off the UPS. Check if UPS output and loads is short circuit. Ensure short circuit is removed before turning on again.

Check the ventilation of UPS and the ambient temperature.

Remove some non-critical loads.

Bypass supplies the load first, ensure there is no overload, then turn on UPS.

Check the parallel cable.

Check the fan status Consult dealer

7.3 Trouble Shooting In Else Cases

Problem Possible cause Remedy

No indication, no warning tone even though system is connected to mains power supply

BYPASS LED light up even though the power supply is available

BATTERY LED lights up, and audible alarm sounding every 1 beep in every 4 seconds

Emergency supply period shorter than nominal value

No input voltage

Inverter not switched on

Input voltage and/or frequency are out of tolerance

Batteries not fully charged / batteries defect

Check the building wiring and input cable. Check if the input breaker is closed.

Press On-Switch “I” to turn on UPS.

Check input power source. Check the building wiring and input cable. Check if the input breaker is closed.

Charge the batteries for at least 12 hours and then check capacity.

Please have the following information at hand before calling the After-Sales Service Department:

1. Model number, serial number

2. Date on which the problem occurred

3. LCD/LED display information, Buzzer alarm status

4. Mains power condition, load type and capacity, environment temperature, ventilation condition

5. The information (battery capacity, quantity) of external battery pack if the UPS is “S” model

6. Other information for complete description of the problem

8. Battery Maintenance

Battery replacement should be performed by qualified personnel.

 This series UPS only requires minimal maintenance. The

battery used for standard models are value regulated sealed lead-acid maintenance free battery. These models require minimal repairs. The only requirement is to charge the UPS regularly in order to maximize the expected life of the battery. When being connected to the mains power, whether the UPS is turned on or not, the UPS keeps charging the batteries and also offers the protective function of overcharging and over-discharging.

 The UPS should be charged once every 4 to 6 months if it has

not been used for a long time.

 In the regions of hot climates, the battery should be charged

and discharged every 2 months. The standard charging time should be at least 12 hours.

 Under normal conditions, the battery life lasts 3 to 5 years. In

case if the battery is found not in good condition, earlier replacement should be made.

 Replace batteries with the same number and same type of

batteries.

 Do not replace the battery individually. All the batteries should

be replaced at the same time following the instructions of the battery supplier.

 If the battery service life (3~5 years at 25°C ambient

temperature) has been exceeded, the batteries must be replaced.

9. Communication Port

9.1 USB Interface

The USB port is compliance with USB 1.1 protocol for its communication software.

9.2 Dry contact Interface

This series UPS has independent dry contact interface. Please contact your local distributor for details. The following is the pin assignment and description of DB-9 connector.

Pin # Description I/O Pin # Description I/O

1 UPS Fail Output 6 Bypass Output 2 Summary Alarm Output 7 Battery Low Output 3 GND Input 8 UPS ON Output 4 Remote Shutdown Input 9 Line Loss Output 5 Common Input

9.3 RS-232 Interface（（（（optional））））

The RS-232 port is available for UPS monitoring, control, and firmware updates. The cable pins for the RS-232 communication port are identified in the following illustration.

irection from

RS-232 communication port pin assignments

Pin Signal name Function

1 Unused Not applicable 2 Tx Transmit to external device Out 3 Rx Receive from external device In 4 Unused Not applicable 5 GND Signal common Not applicable 6 Unused Not applicable 7 Unused Not applicable 8 Unused Not applicable 9 Unused Not applicable

the UPS

9.4 Intelligent slot

This series is equipped with an intelligent slot for other optional card to achieve remote management of the UPS through internet / intranet. Please contact your local distributor for further information.

10. Software Installation

WinPower is UPS monitoring software, featuring user-friendly interface to monitor and control your UPS. This unique software provides complete power protection for computer system while power failure. With the software users can monitor any UPS status on the same LAN. Furthermore, a UPS can provide security protection for more than one computer on the same LAN at the same time, such as shutting down system in security, saving application data and shutting down the UPS when power fails.

Software Installation on your PC:

Connected by USB to a PC or notebook, the Software enables communication between the UPS and the computer. The UPS software monitors the status of the UPS, shuts down the system before the UPS is exhausted and can remotely observe the UPS via the Network (enabling users to manage their system more effectively). Upon AC failure or UPS battery low, UPS takes all necessary actions without intervention from the system administrator. In addition to automatic file saving and system shut-down functions, it can also send warning messages via pager, e-mail etc.

• Use the bundled CD and follow the on-screen instructions to install the software WinPower.

• Enter the following serial No. to install software: 511C1-01220-0100-478DF2A

• After the software is successfully installed, the communication with UPS has been established and an green icon will appear in the system tray.

• Double-click the icon to use the monitor software (as above).

• You can schedule UPS shutdown/start-up and monitor UPS status through

PC.

• Detail instructions please refer to the e-manual in the software.

Check www.powerwalker.com/winpower.html from time to time to get the latest

version of monitoring software.

PowerWalker VFI 6000T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
