PowerWalker AVR 3000 SIV operation manual
Automatic Voltage Regulator
PowerWalker AVR 1500/SIV
PowerWalker AVR 2000/SIV
PowerWalker AVR 3000/SIV
EN
Quick Start Guide
EN, DE, PL
EN
1. Introduction
This AVR/SIV series is designed to automatically maintain output voltage within allowed limit to
protect sensitive electronics from brownouts and overvoltage. Equipped with comprehensive
information display, it’s easy to monitor the power status.
PowerWalker AVR 1500/2000/3000 SIV Digital type series adopt switching mode charging which
creates a variety of benefits:
Microprocessor control guarantees high reliability
Selectable input voltage range
Time delay function eliminates transients that can affect connected equipment
Startup countdown time display
Over-voltage, under-voltage, over-heat and over current protection
Provides surge and spike suppression
2. Package Contents
You should have received the following items inside of package:
AVR Unit Quick Start Guide
1
Outpu so s fo
Outpu so s fo
F n h /S hu o F n h /S hu o
C inpu C inpu
Outpu so s fo F n h /S hu o
u al ou pu nal (bla
3. Product Overview

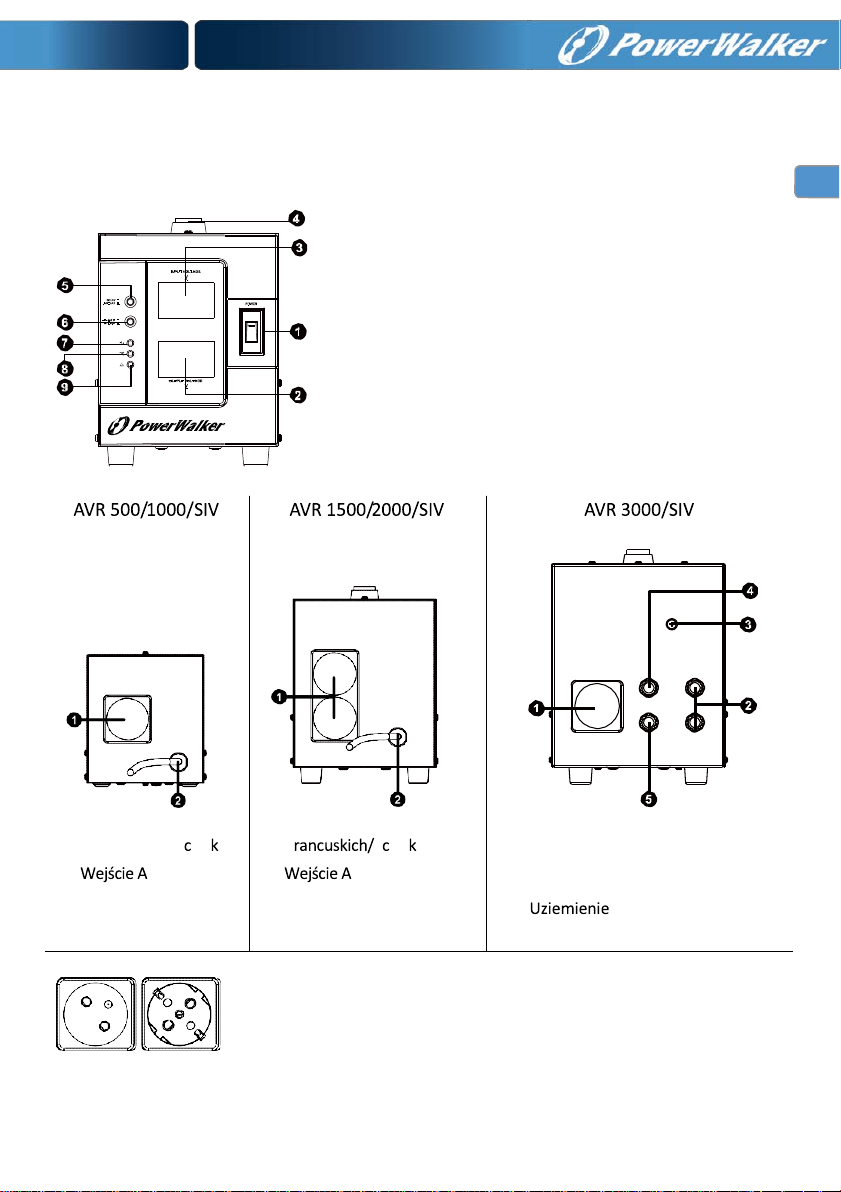

Front Panel:
Back Panel:
Power switch
Output voltage display/Startup countdown display
Input voltage display
Handle
Startup delay time switch
Input voltage range selector
Power LED (Green)
AVR LED (Yellow)
Over-voltage / under-voltage indicator (Red)
EN
French Schuko
C inpu
oundin
Lin outpu nal (b o n)
2
i s ap i ( f o sp ). aus h b o faul (blo ).
4. Installation
I: Inspection
Remove the AVR from the shipping package and inspect the unit. Be sure that nothing inside the
package is damaged.
II: Placement
Please install the AVR in a protected environment.

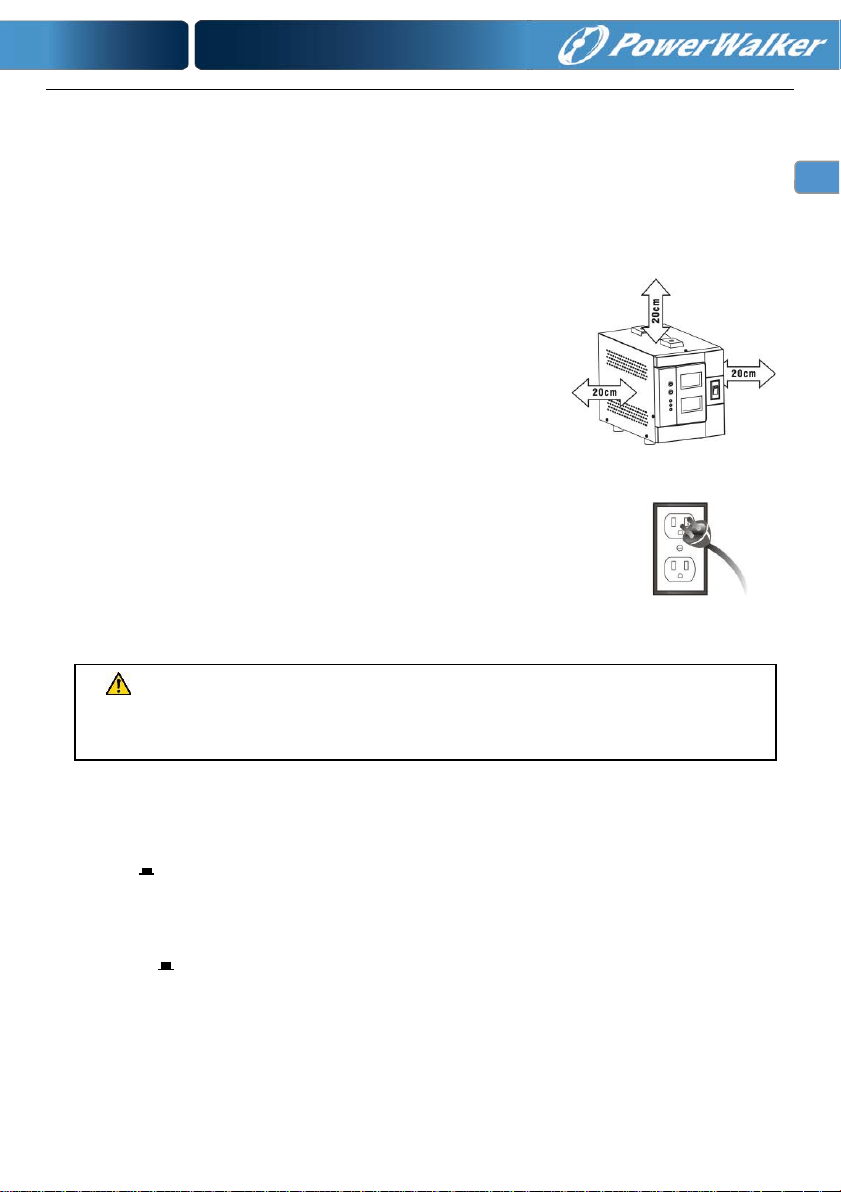

Do NOT block the top or side air vents on the unit. Please
reserve 20cm space to avoid interference.
Do NOT operate the AVR where the temperature and humidity
is outside the specific limits. (Please check the specs for the
limitations.)
III: Connect to Utility and Charging
Plug in the AC input cord to the wall outlet.
IV: Connect Your Equipment
Plug equipment into the AVR rear-panel outlets. Then switch the unit on by press the front panel
power switch to “RESET” position.
EN
Th o al po onsump ion of all quip n plu d in o th V mus no x d
5. Operation
I: Setting Startup Delay Time Switch
Delay
motor from consecutive starts. It’s perfect to use with devices such as refrigerators, freezers,
air conditioners or dehumidifiers.
Undelay
equipment such as: personal computers, monitors, inkjet printers, scanners or faxes. It’s also
designed for use with home appliances such as televisions, stereos, CD/DVD players, VCRs,
modems, and telephone equipment.
: Setting delay time as 3 minutes. It’s designed to avoid damage devices with AC
: Setting delay time as 10 seconds. It’s designed for use with voltage sensitive
3
Model
PowerWalker AVR
1500/SIV
PowerWalker AVR
2000/SIV
PowerWalker AVR
3000/SIV
Capacity
1500VA
2000VA
3000VA
Input
Voltage
230VAC
Voltage Range
110-280VAC or 150-270 VAC
Frequency Range
50 Hz or 60 Hz
Output
Output Voltage
230VAC
Voltage Regulation
-10% ~ +10%
Efficiency
Normal Mode
95%
AVR Mode
92%
Physical
Dimension (DxWxH)
233.6 x 134 x 181
297.1x150x199
Net Weight (kgs)
5.4
6.55
8.56
Environment
Temperature
0-40°C
Humidity
0-90% relative humidity (Non-condensing)
II: Setting Input Voltage Range
110-280 V : Setting acceptable input voltage range within 110-280V.
150-270 V : Setting acceptable input voltage range within 150-270V.
6. Specifications
EN
4
