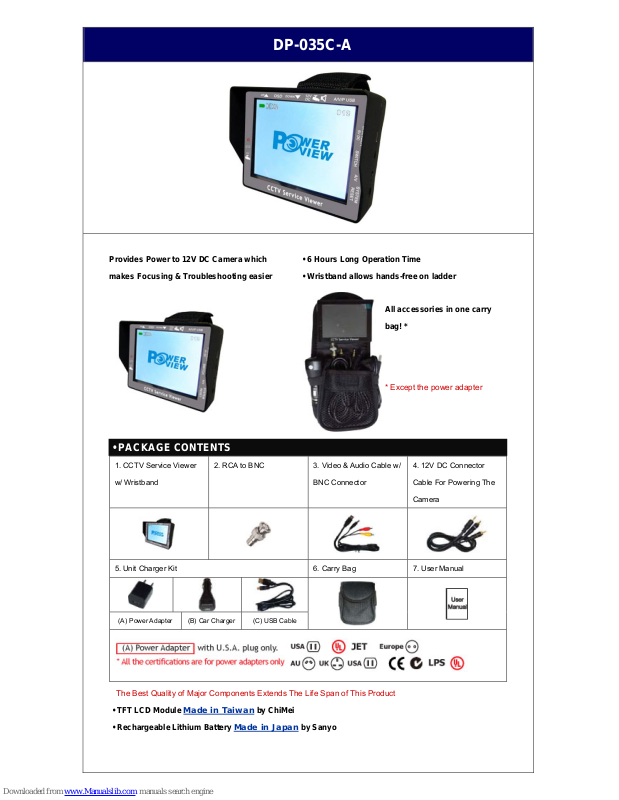

DP-035C-A
Provides Power to 12V DC Camera which
makes Focusing & Troubleshooting easier
• 6 Hours Long Operation Time
• Wristband allows hands-free on ladder
All accessories in one carry
bag! *
* Except the power adapter
• PACKAGE CONTENTS
1. CCTV Service Viewer
w/ Wristband
2. RCA to BNC 3. Video & Audio Cable w/
BNC Connector
4. 12V DC Connector
Cable For Powering The
Camera
5. Unit Charger Kit 6. Carry Bag 7. User Manual
(A) Power Adapter (B) Car Charger (C) USB Cable
The Best Quality of Major Components Extends The Life Span of This Product
• TFT LCD Module Made in Taiwan by ChiMei
• Rechargeable Lithium Battery Made in Japan by Sanyo
• PARTS & FUNCTIONS
Features:
• 3.5 inch TFT display Wide screen
• PAL / NTSC standard auto detection
• Display format 320 RGB x 240
• Provide power to 12V DC camera
• 6 Hours Long Operation Time without using Power output to Camera
• Audio and video input
• USB charging interface
• Battery save sleep mode - 3 minutes
• Lithium Battery: 3.7V DC, 2200mA
Specifications:
MODEL DP-035C-A
Display TFT 3.5 inch
Shell Materials Engineering ABS plastic
Battery 18650 lithium battery 3.7V DC, 2200mA
Power Consumption ≤ 0.8 (when 12V Power to Camera output not on)
Charger 5V DC / 1A
Power to Camera Output 12V DC / 250mA
TV System PAL / NTSC
Display Format 320 RGB x 240
Fully Charged without providing power to camera: 11 hours
Operation Time
with providing power to 110mA camera: 3 hours
Video Input 1.0 Vpp
Audio Input 0.7 Vpp
Automatic Sleep Mode 3 minutes
Operating Temperature 5ºC ~ 50ºC / 41ºF ~ 122ºF
92 x 73x 27 mm (shade cover part is 40 mm)
Dimension
3.62 x 2.87 x 1.06 inches (shade cover part is 1.57 inches)
Weight 120 g / 4.2 oz
Machine Gross Weight 500 g / 1.1 lbs
