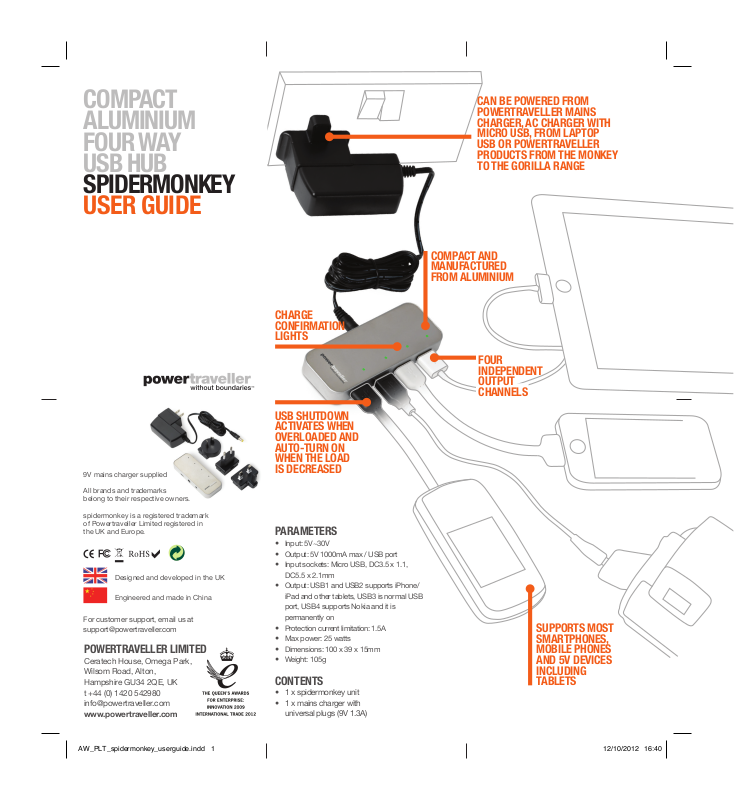

Page 1
comPact
aluminium
four way
usb hub
sPidermonkey
user Guide
9V mains charger supplied
All brands and trademarks
belong to their respective owners.
spidermonkey is a registered trademark
of Powertraveller Limited registered in
the UK and Europe.
Designed and developed in the UK
Engineered and made in China
For customer support, email us at
[email protected]
Powertraveller limited
Ceratech House, Omega Park,
Wilsom Road, Alton,
Hampshire GU34 2QE, UK
t +44 (0) 1420 542980
[email protected]
www.powertraveller.com
charGe
confirmation
liGhts
usb shutdown
activates when
overloaded and
auto-turn on
when the load
is decreased
Parameters
• Input: 5V~30V
• Output: 5V 1000mA max / USB port
• Input sockets: Micro USB, DC3.5 x 1.1,
DC5.5 x 2.1mm
• Output: USB1 and USB2 supports iPhone/
iPad and other tablets, USB3 is normal USB
port, USB4 supports Nokia and it is
permanently on
• Protection current limitation: 1.5A
• Max power: 25 watts
• Dimensions: 100 x 39 x 15mm
• Weight: 105g
contents
• 1xspidermonkeyunit
• 1xmainschargerwith
universal plugs (9V 1.3A)
can be Powered from
Powertraveller mains
charGer, ac charGer with
micro usb, from laPtoP
usb or Powertraveller
Products from the monkey
to the Gorilla ranGe
comPact and
manufactured
from aluminium
four
indePendent
outPut
channels
suPPorts most
smartPhones,
mobile Phones
and 5v devices
includinG
tablets
AW_PLT_spidermonkey_userguide.indd 1 12/10/2012 16:40
Page 2
Power in
micro usb
dc 5 – 30v
dc 5v
Powered by computer USB
charGe confirmation liGhts
The power output is determined by the
input current. If the input current is 5V (like
some mobile phone chargers using a micro
USB) you may not be able to charge four
devices simultaneously. If this is the case,
the green lights (see below) will indicate
the number of devices that you can charge
at one time. If the input current is 12V
and above, all devices connected can be
charged.
Powered by the minigorilla
Powered by the powergorilla
Power out
all Ports are charGinG (9v-30v) Ports 1 and 4 are charGinG
usb1 and usb2
suPPorts iPhone/
iPad and tablets
usb3 is
normal
usb Port
usb4
suPPorts
nokia and it is
Permanently
AW_PLT_spidermonkey_userguide.indd 2 12/10/2012 16:40
on
Ports 1, 2 and 4 are charGinG Port 4 is charGinG only
