POWERTECH PLUS MP-3680 User Manual

3A Qualcomm® Quick Charge 3.0™ USB Car Charger

User Manual

MP-3680

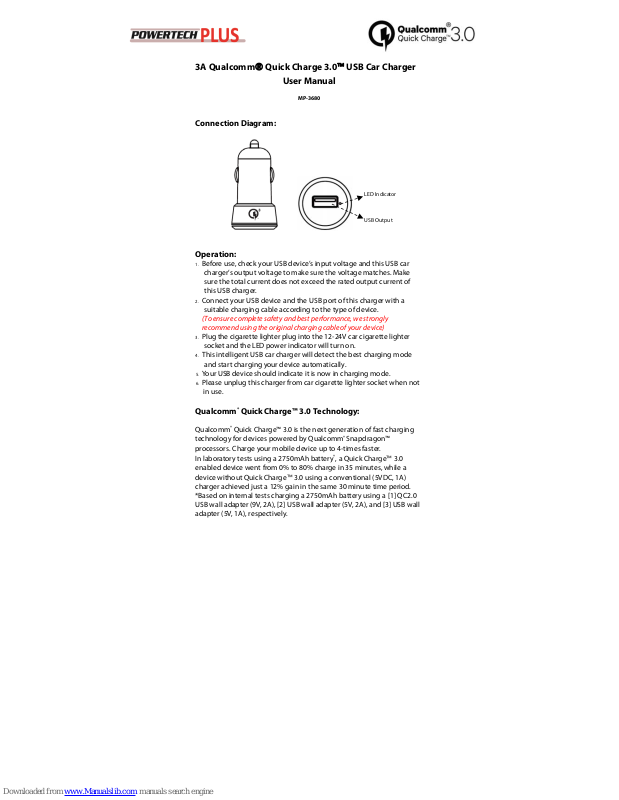

Connection Diagram:

Operation:

1. Before use, check your USB device’s input voltage and this USB car

charger’s output voltage to make sure the voltage matches. Make
sure the total current does not exceed the rated output current of
this USB charger.

2. Connect your USB device and the USB port of this charger with a

suitable charging cable according to the type of device.

(To ensure complete safety and best performance, we strongly
recommend using the original charging cable of your device)

3. Plug the cigarette lighter plug into the 12-24V car cigarette lighter

socket and the LED power indicator will turn on.

4. This intelligent USB car charger will detect the best charging mode

and start charging your device automatically.

5. Your USB device should indicate it is now in charging mode.

6. Please unplug this charger from car cigarette lighter socket when not

in use.

Qualcomm® Quick Charge™ 3.0 Technology:

Qualcomm

®

Quick Charge™ 3.0 is the next generation of fast charging

technology for devices powered by Qualcomm

®

Snapdragon™

processors. Charge your mobile device up to 4-times faster.
In laboratory tests using a 2750mAh battery*, a Quick Charge™ 3.0

enabled device went from 0% to 80% charge in 35 minutes, while a
device without Quick Charge™ 3.0 using a conventional (5VDC, 1A)
charger achieved just a 12% gain in the same 30 minute time period.
*Based on internal tests charging a 2750mAh battery using a [1] QC2.0
USB wall adapter (9V, 2A), [2] USB wall adapter (5V, 2A), and [3] USB wall
adapter (5V, 1A), respectively.

USB Output

LED Indicator

Please Note: A device requires a Qualcomm Snapdragon™
processor inside in order to charge using this fast charging
technology otherwise it will only charge up to 2.4A on 5VDC
* Qualcomm does not support Apple® devices. The USB charger has
built-in auto detection IC which enhances the fast charging for
Apple devices as the original adaptor up to 2.4A on 5VDC.

Qualcomm® Quick Charge™ 3.0 Compatible Devices:

Please see the link below to determine if your device is compatible
with Quick Charge™ 3.0 technology:

www.qualcomm.com/products/snapdragon/quick-charge

Safety Instructions:

1. Do not short circuit the output terminals.

2. Ensure correct voltage is used as continuous excessive voltage could

damage your equipment.

3. Do not try to use this power supply with appliance requiring more

than 3000mA.

4. Do not attempt to open this unit.

5. Remove from car cigarette lighter socket when not in use.

6. Always turn off your digital device before you connect/disconnect

from the USB charger.

7. Please do start the car engine first then plug in the USB charger.

Specifications:

Voltage Input: 12-24VDC (Supports 10-30VDC)
Voltage Output: 3.6-12VDC
Current Output: 3.6-6.5V @ 3A

6.5-9V @ 2A
9-12V @ 1.5A
Protection: Short Circuit, Overload
Dimensions: 51(L) x 28(Dia)mm

Distributed by:

TechBrands by Electus Distribution Pty. Ltd.

320 Victoria Rd, Rydalmere NSW 2116 Australia

Ph: 1300 738 555

Int’l: [phone]

Fax: [phone]

www.techbrands.com

Made in China
