9-Stage 12/24V Battery Charger
MB-3613
User Manual
1
Page 2
The charger is suitable for 12V/24V regular ,lead-acid and Lithium Iron
Phosphate batteries with 5Ah~120Ah capacity.
Page 3
Charging modes include: 12V/2A (standard), 12V/7.2A (standard),
12V/7.2A(AGM), 12V/7.2A(Lithium),12V/7.2A(recondition), 24V/2A
(standard), 24V/3.6A(standard) , 24V/3.6A (AGM) and 24V/3.6A
(Lithium).
Page 4
4
Page 5

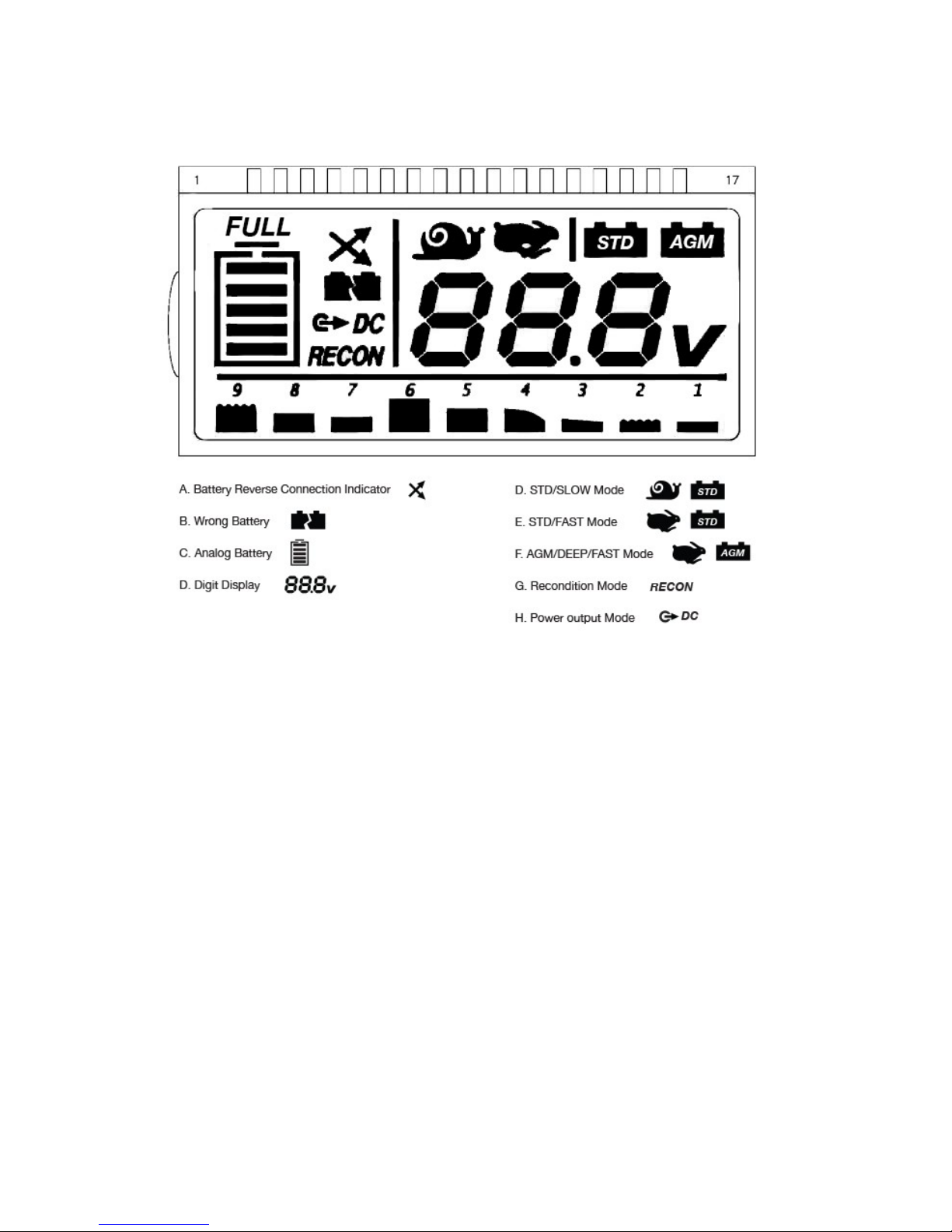

LCD Display Information:
Charging Features:
Bad Battery Detection (1)
▪
Measures the voltage of your battery prior to charging.
▪
If the reference voltage is ≥30V±0.5, it's considered a 'bad
battery'.
Devulcanisation (2)
▪
When the charging period reaches four hours in Pulse
Charging mode and the battery voltage variation exceeds the
voltage setting, the system enters the next mode.
▪
When the battery voltage variation is less than 2V (12V
battery) or 4V (24V battery), devulcanisation is no longer
performed and the system enters the next mode.
5
Page 6
Pre Charge (3)
▪
Identifies the battery voltage before charging.
▪
If the battery voltage is lower than the reference voltage, the
battery will be pre-charged in order to avoid damage to the
battery.
▪
12V: 5-8V 2 minutes, 8-10V 9 hours.
▪
24V: 5-16V 2 minutes, 16-20V 9 hours.
Constant Current (4)
▪
The main charging phase.
▪
The battery will be charged with the maximum current as
quickly as possible.
▪
70%~85% of the battery is charged in this stage.
Constant Voltage (5)
▪
The boosting phase.
▪
The charger constantly adjusts the charge so as the battery
voltage gets higher, the charging current becomes smaller.
▪
Constant voltage charging ends when the charging current
drops to =< 0.5C, at which time the battery should be almost
fully charged.
Recondition (6)
▪
When the battery has reached maximum voltage, the charge
changes to recondition mode since some batteries can be
charged to 15.7V.
▪
This charge lasts 2±0.2 hours at most and is only activated by
selecting 12V/RECON.
Voltage Analysis (7)
▪
The internal circuit automatically detects the variation of
battery voltage.
▪
An alarm will sound when the voltage exceeds 2V (12V) or 4V
(24V).
6
Page 7
Float Charge (8)
▪
The maintenance charge.
▪
Trickles the charge until the battery is nearly at 100%
capacity.
▪
Charging with a small current can eliminate the vulcanization
of the negative electrode plate.
Pulse Charge (9)
▪
Once the battery voltage has been adjusted in the previous
mode, the battery voltage returns to 13V/26V when the pulse
charging mode is executed.

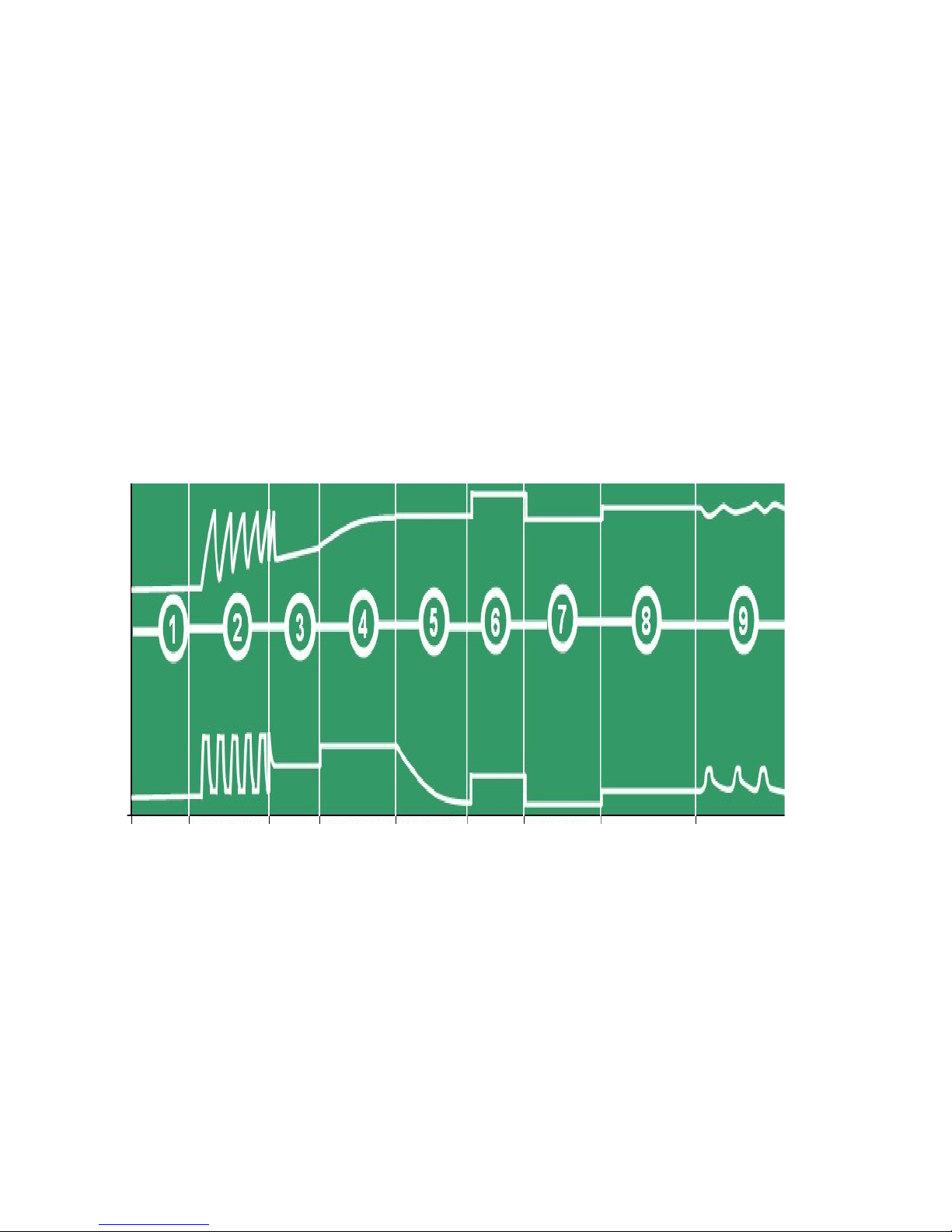

Charging Profiles:
7

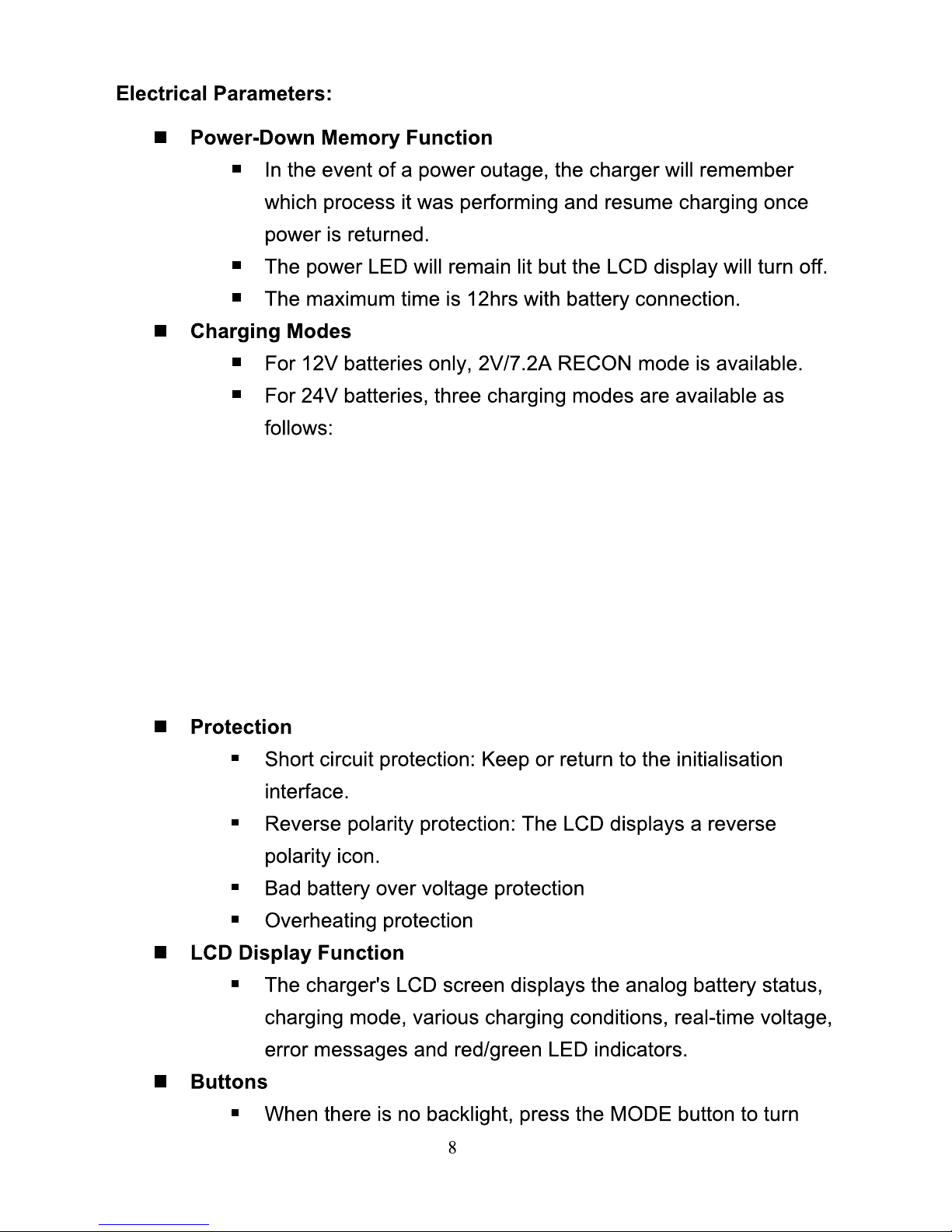

Page 8
12V/2A SLOW standard charging mode
12V/7.2A FAST standard charging mode
12V/7.2A FAST AGM charging mode
12V/7.2A FAST Lithium charging mode
24V/2A SLOW standard charging mode
24V/3.6A FAST standard charging mode
24V/3.6A FAST AGM charging mode
24V/3.6A FAST Lithium charging mode
Power output mode 5.1A 13.8V
Page 9

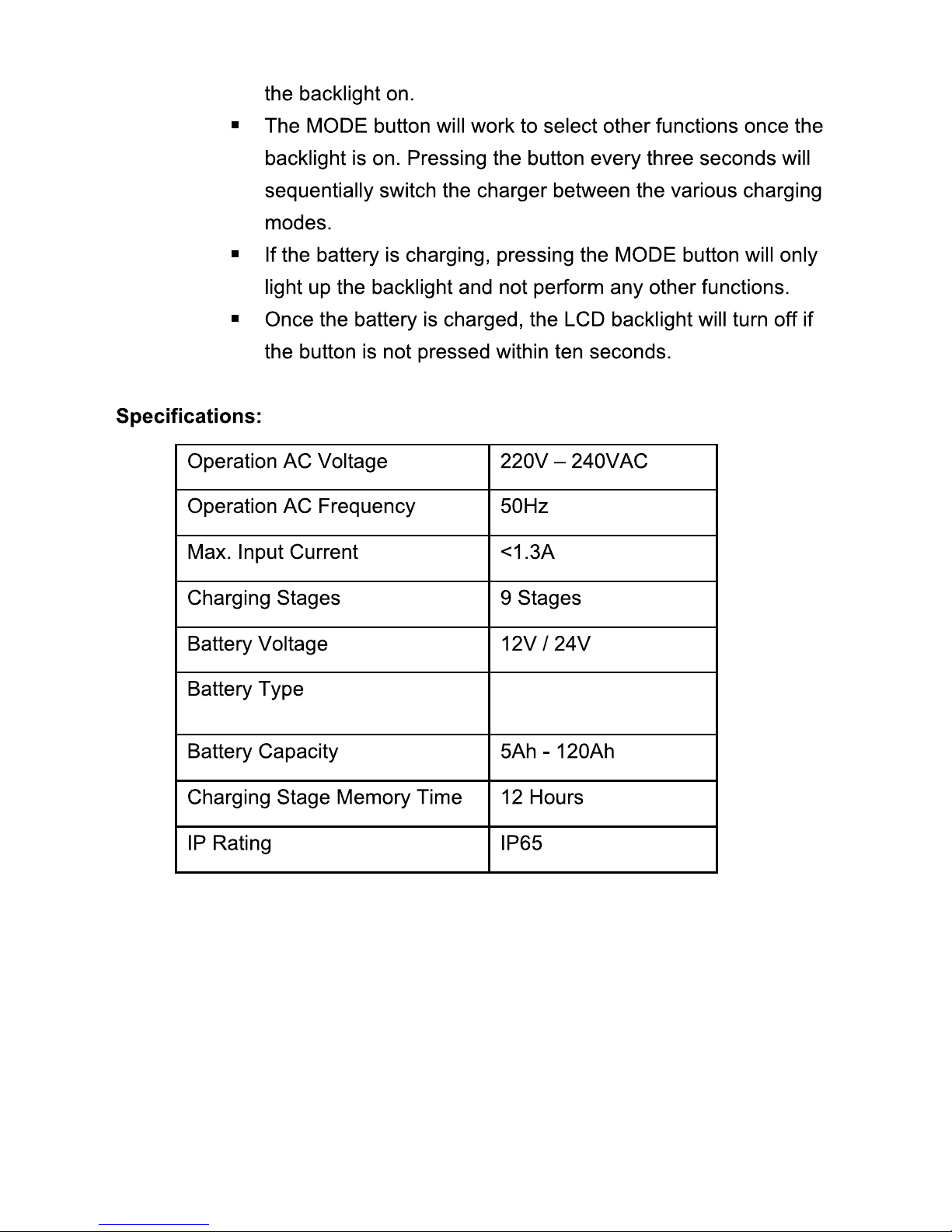

Lead-Acid and Lithium
Iron Phosphate
9
Page 10
Problem
Battery failed
Reverse polarity
protection
Failed in
pre- charge stage
Failed in Analysis
stage
Failed in
Desulphation stage
Battery failed or
damaged
Er2
Er3
Er4
Er5
The buzzer flashes
five times and the
red light flashes
Er1 + Red LED
light on
Error Codes Solutions
Check the battery voltage is for 12V
system
Battery has problem. Replace with a new
battery and try again.
Battery is too old or damaged. Replace
with new battery and try again.
Check the battery voltage is for 12V system
Remove the reverse, unplug immediately
from mains, connect the red clamp to
positive (+) battery post, and black
clamp to negative (-) post.
Check battery specification,12V battery
use 12V mode; 24V battery use 24V mode.
If still doesn't work,replace with new
battery and try again.
9
Error Codes &Solutions:
