Power Tech-On PS1004, PS1001 User Manual
PURE SINE WAVE
POWER INVERTER
MODEL: PS1001
PS1002
PS1003
PS1004
PS1005
IMPORTANT SAFETY INSTRUCTIONS
1. This section contains important safety and operating
instructions. Read and keep this user manual for future
reference.
2. Do not expose the Pure sine inverter to rain, snow, or
spray water. To reduce the risk of fire hazard, do not
cover or obstruct the ventilation openings. Do not install
the Pure sine inverter in a zero-clearance
compartment. Overheating may result.
3. To avoid a risk of fire and electric shock, make sure the
existing wiring is in good condition and is not
undersized. Do not operate the PURE SINE with
damaged or substandard wiring.
4. Do not disassemble the Pure sine inverter. It contains no
user-serviceable parts. See the WARRANTY section for
instructions or obtaining service. Attempting to service
the Pure sine inverter yourself may result in a risk
of electrical shock or fire. Internal capacitors remain
charged after all power is disconnected.
5. To reduce the risk of electrical shock, disconnect
both AC and DC power from the Pure sine before
attempting any maintenance, cleaning, or working on
any circuits connected to the Pure sine inverter.
Turning off controls alone will not reduce this risk.
2
WARNING : EXPLOSION HAZARD
1. Working in the vicinity of lead-acid batteries is
dangerous. Batteries generate explosive gases during
normal operation. Therefore, you must read this guide
and follow the instructions before installing or using your
inverter.
2. This equipment contains components which tend to
produce arcs or sparks. To prevent fire or explosion, do
not install the Pure sine inverter in compartments
containing batteries, flammable materials, or in locations
that require ignition protected equipment. This includes
any space containing gasoline powered machinery,
fuel tanks, as well as joints, fittings, or other
connections between components of the fuel system.
3
PRECAUTIONS WHEN WORKING WITH BATTERIES
1. Make sure the area around the battery is well ventilated.
2. Never smoke or allow a spark or flame near the engine
or batteries.
3. Use caution to reduce the risk of dropping a metal tool
on the battery. It could spark or short circuit the battery
or other electrical parts and could cause an explosion.
4. Remove all metal items, like rings, bracelets, and
watches when working with lead-acid batteries. Lead acid batteries produce a short circuit current high
enough to weld metal to skin, causing severe burn.
5. Have plenty of fresh water and soap nearby in case
battery acid contacts skin, clothing, or eyes.
6. Wear complete eye protection and clothing protection.
Avoid touching your eyes while working near the
batteries.
7. If battery acid contacts skin or clothing, wash
immediately with soap and water. If acid enters your eye,
immediately flood it with running cold water for at least
twenty minutes and get medical attention immediately.
8. If you need to remove a battery, always remove the
ground terminal from the battery first. Make sure all
accessories are off so you don’t cause a spark.
4
SPECIFICATIONS
Item PS1001
Continuous output
frequency
Surge power
Input voltage range
(12V)
Input under voltage
activation (12V)
Input under voltage
protection (12V)
Input under voltage
protection (12V)
Input voltage
Output voltage
Output frequency
Output waveform
Conversion efficiency
PS1002 PS1005 PS1003 PS1004
600W 1000W 1500W 2000W 3000W
1200W 2000W 3000W 4000W 6000W
10-16VDC
10.6VDC
10VDC
16VDC
12V
120V AC±10%
60Hz ±1Hz
Pure sine wave (THD≤ 3%)
90%
Overload protection
Thermal protection
Use of advanced
microprocessor control
USB Output
Display
Yes
149ºF ± 40ºF(65ºC±5ºC)
Yes
5VDC, 1A 5VDC, 2.1A
LED indicator
CONTINUED ON NEXT PAGE
5
SPECIFICATIONS (CONTINUED)
Item PS1001

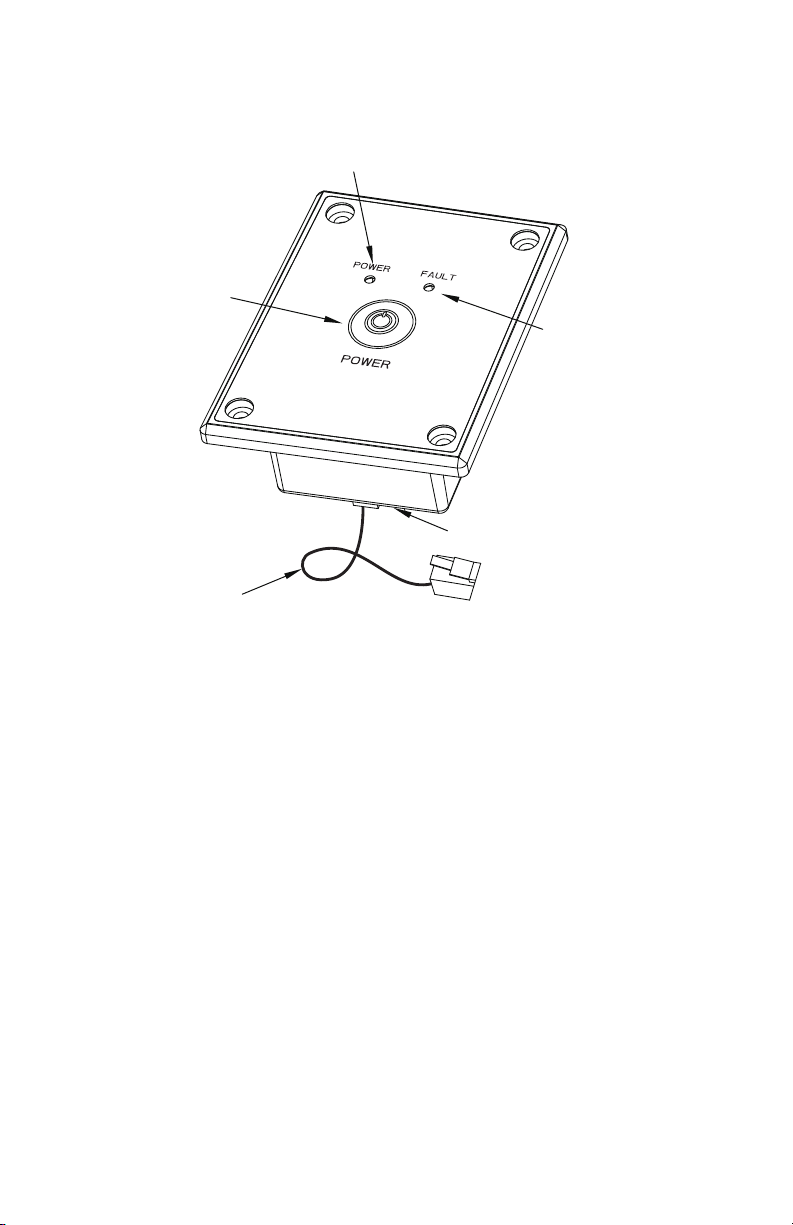

Length of the remote
controller wire
Intelligent cooling
Fuse (outer car fuse)
Dimension (LxWxH)
Battery cables
PS1002 PS1005 PS1003 PS1004
15 ft. (4.6m) only for model PS1002 & PS1003
& PS1004 & PS1005
the fan starts to work when the
load power is larger than 100W,
does not work when no load or
small load
40Ax2
8.4”x5.5”x3” 11.5”x5.5”x3” 15.8”x9.3”x4” 17.1”x9.3”x4” 22”x9.3”x4”
3.7LBs 5.3LBs 9.9LBs 11.4LBs 14.8LBsWeight
32°F ~ 104°F (0°C~40°C)Working temperature
-14°F ~ 113°F (-10°C~45°C)Storage temperature
The offered battery cables are only for small output, please
choose larger battery cable for larger output
40Ax4 40Ax6 40Ax8 40Ax12
The cooling fan on the product will
not run when start up the inverter, it
will start running only when the case
temperature reaches about 40°C.
6
PRODUCT INFO
This power inverter is an advanced tool of power conversion, and it can supply you with AC power converted from DC
power source. Not only can it be used in cars, vessels, and
camping vehicles, it can also be used in an emergency if the
power fails.
In order to use the inverter efficiently and safely, please
install and use it in a proper way. Please read the instructions
carefully before installing and using the appliance.
WARNING AND SAFETY
1. Read the manual before use and keep in a safe place
for future reference.
2. Don’t put the inverter under sunlight, near a heating
source, wet or humid environment.
3. The case housing of inverter will be hot when in use.
Keep the inverter away from materials that cannot
withstand high temperature, such as clothing, sleeping
bags, carpets, etc.
4. This power inverter is designed for use with negative
ground electrical system. Don’t use with positive ground
electrical systems (the majority of modern automobiles,
RVs, trucks, and boats are negative ground).
5. Do not disassemble the unit. Disassembling may cause
fire or electrical shock.
6. Keep the inverter out of reach of children.
7. The power inverter will output AC power as utility power.
Use extreme care with and around the output terminal.
DO NOT PUT ANYTHING INTO THE OUTPUT TERMINAL
EXCEPT FOR AN ELECTRICAL APPLIANCE PLUG.
CONTINUED ON NEXT PAGE
7
WARNING AND SAFETY (CONTINUED)
8. Disconnect the battery and inverter when it is not in use.
PS1001
Chassis

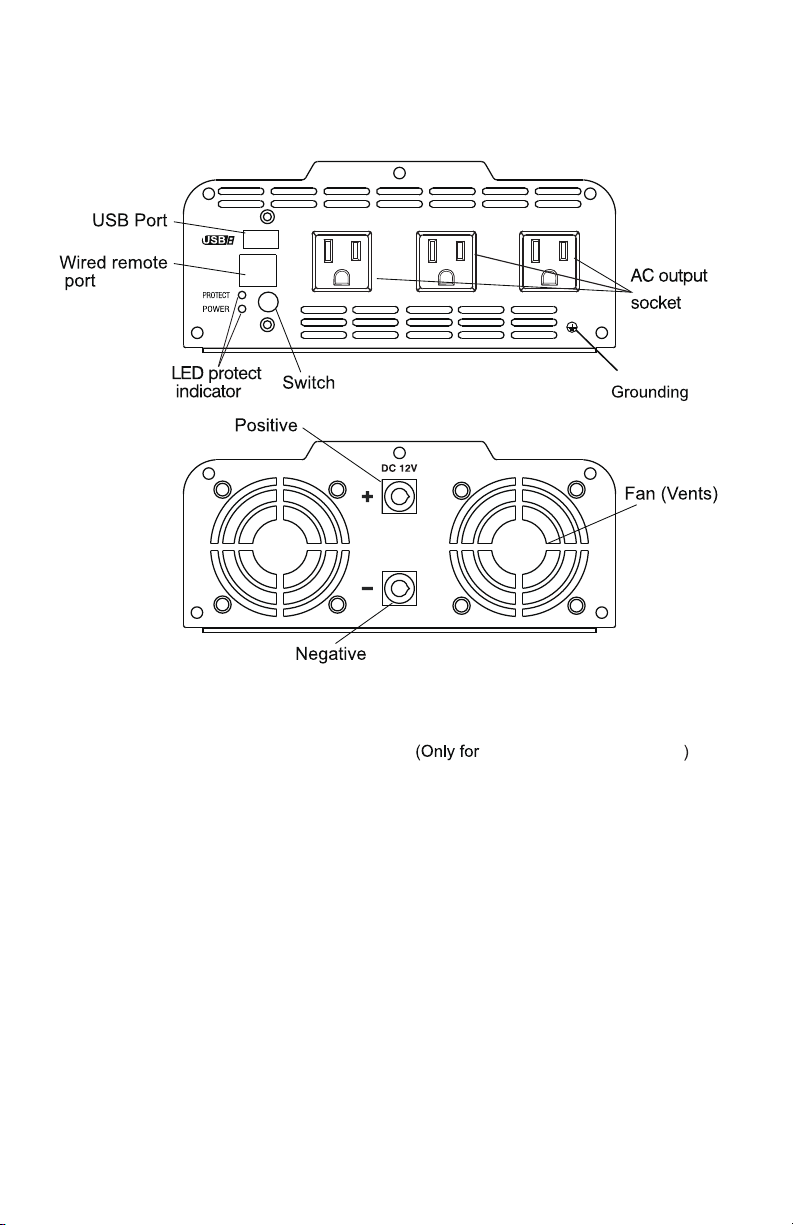

PARTS LIST
PS1001
8
PS1002
PARTS LIST
Chassis
PS1002
9
