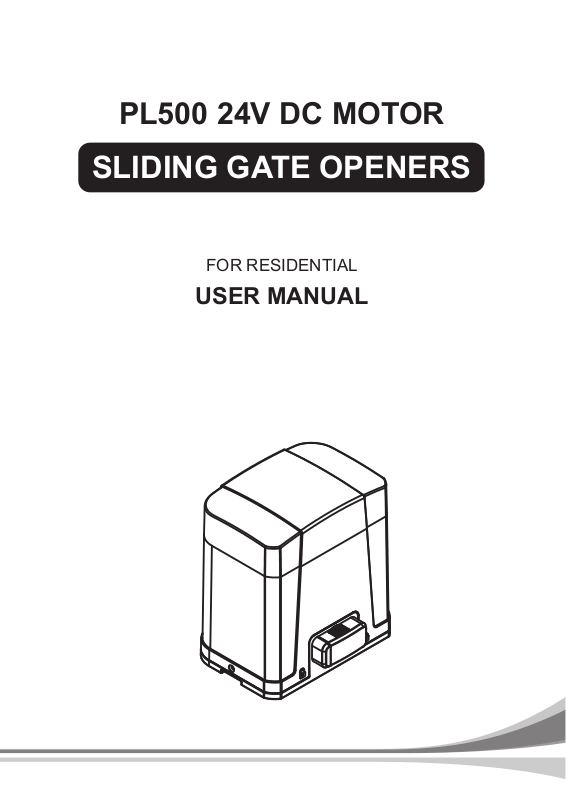

PowerTech PL500, PR-1 User Manual

PL500 24V DC MOTOR
SLIDING GATE OPENERS
FOR RESIDENTIAL
USER MANUAL
Declaration of Conformity
Applicant: Powertech Automation Inc. Manufacturer: Timotion Technology Co., Ltd. Address: Shiyong Minying Industrial Zone, Hengli Town, DongGuan City, GuangDong, China
1. Certificate of conformity of a product with the essential requirements art. 3.2 of the R&TTE Directive 1999/5/EC.
2. The above product has been tested with the listed standards and in compliance with the European Directive LVD 2006/95/EC.
3. The submitted sample of the above product has been tasted for CE marking according to the following European Directives: 2006/42/EC Machinery Directive.
Comply with the following Standards:
EN 301489-1 V1.8.1: 2008 EN 301489-3 V1.4.1: 2002 EN 300220-1 V2.1.1: 2006 EN 300220-2 V2.1.2: 2007
EN 60335-1: 2002+A11:2004+A1:2004+A12:2006+A2:2006+A13:2008 EN 60335-2-103: 2003 EN 62233: 2008
EN 12445: 2001 EN 12453: 2001
And also declare that the machinery may not be put into service until the machine, which will be integrated or become one of the components, and announced to comply with the provisions as the required.
Taiwan, Aug 23, 2013
David Lan
(Deputy Managing Director)
INDEX
1. Warnings
2. Installation
2.1 Standard Installation Demonstartion
2.2 Description of Device
2.3 Dimension of Device
2.4 Installation of Motor Gear and Gear Rack
2.5 Checking for Installation
2.6 Emergency Release
3. Setup and Function Setting
3.1 Wire Connection
3.2 Transmitter Memorization and Erasing Process
3.3 System Learning, Reset Process and LED Display
3.4 Programmable Function Settings
3.5 Testing and Checking
P. 2
P. 3
P. 3
P. 3
P. 4
P. 4
P. 5
P. 5
P. 6
P. 6
P. 7
P. 7
P. 8
P. 9
3.6 SW2/SW6 Setting
3.6.1 Recognition of LED
4. Technical Characteriestics
4.1 Technical Data Sheet of Series
4.2 PH-1 Photocell Data Sheet
4.3 PR-1 Transmitter Data Sheet
4.4 PF-1 Flashing Light Data Sheet
4.5 PRB-1 External Receiver Box Data Sheet
5. Additional Information
5.1 Wire Connection of PH-1 Photocell (Safety Beam)
5.2 Wire Connection and Setting Of PRB-1 External Reciever Box
P.10
P.10
P. 11
P. 11
P. 11
P. 11
P. 11
P. 11
P.12
P.12
P.13
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
1
1) Warnings
Please read this instruction manual carefully before the installation of gate-automated system.
This manual is exclusively for qualified installation personnel. Powertech Automation Inc. is not responsible for improper installation and failure to comply with local electrical and building regulations.
Keep all the components of PL500 system and this manual for further consultation.
In this manual, please pay extra attention to the contents marked by the symbol:
Be aware of the hazards that may exist in the procedures of installation and operation of the gate-automated system. Besides, the installation must be carried out in conformity with local standards and regulations.
Do not make any modifications to any components except that it is mentioned in this manual.
Do not try to manually open or close the gates before you release the gear motor.
If there is a failure that cannot be solved and is not mentioned in this manual, please contact qualified installation personnel.
Do not use the gate-automated system before all the procedures and instructions have been carried out and thoroughly read.
Test the gate-automated system weekly and have qualified installation personnel to check and maintain the system at least every 6-month.
Install warning signs (if necessary) on both sides of the gate to warn the people in the area of potential hazards.
If the system is correctly installed and used following all the standards and regulations, it will ensure a high degree of safety.
Make sure that the gates work properly before installing the gate-automated system and confirm the gates are appropriate for the application.
Do not let children operate or play with the gate-automated system.
Do not cross the path of the gate-automated system when operating.
Please keep all the control devices and any other pulse generator away from children to avoid the gate-automated system being activated accidentally.
2
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
2. Installation:
2.1 Standard Installation Demonstration
4
3
1. 24V DC sliding motor
2. Transmitter
3. Safety photo sensor
4. Flashing light
2.2 Description of Device
3
1
2
g
d
a. Operation gear b. Limit switch device c. 24Vdc motor d. Back-up batteries (Optional)
c
f
b
e
a
e. Release device f. Control panel g. Terminals of devices
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
3
2.3 Dimension of Device
1~2m
2.4 Installation of Motor Gear and Gear Rack
4
>100
50>25
25
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
2.5 Checking for Installation
DXSX
NO
OK
2.6 Emergency Release
In the case of power failure for emergency release of the motor, please follow the procedure as below:
Step1. Push the lid of release chamber and move rightward
Step2. Insert the key and turn counterclockwise to unlock the device.
Step3. Turn counter-clockwise of the bar to release the motor
To restore the automation, simply reverse the above procedure.
Step1. Step2. Step3.
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
5
3. Setup and Function Setting:
3.1. Wire Connection
If the LED display is in normal performing refer to “4.2.1”, you can control the gate by either transmitters or the button on the board: “UP”-clockwise moving, “SET”- stop and “DOWN”- Counterclockwise moving.
PF-1
6
9
PF-1
3 4
6 7 9
6 9
PPB-1
6 8 9
1 2 3 4 5 6 7 8 9 10 11 12 13 14
EXT+
EXT-
1234567891011121314
GND
Light
GND
+13.75
Ph1
Ph2
LED1 Photocells
LED2 Photocells
LED3 RF Learn
Ph+
Pb
PKS-1
Stop
GND
PPB-1, PKS-1:
Open
Close
10 11
SW1
23456
1
SW3
SW4
AC INPUT
6
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
SW5
ON
OFF
3.2 Transmitter Memorizing and Erasing Process
LED1 LED2 LED3
LED1
LED2
LED3
LED1
LED2
LED3
LED1
LED2
LED3
(1) Transmitter Memorizing: Press “RF Learn” button for 2 seconds, and the LED3 is on; then press the transmitter left button (A); the LED3 will blink twice and then be off. The transmitter learning is completed. (2) Erasing Memory: Press "RF Learn" button for 5~6 seconds as LED3 is on, then wait for LED3 off.
A
B
1
2
3
LED 3
1 3
2 Sec
2
LED 3 blink twice
LED 3 OFF
3.3 System Learning, Reset Process, and LED Display
! CAUTION: Before proceeding to system learning, the transmitter memorizing process has to be completed.
(1) To Complete the System Learning:
Step1: Press “SET”; then press “SET” + “DOWN” for 3 seconds, and the LED display shows “LEA” Step2: Press left button (A) on time, the LED display should show “ARN” Step3: The gate goes to Auto-learning, please wait for the learning process to be completed
Push
Press 3 Sec
1 2 3
A
B
Press 1~3 Sec
4 5
6
1 2
3
4 5 6
(2) To Reset Factory Setting: Press UP and DOWN for 3 seconds, and the LED display shows “CLR”
Push 3 seconds
2
1
LED Display Programmable Functions LED Display Programmable Functions
“N-L”: The PL500 system learning is not done. “LEA”: Enter learning mode and then wait for
“RUN”: The PL500 system is in normal operation To program, press SET button for 3 seconds, when the LED display change from RUN to F1, press UP or DOWN to change function settings (F1 to FA). Then press SET to enter the sub function within each group, press UP or Down to select sub functions and press SET for confirmation.
learning instructions.
“ARN”: The system learning is in progress. The Auto-learning process of gate moving: “Gate open to the end- stop close to the end- stop.”
“CLR”: Reset Factory Setting.
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
7
3.4 Programmable Function Settings
LED Display Definition Function Value Description
F1
F2
F3
F4
F5
Options of Gate
Opening direction
Automatic Closing
The reactions of the photocells/ safety edge/ loop detector when detecting obstacles
Motor Speed
Motor Over Current
Setting
F1-0
F1-1
F2-0
F2-1
F2-2
F2-3
F2-4
F2-5
F2-6
F2-7
F2-8
F3-1
F3-2
F3-3
F4-1 F4-2 F4-3 F4-4
F5-1
F5-2
F5-3
F5-4
F5-5
F5-6
F5-7
F5-8
F5-9
Clockwise Opening
Counterclockwise Opening
No automatic closing
5 seconds
15 seconds
30 seconds
45 seconds
60 seconds
80 seconds
120 seconds
180 seconds
Please refer to page 9,
F3 settings
Speed 1
50% 70% 85%
100%
Light
Light
Light
Light
Light
Light
Light
Light
Light
Speed 2
50% 60% 70% 80%
Heavy
Heavy
Heavy
Heavy
Heavy
Heavy
Heavy
Heavy
Heavy
1. The function can adjust the dir ection of gate opening.
2. The factory setting is "F1-1".
1. This function can cause the gate to close automatically after the paused time.
2. The factory setting is "F2-3”: 30secs as the pause time.
1. The factory setting is “F3-1”.
1. The function can adjust the running speed of motor.
2. Speed 1: Motor full speed; Speed 2: Speed during learning mode (of full speed)
3. The factory setting is “F4-4.”
1. The function can adjust the
running force of motor to be
compatible with the gate weight.
2. The factory setting is "F5-4".
3. The motor force value:
F5-1: 2A F5-6: 7A
F5-2: 3A F5-7: 8A
F5-3: 4A F5-8: 10A
F5-4: 5A F5-9: 13A
F5-5: 6A
4. As over current setting
F6-0
F6-1
F6
F7
F8
F9
FA
*Note: System learning/ starting midway speed is roughly 20% slower than normal operation.
Pedestrian Mode
Pre-flashing
Deceleration point
programming of total
travel distance
Deceleration Speed (of learning speed)
Auto - Reverse when object impacted
F6-2
F6-3
F6-4
F6-5
F7-0
F7-1
F8-1
F8-2
F8-3
F8-4
F9-1
F9-2
F9-3
F9-4
FA-0
FA-1
FA-2
FA-3
3 seconds
6 seconds
9 seconds
12 seconds
15 seconds
18 seconds
The flashing light blinks when
the gate starts to move.
The flashing light blinks 3
seconds before the gate starts
to move.
75%
80%
85%
90%
100%
80%
50%
30%
No Auto - reverse
1 second
3 seconds
Reverse to the end
1. The function can adjust the time
of opening partially.
2. The factory setting is "F6-1".
3. Press button B on the remote to
operate the pedestrian mode.
1. The factory setting is "F7-0".
1. The factory setting is “F8-1”.
1. The factory setting is “F9-2”.
1. The factory setting is “FA-3”.
8
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
● F3 function settings:
Logic F3-1 The reactions of the photocells when detecting obstacles
Gate Status
Closed
Open
Stop during moving
Closing
Opening
Logic F3-2 The reactions of the safety edge/ photocell when detecting obstacles
Gate Status
Closed
Open
Stop during moving
Closing
Opening
Logic F3-3 The reactions of the loop detector/ photocell when detecting obstacles
Gate Status
Closed
Open
Stop during moving
Closing
Opening
Photocell 2
Stop opening
No effect
Stop opening
No effect
Closes the leaf
Safety Edge
Stop opening
Stop opening/ closing
Reverses to open for 2 seconds
Reverses to close for 2 seconds
Loop Detector
Photocell 1
Open
Open
Open
Open
No effect
Reloads automatic closing time
Reloads automatic closing time
Open
No effect
Reloads automatic closing time
Reloads automatic closing time
Locks and, on release, reverses to open
Locks and, on release, continues opening
Reloads automatic closing time
Reloads automatic closing time
Photocell 1/ Photocell 2
Stop opening
Photocell 1
No effect
Open
No effect
Photocell 1
No effect
Open
No effect
The position of safety devices:
Photocell 1
or
Photocell 1 / Photocell 2
Safety Edge
Photocell
Loop Detector
Photocell 1
Photocell 2
3.5 Testing And Checking
Make sure the notices included in 1.1 General safety precaution “WARNINGS” has been carefully observed.
● Release the gearmotor with the proper release key.
● Make sure the gate can be moved manually during opening and closing phases with a force of max.
390N (40 kg approx.)
● Lock the gearmotor.
● Using the Key selector switch, push button device or the radio transmitter, test the opening, closing and
stopping of the gate and make sure that the gate is in the intended direction.
● Check the devices one by one (photocells, flashing light, key selector, etc.) and confirm the control unit
recognizes each device.
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
9
3.6 SW2/SW6 Setting:
PH2
Ph2
StopDC
ON
SW6
1 2 3 4 5 6
OFF
SW2
ON
OFF
Dip Switch
1
2
3
Setting
ON
OFF
ON
OFF
ON
OFF
SW6 Dip Switch
Device
Ph1
Ph2
Stop
Description
Ph1 NOT connected
PH2 connected
Ph2 NOT connected
Ph2 connected
Stop NOT connected
Stop connected
Transmitter SW2 Dip Switch on SW2 Dip Switch off
2 channel transmitter
4 channel transmitter
(Optional)
Button A(left): Open-Stop-Close-Stop Button B(right): Pedestrian Mode Button A(left): Open-Stop-Close-Stop Button B(right): Pedestrian Mode
Button A(left): Open-Stop-Close-Stop Button B(right): External Device Button A(left): Open-Stop-Close-Stop Button B(right): External Device
SW6 Dip Switch 4 on, Dip Switch 5 off SW6 Dip Switch 4 on, Dip Switch 5 off
Button C(up): External Device
SW6 Dip Switch 4 off, Dip Switch 5 on SW6 Dip Switch 4 , Dip Switch 5 on
Button C(up): No Function
3.6.1 Recognition of LED
LED Indication Descriptions
LED1 Photocells
LED2 Photocells
LED3 RF Learning
Button D(down): No Function
Button D(down): External Device
Button C(up): Pedestrian Mode
Button C(up): No Function
Button D(down): No Function
Button D(down): Pedestrian Mode
LED1 will be on when the first pair of the photocells are activated.
LED2 will be on when the second pair of the photocells are activated.
LED3 will be on when RF-learn button is pressed.
10
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
4. Technical Characteristics:
4.1 Techanical Data Sheet Of Series
Motor
Gear type Peak thrust Nominal thrust Engine RPM Absorbed Power Power supply Nominal input power Maximum gate weight Maximum gate length Maximum operating current Operating Temperature Dimension LxWxH mm. Weight Speed
4.2 PH-2 Photocell Data Sheet
Detection type Operating distance Response time Input voltage Operating Temperature Protection class Dimension
Through beam 25 meters 100ms AC/DC 12~24V
-20~+60 IP54 96mm * 45mm * 43mm
PL500
Worm Gear
5500N 5000N
3800 RPM
60W
24 Vdc
3A
500kg
6 Meters
5.5A for Maximum 10 secs
-20oC~+50oC
250 X 170 X 265
8 kg
21.9 cm / sec
4.3 PR-1 Transmitter Data Sheet
Application Frequency Coding Buttons Power Supply Operating Temperature Dimension
Radio transmitter
433.92Mhz Rolling code 2, for single-gate or dual-gate operation 3V with one CR2032 button type lithium battery
-20~+50
71.5mm * 33mm * 14mm
4.4 PF-1 Flashing Light Data Sheet
Application Installation Operating Temperature Dimension
For outdoor use Wall mounted vertically
-20~+50 85mm * 60.5mm * 40.5mm
4.5 PRB-1 External Receiver Box Data Sheet
Power Supply Radio Frequency Max. remote memorized Dimensions Output terminals
12V ~ 24V ac/dc
433.92Mhz 200pcs 106mm* 53mm* 20mm (L*W*H) Output 1 & Output 2
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
11
5. Additional Information:
5.1. PHOTOCELL INSTALLATION GUIDE
The safety photocells are security devices for control automatic gates. Consist of one transmitter and one receiver based in waterproof covers; it is triggered while breaking the path of the beams.
SPECIFICATION:
Detection Method
Sensing Range
Input Voltage
Response Time
Emitting Element
Operation Indicator
Dimensions
Output Method
Current Consumption Max
Water Proof
Through Beam
25M
AC/DC 12~24V
100MS
IR LED
Red LED(RX): ON(When Beam is Broken), Green(TX):ON
96*45*43mm
Relay Output
TX: 35MA/Rx: 38MA (When beam aligned properly);
TX: 35MA/ Rx: 20MA (When beam is broken)
IP54
Figure 4(1)
INSTALLATION:
Wire Connection of PH-2 Photocells See figure 4(2)
TX: Connect terminals 1 and 2 on the transmitter with the terminals Ph+ and GND on the P600B PCB.
RX: Connect terminals 1, 2 and 4 on the receiver with the terminals Ph+, GND and Ph1 on the P600B PCB.
And use an extra wire to connect terminals 2 and 5 on the receiver as a bridge.
Figure 4(2)
Lens
Beam Alignmnet
Indicator
Power Led
Indicator
1 2 3 4 5 1 2
Terminal Block
Power
Terminal Block
RX
Figure 4(3)
TX
1 2 3 4 5
1 2
RX
COM N.C. N.O. GND DC (12~24V)
TX
GND DC (12~24V)
12
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
5.2 Wire Connection and Setting of PRB-1 External Reciever Box
RB1 Receiver Box
Orange
-Signal 1 Output 1 (Normally Open Relay)
Blue
Yellow
-GND
-Signal 2 Output 2 (Normally Open Relay)
Green
-GND
Red
-12V/24V 12V - 24V AC/DC
Black
-GND
1. Situation:
In order to use one 4 channel remote to operate with additional device besides the original gate automation system. Install a receiver box to connect with the 2nd device (such as another Powertech Slider) or the 3rd device (Such as garage automation system)
Original gate automation: Using Button A & B (Pedestrian Mode) on the remote to control gate opener 2nd device: Install an external receiver box, connect output 1 to the 2nd device (such as another Slider, shown as below) use button C on the same remote to control the 2nd device 3rd device: install an external receiver box, connect the output 2 to the 3rd device (such as garage door), use the Button D now to operate.
2. Wire Connection:
Orange
-Signal 1
Blue
Yellow
Green
Red
Black
-GND
-Signal 2
-GND
-12V/24V
-GND
9 10 11
Ph+
a. Orange cable (Signal 1) connect to terminal 10 (Pb) on the control board b. Blue cable (GND) connect to terminal 11 (GND) on the control board c. Red cable (12V/24V ac/dc) connect to terminal 9 (Ph+) on the control board d. Black cable (GND) connect to terminal 11 (GND) on the control board
3. Device Testing & Remote Memorization
PRB-1 Receiver
Invalid Button
LED Light
Learn Button Test Button
Output 1
Invalid Button
a. After connect all necessary cables properly , press Test Button to exam if the output 1 is working, the gate opener should operate. b. If Output 1 is functional, press and hold Learn Button for 1 second, the LED light should be “ON” * If the LED does not respond, please check the cable connection again c. Press and hold Button C on the remote for 1 second after the LED is “ON”. The remote completed the memorizing process when LED light turns “OFF”
GND
Pb
INSTRUCTIONS PL500 SLIDING GATE OPENER USER MANUAL
13
4. Memory Erasing
Press and hold learn button on the receiver box for 10 seconds.
5. 4 Channel Transmitter Operation
Please refer to figure 5.2.1
PR-2
LED Light
Dual-gate operation for Powertech
gate openers
Output 1 operation
Figure 5.2.1
C
B
A
D
Output 2 operation
Single-gate operation for Powertech
gate openers
34100-095-B
Powertech Automation Inc.
Loading...
