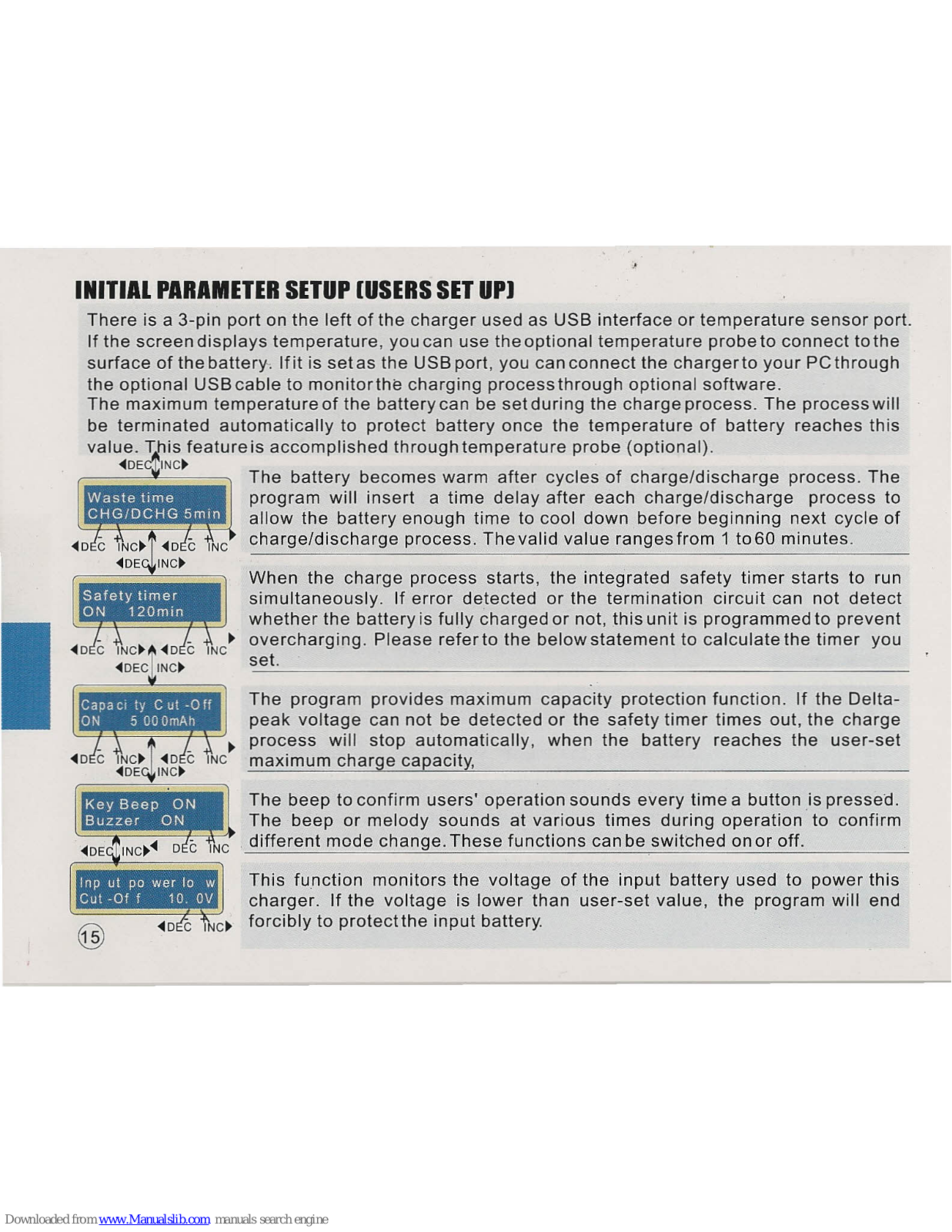

Initial parameter setup (users set up) .

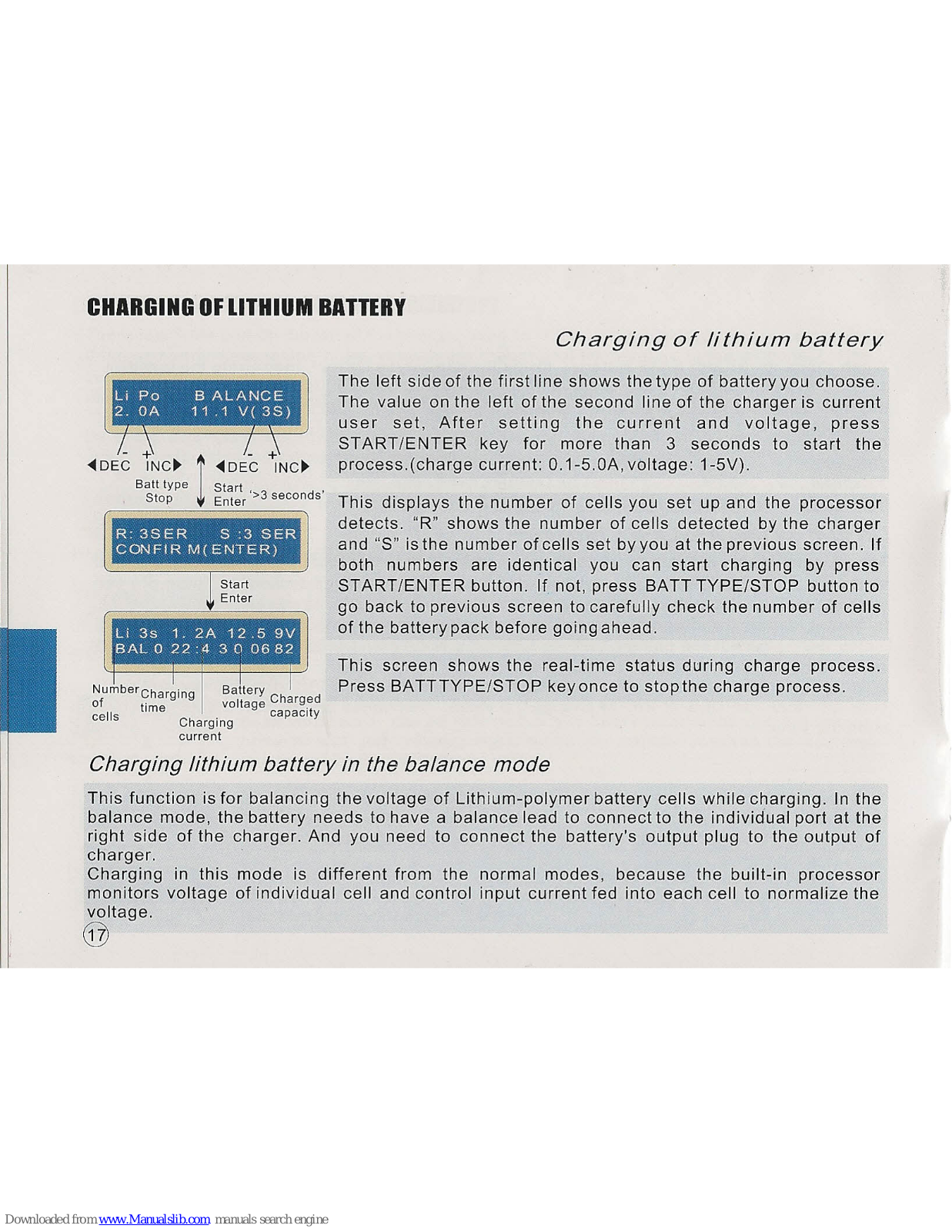

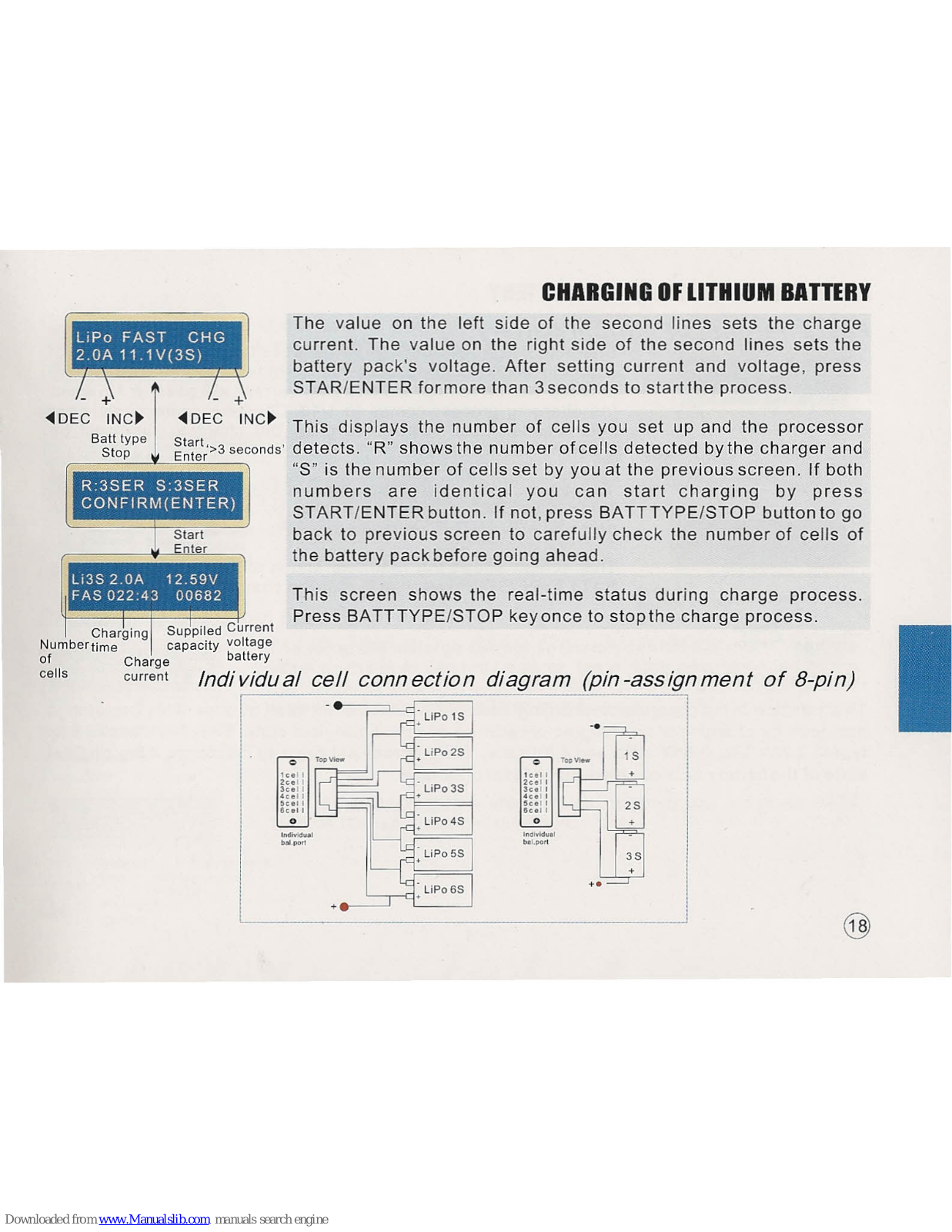

Charging of lithium battery .

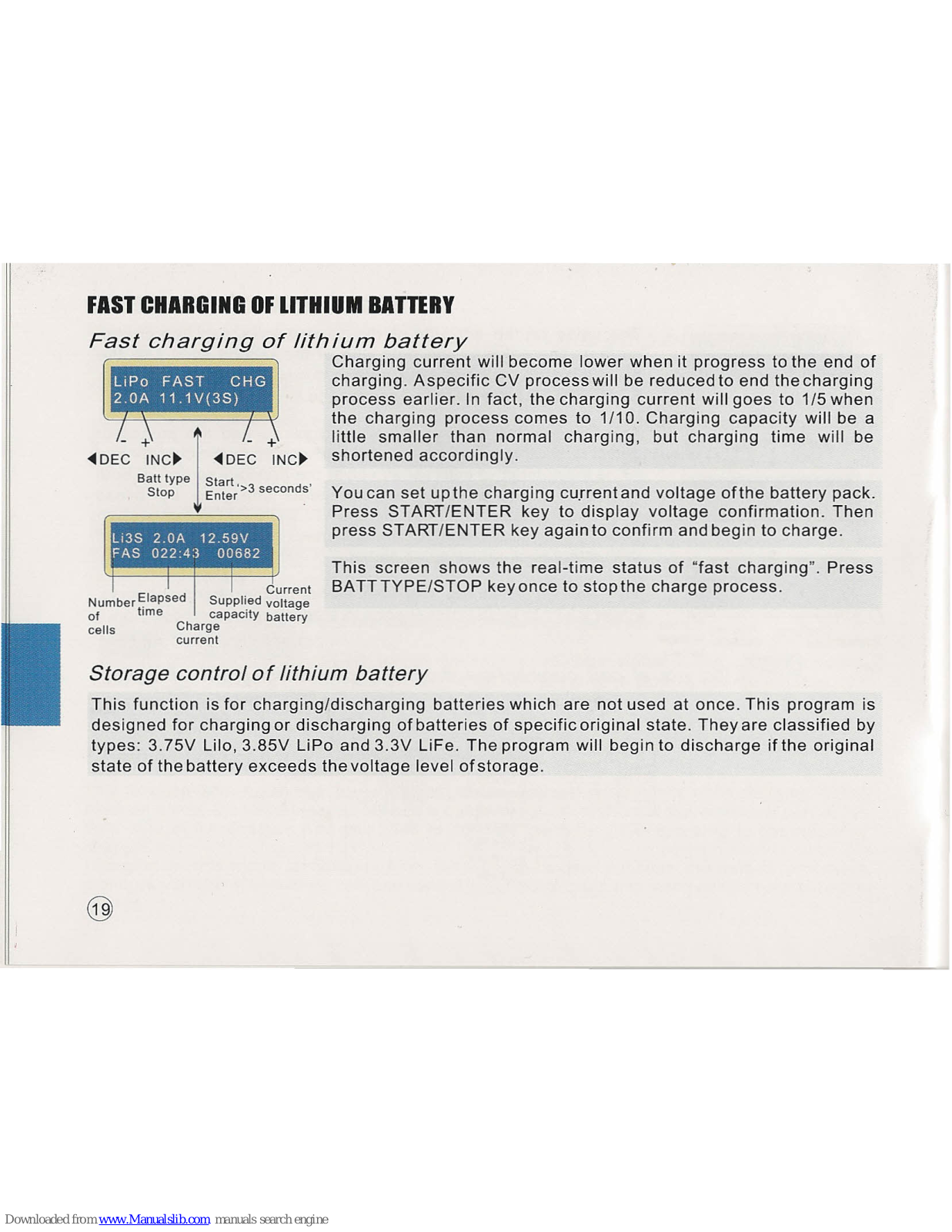

Fast charging of lithium battery.
Storage control of lithium battery .
Voltage balancing and monitoring in the discharge process .
Discharge of NiCd/NiMH battery ...

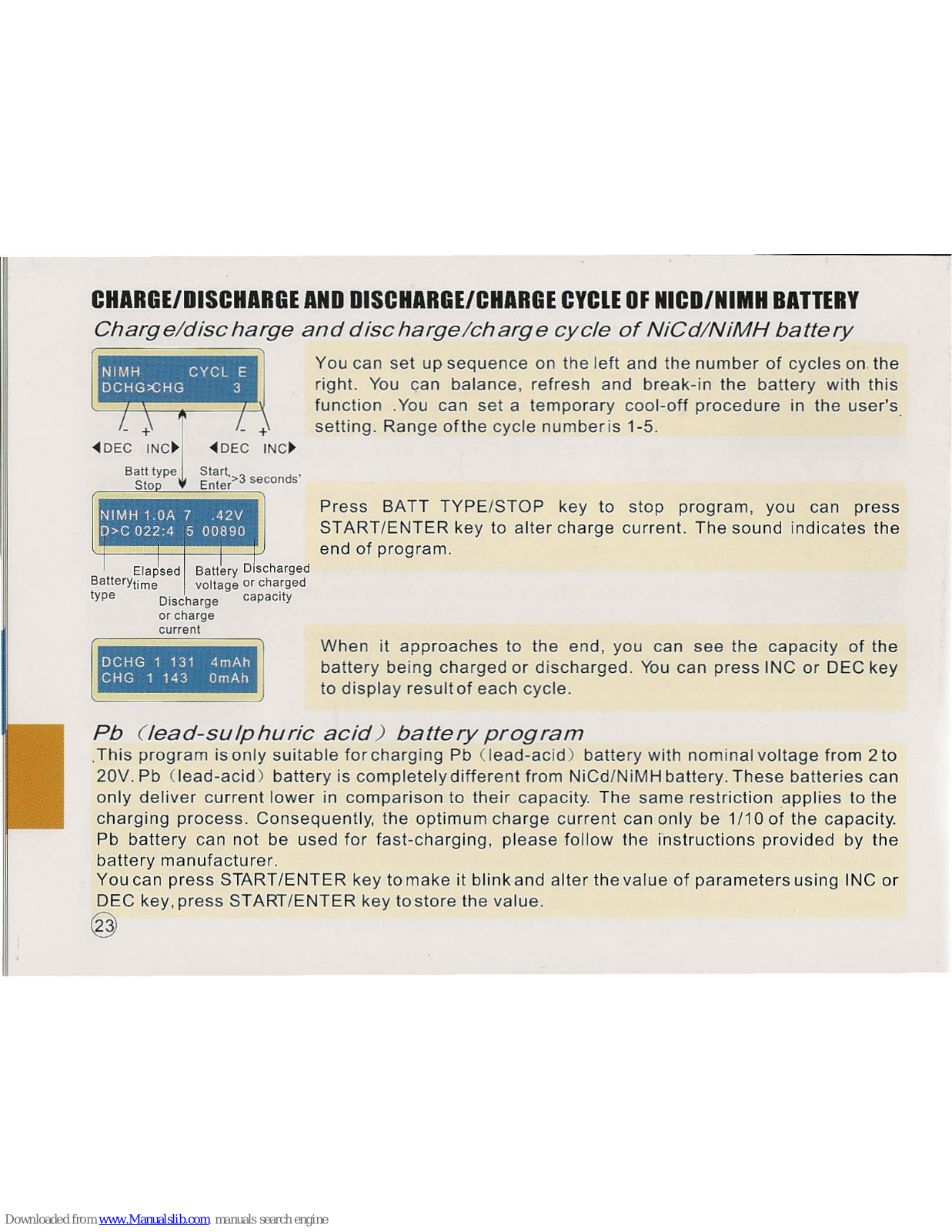

Charge/discharge and discharge/charge cycle of NiCd/NiMH battery
Charging .of Pb battery.. .. .
Storage data program .
Load data program... .. .
Various information in the program

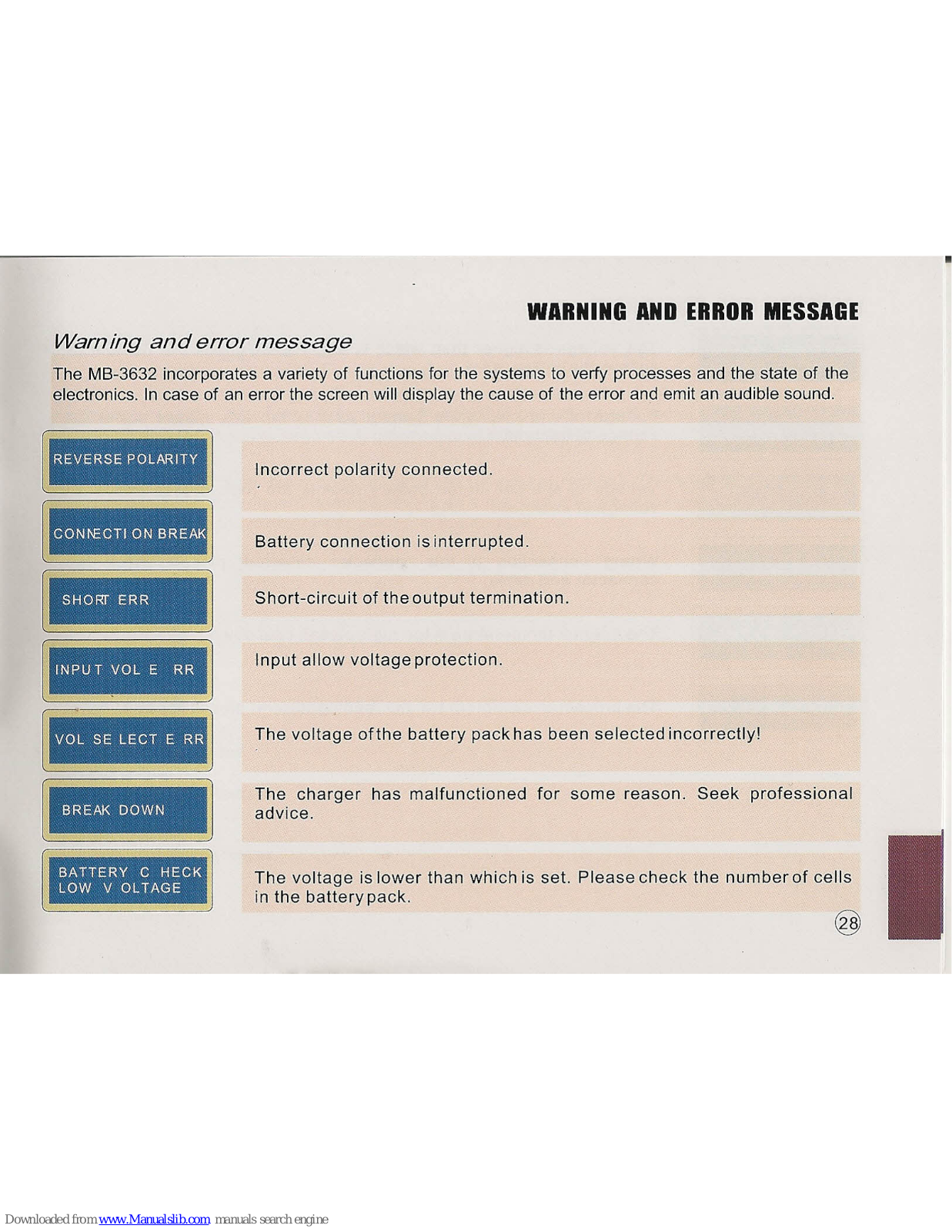

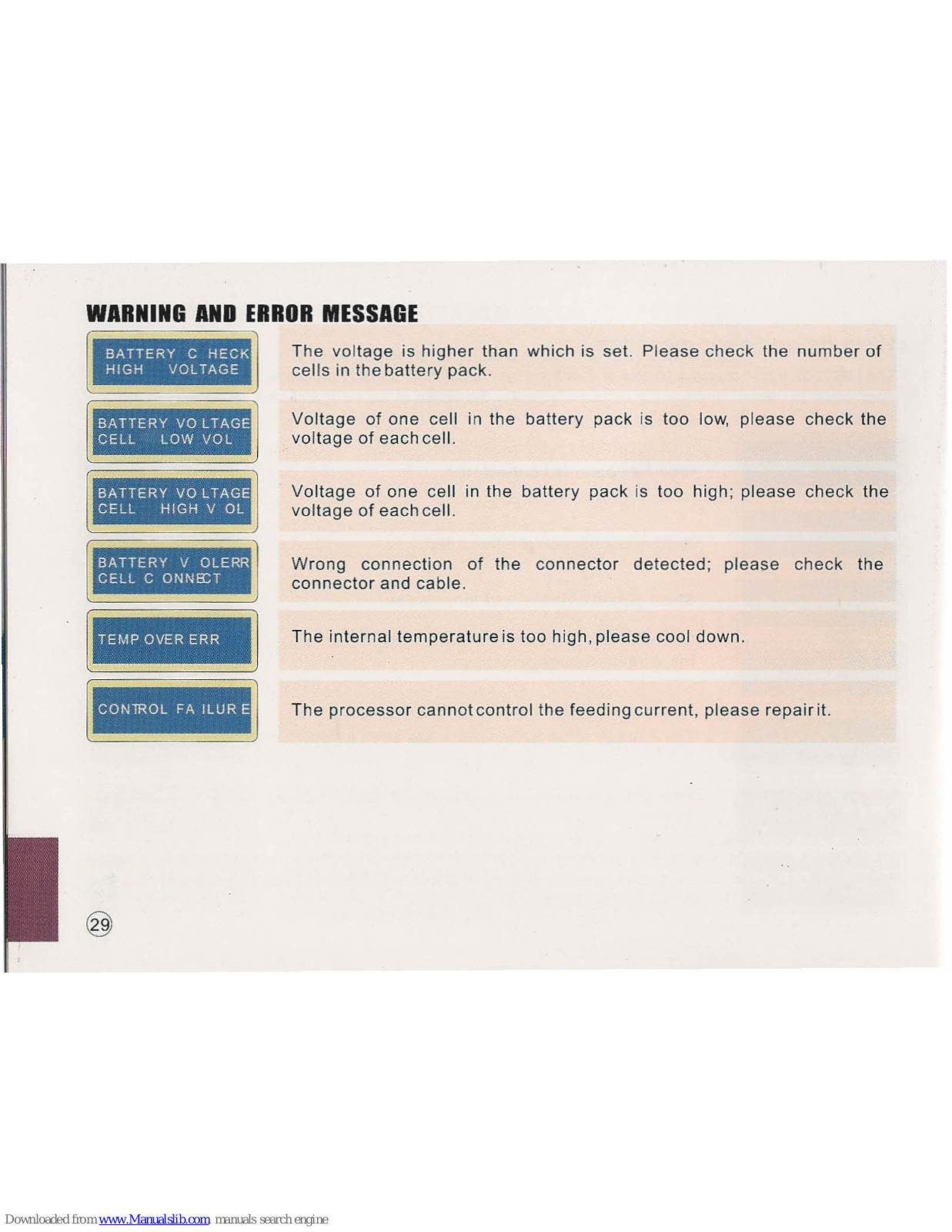

Warning and error message ..
Warranty and service ..

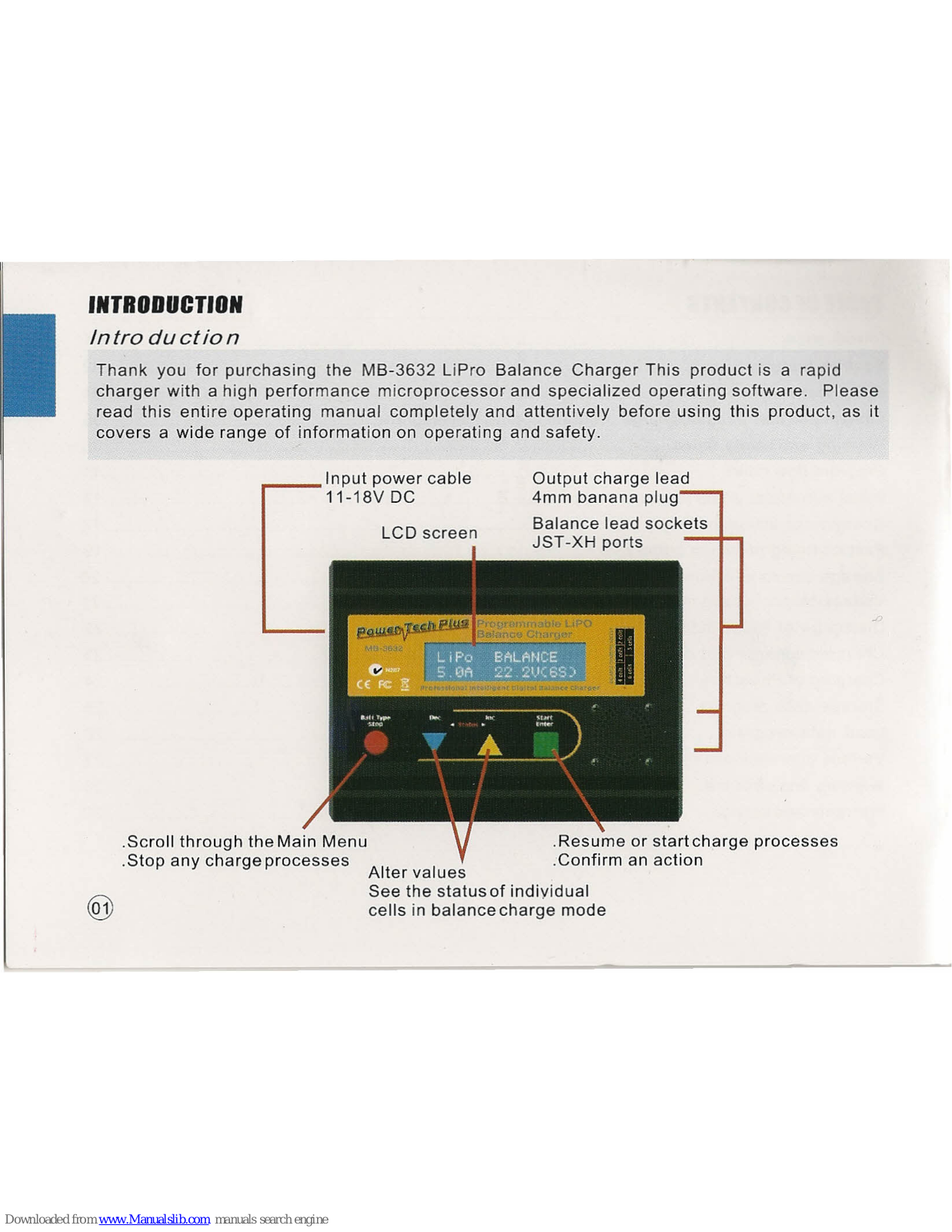

INTRODUCTION
Intro duct ion

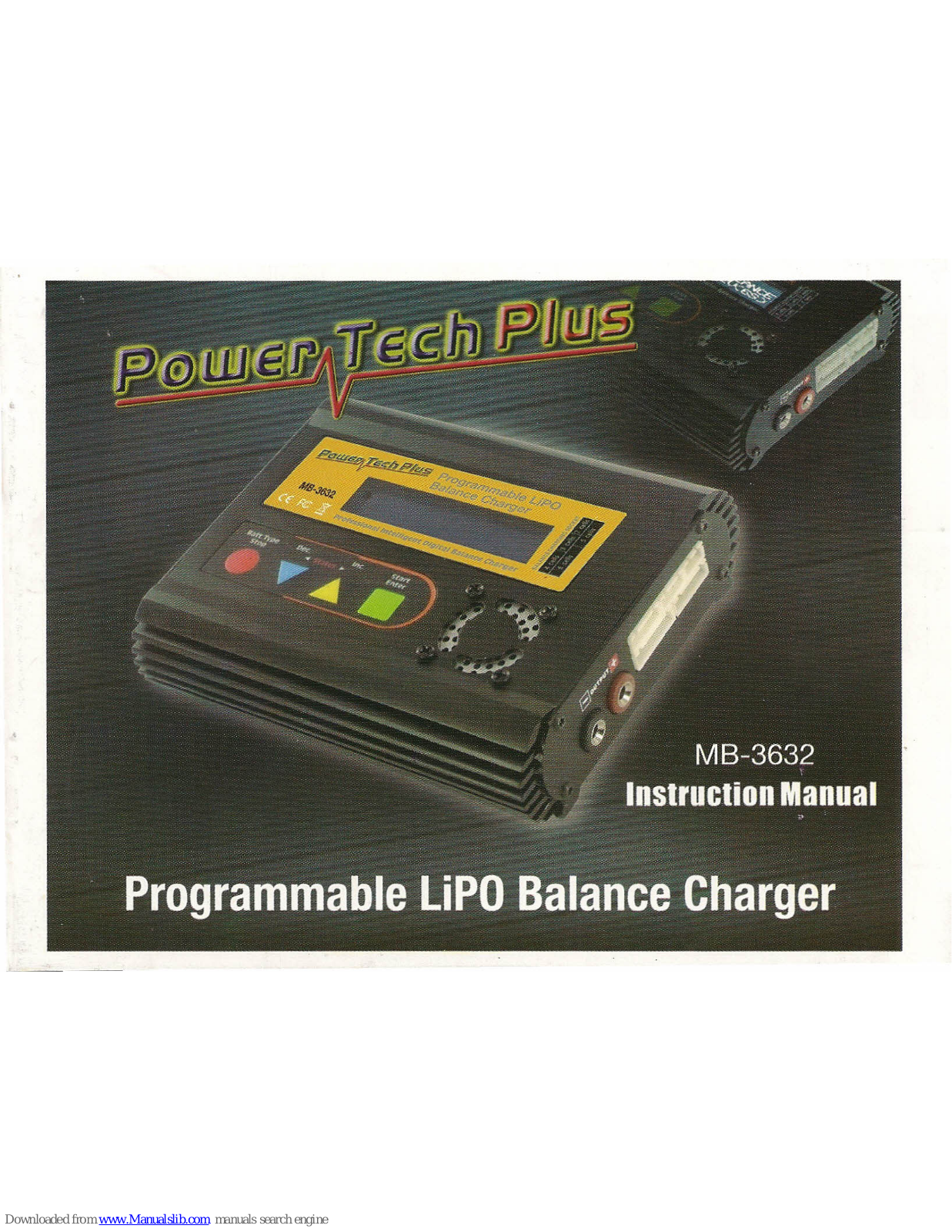

Thank you for purchasing the MB-3632 LiPro Balance Charger This product is a rapid
charger with a high performance microprocessor and specialized operating software. Please
read this entire operating manual completely and attentively before using this product, as it
covers a wide range of information on operating and safety.
Input power cable
11-18V DC
Output charge lead
4mm banana plug
Balance lead sockets
JST-XH ports
LCD screen
.Scroll through the Main Menu
.Stop any charge processes
Alter values
See the status of individual
cells in balance charge mode
SPECIAl fEATURES

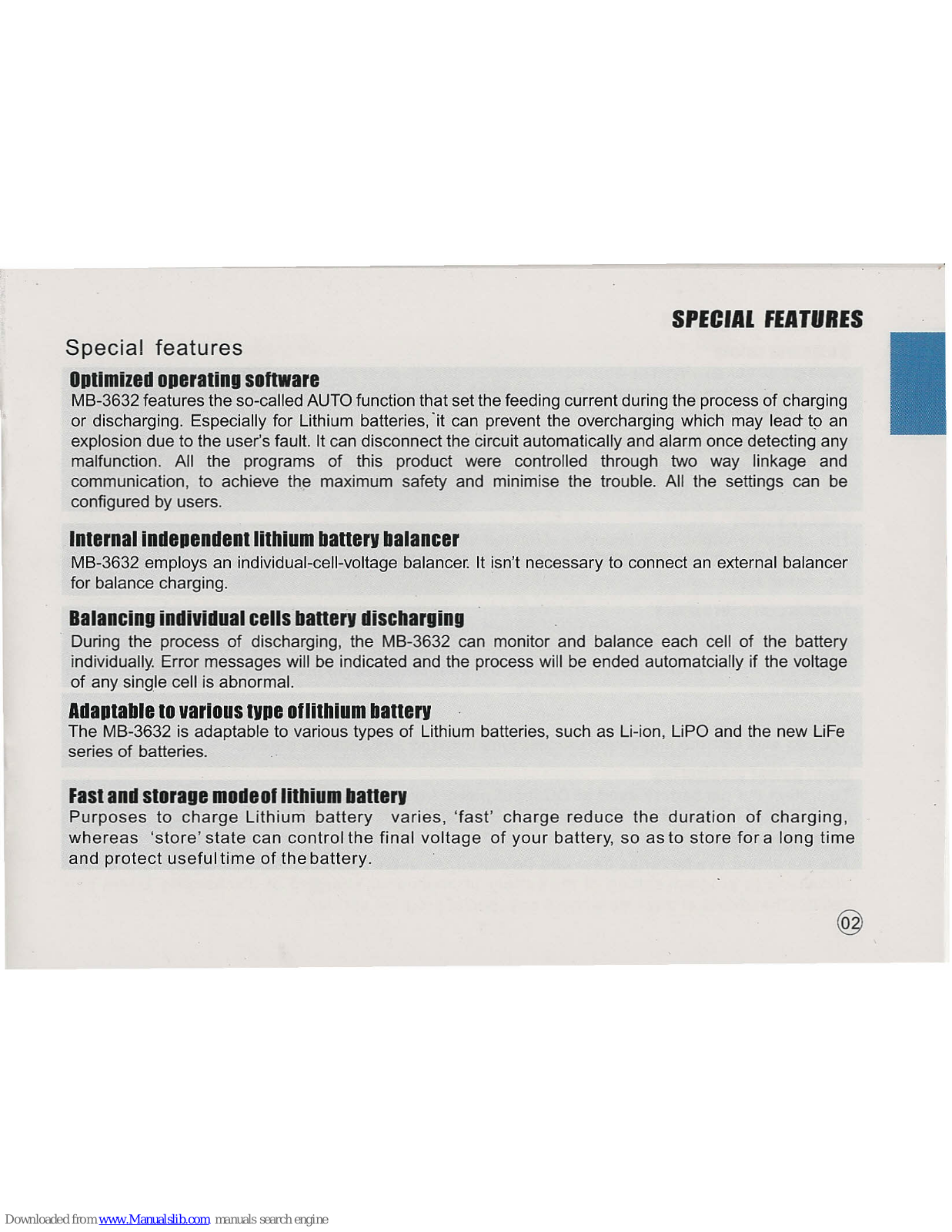

Special features
Opllmized operating sohware
MB-3632 features the so-called AUTO function that set the feeding current during the process of charging
or discharging. Especially for Lithium batteries, "it can prevent the overcharging which may lead to an
explosion due to the user's fault.Itcan disconnect the circuit automatically and alarm once detecting any
malfunction. All the programs of this product were controlled through two way linkage and
communication, to achieve the maximum safety and minimise the trouble. All the settings can be
configured by users.
Internal indopendent lithium battery balancer
MB-3632 employs an individual-cell-voltage balancer.Itisn't necessary to connect an external balancer
for balance charging.
Balancing individual cells battery discharging
During the process of discharging, the MB-3632 can monitor and balance each cell of the battery
individually. Error messages will be indicated and the process will be ended automatcially if the voltage
of any single cell is abnormal.
Adaptable to various type oflithlum battery
The MB-3632 is adaptable to various types of Lithium batteries, such as Li-ion, LiPO and the new liFe
series of batteries.
Fast and storage modeo' lithium battery
Purposes to charge Lithium battery varies, 'fast' charge reduce the duration of charging,
whereas 'store' state can control the final voltage of your battery, so as to store for a long time
and protect useful time of the battery.
SPECIAL FEATURES

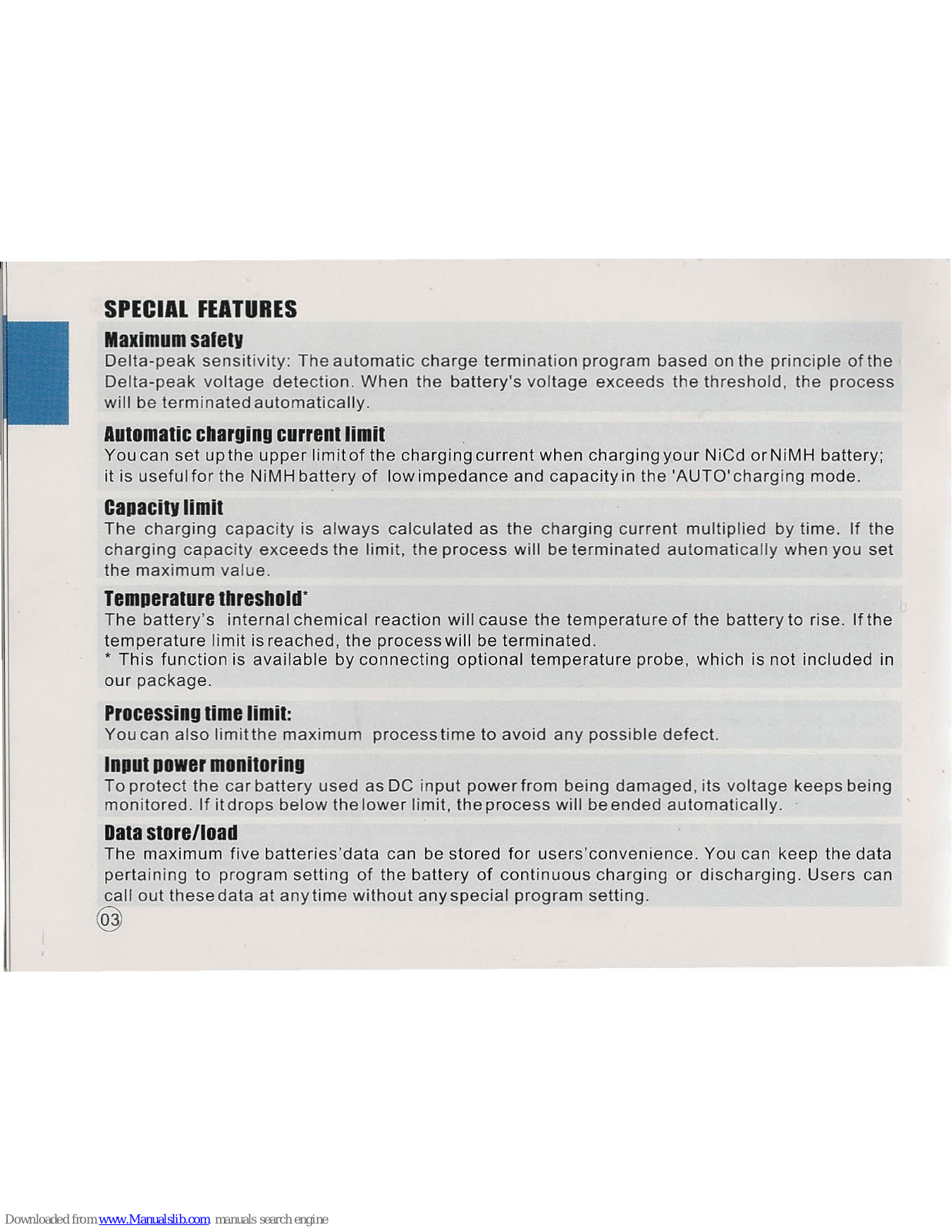

Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the
Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process
will be terminated automatically.
Automatic charging current limit
You can set upthe upper limitof the charging current when charging your NiCd or NiMH battery;
it is useful for the NiMH battery of low impedance and capacity in the 'AUTO'charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the
charging capacity exceeds the limit, the process will be terminated automatically when you set
the maximum value.
Temperature threshold"
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the
temperature limit is reached, the process will be terminated.
" This function is available by connecting optional temperature probe, which is not included in
our package.
Processing time limit:
You can also limitthe maximum process time to avoid any possible defect.
Input power monitoring
To protect the car battery used as DC input power from being damaged, its voltage keeps being
monitored. If it drops below the lower limit, the process will beended automatically.
Data storelload
The maximum five batteries'data can be stored for users'convenience. You can keep the data
pertaining to program setting of the battery of continuous charging or discharging. Users can
call out these data at anytime without any special program setting.
@
SPECIAl FEATURES
CvcliCcharging/discharging
1 to S cyclic and continuous process of charge>discharge or discharge>charge is operable for
battery refreshing and Balancing to stimulate the battery's activity.
I

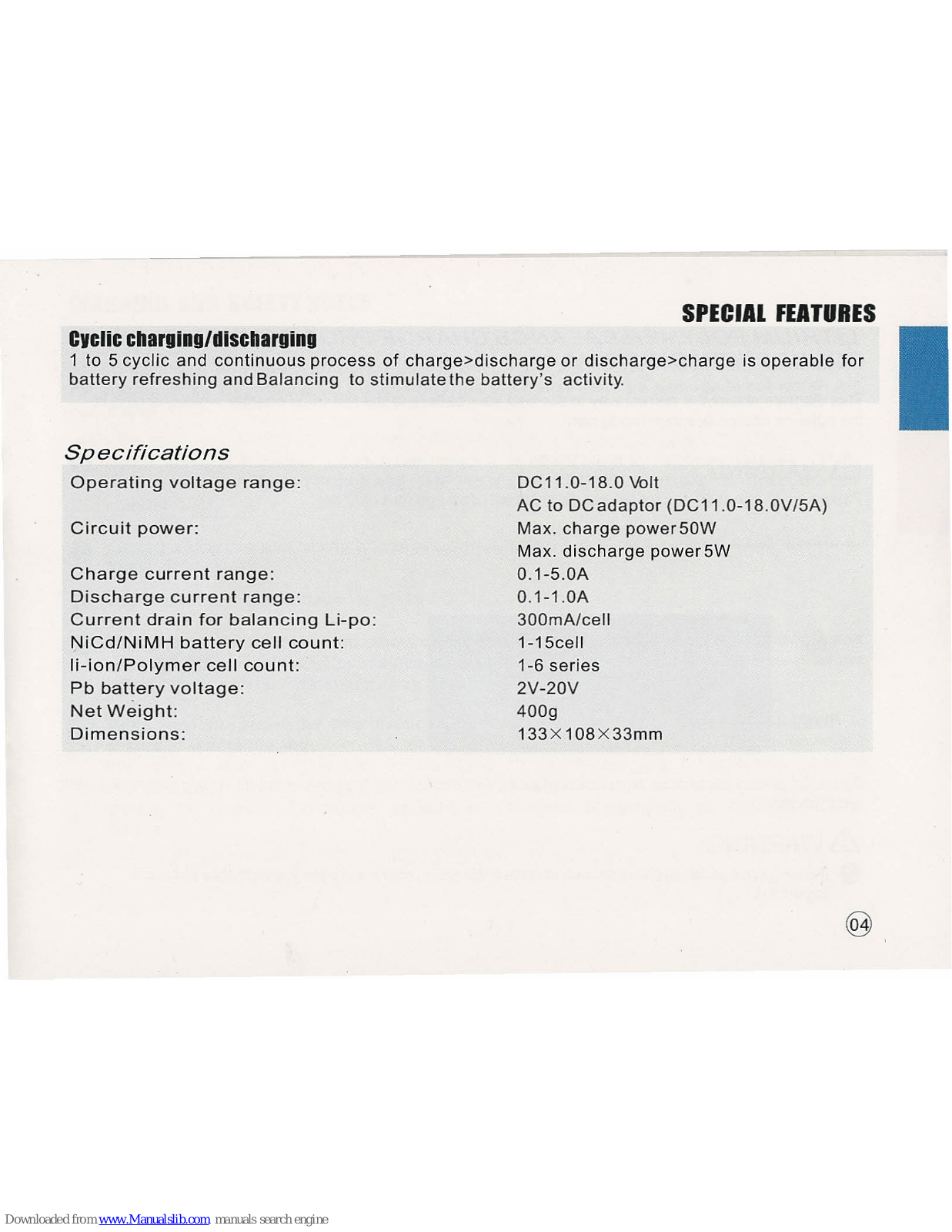

Specifications
Operating voltage range:
Circuit power:
DC11.0-18.0 Volt
AC to DCadaptor (DC11.0-18.0V/SA)
Max. charge powerSOW
Max. discharge powerSW
0.1-S.0A
0.1-1.0A
300mA/cell
1-1Scell
1-6 series
2V-20V
400g
133x 108x 33mm
Charge current range:
Discharge current range:
Current drain for balancing Li-po:
NiCd/NiMH battery cell count:
Ii-ion/Polymer cell count:
Pb battery voltage:
Net Weight:
Dimensions:

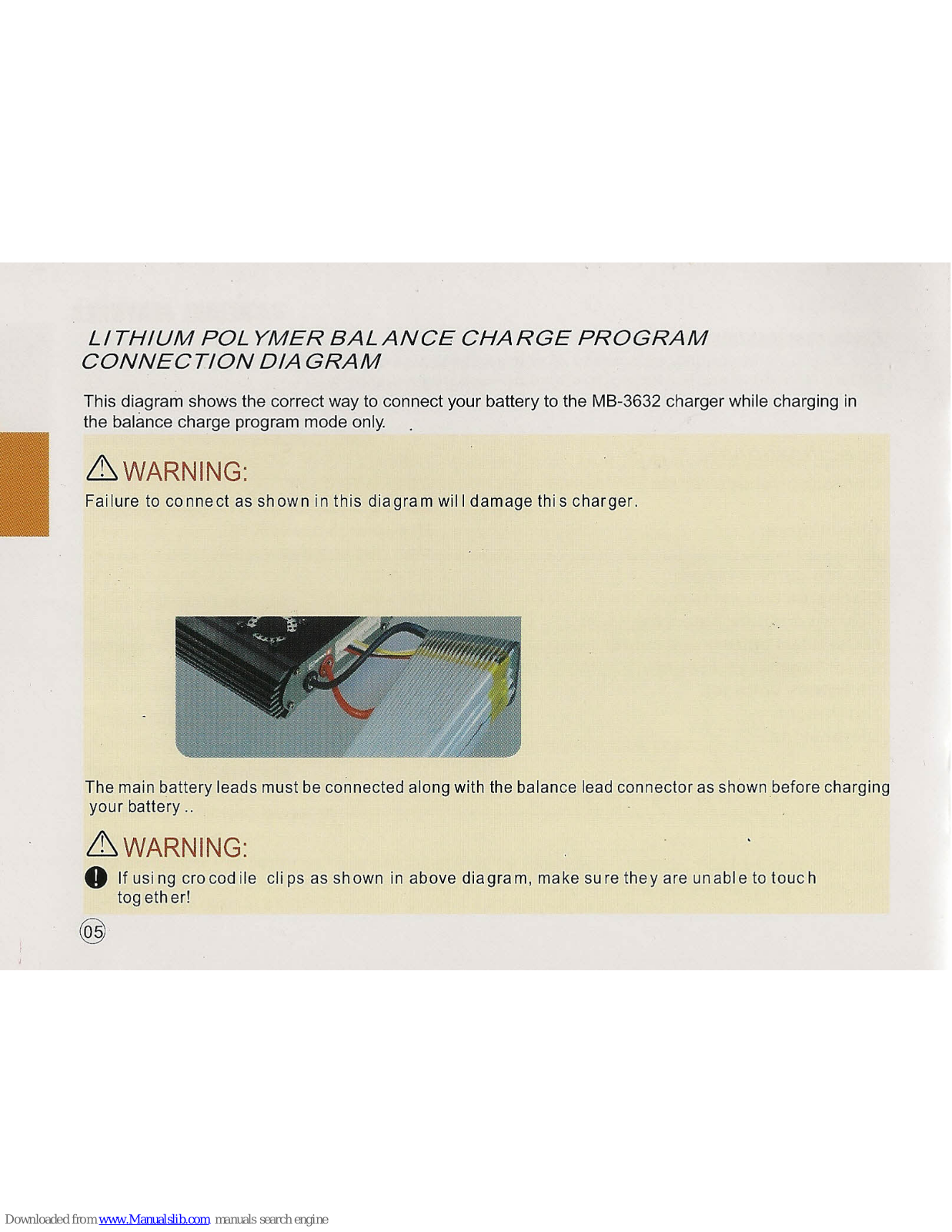

LITHIUM POL YMER BALANCE CHARGE PROGRAM
CONNECTION DIA GRAM
This diagram shows the correct way to connect your battery to the MB-3632 charger while charging in
the balance charge program mode only.
I
&WARNING:
Failure to connect as shown in this diagram will damage this charger.
The main battery leads must be connected along with the balance lead connector as shown before charging
your battery.
&WARNING:
o
If usi ng cro cod ile cli ps as shown in above diagra m, make su re they are un abl e to toue h
tog ether!

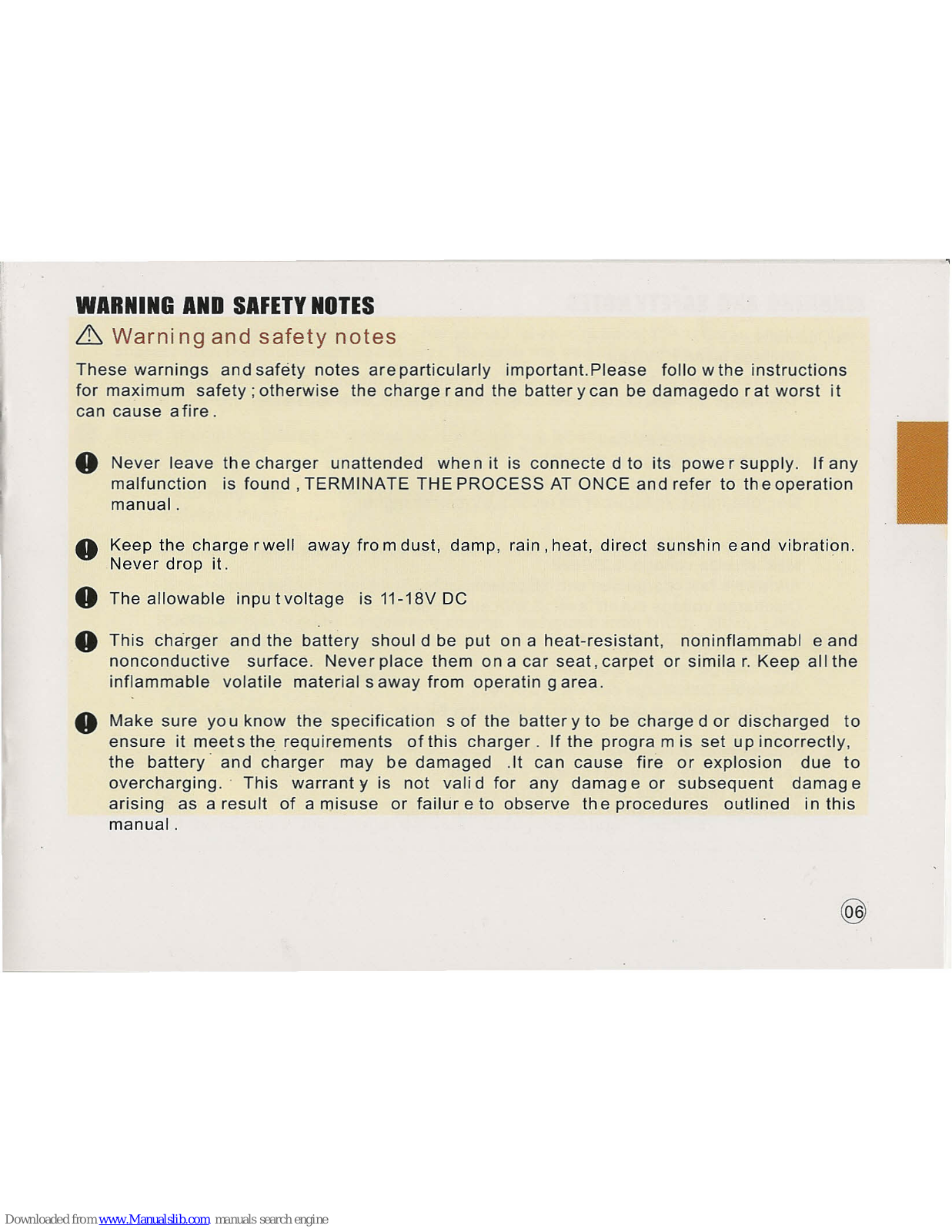

WARNING AND SAFETY NOTES
~ Warni ng and safety notes
These warnings and safety notes are particularly important.Please folio w the instructions
for maximum safety; otherwise the charge r and the batter y can be damagedo r at worst it
can cause afire.
•
Never leave th e charger unattended whe n it is connecte d to its powe r supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to th e operation
manual.
Keep the charge rwell away fro m dust, damp, rain, heat, direct sunshin eand vibration.
Never drop it.
•
•
•
The allowable inputvoltage is 11-18V DC
This charger and the battery shoul d be put on a heat-resistant, noninflammabl e and
nonconductive surface. Never place them on a car seat, carpet or simila r. Keep all the
inflammable volatile material s away from operatin g area.
•
Make sure yo u know the specification s of the batter y to be charge d or discharged to
ensure it meets the requirements of this charger. If the progra m is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging .. This warrant
y
is not vali d for any damag e or subsequent damag e
arising as a result of a misuse or failur e to observe the procedures outlined in this
manual.
WARNING AND SAFETY Nons

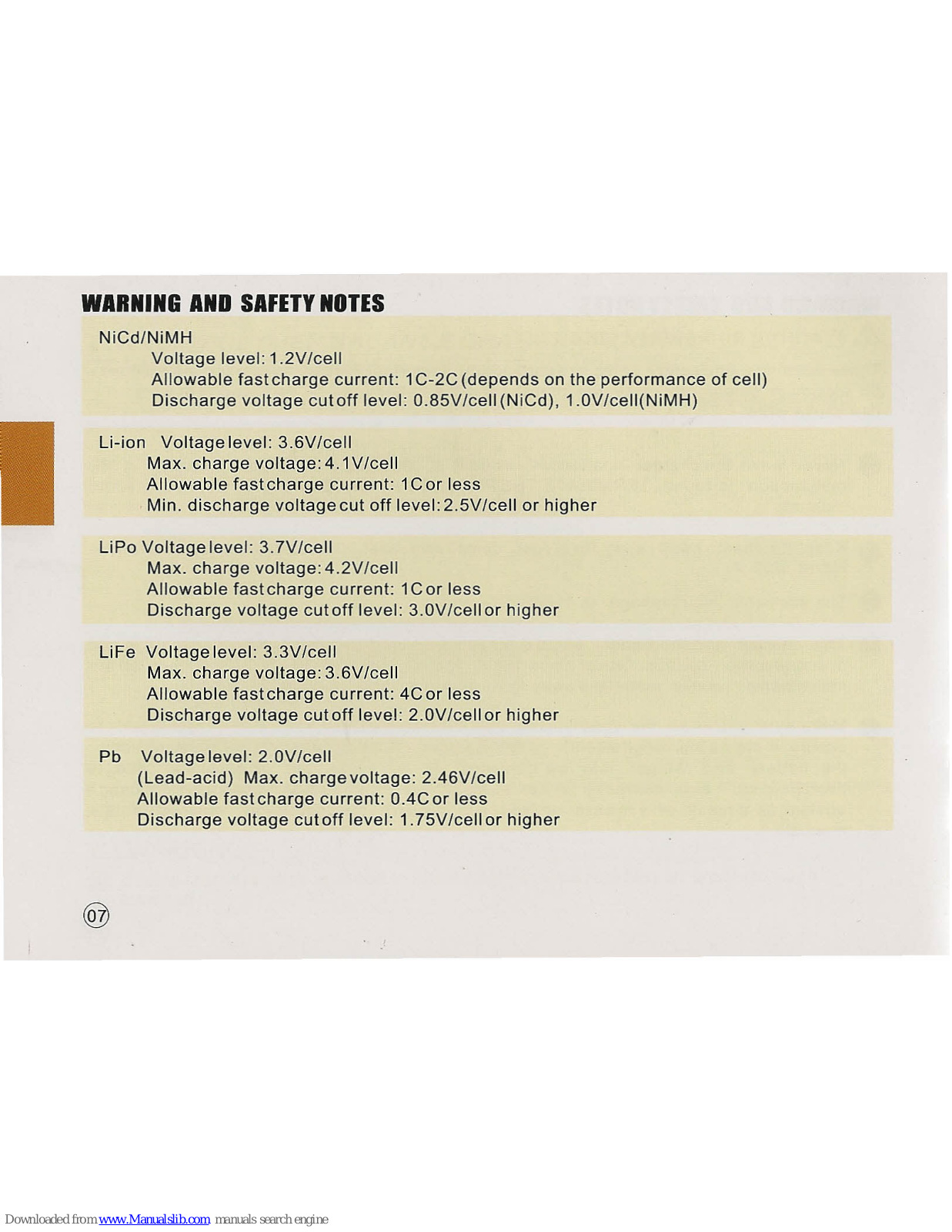

NiCd/NiMH
Voltage level:
1.2V/cell
Allowable fast charge current: 1C-2C (depends on the performance of cell)
Discharge voltage cutoff level:
O.85V/celi
(NiCd), 1.0V/cell(NiMH)
I
Li-ion Voltage level:
3.6V/cell
Max. charge voltage: 4. 1
V/cell
Allowable fast charge current: 1C or less
Min. discharge voltage cut off level:2.5V/celi or higher
LiPo Voltage level:
3.7V/cell
Max. charge voltage:
4.2V/cell
Allowable fast charge current: 1C or less
Discharge voltage cutoff level:
3.0V/cellor
higher
liFe Voltage level:
3.3V/cell
Max. charge voltage:
3.6V/cell
Allowable fast charge cu rrent: 4C or less
Discharge voltage cutoff level:
2.0V/cellor
higher
Pb Voltage level:
2.0V/cell
(Lead-acid) Max. charge voltage:
2.46V/cell
Allowable fastcharge current: O.4Cor less
Discharge voltage cutoff level:
1.75V/cellor
higher
WARNING AND SAFETY NOTES

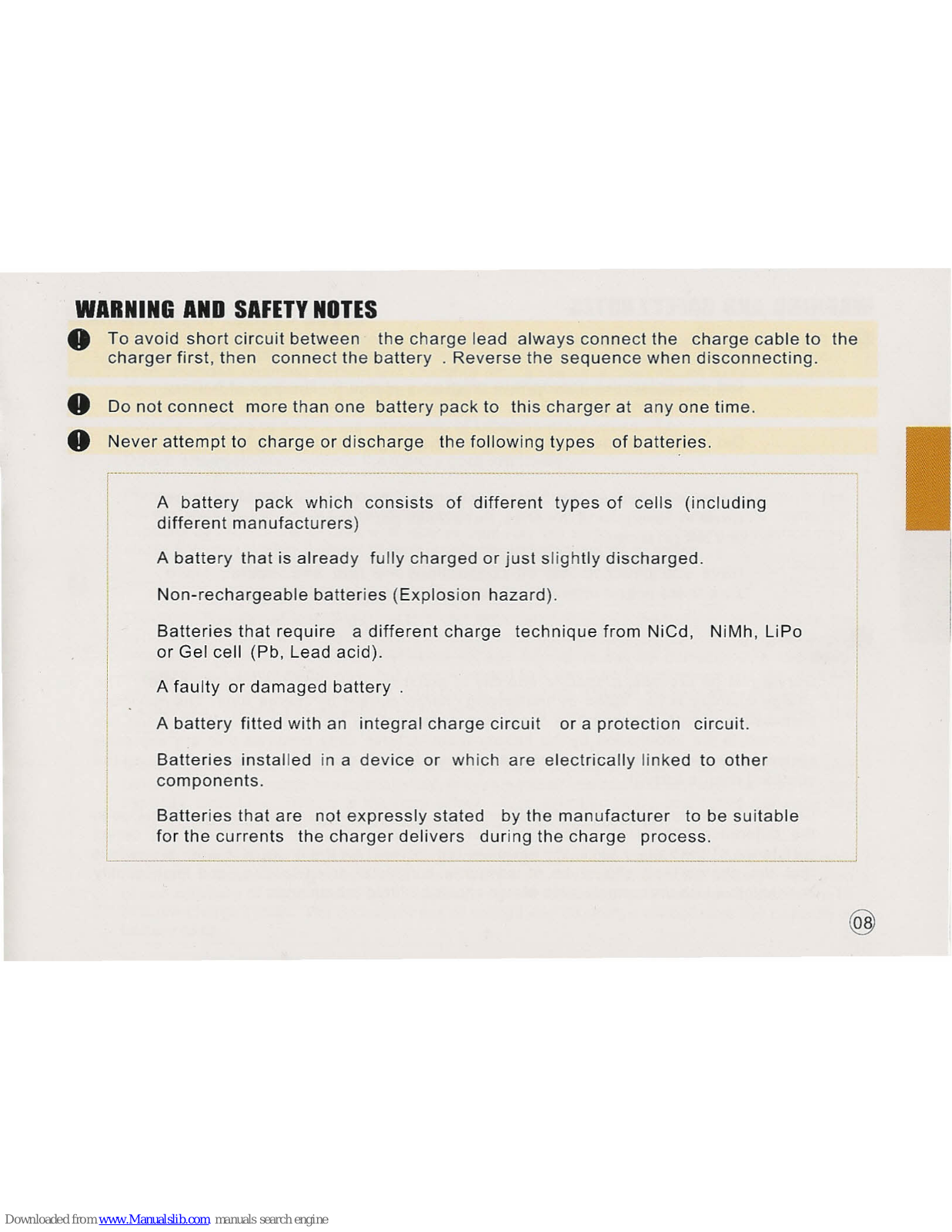

o To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
o
o
Do not connect more than one battery pack to this charger at anyone time.
Never attempt to charge or discharge the following types of batteries.
A battery pack which consists of different types of cells (including
different manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
I
Batteries that require a different charge technique from NiCd, NiMh, LiPo
or Gel cell (Pb, Lead acid).
A faulty or damaged battery
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other
components.
Batteries that are not expressly stated by the manufacturer to be suitable
for the currents the charger delivers during the charge process.
WARNING AND SAFETY NOTES
• Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery
you are charging?
Did you setup adequate currentfor charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be
wired in parallel and in series, i.e. a 2cell pack canbe 3.7V (in parallel)
or 7.4V (in series).
Have you checked that all connections are firm and secure? Make
sure there are no intermittent contacts at any point in the circuit.

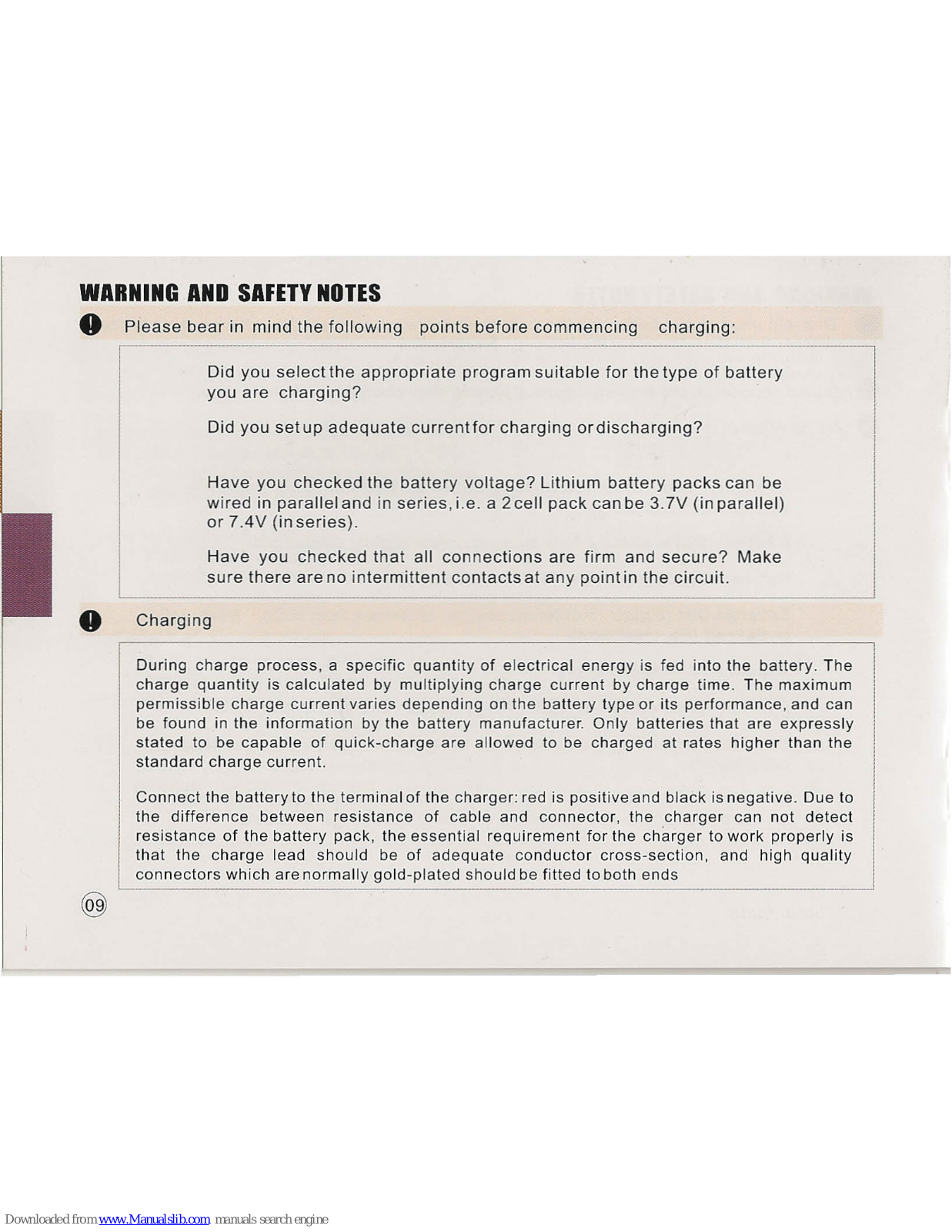

• Charging
During charge process, a specific quantity of electrical energy is fed into the battery. The
charge quantity is calculated by multiplying charge current by charge time. The maximum
permissible charge current varies depending on the battery type or its performance, and can
be found in the information by the battery manufacturer. Only batteries that are expressly
stated to be capable of quick-charge are allowed to be charged at rates higher than the
standard charge current.
Connect the battery to the terminal of the charger: red is positive and black is negative. Due to
the difference between resistance of cable and connector, the charger can not detect
resistance of the battery pack, the essential requirement for the charger to work properly is
that the charge lead should be of adequate conductor cross-section, and high quality
connectors which are normally gold-plated should be fitted to both ends
WARNING AND SAFETY NOTES
Always refer to the manual by the battery manufacturer pertaining to charging methods,
recommended charging current and charging time. Especially, the lithium battery should be
charged according the charging instruction provided by the manufacturer strictly.
I
Attention should be paid to the connection of Lithium battery especially.
Do not attemptto disassemble the battery pack arbitrarily
Please get highlighted that lithium battery packs can be wired in parallel and in series. In the
parallel connection, the battery's capacity is calculated by multiplying single battery's
capacity by the number of cells with total voltage stay the same. The voltage's imbalance may
cause fire orexplosion .Lithium battery is recommended to charge in series.
----------------------

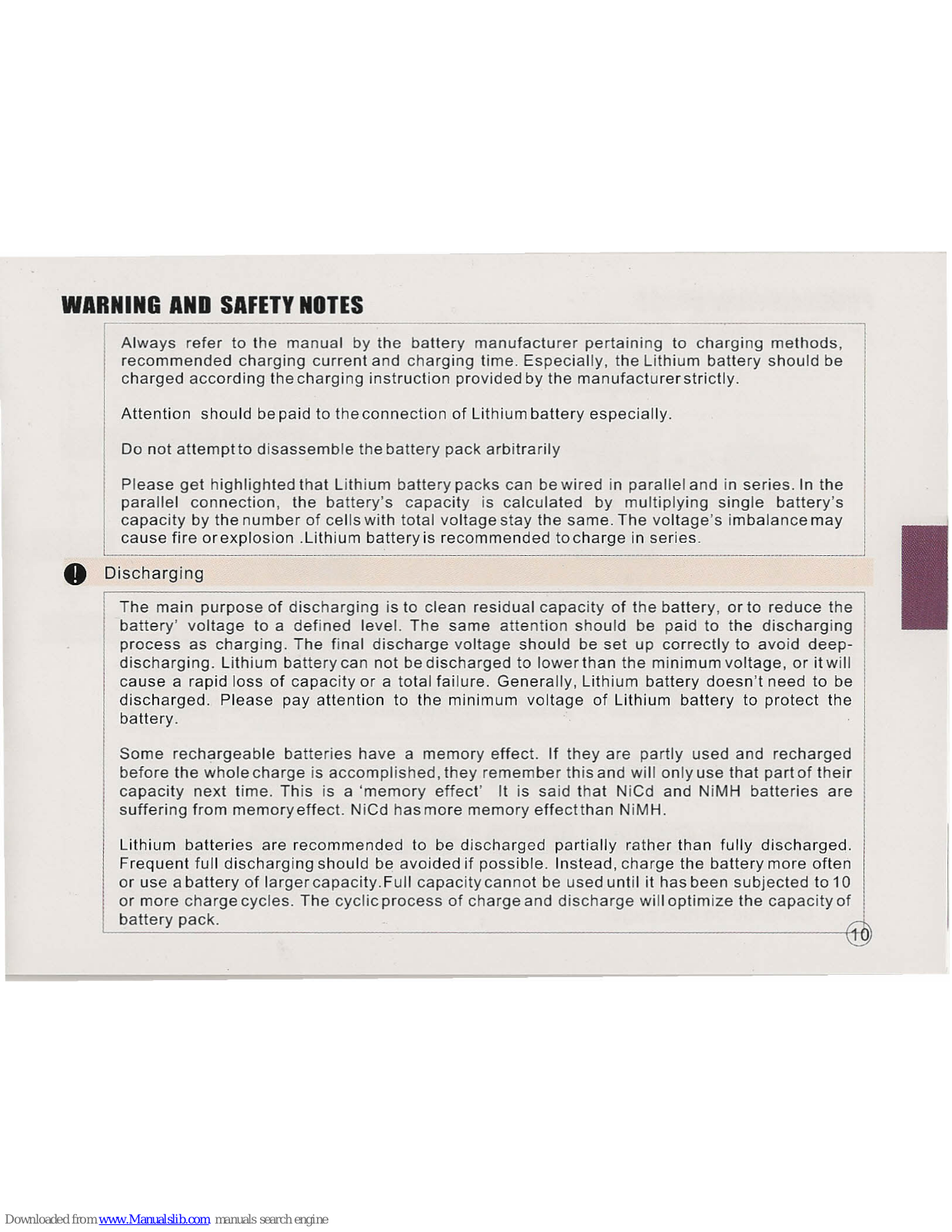

•• Discharging
The main purpose of discharging is to clean residual capacity of the battery, or to reduce the
battery' voltage to a defined level. The same attention should be paid to the discharging
process as charging. The final discharge voltage should be set up correctly to avoid deep-
discharging. lithium battery can not bedischarged to lowerthan the minimum voltage, or itwill
cause a rapid loss of capacity or a total failure. Generally, lithium battery doesn't need to be
discharged. Please pay attention to the minimum voltage of Lithium battery to protect the
battery.
Some rechargeable batteries have a memory effect. If they are partly used and recharged
before the whole charge is accomplished, they remember this and will only use that part of their
capacity next time. This is a 'memory effect'
It
is said that NiCd and NiMH batteries are
suffering from memory effect. NiCd has more memory effect than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully discharged.
Frequent full discharging should be avoided if possible. Instead, Charge the battery more often
or use abattery of larger capacity. Full capacity cannot be used until it has been subjected to 10
or more charge cycles. The cyclic process of charge and discharge will optimize the capacity of
battery pack.
r.
0
I
::~"["I"'::;~_+_l
DEllNC
-
: - - - -1;CjoE~- - - - - - - DE~NC
"''''~~_+~_~[m••",::;~_
:_~~~.~~_::~~::;.l
:E~~I"::~_::~"':~~I"~~.1
:
,
. _.
_*:A.i1~.::~_~;
-.I::~
"il::~'"
:__._.: 1
I

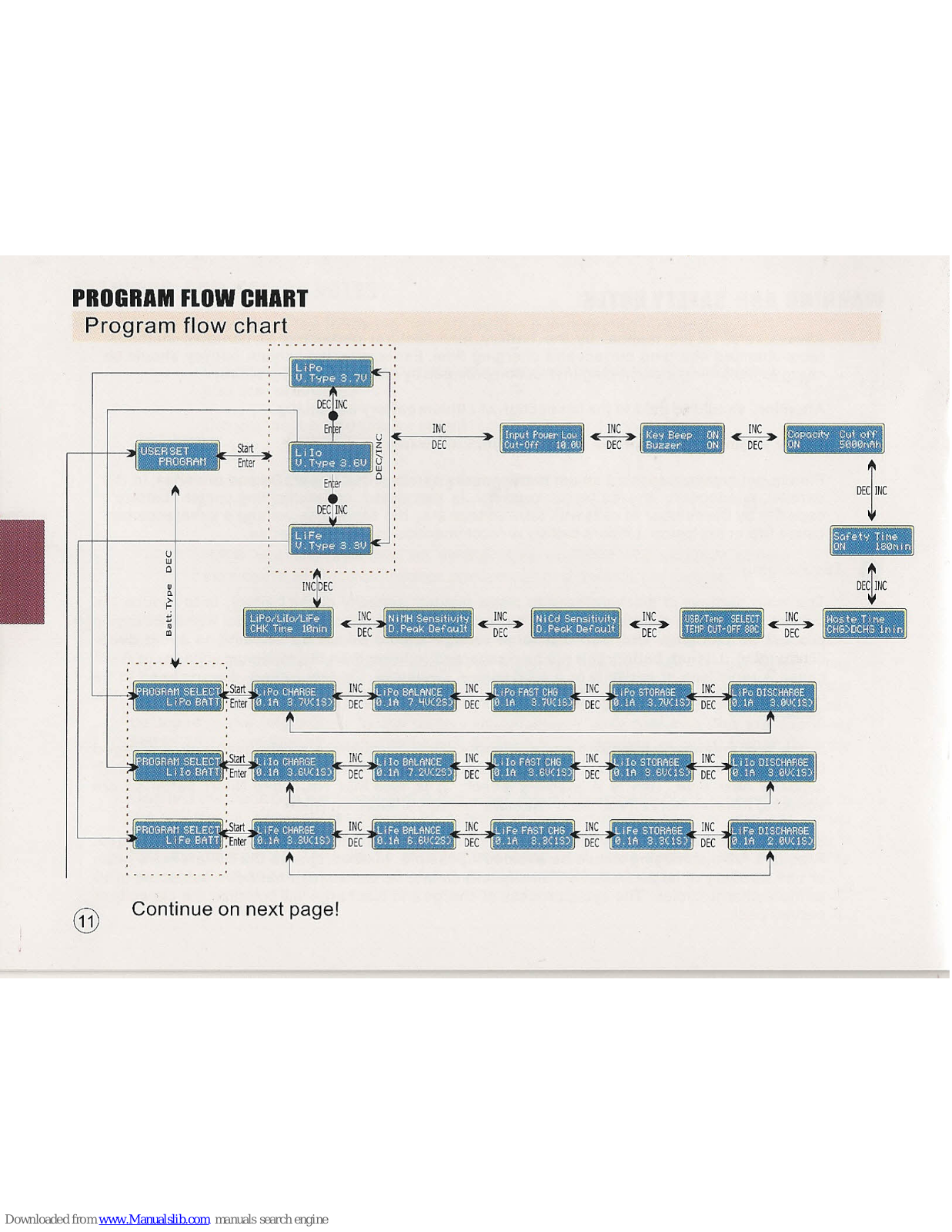

PROGRAM FLOW CHART
Program flow chart
~ ~ DECINC
,
c,
F
Continue on next page!

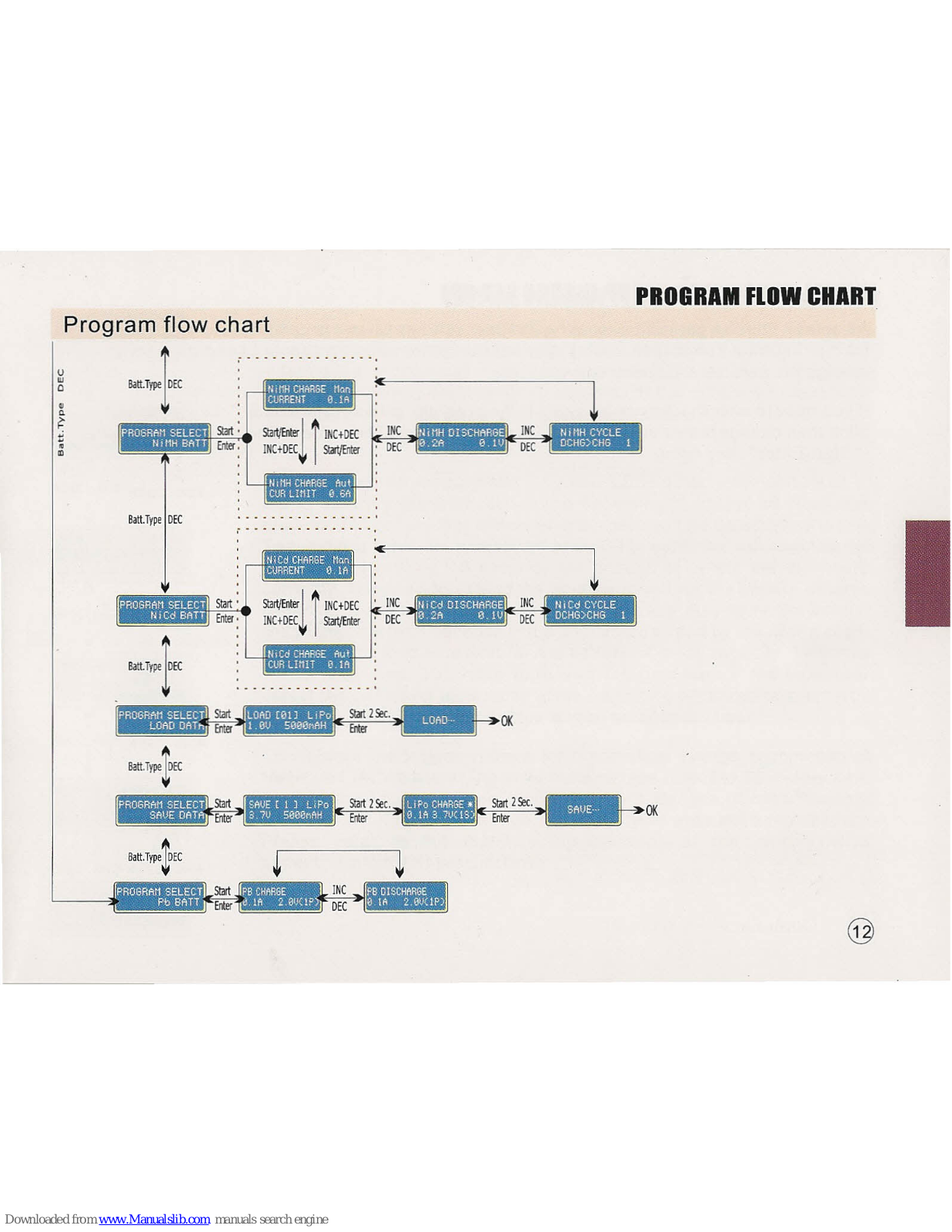

PROGRAM flOW CHART
Program flow chart
Batt.TypeDEC
I
I\l~T'P'}EC
.d~=2~
C(
'"
Batt,TypelDEC
IjI
_J.~~.I.~~~OK
8att.Type~EC
©

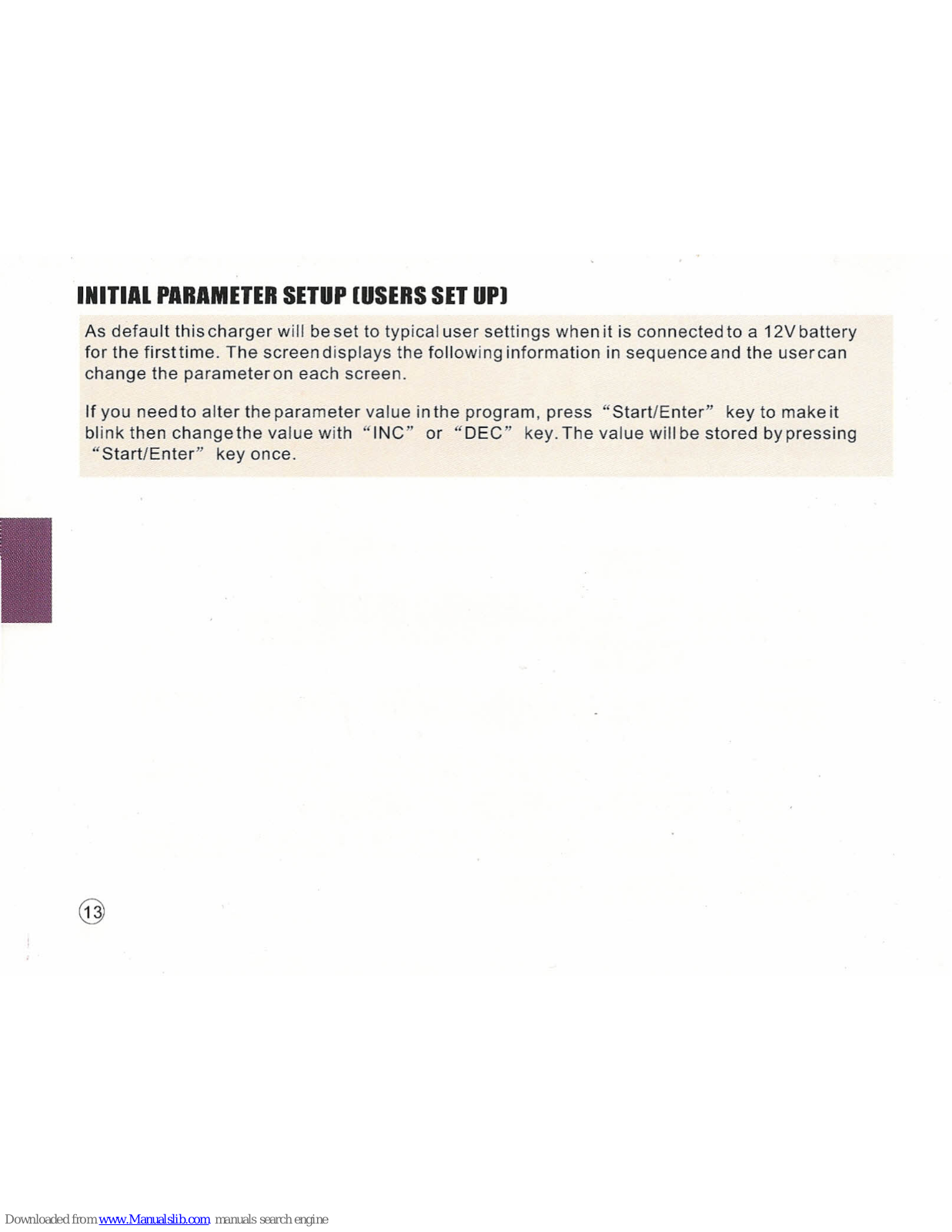

INITIAL PARAMETER SETUP [USERS SET UPI
As default this charger will be set to typical user settings when it is connected to a 12V battery
for the first time. The screen displays the following information in sequence and the usercan
change the parameter on each screen.
If you need to alter the parameter value in the program, press "Start/Enter" key to make it
blink then change the value with "INC" or "DEC" key. The value will be stored by pressing
"Start/Enter" key once.
I
@
- +
~DEC INC~ ~DEC INC~
'i'
~
~DEC IINC~ ~DE~ ~NC~
•
•••
.
.
..
- + -
+
~DEC INC~ ~DEC INC~
INITIAL PARAMETER SETUP lOSERS SET UPI

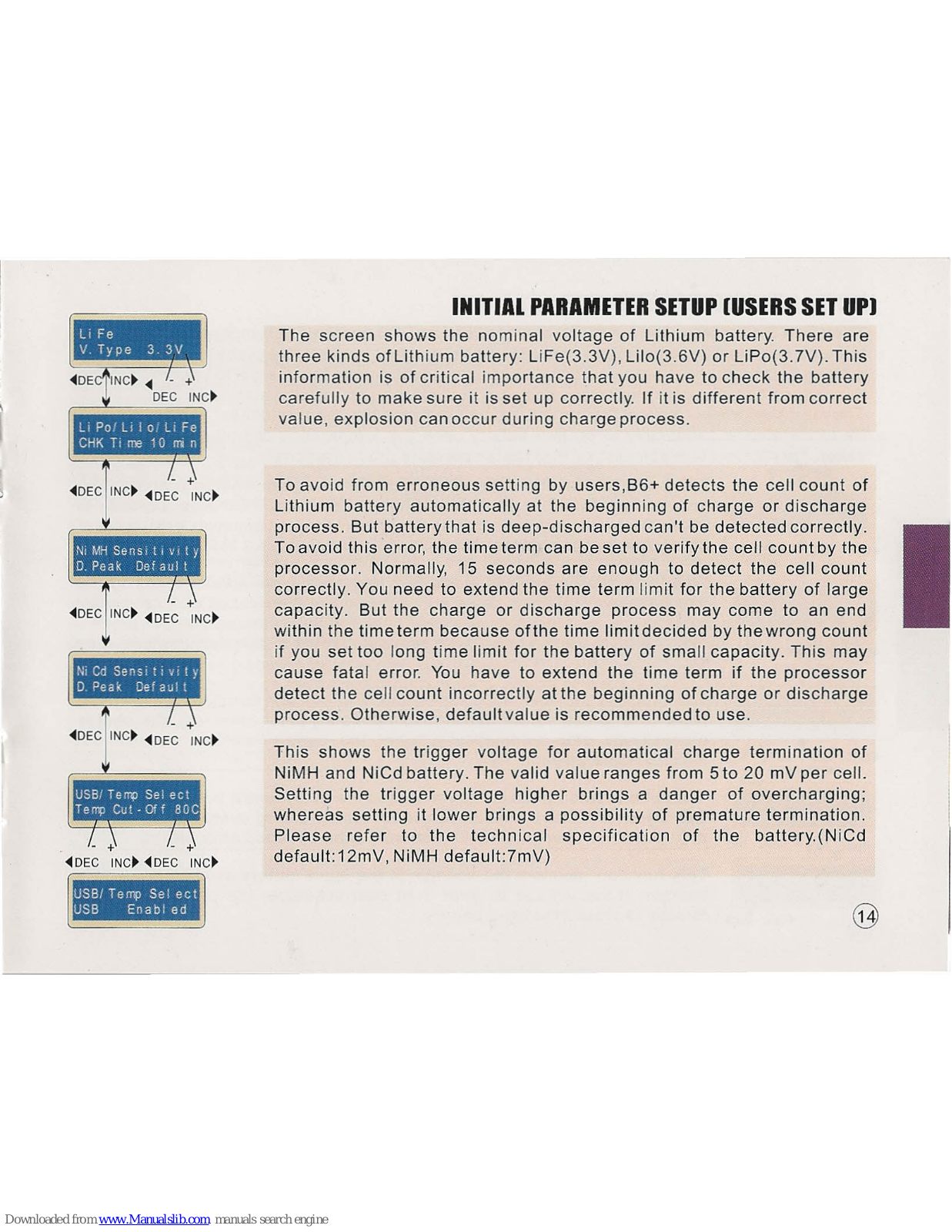

The screen shows the nominal voltage of Lithium battery. There are
three kinds of Lithium battery: LiFe(3.3V), Lilo(3.6V) or LiPo(3. 7V). This
information is of critical importance that you have to check the battery
carefully to make sure it is set up correctly. If it is different from correct
value, explosion can occur during charge process.
To avoid from erroneous setting by users,B6+ detects the cell count of
Lithium battery automatically at the beginning of charge or discharge
process. But battery that is deep-discharged can't be detected correctly.
Toavoid this error, the time term can beset to verifythe cell countby the
processor. Normally, 15 seconds are enough to detect the cell count
correctly. You need to extend the time term limit for the battery of large
capacity. But the charge or discharge process may come to an end
within the time term because ofthe time limit decided by the wrong count
if you set too long time limit for the battery of small capacity. This may
cause fatal error. You have to extend the time term if the processor
detect the cell count incorrectly at the beginning of charge or discharge
process. Otherwise, default value is recommended to use.
I
This shows the trigger voltage for automatical charge termination of
NiMH and NiCd battery. The valid value ranges from 5 to 20 mV per cell.
Setting the trigger voltage higher brings a danger of overcharging;
whereas setting it lower brings a possibility of premature termination.
Please refer to the technical specification of the battery.(NiCd
default: 12mV, NiMH default:7mV)
INITIAl PARAMETER SETUP lOSERS SET UP)
There is a 3-pin port on the left of the charger used as USB interface or temperature sensor port.
If the screen displays temperature, you can use the optional temperature probe to connect tothe
surface of the battery, Ifit is set as the USB port, you can connect the chargerto your PC through
the optional USB cable to monitor the charging process through optional software.
The maximum temperature of the battery can be setduring the charge process. The process will
be terminated automatically to protect battery once the temperature of battery reaches this
value. T",hisfeature is accomplished through temperature probe (optional).
~DEG.I;lNC~
The battery becomes warm after cycles of Charge/discharge process. The
program will insert a time delay after each charge/discharge process to
allow the battery enough time to cool down before beginning next cycle of
charge/discharge process. Thevalid value ranges from 1 t060 minutes.
I
When the charge process starts, the integrated safety timer starts to run
simultaneously. If error detected or the termination circuit can not detect
whether the battery is fully charged or not, this unit is programmed to prevent
overcharging. Please refer to the below statement to calculate the timer you
set.
The program provides maximum capacity protection function. If the Oelta-
peak voltage can not be detected or the safety timer times out, the charge
process will stop automatically, when the battery reaches the user-set
maximum charge capacity,
The beep to confirm users' operation sounds every time a button is pressed.
The beep or melody sounds at various times during operation to confirm
different mode change. These functions can be switched on or off.
This function monitors the voltage of the input battery used to power this
charger. If the voltage is lower than user-set value, the program will end
forcibly to protectthe input battery.
INITIAL PARAMETER SOUP [USERS SETUP]

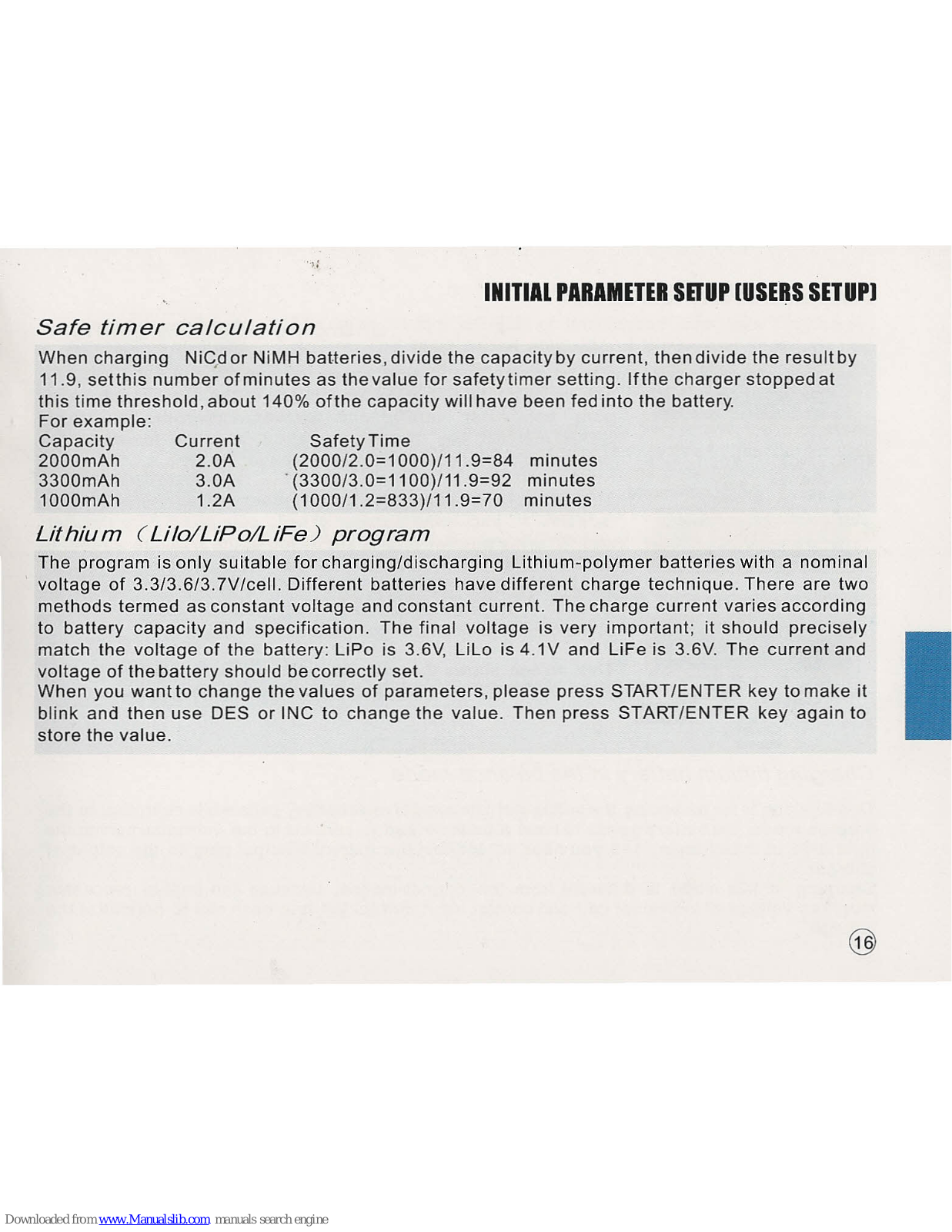

Safe timer calculation
When charging NiC,d or NiMH batteries, divide the capacity by current, then divide the result by
11.9, setthis number of minutes as the value for safety timer setting. Ifthe charger stopped at
this time threshold, about 140% ofthe capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A· (3300/3.0=11 00)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes
Lithium (LiloILiPoILiFe) program
The program is only suitable for charging/discharging Lithium-polymer batteries with a nominal
voltage of 3.3/3.6/3.7V/cell. Different batteries have different charge technique. There are two
methods termed as constant voltage and constant current. The charge current varies according
to battery capacity and specification. The final voltage is very important; it should precisely
match the voltage of the battery: LiPo is 3.6V, LiLo is 4.1V and liFe is 3.6V. The current and
voltage of the battery should be correctly set.
When you wantto change the values of parameters, please press START/ENTER key tomake it
blink and then use DES or INC to change the value. Then press START/ENTER key again to
store the value.
I
@
CHARGING OF LITHIUM BATTERY
I""",
"'DEC INC~
I
"'DEC INC~
Batt type Start
Stop Enter
'>3
seconds'
[ 1
I
Start
~ Enter
Li 3s 1. 2A 12 5 9V
BAL
a
22 4 3 0 0682
NumberCharging
~~IIS
time . voltage capacity
Charging
current
Charging
of
lithium battery
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set, After setting the current and voltage, press
START/ENTER key for more than 3 seconds to start the
process.(charge current: O.1-5.0A, voltage: 1-5V).
This displays the number of cells you set up and the processor
detects. "R" shows the number of cells detected by the charger
and "S" isthe number of cells set byyou at the previous screen. If
both numbers are identical you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
Charging lithium battery in the balance mode
This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the
balance mode, the battery needs to have a balance lead to connect to the individual port at the
right side of the charger. And you need to connect the battery's output plug to the output of
charger.
Charging in this mode is different from the normal modes, because the built-in processor
monitors voltage of individual cell and control input current fed into each cell to normalize the
voltage.
@
I"",
:: I -~
~DEC INC~ ~DEC INC~ This displays the number of cells you set up and the processor
B~;ot~pe ~~~:t?3 seconds'
detects. "R" shows the number of cells detected by the charger and
"S" is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press
START/ENTER button. If not, press BATTTYPE/STOP button to go
back to previous screen to carefully check the number of cells of
the battery pack before going ahead.
R 3SER S 3SER
CONFIRM(ENTER)
LI3S 2.0A 12 59V
FAS 02243 00682
,
CHARGING OF LITHIUM BATTERY
The value on the left side of the second lines sets the charge
current. The value on the right side of the second lines sets the
battery pack's voltage. After setting current and voltage, press
STAR/ENTER formore than 3seconds to start the process.
This screen shows the real-time status during charge process.
Press BATTTYPE/STOP key once to stop the charge process.
Charging Suppiled Current
Numbertime capacity voltage
of Charge battery
cells current
Individual cell connection diagram (pin-assignment of B-pin)
I
I
@
FAST CHARGING OF LITHIUM BATTERY
Fast charging of lithium battery
[
~
Charging current will become lower when it progress to the end of
"""
•• • charging. Aspecific
CV
process will be reduced to end thecharging
,. process earlier. In fact. the charging current will goes to 1/5 when
the charging process comes to 1/10. Charging capacity will be a
_ +
11I1 -
+
little smaller than normal charging. but charging time will be
"'DEC INC~ "'DEC INC~
shortened accordingly.
Batt type Start, ,
Stop Enter>3seconds
You can set up the charging current and voltage ofthe battery pack.
r+: --','----__ ----, .
Press START/ENTER key to display voltage confirmation. Then
press START/ENTER key againto confirm and begin to charge.
LI3S 20A 1259V
FAS 022
4.3
00682
This screen shows the real-time status of "fast charging". Press
BATTTYPE/STOP keyonce to stop the charge process.

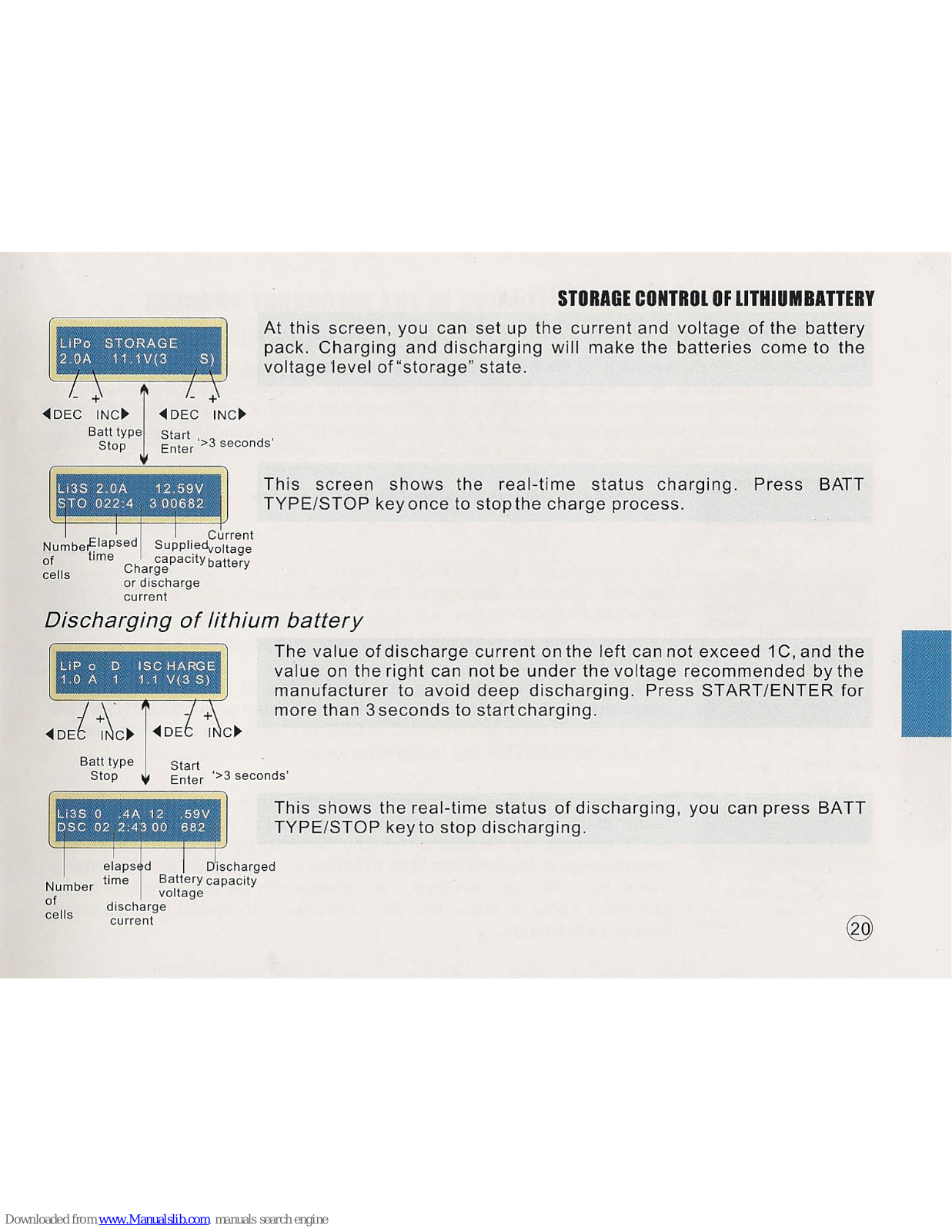

Storage control of lithium battery
This function is for charging/discharging batteries which are not used at once. This program is
designed for charging or discharging of batteries of specific original state. Theyare classified by
types:
3.75V
l.ilo,
3.85V
LiPo and
3.3V
LiFe. The program will begin to discharge if the original
state of the battery exceeds the voltage level of storage.
@
"",I
~DEC INC~I~DEC INC~
Batt type Start
Stop Enter '>3 seconds'
STORAGE CONTROL OF lITHIUMBATTERY
At this screen, you can set up the current and voltage of the battery
pack Charging and discharging will make the batteries come to the
voltage level of "storage" state
This screen shows the real-time status charging. Press BATT
TYPE/STOP key once to stop the charge process.
LIP 0 0
ISC
HARGE
1 0 A 1 1 1 V{3 S)
Discharging of lithium battery
The value of discharge current on the left can not exceed 1C, and the
value on the right can not be under the voltage recommended by the
manufacturer to avoid deep discharging. Press START/ENTER for
more than 3seconds to start charging.
I
Batt type
Stop
Start
Enter '>3 seconds'
,--------,
Lr3S 0 4A 12 59V
DSC 02 24300 682
This shows the real-time status of discharging, you can press BATT
TYPE/STOP key to stop discharging.

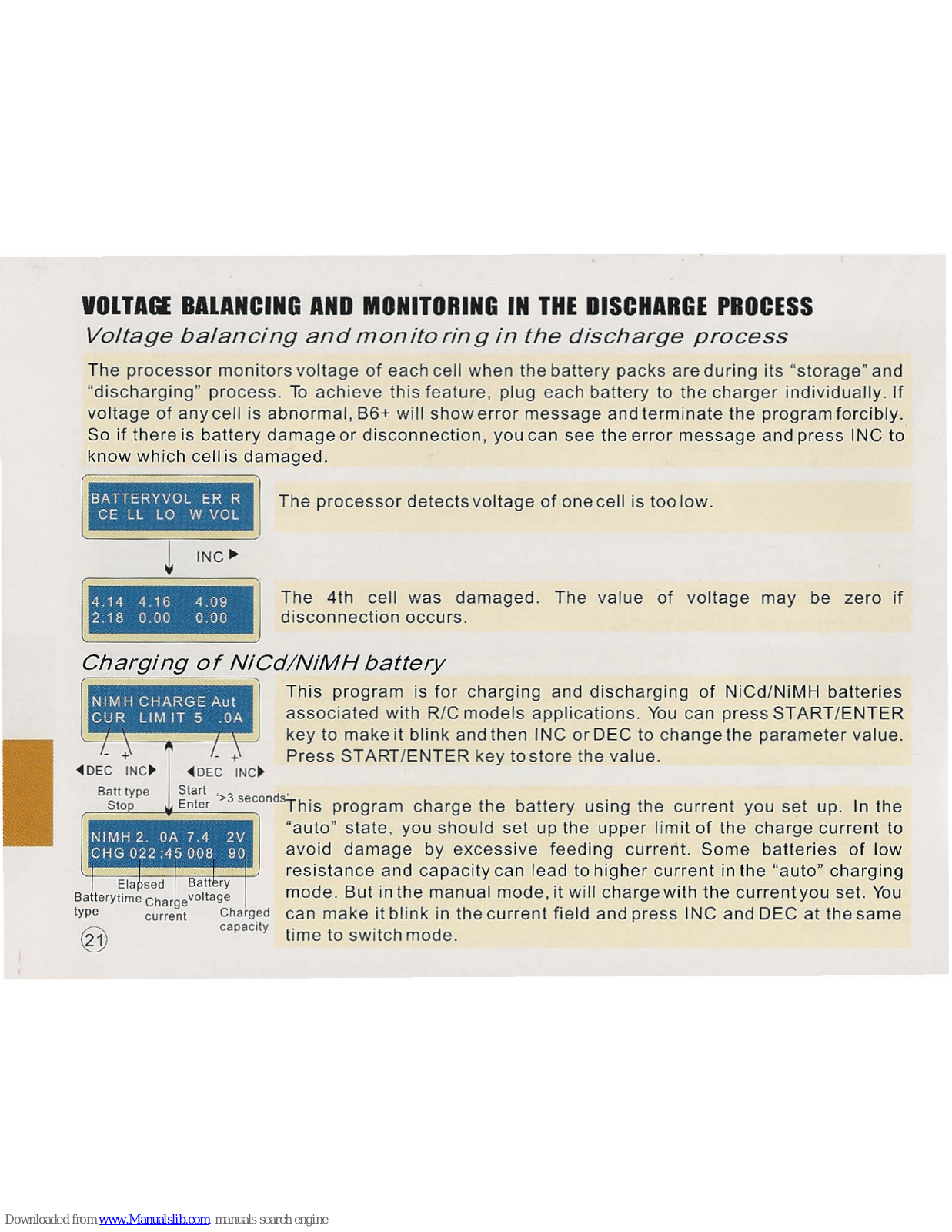

VOlTAGE BALANCING AND MONITORING IN THE DISCHARGE PROCESS
Voltage balancing and monitoring in the discharge process
The processor monitors voltage of each cell when the battery packs are during its "storage" and
"discharging" process. To achieve this feature, plug each battery to the charger individually. If
voltage of anycell is abnormal, B6+ will show error message and terminate the program forcibly.
So if there is battery damage or disconnection, you can see the error message and press INC to
know which cell is damaged.
BATTERYVOL ER R
CE LL LO W VOL
The processor detects voltage of one cell is too low.
I
INC~
'I'
1
The 4th cell was damaged. The value of voltage may be zero if
disconnection occurs.
'--------------'
4 14 4 16 4 09
2 18 0 00 0 00
~DEC INC~
Start '>3 second' . .
~-'="'-_'-'E"'n""e'--r _-,
"ThiS program charge the battery usmq the current you set up. In the
"auto" state, you should set up the upper limit of the charge current to
avoid damage by excessive feeding currerit. Some batteries of low
resistance and capacity can lead to higher current in the "auto" charging
mode. But inthe manual mode, it will charge with the current you set. You
can make it blink in the current field and press INC and DEC at the same
V
time to switch mode.
NIMH
2 OA 74 2V
CHG 022 45008 90
----~-------.---
The screen shows the real-time status. Press BATT TYPE/STOP key to end the program. The
sound will emitted to indicates the end of program.

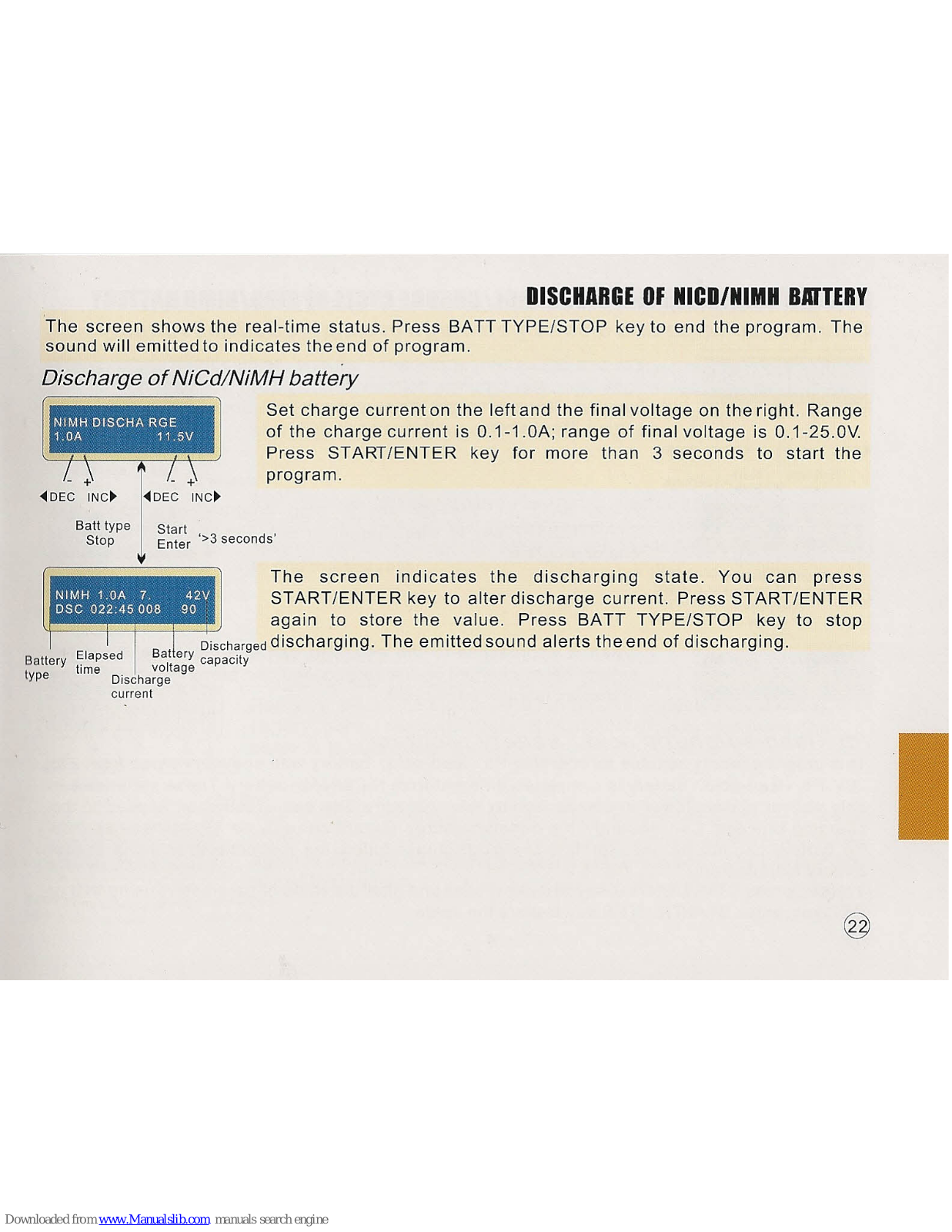

DISCHARGE OF NICD/NIMH BMTERY
Discharge of NiCdlNiMH battery
[ 1
t ~ ~ t ~
~DEC INC~ ~DEC INC~
Set charge current on the left and the final voltage on the right. Range
of the charge current is O.1-1.0A; range of final voltage is O.1-25.0V
Press START/ENTER key for more than 3 seconds to start the
program.
The screen indicates the discharging state. You can press
START/ENTER key to alter discharge current. Press START/ENTER
again to store the value. Press BATT TYPE/STOP key to stop
Discharged
discharging. The emitted sound alerts the end of discharging.
Battery
~~~sed
e~I~:~~
capacity
type Discharge
current
NIMH 1 OA 7 42V
DSC 022 45008 90
I
CHARGE/DISCHARGE AND DISCHARGE/CHARGE CYCLE OF NICD/NIMH BATTERY
Charge/discharge and dischargeich arge cycle of NiCd/NiMH battery
I"",
-40EC INC~ -40EC INC~
NIMH 1 OA 7 42V
D>C 022 4 5 00890
Elapsed Battery Discharged
BatterYtime voltage or charged
type Discharge capacity
or charge
current
OCHG 1 131 4mAh
CHG 1 143 OmAh
You can set up sequence on the left and the number of cycles on. the
right. You can balance, refresh and break-in the battery with this
function .You can set a temporary cool-off procedure in the user's
setting. Range of the cycle number is 1-5.
Press BATT TYPE/STOP key to stop program, you can press
START/ENTER key to alter charge current. The sound indicates the
end of program.
When it approaches to the end, you can see the capacity of the
battery being charged or discharged. You can press INC or DEC key
to display result of each cycle.
Pb (fead-sulphuric acid) battery program
.This program is only suitable for charging Pb (lead-acid) battery with nominal voltage from 2 to
20V. Pb (lead-acid) battery is completely different from NiCd/NiMH battery. These batteries can
only deliver current lower in comparison to their capacity. The same restriction applies to the
charging process. Consequently, the optimum charge current can only be 1/10 oi the capacity.
Pb battery can not be used for fast-charging, please follow the instructions provided by the
battery manufacturer.
You can press START/ENTER key to make it blink and alter the value of parameters using INC or
DEC key, press START/ENTER key tostore the value.
@

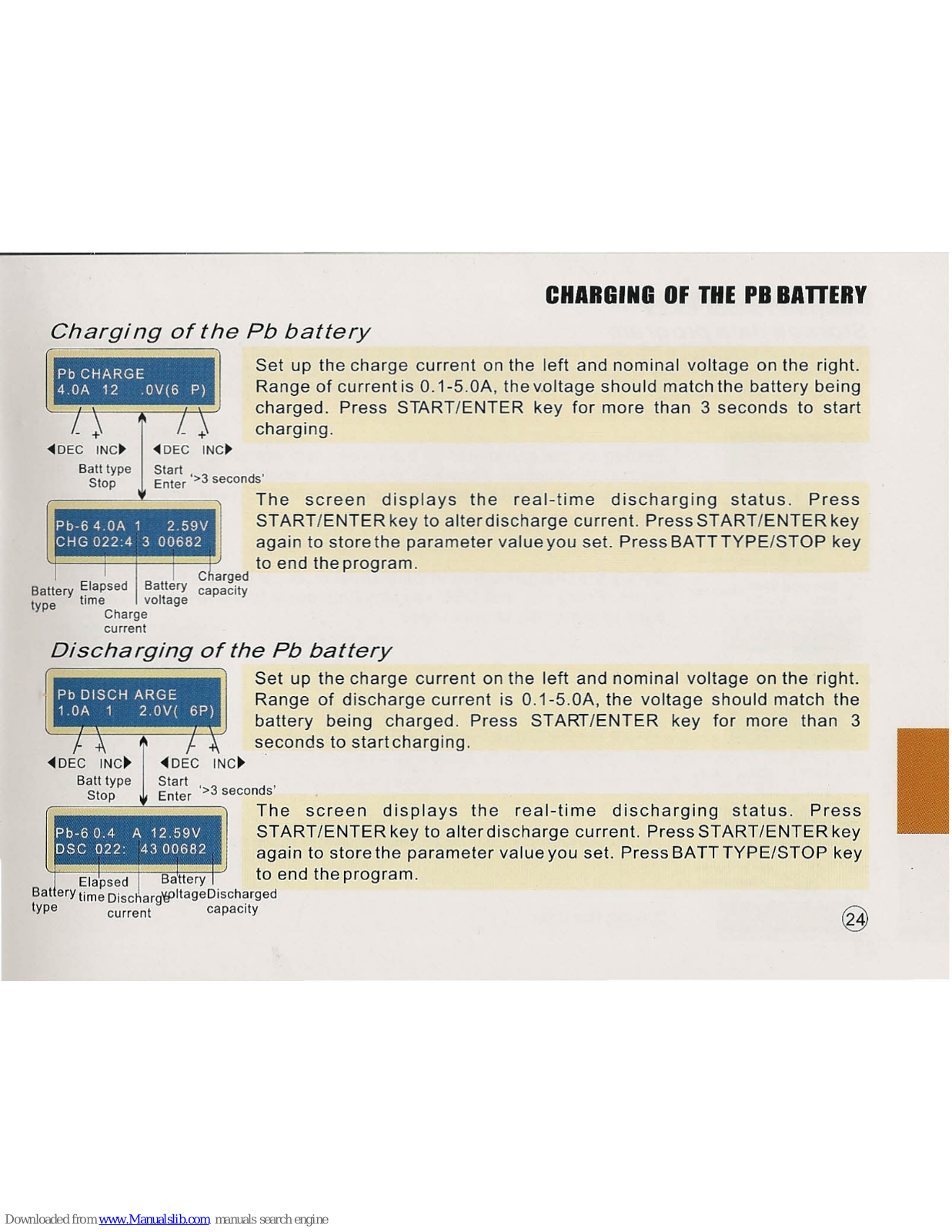

CHARGING OF THE PB BATTERY
Charging of the Pb battery
[n · n
~ DEC INC. ~DEC INC.
Batt type
Stop
Set up the charge current on the left and nominal voltage on the right.
Range of current is O.1-S.0A, the v.oltage should match the battery being
charged. Press START/ENTER key for more than 3 seconds to start
charging.
Pb-64 OA 1 2 59V
CHG 022 4 3 00682
~~~:r
'>3 seconds'
The screen displays the real-time discharging status. Press
START/ENTER key to alter discharge current. Press START/ENTER key
again to store the parameter value you set. Press BATT TYPE/STOP key
to end the program.
C arged
capacity
I
STORAGE
DATA PROGRAM

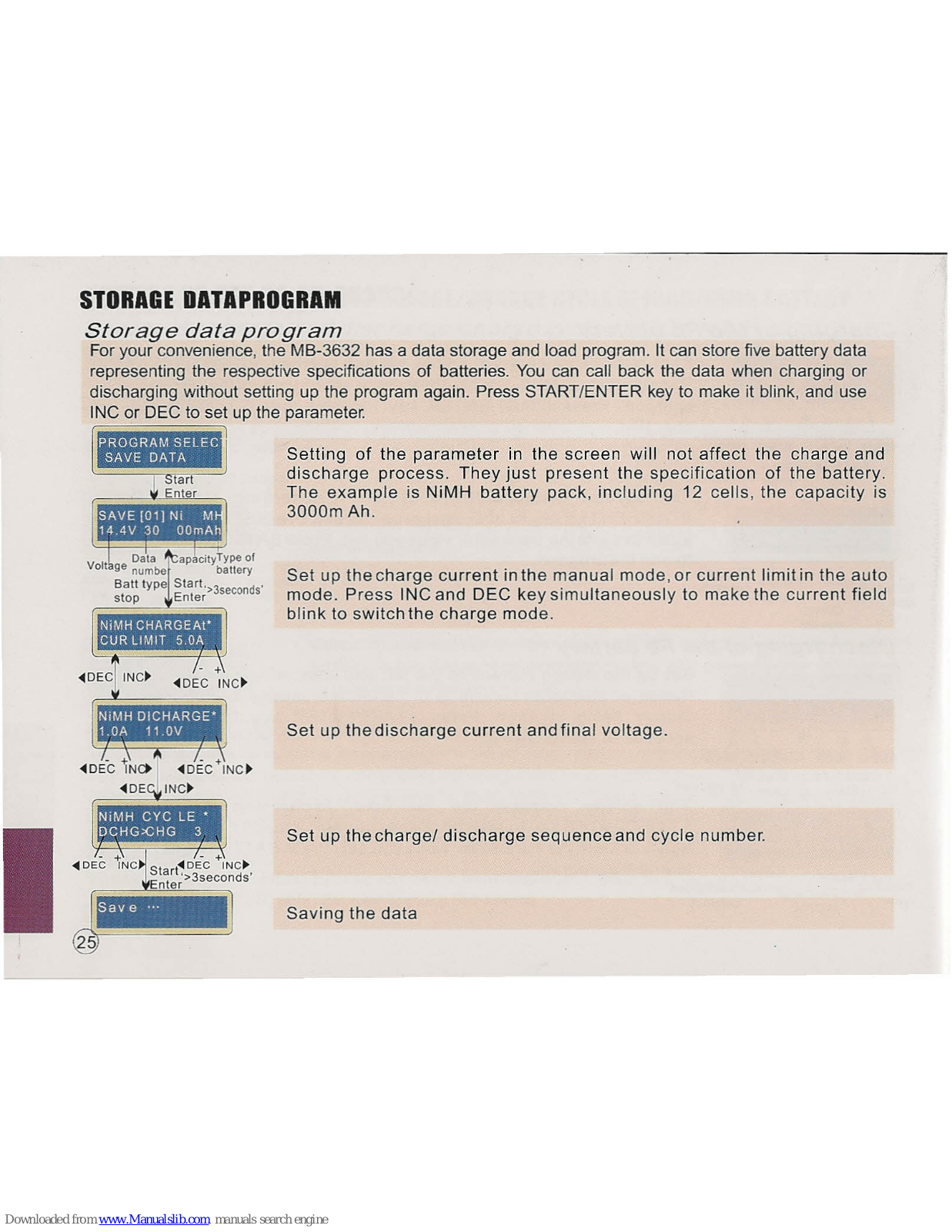

Storage data program
For your convenience, the MB-3632 has a data storage and load program. It can store five battery data
representing the respective specifications of batteries. You can call back the data when charging or
discharging without setting up the program again. Press START/ENTER key to make it blink, and use
INC or DEC to set up the parameter.
[-I
I
Start
E
er
Volt ge
~~::be'tt,t
apacitY~~ft:~1
,iJlf"
~DECIINC~ ~DE~ ~NC~
~
~
~DEC iN~
I
~DEC+INC~
~DE INC~
I
Setting of the parameter in the screen will not affect the charge and
discharge process. They just present the specification of the battery.
The example is NiMH battery pack, including 12 celis, the capacity is
3000m Ah.
Set up the charge current in the manual mode, or current limit in the auto
mode. Press INC and DEC key simultaneously to make the current field
blink to switch the charge mode.
Set up the discharge current and final voltage.
Set up the charge/ discharge sequence and cycle number.
Saving the data

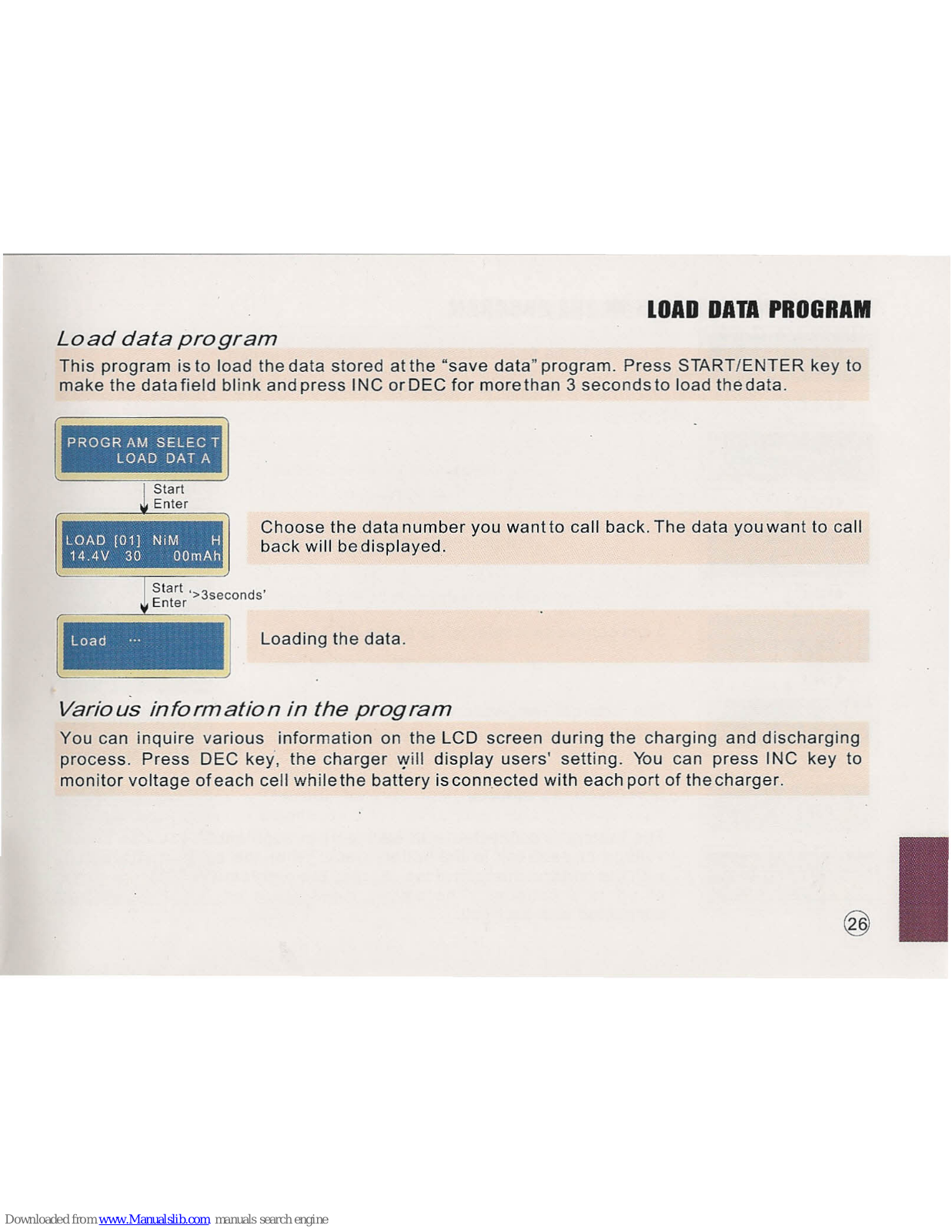

lOAD DATA PROGRAM
Load data program
This program is to load the data stored atthe "save data" program. Press START/ENTER key to
make the data field blink and press INC orDEC for more than 3 seconds to load the data.
PROGR AM SELEC T
LOAD DAT A
I
Start
Enter
LOAD
[OlJ
NIM H
144V 30 OOmAh
Choose the data number you wantto call back. The data you want to call
back will bedisplayed.
Load ...
Loading the data.

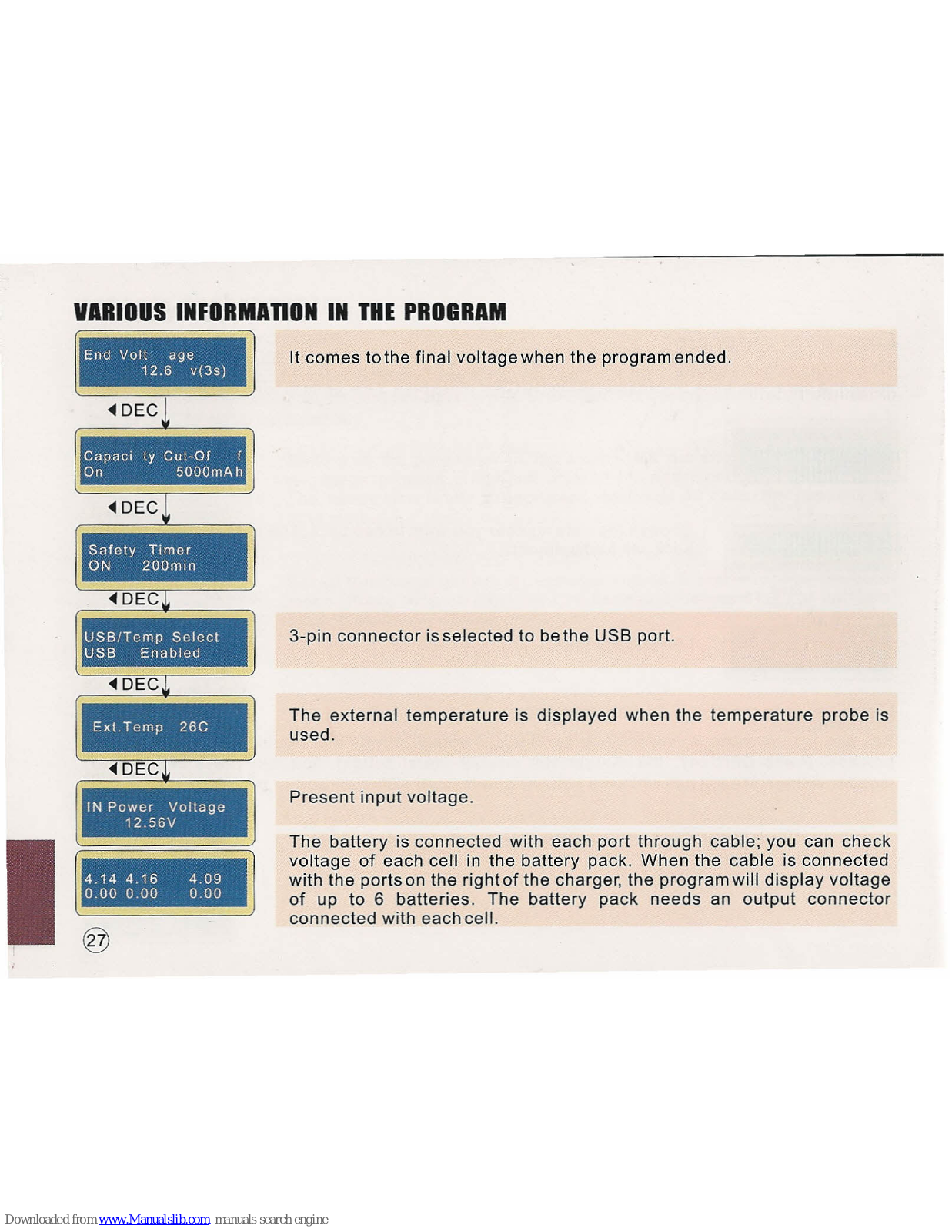

Various information in the program
You can inquire various information on the LCD screen during the charging and discharging
process. Press DEC key, the charger ..yill display users' setting. You can press INC key to
monitor voltage of each cell while the battery is connected with each port of the charger.
I
VARIOUS INFORMAnON IN THE PROGRAM
[ 1
It comes tothe final voltage when the programended.
<4DEC
I
••
USB/Temp Select
USB Enabled
Ext Temp 26C
I
I
IN Power Voltage
12.56V
4 14 4 16 4 09
o
00 0 00 0 00
3-pin connector is selected to be the USB port.
The external temperature is displayed when the temperature probe is
used.
Present input voltage.
The battery is connected with each port through cable; you can check
voltage of each cell in the battery pack. When the cable is connected
with the ports on the rightof the charger, the program will display voltage
of up to 6 batteries. The battery pack needs an output connector
connected with each cell.
WARNING AND ERROR MESSAGE
Warning and error message
The MB-3632 incorporates a variety of functions for the systems to verfy processes and the state of the
electronics.
In
case of an error the screen will display the cause of the error and emit an audible sound.
REVERSE POLARITY
CONIlECTI ON BREAK
SHORf ERR
INPU T VOL E RR
~=l
~l
BREAK DOWN
BATTERY CHECK
LOW VOLTAGE
Incorrect polarity connected.
Battery connection is interrupted.
Short-circuit of the output termination.
1
.. J
Input allow voltage protection.
The voltage of the battery pack has been selected incorrectly!
The charger has malfunctioned for some reason. Seek professional
advice.
The voltage is lower than which is set. Please check the number of cells
in the battery pack.
I
WARNING AND ERROR MESSAGE
[ 1
[ 1
[ 1
[ 1
[ 1
[ 1
The voltage is higher than which is set. Please check the number of
cells in the battery pack.
Voltage of one cell in the battery pack is too low, please check the
voltage of each cell.
Voltage of one cell in the battery pack is too high; please check the
voltage of each cell.
Wrong connection of the connector detected; please check the
connector and cable.
The internal temperature is too high, please cool down.
The processor cannot control the feeding current, please repair it.

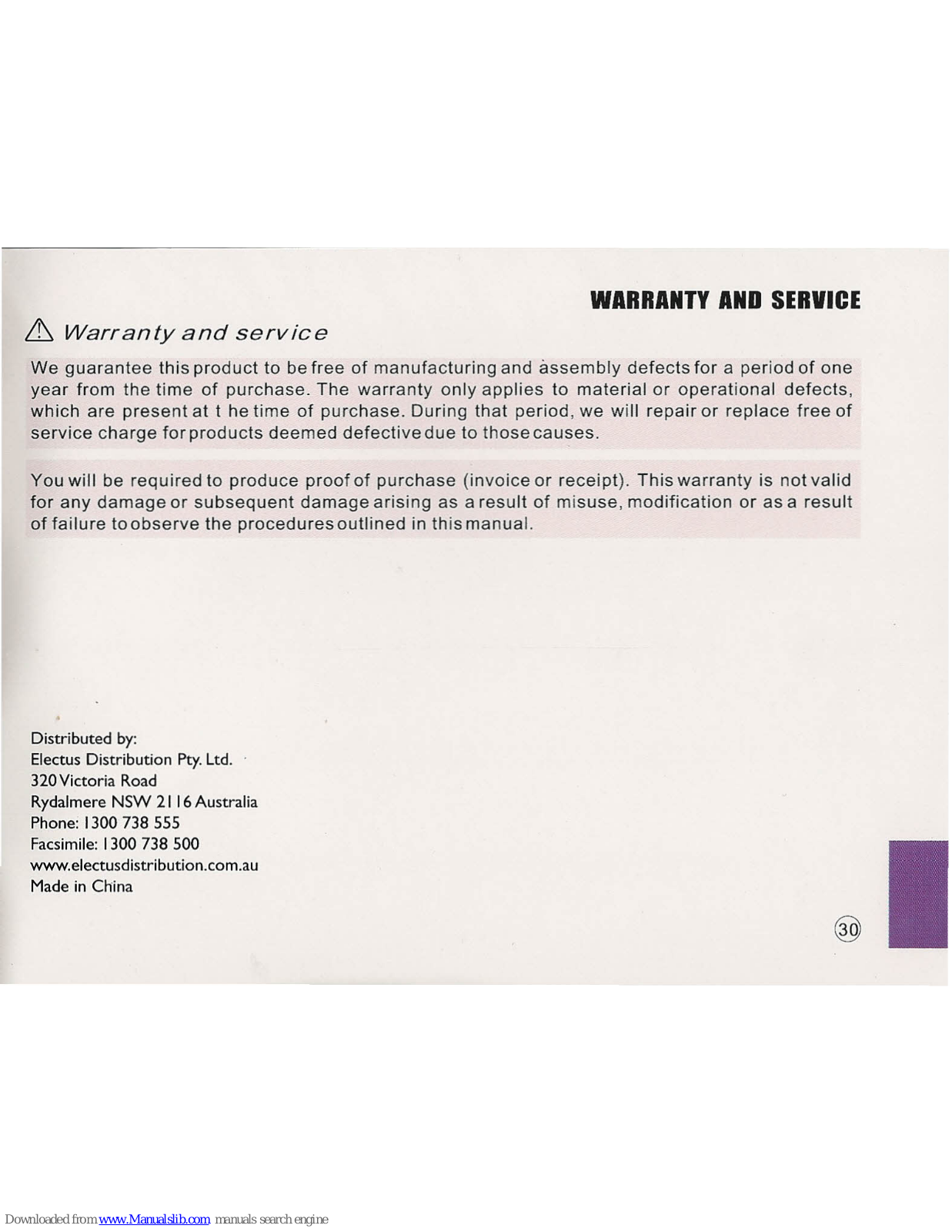

WARRANTY AND SERVICE
&
Warranty and service
We guarantee this product to be free of manufacturing and assembly defects for a period of one
year from the time of purchase. The warranty only applies to material or operational defects,
which are present at t he time of purchase. During that period, we will repair or replace free of
service charge for products deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid
for any damage or subsequent damage arising as a result of misuse, modification or as a result
of failure to observe the procedures outlined in this manual.
Distributed by:
Electus Distribution Pty. Ltd.
320 Victoria Road
Rydalmere NSW 21 16Australia
Phone: 1300 738 555
Facsimile: I300 738 500
www.electusdistribution.com.au
Made in China
I
"
Programmable LiPO Balance Charger
MB-3632
.
. - All specifications and fiqures are subjectto change without notice. ~ (~
A
•. Printed
10
China
© 2010 . _ ~ ~ _
•• -' •• :c•. '~
Loading...
