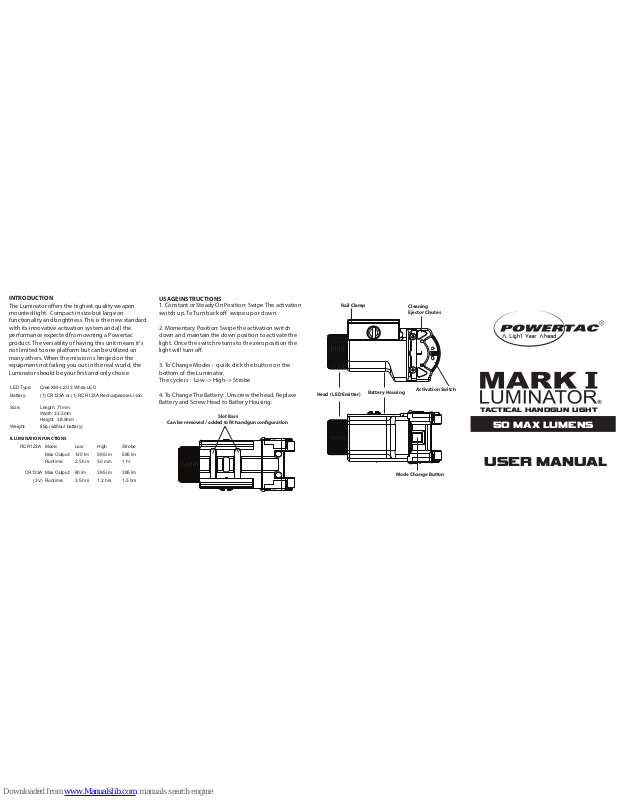

PowerTac MARK I LUMINATOR User Manual

USER MANUAL

INTRODUCTION

The Luminator oers the highest quality weapon
mounted light. Compact in size but large on
functionality and brightness. This is the new standard
with its innovative activation system and all the
performance expected from owning a Powertac
product. The versatility of having this unit means it's
not limited to one platform but can be utilized on
many others. When the mission is hinged on the
equipment not failing you out in the real world, the
Luminator should be your rst and only choice

1. Constant or Steady On Position: Swipe The activation
switch up. To Turn back o swipe up or down.

2. Momentary Position: Swipe the activation switch
down and maintain the down position to activate the
light. Once the switch returns to the zero position the
light will turn o.

3. To Change Modes : quick click the button on the
bottom of the Luminator.
The cycle is : Low -> High -> Strobe

4. To Change The Battery: Unscrew the head. Replace
Battery and Screw Head to Battery Housing.

USAGE INSTRUCTIONS

50 MAX LUMENS

TACTICAL HANDGUN LIGHT

LED Type: Cree XM-L2 U3 White LED

Battery: (1) CR123A or (1) RCR123A Rechargeable Li-ion.

Size: Length: 71mm
Width: 33.2mm
Height: 38.9mm

Weight: 85g (without battery)

Max Output: 80 lm 395 lm 395 lm

Runtime: 3.5 hrs 1.2 hrs 1.5 hrs

Mode: Low High Strobe

Max Output: 120 lm 595 lm 595 lm

Runtime: 2.5 hrs 50 min 1 hr

RCR123A

CR123A

(3V)

ILLUMINATION FUNCTIONS

Head ( LED Emitter)

Battery Housing

Slot Bars

Can be removed / added to t handgun conguration

Rail Clamp

Cleaning
Ejector Chutes

Mode Change Button

Activation Switch

FEATURES & SPECIFICATIONS

• Personalized size conguration

• Fits mid-size and full-size framed Hand Guns.

• Uses one CR123A or RCR123A Batteries

• Machined from aircraft grade aluminum with type III
anodized nish

• Digital circuit-control technology monitors light output
for consistent operation

•Precision engineered optical lens produces focused and
proportioned light

• Battery polarity protection

• IPX6 waterproof rating; submersible to 1 meters

DISCLAIMER

• After long periods of use on the highest setting, the
surface area may get hot. Please use caution when
using the ashlight in a constant high brightness level.
It is recommended to let the ashlight cool down to
prevent any injury.

• High intensity light is harmful to human eyes. This
product is not meant to be handled by children under
the age of 18 without adult supervision.

• Use the highest quality, protected-circuit batteries to
insure maximum performance and safety. Consult
with the manufacturer regarding any questions or
concerns.

• PowerTac’s liability is voided if the light is not used in a
proper manner or if modied.

• PowerTac reserves the right to change the design
and/or specications of all PowerTac products without
prior notice.

• Please do not change batteries at dangerous locations
such as gas stations. Batteries must only be changed
or removed when light is o.

• Do not use or attempt to recharge a disposable CR123
battery! Do not throw the ashlight into a re as an
explosion may occur.

Maintenance

Every 3 months, threads should be wiped with a
clean cloth followed by a thin coating of
silicon-based lubricant.

THE POWERTAC NO-HASSLE LIFETIME WARRANTY

Please visit our website at powertac.com for full
warranty policy.

WARRANTY DISCLAIMER

The above warranty is exclusive, and to the extent
permitted by applicable laws, shall be in lieu of all other
warranties, express or implied, including, without
limitation, any warranty of merchantability or tness for a
particular use or purpose. PowerTac disclaims any and all
liability for product malfunctions, physical injuries, or
property damages that result in whole, or in part, from
the criminal, negligent, or improper use of the product,
or from modications or alterations thereto. In no event
shall PowerTac be liable for any incidental, special, or
consequential damages relating to the purchase, use, or
performance of any PowerTac product.

WARRANTY CLAIMS

Please go to www.powertac.com/warranty and follow
instructions.

Patent Pending Technology

© 2017 POWERTAC USA, INC. ALL RIGHTS RESERVED

WWW.POWERTAC.COM
