Page 1
Power Spot 6 Q5 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 42574
MANUAL
ENGLISH
Page 2
Ordercode: 42574
Power Spot 6 Q5
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ................................................................................................................................................. 2
LED Expected Lifespan ................................................................................................................................................ 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7

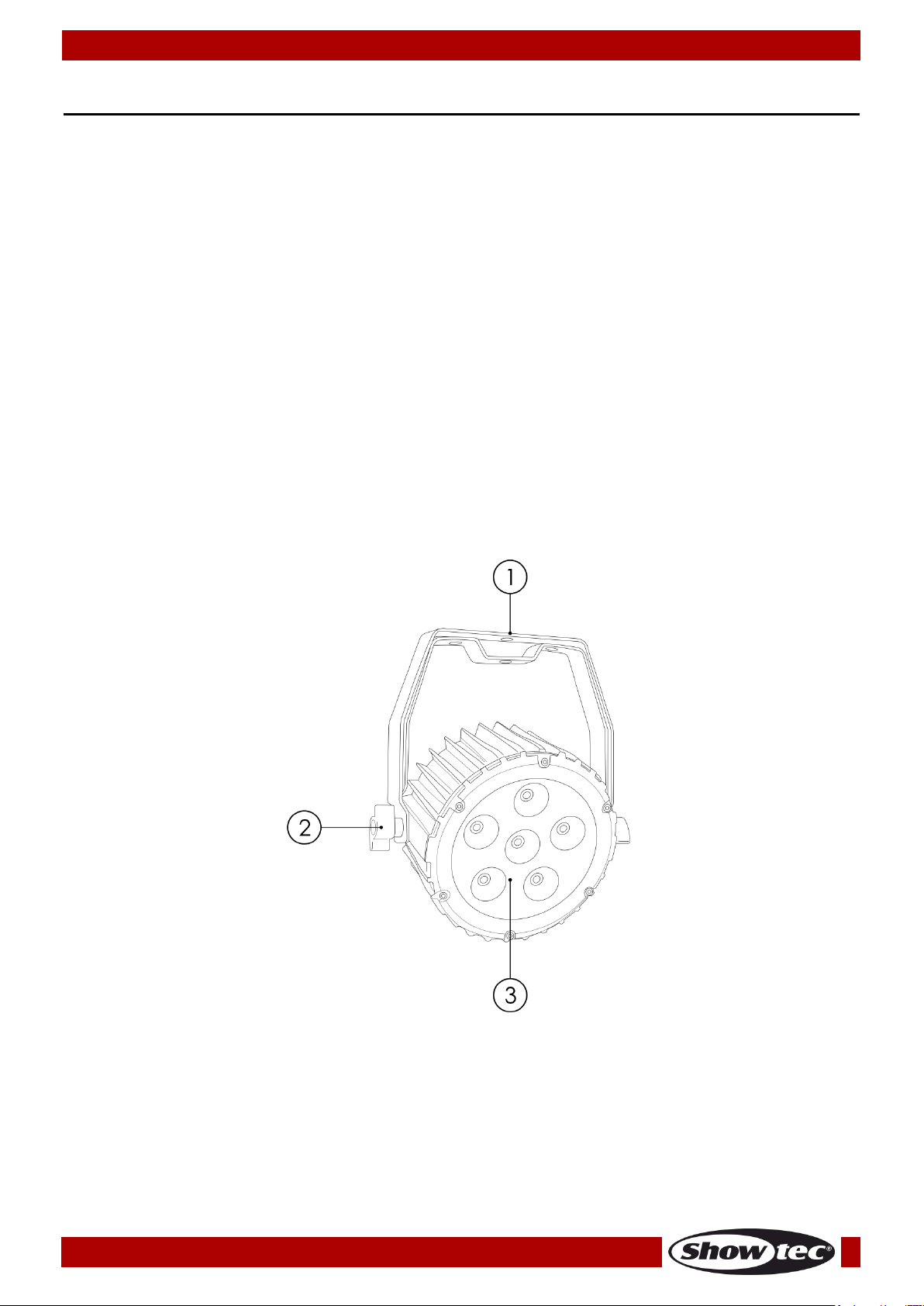

Frontside.......................................................................................................................................................................... 7

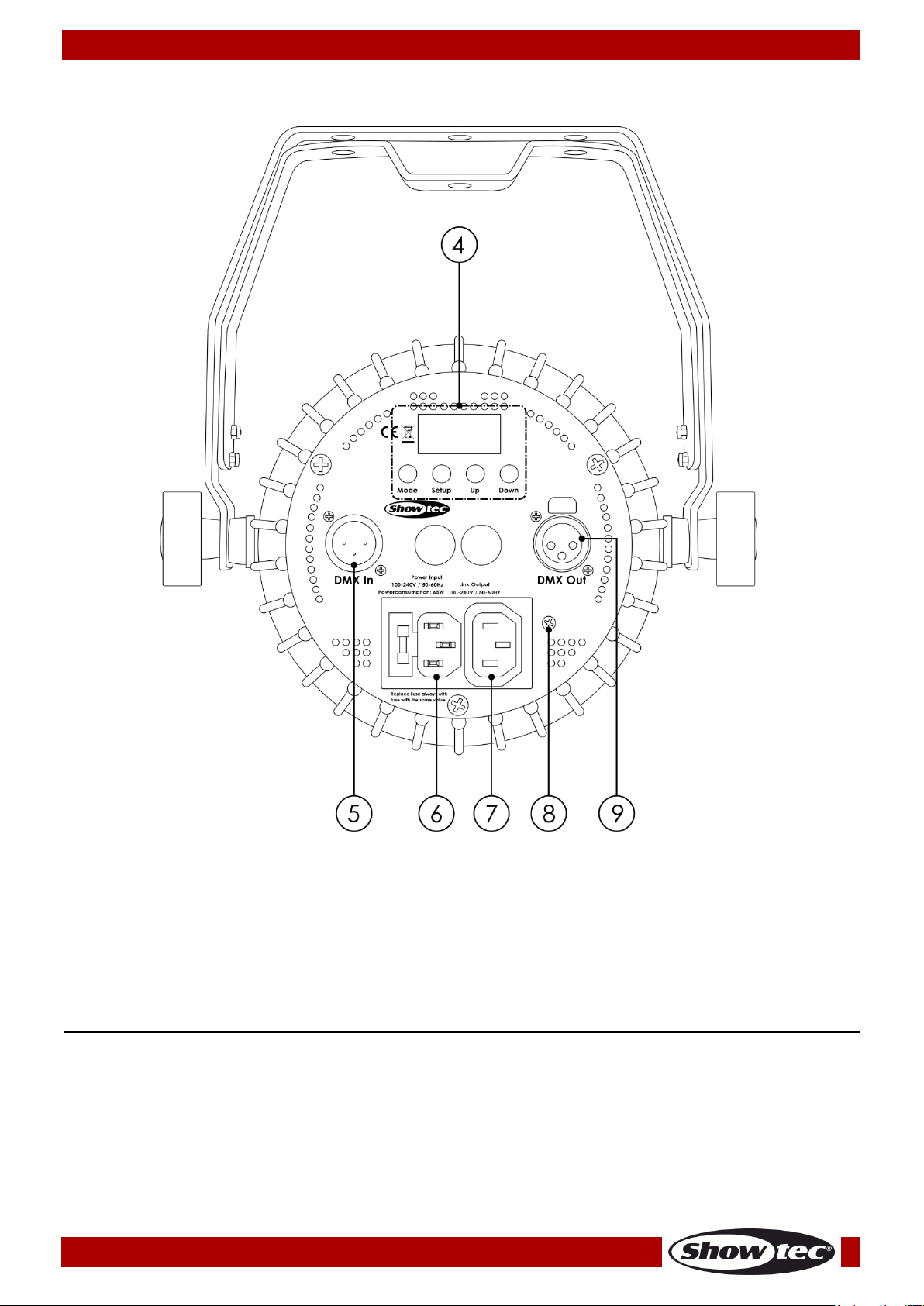

Backside ......................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 8
Set Up and Operation ....................................................................................................................................................... 9
Control Modes ............................................................................................................................................................... 9
One Power Spot (Built-in programs, Auto Mode and Manual Mode) ............................................................ 9
One Power Spot (Sound-controlled) ..................................................................................................................... 9
Multiple Power Spots (Master/Slave control) ....................................................................................................... 9
Multiple Power Spots (DMX Control) ....................................................................................................................10
Fixture Linking ...............................................................................................................................................................11

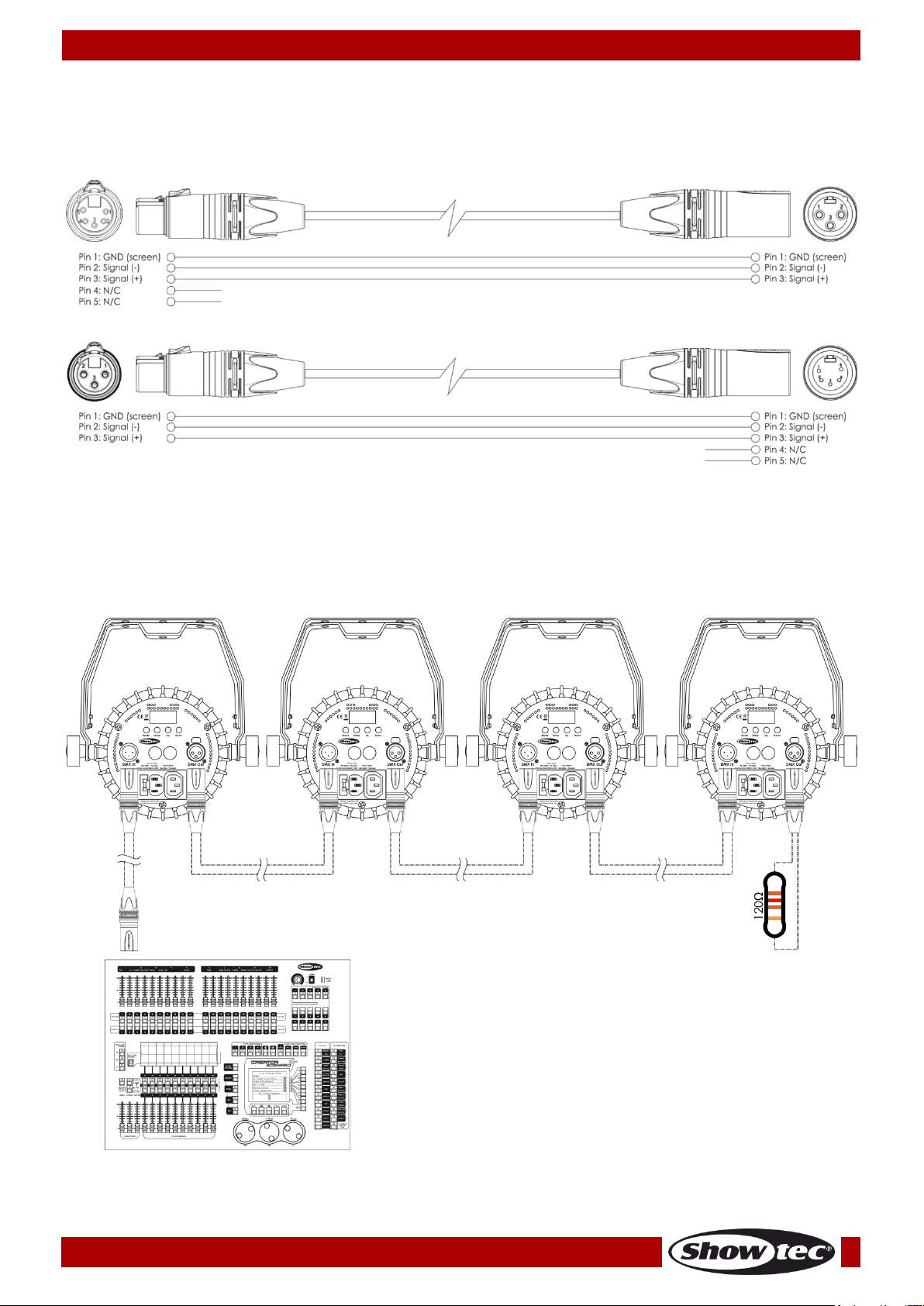

Data Cabling ...............................................................................................................................................................11

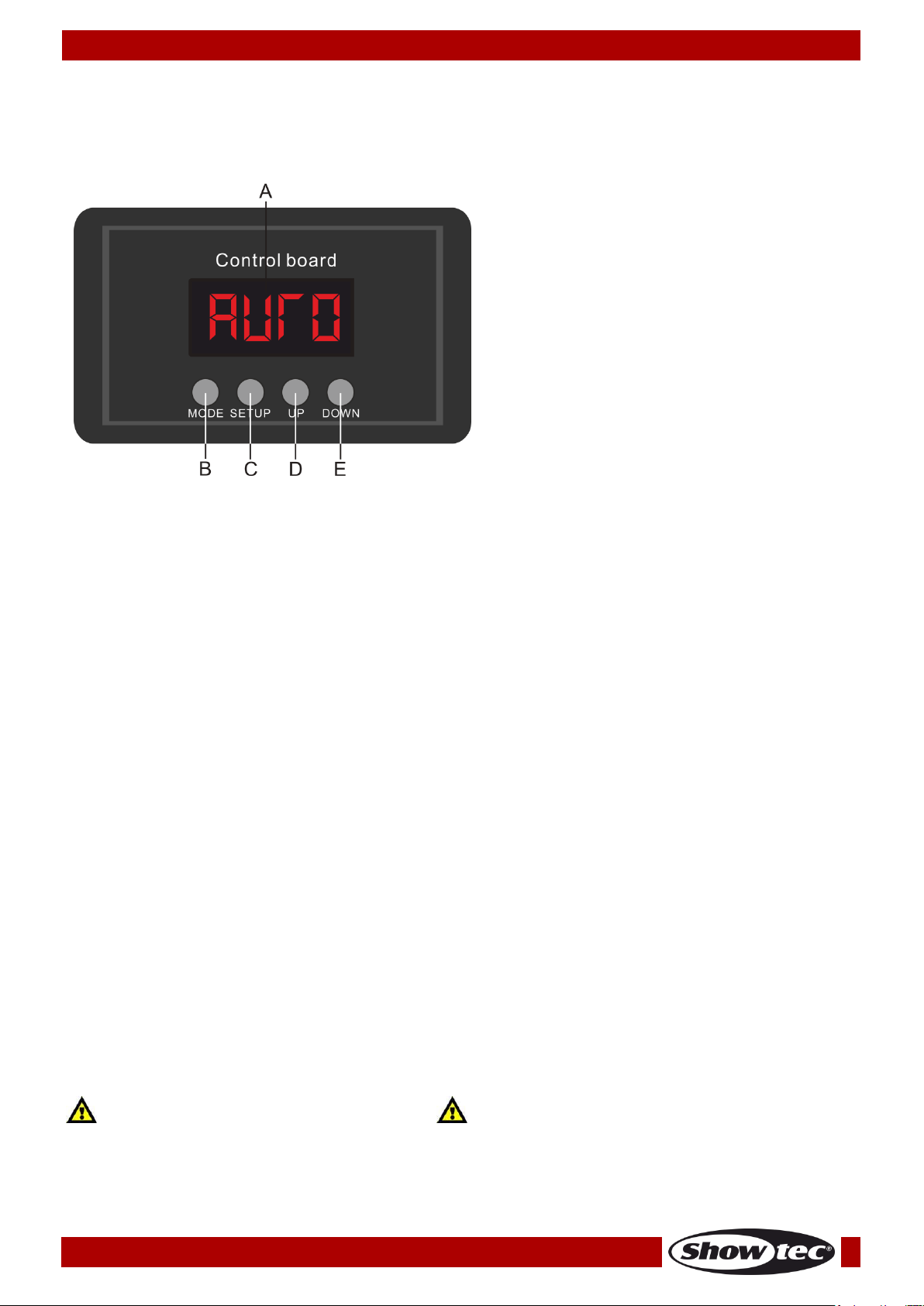

Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12

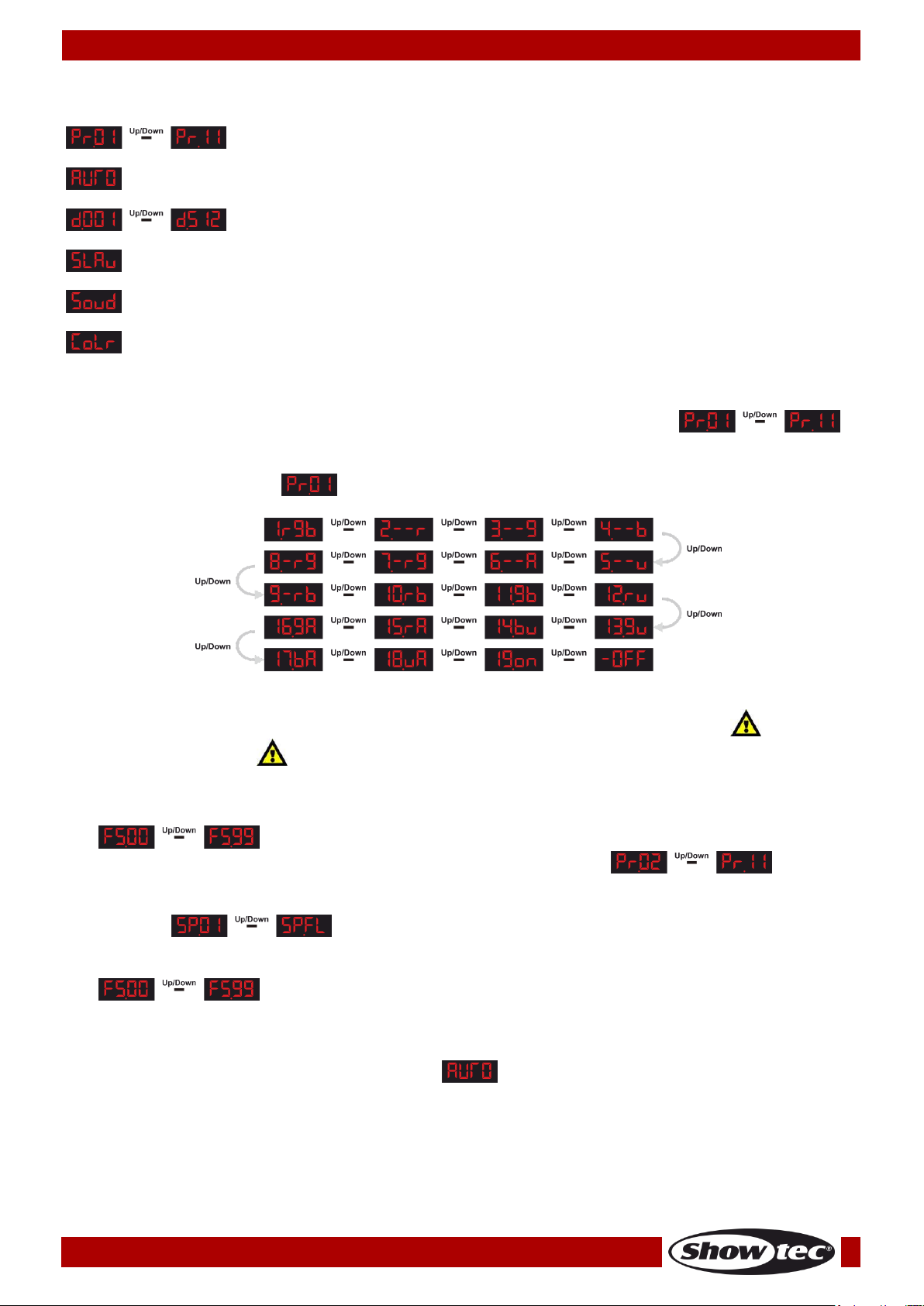

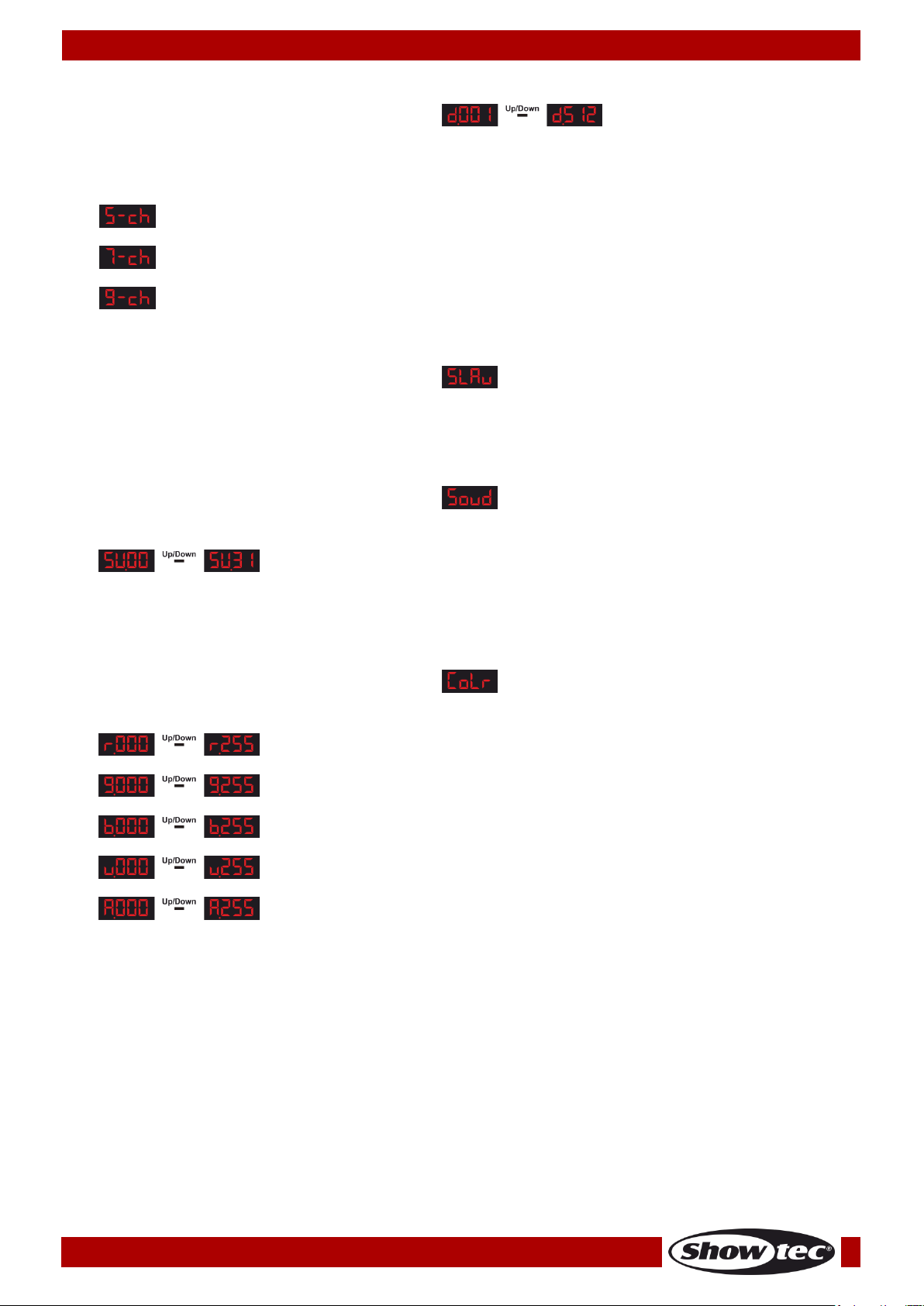

Menu Overview ...........................................................................................................................................................13
Main Menu Options ....................................................................................................................................................14
1. Built-in programs ..................................................................................................................................................14
2. Auto Mode ............................................................................................................................................................14
3. DMX-512 Mode ....................................................................................................................................................15
4. Master/Slave Mode .............................................................................................................................................15
5. Sound-controlled Mode .....................................................................................................................................15
6. Manual Mode (Static Color Mode) .................................................................................................................15
DMX Channels .............................................................................................................................................................16
5 channels .................................................................................................................................................................16
7 channels .................................................................................................................................................................16
9 channels .................................................................................................................................................................16
Maintenance ....................................................................................................................................................................18
Replacing the Fuse .....................................................................................................................................................18
Troubleshooting ...............................................................................................................................................................18
No Light .........................................................................................................................................................................18
No Response to DMX..................................................................................................................................................19
Product Specifications ....................................................................................................................................................20

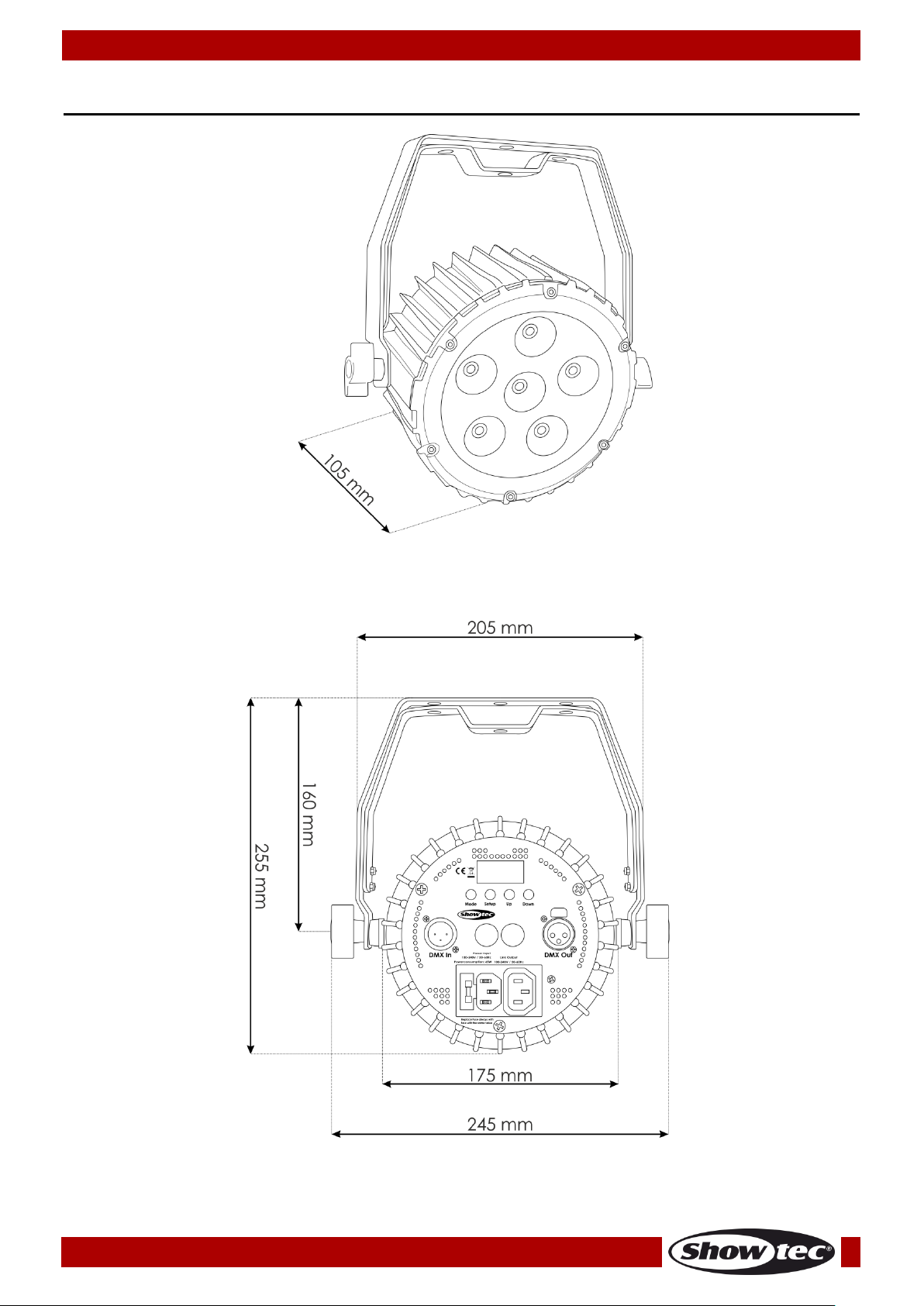

Dimensions ........................................................................................................................................................................21

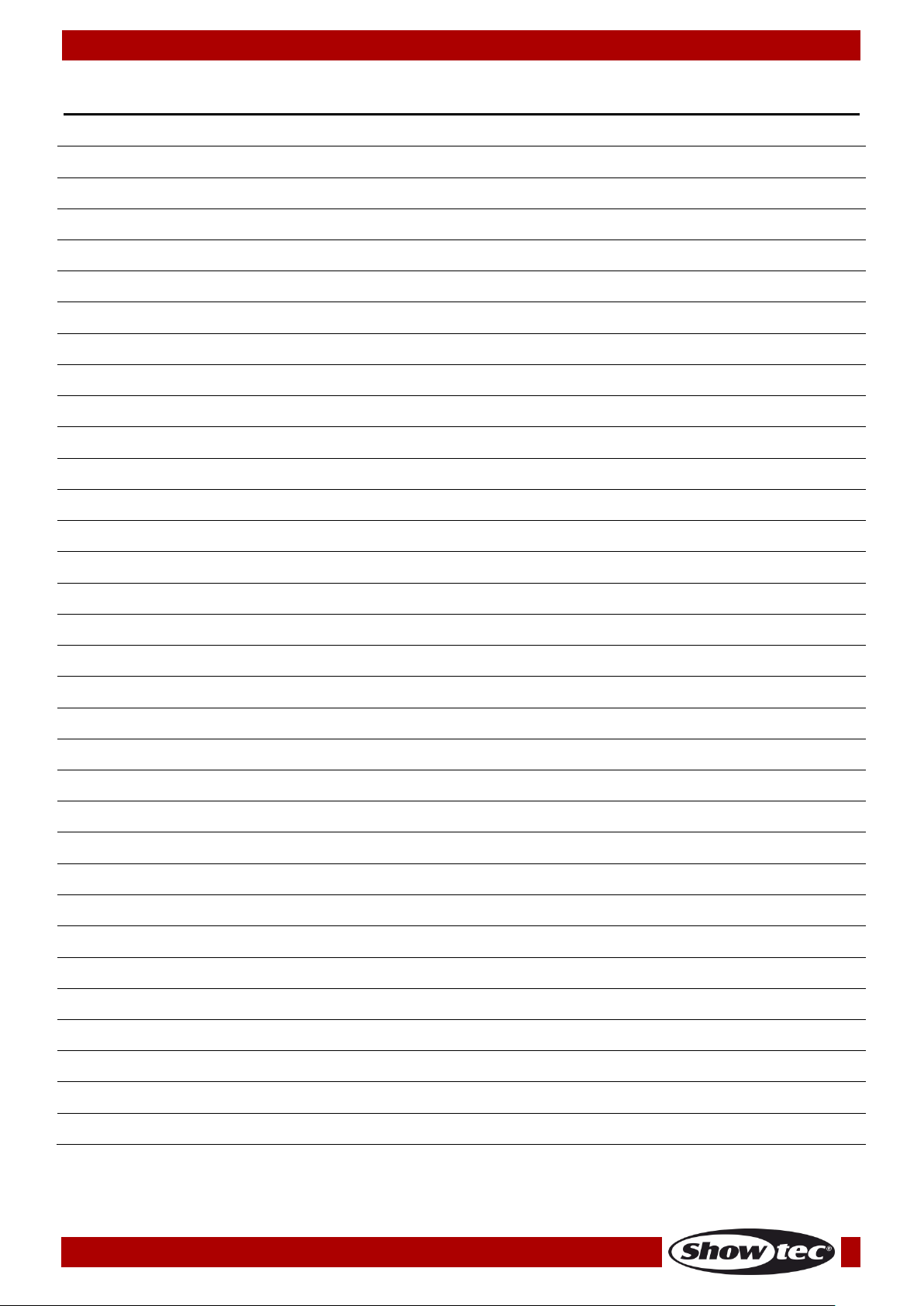

Notes ..................................................................................................................................................................................22
1
Page 3
Ordercode: 42574
Power Spot 6 Q5
Your shipment includes:
Showtec Power Spot 6 Q5
IEC power cable – 1,5 m
User manual
be qualified
follow the instructions of this manual

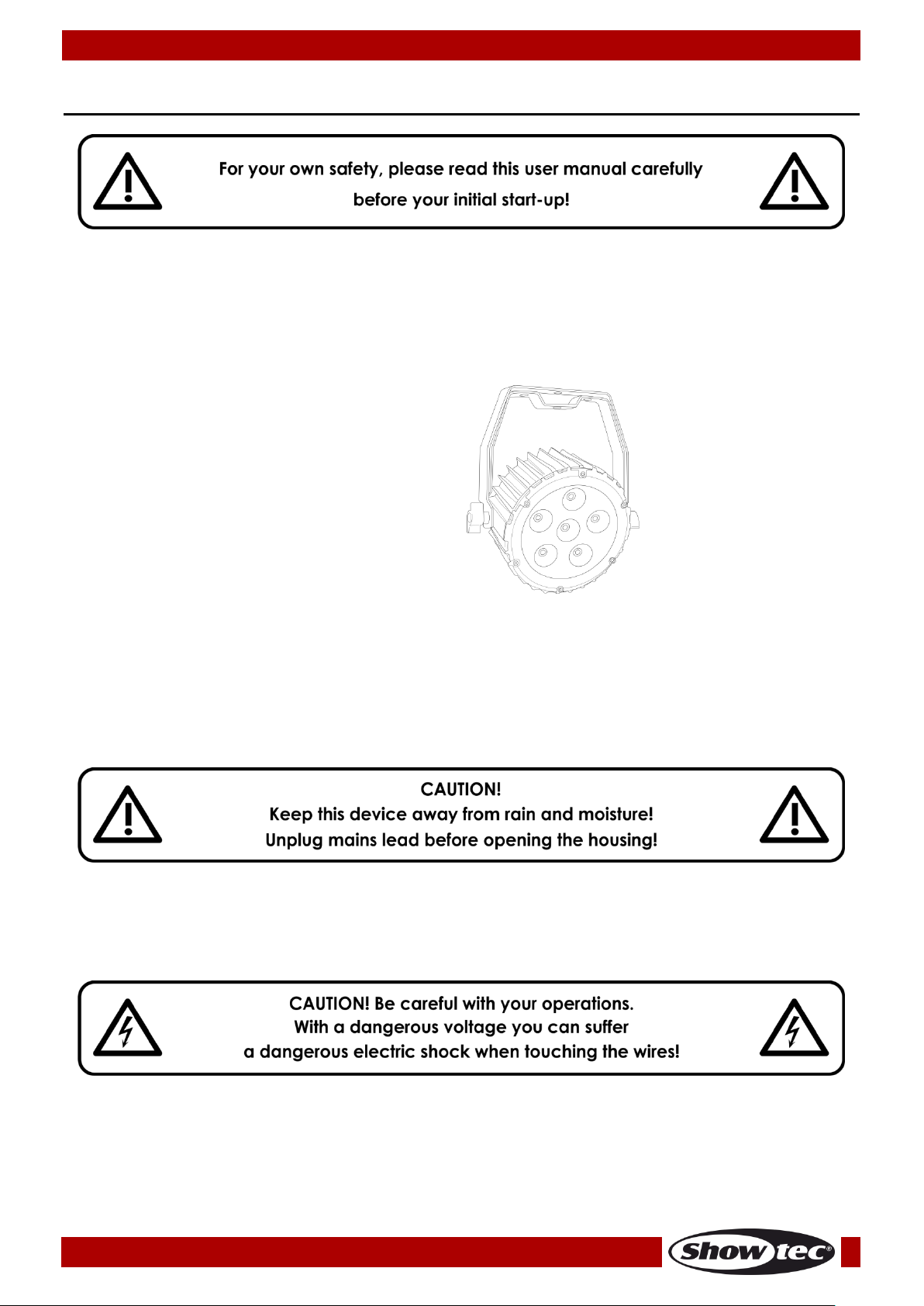

Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
2
Page 4
Ordercode: 42574
Power Spot 6 Q5
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed while operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the lens is obviously damaged, it has to be replaced.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit
running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
3
Page 5
Ordercode: 42574
Power Spot 6 Q5
• The user is responsible for correct positioning and operating of the Power Spot. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
• If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
= 40°C must never be exceeded.
a

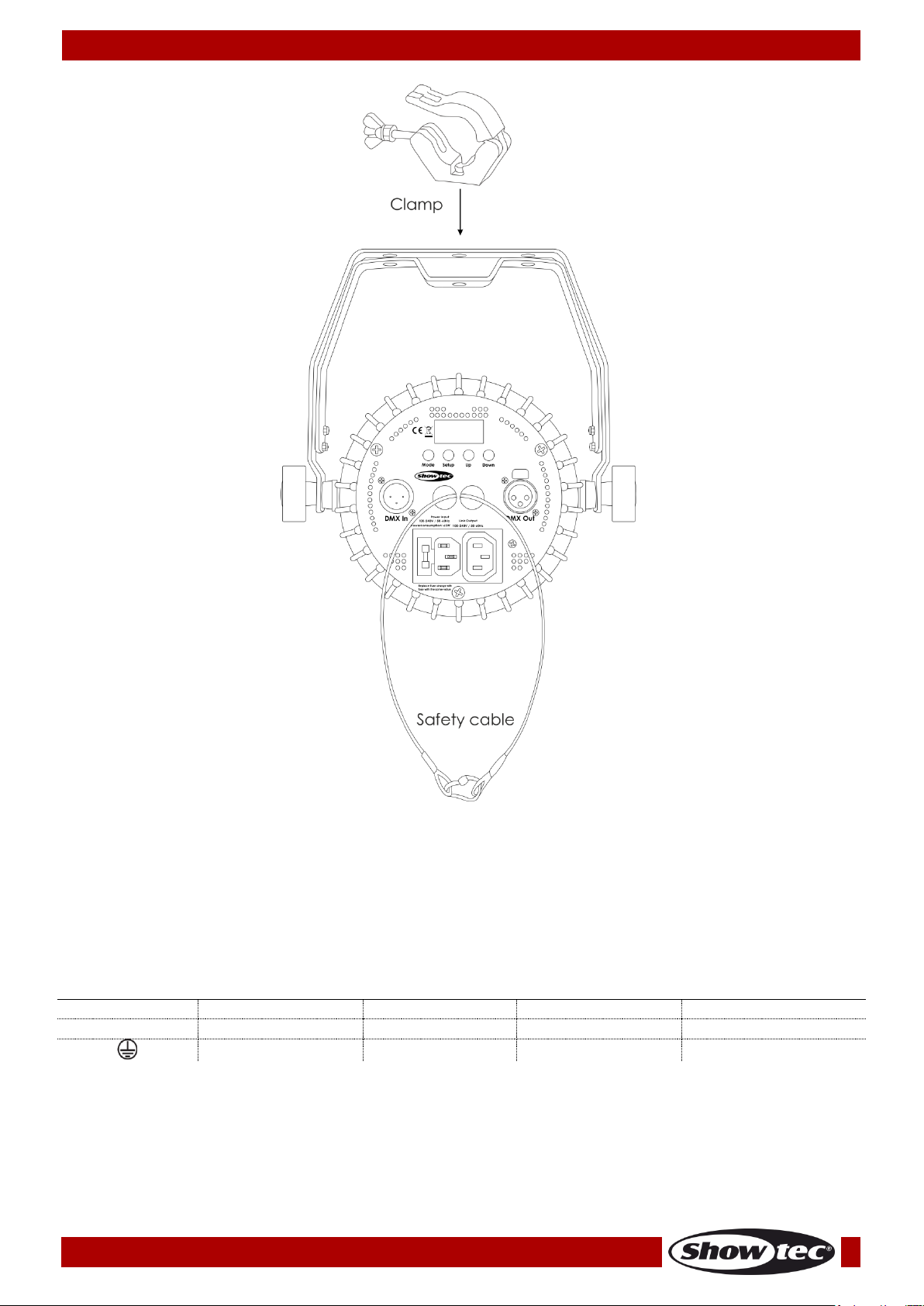

Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
• If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the projector, with the mounting bracket, to the trussing system.
• The projector must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, derigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
4
Page 6
Ordercode: 42574
Power Spot 6 Q5
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Power Spot can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
5
Page 7
Ordercode: 42574
Power Spot 6 Q5
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.
6
Page 8
Ordercode: 42574
Power Spot 6 Q5
Frontside
Fig. 01
Description of the device
Features
The Power Spot 6 Q5 is an ultra-compact light effect with high output and great effects.
Ideal solution for small clubs and mobile DJs
Compact size
Sound Control
Input voltage: 100-240V, 60/50Hz
Power consumption: 45W
DMX channels: 5, 7 or 9
4-digit LED display for easy setup
Light source: 6 x 5-in-1 10W LED
Lumen: 1480 lux @ 2m
Control modes: Built-in programs, Auto, DMX, Slave, Sound-controlled, Manual
Control protocol: DMX-512
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 25°
Housing: Metal & Flame retardant plastic
Fuse: T1AL/250V
Dimensions: 245 x 105 x 255 mm (LxWxH)
Weight: 2,5 kg
01) Mounting bracket with inclination screw
02) Adjustment screw
03) 6 x 5-in-1 10W LED
7
Page 9
Ordercode: 42574
Power Spot 6 Q5
Backside
Fig. 02
04) 4-digit LED display + control buttons
05) 3-pin DMX signal connector
06) IEC power connector 100-240V IN + Fuse T1AL/250V
07) IEC power connector 100-240V OUT
08) Ground/earth connection
09) 3-pin DMX signal connector
Installation
Remove all packing materials from the Power Spot 6 Q5. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
8
Page 10
Ordercode: 42574
Power Spot 6 Q5
There are 6 modes:
• Built-in programs
• Auto Mode
• Manual Mode (Static Color)
• Sound-controlled
• Master/Slave
• DMX-512 (5CH, 7CH, 9CH)
The pins:
01) Earth
02) Signal -
03) Signal +

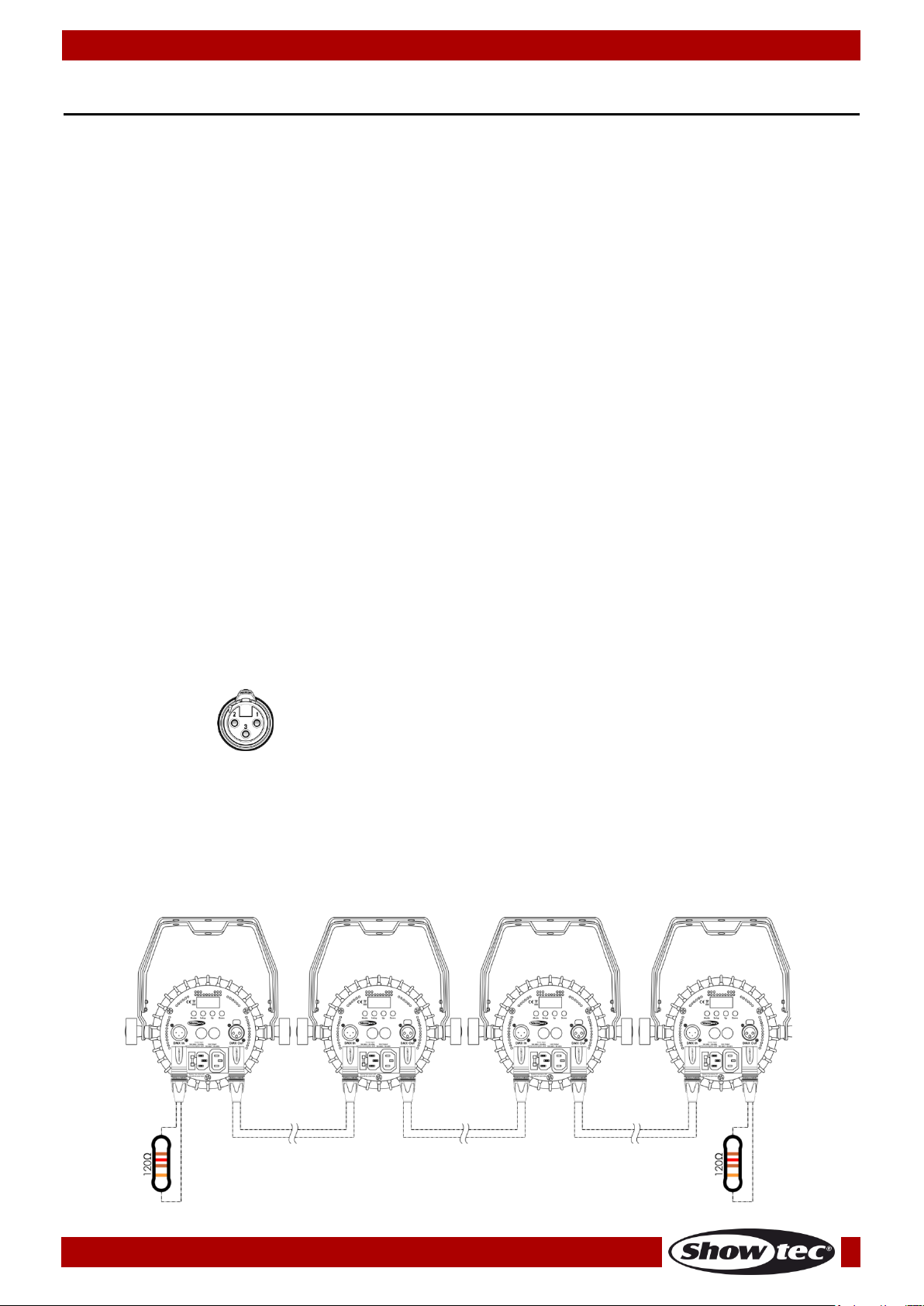

Multiple Power Spots (Master/Slave control)
Fig. 03
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
Control Modes
One Power Spot (Built-in programs, Auto Mode and Manual Mode)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Power Spot is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 14 and 15 for more information about the Built-in programs, Auto Mode and
Manual Mode.
One Power Spot (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Power Spot will react to the beat of
the music. Please see page 15 for more information about the sound-control options.
Multiple Power Spots (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Power Spot.
03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on pages 14-15 (Built-in
programs, Auto Mode, Manual Mode or Sound-controlled Mode). This means that you can set your
desired operation mode on the master device and all slave devices will react the same as the
master device.
9
Page 11
Ordercode: 42574
Power Spot 6 Q5
Multiple Power Spots DMX Set Up
Fig. 04
Multiple Power Spots (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Power Spots and other devices.
04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
10
Note : Link all cables before connecting electric power
Page 12
Ordercode: 42574
Power Spot 6 Q5
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
11
Page 13
Ordercode: 42574
Power Spot 6 Q5
Control Panel
A) LED display
B) MODE button
C) SETUP button
D) UP button
E) DOWN button
Fig. 05
Display Off after 10 seconds
The Power Spot 6 Q5 can be operated with a controller in control mode or without the controller in
stand-alone mode.
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first
channel with which the Power Spot will respond to the controller.
Please note, when you use the controller, the unit has 9 channels.
When using multiple Power Spots, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Power Spot should be 1(001); the DMX address of the second
Power Spot should be 1+9=10 (010); the DMX address of the third Power Spot should be 10+9=19 (019),
etc. Please, be sure that you do not have any overlapping channels in order to control each Power Spot
correctly.
If two or more Power Spots are addressed similarly, they will work similarly.
Controlling:
After having addressed all Power Spot fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Power Spot will automatically detect whether DMX 512 data is received or
not.
If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
If not, the problem may be:
• The XLR cable from the controller is not connected with the input of the Power Spot 6 Q5.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
When no button is pressed for 10 seconds, the display will turn off.
To light up the display, you have to press the MODE, SETUP, UP or DOWN button.
Once you have pressed the button, the display will light up.
12
Page 14
Ordercode: 42574
Power Spot 6 Q5

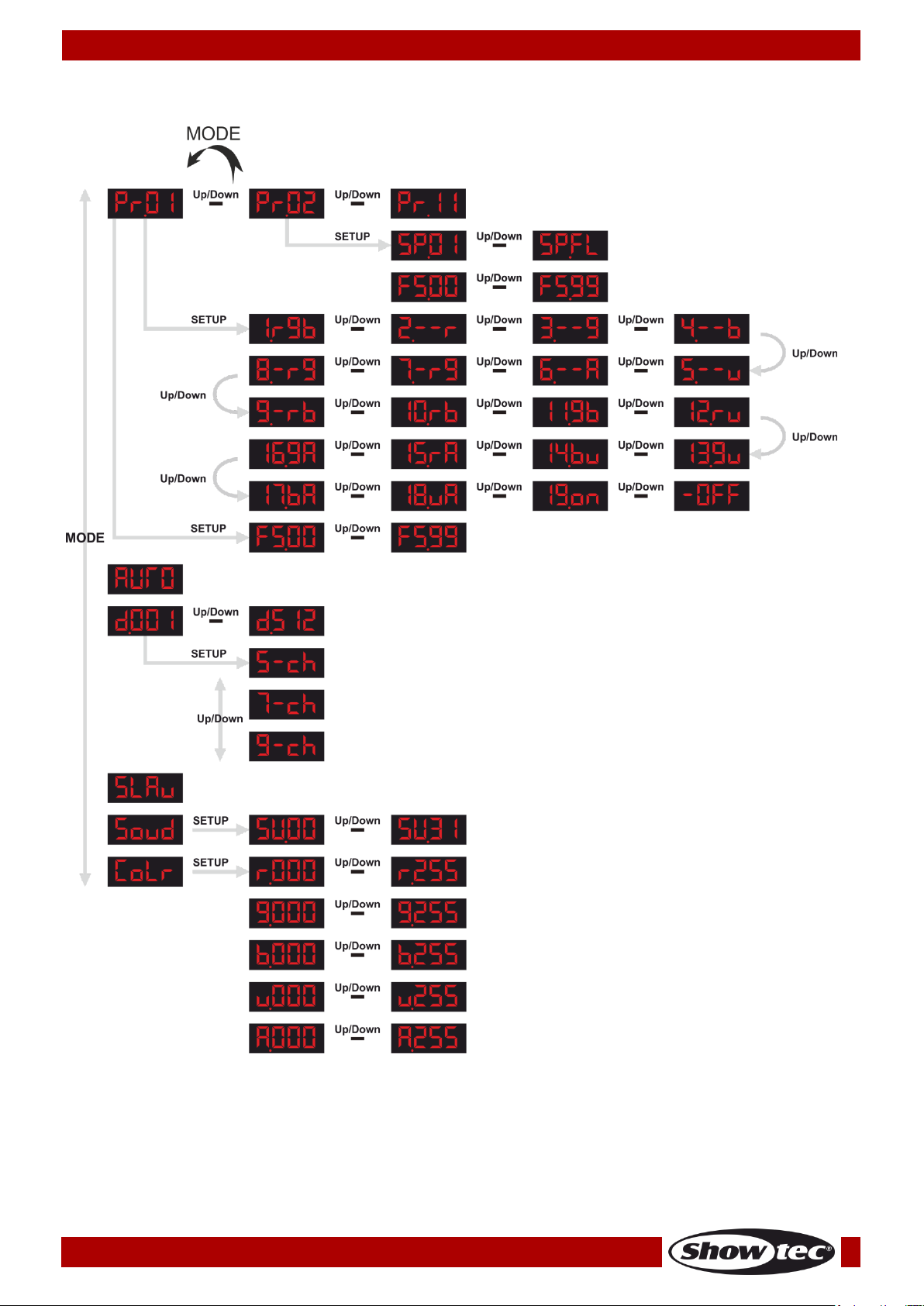

Menu Overview
13
Page 15
Ordercode: 42574
Power Spot 6 Q5
Built-in programs
Auto Mode
DMX-512 Mode
Master/Slave Mode
Sound-controlled Mode
Manual Mode (Static Color Mode)
Main Menu Options
1. Built-in programs
01) Press the MODE button until the display shows one of the 11 built-in programs: .
02) Press the UP/DOWN buttons to toggle between the programs.
03) The device will now run the desired built-in program.
04) When the display shows , press the SETUP button to enter the menu.
05) Press the UP/DOWN buttons to toggle between the following color programs:
06) The above programs correspond with their DMX counterparts.
Note: For more information about the available color options, see Channel 8 - Color CH7 must
be set between 1-22 , page 17.
07) Press the SETUP button again, to open the submenu.
08) Press the UP/DOWN buttons to adjust the strobe intensity. The adjustment range is between
, from slow to fast.
09) Return to step 2 and choose one of the remaining built-in programs: .
10) Press the SETUP button to open the menu.
11) Press the UP/DOWN buttons to adjust the run speed of the built-in programs. The adjustment range is
between , from slow to full speed.
12) Press the SETUP button again, to proceed to the strobe settings.
13) Press the UP/DOWN buttons to adjust the strobe intensity. The adjustment range is between
, from slow to fast.
2. Auto Mode
01) Press the MODE button until the display shows .
02) The device will now run all the available built-in programs in a sequence. It is not possible to adjust
any settings in Auto Mode.
14
Page 16
Ordercode: 42574
Power Spot 6 Q5
5-channel mode
7-channel mode
9-channel mode
Red
Green
Blue
White
Amber
3. DMX-512 Mode
01) Press the MODE button until the display shows .
02) Press the UP/DOWN buttons to choose the desired DMX address. There are 512 DMX addresses
available.
03) Press the SETUP button to open the submenu.
04) Press the UP/DOWN buttons to choose one of the 3 channel modes:
4. Master/Slave Mode
01) Press the MODE button until the display shows .
02) The device is now operating in Master/Slave Mode. It means that it will react the same as the master
device.
5. Sound-controlled Mode
01) Press the MODE button until the display shows .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to set the desired sound sensitivity. The adjustment range is between
, from low to high sound sensitivity.
04) Sound-controlled Mode is now active and the device will react to the beat of the background
music.
6. Manual Mode (Static Color Mode)
01) Press the MODE button until the display shows .
02) Press the SETUP button to open the menu.
03) Repeatedly press the SETUP button to toggle between the following color settings:
04) Press the UP/DOWN buttons to adjust the intensity of each of the 5 color LEDs. The adjustment range
is between 0-255, from low to high intensity.
15
Page 17
Ordercode: 42574
Power Spot 6 Q5
Channel 1 – Red
0-255
Gradual adjustment Red, from 0-100%
Channel 2 – Green
0-255
Gradual adjustment Green, from 0-100%
Channel 3 – Blue
0-255
Gradual adjustment Blue, from 0-100%
Channel 4 – White
0-255
Gradual adjustment White, from 0-100%
Channel 5 – Amber
0-255
Gradual adjustment Amber, from 0-100%
Channel 1 – Red Dimmer must be open
0-255
Gradual adjustment Red, from 0-100%
Channel 2 – Green Dimmer must be open
0-255
Gradual adjustment Green, from 0-100%
Channel 3 – Blue Dimmer must be open
0-255
Gradual adjustment Blue, from 0-100%
Channel 4 – White Dimmer must be open
0-255
Gradual adjustment White, from 0-100%
Channel 5 – Amber Dimmer must be open
0-255
Gradual adjustment Amber, from 0-100%
Channel 6 – Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 7 – Strobe
0-255
Strobe flash frequency, from slow to fast
Channel 1 – Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Red Dimmer must be open
0-255
Gradual adjustment Red, from 0-100%
Channel 3 – Green Dimmer must be open
0-255
Gradual adjustment Green, from 0-100%
DMX Channels
5 channels
7 channels
9 channels
16
Page 18
Ordercode: 42574
Power Spot 6 Q5
Channel 4 – Blue Dimmer must be open
0-255
Gradual adjustment Blue, from 0-100%
Channel 5 – White Dimmer must be open
0-255
Gradual adjustment White, from 0-100%
Channel 6 – Amber Dimmer must be open
0-255
Gradual adjustment Amber, from 0-100%
Channel 7 – Control Modes
0
Manual mode Adjust CH2-CH6 to manually set the desired color
1-22
Program 1
23-45
Program 2
46-68
Program 3
69-91
Program 4
92-114
Program 5
115-137
Program 6
138-160
Program 7
161-183
Program 8
184-206
Program 9
207-229
Program 10
230-252
Program 11
253-255
Sound-controlled mode
Channel 8 – Color CH7 must be set between 1-22
0-12
Off
13-25
Red + Green + Blue
26-38
Red
39-51
Green
52-64
Blue
65-77
White
78-90
Amber
91-103
Red + Green
104-116
Red + Amber
117-129
Red + Blue
130-142
Purple
143-155
Green + Blue
156-168
Red + White
169-181
Green + White
182-194
Blue + White
195-207
Red + Amber
208-220
Green + Amber
221-233
Blue + Amber
234-246
White + Amber
247-255
Red + Green + Blue + White + Amber
Channel 8 – Speed CH7 must be set between 23-252
0-255
Gradual speed adjustment, from slow to fast
Channel 8 – Sound Sensitivity CH7 must be set between 253-255
0-255
Sensitivity, from low to high
17
Page 19
Ordercode: 42574
Power Spot 6 Q5
Channel 9 – Strobe
0-255
Strobe effect, from slow to fast
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Power Spot 6 Q5 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out.
If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below:
01) Unplug the unit from electric power source.
02) Insert a flat-headed screwdriver into a slot in the fuse cover. Gently pry up the fuse cover. The fuse
will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder. Reinsert the fuse cover. Be sure to use a fuse of the
same type and specification. See the product specification label for details.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas as: the power supply, the lamp, the fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The LED. Return the Power Spot to your Showtec dealer.
03) The fuse. Replace the fuse. See page 18 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Power Spot, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
18
Page 20
Ordercode: 42574
Power Spot 6 Q5
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or lamp
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents in control
panel and the front lens are not
blocked
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
19
Page 21
Ordercode: 42574
Power Spot 6 Q5
Model:
Showtec Power Spot 6 Q5
Input Voltage:
100-240 VAC, 60/50Hz
Power consumption:
45W (full output)
DMX linking:
30pcs
Fuse:
T1AL/250V
Dimensions:
245 x 105 x 255 mm (LxWxH)
Weight:
2,5 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
5, 7, 9 Channels
Signal input:
3-pin DMX IN
Signal output:
3-pin DMX OUT
Electro-mechanical effects:
LED Quantity:
6 x 5-in-1 10W LED
Lumen:
1480 lux @ 2m
Color mixing:
RGBWA
Beam angle:
25°
Dimmer:
0-100%
Strobe:
0-20Hz
Housing:
Metal & Flame retardant plastic
DMX-control:
via standard DMX-controller
On Board:
4-digit LED display for easy setup
Control:
Built-in, Auto, DMX, Slave, Sound-controlled, Manual
Connections:
Dedicated Schuko to IEC & Data connector
Cooling:
Internal fan
Working temperature:
<40⁰C
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Product Specifications
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]
20
Page 22
Ordercode: 42574
Power Spot 6 Q5
Dimensions
21
Page 23
Ordercode: 42574
Power Spot 6 Q5
Notes
22
Page 24
©2015 Showtec
Loading...
