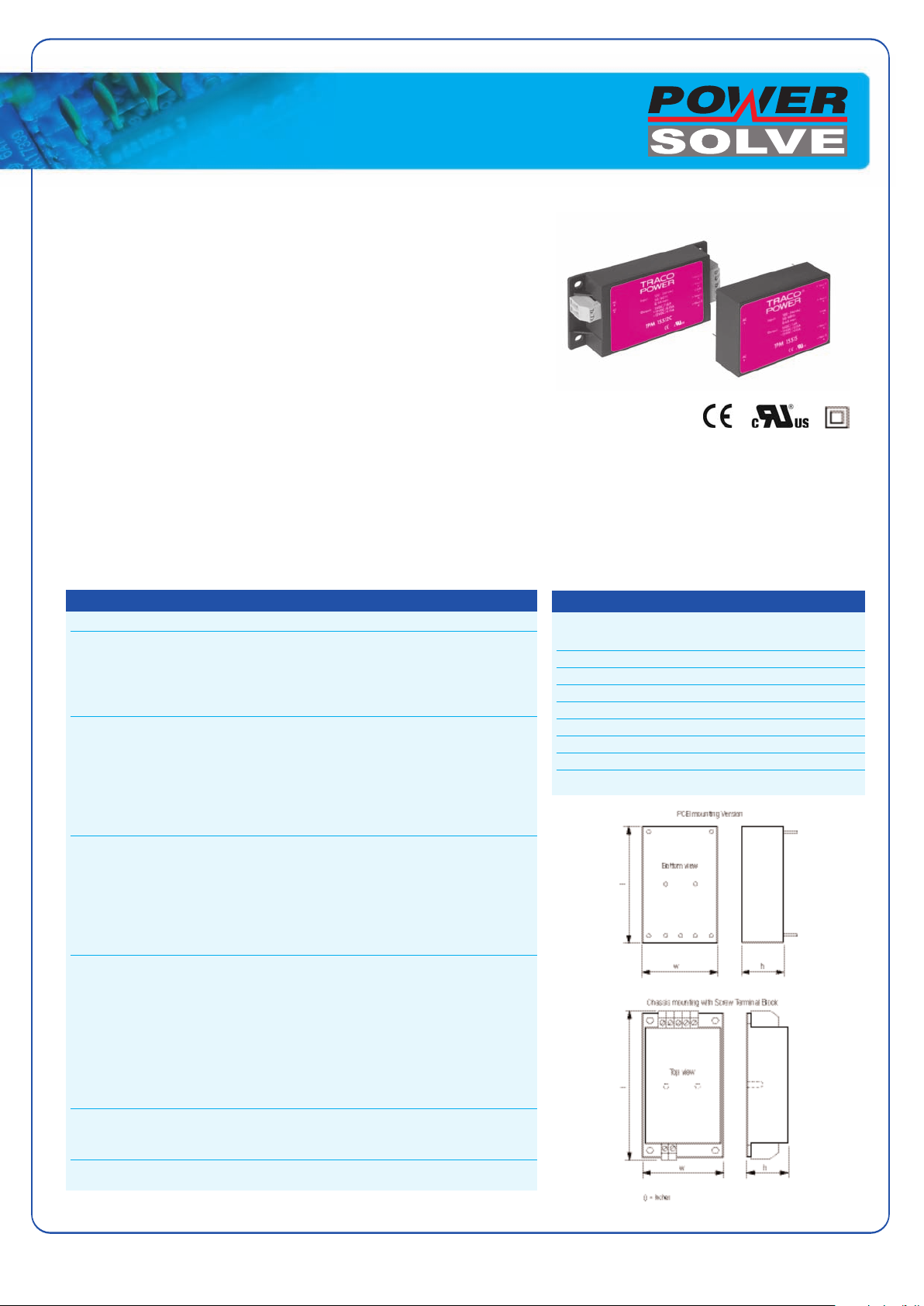

AC/DC Power Modules
TPM Series, 5 - 40 Watt
= Fully encapsulated Power Supplies
= 2 Package Styles available: – for PCB Mounting with Solder Pins
– for Chassis Mounting with Screw Terminal Block
= Single-, Dual- and Triple-Output Models
= Universal Input 85–264 VAC, 47–440 Hz
= EMI meets EN 55022, Class B
= Short Circuit and Overload Protection
= Safety Class ll
Input voltage range: 85–264 VAC and 47–440 Hz, 100–375 VDC
Line regulation: ±0.5% max.
Load regulation: ±0.5% max.
Ripple & Noise: <100 mVpk-pk (20 MHz BW)
EMI suppression: EN 55011 class B, EN 55022 class B and FCC, level B
EMC immunity: EN 61000-6-2 (industrial environment)
Output current limitation: 105–130% Iout max., constant current
Efficiency: 70–80% (depending on model)
Operating temperature: –25°C … +60°C above 50°C derating 5%/°C
Safety standards / approvals: cUL/UL 60950, EN 60950
Degree of protection: safety class ll
Case: plastic (UL94V-0 rating)
Models
Order code Output power Output 1 Output 2/3
TPM 05105 5 VDC / 1000 mA
TPM 05112 12 VDC / 420 mA
TPM 05124 5 W 24 VDC / 210 mA
TPM 05212 +12 VDC / 250 mA –12 VDC / 150 mA
TPM 05215 +15 VDC /150 mA –15 VDC / 150 mA
**TPM 10105 5 VDC / 2000 mA
**TPM 10112 12 VDC / 840 mA
**TPM 10124
**TPM 10212
**TPM 10215 + 15 VDC / 300 mA –15 VDC / 300 mA
**TPM 10512 *5 VDC /1200 mA ±12 VDC / ±120 mA
**TPM 10515 *5 VDC / 1200 mA ±15 VDC / ±100 mA
**TPM 15105
**TPM 151
**TPM 15124 24 VDC / 600 mA
**TPM 15212 15 W +12 VDC / 600 mA –12 VDC / 400 mA
**TPM 15215
**TPM 15512 *5 VDC / 1600 mA ±12 VDC / ±150 mA
**TPM 15515 *5 VDC / 1600 mA ±15 VDC / ±150 mA
**TPM 30105 5 VDC / 6000 mA
**TPM 30112 12 VDC / 2500 mA
**TPM 30124 24VDC / 1300 mA
**TPM 30212
**TPM 30215 30 W 15 VDC / 1000 mA –15 VDC / 1000 mA
**TPM 30252 *5 VDC / 3000 mA *12 VDC / 1200 mA
**TPM 30254
**TPM 30512 *5 VDC / 3000 mA ±12 VDC / ±600 mA
**TPM 30515 *5 VDC / 3000 mA ±15 VDC / ±500 mA
**TPM 40105 5 VDC / 7000 mA
**TPM 40112 40 W 12 VDC / 3300 mA
**TPM 40124 24 VDC / 1800 mA
** suf
12
fix C: Chassis Mounting (Example:
10 W
TML
24 VDC / 420 mA
+12 VDC / 400 mA –12 VDC / 400 mA
5 VDC / 3000 mA
/ 1300 mA
12 VDC
/ 500 mA
+15 VDC
/ 1200 mA
12 VDC
/ 3000 mA *24 VDC / 600 mA
*5 VDC
30105 C) * Output floating
–15 VDC / 400 mA
–12 VDC
/ 1200 mA
Type Length Width Height
TPM 05 51 (2.0) 51 (2.0) 20 (0.79)
TPM 10/15 76 (2.99) 51 (2.01) 22.5 (0.89)
TPM 10C/15C 110 (4.33) 51 (2.01) 23 (0.91)
TPM 30 90 (3.54) 65 (2.56) 33 (1.30)
TPM 30C 120 (4.75) 65 (2.56) 33 (1.30)
TPM 40 90.5 (3.58) 65.5 (2.59) 33.5 (1.33)
TPM 40C
Dimensions
lwh
120 (4.75) 65 (2.56) 33 (1.30)
