www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel :01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk

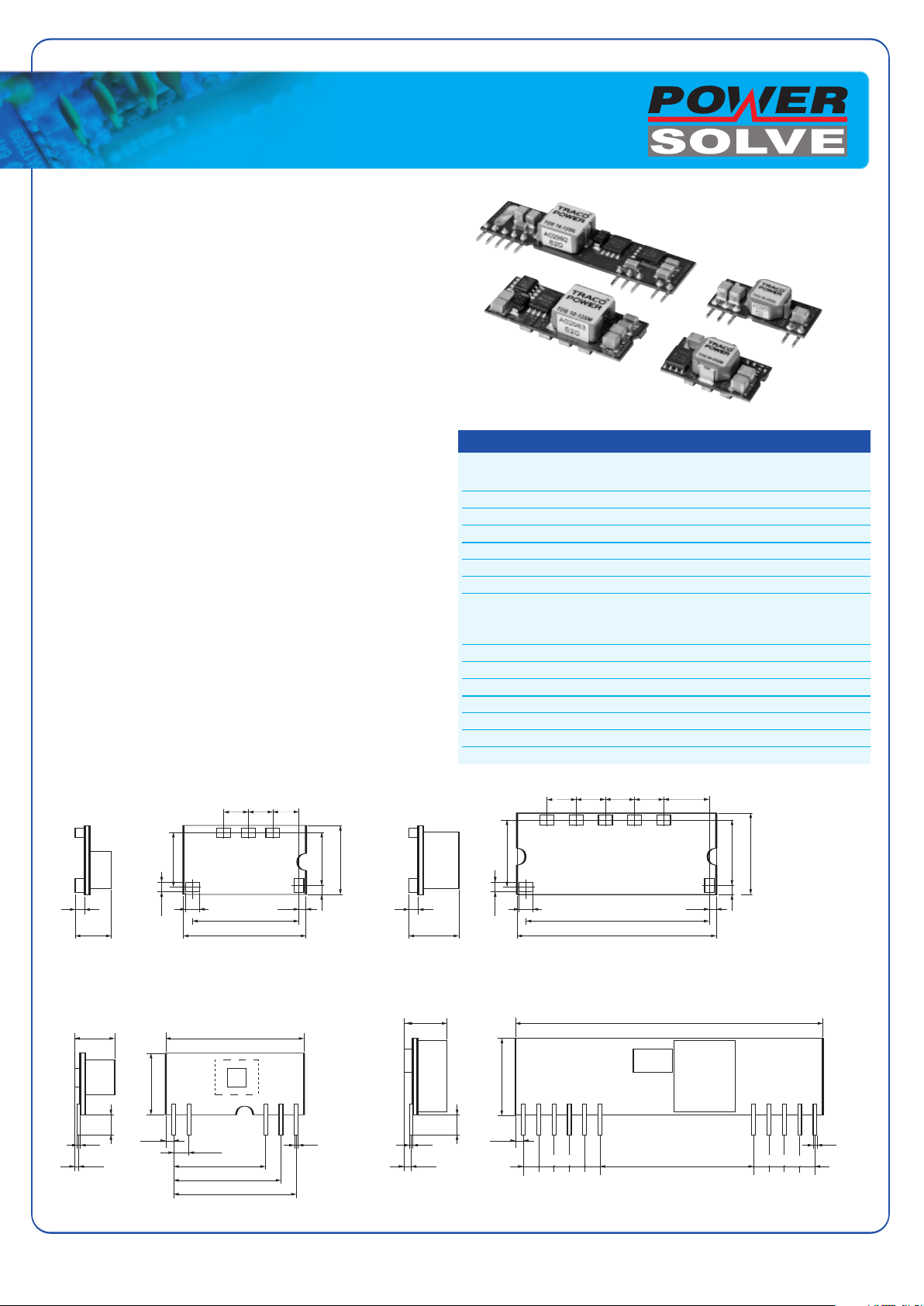

DC-DC Switching Regulators
10.2 (0.40)
22.9 (0.90)
3.29
(0.13)
20.32 (0.8)
Vin
GND
Prog
Vout
On/Off
6 A output Models
Single-in-line (SIL-Version)
Vin
GND
Prog
Vout
On/Off
0.70
(0.028)
6.65
(0.26)
10A & 16A output models
Sens
No Pin
0.64
(0.025)
0.51
(0.02)
1.28
(0.05)
3.24
(0.128)
1.18
(0.046)
8.28
(0.33)
0.51
(0.02)
0.64
(0.025)
1.28
(0.05)
5 x 2.54 (5 x 0.10)
4 x 2.54 (4 x 0.10)
50.8 (2.00)
12.7 (0.50)
25.4 (1.0)
Vin
Vout
Vout
GND
2.54 (0.1)
15.24 (0.6)
17.78 (0.7)
() = Inches
1.5
11.4 (0.45)
2.29
20.3 (0.8)
(0.09) (0.05)
1.3
1.57
8.9 (0.35)
(0.82)
4.06
(0.16)
4.06
(0.16)
4.57
(0.18)
17.52 (0.69)
(0.06)
8.64 (0.34)
Vin
GND Prog Vout
On/Off
1.57
(0.82)
5.97
(0.24)
Bottom View
6 A output Models
1.9
13.5 (0.53)
2.84
33.0 (1.3)
(0.112) (0.05)
1.3
1.57
10.92 (0.43)
(0.82)
4.83
(0.19)
4.83
(0.19)
7.54
(0.30)
29.9 (1.18)
(0.075)
10.29 (0.41)
Vin
GND ProgVout
On/Off
1.57
(0.82)
8.28
(0.33)
Bottom View
10A & 16A output models
4.83
(0.19)
4.83
(0.19)
SensNo Pin
Surface Mount (SM-Version)
TOS Series
Point of Load (POL) Converters
• High Power Density: Models with 6, 10 and 16A
• Programmable Output Voltage from 0.75 to 5.0 VDC
• Very high Efficiency up to 96%
• Input Voltage 5 or 12 VDC
• Remote On/Off
• Input Under-voltage Lockout
• Over Temperature Protection
• Surface Mount (SM) or SIL-Version
• Surface Mount Version fully compatible with DOSA Standard
Models
Line regulation: ±0.3% max.
Load regulation: ±0.4% max.
Output voltage: programmable by external resistor
Ripple & Noise: <50 mVpk-pk (with output capacitors)
Transient response time: 50 µsec. typ. (50% load change)
Short circuit protection: continuous, automatic recovery
Efficiency: 93% typ.
Operating temperature range: –40°C … +85°C
Remote On/Off: negative logic shutdown input for
standby mode
Input under-voltage lockout: – shutdown at 2.0 VDC resp. 7.8 VDC
– startup at 2.2 VDC resp. 7.9 VDC
Order Code Input voltage Output voltage Output current
SM-version range range max.
TOS 06-05SM 6 A
TOS 10-05SM 2.4 – 5.5 VDC 0.75 – 3.3 VDC 10 A
TOS 16-05SM 16 A
TOS 06-12SM 6 A
TOS 10-12SM 8.3 – 14.0 VDC 0.75 – 5.0 VDC 10 A
TOS 16-12SM 16 A
Order code Input voltage Output voltage Output current
SIL-version range range max.
TOS 06-05SIL 6 A
TOS 10-05SIL 2.4 – 5.5 VDC 0.75 – 3.3 VDC 10 A
TOS 16-05SIL 16 A
TOS 06-12SIL 6 A
TOS 10-12SIL 8.3 – 14.0 VDC 0.75 – 5.0 VDC 10 A
TOS 16-12SIL 16 A
