Datasheet TOP60 Datasheet (Powersolve)

AC-DC Power Supplies

TOP 60 Series, 60 Watt

www.powersolve.co.uk

Features

• Highest power density in 101.6 x 50.8mm footprint

• Single, dual and triple output models

• High efficiency of 88% typical

• Operating temperature range of -10°C to +70°C

• Universal input range of 90 - 264Vac

• Compliance with EN 61000-3-2

• Low leakage current

Electrical Specification

Input voltage range 85-264Vac, 47 - 63Hz
Output Voltage Adjustment approx. +5% of Vout nom. by internal potentiometer
EMI emission EN 55011/22 class B, harmonic current EN 61000-3-2
EMC immunity EN 61000-6-1
Output current limitation >110% of Iout max.
Overvoltage protection >110% of Vout nom.
Operating Temperature Range -10°C to +70°C (convection cooling) (derate at 2.0%/°C above 50°C)
Safety Approvals cUL/UL 60601-1, IEC/EN 60950-1, CB report
Degree of protection Class II prepared with second fuse

Output Voltage and Current Ratings

MODEL OUTPUT P OUTPUT 1 OUTPUT  2 OUTPUT 3 RIPPLE & LINE LOAD

TOP 60105 55W 5.0VDC / 11.0A 100mV pk-pk max. 0.5% 2.0%
TOP 60112 60W 12VDC / 5.0A 120mV pk-pk max. 0.5% 2.0%
TOP 60115 64W 15VDC / 4.3A 150mV pk-pk max. 0.5% 2.0%
TOP 60124 64W 24VDC / 2.7A 240mV pk-pk max. 0.5% 2.0%
TOP 60148 64W 48VDC / 1.35A 480mV pk-pk max. 0.5% 2.0%
TOP 60252 55W +5.0VDC / 6.0A +12VDC / 3.0A 100mV pk-pk max. 0.5% 3.0%
TOP 60254 55W +5.0VDC / 6.0A +24VDC / 1.5A 100mV pk-pk max. 0.5% 3.0%
TOP 60522 55W +5.0VDC / 6.0A +12VDC / 3.0A -12VDC / 0.5A 100mV pk-pk max. 0.5% 3.0%
TOP 60533 55W +5.0VDC / 6.0A +15VDC / 2.4A -15VDC / 0.5A 100mV pk-pk max. 0.5% 3.0%
TOP 60316 38W +3.3VDC / 6.0A +5.2VDC / 3.0A +12VDC / 0.5A 100mV pk-pk max. 0.5% 3.0%
TOP 60317 38W +5.0VDC / 6.0A +3.3VDC / 1.5A +12VDC / 0.5A 100mV pk-pk max. 0.5% 3.0%
TOP 60318 55W +5.0VDC / 6.0A +24VDC / 1.5A -12VDC / 0.5A 100mV pk-pk max. 0.5% 3.0%

max. NOISE REG. REG.

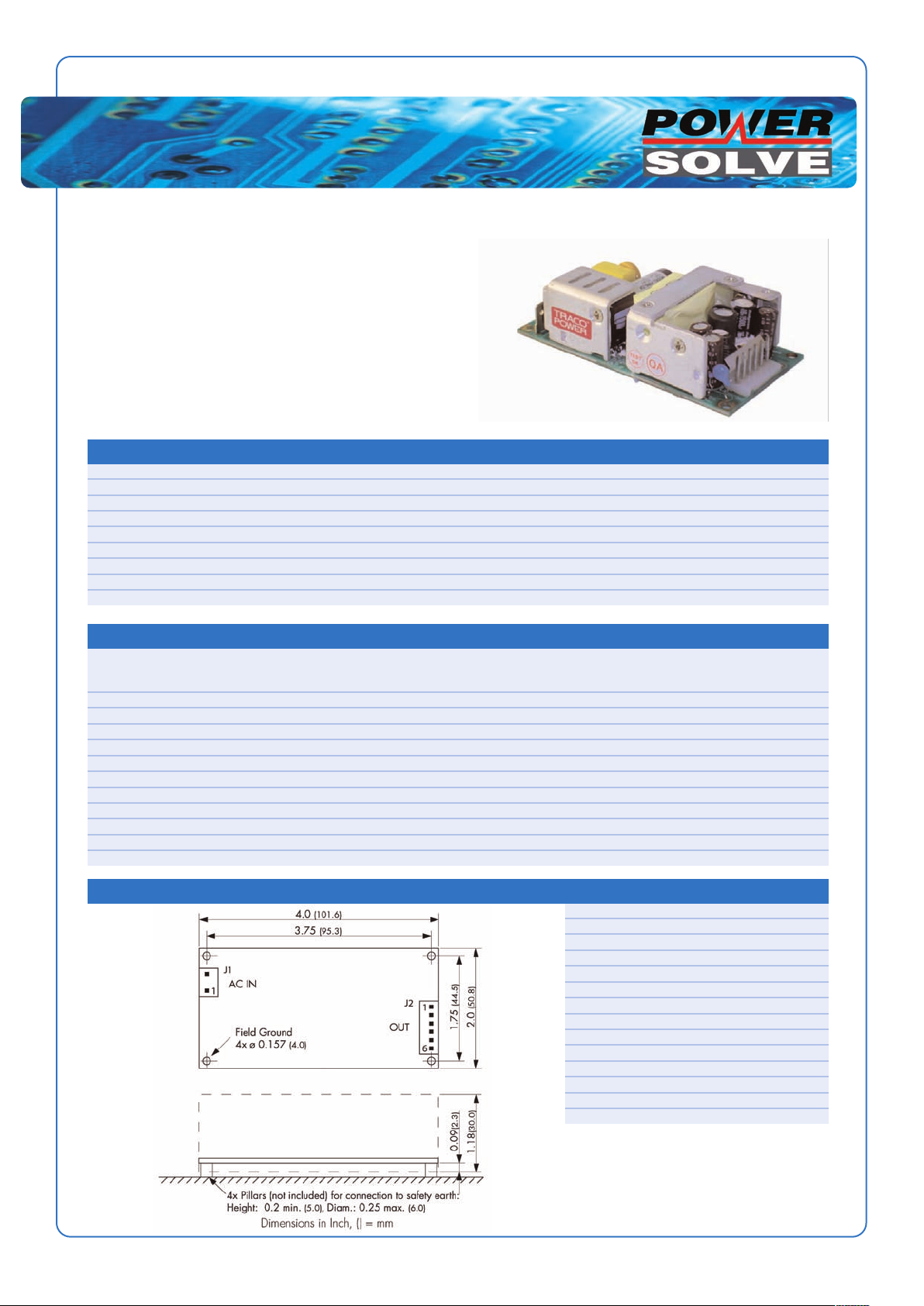

Mechanical and Connection Details

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

J1

Pin Function

1 AC in
2 AC in

J2

Pin SINGLE DUAL TRIPLE

1 +Vout Vout1 Vout1
2 +Vout Vout1 Vout1
3 -Vout Common Common
4 -Vout Common Common
5 No conn. No conn. Vout3
6 No conn. Vout2 Vout2

Mating connector: Molex 09-50-3031

Mating connector: Molex 09-50-3061

OUTPUT OUTPUT OUTPUT
