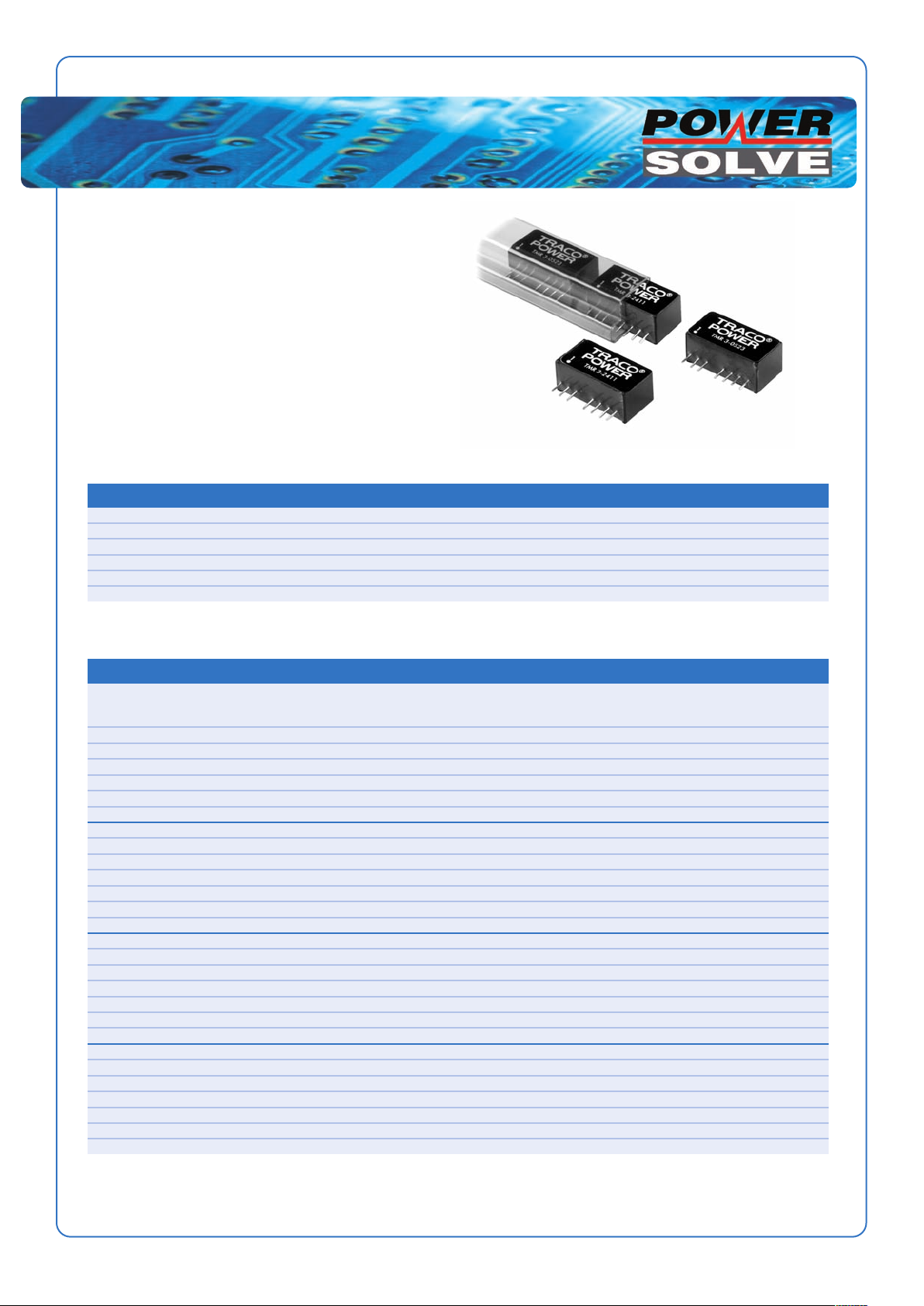

Datasheet TMR3 Datasheet (Powersolve)

DC-DC Converters

TMR3 Series, 3 Watt

www.powersolve.co.uk

Features

• Highest power density in SIP package

• Wide 2:1 input range

• Fully regulated outputs

• I/O isolation 1500VDC

• Operating temperature range -40°C to +85°C

• Low ripple and noise

• Short circuit protection

• Remote On/Off

Electrical Specification

Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +85°C (derate at 3.3%/K above 70°C)
I/O Isolation test voltage 1500VDC (optional 3000VDC)
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1
Casing plastic (UL94V-0 rated)
Remote On/Off shutdown input for low input current (2.5mA) in standby operation

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.

TMR 3-0510 3.3VDC 700mA 75mV pk-pk max. 0.2% 0.5% 73%
TMR 3-0511 5VDC 600mA 75mV pk-pk max. 0.2% 0.5% 77%
TMR 3-0512 12VDC 250mA 75mV pk-pk max. 0.2% 0.5% 79%
TMR 3-0513 4.5 - 9.0V 15VDC 200mA 75mV pk-pk max. 0.2% 0.5% 80%
TMR 3-0521 ±5VDC ±300mA 75mV pk-pk max. 0.2% 1.0% 77%
TMR 3-0522 ±12VDC ±125mA 75mV pk-pk max. 0.2% 1.0% 79%
TMR 3-0523 ±15VDC ±100mA 75mV pk-pk max. 0.2% 1.0% 80%
TMR 3-1210 3.3VDC 700mA 75mV pk-pk max. 0.2% 0.5% 74%
TMR 3-1211 5VDC 600mA 75mV pk-pk max. 0.2% 0.5% 78%
TMR 3-1212 12VDC 250mA 75mV pk-pk max. 0.2% 0.5% 80%
TMR 3-1213 9 - 18V 15VDC 200mA 75mV pk-pk max. 0.2% 0.5% 81%
TMR 3-1221 ±5VDC ±300mA 75mV pk-pk max. 0.2% 1.0% 80%
TMR 3-1222 ±12VDC ±125mA 75mV pk-pk max. 0.2% 1.0% 81%
TMR 3-1223 ±15VDC ±100mA 75mV pk-pk max. 0.2% 1.0% 81%
TMR 3-2410 3.3VDC 700mA 75mV pk-pk max. 0.2% 0.5% 74%
TMR 3-2411 5VDC 600mA 75mV pk-pk max. 0.2% 0.5% 78%
TMR 3-2412 12VDC 250mA 75mV pk-pk max. 0.2% 0.5% 80%
TMR 3-2413 18 - 36V 15VDC 200mA 75mV pk-pk max. 0.2% 0.5% 81%
TMR 3-2421 ±5VDC ±300mA 75mV pk-pk max. 0.2% 1.0% 80%
TMR 3-2422 ±12VDC ±125mA 75mV pk-pk max. 0.2% 1.0% 81%
TMR 3-2423 ±15VDC ±100mA 75mV pk-pk max. 0.2% 1.0% 81%
TMR 3-4810 3.3VDC 700mA 75mV pk-pk max. 0.2% 0.5% 74%
TMR 3-4811 5VDC 600mA 75mV pk-pk max. 0.2% 0.5% 78%
TMR 3-4812 12VDC 250mA 75mV pk-pk max. 0.2% 0.5% 80%
TMR 3-4813 36 - 75V 15VDC 200mA 75mV pk-pk max. 0.2% 0.5% 81%
TMR 3-4821 ±5VDC ±300mA 75mV pk-pk max. 0.2% 1.0% 80%
TMR 3-4822 ±12VDC ±125mA 75mV pk-pk max. 0.2% 1.0% 81%
TMR 3-4823 ±15VDC ±100mA 75mV pk-pk max. 0.2% 1.0% 81%

VOLTAGE VOLTAGE CURRENT NOISE REG. REG.

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

DC-DC Converters

www.powersolve.co.uk

Mechanical and Connection Details

Pin Single Output Dual Output

1 -Vin (GND) -Vin (GND)
2 +Vin (Vcc) +Vin (Vcc)
3 Remote On/Off Remote On/Off
5 No Conn. No Conn.
6 +Vout +Vout
7 -Vout Common
8 No Conn. -Vout
