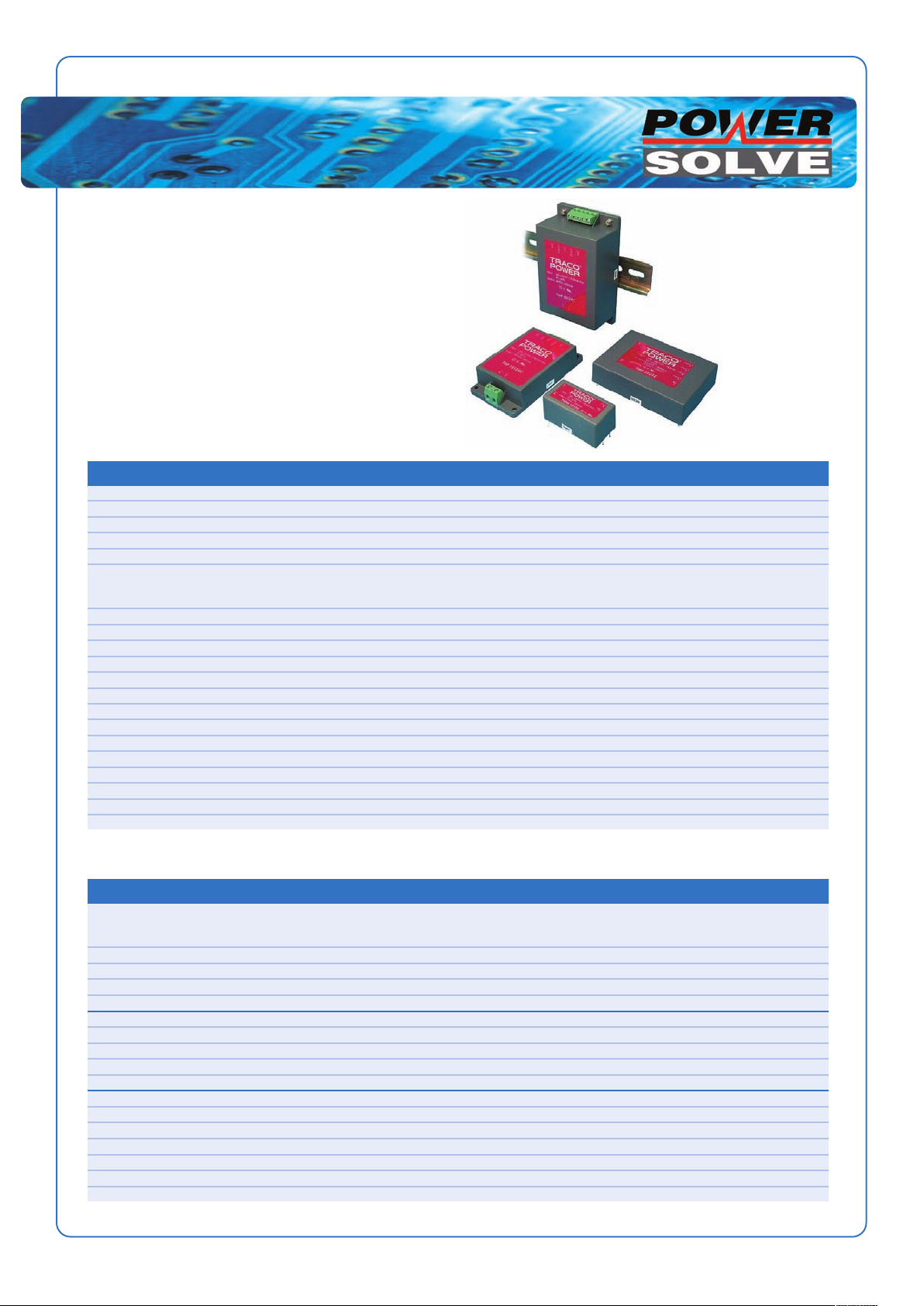

Powersolve TMP User Manual

AC-DC Power Modules

TMP Series, 7 to 60 Watt

www.powersolve.co.uk

Features

• Fully encapsulated low profile plastic casing

• PCB mount with solder pins

• Chassis mount with screw terminals

• Single, dual and triple output models

• Universal input 85-264Vac, 47-440Hz

• Safety class II

• Short circuit and overload protection

Electrical Specification

Input Voltage Range 85-264VAC (90-264VAC for TMPM Models) / 120-370VDC (not for TMP60 Models)
Input Frequency Range 47-440Hz (47-63Hz for TMP60 Models)
Output Voltage See tables
Output Current See tables
Output Voltage set accuracy ±2% max.
Minimum Load Requirement 10% of rated max. current (single & dual output versions)

Output current limitation >105% Inom. foldback, automatic recovery
Overvoltage Protection 120% of Vout typical
Efficiency 78% typical
EMI suppression EN55011 class B, EN55022 class B, FCC level B
EMC immunity EN61000-6-1
Isolation Voltage 3000VAC (input-output)
Isolation Resistance 100MΩ at 500VDC (input-output)
Operating Temperature Range -25°C to +60°C (derate at 3.5%/°C above 50°C, 2.5%/°C above 40°C for TMP60105C)
Storage Temperature Range -40°C to + 85°C
Temperature Coefficient 0.02%/K
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1, CB report
Degree of protection safety class II prepared
Casing plastic (UL94V-0 rated)
Option DIN rail mounting adapter

10% of rated max. current (triple output models, main output)
20% of rated max. current (triple output models, auxiliary outputs)

Output Voltage and Current Ratings (7 & 10W versions)

MODEL OUTPUT OUTPUT 1 OUTPUT 2 OUTPUT 3 RIPPLE & LINE LOAD

TMP07103 3.3VDC / 1400mA
TMP07105 5.0VDC / 1400mA
TMP07112 7W 12VDC / 585mA
TMP07115 15VDC / 465mA
TMP07124 24VDC / 290mA
TMPM10103 3.3VDC / 2500mA
TMPM10105 5VDC / 2000mA
TMPM10112 10W 12VDC / 830mA
TMPM10115 15VDC / 665mA
TMPM10124 24VDC / 415mA
TMP10103 3.3VDC / 2000mA
TMP10105 5VDC / 2000mA
TMP10112 12VDC / 830mA
TMP10115 10W 15VDC / 665mA
TMP10124 24VDC / 415mA
TMP10212 +12VDC / 380mA -12VDC / 380mA
TMP10215 +15VDC / 300mA -15VDC / 300mA

POWER NOISE REG. REG.

1.8% (mV pk-pk) 1.0% 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 2.5%

1.3% (mV pk-pk) 1.0% 2.5%

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Power Modules

www.powersolve.co.uk

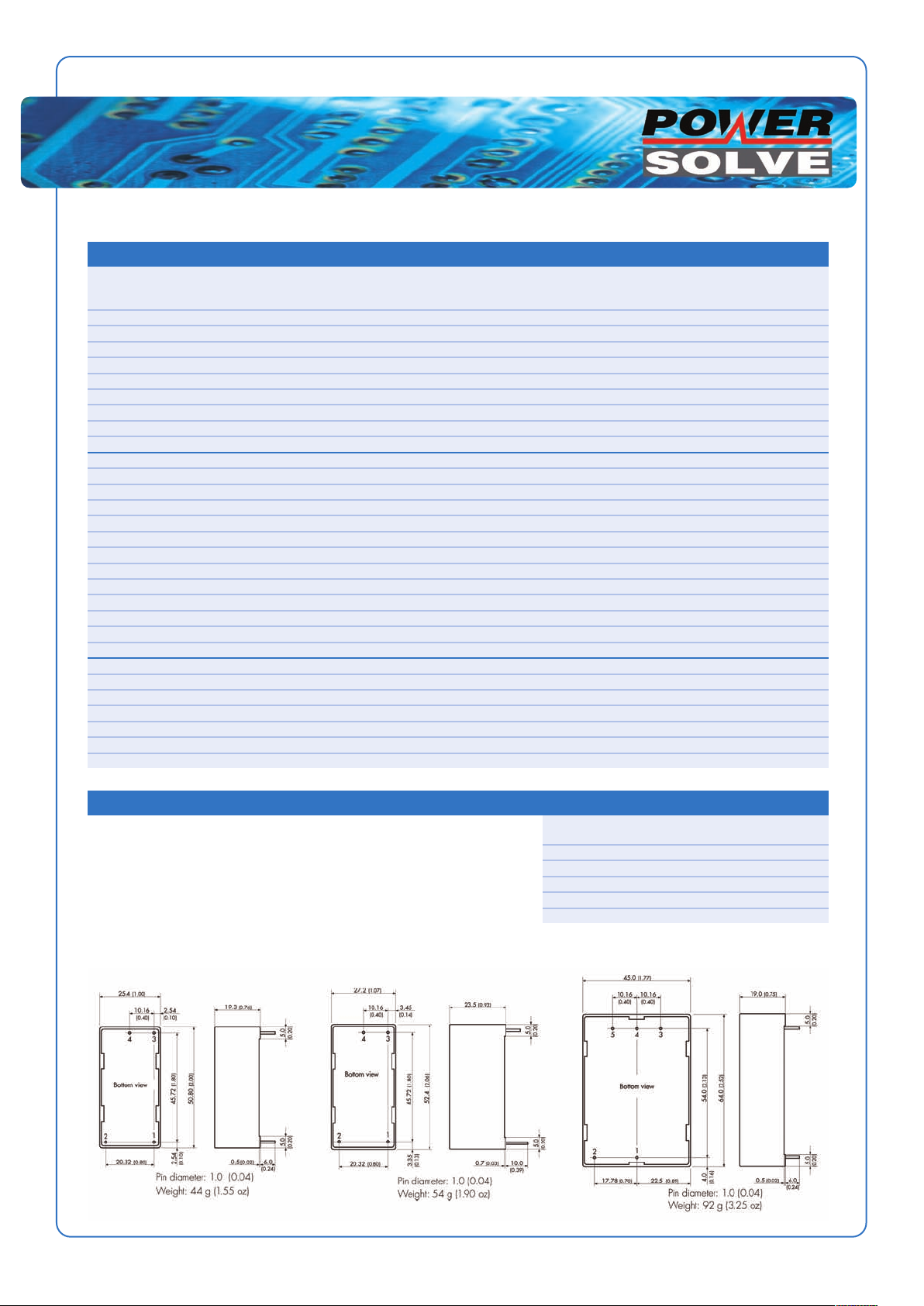

Output Voltage and Current Ratings (15, 30 & 60W versions)

MODEL OUTPUT OUTPUT 1 OUTPUT 2 OUTPUT 3 RIPPLE & LINE LOAD

TMP15105 5.0VDC / 3000mA
TMP15112 12VDC / 1250mA
TMP15115 15VDC / 1000mA
TMP15124 24VDC / 625mA
TMP15148 48VDC / 310mA
TMP15212 15W +12VDC / 650mA -12VDC / 650mA
TMP15215 +15VDC / 500mA -15VDC / 500mA
TMP15252 +5VDC / 1500mA +12VDC / 625mA
TMP15512 +5VDC / 2000mA +12VDC / 200mA -12VDC / 200mA
TMP15515 +5VDC / 2000mA +15VDC / 150mA -15VDC / 150mA
TMP30105 5.0VDC / 6000mA
TMP30112 12VDC / 2500mA
TMP30115 15VDC / 2000mA
TMP30124 24VDC / 1250mA
TMP30148 48VDC / 625mA
TMP30212 +12VDC / 1300mA -12VDC / 1300mA
TMP30215 +15VDC / 1000mA -15VDC / 1000mA
TMP30252 30W +5.0VDC / 3000mA +12VDC / 1250mA
TMP30512 +5.0VDC / 3000mA +12VDC / 600mA -12VDC / 600mA
TMP30515 +5.0VDC / 3000mA +15VDC / 500mA -15VDC / 500mA
TMP30522 +5.0VDC / 1500mA +12VDC / 1000mA -12VDC / 250mA
TMP30316 +3.3VDC / 4000mA +5.0VDC / 1500mA +12VDC / 250mA
TMP30317 +5.0VDC / 4500mA +3.3VDC / 1000mA +12VDC / 250mA
TMP60105 5.1VDC / 10,000mA
TMP60112 12VDC / 5000mA
TMP60115 60W 15VDC / 4000mA
TMP60124 24VDC / 2500mA
TMP60136 36VDC / 1670mA
TMP60148 48VDC / 1250mA

* For chassis mount version add suffix C

POWER

NOISE REG. REG.

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 2.5%

1.3% (mV pk-pk) 1.0% 2.5%

1.3% (mV pk-pk) 1.0% 5.0%

1.3% (mV pk-pk) 1.0%

1.3% (mV pk-pk) 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 2.5%

1.3% (mV pk-pk) 1.0% 2.5%

1.3% (mV pk-pk) 1.0% 5.0%

1.3% (mV pk-pk) 1.0%

1.3% (mV pk-pk) 1.0%

1.3% (mV pk-pk) 1.0%

1.3% (mV pk-pk) 1.0%

1.3% (mV pk-pk) 1.0%

1.8% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.3% (mV pk-pk) 1.0% 1.0%

1.0%/4.0%

1.0%/4.0%

1.0%/4.0%

1.0%/4.0%

1.0%/4.0%

1.0%/4.0%

1.0%/4.0%

Mechanical & Connection Details

Dimensions in mm (inches)
Case Tolerances: ±0.5 (±0.02)
Pin Pitch Tolerances: ±0.25 (±0.01)
Mounting Hole Tolerance: ±0.25 (±0.02)

TMP07 Models TMPM10 Models TMP10 Models

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Pin TMP07 TMPM10 TMP10

1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 +Vout +Vout -Vout Vout2
4 -Vout -Vout N/C Comm.
5 N/A N/A +Vout Vout1

Single Dual

AC-DC Power Modules

Mechanical & Connection Details (cont.)

TMP15 Models for PCB Mount

www.powersolve.co.uk

TMP15 Models for Chassis Mount

Pin Single Dual Dual Triple

Pin-out

sym. asym.

1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 No pin No pin No pin Vout3
4 -Vout Vout2 -Vout2 Comm.
5 No pin Comm. +Vout2 Vout2
6 +Vout Vout1 -Vout1 -Vout1
7 No pin No pin +Vout1 +Vout1

Pin Single Dual Dual Triple

1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 N/C N/C N/C Vout3
4 -Vout Vout2 -Vout2 Comm.
5 N/C Comm. +Vout2 Vout2
6 +Vout Vout1 -Vout1 -Vout1
7 N/C N/C +Vout1 +Vout1

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

sym. asym.

Connections

AC-DC Power Modules

Mechanical & Connection Details (cont.)

TMP30 Models for PCB Mount

www.powersolve.co.uk

TMP30 Models for Chassis Mount

Pin Single Dual Dual Triple

Pin-out

sym. asym.

1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 +Vout Vout1 +Vout2 Vout2
4 No pin No pin +Vout1 +Vout1
5 -Vout Comm. -Vout2 Comm.
6 No pin No pin -Vout1 -Vout1
7 N/C Vout2 N/C Vout3

Pin Single Dual Dual Triple

1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 +Vout Vout1 +Vout2 Vout2
4 N/C N/C +Vout1 +Vout1
5 -Vout Comm. -Vout2 Comm.
6 N/C N/C -Vout1 -Vout1
7 N/C Vout2 N/C Vout3

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

sym. asym.

Connections

AC-DC Power Modules

Mechanical & Connection Details (cont.)

TMP60 Models for PCB Mount

www.powersolve.co.uk

Pin-out

Pin Single

1 AC(N)
2 AC(L)
3 No pin
4 +Vout
5 No pin
6 -Vout
7 No pin

TMP60 Models for Chassis Mount

Connections

Pin Single

1 AC(N)
2 AC(L)
3 N/C
4 +Vout
5 N/C
6 -Vout
7 N/C

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Power Modules

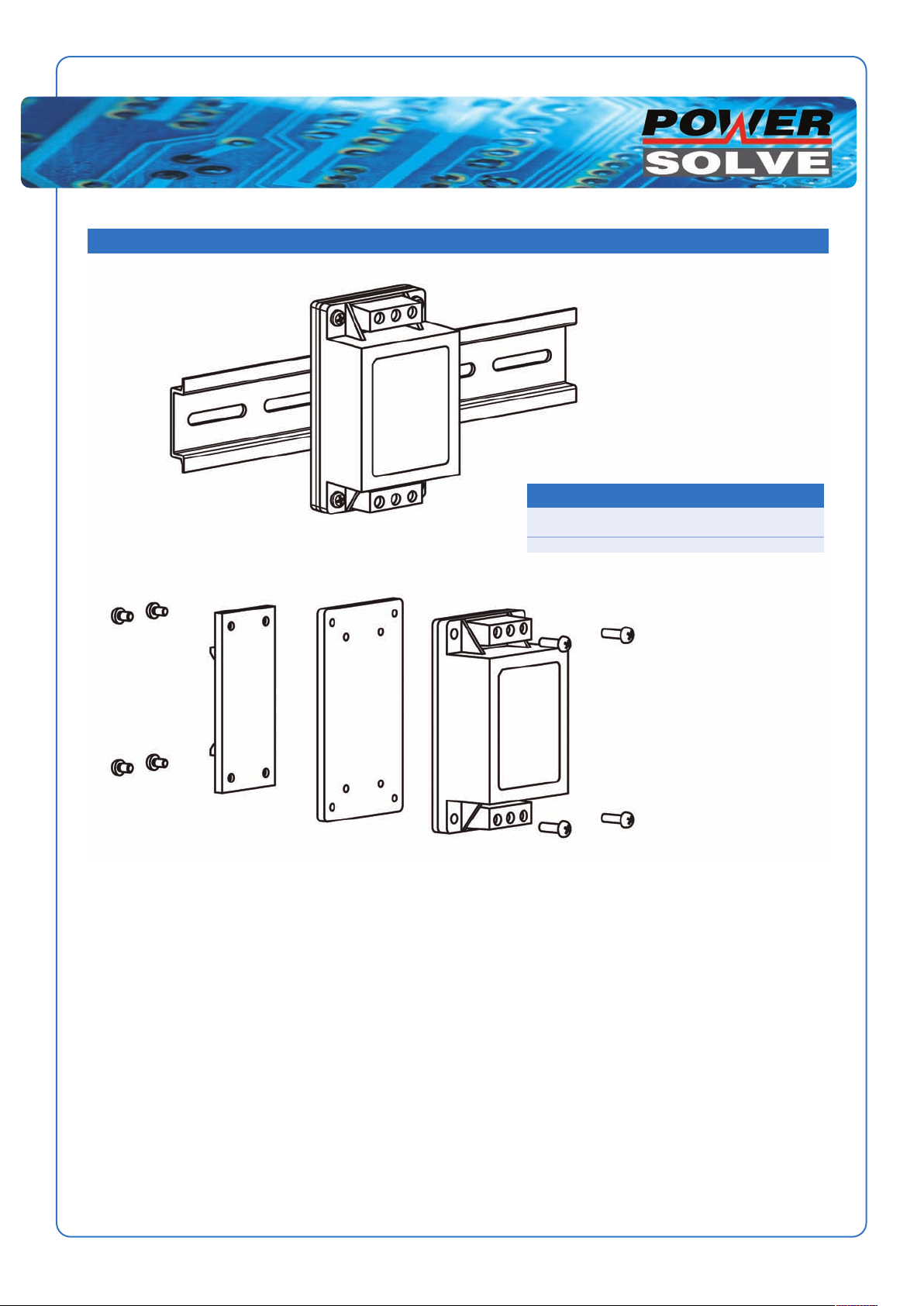

DIN-Rail Mounting Kit

www.powersolve.co.uk

Order Code For Models

TMP-MK1 TMP15xxxC
TMP-MK2 TMP30xxxC & TMP60xxxC

DIN-Rail Mounting Kit

Kit contains interface plate,
DIN-rail clip and all
necessary screws
