AC-DC Power Modules
TML Series, 20 & 40 Watt
Features
• Replacement for TML 15 and TML 30 models
• PCB mount with solder pins
• Chassis mount with screw terminals
• Single, dual and triple output models
• Universal input 85-264Vac, 47-440Hz
• Protection class I (TML 20) & class II (TML 40)
• EMI meets EN 55022 class B
• Short circuit and overload protection
Electrical Specification
Input voltage range 85-264Vac, 47-440Hz
EMI suppression EN55011 class B, EN55022 class B, FCC level B
EMC immunity EN61000-6-1
Output current limitation foldback, automatic recovery
Efficiency 80% typical
Operating Temperature Range -25°C to +60°C (derate at 4%/°C above 50°C)
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1,
Degree of protection safety class I (TML 40 models class II)
Casing plastic (UL94V-0 rated)
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL OUTPUT P OUTPUT 1 OUTPUT 2 OUTPUT 3 RIPPLE & LINE LOAD
TML20103 3.3VDC 4500mA
TML20105 5VDC 4000mA
TML20112 12VDC 1670mA
TML20115 15VDC 1340mA
TML20124 20W 24VDC 840mA
TML20205 +5VDC 2000mA -5VDC 2000mA
TML20212 +12VDC 830mA -12VDC 830mA
TML20215 +15VDC 670mA -15VDC 670mA
TML20512 +5VDC 2800mA +12VDC +250mA -12V -250mA
TML20515 +5VDC 2800mA +15VDC +200mA -15V -200mA
TML40103 3.3VDC 8000mA
TML40105 5VDC 8000mA
TML40112 12VDC 3330mA
TML40115 15VDC 2670mA
TML40124 24VDC 1670mA
TML40205 40W +5VDC 4000mA -5VDC 4000mA
TML40212 +12VDC 1670mA -12VDC 1670mA
TML40215 +15VDC 1330mA -15VDC 1330mA
TML40252 +5VDC 5000mA +12VDC 1250mA
TML40254 +5VDC 5000mA +24VDC 625mA
TML40512 +5VDC 5000mA +12VDC +600mA -12V -600mA
TML40 515 +5VDC 5000mA +15VDC +500mA -15V -500mA
For chassis mount version add suffix C
NOISE REG. REG.
1.0% 0.5% 1.0%
1.0% 0.5% 1.0%
1.0% 0.5% 1.0%
1.0% 0.5% 1.0%
1.0% 0.5% 1.0%
1.0% 0.5% 3.0%
1.0% 0.5% 3.0%
1.0% 0.5% 3.0%
1.0% 1.0%/5.0% 2.0%5.0%
1.0% 1.0%/5.0% 2.0%5.0%
1.5% 0.5% 0.5%
1.5% 0.5% 0.5%
1.0% 0.5% 0.5%
1.0% 0.5% 0.5%
1.0% 0.5% 0.5%
1.0% 0.5% 3.0%
1.0% 0.5% 3.0%
1.0% 0.5% 3.0%
1.0% 0.5%/5.0% 2.0%/6.0%
1.0% 0.5%/5.0% 2.0%/6.0%
1.0% 0.5%/5.0% 3.0%/7.0%
1.0% 0.5%/5.0% 3.0%/7.0%
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
AC-DC Power Modules
Mechanical and Connection Details
TML20 Models - for PCB mount
www.powersolve.co.uk
TML20C Models - for chassis mount
Pin Single Dual Triple
Pin Out
Output Output Output
1 FG
2 AC in (N)
3 AC in (L)
4 No pin/nc No pin/nc Vout3
5 -Vout Vout2 Comm.
6 No pin Comm. Vout2
7 +Vout Vout1 +Vout1
8 No pin No pin -Vout1
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
AC-DC Power Modules

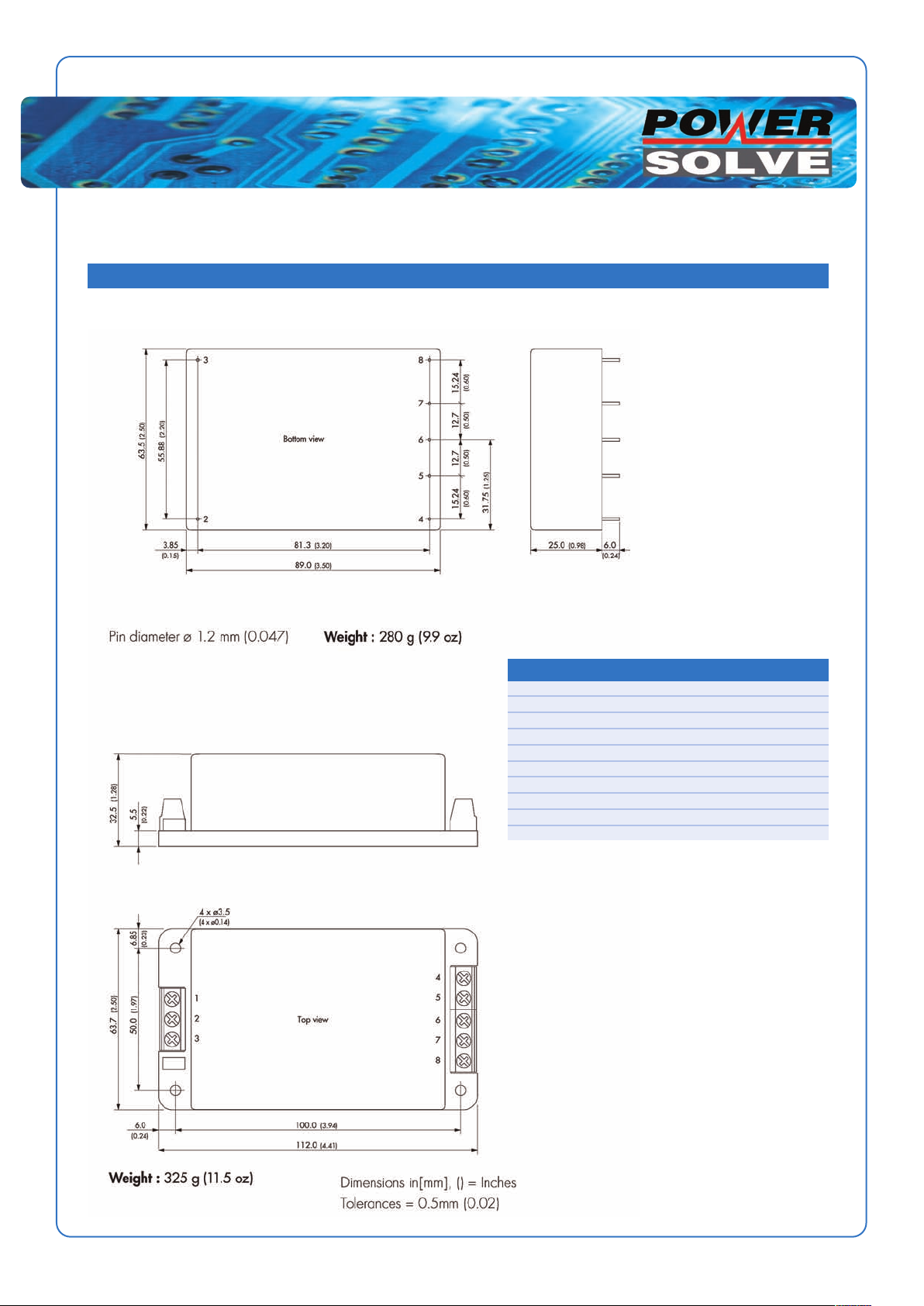

Mechanical and Connection Details (cont.)
TML40 Models - for PCB mount
www.powersolve.co.uk
TML40C Models - for chassis mount
Pin Single Dual sym. Dual asym. Triple
Pin Out
Output Output Output Output
1 No pin / No conn.
2 AC in (L)
3 AC in (N)
4 +Vout Vout1 +Vout2 Vout2
5 No pin/nc No pin/nc +Vout1 +Vout1
6 -Vout Comm. -Vout2 Comm.
7 No pin/nc No pin/nc -Vout1 -Vout1
8 nc Vout2 No pin/nc Vout3
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
