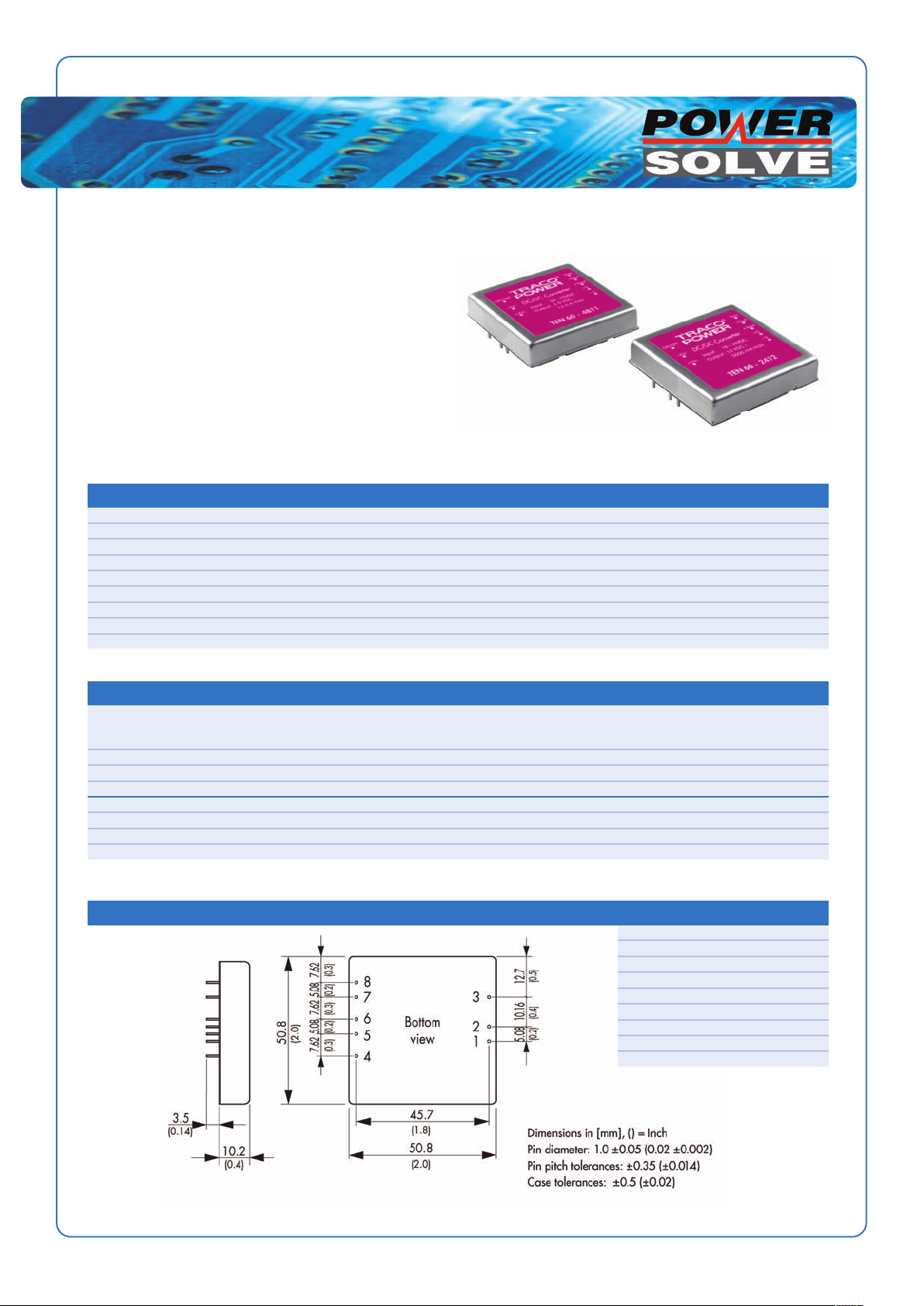

DC-DC Converters
TEN60 Series, 60 Watt
Features
• Wide 2:1 input range
• High efficiency up to 90%
• I/O isolation 1500VDC
• Operating temperature range -40°C to +75°C
• Short circuit protection
• Adjustable output voltages
• Remote On/Off
• High power density in a 50.8 x 50.8 x 10.2 mm Metal package
Electrical Specification
Output Voltage Adjustment ±10% by external resistor
Conducted EMI EN55022 class A & FCC level A (with external capacitor)
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +75°C (derate at 2.0/°C above 50°C)
Thermal protection Shutdown at 120°C
I/O Isolation test voltage 1500VDC (basic insulation)
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1
Casing metal, 6-side shielded with insulated baseplate
Remote On/Off Shutdown input for low input current (2.5mA) in standby operation
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.
TEN60-2410 3.3VDC 14000mA 75mV pk-pk max. 0.2% 0.5% 89%
TEN60-2411 5VDC 12000mA 75mV pk-pk max. 0.2% 0.5% 90%
TEN60-2412 18 - 36V 12VDC 5000mA 100mV pk-pk max. 0.2% 0.5% 90%
TEN60-2413 15VDC 4000mA 100mV pk-pk max. 0.2% 0.5% 90%
TEN60-4810 3.3VDC 14000mA 75mV pk-pk max. 0.2% 0.5% 89%
TEN60-4811 5VDC 12000mA 75mV pk-pk max. 0.2% 0.5% 90%
TEN60-4812 36 - 75V 12VDC 5000mA 100mV pk-pk max. 0.2% 0.5% 90%
TEN60-4813 15VDC 4000mA 100mV pk-pk max. 0.2% 0.5% 90%
VOLTAGE VOLTAGE CURRENT NOISE REG. REG.
Mechanical and Connection Details
Pin Function
1 +Vin (Vcc)
2 -Vin (GND)
3 Remote On/Off
4 -Sense
5 +Sense
6 +Vout
7 -Vout
8 Trim
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
