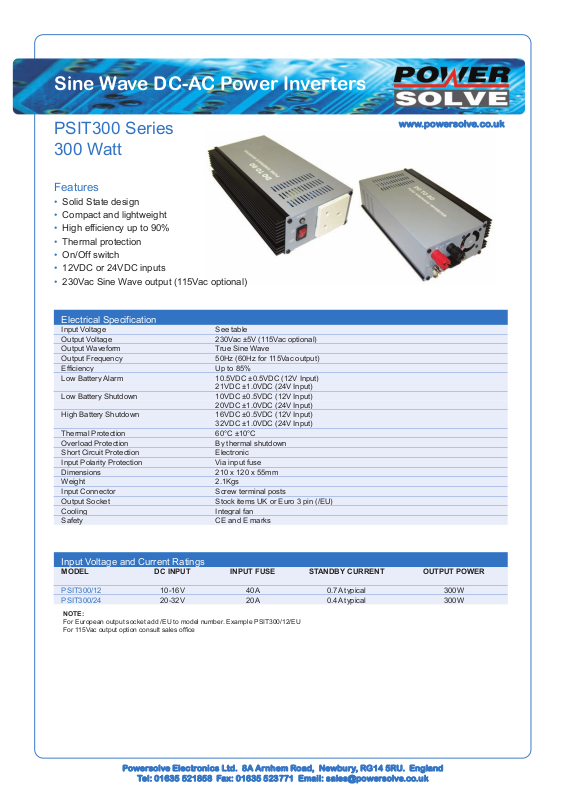

Sine Wave DC-AC Power Inverters
PSIT300 Series
300 Watt
Features
• Solid State design
• Compact and lightweight
• High efficiency up to 90%
• Thermal protection
• On/Off switch
• 12VDC or 24VDC inputs
• 230Vac Sine Wave output (115Vac optional)
Electrical Specification
Input Voltage See table
Output Voltage 230Vac ±5V (115Vac optional)
Output Waveform True Sine Wave
Output Frequency 50Hz (60Hz for 115Vac output)
Efficiency Up to 85%
Low Battery Alarm 10.5VDC ±0.5VDC (12V Input)
21VDC ±1.0VDC (24V Input)
Low Battery Shutdown 10VDC ±0.5VDC (12V Input)
20VDC ±1.0VDC (24V Input)
High Battery Shutdown 16VDC ±0.5VDC (12V Input)
32VDC ±1.0VDC (24V Input)
Thermal Protection 60°C ±10°C
Overload Protection By thermal shutdown
Short Circuit Protection Electronic
Input Polarity Protection Via input fuse
Dimensions 210 x 120 x 55mm
Weight 2.1Kgs
Input Connector Screw terminal posts
Output Socket Stock items UK or Euro 3 pin (/EU)
Cooling Integral fan
Safety CE and E marks
www.powersolve.co.uk
Input Voltage and Current Ratings
MODEL DC INPUT INPUT FUSE STANDBY CURRENT OUTPUT POWER
PSIT300/12 10-16V 40A 0.7A typical 300W
PSIT300/24 20-32V 20A 0.4A typical 300W
NOTE:
For European output socket add /EU to model number. Example PSIT300/12/EU
For 115Vac output option consult sales office
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
