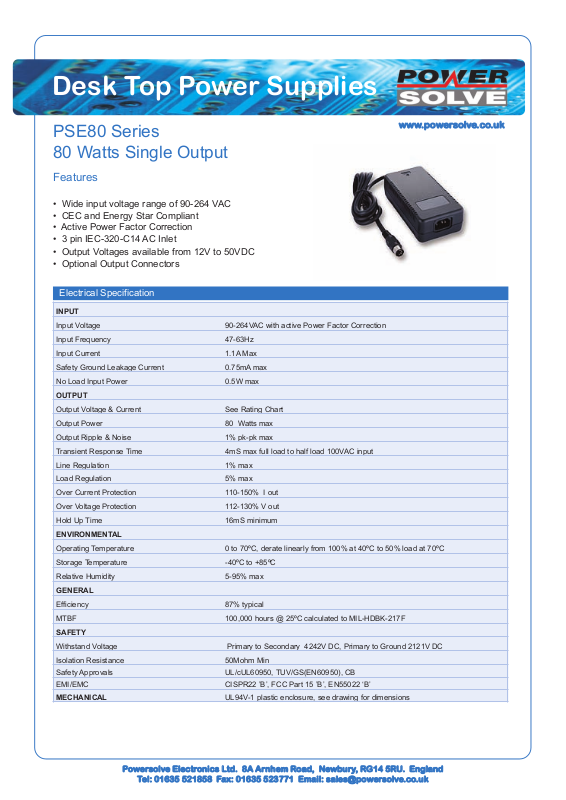

Desk Top Power Supplies
PSE80 Series
www.powersolve.co.uk
80 Watts Single Output
Features
• Wide input voltage range of 90-264 VAC
• CEC and Energy Star Compliant
• Active Power Factor Correction
• 3 pin IEC-320-C14 AC Inlet
• Output Voltages available from 12V to 50VDC
• Optional Output Connectors
Electrical Specification
INPUT
Input Voltage 90-264VAC with active Power Factor Correction
Input Frequency 47-63Hz
Input Current 1.1A Max
Safety Ground Leakage Current 0.75mA max
No Load Input Power 0.5W max
OUTPUT
Output Voltage & Current See Rating Chart
Output Power 80 Watts max
Output Ripple & Noise 1% pk-pk max
Transient Response Time 4mS max full load to half load 100VAC input
Line Regulation 1% max
Load Regulation 5% max
Over Current Protection 110-150% I out
Over Voltage Protection 112-130% V out
Hold Up Time 16mS minimum
ENVIRONMENTAL
Operating Temperature 0 to 70ºC, derate linearly from 100% at 40ºC to 50% load at 70ºC
Storage Temperature -40ºC to +85ºC
Relative Humidity 5-95% max
GENERAL
Efficiency 87% typical
MTBF 100,000 hours @ 25ºC calculated to MIL-HDBK-217F
SAFETY
Withstand Voltage Primary to Secondary 4242V DC, Primary to Ground 2121V DC
Isolation Resistance 50Mohm Min
Safety Approvals UL/cUL60950, TUV/GS(EN60950), CB
EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’
MECHANICAL UL94V-1 plastic enclosure, see drawing for dimensions
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Desk Top Power Supplies
www.powersolve.co.uk
Output Voltage & Current Ratings
MODEL OUTPUT VOLTAGE OUTPUT CURRENT MAX OUTPUT POWER
PSE80-12-09 12V DC 6.67A 80 Watts
PSE80-15-09 15V DC 5.33A 80 Watts
PSE80-16-09 16V DC 5.00A 80 Watts
PSE80-18-09 18V DC 4.44A 80 Watts
PSE80-24-09 24V DC 3.33A 80 Watts
PSE80-48-09 48V DC 1.67A 80 Watts
Models above are standard stock items fitted with a 180º 5 pin DIN connector, (-09) on end of part number. Alternative connectors can
be fitted, consult sales office for details.
In addition other models are available to order with any voltage in the range of 12V to 50V DC.

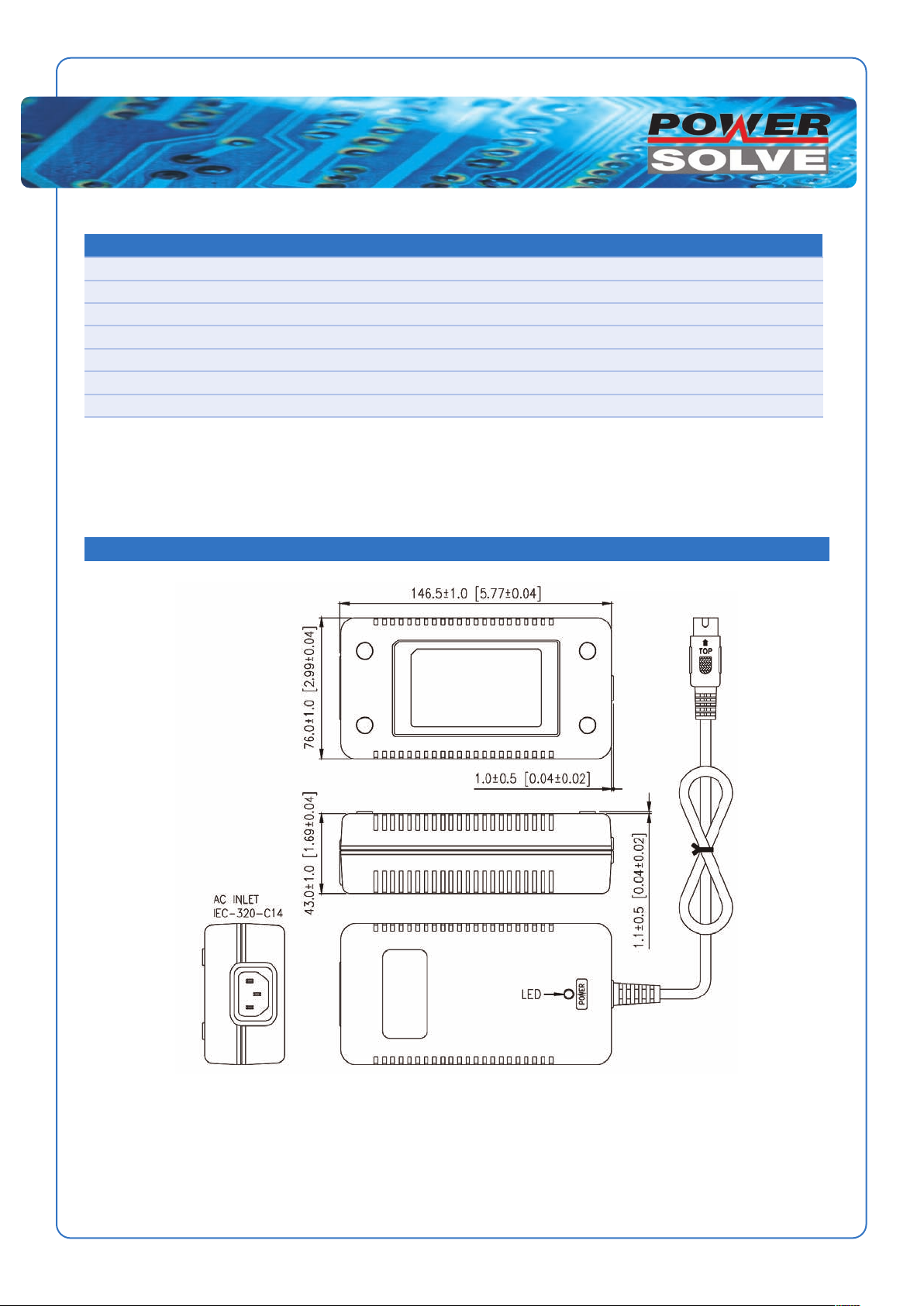

Mechanical Details
All dimensions are shown in mm
Weight 600-700gms approx
