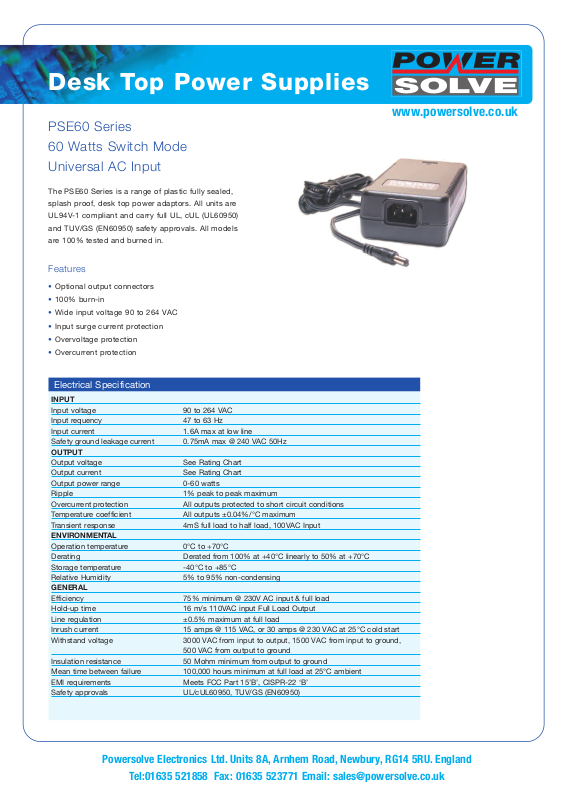

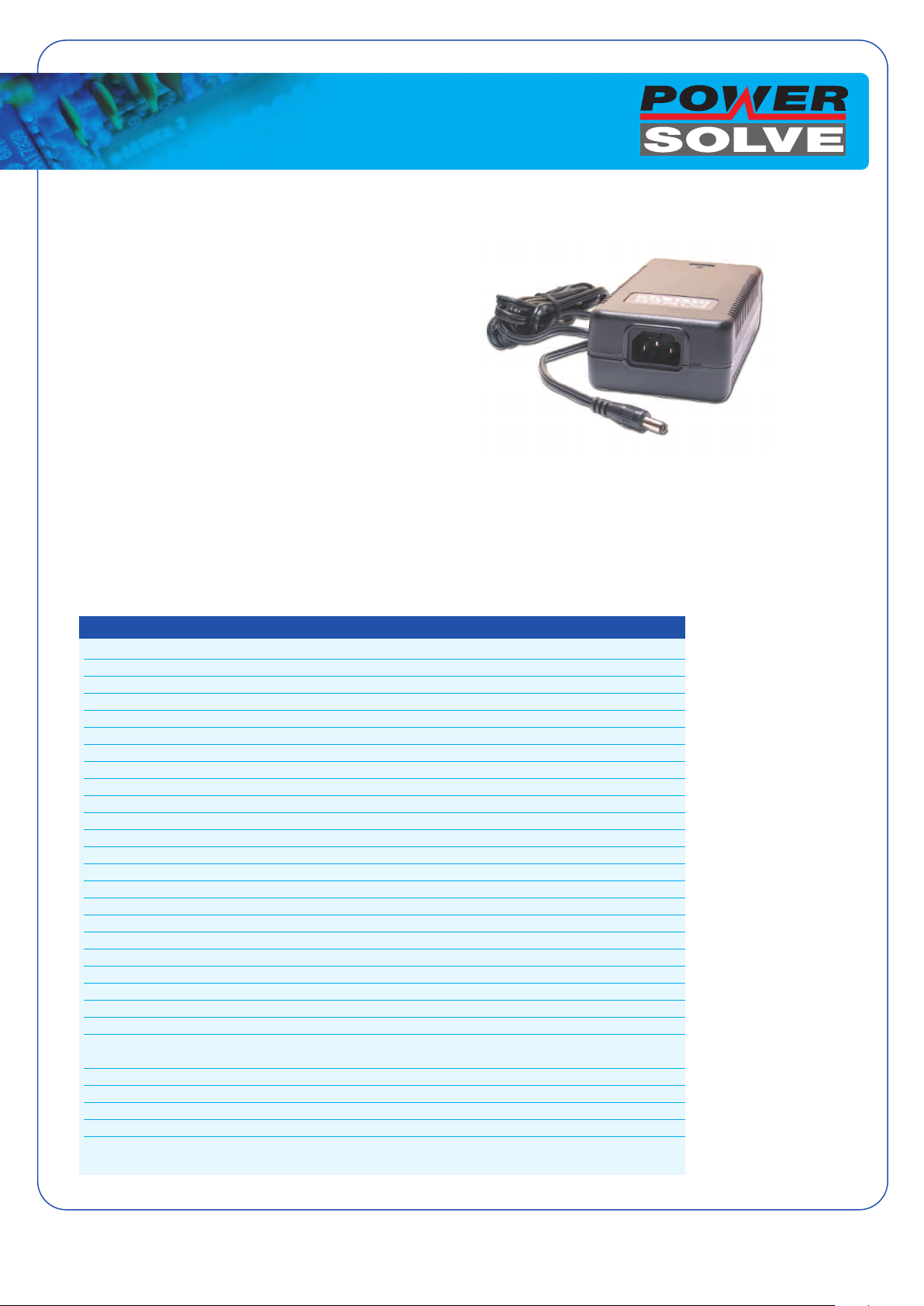

Desk Top Power Supplies
PSE60 Series
60 Watts Switch Mode
Universal AC Input
The PSE60 Series is a range of plastic fully sealed,
splash proof, desk top power adaptors. All units are
UL94V-1 compliant and carry full UL, cUL (UL60950)
and TUV/GS (EN60950) safety approvals. All models
are 100% tested and burned in.
Features
• Optional output connectors
• 100% burn-in
• Wide input voltage 90 to 264 VAC
• Input surge current protection
• Overvoltage protection
• Overcurrent protection
www.powersolve.co.uk
Electrical Specification
INPUT
Input voltage 90 to 264 VAC
Input requency 47 to 63 Hz
Input current 1.6A max at low line
Safety ground leakage current 0.75mA max @ 240 VAC 50Hz
OUTPUT
Output voltage See Rating Chart
Output current See Rating Chart
Output power range 0-60 watts
Ripple 1% peak to peak maximum
rent protection All outputs protected to short circuit conditions
cur
Over
Temperature coefficient All outputs ±0.04%/°C maximum
Transient response 4mS full load to half load, 100VAC Input
ENVIRONMENTAL
C to +70°C
°
Operation temperatur
Derating Derated from 100% at +40°C linearly to 50% at +70°C
Storage temperature -40°C to +85°C
Relative Humidity 5% to 95% non-condensing
GENERAL
ficiency 75% minimum @ 230V AC input & full load
Ef
Hold-up time 16 m/s 110VAC input Full Load Output
Line regulation ±0.5% maximum at full load
Inrush current 15 amps @ 115 VAC, or 30 amps @ 230 VAC at 25°C cold start
ithstand voltage
W
Insulation resistance 50 Mohm minimum from output to ground
Mean time between failure 100,000 hours minimum at full load at 25°C ambient
EMI requirements Meets FCC Part 15’B’, CISPR-22 ‘B’
Safety approvals UL/cUL60950, TUV/GS (EN60950)
e
0
AC from input to output, 1500 VAC from input to ground,
3000 V
500 VAC from output to ground
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
0.6
7
± 0.1
0.3
4
± 0
.
1
146.00±1.0
POWER LED
AC INPUT
IEC 320 INLET
NOTE:
1. Optional output connectors: see page Appendix

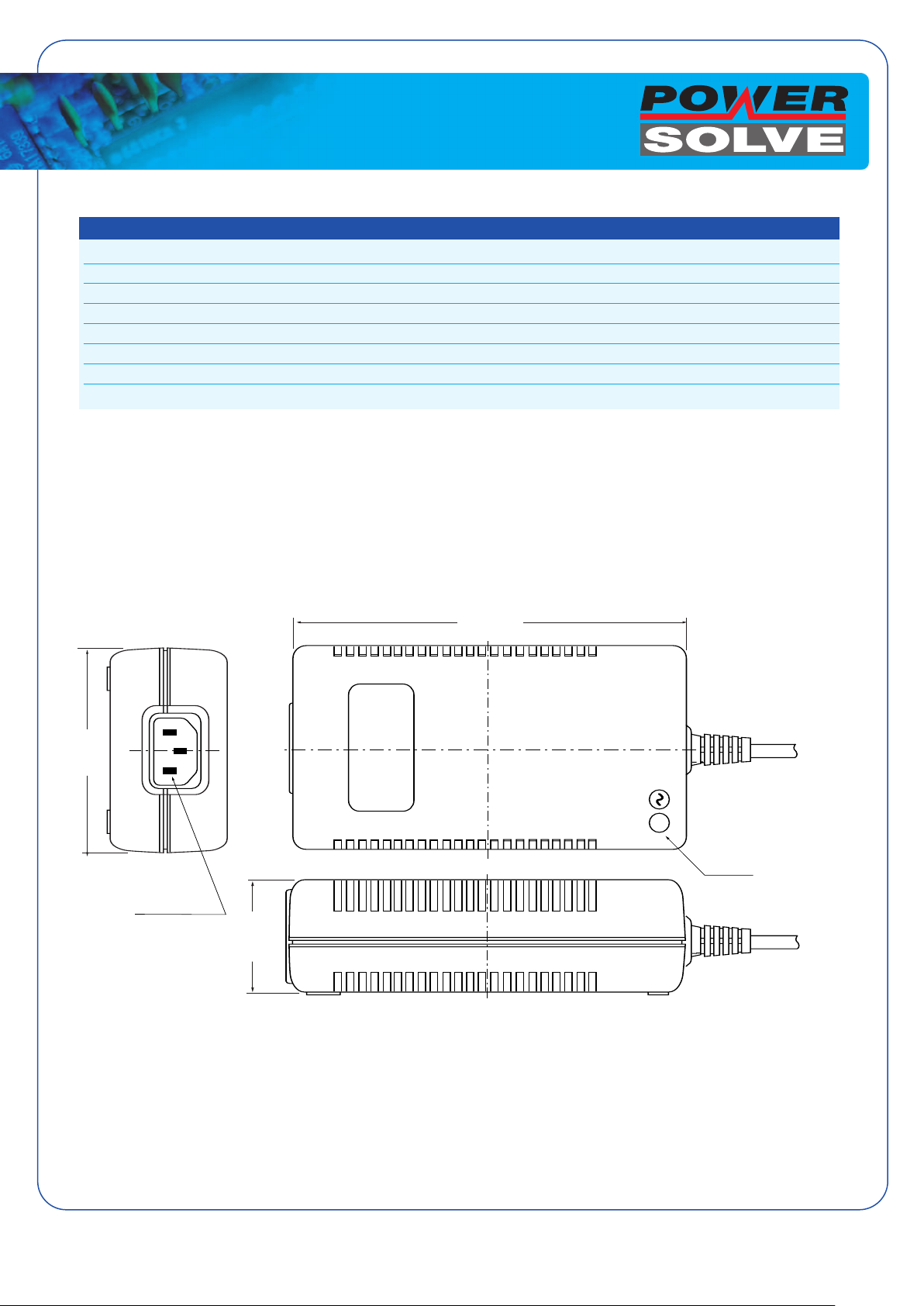

MECHANICAL DIMENSIONS
m
m
Desk Top Power Supplies
www.powersolve.co.uk
Output Voltage/Current Rating Chart - PSE60 Series
MODEL NO OUTPUT TOTAL REGULATION MAXIMUM POWER
PSE60-105 5V 10A 5% 50 Watts
PSE60-209 9V 6.5A 5% 58.5 Watts
PSE60-312 12V 5A 5% 60 Watts
PSE60-516 16V 3.75A 5% 60 Watts
PSE60-624 24V 2.5A 5% 60 Watts
PSE60-948 48V 1.25A 5% 60 Watts
Standard models fitted with 1.8 Metre output lead fitted with 2.5 x 5.5 x 11mm Female Barrel Connector, wired centre positive.
Options: Alternative output connectors available, consult sales office with your requirements.
Any output voltage available within the range of 5V to 50V DC.
Some of these may be subject to minimum order quantities.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
