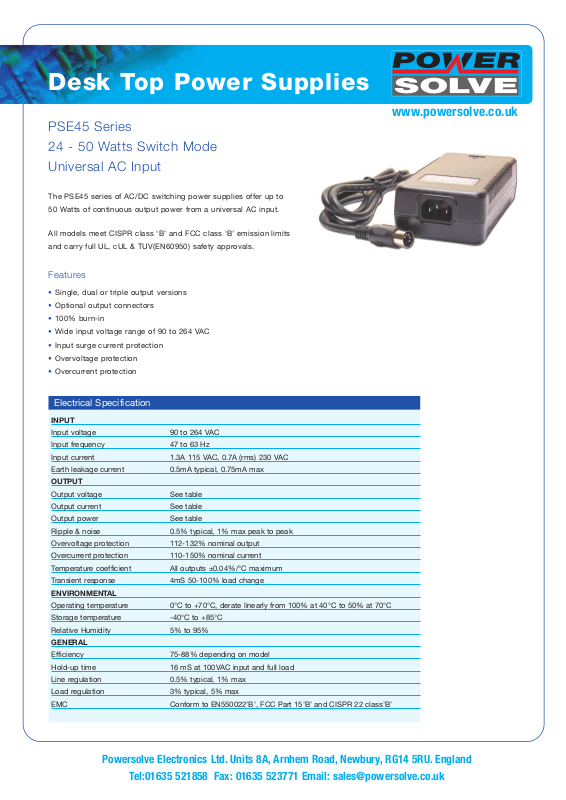

Desk Top Power Supplies
PSE45 Series
24 - 50 Watts Switch Mode
Universal AC Input
The PSE45 series of AC/DC switching power supplies offer up to
50 Watts of continuous output power from a universal AC input.
All models meet CISPR class ‘B’ and FCC class ‘B’ emission limits
ry full UL, cUL & TUV(EN60950) safety approvals.
and car
Features
• Single, dual or triple output versions
• Optional output connectors
• 100% burn-in
• Wide input voltage range of 90 to 264 VAC
• Input surge current protection
• Overvoltage protection
• Overcurrent protection
www.powersolve.co.uk
Electrical Specification
INPUT
Input voltage 90 to 264 VAC
Input frequency 47 to 63 Hz
Input cur
Ear
OUTPUT
Output voltage See table
Output current See table
Output power See table
Ripple & noise 0.5% typical, 1% max peak to peak
Over
Over
Temperature coefficient All outputs ±0.04%/°C maximum
T
ENVIRONMENTAL
Operating temperature 0°C to +70°C, derate linearly from 100% at 40°C to 50% at 70°C
Storage temperature -40°C to +85°C
Relative Humidity 5% to 95%
GENERAL
Efficiency 75-88% depending on model
Hold-up time
Line regulation 0.5% typical, 1% max
Load r
EMC Conform to EN550022’B’, FCC Part 15’B’ and CISPR 22 class’B’
rent 1.3A 115 VAC, 0.7A (rms) 230 VAC
th leakage cur
voltage protection 112-132% nominal output
rent protection 110-150% nominal current
cur
ransient r
egulation
rent 0.5mA typical, 0.75mA max
esponse
4mS 50-100% load change
16 mS at 100VAC input and full load
3% typical, 5% max
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
0.
6
7
±
0
.
1
0
.
3
4 ±
0
.
1
146.00
±
1.0
POWER LED
AC INPUT
IEC 320 INLET
NOTE:
1. Dimensions shown in mm
2. Weight: 300-350gs approx.
MECHANICAL DIMENSIONS
mm
Desk Top Power Supplies
www.powersolve.co.uk
Output Voltage/Current Rating Chart - PSE45 Series
MODEL OUTPUT TOTAL REGULATION MAX POWER
PSE45-05 5V 8A 5% 40 Watts
PSE45-09 9V 5A 3% 45 Watts
PSE45-12 12V 3.75A 3% 45 Watts
PSE45-16 16V 2.81A 3% 45 Watts
PSE45-24 24V 2.08A 2% 50 Watts
PSE45-48 48V 1.04A 2% 50 Watts
Standard models fitted with 1.8 Metre output lead fitted with 2.5 x 5.5 x 11mm Female Barrel Connector, wired centre positive.
Options: Alternative output connectors available, consult sales office with your requirements.
Any output voltage available within the range of 2V to 50V DC.
Some of these may be subject to minimum or
MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 MAXIMUM
VNOM IMIN IMAX TOL. VNOM IMIN IMAX TOL. VNOM IMIN IMAX TOL.
PSE45-3312 +3.3V 0.5A 5A 5% +12V 0.2A 2A 5% – – – – 40W
PSE45-512 +5V 0.5A 5A 5% +12V 0.2A 2A 5% – – – – 42W
PSE45-515 +5V 0.5A 5A 5% +15V 0.2A 1.5A 6% – – – – 42W
PSE45-524 +5V 0.5A 5A 5% +24V 0.1A 1A 5% – – – – 42W
PSE45-335 +3.3V 1.0A 5A 5% +5V 0.4A 2A 5% – – – – 26.5W
PSE45-1212 +12V 0.5A 3A 5% -12V 0.2A 1A 5% – – – – 42W
PSE45-1515 +15V 0.5A 2A 5% -15V 0.2A 1A 5% – – – – 42W
PSE45-524N +5V 0.5A 5A 5% -24V 0.1A 1A 5% – – – – 42W
PSE45-57 +5.1V 0A 1A 5% +7.2V 0.2A 2.6A 5% – – – – 23.8W
PSE45-1010 +10.5V 0.2A 2A 5% -10.5V 0.2A 2A 5% – – – – 42W
PSE45-331212 +3.3V 0.5A 5A 5% +12V 0.2A 2A 5% -12V 0A 0.8A 5% 42W
PSE45-5125 +5V 0.5A 5A 5% +12V 0.2A 2A 5% -5V 0A 0.8A 5% 42W
PSE45-51212 +5V 0.5A 5A 5% +12V 0.2A 2A 5% -12V 0A 0.8A 5% 42W
PSE45-51515
PSE45-52424
PSE45-52412 +5V 0.5A 5A 5% +24V 0.1A 1A 5% -12V 0A 0.8A 5% 42W
PSE45-33125 +3.3V 0.5A 5A 5% +12V 0.2A 2A 5% -5V 0A 0.8A 5% 42W
+5V 0.5A 5A 5% +15V 0.2A 2A 6% -15V 0A 0.8A 5% 42W
+5V
0.5A
5A
5%
der quantities.
+24V
0.1A
OUTPUT
POWER
1A 5% -24V 0A 0.5A 5% 42W
Standard models fitted with a 1.2 metre output lead fitted with a 180 degree DIN plug.
Options: Alter
native output connectors available, consult sales of
