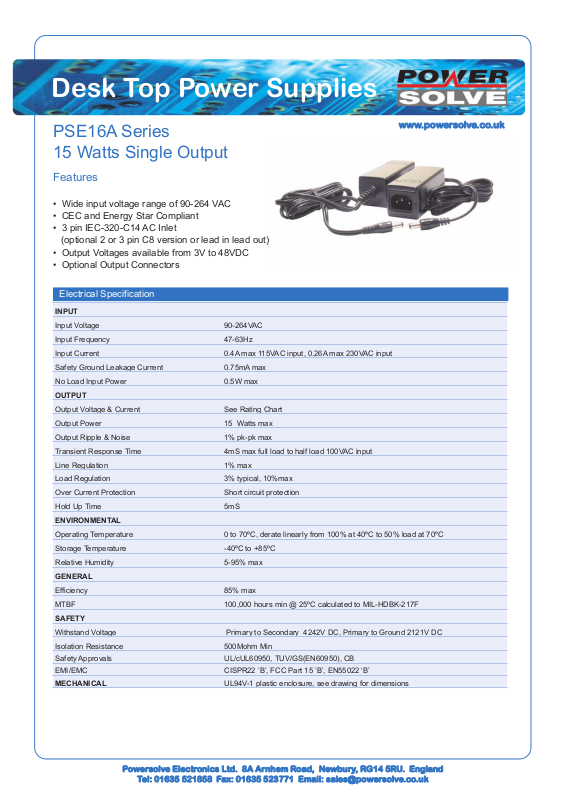

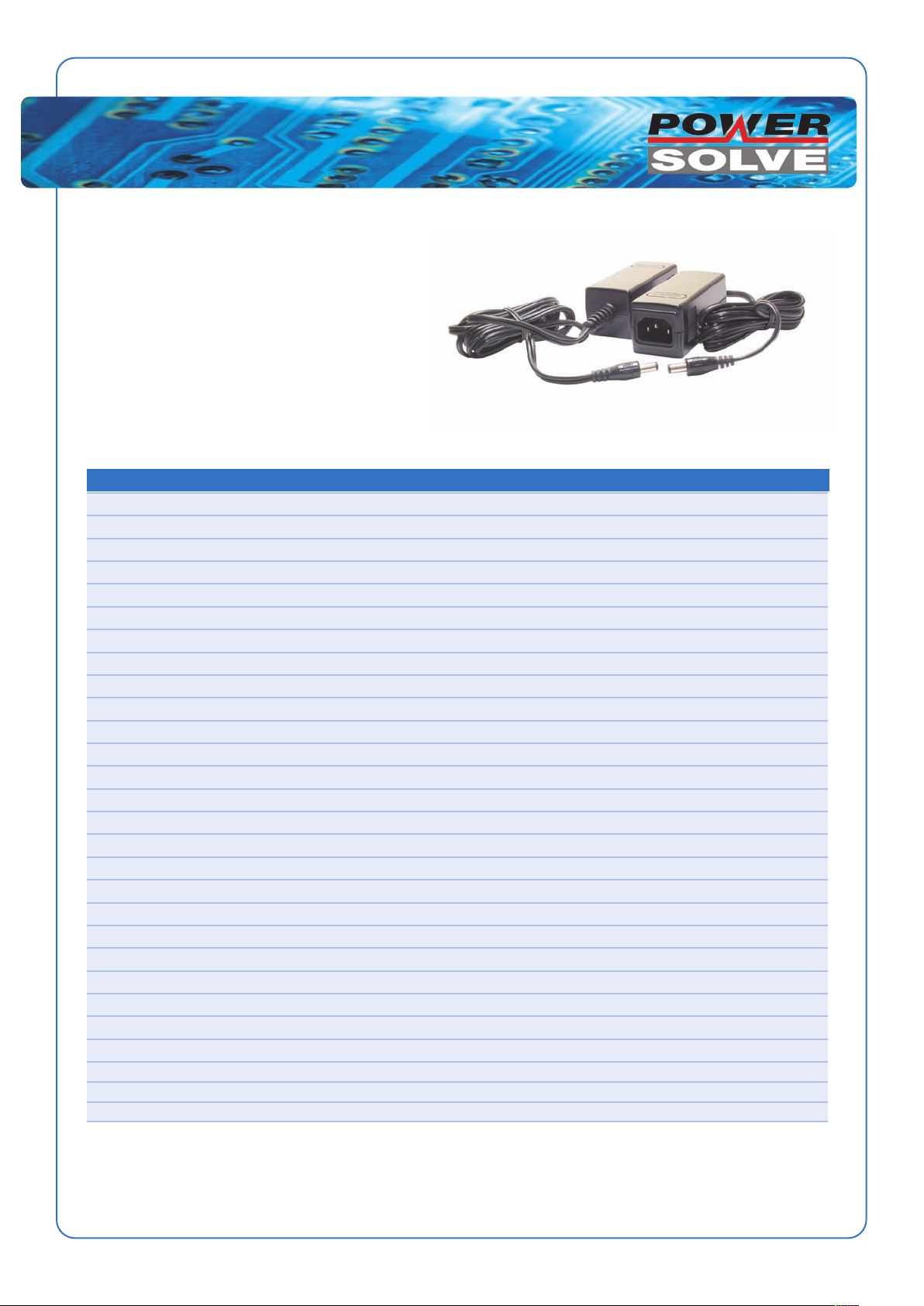

Desk Top Power Supplies
PSE16A Series
www.powersolve.co.uk
15 Watts Single Output
Features
• Wide input voltage range of 90-264 VAC
• CEC and Energy Star Compliant
• 3 pin IEC-320-C14 AC Inlet
(optional 2 or 3 pin C8 version or lead in lead out)
• Output Voltages available from 3V to 48VDC
• Optional Output Connectors
Electrical Specification
INPUT
Input Voltage 90-264VAC
Input Frequency 47-63Hz
Input Current 0.4A max 115VAC input, 0.26A max 230VAC input
Safety Ground Leakage Current 0.75mA max
No Load Input Power 0.5W max
OUTPUT
Output Voltage & Current See Rating Chart
Output Power 15 Watts max
Output Ripple & Noise 1% pk-pk max
Transient Response Time 4mS max full load to half load 100VAC input
Line Regulation 1% max
Load Regulation 3% typical, 10%max
Over Current Protection Short circuit protection
Hold Up Time 5mS
ENVIRONMENTAL
Operating Temperature 0 to 70ºC, derate linearly from 100% at 40ºC to 50% load at 70ºC
Storage Temperature -40ºC to +85ºC
Relative Humidity 5-95% max
GENERAL
Efficiency 85% max
MTBF 100,000 hours min @ 25ºC calculated to MIL-HDBK-217F
SAFETY
Withstand Voltage Primary to Secondary 4242V DC, Primary to Ground 2121V DC
Isolation Resistance 500Mohm Min
Safety Approvals UL/cUL60950, TUV/GS(EN60950), CB
EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’
MECHANICAL UL94V-1 plastic enclosure, see drawing for dimensions
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Desk Top Power Supplies
www.powersolve.co.uk
Output Voltage & Current Ratings
MODEL OUTPUT VOLTAGE OUTPUT CURRENT MAX OUTPUT POWER
PSE16A-05-01 5V DC 2.5A 12 Watts
PSE16A-09-01 9V DC 1.66A 12 Watts
PSE16A-12-01 12V DC 1.25A 15 Watts
PSE16A-15-01 15V DC 1.00A 15 Watts
PSE16A-16-01 16V DC 0.94A 15 Watts
PSE16A-18-01 18V DC 0.83A 15 Watts
PSE16A-24-01 24V DC 0.63A 15 Watts
PSE16A-48-01 48V DC 0.31A 15 Watts
NOTE: Models above are standard stock items fitted with a 2.1 x 5.5 x 11mm Female Barrel connector wired centre positive, (-01) on
end of part number. Alternative output connectors can be fitted. Input is 3 pin IEC320 C14 connector (suffix A on PSE16A). Units can
be ordered with alternative input connectors as per drawing below and they would be suffix B,C or D. Consult sales office for details.
In addition other models are available to order with any voltage in the range of 5V to 48V DC.

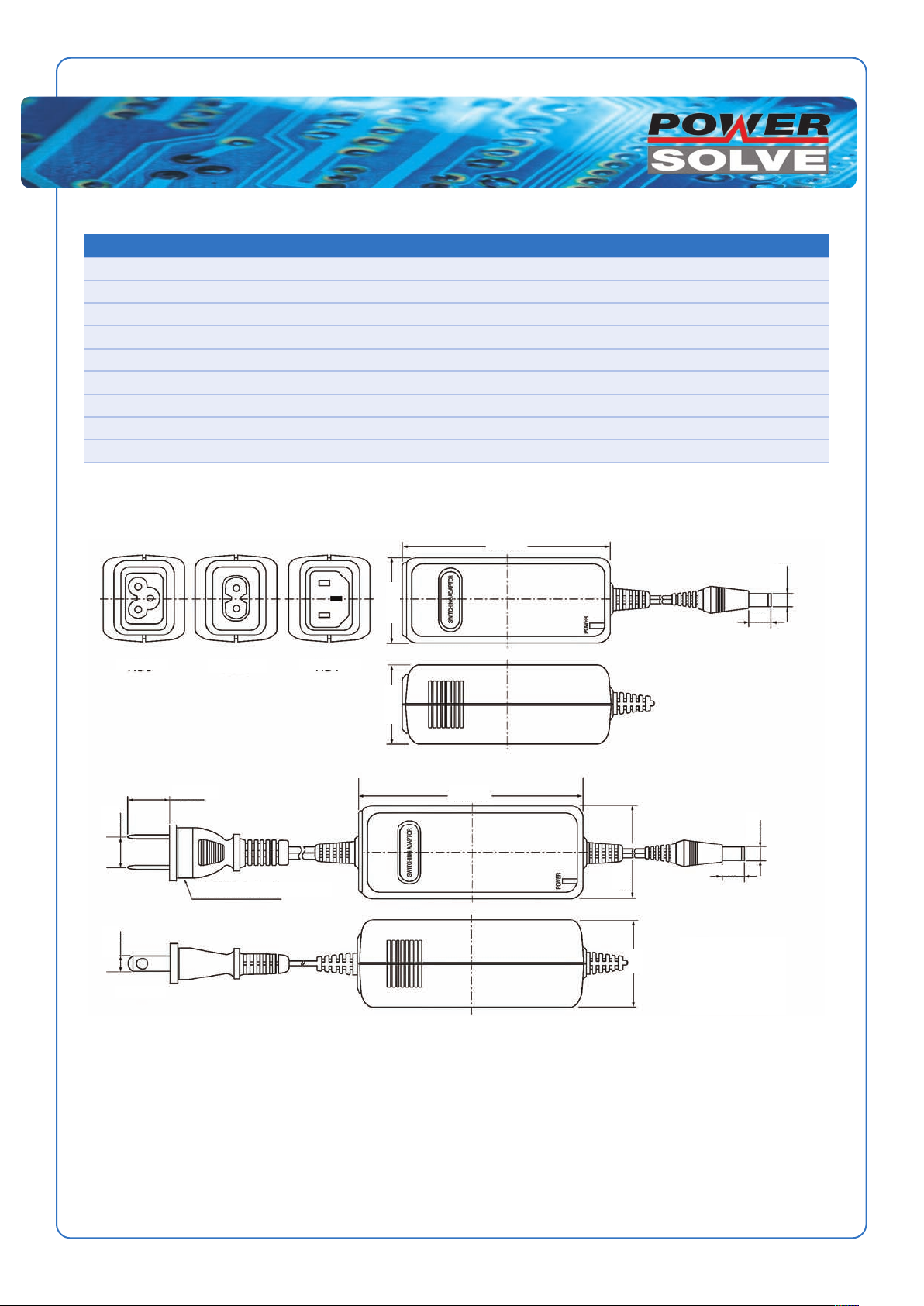

91.00±1.0
5.5
17.0±1.0
12.7
UL type others optional
6.3
Suffix D
All dimensions are shown in mm
36.0±1.0
Suffix ASuffix BSuffix C
36.0±1.0
91.00±1.0
38.0
NOTE:
Weight 165g approx
36.0
(including output cord)
Optional output connectors
Output Lead 1.8 metres
11.0
5.5
11.0
