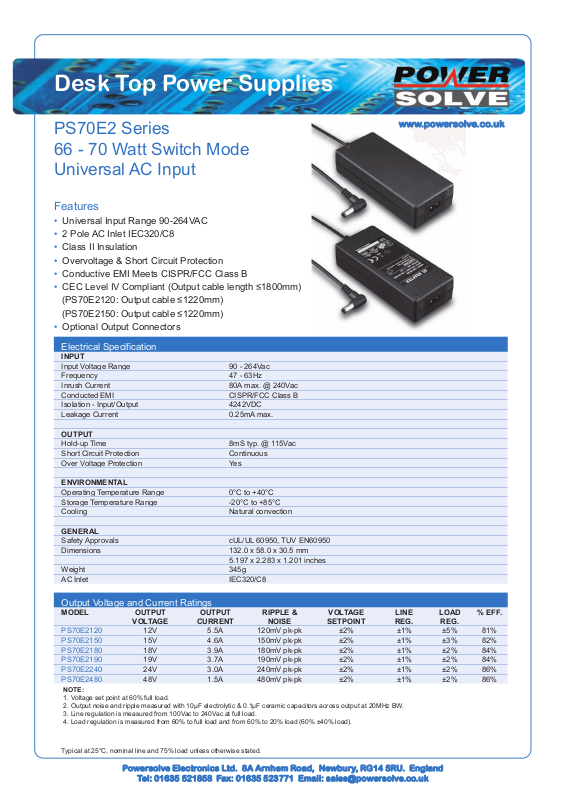

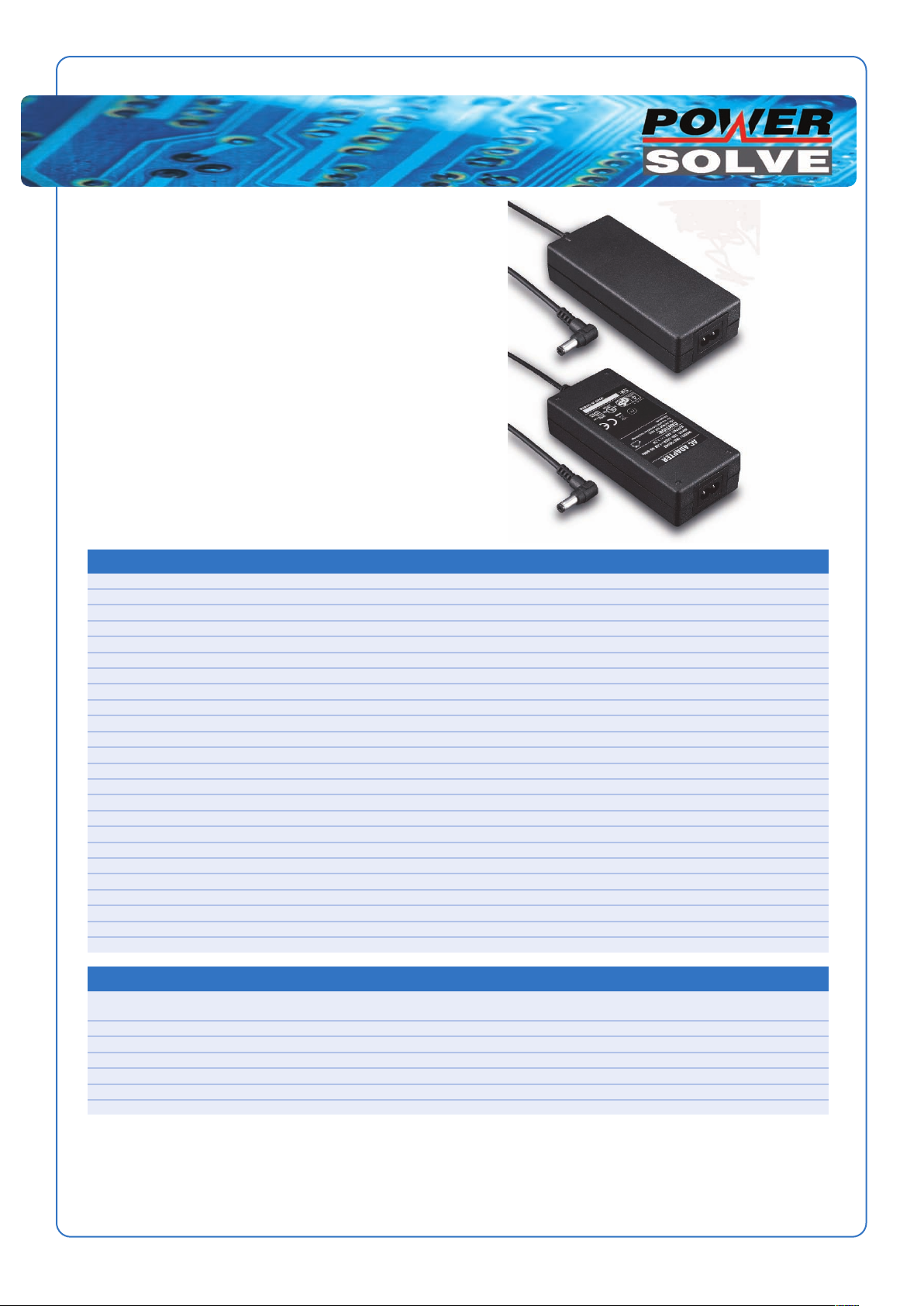

Page 1
Desk Top Power Supplies
PS70E2 Series
66 - 70 Watt Switch Mode
Universal AC Input
Features
• Universal Input Range 90-264VAC
• 2 Pole AC Inlet IEC320/C8
• Class II Insulation
• Overvoltage & Short Circuit Protection
• Conductive EMI Meets CISPR/FCC Class B
• CEC Level IV Compliant (Output cable length ≤1800mm)
(PS70E2120: Output cable ≤1220mm)
(PS70E2150: Output cable ≤1220mm)
• Optional Output Connectors
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Inrush Current 80A max. @ 240Vac
Conducted EMI CISPR/FCC Class B
Isolation - Input/Output 4242VDC
Leakage Current 0.25mA max.
www.powersolve.co.uk
OUTPUT
Hold-up Time 8mS typ. @ 115Vac
Short Circuit Protection Continuous
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range 0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals cUL/UL 60950, TUV EN60950
Dimensions 132.0 x 58.0 x 30.5 mm
5.197 x 2.283 x 1.201 inches
Weight 345g
AC Inlet IEC320/C8
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT RIPPLE & VOLTAGE LINE LOAD % EFF.
PS70E2120 12V 5.5A 120mV pk-pk ±2% ±1% ±5% 81%
PS70E2150 15V 4.6A 150mV pk-pk ±2% ±1% ±3% 82%
PS70E2180 18V 3.9A 180mV pk-pk ±2% ±1% ±2% 84%
PS70E2190 19V 3.7A 190mV pk-pk ±2% ±1% ±2% 84%
PS70E2240 24V 3.0A 240mV pk-pk ±2% ±1% ±2% 86%
PS70E2480 48V 1.5A 480mV pk-pk ±2% ±1% ±2% 86%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
VOLTAGE CURRENT NOISE SETPOINT REG. REG.
Typical at 25°C, nominal line and 75% load unless otherwise stated.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Desk Top Power Supplies

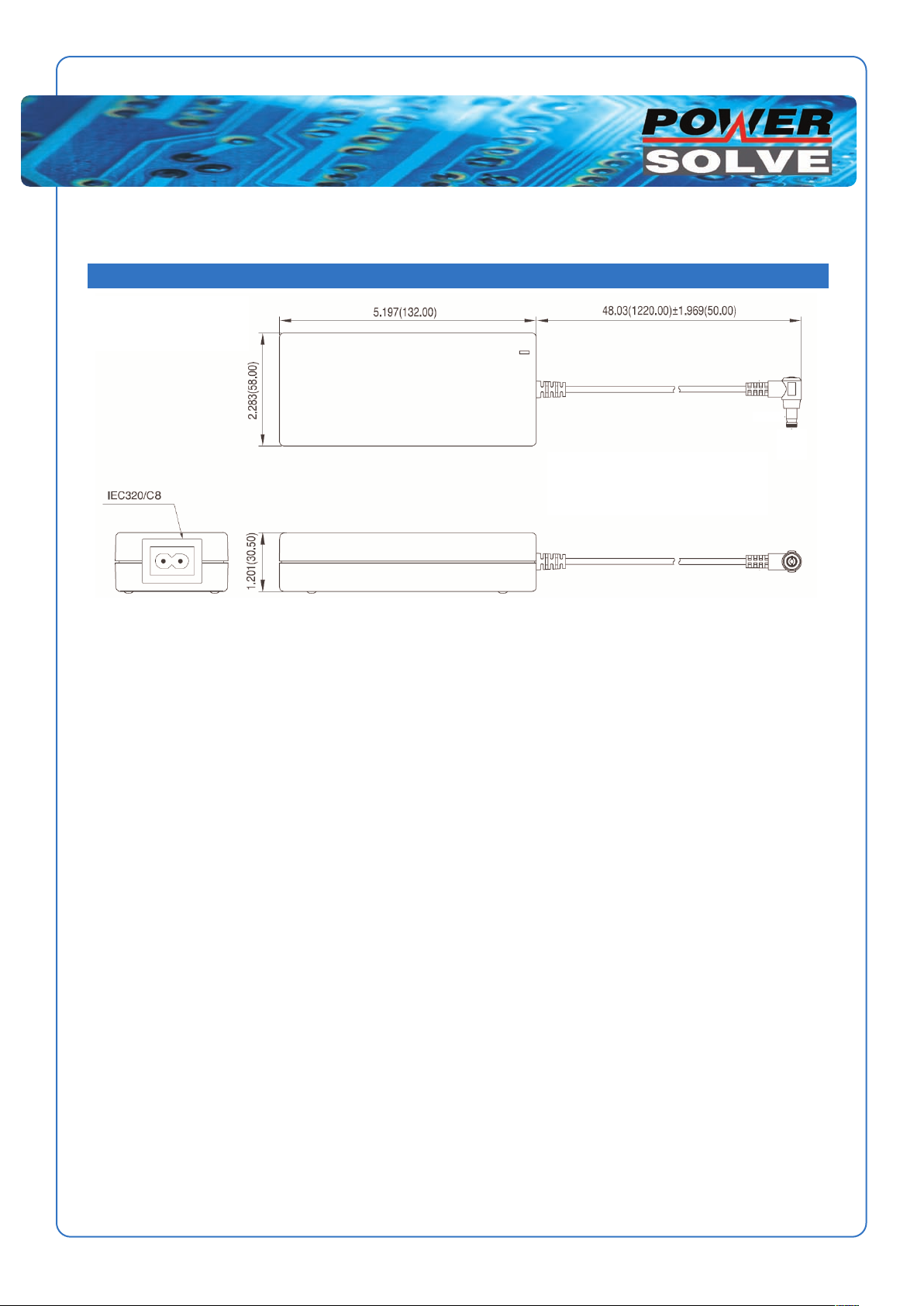

Mechanical Details
All dimensions in inches (mm)
Tolerances:
Inches x.xxx ±0.02
Millimeters x.xx ±0.5
www.powersolve.co.uk
Options: Consult Sales Office for details
Alternative output connectors available
In-line ferrite core on output cable
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
