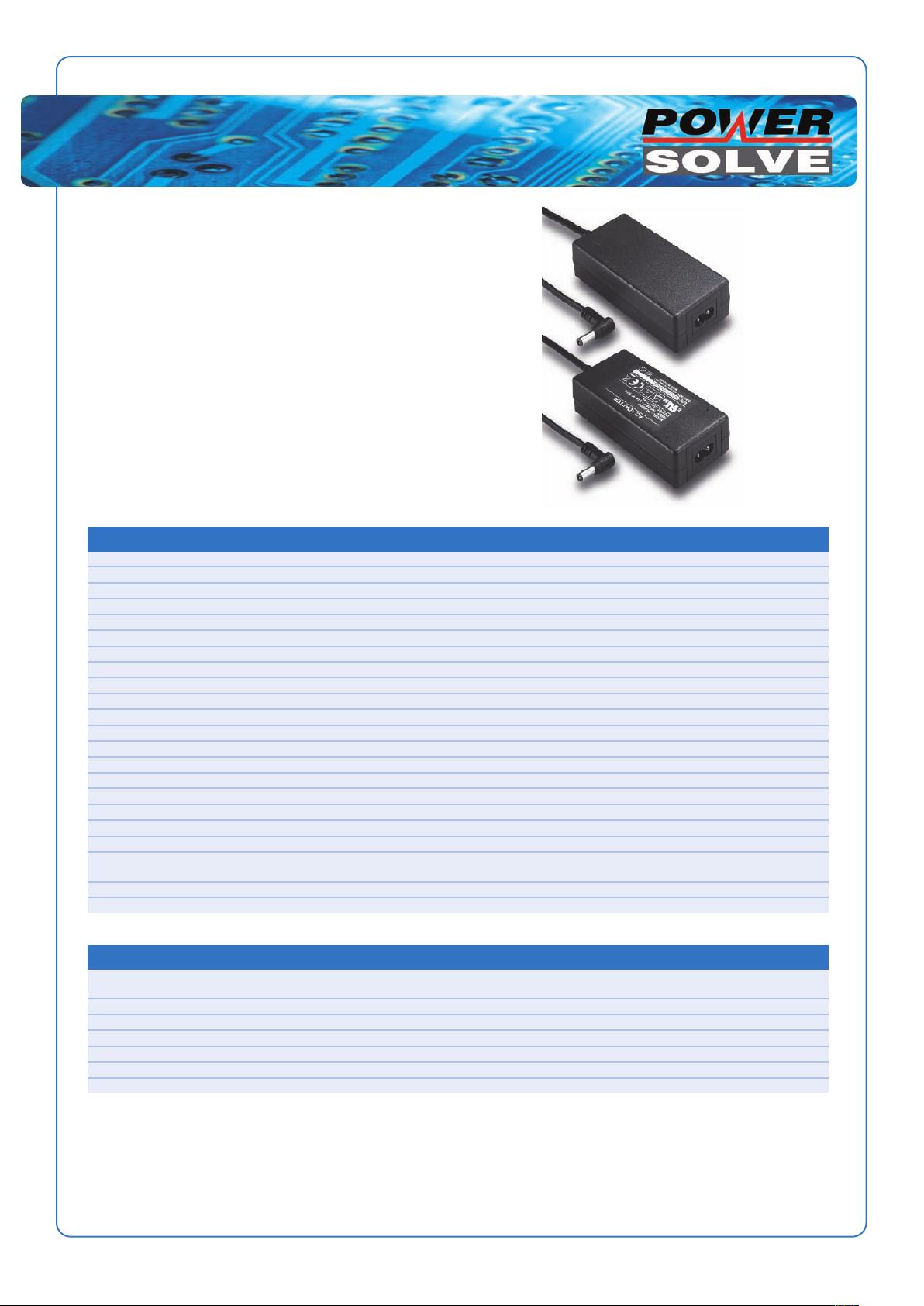

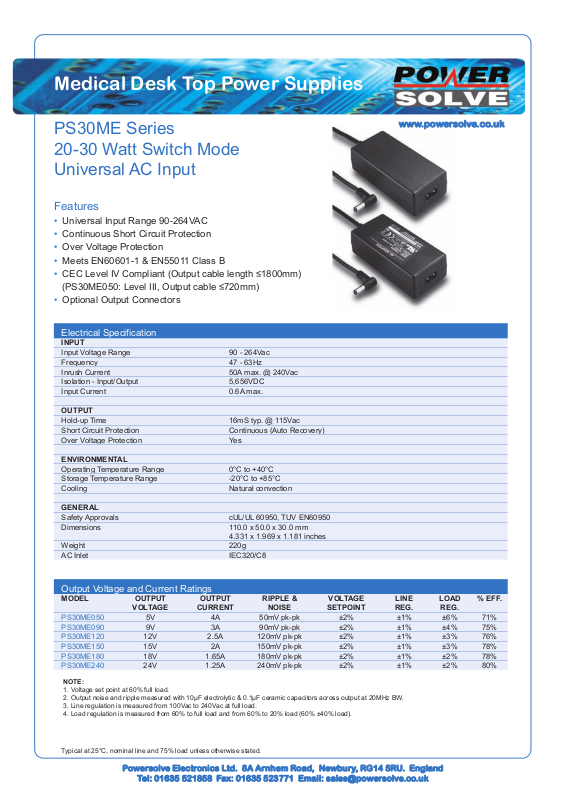

Page 1
Medical Desk Top Power Supplies
PS30ME Series
20-30 Watt Switch Mode
Universal AC Input
Features
• Universal Input Range 90-264VAC
• Continuous Short Circuit Protection
• Over Voltage Protection
• Meets EN60601-1 & EN55011 Class B
• CEC Level IV Compliant (Output cable length ≤1800mm)
(PS30ME050: Level III, Output cable ≤720mm)
• Optional Output Connectors
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Inrush Current 50A max. @ 240Vac
Isolation - Input/Output 5,656VDC
Input Current 0.6A max.
www.powersolve.co.uk
OUTPUT
Hold-up Time 16mS typ. @ 115Vac
Short Circuit Protection Continuous (Auto Recovery)
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range 0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals cUL/UL 60950, TUV EN60950
Dimensions 110.0 x 50.0 x 30.0 mm
Weight 220g
AC Inlet IEC320/C8
4.331 x 1.969 x 1.181 inches
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT RIPPLE & VOLTAGE LINE LOAD % EFF.
PS30ME050 5V 4A 50mV pk-pk ±2% ±1% ±6% 71%
PS30ME090 9V 3A 90mV pk-pk ±2% ±1% ±4% 75%
PS30ME120 12V 2.5A 120mV pk-pk ±2% ±1% ±3% 76%
PS30ME150 15V 2A 150mV pk-pk ±2% ±1% ±3% 78%
PS30ME180 18V 1.65A 180mV pk-pk ±2% ±1% ±2% 78%
PS30ME240 24V 1.25A 240mV pk-pk ±2% ±1% ±2% 80%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
VOLTAGE CURRENT NOISE SETPOINT REG. REG.
Typical at 25°C, nominal line and 75% load unless otherwise stated.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Medical Desk Top Power Supplies

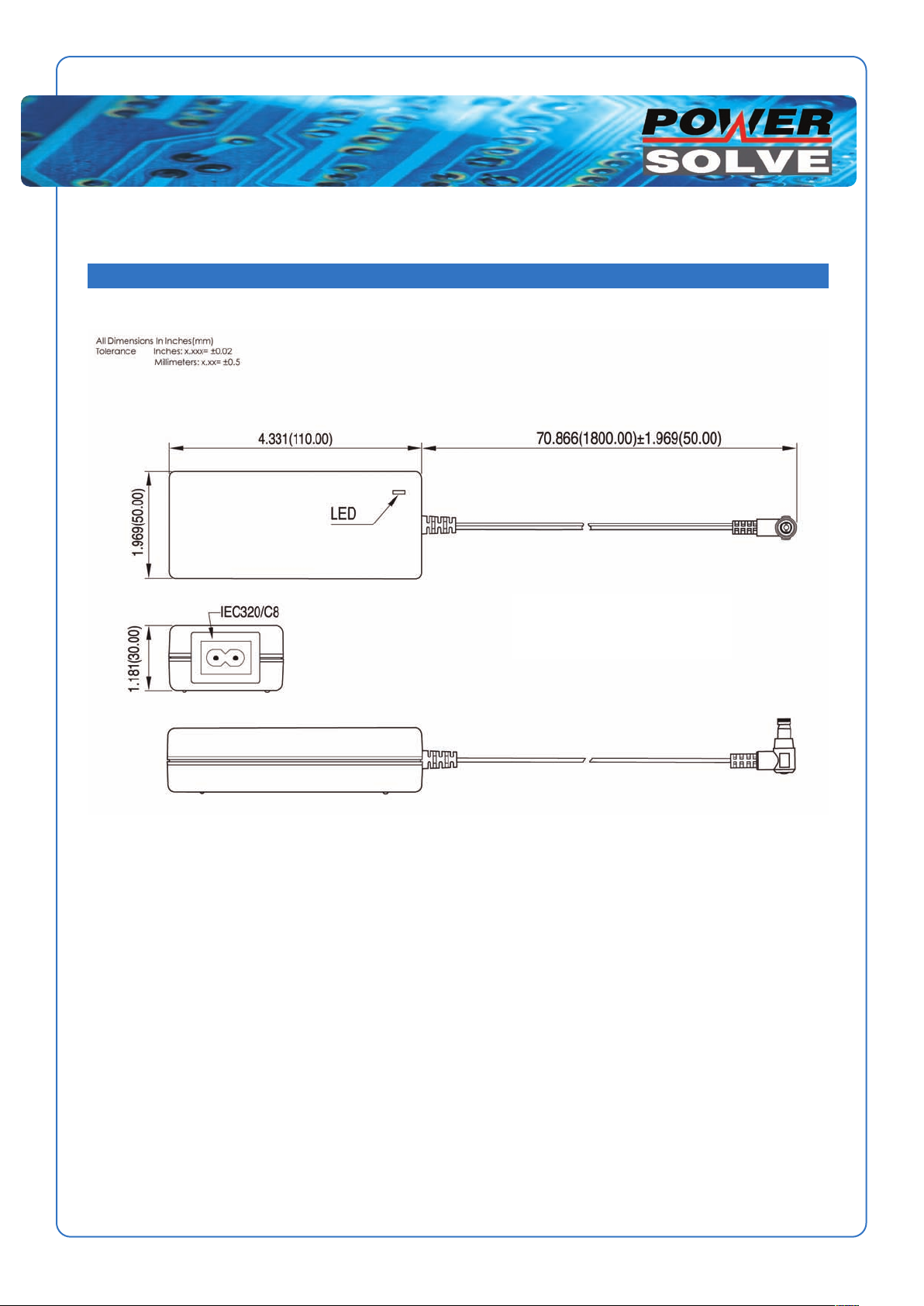

Mechanical Details
www.powersolve.co.uk
Options: Consult Sales Office for details
Alternative output connectors available
In-line ferrite core on output cable
