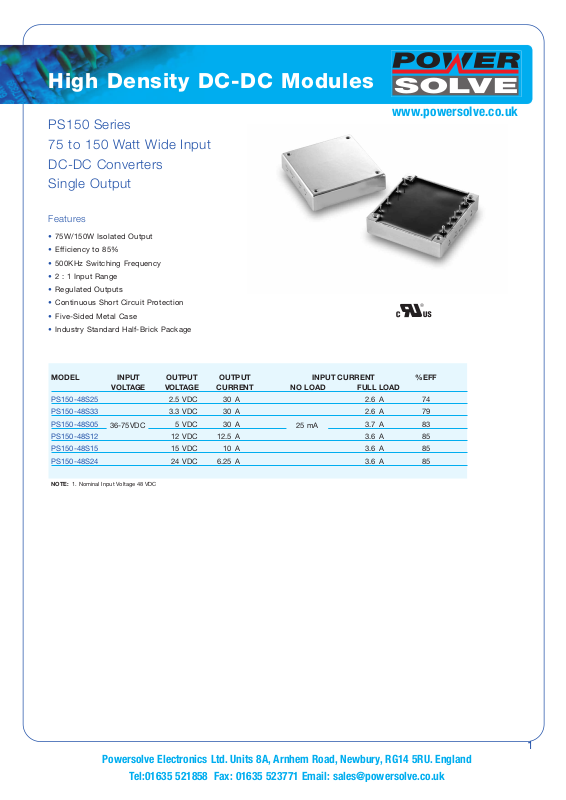

High Density DC-DC Modules
PS150 Series
75 to 150 Watt Wide Input
DC-DC Converters
Single Output
Features
• 75W/150W Isolated Output
• Efficiency to 85%
• 500KHz Switching Frequency
• 2 : 1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Five-Sided Metal Case
• Industry Standard Half-Brick Package
www.powersolve.co.uk
MODEL INPUT OUTPUT OUTPUT INPUT CURRENT %EFF
PS150-48S25 2.5 VDC 30 A 2.6 A 74
PS150-48S33 3.3 VDC 30 A 2.6 A 79
PS150-48S05 5 VDC 30 A 3.7 A 83
PS150-48S12 12 VDC 12.5 A 3.6 A 85
PS150-48S15 15 VDC 10 A 3.6 A 85
PS150-48S24 24 VDC 6.25 A 3.6 A 85
NOTE: 1. Nominal Input Voltage 48 VDC
VOLTAGE VOLTAGE CURRENT NO LOAD FULL LOAD
36-75VDC 25 mA
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
1
Page 2
High Density DC-DC Modules
2.40
(61.00)
Ø0.08
(2.03)
2pl.
0.50
(12.70)
0.18 min.
(4.60 )
2*R1.50
Mounting Inserts
M3*0.5 Through 4pl.
2.00
(50.80)
1.40
(35.56)
0.60
(15.24)
4
3
2
1
5
6
7
8
9
1.90
(48.25)
2.28
(57.90)
Ø0.04
(1.02)
7pl.
All Dimensions In Inches(mm)
-SENSE (6)
TRIM UP
TRIM (7)
TRIM DOWN
+SENSE (8)
-SENSE (6)
+SENSE (8)
TRIM (7)
10K ohms
TRIMPOT
HIGH SIGNAL HERE
DISABLE OUTPUT
ON/OFF (2)
-VIN (4)
P
in
Tolerances Inches .XX +.02 .XXX +.01 +0.02
Millimeters .X+.5 .XX+.25 +0.5
Remote ON/OFF Control
BOTTOM VIEW
SIDE VIEW
0
.50
(
12.70)
0
.18 min.
(4.60 )
2*R1.50
-SENSE (6)
TRIM UP
TRIM (7)
TRIM DOWN
+SENSE (8)
-SENSE (6)
+SENSE (8)
TRIM (7)
10K ohms
TRIMPOT
www.powersolve.co.uk
Electrical Specification
NPUT
I
nput Voltage Range 48V 36-75V
I
ndervoltage lockout 48Vin power up 34V
U
Positive Logic Remote ON/OFF
3,4
Input Filter Pi Type
OUTPUT
Voltage Accuracy : +1% max.
Transient Response : 25% Step Load Change <500µsec.
External Trim Adj. Range +10%
Ripple & Noise, 20MHz BW, 2.5V & 3.3V & 5V 40mV RMS., max. 100mV pk-pk, max.
NVIRONMENTAL
E
emperature Coefficient +0.03%/°C
T
hort Circuit Protection Continuous
S
ine Regulation
L
oad Regulation
L
ver Voltage Protection trip Range, % Vo nom. 115-140%
O
urrent Limit 110% ~140% Nominal Output
C
ENERAL
G
iciency See Table
Eff
1
2
Isolation Voltage Input/Output 1500VDC min.
Isolation Resistance 107ohm min.
Switching Frequency 500KHz, Typ.
Operating case Temperature -40°C to 100°C
Storage Temperature -40°C to +105°C
Thermal Shutdown, Case Temp. 100°C Typ.
Dimensions 2.28x2.40x0.50 inches
Case Material Aluminium
8Vin power down 32.5V
4
12V & 15V 60mV RMS., max. 150mV pk-pk, max.
24V 100mV RMS., max. 240mV pk-pk, max.
.2% max.
+0
.2% max.
+0
Input/Case 1500VDC min.
Output/Case 1500VDC min.
(57.9x61.0x12.7 mm)
NOTE:
1. Measured From High Line to Low Line. 2. Measured From Full Load to Zero Load. 3. Logic Compatibility - Open Collector Ref. to -Input,
Module ON - Open Circuit, Module OFF - < 0.8Vdc 4. Suffix "N" to the Model Number with Negative Logic Remote ON/OFF.
External Output Trim
Pin Connection
Pin Function
1 +Vin
2 ON/OFF
3
4 -Vin
5 -Vout
6
7
8 +Sense
9
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
All Specifications Typical At Nominal Line, Full Load and 25°C Unless Otherwise Noted.
CASE
-Sense
rim
T
out
+V
2
Page 3
Power Dissipated vs Ambient Temperature and Air Flow
1
5
10
5
0
Ambient Temperature, Ta(Deg. C)
Power Disspated, Pd (Watts)
0
10 20
30
40 50
60
70 80 90
100
20
25
3
0
35
40
4
5
5
0
N
atural Convection
2
0 ft./min. (0.1 m/s)
1
00 ft./min. (0.5 m/s)
200 ft./min. (1.0 m/s)
300 ft./min. ( 1.5 m/s)
4
00 ft./min. (2.0 m/s)
500 ft./min. (2.5 m/s)
600 ft./min. (3.0 m/s)
700 ft./min. (3.5 m/s)
800 ft./min. (4.0 m/s)
Forced Convection Power Derating without Heat Sink
High Density DC-DC Modules
www.powersolve.co.uk
Application Note
Derating:
The operating case temperature range of the PS150 series is -40°C to +100°C. When operating the PS150 series,
proper derating or cooling is needed.
The following curve is the derating curve of a PS150 without heat sink.
Where:
The power dissipation (Pd):
Pd = Pi - Po = Po (1-n) /n
esistance are listed below:
mal r
The ther
Chart of Thermal Resistance vs Air Flow:
AIR FLOW RA
Natural Convection 20ft./min. (0.1m/s) 7.12 °C/W
100 ft./min. (0.5m/s) 6.21 °C/W
TE
200 ft./min. (1.0m/s) 5.17 °C/W
300 ft./min. (1.5m/s) 4.29 °C/W
400 ft./min. (2.0m/s) 3.64 °C/W
500 ft./min. (2.5m/s)
600 ft./min. (3.0m/s) 2.53 °C/W
700 ft./min. (3.5m/s) 2.37 °C/W
800 ft./min. (4.0m/s)
The temperature rise ( T ):
T = Pd * Rca
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
TYPICAL Rca
C/W
°
2.96
°C/W
2.19
3
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 4
HIGH SIGNAL HERE
DISABLE OUTPUT
O
N/OFF (2)
-VIN (4)
Negative
Logic Table
External Output
Output Noise Test Circuit schematic
Logic Positive Logic
Logic Low -
Switch Closed
Logic High -
Switch Open
Module on
Module off
Module off
Module on
+SENSE (8)
-SENSE (6)
-SENSE (6)
+SENSE (8)
TRIM (7)
TRIM (7)
TRIM UP
TRIM DOWN
10K ohms
TRIMPOT
+Vout (9)
-Vout (5)
Ceramic
1.0µF
Solid Tantalum
10µF
To
Scope
Resistor
Load
L
ogic State
(
Pin 2)
High Density DC-DC Modules
www.powersolve.co.uk
Remote ON/OFF Control
The PS150 series allows the user to switch the module on and off electronically with remote on/off feature. The PS150
series are available with "positive logic" or "negative logic" (option).
External Output Trimming
Output may optionally be externally trimmed (+10%) with a fixed resistor or an external trimpot as shown.
Output Noise
The output noise is measur
ed with 10
µF tantalum capacitor and 1.0µF ceramic capacitor acr
oss output.
All Specifications Typical At Nominal Line, Full Load and 25°C Unless Otherwise Noted.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
4
