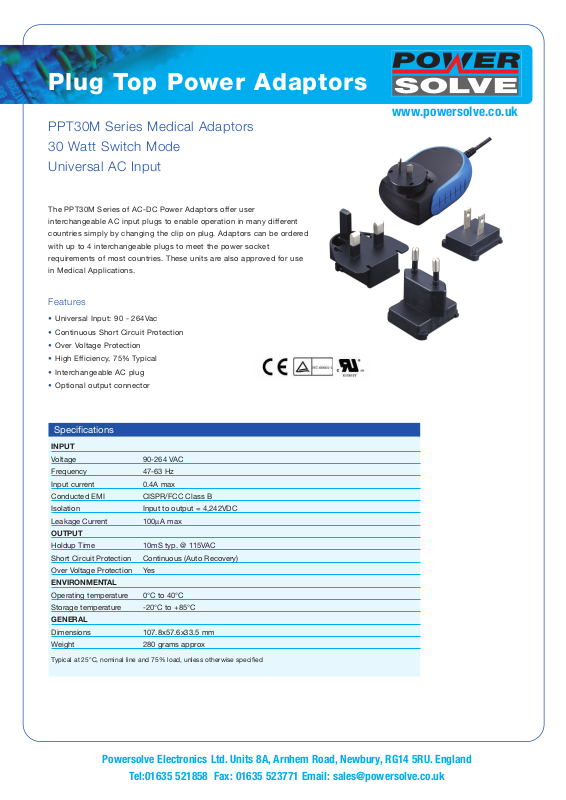

Plug Top Power Adaptors
PPT30M Series Medical Adaptors
30 Watt Switch Mode
Universal AC Input

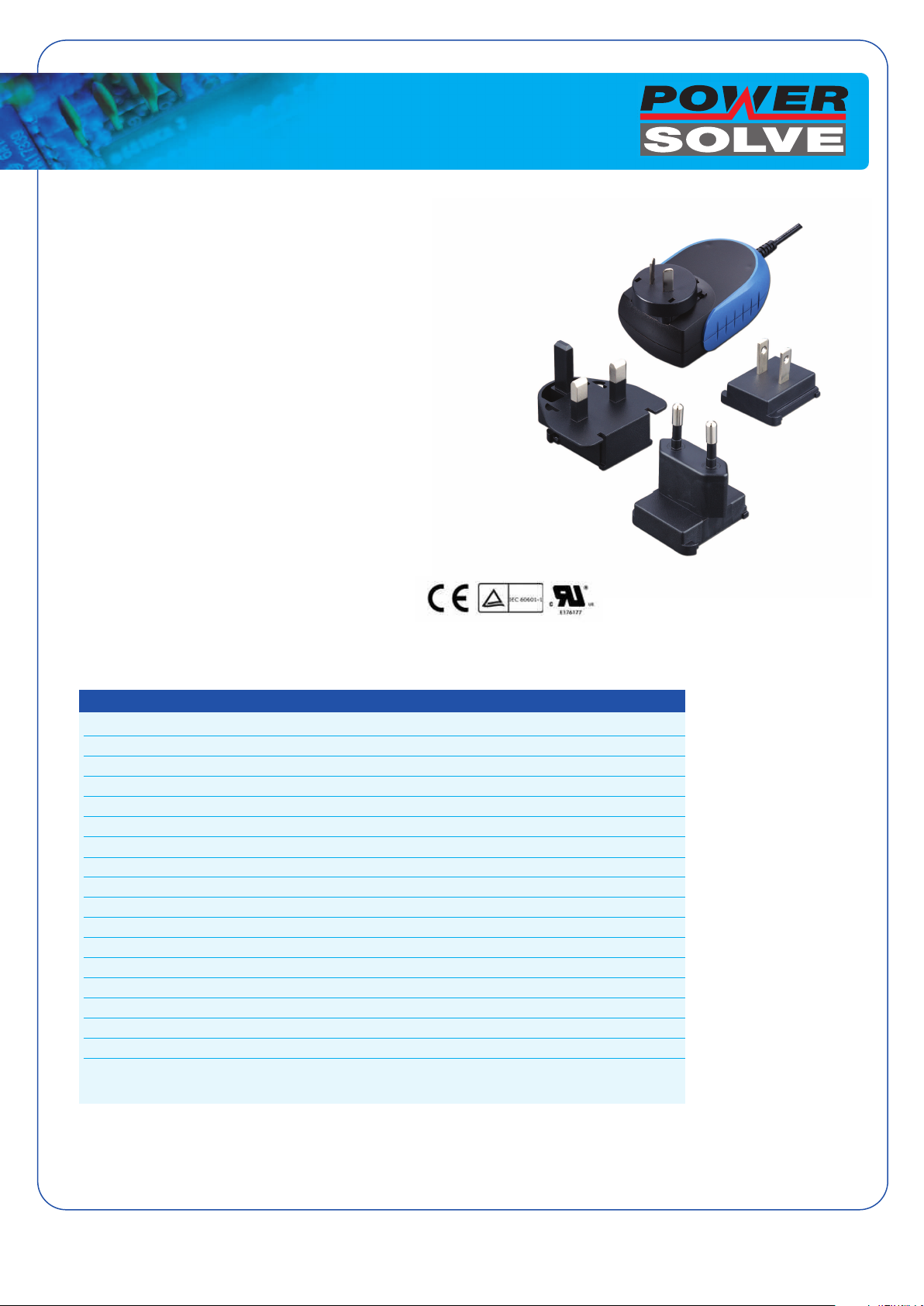

The PPT30M Series of AC-DC Power Adaptors offer user
interchangeable AC input plugs to enable operation in many different
countries simply by changing the clip on plug. Adaptors can be ordered
with up to 4 interchangeable plugs to meet the power socket
requirements of most countries. These units are also approved for use
in Medical Applications.
Features
• Universal Input: 90 - 264Vac
• Continuous Short Circuit Protection
• Over Voltage Protection
• High Efficiency, 75% Typical
• Interchangeable AC plug
• Optional output connector
www.powersolve.co.uk
Specifications
INPUT
Voltage 90-264 VAC
Frequency 47-63 Hz
Input current 0.4A max
Conducted EMI CISPR/FCC Class B
Isolation
Leakage Current 100µA max
OUTPUT
eight
ime
oltage Pr
otection
Holdup T
Short Circuit Protection Continuous (Auto Recovery)
Over V
ENVIRONMENTAL
Operating temperature 0°C to 40°C
Storage temperature -20°C to +85°C
GENERAL
Dimensions 107.8x57.6x33.5 mm
W
Typical at 25°C, nominal line and 75% load, unless otherwise specified
Input to output = 4,242VDC
10mS typ. @ 115V
es
Y
280 grams approx
AC
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Plug Top Power Adaptors
AWM *** @@য়C300V VW-1SC E146924 ==AWG
107.8(4.24)
57.6(2.27)
33.5(1.32)
1.4(0.06)
1800(70.86)±30(1.18)
22.2(0.87)±0.13(0.005)
12.5(0.49)±0.05(0.002)
17(0.67)
28(1.1)
18.47(0.73)±0.05(0.002)
36.35(1.43)
28.9(1.14)
18.1(0.71)
16(0.63)
38.5(1.52)
4(0.16)
6.3(0.25)
19(0.75)
28(1.1)
16.91(0.67)
32.41(1.28)

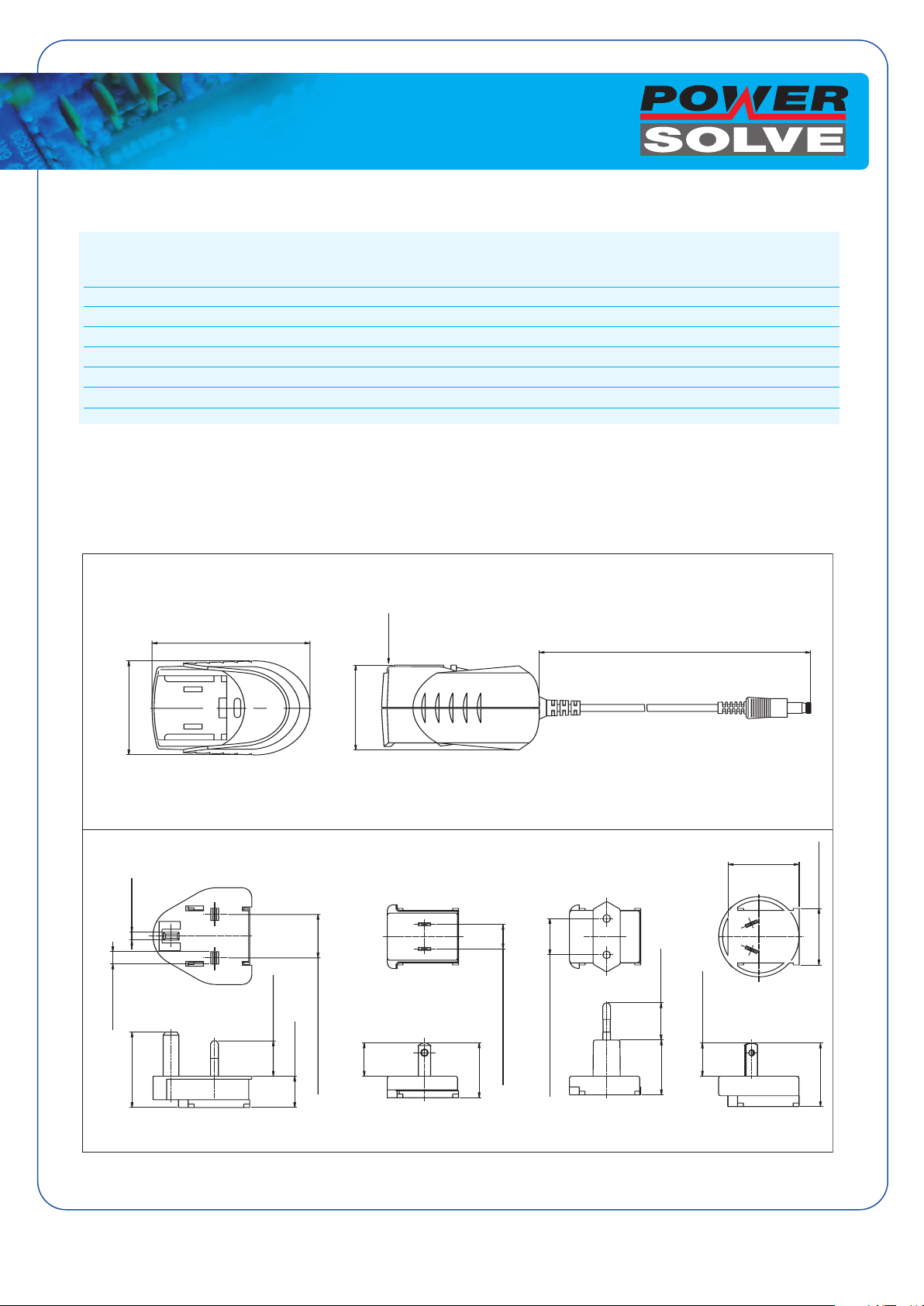

UNIT: mm (Inches)
www.powersolve.co.uk
MODEL OUTPUT VOLTAGE MAX LOAD MIN LOAD RIPPLE & NOISE VOLTAGE LINE LOAD
ACCURACY REGULATION REGULATION
PPT30M-050 5.0V 4.0A 0A 1% ±2% ±1% ±6%
PPT30M-090 9.0V 3.0A 0A 1% ±2% ±1% ±3%
PPT30M-120 12V 2.5A 0A 1% ±2% ±1% ±2%
PPT30M-150 15V 2.0A 0A 1% ±2% ±1% ±2%
PPT30M-180 18V 1.65A 0A 1% ±2% ±1% ±2%
PPT30M-240 24V 1.25A 0A 1% ±2% ±1% ±2%
Note:
1. Voltage setpoint at 60% load.
2. Add a 0.1µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
egulation measured from 100Vac to 240Vac, full load.
3. Line r
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% +/- 40% load)
Stock items will be fitted with 5.5x2.5x9.5mm barrel connector, centre positive.
Options: Alter
native output connectors ar
In-line ferrite core on output cable - consult sales office for details.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
e available - consult sales of
fice for details.
