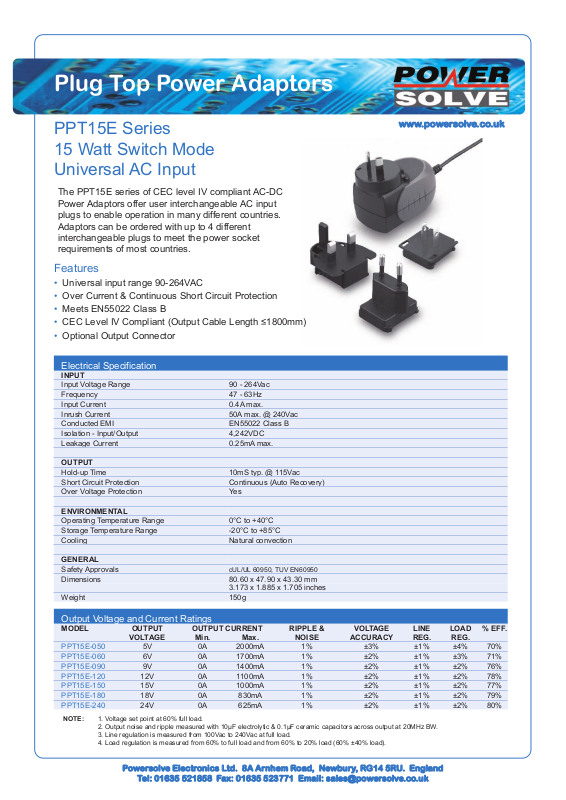

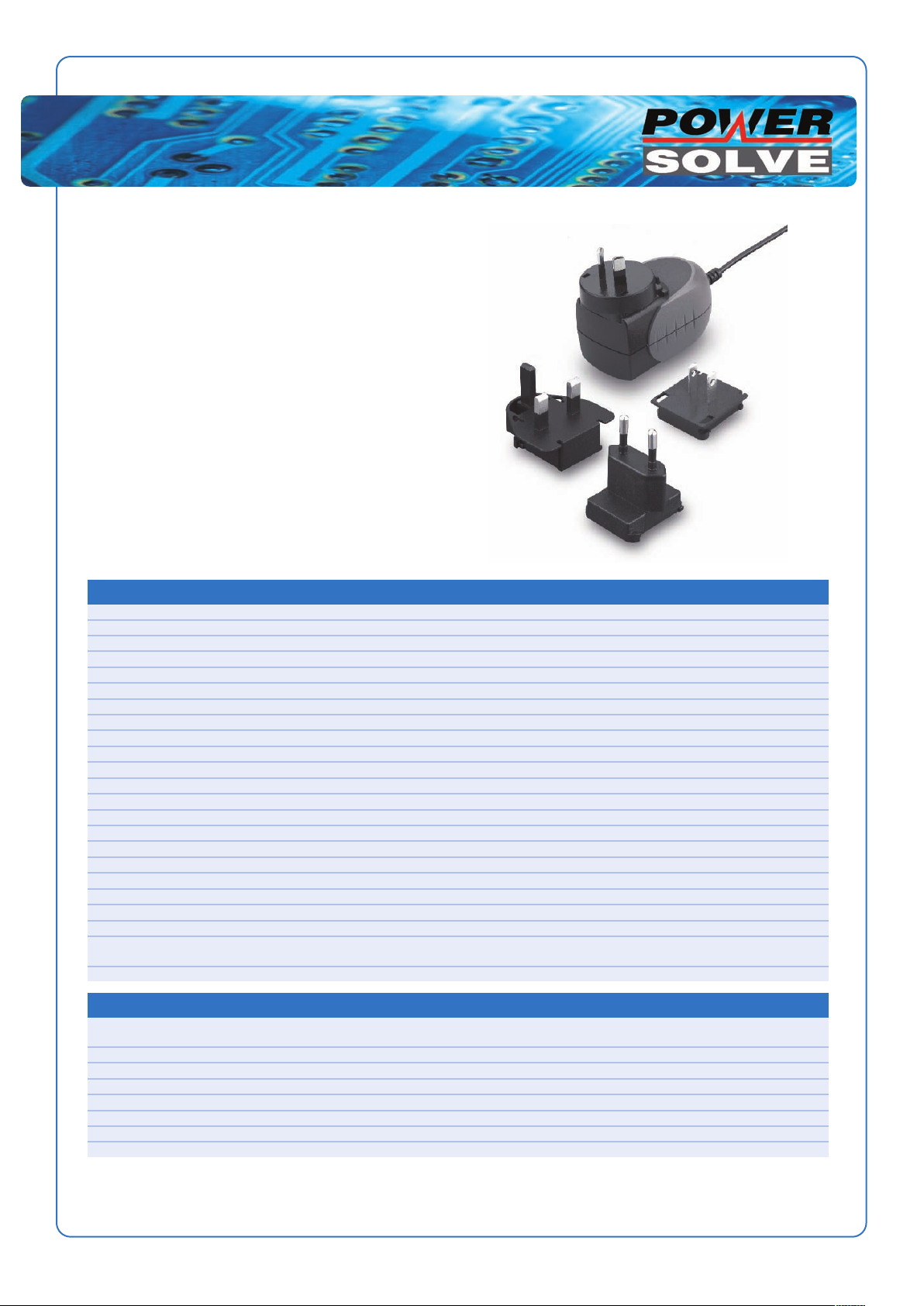

Plug Top Power Adaptors
PPT15E Series
15 Watt Switch Mode
Universal AC Input
The PPT15E series of CEC level IV compliant AC-DC
Power Adaptors offer user interchangeable AC input
plugs to enable operation in many different countries.
Adaptors can be ordered with up to 4 different
interchangeable plugs to meet the power socket
requirements of most countries.
Features
• Universal input range 90-264VAC
• Over Current & Continuous Short Circuit Protection
• Meets EN55022 Class B
• CEC Level IV Compliant (Output Cable Length ≤1800mm)
• Optional Output Connector
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Input Current 0.4A max.
Inrush Current 50A max. @ 240Vac
Conducted EMI EN55022 Class B
Isolation - Input/Output 4,242VDC
Leakage Current 0.25mA max.
www.powersolve.co.uk
OUTPUT
Hold-up Time 10mS typ. @ 115Vac
Short Circuit Protection Continuous (Auto Recovery)
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range 0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals
Dimensions 80.60 x 47.90 x 43.30 mm
Weight 150g
cUL/UL 60950, TUV EN60950
3.173 x 1.885 x 1.705 inches
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT CURRENT RIPPLE & VOLTAGE LINE LOAD % EFF.
PPT15E-050 5V 0A 2000mA 1% ±3% ±1% ±4% 70%
PPT15E-060 6V 0A 1700mA 1% ±2% ±1% ±3% 71%
PPT15E-090 9V 0A 1400mA 1% ±2% ±1% ±2% 76%
PPT15E-120 12V 0A 1100mA 1% ±2% ±1% ±2% 78%
PPT15E-150 15V 0A 1000mA 1% ±2% ±1% ±2% 77%
PPT15E-180 18V 0A 830mA 1% ±2% ±1% ±2% 79%
PPT15E-240 24V 0A 625mA 1% ±2% ±1% ±2% 80%
NOTE: 1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
VOLTAGE Min. Max. NOISE ACCURACY REG. REG.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Plug Top Power Adaptors

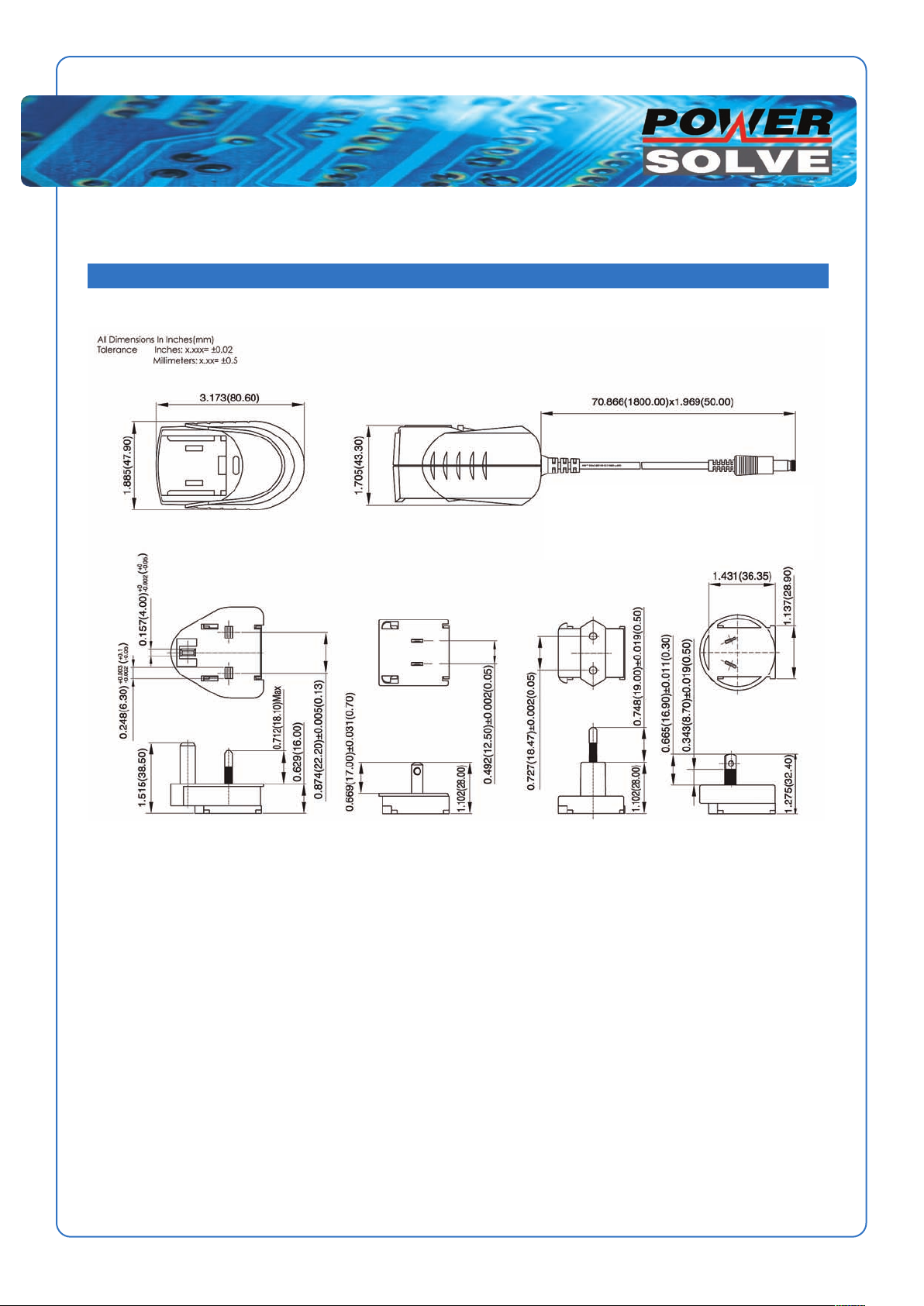

Mechanical Details
www.powersolve.co.uk
Options: Consult Sales Office for details
Alternative output connectors available
In-line ferrite core on output cable
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
