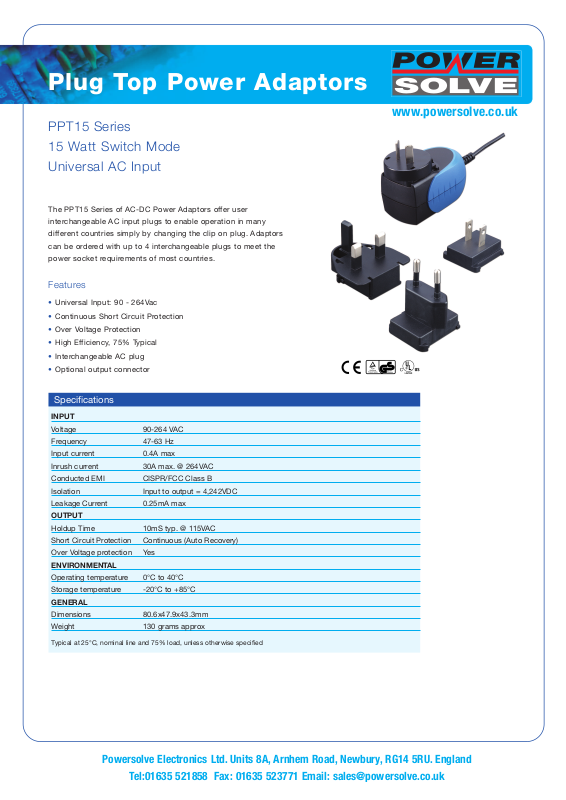

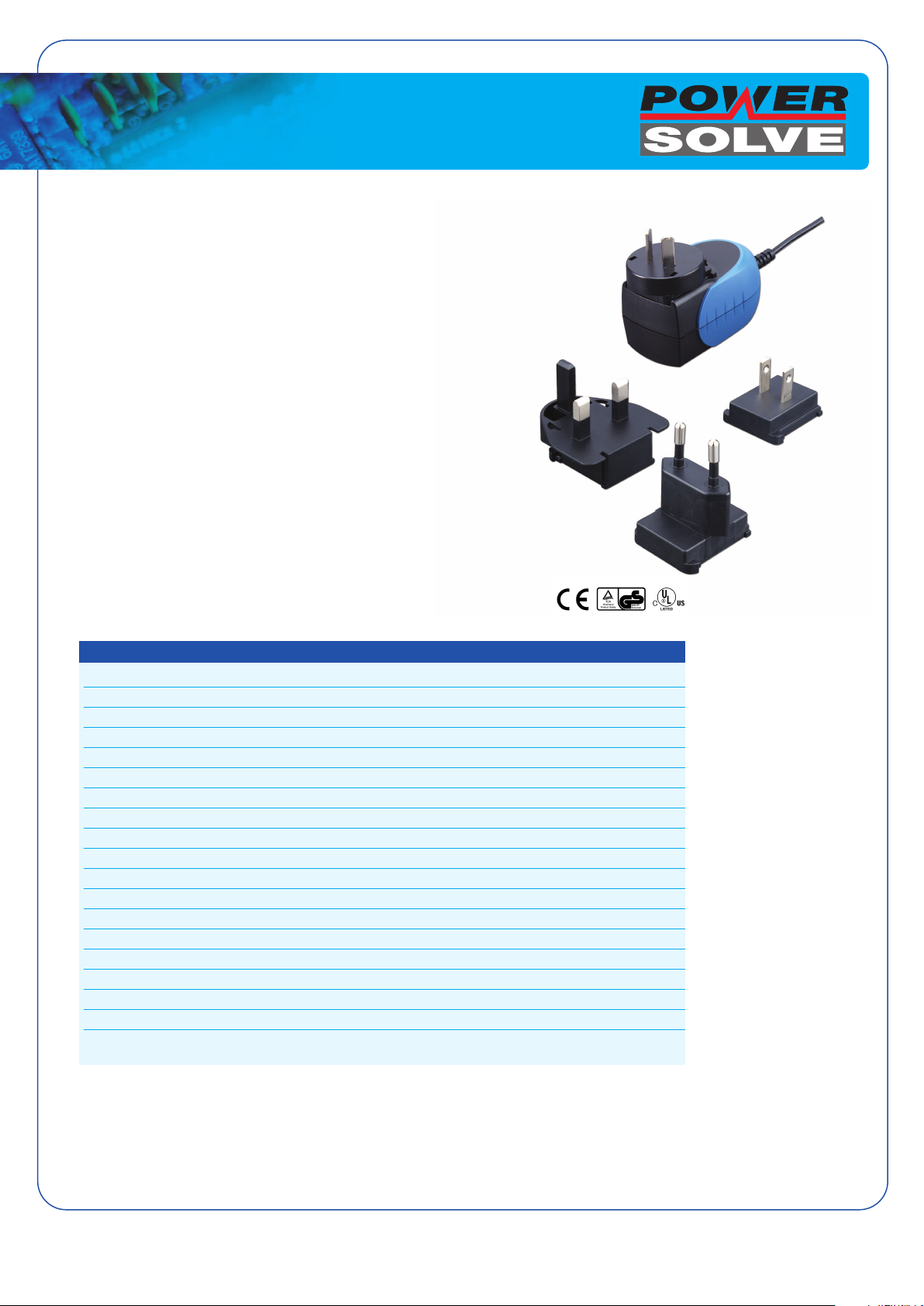

Plug Top Power Adaptors
PPT15 Series
15 Watt Switch Mode
Universal AC Input
The PPT15 Series of AC-DC Power Adaptors offer user
interchangeable AC input plugs to enable operation in many
different countries simply by changing the clip on plug. Adaptors
can be ordered with up to 4 interchangeable plugs to meet the
power socket requirements of most countries.
Features
• Universal Input: 90 - 264Vac
• Continuous Short Circuit Protection
• Over Voltage Protection
• High Efficiency, 75% Typical
• Interchangeable AC plug
• Optional output connector
www.powersolve.co.uk
Specifications
INPUT
Voltage 90-264 VAC
Frequency 47-63 Hz
Input current 0.4A max
Inrush current 30A max. @ 264VAC
Conducted EMI CISPR/FCC Class B
Isolation Input to output = 4,242VDC
Leakage Current 0.25mA max
OUTPUT
Holdup Time 10mS typ. @ 115VAC
Short Circuit Protection Continuous (Auto Recovery)
Over Voltage protection Yes
ENVIRONMENTAL
Operating temperature 0°C to 40°C
-20°C to +85°C
Storage temperatur
GENERAL
Dimensions 80.6x47.9x43.3mm
eight
W
Typical at 25°C, nominal line and 75% load, unless otherwise specified
e
130 grams appr
ox
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
A
WM *** @@য়C300V VW-1SC E146924 ==AWG
8

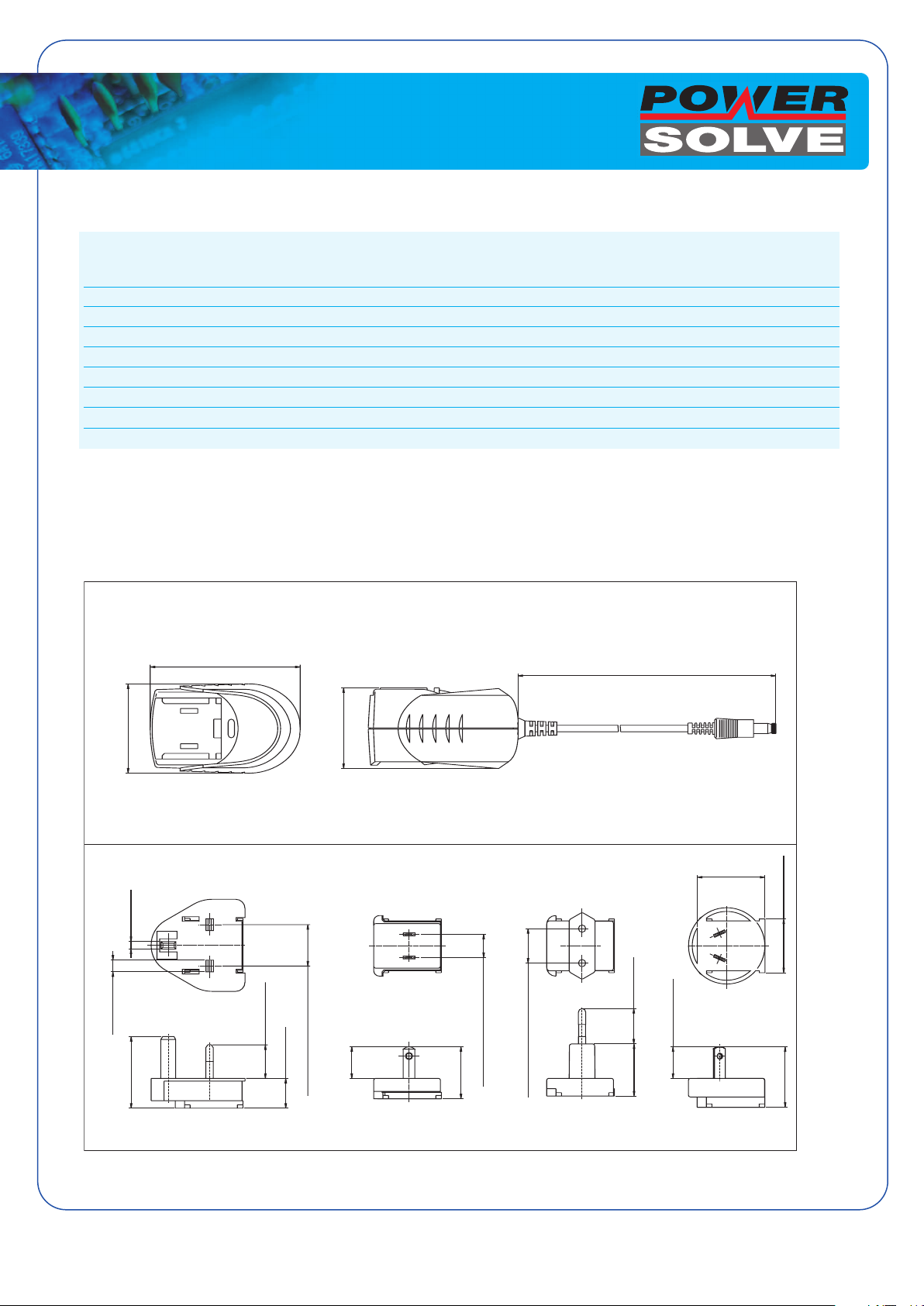

0.6(3.17)
47.9(1.89)
43.3(1.71)
1800(70.86)±30(1.18)
22.2(0.87)±0.13(0.005)
12.5(0.49)±0.05(0.002)
17(0.67)
28(1.1)
18.47(0.73)±0.05(0.002)
36.35(1.43)
28.9(1.14)
18.1(0.71)
16(0.63)
38.5(1.52)
4(0.16)
6.3(0.25)
19(0.75)
28(1.1)
16.91(0.67)
32.41(1.28)
UNIT: mm (Inches)
Plug Top Power Adaptors
www.powersolve.co.uk
MODEL OUTPUT VOLTAGE MAX LOAD MIN LOAD RIPPLE & NOISE VOLTAGE LINE LOAD
ACCURACY REGULATION REGULATION
PPT15-050 5V 2.0A 0A 50mV ±3% ±1% ±4%
PPT15-060 6V 1.7A 0A 1% ±2% ±1% ±3%
PPT15-090 9V 1.4A 0A 1% ±2% ±1% ±2%
PPT15-120 12V 1.1A 0A 1% ±2% ±1% ±2%
PPT15-150 15V 1.0A 0A 1% ±2% ±1% ±2%
PPT15-180 18V 830mA 0A 1% ±2% ±1% ±2%
PPT15-240 24V 625mA 0A 1% ±2% ±1% ±2%
Note:
1. Voltage setpoint at 60% load.
2. Add a 0.1
3. Line r
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% +/- 40% load)
µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measuring @20MHz BW.
egulation measured from 100Vac to 240Vac, full load.
Stock items will be fitted with 5.5x2.5x9.5mm bar
Options: Alternative output connectors are available - consult sales office for details.
el connector
r
, centr
In-line ferrite core on output cable - consult sales office for details.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
e positive.
