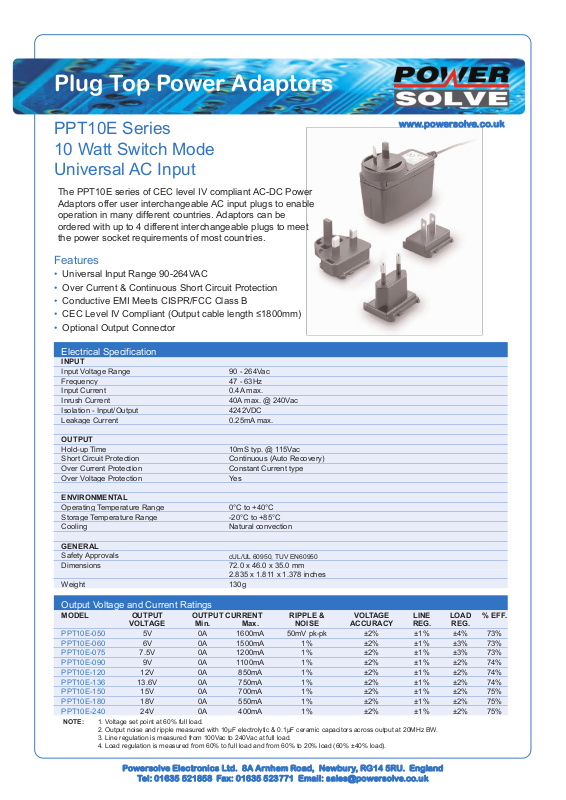

Plug Top Power Adaptors
PPT10E Series
10 Watt Switch Mode
Universal AC Input

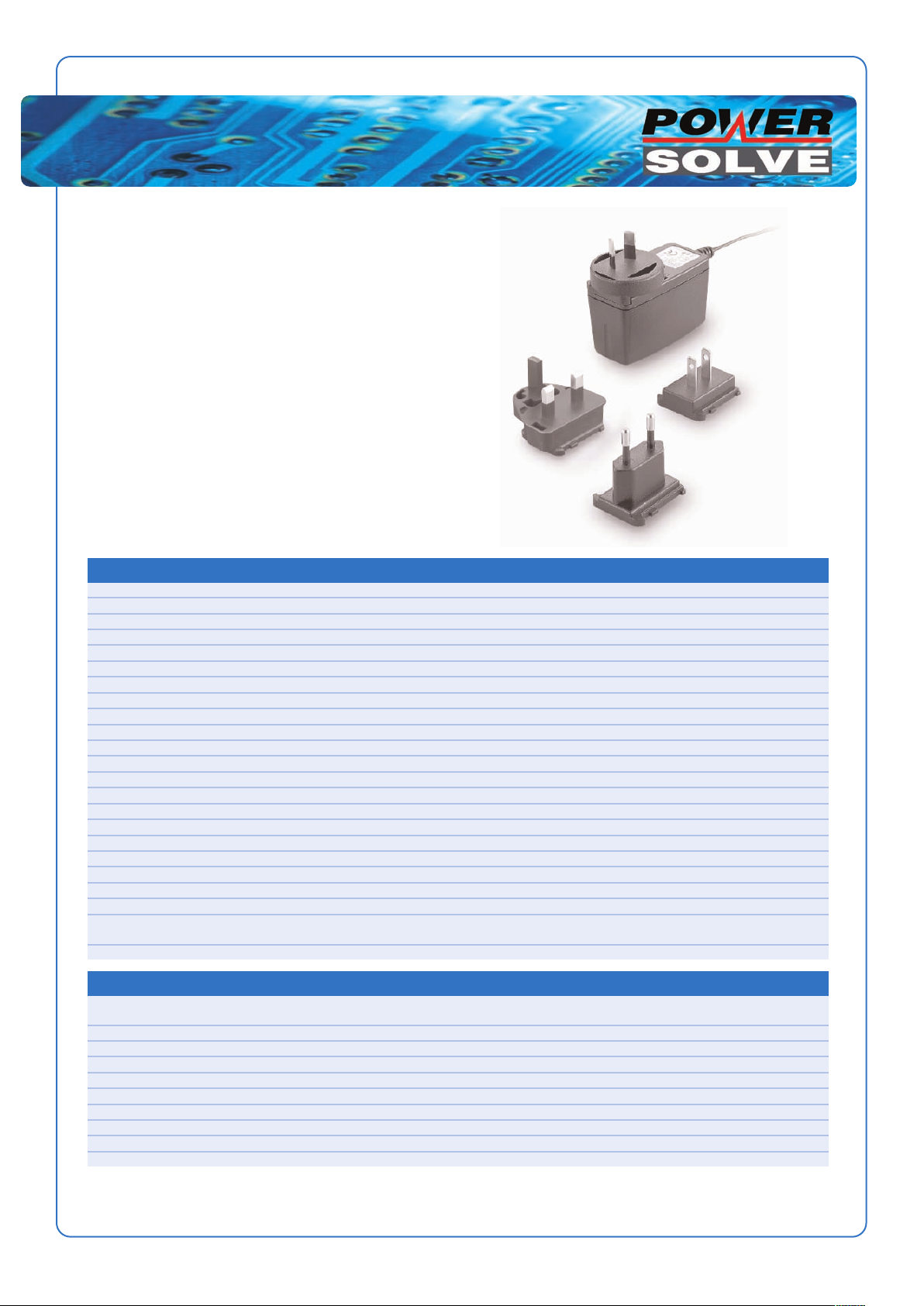

The PPT10E series of CEC level IV compliant AC-DC Power
Adaptors offer user interchangeable AC input plugs to enable
operation in many different countries. Adaptors can be
ordered with up to 4 different interchangeable plugs to meet
the power socket requirements of most countries.
Features
• Universal Input Range 90-264VAC
• Over Current & Continuous Short Circuit Protection
• Conductive EMI Meets CISPR/FCC Class B
• CEC Level IV Compliant (Output cable length ≤1800mm)
• Optional Output Connector
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Input Current 0.4A max.
Inrush Current 40A max. @ 240Vac
Isolation - Input/Output 4242VDC
Leakage Current 0.25mA max.
www.powersolve.co.uk
OUTPUT
Hold-up Time 10mS typ. @ 115Vac
Short Circuit Protection Continuous (Auto Recovery)
Over Current Protection Constant Current type
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range 0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals
Dimensions 72.0 x 46.0 x 35.0 mm
Weight 130g
cUL/UL 60950, TUV EN60950
2.835 x 1.811 x 1.378 inches
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT CURRENT RIPPLE & VOLTAGE LINE LOAD % EFF.
PPT10E-050 5V 0A 1600mA 50mV pk-pk ±2% ±1% ±4% 73%
PPT10E-060 6V 0A 1500mA 1% ±2% ±1% ±3% 73%
PPT10E-075 7.5V 0A 1200mA 1% ±2% ±1% ±3% 73%
PPT10E-090 9V 0A 1100mA 1% ±2% ±1% ±2% 74%
PPT10E-120 12V 0A 850mA 1% ±2% ±1% ±2% 74%
PPT10E-136 13.6V 0A 750mA 1% ±2% ±1% ±2% 74%
PPT10E-150 15V 0A 700mA 1% ±2% ±1% ±2% 75%
PPT10E-180 18V 0A 550mA 1% ±2% ±1% ±2% 75%
PPT10E-240 24V 0A 400mA 1% ±2% ±1% ±2% 75%
NOTE: 1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
VOLTAGE Min. Max. NOISE ACCURACY REG. REG.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Plug Top Power Adaptors

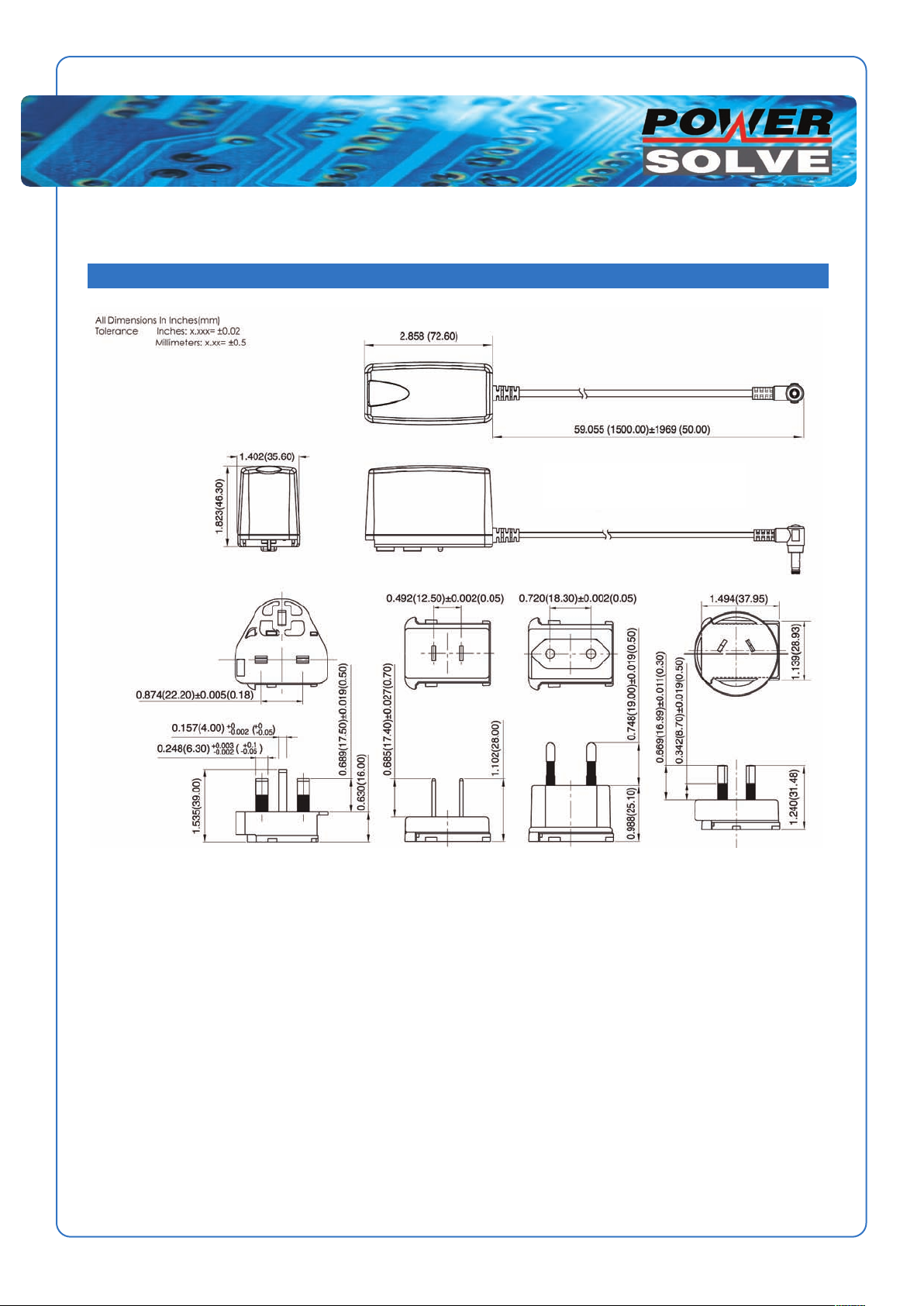

Mechanical Details
www.powersolve.co.uk
Options: Consult Sales Office for details
Alternative output connectors available
In-line ferrite core on output cable
