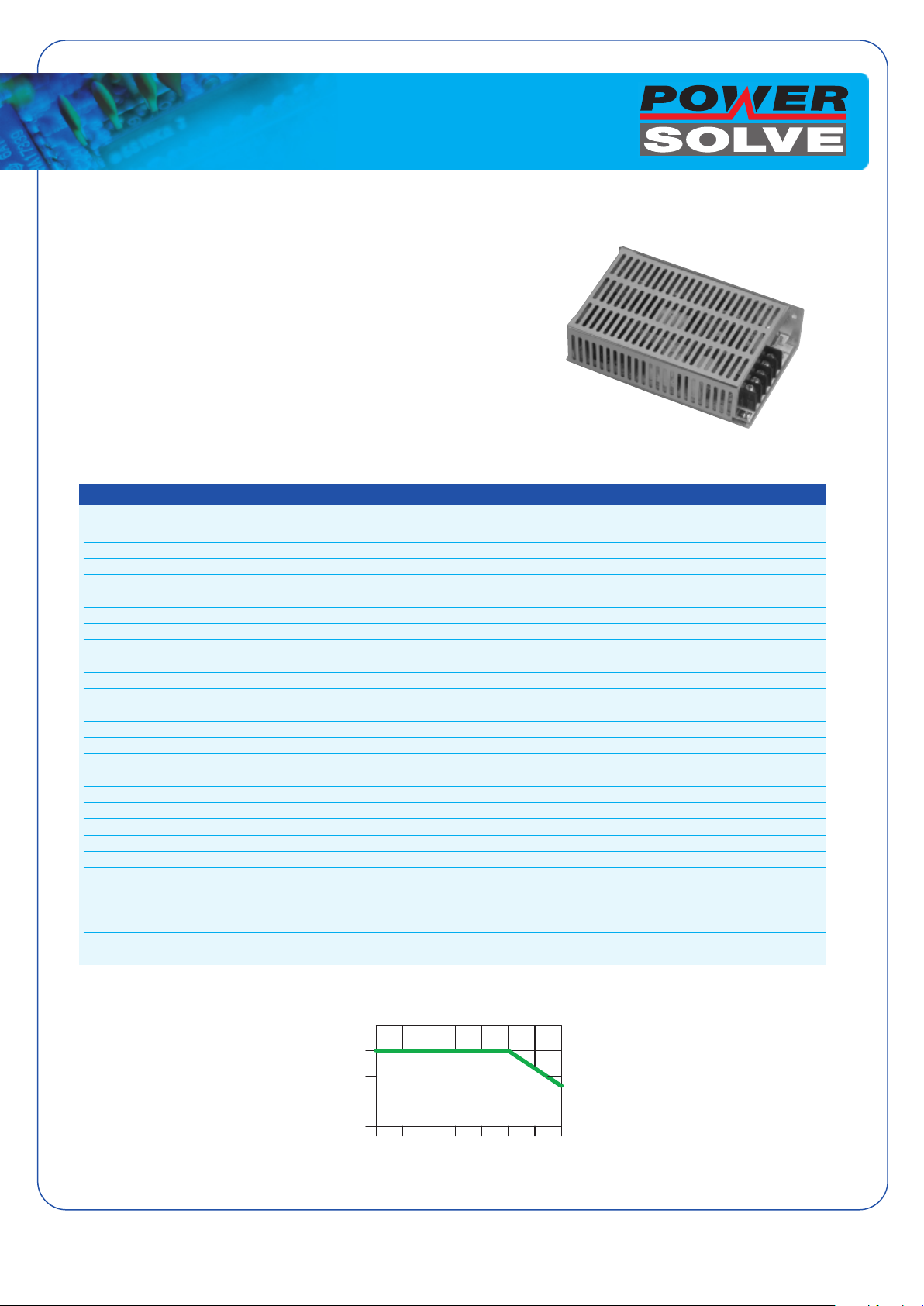

AC-DC Converters
80W
60W
40W
20W
0W
30W
Power Derating Curve
01020 30 40 50
60
70
Natural
Convection
Cooling
Output
Power
(Watts)
Ambient Temperature (°C)
www.powersolve.co.uk

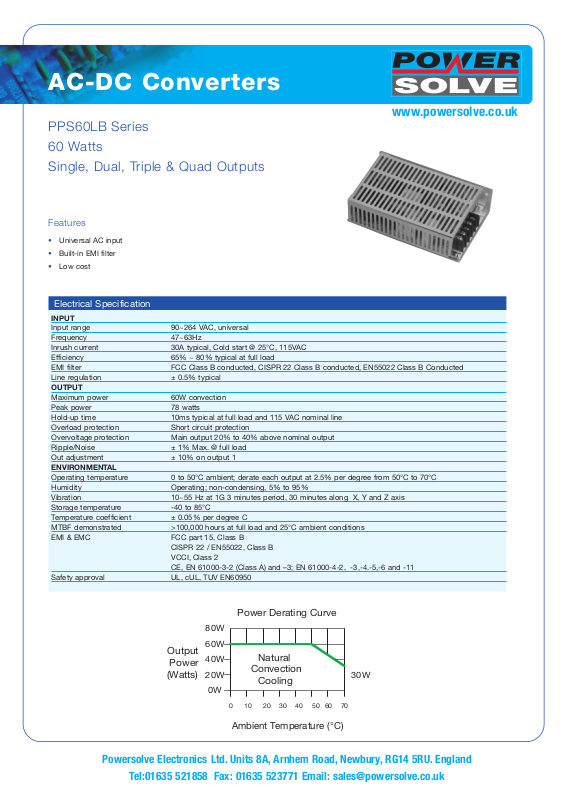

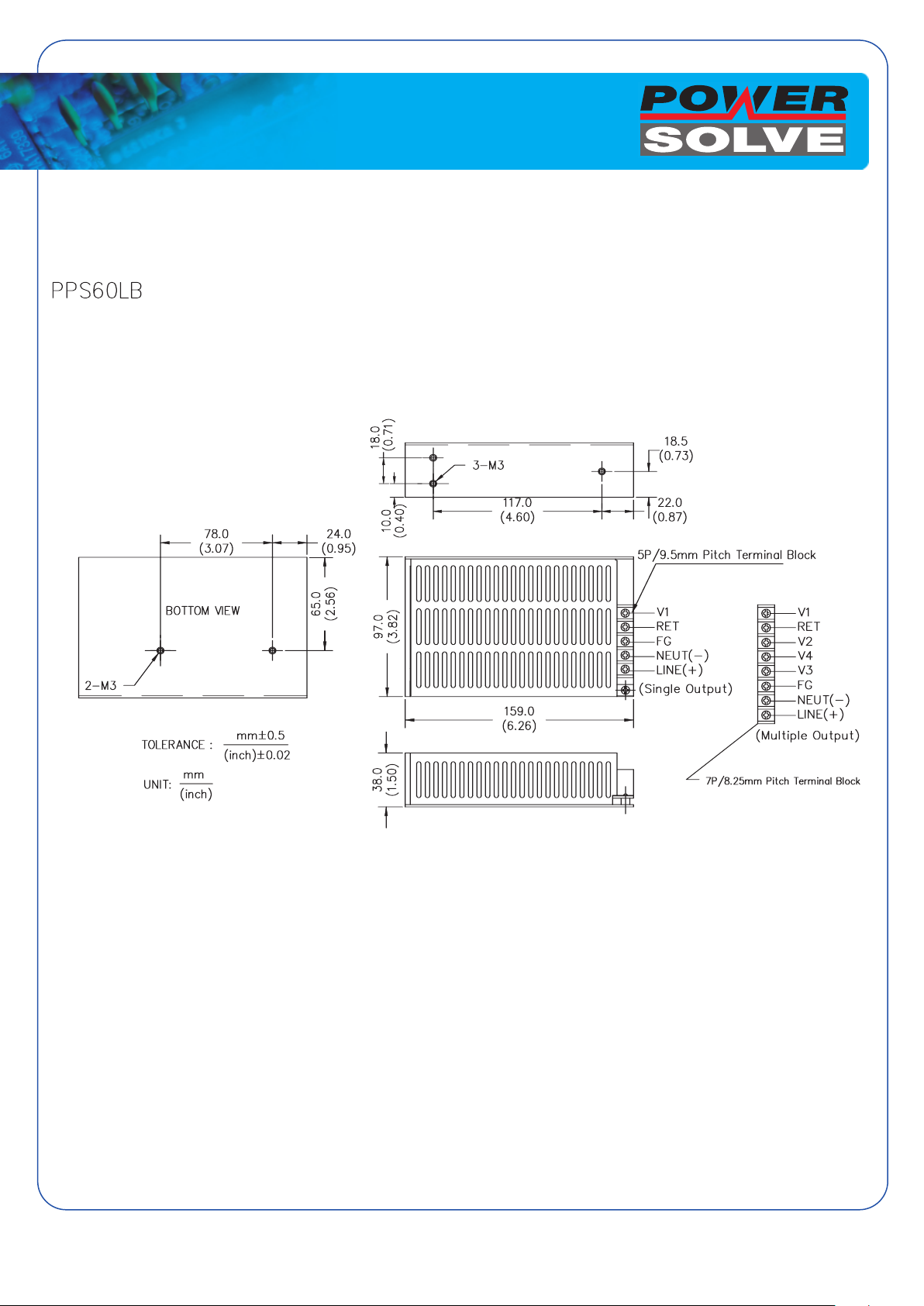

PPS60LB Series
60 Watts
Single, Dual, Triple & Quad Outputs
Features
• Universal AC input
• Built-in EMI filter
• Low cost
Electrical Specification
INPUT
Input range 90~264 VAC, universal
Frequency 47~63Hz
Inrush current 30A typical, Cold start @ 25°C, 115VAC
Efficiency 65% ~ 80% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B Conducted
Line regulation ± 0.5% typical
OUTPUT
Maximum power 60W convection
Peak power 78 watts
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ± 1% Max. @ full load
Out adjustment ± 10% on output 1
ENVIRONMENTAL
Operating temperature 0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C
Humidity Operating; non-condensing, 5% to 95%
Vibration 10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
Storage temperature -40 to 85°C
Temperature coefficient ± 0.05% per degree C
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC FCC part 15, Class B
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class A) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11
Safety approval UL, cUL, TUV EN60950
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
AC-DC Converters
www.powersolve.co.uk
MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TOTAL REGULATION RIPPLE & NOISE Pk-Pk
PPS60LB-10 5V 12A ±3% ±1%
PPS60LB-11 12V 5A ±3% ±1%
PPS60LB-12 15V 4A ±3% ±1%
PPS60LB-13 24V 2.5A ±3% ±1%
PPS60LB-14
PPS60LB-15 3.3V 12A ±5% ±1.5%
PPS60LB-20* +5V 6A +12V 3A ±5% both outputs ±1% both outputs
PPS60LB-21* +5V 6A +24V 1.3A ±5% both outputs ±1% both outputs
PPS60LB-22*
PPS60LB-23* +12V 2.5A -12V 2.5A ±5% +12V, ±10% -12V ±1% both outputs
PPS60LB-24* +15V 2A -15V 2A ±5% +15V, ±10% -15V ±1% both outputs
PPS60LB-25*
PPS60LB-26* +5V 8A +48V 0.5A ±5% +5V, ±10% +48V ±1% both outputs
PPS60LB-30* +5V 5A +12V 2.5A -5V 1A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-31* +5V 6A +12V 2.2A -12V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-32* +5V 6A +15V 1.6A -15V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-33* +5V 7.5A +15V 1.2A -5V 0.8A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-34* +5V 7.5A +15V 1.2A -12V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-35* +5V 5.2A +24V 1.2A -12V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-36* +5V 3A +12V 3.5A -12V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-37* +5V 5.2A +12V 2A +24V 0.4A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-38* +5V 4A +12V 1.5A +48V 0.6A O/P 1&2 ±5%, O/P 3 ±10% ±1% all outputs
PPS60LB-40* +5V 6A +12V 2A -12V 0.4A -5V 0.4A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
PPS60LB-41*
PPS60LB-42* +5V 6A +12V 1A -15V 0.6A +15V 0.6A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
PPS60LB-43*
PPS60LB-44 +5V 3.3A +12V 0.6A -12V 0.6A +48V 0.6A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
PPS60LB-45 +5V 6A +12V 1A -12V 1A +24V 0.5A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
PPS60LB-46 +3.3V 6A +5V 2A +12V 2A -12V 1A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
PPS60LB-47 +3.3V 6A +5V 4A +12V 1.5A -12V 0.6A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
48V 1.25A ±3% ±1%
+5V 6A -5V 6A ±5% +5V, ±10% -5V ±1% both outputs
3.3V 7.5A +12V 3A ±5% both outputs ±1% both outputs
+5V 6A +12V 1.6A -5V 0.6A -12V 0.6A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
+5V 3.3A +12V 1.5A -12V 0.6A -15V 1.2A O/P 1&2 ±5%, O/P 3&4 ±10% ±1% all outputs
Note:
atts convection cooled, 78 Watts peak for <30 seconds with a maximum 10% duty cycle.
MAX POWER:
RIPPLE & NOISE:
LOAD REGULATION: Load test conditions are from minimum, 50% and 100% load conditions on each output.
60 W
Maximum peak to peak noise expr
0.1uF and 47uF capacitor on outputs.
*Minimum loading of 10% r
essed as a per
ed on all outputs of multi output units, to achieve r
equir
centage of output voltage, 20 MHz bandwidth, input at nominal line voltage,
egulation specified.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
