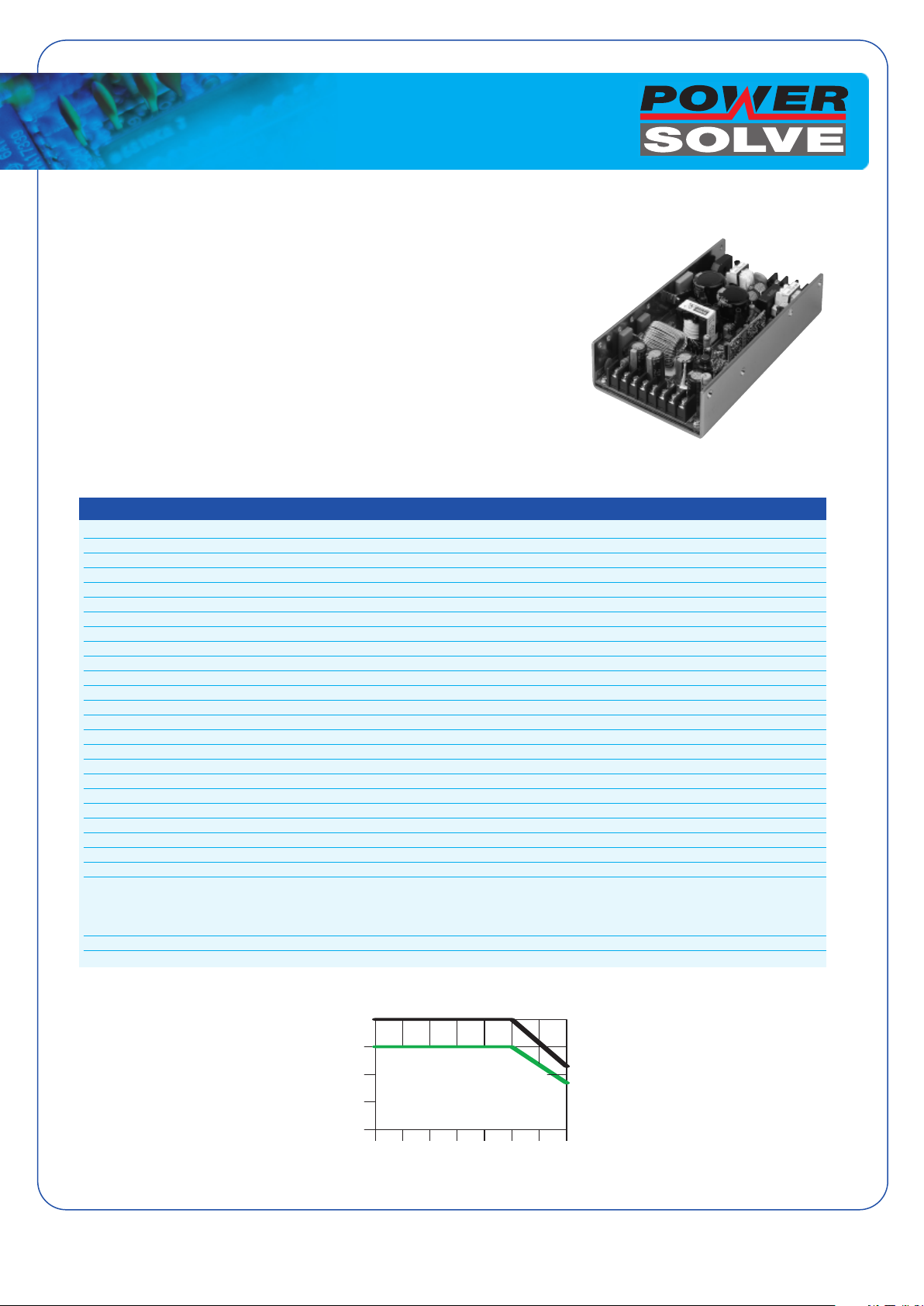

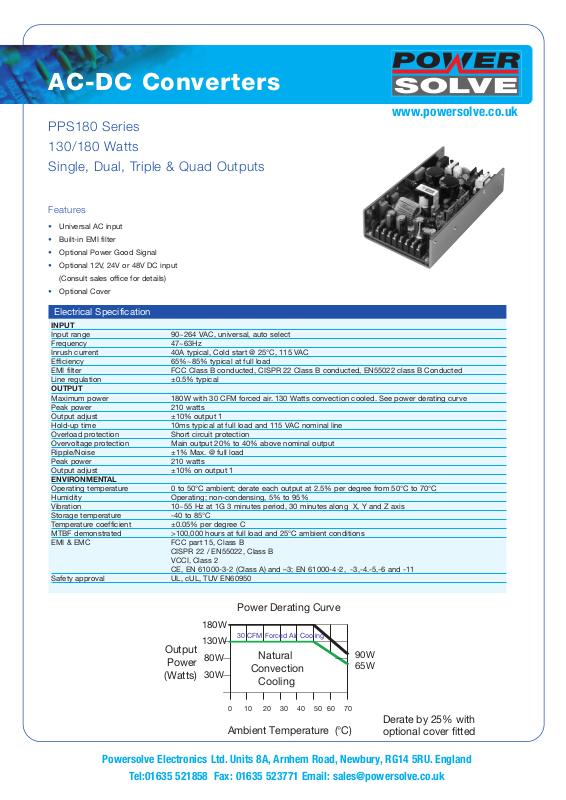

AC-DC Converters
180W
130W
80W
30W
90W
65W
Power Derating Curve
30 CFM Forced Air Cooling
01020 30 40 50
60
70
Natural
Convection
Cooling
Output
Power
(Watts)
Ambient Temperature (°C)
Derate by 25% with
optional cover fitted
www.powersolve.co.uk

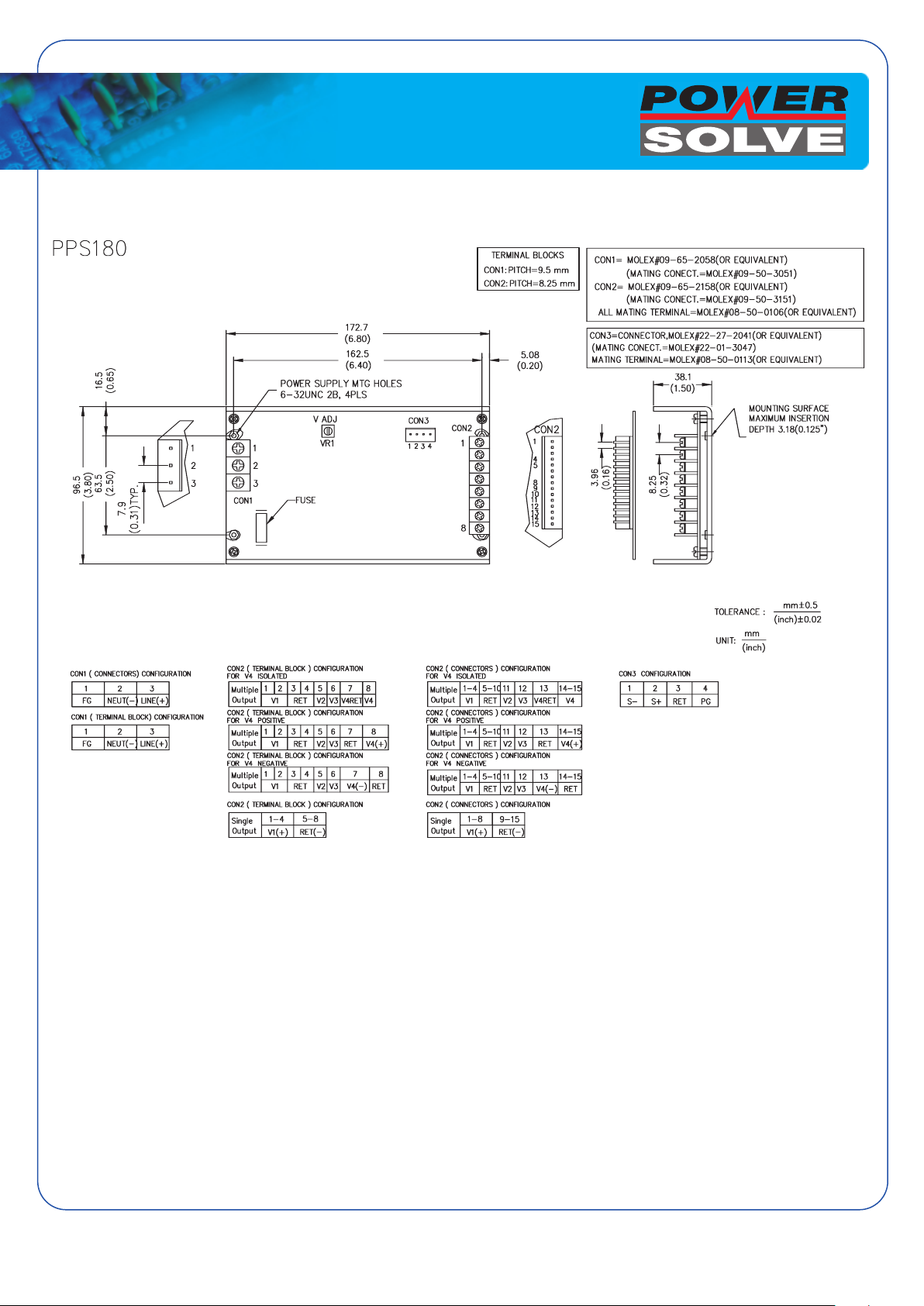

PPS180 Series
130/180 Watts
Single, Dual, Triple & Quad Outputs
Features
• Universal AC input
• Built-in EMI filter
• Optional Power Good Signal
• Optional 12V, 24V or 48V DC input
(Consult sales office for details)
• Optional Cover
Electrical Specification
INPUT
Input range 90~264 VAC, universal, auto select
Frequency 47~63Hz
Inrush current 40A typical, Cold start @ 25°C, 115 VAC
Efficiency 65%~85% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 class B Conducted
Line regulation ±0.5% typical
OUTPUT
Maximum power 180W with 30 CFM forced air. 130 Watts convection cooled. See power derating curve
Peak power 210 watts
Output adjust ±10% output 1
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ±1% Max. @ full load
Peak power 210 watts
Output adjust ±10% on output 1
ENVIRONMENTAL
Operating temperatur
Humidity Operating; non-condensing, 5% to 95%
Vibration 10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
Storage temperature -40 to 85°C
Temperature coefficient ±0.05% per degree C
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC FCC par
Safety appr
oval UL, cUL, TUV EN60950
e
0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C
t 15, Class B
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class A) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
AC-DC Converters
www.powersolve.co.uk
MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TOTAL REGULATION
PPS180-10 5V 36A (26A) +/-3%
PPS180-11 12V 15A (11A) +/-3%
PPS180-12 15V 12A (8.7A) +/-3%
PPS180-13 24V 7.5A (5.5A) +/-3%
PPS180-14
PPS180-15 36V 5A (3.6A) +/-3%
PPS180-16 56V 3.2A (2.35A) +/-3%
PPS180-17 18V 10A (7.25A) +/-3%
PPS180-18 3.3V 36A (26A) +/-5%
PPS180-20* +5V 22A (10A) +12V 9A (4.2A) +/-5% both outputs
PPS180-21* +5V 22A (15A) +24V 4.5A (3.3A) +/-5% both outputs
PPS180-22* +5V 22A (15A) -5V 22A (15A) +/-5% both outputs
PPS180-23* +12V 9A (6.3A) -12V 9A (6.3A) +/-5% both outputs
PPS180-24* +15V 7.2A (5A) -15V 7.2A (5A) +/-5% both outputs
PPS180-25* +3.3V 25A (16.5A) +12V 10A (6.3A) +/-5% both outputs
PPS180-26* +12V 10.5A (7.1A) +24V 4A (2.7A) +/-5% both outputs
PPS180-27* 10.3V 8.5A (6.3A) 24V 4.8A (3.6A) +/-5% both outputs
PPS180-28* 5V 25A (20A) 3.3V 18A (14.5A) +/-5% both outputs
PPS180-30* +5V 22A (15A) +12V 9A (6A) -5V 1.5A (0.9A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-31* +5V 22A (15A) +12V 7.5A (6A) -12V 2A (0.9A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-32* +5V 22A (15A) +15V 6A (4A) -15V 1.5A (1A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-33* +5V 25A (21A) +15V 5.5A (3A) -5V 3A (0.9A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-34* +5V 25A (19.2A) +15V 5.5A (3A) -12V 2A (0.9A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-35* +5V 20A (13.8A) -12V 1.3A (0.9A) +24V 4.5A (3A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-36* +5V 20A (13.8A) +12V 8A (6A) -12V 2A (1.5A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-37* +5V 20A (13.8A) +12V 7.5A (5.4A) +24V 1.2A (0.8A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-38* +5V 10A (6.7A) +24V 2.7A (1.8A) +12V 9A (6A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-39* +18V 5.8A (4A) -18V 5.8A (4A) +5V 3A (2A) O/P 1&2 +/-5%, O/P 3 +/-10%
PPS180-40* +5V 22A (15A) +12V 7.5A (5.3A) -12V 1.2A (0.8A) -5V 1.2A (0.8A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
PPS180-41*
PPS180-42* +5V 22A (15A) +12V 4.5A (2.7A) -15V 2.2A (1.5A) +15V 2.2A (1.5A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
PPS180-43* +5V 13.5A (9A) +12V 5.2A (3.5A) -12V 2.2A (1.5A) -15V 4.5A (3A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
PPS180-44*
PPS180-45* +5V 18A (15A) +12V 6.3A (2A) -12V 1.2A (1A) +24V 1.8A (1.5A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
PPS180-46* +5V 6A (4A) -15V 1.85A (1.25A) +15V 1.2A (0.8A) +24V 6A (4A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
PPS180-47* +5V 19A (13A) +15V 1.65A (1.1A) -15V 1.65A (1.1A) +48V 1.65A (1.1A)
PPS180-48Y
PPS180-49Y +5V 20A (12.5A) +3.3V 15A (9A) +12V 2A (2A) +24V 1A (2A)
48V 3.75A (2.7A) +/-3%
+5V 22A (15A)
+5V 13A (9A)
+5V 20A (12.5A)
+12V 6.3A (4.2A) -12V 2.2A (1.5A) -5V 2.2A (1.5A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
+12V 3A (1.5A)
+3.3V 15A (9A)
-12V 2.2A (1.5A)
+12V 2A (2A) -12V 2A (2A)
+48V 2.2A (1.5A) O/P 1&2 +/-5%, O/P 3&4 +/-10%
Note:
CONVECTION COOLING: Current ratings in ( ) are maximum continuous output with convection cooling.
PEAK CURRENT: Peak output currents of 125%, lasting <30 seconds with a maximum of 10% duty cycle can be taken, subject to maximum
RIPPLE & NOISE: Maximum peak to peak noise expressed as a percentage of output voltage, 20 MHz bandwidth, input at nominal line voltage,
LOAD REGULATION: Load test conditions are from minimum, 50% and 100% load conditions on each output.
Maximum total power is 130 Watts under these conditions.
150 Watts peak load.
0.1uF and 47uF capacitor on outputs.
*Minimum loading of 10% required on all outputs, to achieve regulation specified.
