www.powersolve.co.uk

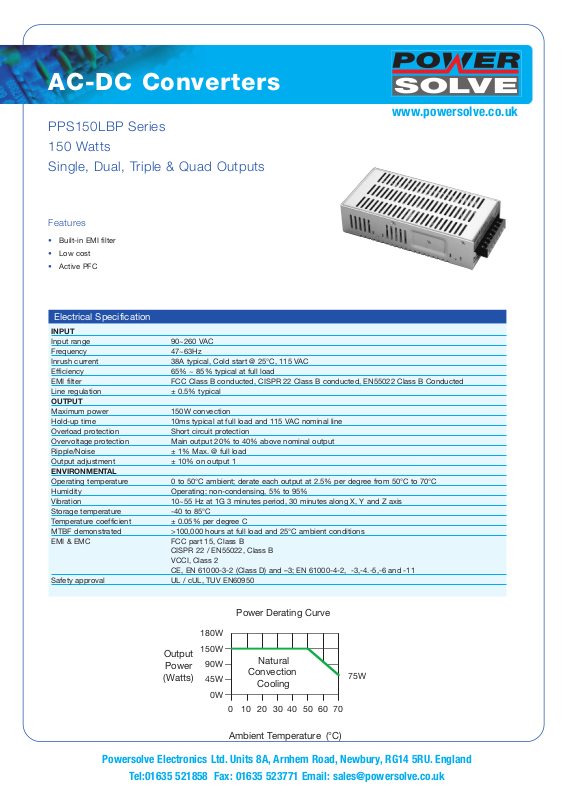

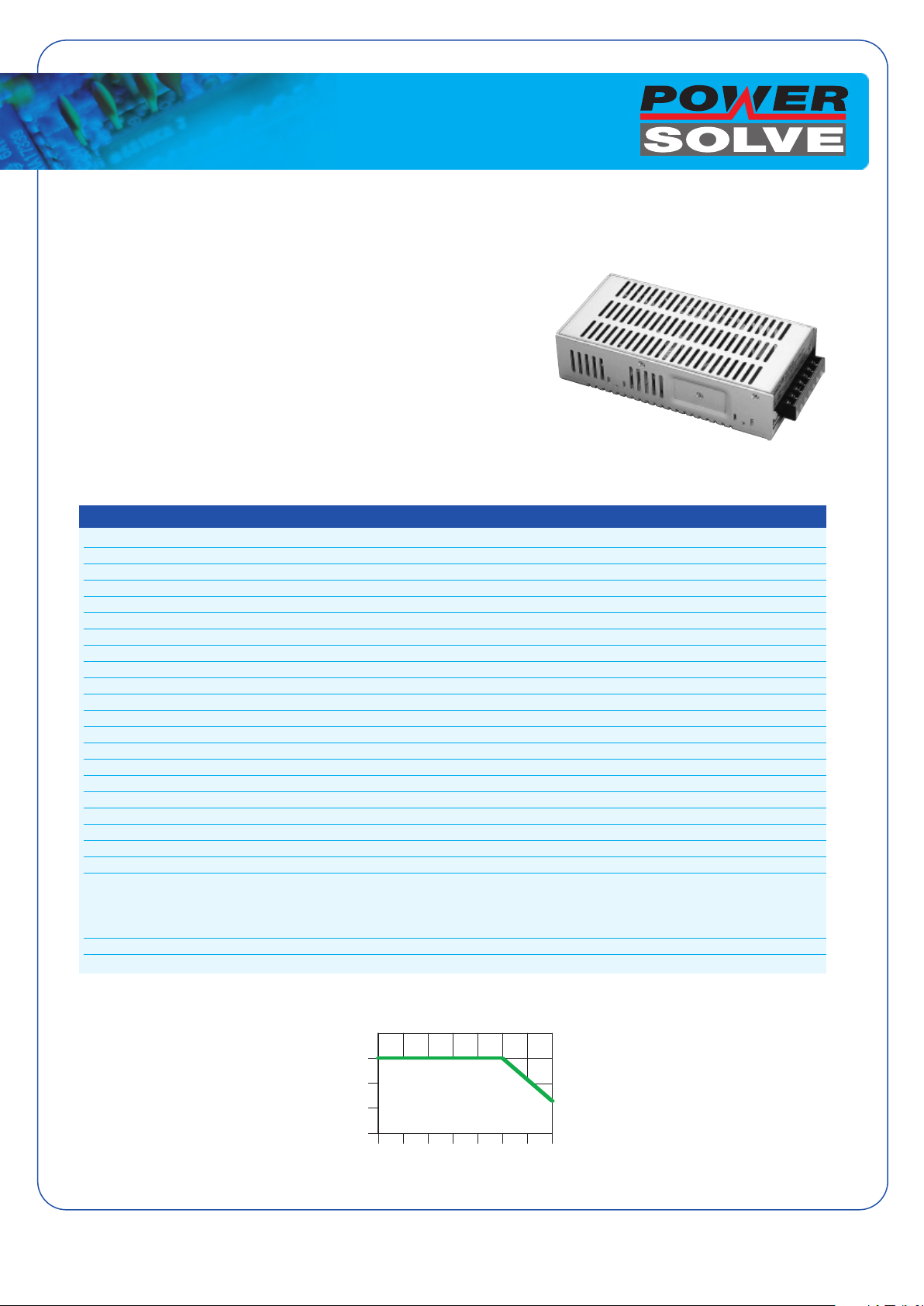

PPS150LBP Series
150 Watts
Single, Dual, Triple & Quad Outputs
Features
• Built-in EMI filter
• Low cost
• Active PFC
Electrical Specification
INPUT
Input range 90~260 VAC
Frequency 47~63Hz
Inrush current 38A typical, Cold start @ 25°C, 115 VAC
Efficiency 65% ~ 85% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B Conducted
Line regulation ± 0.5% typical
OUTPUT
Maximum power 150W convection
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ± 1% Max. @ full load
Output adjustment
ENVIRONMENTAL
Operating temperature 0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C
Humidity
Vibration 10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
Storage temperature -40 to 85°C
ficient ± 0.05% per degree C
emperatur
T
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC FCC part 15, Class B
Safety appr
e coef
oval
± 10% on output 1
Operating; non-condensing, 5% to 95%
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class D) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11
UL / cUL, TUV EN60950
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
AC-DC Converters
www.powersolve.co.uk
MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TOTAL REGULATION
PPS150LBP-10 5V 30A ±3%
PPS150LBP-11 12V 12.5A ±3%
PPS150LBP-12 15V 10A ±3%
PPS150LBP-13 24V 6.26A ±3%
PPS150LBP-14
PPS150LBP-15 3.3V 30A ±3%
PPS150LBP-20* +5V 17A +12V 7A ±5% both outputs
PPS150LBP-21* +5V 17A +24V 3.7A ±5% both outputs
PPS150LBP-22*
PPS150LBP-23* +12V 7A -12V 7A ±5% both outputs
PPS150LBP-24* +15V 5A -15V 5A ±5% both outputs
PPS150LBP-25*
PPS150LBP-26* +5V 17A +48V 1.8A ±5% both outputs
PPS150LBP-30* +5V 17A +12V 7A -5V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-31* +5V 17A +12V 7A -12V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-32* +5V 17A +15V 5A -15V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-33* +5V 24A +15V 3A -5V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-34* +5V 22A +15V 3A -12V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-35* +5V 15A +24V 3A -12V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-36* +5V 10A +12V 8A -12V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-37* +5V 15A +12V 6A +24V 1A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-38* +5V 10A +12V 4A +48V 1.2A O/P 1&2 ±5%, O/P 3 ±10%
PPS150LBP-40* +5V 17A +12V 6A -12V 1A -5V 1A O/P 1&2 ±5%, O/P 3&4 ±10%
PPS150LBP-41*
PPS150LBP-42* +5V 17A +12V 3.5A -15V 2A +15V 2A O/P 1&2 ±5%, O/P 3&4 ±10%
PPS150LBP-43*
PPS150LBP-44* +5V 10A +12V 2A -12V 2A +48V 1.5A O/P 1&2 ±5%, O/P 3&4 ±10%
PPS150LBP-45* +5V 10A +12V 3A -12V 2A +24V 2A O/P 1&2 ±5%, O/P 3&4 ±10%
PPS150LBP-46* +3.3V 20A +5V 10A +12V 2A -12V 1A O/P 1&2 ±5%, O/P 3&4 ±10%
PPS150LBP-47* +3.3V 10A +5V 10A +12V 4A -12V 1A O/P 1&2 ±5%, O/P 3&4 ±10%
48V 3.12A ±3%
+5V 17A -5V 17A ±5% both outputs
+3.3V 17A +12V 8A ±5% both outputs
+5V 17A +12V 3.5A -12V 2A -5V 2A O/P 1&2 ±5%, O/P 3&4 ±10%
+5V 10A +12V 4A -15V 2A -12V 2A O/P 1&2 ±5%, O/P 3&4 ±10%
Note:
atts convection cooled, 195 Watts peak for <30 seconds with a maximum 10% duty cycle.
MAX POWER:
RIPPLE & NOISE:
LOAD REGULATION: Load test conditions are from minimum, 50% and 100% load conditions on each output.
150 W
Maximum peak to peak noise expr
0.1uF and 47uF capacitor on outputs.
*Minimum loading of 10% r
essed as a per
ed on all outputs, to achieve r
equir
centage of output voltage, 20 MHz bandwidth, input at nominal line voltage,
egulation specified.
