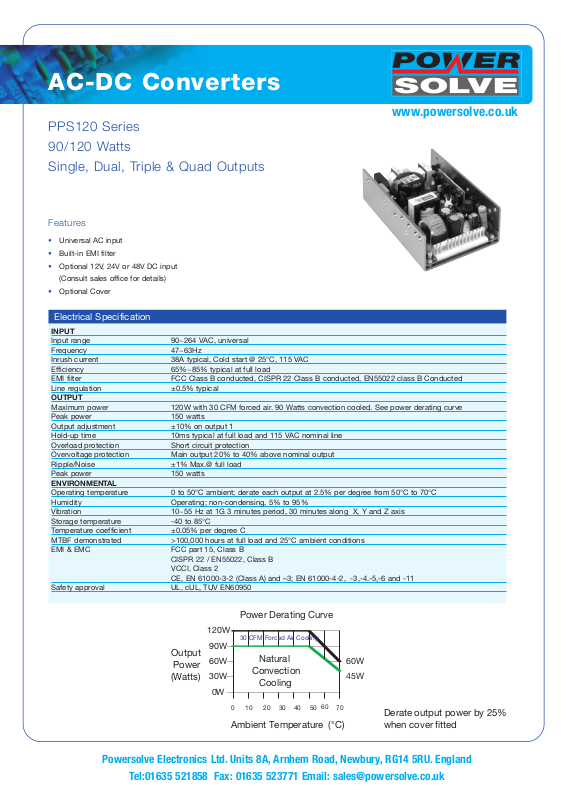

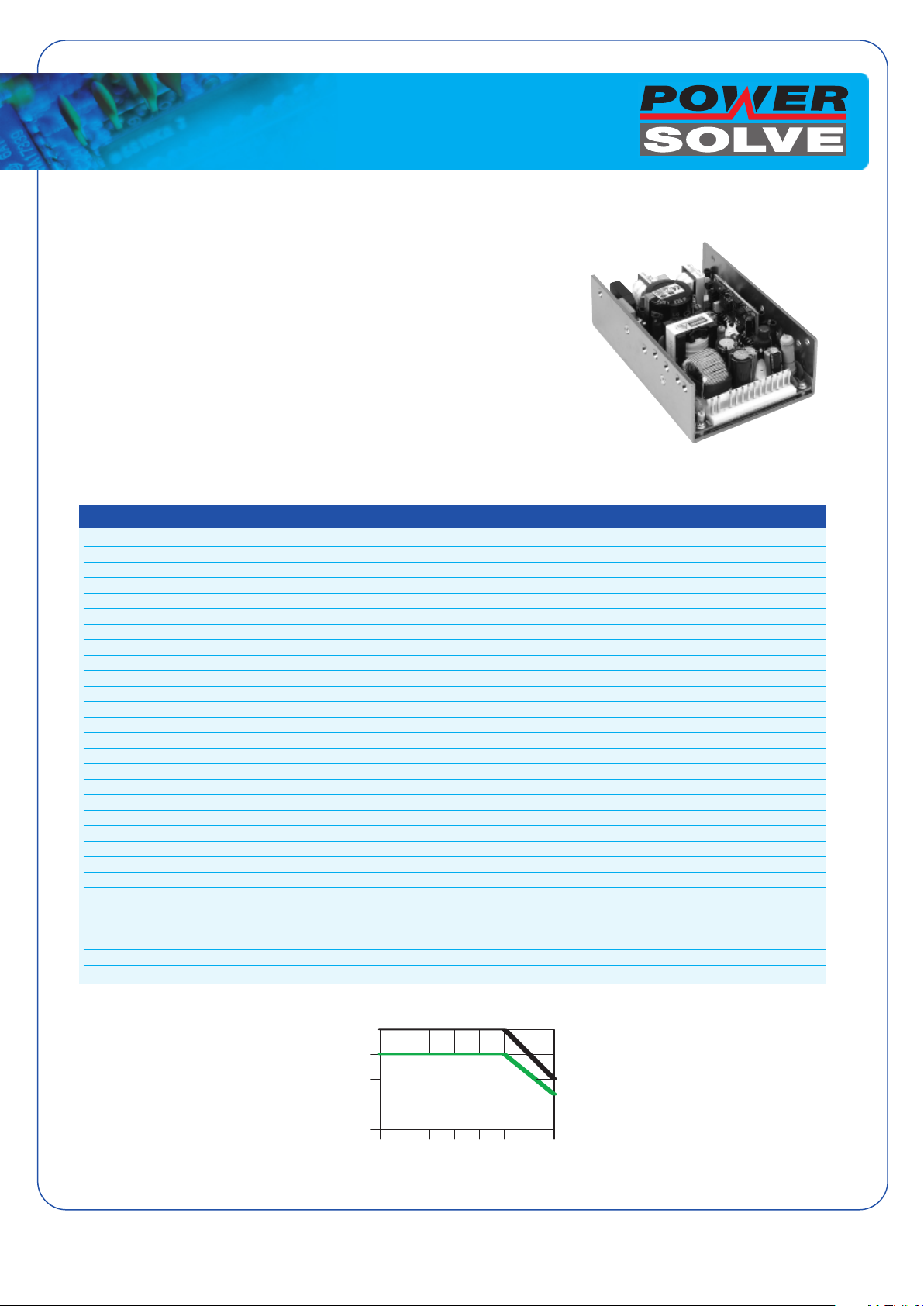

AC-DC Converters
120W
90W
60W
30W
0W
60W
45W
Power Derating Curve
30 CFM Forced Air Cooling
01020 30 40 50
60
70
Natural
Convection
Cooling
Output
Power
(Watts)
Ambient Temperature (°C)
Derate output power by 25%
when cover fitted
www.powersolve.co.uk
PPS120 Series
90/120 Watts
Single, Dual, Triple & Quad Outputs
Features
• Universal AC input
• Built-in EMI filter
• Optional 12V, 24V or 48V DC input
(Consult sales office for details)
• Optional Cover
Electrical Specification
INPUT
Input range 90~264 VAC, universal
Frequency 47~63Hz
Inrush current 38A typical, Cold start @ 25°C, 115 VAC
Efficiency 65%~85% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 class B Conducted
Line regulation ±0.5% typical
OUTPUT
Maximum power 120W with 30 CFM forced air. 90 Watts convection cooled. See power derating curve
Peak power 150 watts
Output adjustment ±10% on output 1
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ±1% Max.@ full load
Peak power 150 watts
ENVIRONMENTAL
Operating temperature 0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C
Humidity Operating; non-condensing, 5% to 95%
ibration
V
Storage temperatur
Temperature coefficient ±0.05% per degree C
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC FCC part 15, Class B
Safety approval UL, cUL, TUV EN60950
e
10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
-40 to 85
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class A) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11
°C
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
AC-DC Converters
www.powersolve.co.uk
MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TOTAL REGULATION
PPS120-10 5V 24A (18A) ±3%
PPS120-11 12V 10A (7.5A) ±3%
PPS120-12 15V 8A (6A) ±3%
PPS120-13 24V 5A (3.75A) ±3%
PPS120-14
PPS120-15 13.5V 8.9A (6.66A) ±3%
PPS120-16 56V 2.2A (1.6A) ±3%
PPS120-17 18V 6.7A (5A) ±3%
PPS120-18
PPS120-20* +5V 12A (10A) +12V 5A (4.2A) ±5% both outputs
PPS120-21* +5V 12A (10A) +24V 2.5A (2.2A) ±5% both outputs
PPS120-22*
PPS120-23* +12V 5A (4.2A) -12V 5A (4.2A) ±5% both outputs
PPS120-24* +15V 4A (3.4A) -15V 4A (3.4A) ±5% both outputs
PPS120-25* +3.3V 20A (17A) +12V 1A (1A) ±5% both outputs
PPS120-26* +5V 4A (1A) +48V 2A (2A) ±5% both outputs
PPS120-30* +5V 12A (10A) +12V 4.5A (4A) -5V 0.6A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-31* +5V 12A (10A) +12V 4.5A (4A) -12V 0.6A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-32* +5V 12A (10A) +15V 3.5A (2.8A) -15V 0.6A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-33* +5V 15A (14A) +15V 3A (2A) -5V 0.5A (0.5A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-34* +5V 14A (13A) +15V 3A (2A) -12V 0.6A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-35* +5V 11A (9A) +24V 2.5A (2A) -12V 0.6A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-36* +5V 11A (9A) +12V 5A (3.5A) -12V 1A (0.6A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-37*
PPS120-38* +15V 8A (6A) -12V 3A (2A) +48V 1A (1A) O/P 1&2 ±5%, O/P 3 ±10%
PPS120-40*
PPS120-41* +5V 12A (10A) +12V 4A (3A) -12V 1A (1A) -5V 1A (1A) O/P 1&2 ±5%, O/P 3&4 ±10%
PPS120-42* +5V 12A (10A) +12V 3A (2A) -15V 1A (1A) +15V 1A (1A) O/P 1&2 ±5%, O/P 3&4 ±10%
PPS120-43* +5V 8A (6A) +12V 3.5A (2.5A) -12V 1A (1A) -15V 2A (1A) O/P 1&2 ±5%, O/P 3&4 ±10%
PPS120-44* +5V 8A (6A) +12V 2A (1A) -12V 1A (1A) +48V 1A (1A) O/P 1&2 ±5%, O/P 3&4 ±10%
PPS120-45*
PPS120-46* +5V 3A (2.5A) +12V 1A (1A) -12V 2.5A (2A) +36V 2A (1.5A) O/P 1&2 ±5%, O/P 3&4 ±10%
48V 2.5A (1.875A) ±3%
3.3V 30A (25A) ±5%
+5V 12A (10A) -5V 12A (10A) ±5% both outputs
+5V 11A (9A) +12V 3.5A (2A) +24V 1A (0.4A) O/P 1&2 ±5%, O/P 3 ±10%
+5V 12A (10A) +12V 4.5A (3.5A) -12V 0.5A (0.5A) -5V 0.5A (0.5A) O/P 1&2 ±5%, O/P 3&4 ±10%
+5V 8A (6A)
+12V 2A (2A)
-12V 1A (1A) +24V 2A (1.5A) O/P 1&2 ±5%, O/P 3&4 ±10%
Note:
CONVECTION COOLING: Current ratings in ( ) are maximum continuous output with convection cooling.
PEAK CURRENT: Peak output currents of 125%, lasting <30 seconds with a maximum of 10% duty cycle can be taken,
RIPPLE & NOISE: Maximum peak to peak noise expressed as a percentage of output voltage, 20 MHz bandwidth, input at nominal line voltage,
LOAD REGULATION: Load test conditions are from minimum, 50% and 100% load conditions on each output.
Maximum total power is 90 Watts under these conditions.
subject to maximum 150 Watts peak load.
0.1uF and 47uF capacitor on outputs.
*Minimum loading of 10% required on all outputs, to achieve regulation specified.
