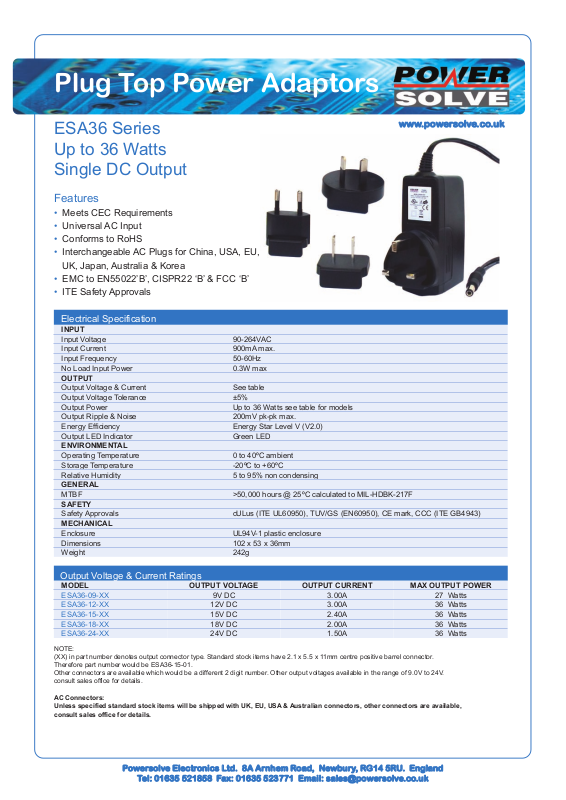

Plug Top Power Adaptors
ESA36 Series
www.powersolve.co.uk
Up to 36 Watts
Single DC Output
Features
• Meets CEC Requirements
• Universal AC Input
• Conforms to RoHS
• Interchangeable AC Plugs for China, USA, EU,
UK, Japan, Australia & Korea
• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’
• ITE Safety Approvals
Electrical Specification
INPUT
Input Voltage 90-264VAC
Input Current 900mA max.
Input Frequency 50-60Hz
No Load Input Power 0.3W max
OUTPUT
Output Voltage & Current See table
Output Voltage Tolerance ±5%
Output Power Up to 36 Watts see table for models
Output Ripple & Noise 200mV pk-pk max.
Energy Efficiency Energy Star Level V (V2.0)
Output LED Indicator Green LED
ENVIRONMENTAL
Operating Temperature 0 to 40ºC ambient
Storage Temperature -20ºC to +60ºC
Relative Humidity 5 to 95% non condensing
GENERAL
MTBF >50,000 hours @ 25ºC calculated to MIL-HDBK-217F
SAFETY
Safety Approvals cULus (ITE UL60950), TUV/GS (EN60950), CE mark, CCC (ITE GB4943)
MECHANICAL
Enclosure UL94V-1 plastic enclosure
Dimensions 102 x 53 x 36mm
Weight 242g
Output Voltage & Current Ratings
MODEL OUTPUT VOLTAGE OUTPUT CURRENT MAX OUTPUT POWER
ESA36-09-XX 9V DC 3.00A 27 Watts
ESA36-12-XX 12V DC 3.00A 36 Watts
ESA36-15-XX 15V DC 2.40A 36 Watts
ESA36-18-XX 18V DC 2.00A 36 Watts
ESA36-24-XX 24V DC 1.50A 36 Watts
NOTE:
(XX) in part number denotes output connector type. Standard stock items have 2.1 x 5.5 x 11mm centre positive barrel connector.
Therefore part number would be ESA36-15-01.
Other connectors are available which would be a different 2 digit number. Other output voltages available in the range of 9.0V to 24V.
consult sales office for details.
AC Connectors:
Unless specified standard stock items will be shipped with UK, EU, USA & Australian connectors, other connectors are available,
consult sales office for details.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
