U
nit 8A
Arnhem Road
Newbury. RG14 5RU
l: +44 (0) 1635 521858
Te
Fax: +44 (0) 1635 523771
www.powersolve.co.uk

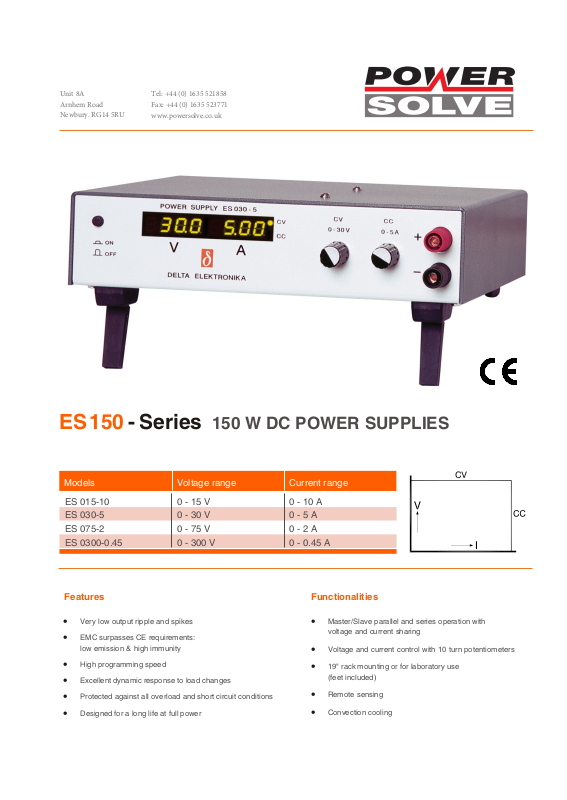

ES 150 - Se ries 150 W DC POWER SUP PLIES
Mod els Volt age range Cur rent range
ES 015-10 0 - 15 V 0 - 10 A
ES 030-5 0 - 30 V 0 - 5 A
ES 075-2 0 - 75 V 0 - 2 A
ES 0300-0.45 0 - 300 V 0 - 0.45 A
Features Functionalities
• Very low out put rip ple and spikes
• EMC sur passes CE re quire ments:
low emis sion & high im mu nity
• High pro gram ming speed
• Ex cel lent dy namic re sponse to load changes
• Pro tected against all over load and short cir cuit con di tions
• De signed for a long life at full power
• Mas ter/Slave par al lel and se ries op er a tion with
volt age and cur rent shar ing
• Volt age and cur rent con trol with 10 turn po ten ti om eters
• 19" rack mount ing or for lab o ra tory use
(feet in cluded)
• Re mote sens ing
• Con vec tion cool ing
Out put
volt age
cur rent
In put
AC sin gle phase, 48 - 62 Hz
rated volt age range
rated fre quency
ES 015-10 ES 030-5 ES 075-2 ES 0300-0.45
0 - 15 V
0 - 10 A
0 - 30 V
0 - 5 A
0 - 75 V
0 - 2 A
0 - 300 V
0 - 450 mA
90 - 265 V
100 - 240 V
50 / 60 Hz
ES150
In put cur rent @ 230 VAC
power fac tor, 110 / 230 VAC
full load
DC
in ter nal fuses
standby in put power (Vo=Io=0)
standby in put power (Vo=Vmax)
Ef fi ciency
AC 230 V in put, full load
AC 110 V in put, full load
Reg u la tion
Load 0 - 100% CV
in ter nal sens ing
op tional ex ter nal sens ing
Line 90 - 265 V AC CV
Load 0 - 100% CC
Line 90 - 265 V AC CC
(in ter nal volt age sens ing)
Rip ple + noise (full load)
rms (BW=300 kHz) CV
p-p (BW=20 MHz) CV
rms (BW=300 kHz) CC
p-p (BW=20 MHz) CC
Temp. coeff., per °C CV
CC
Sta bil ity af ter 1 hr warm-up
dur ing 8 hrs CV
CC
tamb = 25 ± 1 °C, Vin = 230 VAC
(in ter nal volt age sens ing for CC-stab.)
83 %
80 %
15 mV
2 mV
0.2 mV
3 mA
0.5 mA
0.5 mV
8 mV
1.5 mA
10 mA
10.10
10.10
1 A
0.99 / 0.83
con tact fac tory
4 AT
6 W
11 W
84 %
82 %
6 mV
2 mV
0.5 mV
1 mA
0.2 mA
0.6 mV
10 mV
0.5 mA
2 mA
5.10
10.10
-5
-5
10.10
10.10
-5
-5
84 %
81 %
5 mV
5 mV
1 mV
0.5 mA
0.1 mA
1 mV
15 mV
0.1 mA
0.5 mA
-5
-5
-5
10.10
-5
10.10
84 %
81 %
10 mV
10 mV
3 mV
0.3 mA
0.05 mA
7 mV
50 mV
(typ i cal 30 mV)
0.03 mA
0.2 mA
-5
10.10
-5
12.10
An a log Pro gram ming
CV CC
Pro gram ming in puts
in put range
ac cu racy
off set
temp. coeff. off set
in put im ped ance
0 - 5 V
± 0.2%
0 … + 3 mV (on 5 V)
10 µV / °C
1 MOhm
0 … + 10 mV (on 5 V)
0 - 5 V
± 0.8%
60 µV / °C
1 MOhm
Mon i tor ing out put
out put range
ac cu racy
off set
temp. coeff. off set
out put im ped ance
0 - 5 V
± 0.2%
– 1 … + 1 mV (on 5 V)
10 µV / °C
2 Ohm / max. 4 mA
– 10 … 0 mV (on 5 V)
0 - 5 V
± 0.8%
60 µV / °C
2 Ohm / max. 4 mA
Ref er ence volt age
on prog. con nec tor Vref
TC
+12 V out put Vo
on prog. Con nec tor Ro
Page 1 - 2 SPECIFICATIONS Rev. Sept. 2012
5.137 ± 10 mV (Ro = 2 Ohm, max. 4 mA)
50 ppm
12 V ± 0.5 V
100 Ohm
ES150
Sta tus out put
CC - sta tus
Re mote shut down
In di ca tors (front panel)
Con trols (front panel)
Pro gram ming speed
(re sis tive load)
Rise time (10 - 90%)
out put volt age step
time, (100% load)
time, (10% load)
Fall time (90 - 10%)
out put volt age step
time, (100% load)
time, (10% load)
Re cov ery time
re cov ery within
di/dt of load step
time, @ 50 - 100% load step
max. de vi a tion
@ 230 VAC in put volt age
CC - op er a tion 5 V / 5 mA = logic 1
with + 5 V, 1 mA or re lay con tact
CV-mode, CC-mode
Mains on/off, CV- and CC-potmeter
ES 015-10 ES 030-5 ES 075-2 ES 0300-0.45
0 → 15 V
7 ms
3 ms
15 → 0 V
7 ms
70 ms
ES 015-10 ES 030-5 ES 075-2 ES 0300-0.45
50 mV
250 mA/µs
100 µs
160 mV
0 → 30 V
15 ms
6 ms
30 → 0 V
15 ms
150 ms
50 mV
125 mA/µs
100 µs
160 mV
0 → 75 V
17 ms
7 ms
75 → 0 V
17 ms
160 ms
50 mV
70 mA/µs
100 µs
150 mV
0 → 300 V
10 ms
4 ms
300 → 0 V
10 ms
100 ms
200 mV
6 mA/µs
130 µs
700 mV
Out put im ped ance
CV, 0-100 kHz
Pul sat ing load
max. tol er a ble AC com po nent
of load cur rent
f > 1 kHz
f < 1 kHz
In su la tion
in put / out put
creepage / clear ance
in put / case
out put / case
Safety
EMC Power Sup ply Stan dard
Ge neric Emis sion
Ge neric Im mu nity
Op er at ing Tem per a ture at full load
< 100 mOhm < 200 mOhm < 250 mOhm < 5 Ohm
2 A rms
10 A peak
2 A rms
5 A peak
2 A rms
2 A peak
2 A rms
0.45 A peak
3750 Vrms (1 min.)
8 mm
2500 Vrms
600 V DC
EN 60950 / EN 61010
EN 61204-3,
Emis sion: res i den tial, light in dus trial en vi ron ment (CISPR22-Class B)
Im mu nity: in dus trial en vi ron ment
EN 61000-6-3, res i den tial, light in dus trial en vi ron ment (EN 55022 B)
EN 61000-6-2, in dus trial en vi ron ment
– 20 to + 50 °C
de rate out put to 75% at 60 °C
Hu mid ity
max. 95% RH, non con dens ing, up to 40 °C
max. 75% RH, non con dens ing, up to 50 °C
Stor age tem per a ture
Ther mal pro tec tion
Out put shuts down in case of in suf fi cient cool ing
MTBF
Rev. Sept. 2012 SPECIFICATIONS Page 1 - 3
– 40 to + 85 °C
500 000 hrs
ES150
Hold-Up time (230 VAC in put)
Vout = 100% , Iout = 100%
Vout = 85% , Iout = 100%
Vout = 100% , Iout = 50%
Turn on de lay (230 VAC in put)
af ter mains switch on
In rush cur rent
Se ries op er a tion
max. to tal volt age
Mas ter / Slave op er a tion
Par al lel op er a tion
max. to tal cur rent
Mas ter / Slave op er a tion
Re mote sens ing (op tional)
max. volt age drop per load lead
Over Volt age Limit (fixed)
Po ten ti om eters
front panel con trol with knobs
res o lu tion
screw driver ad just ment
at front panel
25 ms
40 ms
60 ms
250 ms
10 A with NTC re sis tor 30 Ohms cold re sis tance
ES 015-10 ES 030-5 ES 075-2 ES 0300-0.45
600 V
with op tional ex ter nal Mas ter / Slave Adapter
no limit
max. 4 units
op tion P119 op tion P120 op tion P121 op tion P122
2 V
Note: volt age drop across load leads will sub tract from max. avail able out put volt age
max. 18 V max. 40 V max. 90 V max. 330 V
stan dard
0.03%
op tion P001
Me ters
scale volt age
scale cur rent
ac cu racy V-me ter
ac cu racy A-me ter
In put Con nec tor
Out put Ter mi nals
Pro gram ming con nec tor
Cool ing
En clo sure de gree of pro tec tion
Di men sions (h x w x d)
Weight
CV = Con stant Volt age
CC = Con stant Cur rent
3.5 digit
0 - 15.00 V
0 - 10.00 A
0.5% + 2 dig its
1% + 2 dig its
3.5 digit
0 - 30.0 V
0 - 5.00 A
0.5% + 2 dig its
1% + 2 dig its
3.5 digit
0 - 75.0 V
0 - 2.00 A
0.5% + 2 dig its
1% + 2 dig its
3.5 digit
0 -300 V
0 - 450 mA
0.5% + 2 dig its
1% + 2 dig its
Euro-con nec tor at rear panel 10 Amp / 65 °C IEC320/C14, EN60320/C14
Stan dard: 4 mm safety sock ets at front-panel
Op tion: screw ter mi nals (0.2-4 mm2) at rear-panel (sock ets at front re moved)
only com bined with re mote sens ing, see re mote sens ing for op tion
num bers (P119 - 122)
15 pole D-con nec tor at rear panel (FE MALE)
Con vec tion cool ing
IP20
52 x 222 x 202 mm
1.7 kg
OVL = Over Volt age Limit
Spec i fi ca tions mea sured at t
Vin = 230 VAC, 50 Hz un less oth er wise noted.
Page 1 - 4 SPECIFICATIONS Rev. Sept. 2012
= 25 ± 5 °C and
amb
Connections pro gram ming con nec tor
Di men sions
ES150
Typical Applications
• Test and measurement • Component device testing
• Controlled battery charging • ATE in industrial production lines • Medical research equipment
• Electronic Circuit Development • Laboratory analysis • Accurate current sources
Available Options
In creased Out put Power
The conservatively rated unit
allows to deliver extra output with
the same reliability. At some
derating, either the maximum
output voltage or the maximum output current can
be increased by about 10%.
• Order Code - P069
Se quencer
Arbitrary Waveform generator
or standalone automation.
The sequencer is integrated
in the Ethernet controller.
Order Code - P150
•
High Volt age Iso la tion
A higher output isolation
allows series operation
up to 1000V.
• Order Code - P089
Rear Power Out put
and Re mote Sensing
Output terminals at the rear
panel instead of bind posts
at the front panel, includes
remote sensing.
• Order Code - P119 - 122
Se cured Volt age
and Cur rent Set ting
For a maximum security, the
CV/CC settings can be
adjusted with a
screwdriver only and are protected with a
plastic cap from accidental adjusting.
• Order Code - P001
Soft ware con trol
and In ter faces
Factory installed programming
interfaces:
19" rack. Several configurations possible
• RS232 controller - P148
• Ethernet contr. (incl. sequencer) - P150
• PROFIBUS controller - P279
• CANBUS controller - P280
External programming interface modules :
• IEEE488 controller module
• ISO AMP module
Rev. Sept. 2012 SPECIFICATIONS Page 1 - 5
with multiple ES and / or PSC or ISO AMP
modules.
19" Rack
Mount ing Adapter
Using the 19" mounting
adapters, it is possible to
position the ES units in a
19" rack mount ing
Panel RA 19-1ES for one ES
Panel RA 19-2ES for two ES
Panel RA 19-ES-PSC for one ES
and one PSC-488 module
Rear Con nec tions
Stan dard unit:
An a log pro gram ming
Linecord supplied
ES150
In put Con nec tor
Switches Man ual / Pro gram ming
An a log pro gram ming
Op tion P150:
Ethernet pro gram ming
Ethernet pro gram ming
Switches Man ual / Pro gram ming
Com bi na tion pos si ble with option P119-122
Op tion P148:
RS232 pro gram ming
Switches Man ual / Pro gram ming
RS232 pro gram ming
Com bi na tion pos si ble with option P119-122
Op tion P119 - 122:
Rear power out let / rem. sens ing
Rear power out / Re mote sensing
Switches Man ual / Pro gram ming
An a log pro gram ming
Page 1 - 6 SPECIFICATIONS Rev. Sept. 2012
