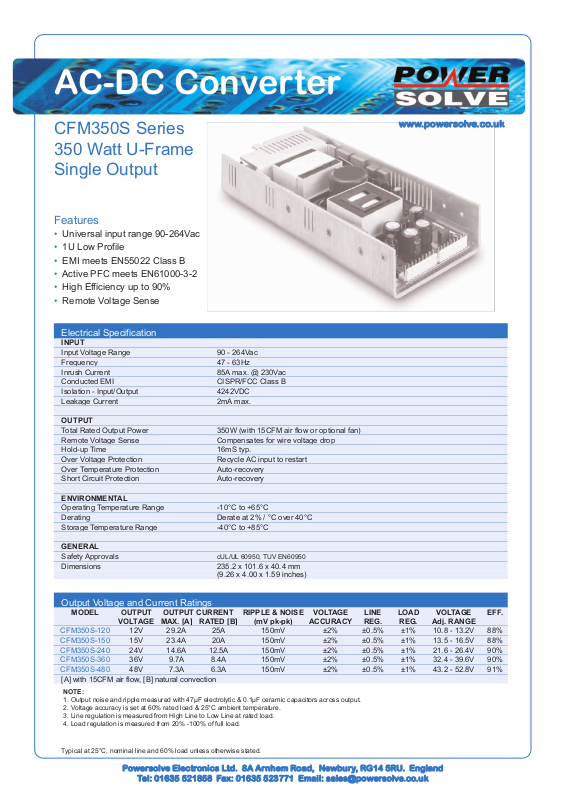

AC-DC Converter
CFM350S Series
350 Watt U-Frame
Single Output
Features
• Universal input range 90-264Vac
• 1U Low Profile
• EMI meets EN55022 Class B
• Active PFC meets EN61000-3-2
• High Efficiency up to 90%
• Remote Voltage Sense
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Inrush Current 85A max. @ 230Vac
Conducted EMI CISPR/FCC Class B
Isolation - Input/Output 4242VDC
Leakage Current 2mA max.
www.powersolve.co.uk
OUTPUT
Total Rated Output Power 350W (with 15CFM air flow or optional fan)
Remote Voltage Sense Compensates for wire voltage drop
Hold-up Time 16mS typ.
Over Voltage Protection Recycle AC input to restart
Over Temperature Protection Auto-recovery
Short Circuit Protection Auto-recovery
ENVIRONMENTAL
Operating Temperature Range -10°C to +65°C
Derating Derate at 2% / °C over 40°C
Storage Temperature Range -40°C to +85°C
GENERAL
Safety Approvals
Dimensions 235.2 x 101.6 x 40.4 mm
cUL/UL 60950, TUV EN60950
(9.26 x 4.00 x 1.59 inches)
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT CURRENT RIPPLE & NOISE VOLTAGE LINE LOAD VOLTAGE EFF.
CFM350S-120 12V 29.2A 25A 150mV ±2% ±0.5% ±1% 10.8 - 13.2V 88%
CFM350S-150 15V 23.4A 20A 150mV ±2% ±0.5% ±1% 13.5 - 16.5V 88%
CFM350S-240 24V 14.6A 12.5A 150mV ±2% ±0.5% ±1% 21.6 - 26.4V 90%
CFM350S-360 36V 9.7A 8.4A 150mV ±2% ±0.5% ±1% 32.4 - 39.6V 90%
CFM350S-480 48V 7.3A 6.3A 150mV ±2% ±0.5% ±1% 43.2 - 52.8V 91%
[A] with 15CFM air flow, [B] natural convection
NOTE:
1. Output noise and ripple measured with 47µF electrolytic & 0.1µF ceramic capacitors across output.
2. Voltage accuracy is set at 60% rated load & 25°C ambient temperature.
3. Line regulation is measured from High Line to Low Line at rated load.
4. Load regulation is measured from 20% -100% of full load.
VOLTAGE MAX. [A] RATED [B] (mV pk-pk) ACCURACY REG. REG. Adj. RANGE
Typical at 25°C, nominal line and 60% load unless otherwise stated.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
AC-DC Converter
Derating Curve
Mechanical and Connection Details
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
