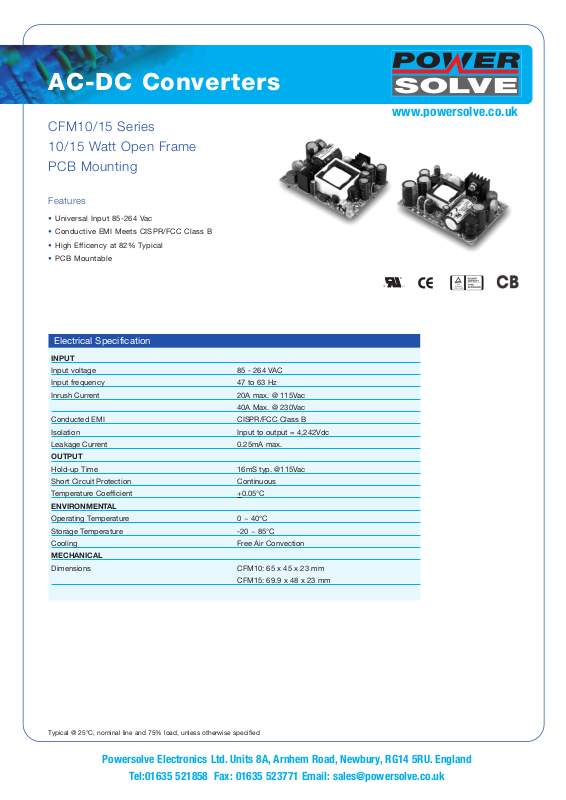

AC-DC Converters
®
US
CFM10/15 Series
10/15 Watt Open Frame
PCB Mounting
Features
• Universal Input 85-264 Vac
• Conductive EMI Meets CISPR/FCC Class B
• High Efficency at 82% Typical
• PCB Mountable
Electrical Specification
INPUT
Input voltage 85 - 264 VAC
Input frequency 47 to 63 Hz
Inrush Current 20A max. @ 115Vac
40A Max. @ 230Vac
Conducted EMI CISPR/FCC Class B
Isolation Input to output = 4,242Vdc
Leakage Current 0.25mA max.
OUTPUT
Hold-up Time 16mS typ. @115Vac
Short Circuit Protection Continuous
ficient +
emperatur
T
ENVIRONMENTAL
Operating Temperature 0 ~ 40°C
Storage T
Cooling Free Air Convection
MECHANICAL
Dimensions CFM10: 65 x 45 x 23 mm
e Coef
emperatur
e
0.05°C
C
-20 ~ 85
CFM15: 69.9 x 48 x 23 mm
°
www.powersolve.co.uk
Typical @ 25°C, nominal line and 75% load, unless otherwise specified
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
AC-DC Converters
0.91(23.0)
0.150(3.81)
0.040(1.02)
0.070(1.78)
1.77(45.0)
0.885(22.50)
0.196(5.0)
0.220(5.50)
2.126(54)
2.56(65.0)
0.491(12.47)
1.280(32.48)
VR
+Vo
-Vo
ACL
ACN
0.91(23.0)
0.150(3.81)
0.040(1.02)
0.070(1.78)
1.89(48)
0.945(24)
0.157(4.0)
0.157(4.0)
2.441(62)
2.75(69.9)
0.492(12.5)
1.398(35.51)
ACL
ACN
+Vo
-Vo
VR
10 Watt Series 15 Watt Series
www.powersolve.co.uk
10 Watt Series
MODEL OUTPUT MAX MIN RIPPLE & VOLTAGE LINE LOAD EFF
VOLTAGE LOAD LOAD NOISE ACCURACY REGULATION REGULATION %
CFM1001S 5V 2000mA 0A 50mV ±1% ±0.5% ±1% 70
CFM1002S 12V 840mA 0A 1% ±1% ±0.5% ±1% 75
CFM1003S 15V 670mA 0A 1% ±1% ±0.5% ±1% 75
CFM1005S 24V 420mA 0A 1% ±1% ±0.5% ±1% 78
CFM1007S 3.3V 2500mA 0A 50mV ±1% ±0.5% ±1% 65
CFM1009S 9V 1120mA 0A 1% ±1% ±0.5% ±1% 72
15 Watt Series
MODEL OUTPUT MAX MIN RIPPLE & VOLTAGE LINE LOAD EFF
VOLTAGE LOAD LOAD NOISE ACCURACY REGULATION REGULATION %
CFM1501S 5V 3000mA 0A 1% ±1% ±0.5% ±1% 73
CFM1502S 12V 1250mA 0A 1% ±1% ±0.5% ±1% 80
CFM1503S 15V 1000mA 0A 1% ±1% ±0.5% ±1% 80
CFM1505S 24V 630mA 0A 1% ±1% ±0.5% ±1% 82
CFM1507S 3.3V 3000mA 0A 50mV ±1% ±0.5% ±1% 70
CFM1509S 9V 1670mA 0A 1% ±1% ±0.5% ±1% 75
Note:
1. Add a 0.1µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measuring @20MHz BW.
2. Line regulation is measured from High Line to Low Line with full load.
3. Load regulation is measured from Full to 10% load.
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
