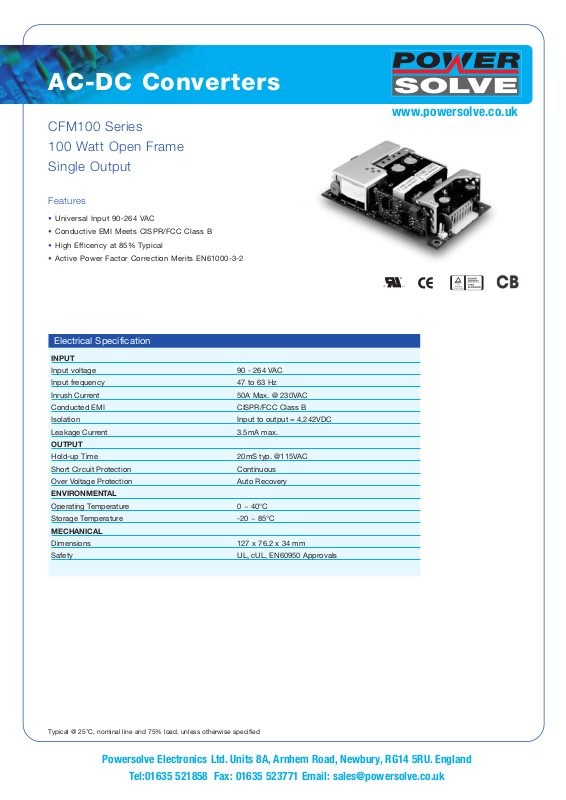

Powersolve CFM100 User Manual

AC-DC Converters

®

US

CFM100 Series

100 Watt Open Frame

Single Output

Features

• Universal Input 90-264 VAC

• Conductive EMI Meets CISPR/FCC Class B

• High Efficency at 85% Typical

• Active Power Factor Correction Merits EN61000-3-2

Electrical Specification

INPUT

Input voltage 90 - 264 VAC

Input frequency 47 to 63 Hz

Inrush Current 50A Max. @ 230VAC

Conducted EMI CISPR/FCC Class B

Isolation Input to output = 4,242VDC

Leakage Current 3.5mA max.

OUTPUT

Hold-up Time 20mS typ. @115VAC

Short Circuit Protection Continuous

Over Voltage Protection Auto Recovery

ENVIRONMENT

Operating Temperature 0 ~ 40°C

Storage Temperature -20 ~ 85°C

MECHANICAL

Dimensions 127 x 76.2 x 34 mm

Safety UL, cUL, EN60950 Approvals

AL

www.powersolve.co.uk

ypical @ 25

T

C, nominal line and 75% load, unless other

°

wise specified

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]

AC-DC Converters

33.6

30

64.8 5.7

76.2

1.6

2

127

115.6

ACL

ACN

5.7

1
2
3
4
5
6
7
8

www.powersolve.co.uk

MODEL OUTPUT MAX MIN RIPPLE & VOLTAGE LINE LOAD

VOLTAGE LOAD LOAD NOISE ACCURACY REGULATION REGULATION

CFM100S050 5V 20 A 0A 1% ±1% ±0.5% ±1%

CFM100S090 9V 11.2 A 0A 1% ±1% ±0.5% ±1%

CFM100S120 12V 8.4 A 0A 1% ±1% ±0.5% ±1%

CFM100S150 15V 6.7 A 0A 1% ±1% ±0.5% ±1%

CFM100S180 18V 5.6 A 0A 1% ±1% ±0.5% ±1%

CFM100S240 24V 4.2 A 0A 1% ±1% ±0.5% ±1%

CFM100S480 48V 2.1 A 0A 1% ±1% ±0.5% ±1%

Note:

1. CFM100S05/090/120: Add a 0.1 µF ceramic capacitor and a 220 µF E.L. capacitor to output for ripple & noise measuring @ 20MHz
BW. Other Models: Add a 0.1 µF ceramic capacitor and a 10 µF E.L capacitor for ripple & noise measuring @ 20MHz BW.

2. Line Regulation is Measured from High Line to Low Line with Full Load.

3. Load Regulation is Measured from Full to 10% Load.

+

4. Dimensions tolerance:

5. Connectors: AC input : Molex 5277 or equivalent

DC output : Molex 5273 or equivalent

6. DC output pin 1, 2, 3, 4: Vout (+)
DC output pin 5, 6, 7. 8 : Vout (-)

1mm
