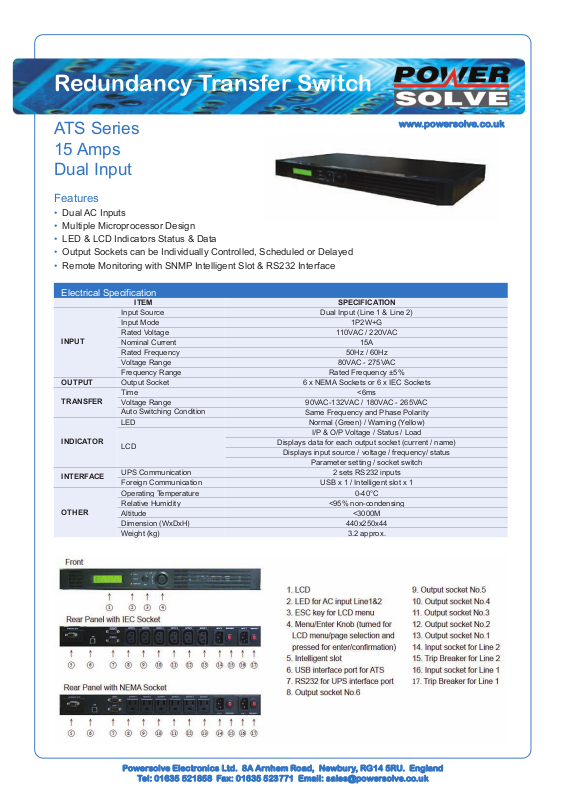

Redundancy Transfer Switch
ATS Series
www.powersolve.co.uk
15 Amps
Dual Input
Features
• Dual AC Inputs
• Multiple Microprocessor Design
• LED & LCD Indicators Status & Data
• Output Sockets can be Individually Controlled, Scheduled or Delayed
• Remote Monitoring with SNMP Intelligent Slot & RS232 Interface
Electrical Specification
INPUT
OUTPUT Output Socket 6 x NEMA Sockets or 6 x IEC Sockets
TRANSFER
INDICATOR
INTERFACE
OTHER
ITEM SPECIFICATION
Input Source Dual Input (Line 1 & Line 2)
Input Mode 1P2W+G
Rated Voltage 110VAC / 220VAC
Nominal Current 15A
Rated Frequency 50Hz / 60Hz
Voltage Range 80VAC - 275VAC
Frequency Range Rated Frequency ±5%
Time <6ms
Voltage Range 90VAC-132VAC / 180VAC - 265VAC
Auto Switching Condition
LED Normal (Green) / Warning (Yellow)
LCD
UPS Communication 2 sets RS232 inputs
Foreign Communication USB x 1 / Intelligent slot x 1
Operating Temperature 0-40°C
Relative Humidity <95% non-condensing
Altitude <3000M
Dimension (WxDxH) 440x250x44
Weight (kg) 3.2 approx.
Same Frequency and Phase Polarity
I/P & O/P Voltage / Status / Load
Displays data for each output socket (current / name)
Displays input source / voltage / frequency/ status
Parameter setting / socket switch
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
