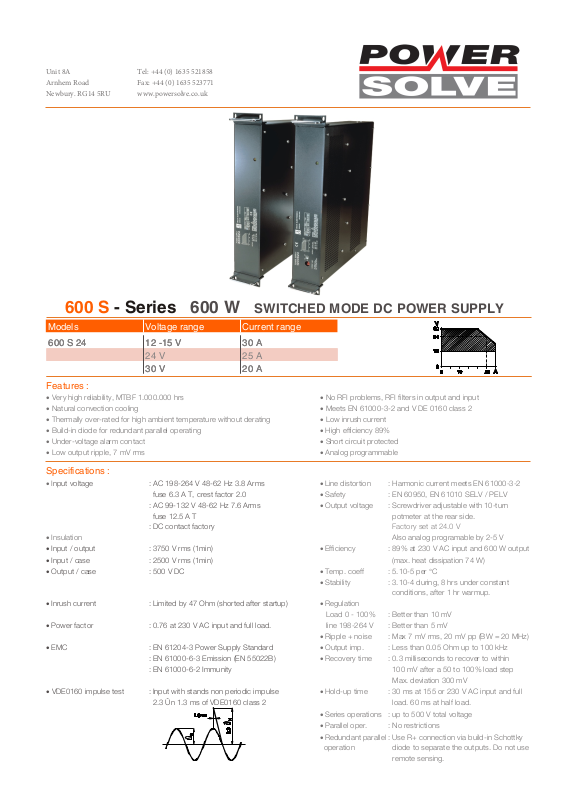

600 S - Se ries 600 W SWITCHED MODE DC POWER SUP PLY
Mod els Volt age range Cur rent range
600 S 24 12 -15 V 30 A
600 S 24 12 -15 V 30 A
24 V 25 A
24 V 25 A
30 V 20 A
30 V 20 A
Fea tures :
• Very high re li abil ity, MTBF 1.000.000 hrs • No RFI prob lems, RFI fil ters in out put and in put
• Natural convection cooling • Meets EN 61000-3-2 and V DE 0160 class 2
• Thermally over-rated for high ambient temperature without derating • Low inrush current
• Build-in diode for redundant parallel operating • High efficiency 89%
• Under-voltage alarm contact • Short circuit protected
• Low output ripple, 7 mV rms • Analog programmable
Spec i fi ca tions :
• Input voltage : AC 198-264 V 48-62 Hz 3.8 Arms • Line distortion : Harmonic current meets EN 61000-3-2
fuse 6.3 A T, crest factor 2.0 • Safety : EN 60950, EN 61010 SELV / PELV
: AC 99-132 V 48-62 Hz 7.6 Arms • Output voltage : Screwdriver adjustable with 10-turn
fuse 12.5 A T potmeter at the rear side.
: DC contact factory Factory set at 24.0 V
• Insulation Also analog programable by 2-5 V
• Input / output : 3750 V rms (1min) • Efficiency : 89% at 230 V AC input and 600 W output
• Input / case : 2500 V rms (1min) (max. heat dissipation 74 W)
• Output / case : 500 V DC • Temp. coeff : 5.10-5 per °C
• Stability : 3.10-4 during, 8 hrs under constant
conditions, after 1 hr warmup.
• Inrush current : Limited by 47 Ohm (shorted after startup) • Regulation
Load 0 - 100% : Better than 10 mV
• Power factor : 0.76 at 230 V AC input and full load. line 198-264 V : Better than 5 mV
• Ripple + noise : Max 7 mV rms, 20 mV pp (BW = 20 MHz)
• EMC : EN 61204-3 Power Supply Standard • Output imp. : Less than 0.05 Ohm up to 100 kHz
: EN 61000-6-3 Emission (EN 55022B) • Recovery time : 0.3 milliseconds to recover to within
: EN 61000-6-2 Immunity 100 mV after a 50 to 100% load step
Max. deviation 300 mV
• VDE0160 impulse test : Input with stands non periodic impulse • Hold-up time : 30 ms at 155 or 230 V AC input and full
2.3 Ûn 1.3 ms of VDE0160 class 2 load. 60 ms at half load.
• Series operations : up to 500 V total voltage
• Parallel oper. : No restrictions
• Redundant parallel : Use R+ connection via build-in Schottky
operation diode to separate the outputs. Do not use
remote sensing.
Page 2
600S24
• Under voltage alarm contact : Changes over when output voltage drops • Overload Protection: Continuous overload and short circuit
to 10% below the the set value. protection does not harm the unit. At
Gold contact, rating 100 mA/30 V. short circuit the power supply
• Remote control : Is possible with a 10 kΩ potmeter. produces an audible bleep.
• Remote programming : Output voltage is programmable with 2-5 V, • Voltage limit : For safety an extra regulation circuit limits
corresponding with 12-30 V. Programming the output voltage to about 31 V in case
speed is 100 ms from 12-30 V at max current. of malfunction of the normal regulation.
Programming input is not isolated (connected This limit is internally adjustable 20-31 V
to - output). (R111).
• Remote sensing : max. 3 V per load lead. However the sum of • Overtemp. pro- : With insufficient cooling the
the voltage across load + leads cannot tection shuts down.
exceed 30 V. • Led lamps : Green LEDs on front and rear panel
With parallel operation remote sensing is not indicate output voltage.
recommended. • Wall mounting : Any position, as long as the air can flow
• Remote on/off ` : By 5 V, optocoupler isolated. freely along the unit for cooling.
• Ambient temperature
Storage : -40 to + 85 °C
Operating : -20 to + 60 °C
Derate to 20% at 75 °C

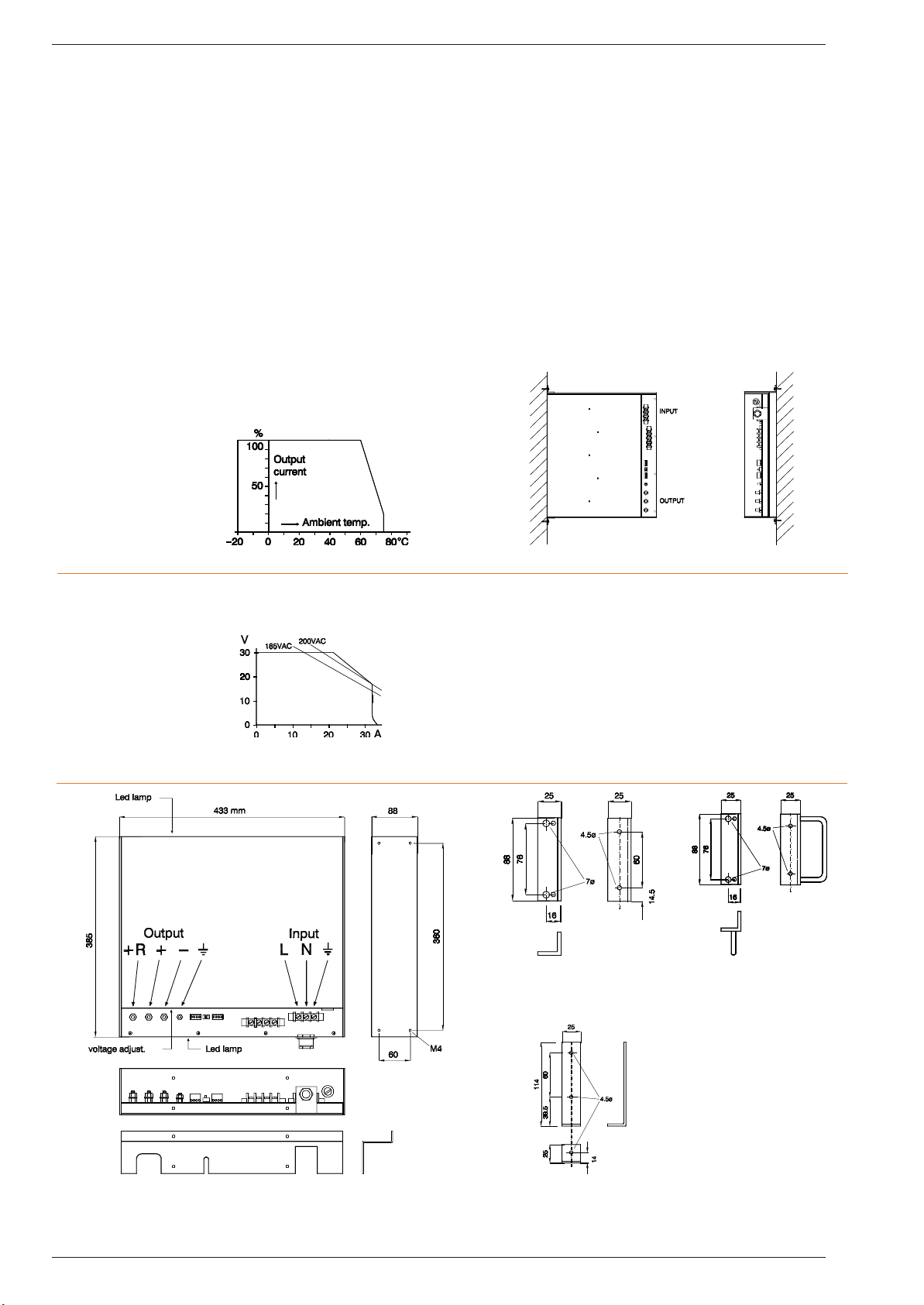

Tem per a ture derating
• Current limit : From 30 to 18 V the current limit follows • 19" rack mounting : With two brackets H88 with handle the
more or less a constant power curve.Below unit can be 19" rack mounted
18 V it resembles a constant current curve. (2U height)
• MTBF : 1.000.000 hrs
• Dim and weight : Height 88mm
Nor mal cur rent limit and de rat ing at
Two ways of ver ti cal mounting
Width 433 mm
Depth 385 mm
Weight 10.5 kg
low in put volt age.
Bracket H88 for ver ti cal
wall mount ing
(2 pcs re quired )
Bracket H88 with han dle
for 19" rack mounting
(2 pcs re quired )
Cover of con nec tion panel.
Bracket H114 for ver ti cal
wall mount ing.
( 4 pcs re quired )
Page 2 SPECIFICATIONS Rev. Sept. 2012
